Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#76644) — 228 parça

75 75 345 75 345 75 198 198 198 198 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
75	07.039 GUSSET; 5TH C/MBR EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98011-863-0	04	1	0907-	●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98011-863-0	04	1	0907-	●
75	07.039 GUSSET; 5TH C/MBR (B)	8-98011-863-0	04	1	0907-		●	●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98006-124-1	01	1	0907-	●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98011-312-1	01	1	0907-	●
139	07.012 MEMBER; CROSS,6TH EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97384-745-0	01	1	0907-	●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97384-745-0	01	1	0907-	●
139	07.012 MEMBER; CROSS,6TH (A)	8-97384-745-0	01	1	0907-		●	●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98006-168-1	01	1	0907-	●
198	07.039 GUSSET; 6TH C/MBR EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) RH-LOWER & LH-UPPER	8-94258-068-1	02	1	0907-	●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (A) RH-LOWER & LH-UPPER	8-94258-068-1	02	1	0907-	●
198	07.039 GUSSET; 6TH C/MBR (A) RH-LOWER & LH-UPPER	8-94258-068-1	02	1	0907-		●	●
198	07.039 GUSSET; 6TH C/MBR EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) RH-UPPER & LH-LOWER	8-94258-069-1	02	1	0907-	●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (A) RH-UPPER & LH-LOWER	8-94258-069-1	02	1	0907-	●
198	07.039 GUSSET; 6TH C/MBR (A) RH-UPPER & LH-LOWER	8-94258-069-1	02	1	0907-		●	●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98011-865-0	02	1	0907-	●
345	07.012 MEMBER; CROSS,5TH	8-98011-861-2	01	1	0907-	●	●	●

533 533 105 215 105 215 101 101 446

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
101	07.112 BRACKET; RR SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97034-156-1	02	1	0907-	●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97034-156-1	02	1	0907-	●
101	07.112 BRACKET; RR SPR,FRT (B)	8-97034-156-1	02	1	0907-		●	●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98034-042-0	02	1	0907-	●
105	07.112 BRACKET; RR SPR,RR EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98032-488-0	01	1	0907-	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98032-488-0	01	1	0907-	●
105	07.112 BRACKET; RR SPR,RR (B)	8-98032-488-0	01	1	0907-		●	●
105	07.112 BRACKET; RR SPR,RR EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98032-489-0	01	1	0907-	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98032-489-0	01	1	0907-	●
105	07.112 BRACKET; RR SPR,RR (B)	8-98032-489-0	01	1	0907-		●	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98031-058-0	01	1	0907-	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98031-059-0	01	1	0907-	●
215	07.524 BUSHING; BRKT,RR SPRING EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97184-699-1	04	1	0907-	●
215	07.524 BUSHING; BRKT,RR SPRING WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0)	8-97184-699-1	04	1	0907-	●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	0907-		●	●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98060-184-1	01	1	0907-	●	●
533	07.010 STIFFENER; REINFORCEMENT	8-98006-680-1	02	1	0907-0907	●		●
533	07.010 STIFFENER; REINFORCEMENT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98006-680-1	02	1	0907-0907		●
533	07.010 STIFFENER; REINFORCEMENT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	0908-1008	●	●	●
533	07.010 STIFFENER; REINFORCEMENT FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	0908-1008	●
533	07.010 STIFFENER; REINFORCEMENT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	1009-	●	●	●
533	07.010 STIFFENER; REINFORCEMENT FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	1009-	●		●

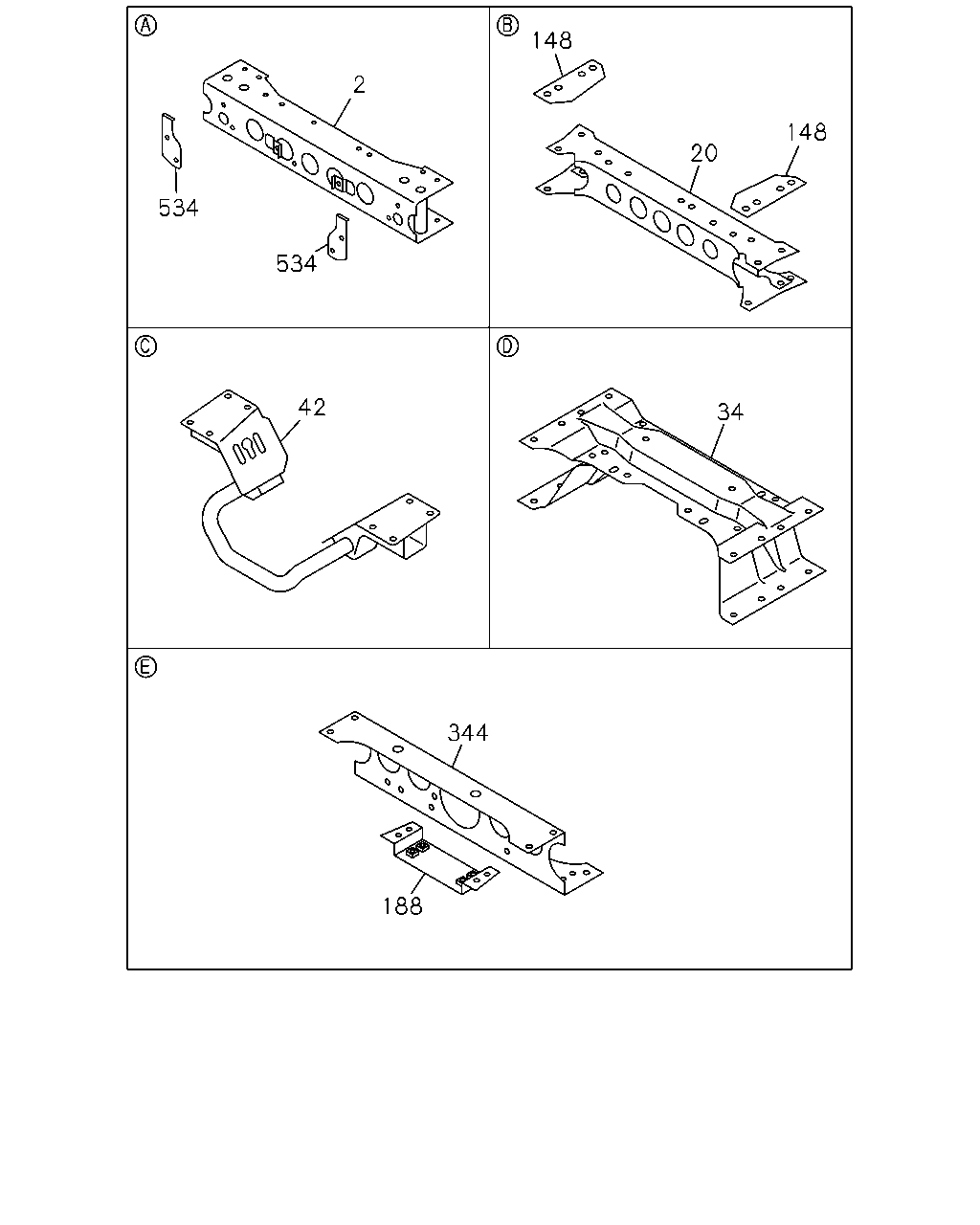

148 2 148 20 534 534 42 34 344 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	07.010 MEMBER; CROSS,1ST	8-97384-741-5	01	1	0907-	●	●	●
20	07.012 MEMBER; CROSS,2ND AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98038-419-2	01	1	0907-1008	●	●	●
20	07.012 MEMBER; CROSS,2ND FRT INDEPENDENT SUSPENSION(FF0)	8-98038-419-2	01	1	0907-1008	●
20	07.012 MEMBER; CROSS,2ND AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98038-419-2	01	1	1009-	●	●	●
20	07.012 MEMBER; CROSS,2ND FRT INDEPENDENT SUSPENSION(FF0)	8-98038-419-2	01	1	1009-	●		●
20	07.012 MEMBER; CROSS,2ND EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98088-281-1	01	1	0907-	●	●	●
34	07.012 MEMBER; CROSS,3RD AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97384-743-1	01	1	0907-1008	●	●	●
34	07.012 MEMBER; CROSS,3RD FRT INDEPENDENT SUSPENSION(FF0)	8-97384-743-1	01	1	0907-1008	●
34	07.012 MEMBER; CROSS,3RD AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97384-743-1	01	1	1009-	●	●	●
34	07.012 MEMBER; CROSS,3RD FRT INDEPENDENT SUSPENSION(FF0)	8-97384-743-1	01	1	1009-	●		●
34	07.012 MEMBER; CROSS,3RD EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98081-959-0	01	1	0907-	●	●	●
42	07.011 MEMBER; CROSS,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98006-224-1	01	1	0907-1008	●
42	07.011 MEMBER; CROSS,ENG MTG	8-98006-224-1	01	1	0907-1008		●	●
42	07.011 MEMBER; CROSS,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98006-224-1	01	1	1009-	●		●
42	07.011 MEMBER; CROSS,ENG MTG	8-98006-224-1	01	1	1009-		●
148	07.105 SPACER; C/MBR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98081-958-0	04	1	0907-	●	●	●
188	07.039 BRACKET; SUPPORT,CTR BRG WHEEL BASE 3300MM(33W)	8-97083-157-1	01	1	0907-	●	●
188	07.039 BRACKET; SUPPORT,CTR BRG	8-97083-157-1	01	1	0907-			●
344	07.012 MEMBER; CROSS,4TH WHEEL BASE 3300MM(33W)	8-98005-959-1	01	1	0907-	●	●
344	07.012 MEMBER; CROSS,4TH	8-98005-959-1	01	1	0907-			●
534	07.869 BRACKET; BACK BAR	8-98061-413-0	01	1	0907-	●	●	●
534	07.869 BRACKET; BACK BAR	8-98061-414-0	01	1	0907-	●	●	●

140 140 140 217 217 356 356 43 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
43	09.003 BRACKET; CAB MTG,RR	8-98035-851-1	01	1	0907-			●
43	09.003 BRACKET; CAB MTG,RR	8-98035-852-1	01	1	0907-			●
140	07.112 BRACKET; S/ABS,RR EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98006-176-0	01	1	0907-	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98006-176-0	01	1	0907-	●
140	07.112 BRACKET; S/ABS,RR (B)	8-98006-176-0	01	1	0907-		●	●
140	07.112 BRACKET; S/ABS,RR EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98006-180-0	01	1	0907-	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98006-180-0	01	1	0907-	●
140	07.112 BRACKET; S/ABS,RR (C)	8-98006-180-0	01	1	0907-		●	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98006-174-0	02	1	0907-	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97202-417-0	02	1	0907-	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97202-417-0	02	1	0907-	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING (B)	8-97202-417-0	02	1	0907-		●	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97163-899-1	02	1	0907-	●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98062-610-1	01	1	0907-	●	●	●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98062-611-1	01	1	0907-	●	●	●

130 24 51 165 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	07.105 BRACKET; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98029-126-0	01	1	0907-1008	●
24	07.105 BRACKET; FRT SPR,FRT	8-98029-126-0	01	1	0907-1008		●	●
24	07.105 BRACKET; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98029-126-0	01	1	1009-	●		●
24	07.105 BRACKET; FRT SPR,FRT	8-98029-126-0	01	1	1009-		●
24	07.105 BRACKET; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98029-127-0	01	1	0907-1008	●
24	07.105 BRACKET; FRT SPR,FRT	8-98029-127-0	01	1	0907-1008		●	●
24	07.105 BRACKET; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98029-127-0	01	1	1009-	●		●
24	07.105 BRACKET; FRT SPR,FRT	8-98029-127-0	01	1	1009-		●
39	07.112 BRACKET; FRT SPR,RR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94258-091-0	02	1	0907-1008	●
39	07.112 BRACKET; FRT SPR,RR	8-94258-091-0	02	1	0907-1008		●	●
39	07.112 BRACKET; FRT SPR,RR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94258-091-0	02	1	1009-	●		●
39	07.112 BRACKET; FRT SPR,RR	8-94258-091-0	02	1	1009-		●
51	07.011 BRACKET; ENG SUPPORT,OUTER EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98038-962-3	02	1	0907-1008	●
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-98038-962-3	02	1	0907-1008		●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98038-962-3	02	1	1009-	●		●
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-98038-962-3	02	1	1009-		●
130	07.014 MEMBER; CROSS,END WHEEL BASE 3300MM(33W)	8-98041-239-1	01	1	0907-	●	●
130	07.014 MEMBER; CROSS,END	8-98041-239-1	01	1	0907-			●
165	01.270 BRACKET; RAD STAY	8-98000-886-0	01	1	0907-	●	●	●

376 376 376 376 376 376 376 376 376 376 376 376 376 376 60 176 40 62 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
40	08.155 BOLT; BRKT TO FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0907-	●	●	●
60	05.601 BOLT; MBR 07.039 M10X30	0-20851-030-0	04	1	0907-	●	●	●
62	05.601 NUT; MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	0907-	●	●	●
67	07.011 NUT; C/MBR EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.085 M10 FLANGE	0-91180-210-0	04	1	0907-1008	●
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	0907-1008		●	●
67	07.011 NUT; C/MBR EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.085 M10 FLANGE	0-91180-210-0	04	1	1009-	●		●
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1009-		●
176	04.085 BOLT; C/MBR,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.890 M10X30 FLANGE	0-28051-030-0	08	1	0907-1008	●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 M10X30 FLANGE	0-28051-030-0	08	1	0907-1008		●	●
176	04.085 BOLT; C/MBR,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.890 M10X30 FLANGE	0-28051-030-0	08	1	1009-	●		●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 M10X30 FLANGE	0-28051-030-0	08	1	1009-		●
376	07.039 RIVET; FRAME 07.011 (A) D8X22 TAPER END	9-06750-822-0	AR	1	0907-	●	●	●
376	07.039 RIVET; FRAME 07.395 (B) D8X26 TAPER END	9-06750-826-0	AR	1	0907-	●	●	●
376	07.039 RIVET; FRAME (C) D10X22 TAPER END	9-06751-022-0	AR	1	0907-	●	●	●
376	07.039 RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	0907-	●	●	●
376	07.039 RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	0907-	●	●	●
376	07.039 RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	0907-	●	●	●
376	07.039 RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	0907-	●	●	●
376	07.039 RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	0907-	●	●	●
376	07.039 RIVET; FRAME (I) M10X34 TAPER END	9-06751-034-0	AR	1	0907-	●	●	●
376	07.039 RIVET; FRAME (J) D10X36 TAPER END	9-06751-036-0	AR	1	0907-	●	●	●
376	07.039 RIVET; FRAME 07.105 (K) D12X30 TAPER END	9-06751-230-0	AR	1	0907-	●	●	●
376	07.039 RIVET; FRAME 07.006 (L) D12X32 TAPER END	9-06751-232-0	AR	1	0907-	●	●	●
376	07.039 RIVET; FRAME 07.535 (M) D12X34 TAPER END	9-06751-234-0	AR	1	0907-	●	●	●
376	07.039 RIVET; FRAME 07.428 (N) D12X36 TAPER END	9-06751-236-0	AR	1	0907-	●	●	●

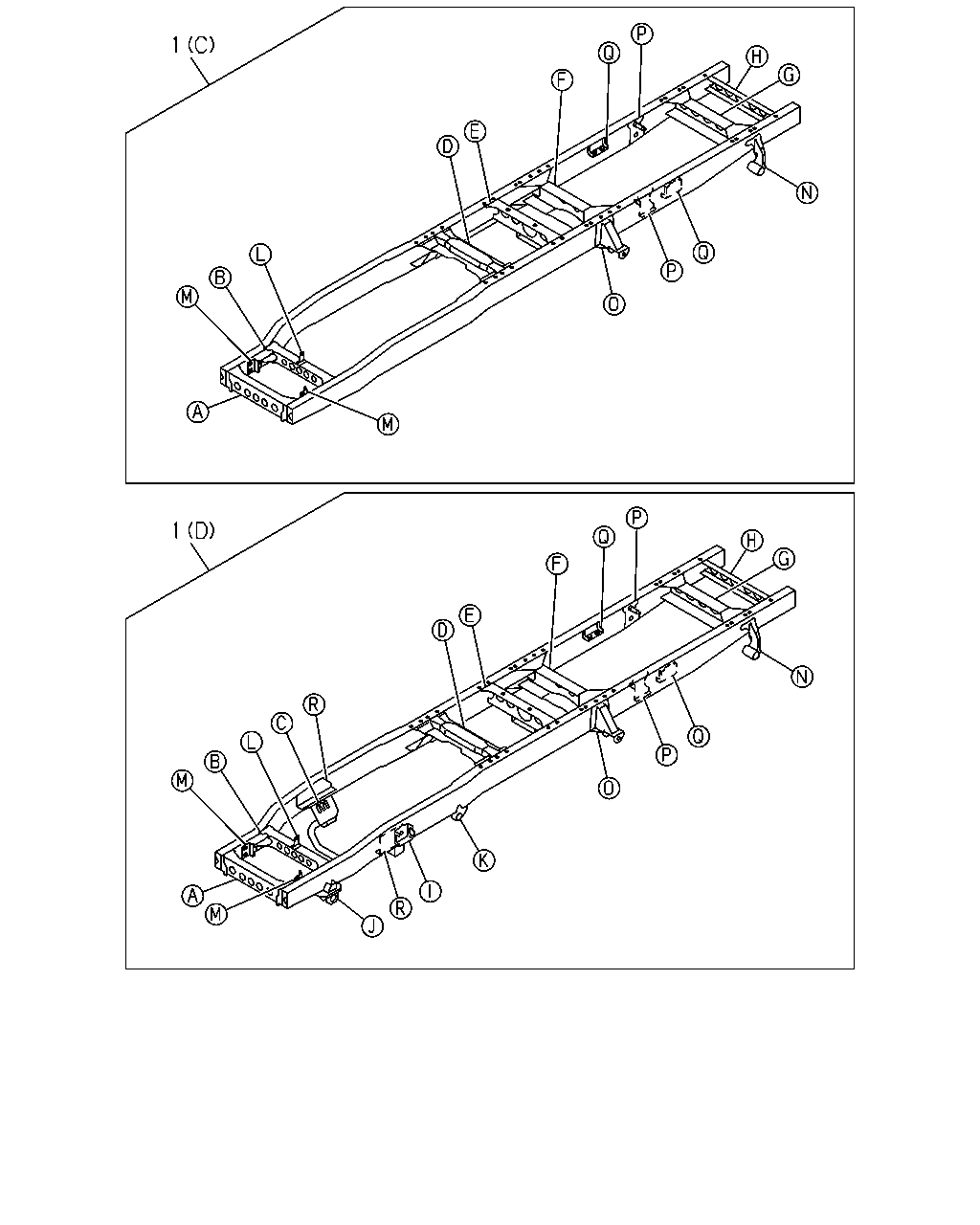

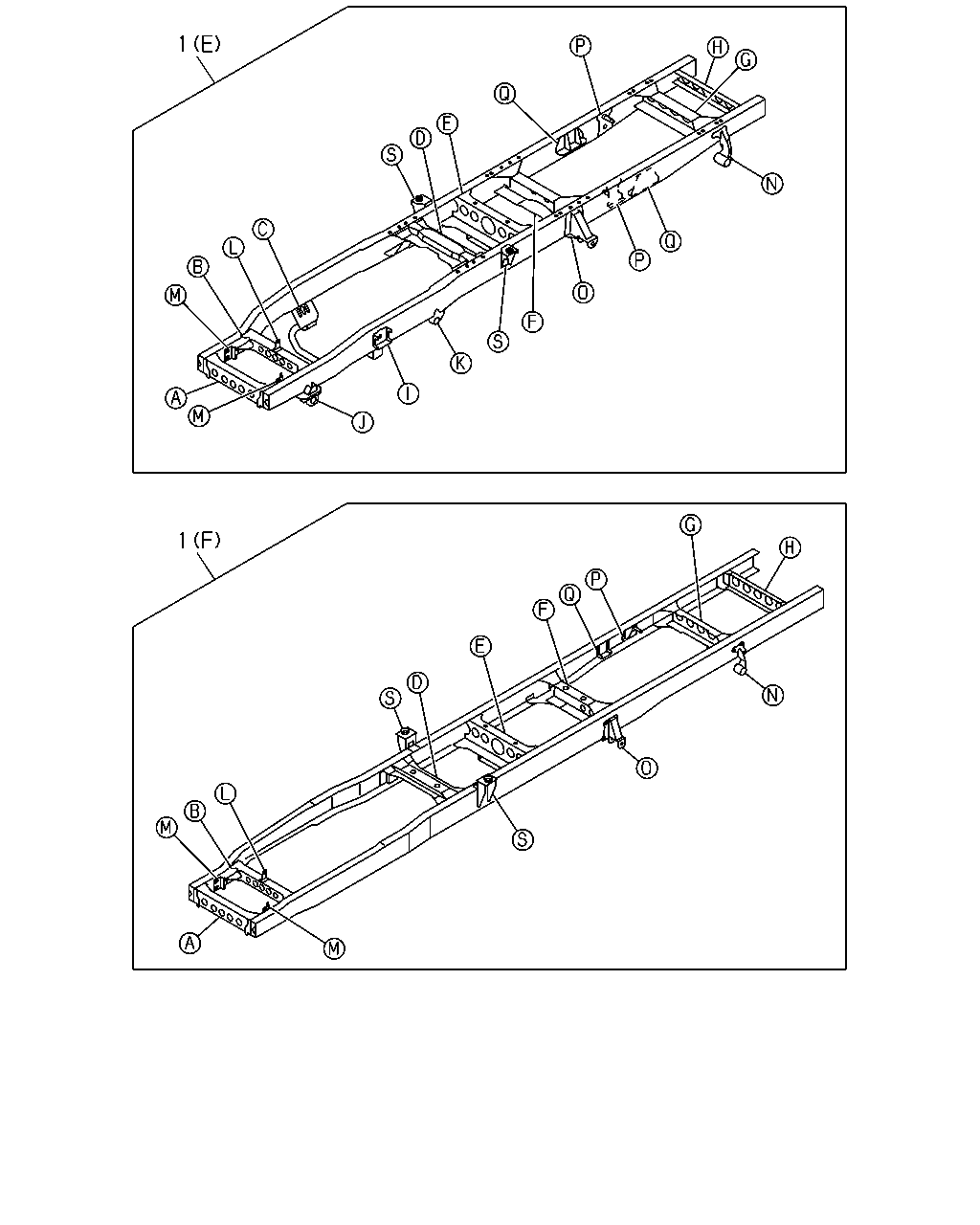

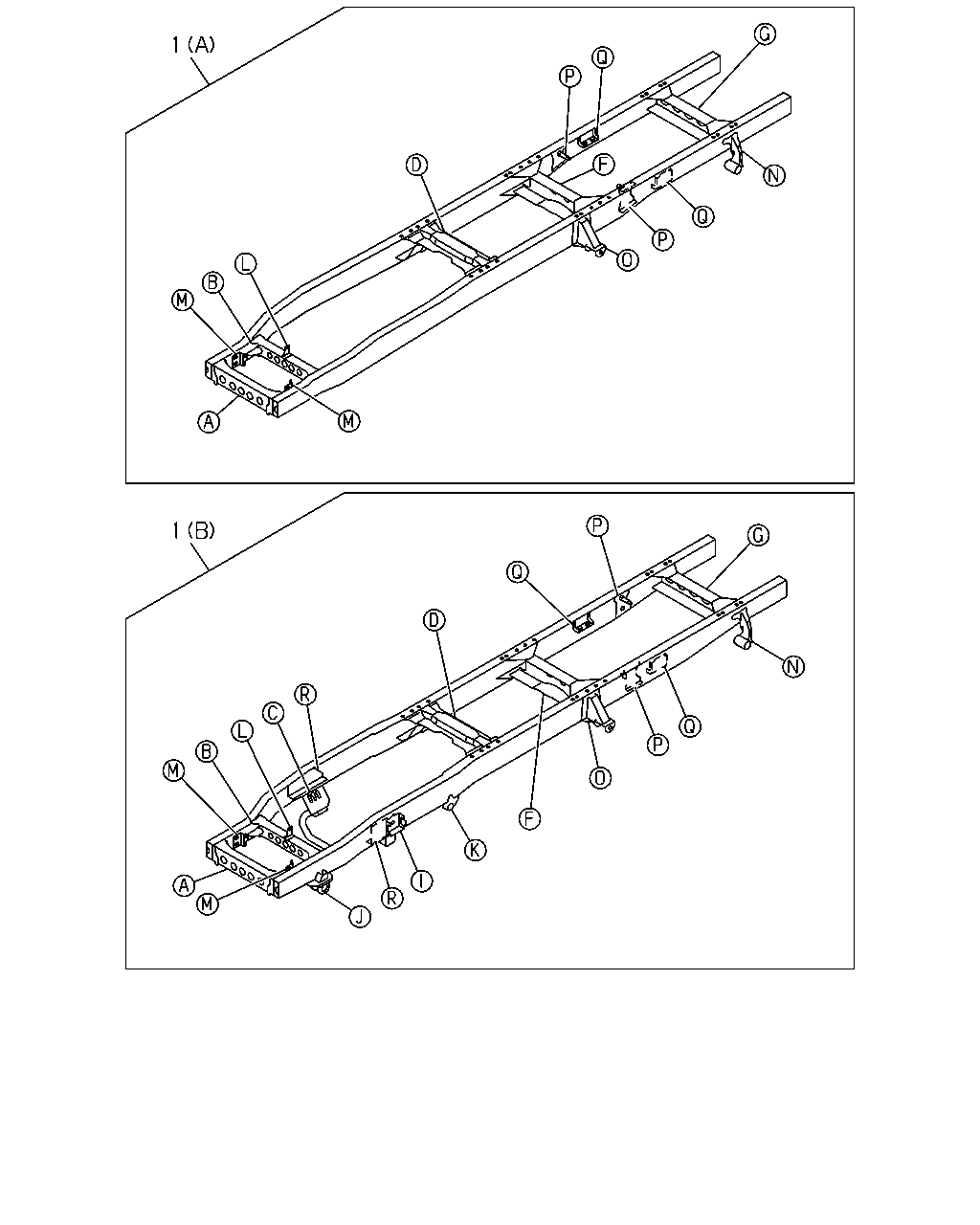

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98177-172-1	01	1	1009-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98177-171-1	01	1	1009-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98177-174-0	01	1	1009-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98177-173-0	01	1	1009-			●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98146-762-0	01	1	0907-0907	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98146-761-0	01	1	0907-0907	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98146-764-0	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98146-764-0	01	1	0907-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98146-763-0	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98146-763-0	01	1	0907-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98146-766-0	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98146-766-0	01	1	0907-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98146-765-0	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98146-765-0	01	1	0907-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98146-768-1	01	1	0907-1008			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98146-768-1	01	1	1009-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98146-767-1	01	1	0907-1008			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98146-767-1	01	1	1009-			●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98023-294-2	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98023-294-2	01	1	0907-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98023-293-2	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98023-293-2	01	1	0907-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98023-286-3	01	1	0907-0907	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98023-286-3	01	1	0908-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98023-285-3	01	1	0907-0907	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98023-285-3	01	1	0908-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98023-261-2	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98023-261-2	01	1	0907-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98023-260-2	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98023-260-2	01	1	0907-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98023-259-2	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98023-258-2	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98023-271-3	01	1	0907-1008			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98023-271-3	01	1	1009-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98023-270-3	01	1	0907-1008			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98023-270-3	01	1	1009-			●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98177-172-1	01	1	1009-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98177-171-1	01	1	1009-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98177-174-0	01	1	1009-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98177-173-0	01	1	1009-			●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98146-762-0	01	1	0907-0907	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98146-761-0	01	1	0907-0907	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98146-764-0	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98146-764-0	01	1	0907-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98146-763-0	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98146-763-0	01	1	0907-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98146-766-0	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98146-766-0	01	1	0907-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98146-765-0	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98146-765-0	01	1	0907-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98146-768-1	01	1	0907-1008			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98146-768-1	01	1	1009-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98146-767-1	01	1	0907-1008			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98146-767-1	01	1	1009-			●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98023-294-2	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98023-294-2	01	1	0907-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98023-293-2	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98023-293-2	01	1	0907-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98023-286-3	01	1	0907-0907	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98023-286-3	01	1	0908-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98023-285-3	01	1	0907-0907	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98023-285-3	01	1	0908-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98023-261-2	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98023-261-2	01	1	0907-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98023-260-2	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98023-260-2	01	1	0907-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98023-259-2	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98023-258-2	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98023-271-3	01	1	0907-1008			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98023-271-3	01	1	1009-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98023-270-3	01	1	0907-1008			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98023-270-3	01	1	1009-			●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98177-172-1	01	1	1009-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98177-171-1	01	1	1009-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98177-174-0	01	1	1009-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98177-173-0	01	1	1009-			●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98146-762-0	01	1	0907-0907	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98146-761-0	01	1	0907-0907	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98146-764-0	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98146-764-0	01	1	0907-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98146-763-0	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98146-763-0	01	1	0907-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98146-766-0	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98146-766-0	01	1	0907-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98146-765-0	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98146-765-0	01	1	0907-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98146-768-1	01	1	0907-1008			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98146-768-1	01	1	1009-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98146-767-1	01	1	0907-1008			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98146-767-1	01	1	1009-			●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98023-294-2	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98023-294-2	01	1	0907-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98023-293-2	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98023-293-2	01	1	0907-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98023-286-3	01	1	0907-0907	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98023-286-3	01	1	0908-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98023-285-3	01	1	0907-0907	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98023-285-3	01	1	0908-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98023-261-2	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98023-261-2	01	1	0907-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98023-260-2	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98023-260-2	01	1	0907-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98023-259-2	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98023-258-2	01	1	0907-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98023-271-3	01	1	0907-1008			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98023-271-3	01	1	1009-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98023-270-3	01	1	0907-1008			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98023-270-3	01	1	1009-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
