Sayfa 2-30B - Isuzu EPC

2-30B — GEAR SHIFTER AND QUADRANT BOX (#7664) — 479 parça

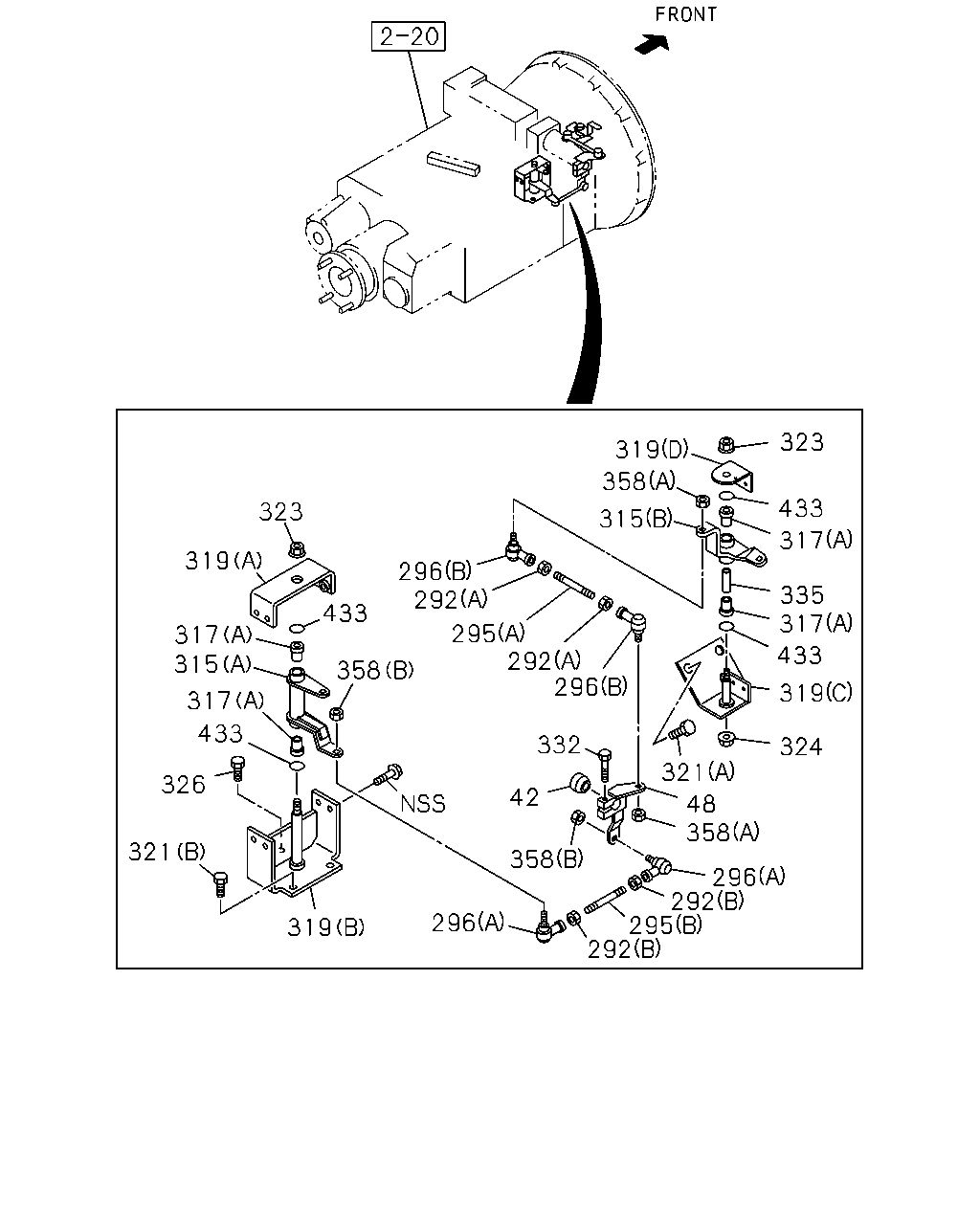

323 319 358 433 323 315 317 319 296 292 335 317 433 295 317 315 433 292 296 358 319 317 433 332 324 321 326 42 48 358 321 358 296 292 295 292 296 319

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
42	CAP; QUAD BOX	1-33549-111-0	01	1	9902-9909	●
42	CAP; QUAD BOX	1-33549-111-0	01	1	9910-	●	●
48	LEVER; 4TH,SHIFT	1-33651-639-0	01	1	9902-9904	●
48	LEVER; 4TH,SHIFT	1-33651-639-0	01	1	9905-9909	●		●
48	LEVER; 4TH,SHIFT	1-33651-639-0	01	1	9910-0003	●	●	●
48	LEVER; 4TH,SHIFT	1-33651-639-0	01	1	0004-	●		●
48	LEVER; 4TH,SHIFT SHORT CHASSIS&LHD(EXR6MC)	1-33651-639-0	01	1	0004-		●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9902-9904	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9905-9909	●		●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9910-	●	●	●
292	NUT; LINK ROD (B) M10	9-09111-410-0	02	1	9902-9904	●
292	NUT; LINK ROD (B) M10	9-09111-410-0	02	1	9905-9909	●		●
292	NUT; LINK ROD (B) M10	9-09111-410-0	02	1	9910-0003	●	●	●
292	NUT; LINK ROD (B) M10	9-09111-410-0	02	1	0004-	●		●
292	NUT; LINK ROD SHORT CHASSIS&LHD(EXR6MC) (B) M10	9-09111-410-0	02	1	0004-		●
295	ROD; LINK,RELAY LEVER (A) M8 L=50	9-08400-805-0	01	1	9902-9904	●
295	ROD; LINK,RELAY LEVER (A) M8 L=50	9-08400-805-0	01	1	9905-9909	●		●
295	ROD; LINK,RELAY LEVER (A) M8 L=50	9-08400-805-0	01	1	9910-0003	●	●	●
295	ROD; LINK,RELAY LEVER (A) M8 L=50	9-08400-805-0	01	1	0004-	●		●
295	ROD; LINK,RELAY LEVER SHORT CHASSIS&LHD(EXR6MC) (A) M8 L=50	9-08400-805-0	01	1	0004-		●
295	ROD; LINK,RELAY LEVER (B) M8 L=90	9-08401-009-0	01	1	9902-9904	●
295	ROD; LINK,RELAY LEVER (B) M8 L=90	9-08401-009-0	01	1	9905-9909	●		●
295	ROD; LINK,RELAY LEVER (B) M8 L=90	9-08401-009-0	01	1	9910-0003	●	●	●
295	ROD; LINK,RELAY LEVER (B) M8 L=90	9-08401-009-0	01	1	0004-	●		●
295	ROD; LINK,RELAY LEVER SHORT CHASSIS&LHD(EXR6MC) (B) M8 L=90	9-08401-009-0	01	1	0004-		●
296	ROD END (A)	1-09760-108-0	02	1	9902-9904	●
296	ROD END (A)	1-09760-108-0	02	1	9905-9909	●		●
296	ROD END (A)	1-09760-108-0	02	1	9910-	●	●	●
296	ROD END (B)	1-09760-124-0	02	1	9902-9904	●
296	ROD END (B)	1-09760-124-0	02	1	9905-9909	●		●
296	ROD END (B)	1-09760-124-0	02	1	9910-0003	●	●	●
296	ROD END (B)	1-09760-124-0	02	1	0004-	●		●
296	ROD END SHORT CHASSIS&LHD(EXR6MC) (B)	1-09760-124-0	02	1	0004-		●
315	LEVER; SELECT (A)	1-33651-743-0	01	1	9902-9904	●
315	LEVER; SELECT (A)	1-33651-743-0	01	1	9905-9909	●		●
315	LEVER; SELECT (A)	1-33651-743-0	01	1	9910-0003	●	●	●
315	LEVER; SELECT (A)	1-33651-743-0	01	1	0004-	●		●
315	LEVER; SELECT SHORT CHASSIS&LHD(EXR6MC) (A)	1-33651-743-0	01	1	0004-		●
315	LEVER; SELECT (B)	1-33651-744-0	01	1	9902-9904	●
315	LEVER; SELECT (B)	1-33651-744-0	01	1	9905-9909	●		●
315	LEVER; SELECT (B)	1-33651-744-0	01	1	9910-0003	●	●	●
315	LEVER; SELECT (B)	1-33651-744-0	01	1	0004-	●		●
315	LEVER; SELECT SHORT CHASSIS&LHD(EXR6MC) (B)	1-33651-744-0	01	1	0004-		●
317	BUSHING; LEVER (A)	1-09330-119-0	04	1	9902-9904	●
317	BUSHING; LEVER (A)	1-09330-119-0	04	1	9905-9909	●		●
317	BUSHING; LEVER (A)	1-09330-119-0	04	1	9910-0003	●	●	●
317	BUSHING; LEVER (A)	1-09330-119-0	04	1	0004-	●		●
317	BUSHING; LEVER SHORT CHASSIS&LHD(EXR6MC) (A)	1-09330-119-0	04	1	0004-		●
317	BUSHING; LEVER (B)	1-33549-322-0	02	1	9902-9909	●
317	BUSHING; LEVER (B)	1-33549-322-0	02	1	9910-	●	●
319	BRACKET; SELECT LEVER (C)	1-33657-717-0	01	1	9902-9904	●
319	BRACKET; SELECT LEVER (C)	1-33657-717-0	01	1	9905-9909	●		●
319	BRACKET; SELECT LEVER (C)	1-33657-717-0	01	1	9910-0003	●	●	●
319	BRACKET; SELECT LEVER (C)	1-33657-717-0	01	1	0004-	●		●
319	BRACKET; SELECT LEVER SHORT CHASSIS&LHD(EXR6MC) (C)	1-33657-717-0	01	1	0004-		●
319	BRACKET; SELECT LEVER (D)	1-33657-718-0	01	1	9902-9904	●
319	BRACKET; SELECT LEVER (D)	1-33657-718-0	01	1	9905-9909	●		●
319	BRACKET; SELECT LEVER (D)	1-33657-718-0	01	1	9910-0003	●	●	●
319	BRACKET; SELECT LEVER (D)	1-33657-718-0	01	1	0004-	●		●
319	BRACKET; SELECT LEVER SHORT CHASSIS&LHD(EXR6MC) (D)	1-33657-718-0	01	1	0004-		●
319	BRACKET; SELECT LEVER (A)	1-33657-741-0	01	1	9902-9904	●
319	BRACKET; SELECT LEVER (A)	1-33657-741-0	01	1	9905-9909	●		●
319	BRACKET; SELECT LEVER (A)	1-33657-741-0	01	1	9910-0003	●	●	●
319	BRACKET; SELECT LEVER (A)	1-33657-741-0	01	1	0004-	●		●
319	BRACKET; SELECT LEVER SHORT CHASSIS&LHD(EXR6MC) (A)	1-33657-741-0	01	1	0004-		●
319	BRACKET; SELECT LEVER (B)	1-33657-742-0	01	1	9902-9904	●
319	BRACKET; SELECT LEVER (B)	1-33657-742-0	01	1	9905-9909	●		●
319	BRACKET; SELECT LEVER (B)	1-33657-742-0	01	1	9910-0003	●	●	●
319	BRACKET; SELECT LEVER (B)	1-33657-742-0	01	1	0004-	●		●
319	BRACKET; SELECT LEVER SHORT CHASSIS&LHD(EXR6MC) (B)	1-33657-742-0	01	1	0004-		●
321	BOLT; BRKT,RELAY LEVER (B) M12X30	0-28781-230-0	03	1	9902-9904	●
321	BOLT; BRKT,RELAY LEVER (B) M12X30	0-28781-230-0	03	1	9905-9909	●		●
321	BOLT; BRKT,RELAY LEVER (B) M12X30	0-28781-230-0	03	1	9910-0003	●	●	●
321	BOLT; BRKT,RELAY LEVER (B) M12X30	0-28781-230-0	03	1	0004-	●		●
321	BOLT; BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXR6MC) (B) M12X30	0-28781-230-0	03	1	0004-		●
321	BOLT; BRKT,RELAY LEVER (A) M16X30 FLANGE	0-28881-630-0	02	1	9902-9904	●
321	BOLT; BRKT,RELAY LEVER (A) M16X30 FLANGE	0-28881-630-0	02	1	9905-9909	●		●
321	BOLT; BRKT,RELAY LEVER (A) M16X30 FLANGE	0-28881-630-0	02	1	9910-0003	●	●	●
321	BOLT; BRKT,RELAY LEVER (A) M16X30 FLANGE	0-28881-630-0	02	1	0004-	●		●
321	BOLT; BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXR6MC) (A) M16X30 FLANGE	0-28881-630-0	02	1	0004-		●
323	NUT; LK,SELECT LEVER	1-33659-219-0	02	1	9902-9904	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	02	1	9905-9909	●		●
323	NUT; LK,SELECT LEVER	1-33659-219-0	02	1	9910-0003	●	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	02	1	0004-	●		●
323	NUT; LK,SELECT LEVER SHORT CHASSIS&LHD(EXR6MC)	1-33659-219-0	02	1	0004-		●
324	BOLT; SHAFT M10X80 FLANGE	0-28081-080-0	01	1	9902-9904	●
324	BOLT; SHAFT M10X80 FLANGE	0-28081-080-0	01	1	9905-9909	●		●
324	BOLT; SHAFT M10X80 FLANGE	0-28081-080-0	01	1	9910-0003	●	●	●
324	BOLT; SHAFT M10X80 FLANGE	0-28081-080-0	01	1	0004-	●		●
324	BOLT; SHAFT SHORT CHASSIS&LHD(EXR6MC) M10X80 FLANGE	0-28081-080-0	01	1	0004-		●
326	BOLT; RELAY LEVER ASM M8X20 FLANGE	0-28680-820-0	06	1	9902-9904	●
326	BOLT; RELAY LEVER ASM M8X20 FLANGE	0-28680-820-0	06	1	9905-9909	●		●
326	BOLT; RELAY LEVER ASM M8X20 FLANGE	0-28680-820-0	06	1	9910-0003	●	●	●
326	BOLT; RELAY LEVER ASM M8X20 FLANGE	0-28680-820-0	06	1	0004-	●		●
326	BOLT; RELAY LEVER ASM SHORT CHASSIS&LHD(EXR6MC) M8X20 FLANGE	0-28680-820-0	06	1	0004-		●
332	BOLT; 4TH,SHIFT LEVER M8X40 FLANGE	0-28680-840-0	01	1	9902-9904	●
332	BOLT; 4TH,SHIFT LEVER M8X40 FLANGE	0-28680-840-0	01	1	9905-9909	●		●
332	BOLT; 4TH,SHIFT LEVER M8X40 FLANGE	0-28680-840-0	01	1	9910-0003	●	●	●
332	BOLT; 4TH,SHIFT LEVER M8X40 FLANGE	0-28680-840-0	01	1	0004-	●		●
332	BOLT; 4TH,SHIFT LEVER SHORT CHASSIS&LHD(EXR6MC) M8X40 FLANGE	0-28680-840-0	01	1	0004-		●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-221-0	01	1	9902-9904	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-221-0	01	1	9905-9909	●		●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-221-0	01	1	9910-0003	●	●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-221-0	01	1	0004-	●		●
335	COLLAR; DIST,RELAY LEVER ASM SHORT CHASSIS&LHD(EXR6MC)	1-33659-221-0	01	1	0004-		●
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-061-0	02	1	9902-9904	●
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-061-0	02	1	9905-9909	●		●
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-061-0	02	1	9910-0003	●	●	●
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-061-0	02	1	0004-	●		●
358	NUT; SHIFT ROD SHORT CHASSIS&LHD(EXR6MC) (B) M10 FLANGE	1-09440-061-0	02	1	0004-		●
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-062-1	02	1	9902-9904	●
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-062-1	02	1	9905-9909	●		●
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-062-1	02	1	9910-0003	●	●	●
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-062-1	02	1	0004-	●		●
358	NUT; SHIFT ROD SHORT CHASSIS&LHD(EXR6MC) (A) M8 FLANGE	1-09440-062-1	02	1	0004-		●
358	NUT; SHIFT ROD (C)	1-33519-049-0	02	1	9902-9909	●
358	NUT; SHIFT ROD (C)	1-33519-049-0	02	1	9910-	●	●
433	GASKET; BUSHING	1-09623-636-0	04	1	9902-9904	●
433	GASKET; BUSHING	1-09623-636-0	04	1	9905-9909	●		●
433	GASKET; BUSHING	1-09623-636-0	04	1	9910-0003	●	●	●
433	GASKET; BUSHING	1-09623-636-0	04	1	0004-	●		●
433	GASKET; BUSHING SHORT CHASSIS&LHD(EXR6MC)	1-09623-636-0	04	1	0004-		●

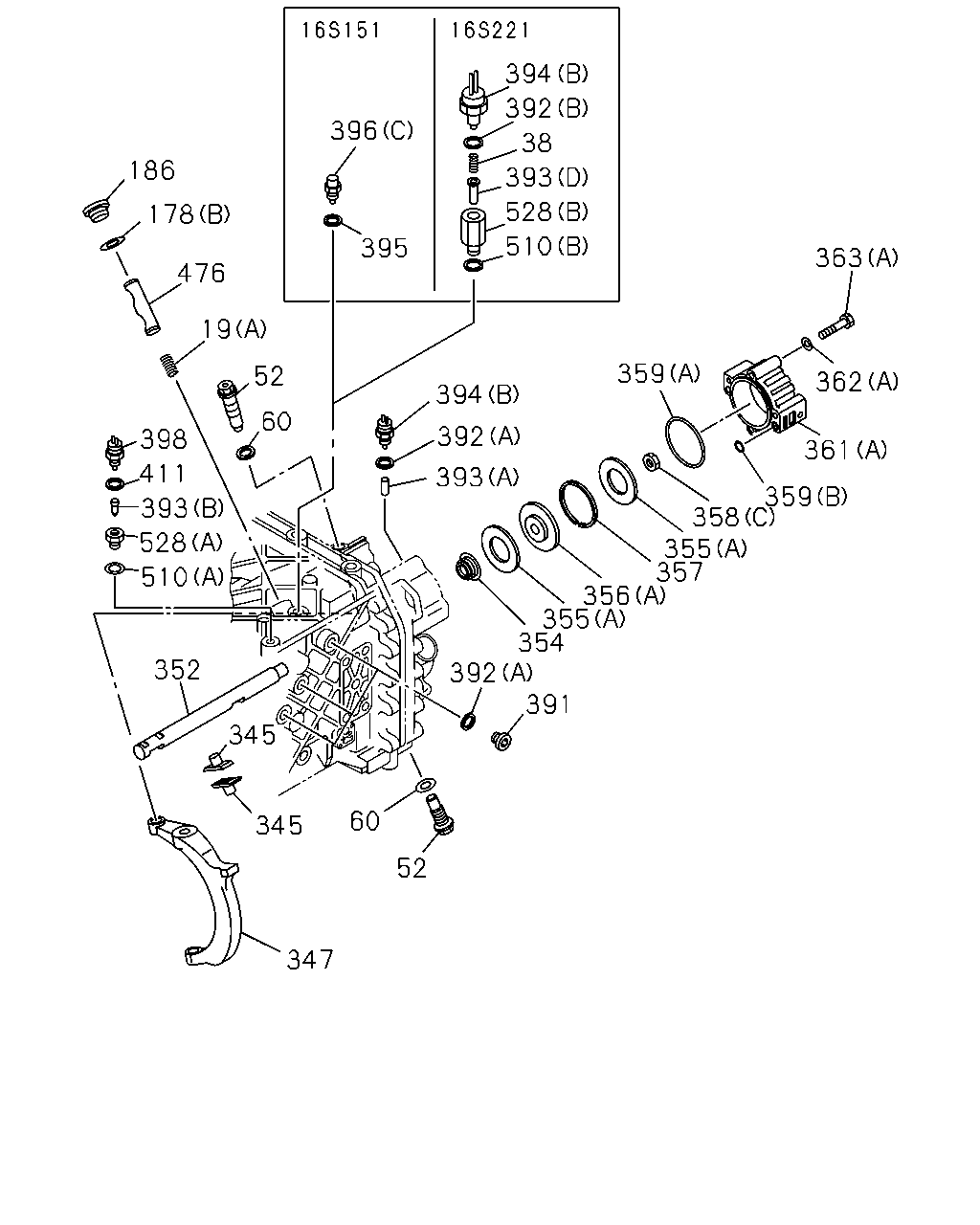

394 392 396 38 186 393 528 178 510 395 363 476 19 359 52 362 394 60 392 398 361 411 393 359 358 355 357 393 528 510 356 355 354 392 391 352 345 60 345 52 347

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	SPRING; COIL COMP (A)	1-33519-014-0	01	1	9902-9909	●
19	SPRING; COIL COMP (A)	1-33519-014-0	01	1	9910-	●	●
19	SPRING; COIL COMP (B)	1-33539-028-0	01	1	9902-9909	●
19	SPRING; COIL COMP (B)	1-33539-028-0	01	1	9910-	●	●
19	SPRING; COIL COMP (C)	1-33539-030-0	01	1	9902-9909	●
19	SPRING; COIL COMP (C)	1-33539-030-0	01	1	9910-	●	●
19	SPRING; COIL COMP TRANS SELECT DETENT HEAVY<BFU> (D)	1-33539-022-0	02	1	9902-9909	●
19	SPRING; COIL COMP TRANS SELECT DETENT HEAVY<BFU> (D)	1-33539-022-0	02	1	9910-	●
19	SPRING; COIL COMP SHORT CHASSIS&LHD(EXR6MC) (D)	1-33539-022-0	02	1	9910-		●
19	SPRING; COIL COMP EXC. TRANS SELECT DETENT HEAVY<BFU> (D)	1-33549-189-0	02	1	9902-0003	●
19	SPRING; COIL COMP EXC. TRANS SELECT DETENT HEAVY<BFU> (D)	1-33549-189-0	02	1	0004-	●
19	SPRING; COIL COMP SHORT CHASSIS&RHD(EXR5MC) (D)	1-33549-189-0	02	1	0004-		●
38	SPRING; DETENT	1-33519-096-0	01	1	9910-		●
52	BOLT; SHIFT ARM	1-33519-058-0	02	1	9902-	●
52	BOLT; SHIFT ARM	1-33519-058-0	01	1	9910-		●
60	WASHER; LK	1-33519-059-0	02	1	9902-9909	●
60	WASHER; LK	1-33519-059-0	02	1	9910-	●	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-249-0	01	1	9902-9909	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-249-0	01	1	9910-	●	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33519-057-0	01	1	9902-9909	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33519-057-0	01	1	9910-	●	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (C)	1-33549-195-0	03	1	9902-9909	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (C)	1-33549-195-0	03	1	9910-	●	●
186	PLUG; SHIFTER ROD	1-33519-056-0	01	1	9902-9909	●
186	PLUG; SHIFTER ROD	1-33519-056-0	01	1	9910-	●	●
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-037-0	02	1	9902-9909	●
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-037-0	02	1	9910-	●	●
347	ARM; SHIFT,RANGE CHANGE	1-33511-566-0	01	1	9902-9909	●
347	ARM; SHIFT,RANGE CHANGE	1-33511-566-0	01	1	9910-	●	●
352	ROD; SHIFT,RANGE CHANGE	1-33511-524-0	01	1	9902-	●
352	ROD; SHIFT,RANGE CHANGE	1-33511-507-0	01	1	9910-		●
354	SEAL; AIR CYL	1-33519-068-0	02	1	9902-9909	●
354	SEAL; AIR CYL	1-33519-068-0	02	1	9910-	●	●
355	CUP; PISTON,AIR CYL (B)	1-33519-070-0	01	1	9902-9909	●
355	CUP; PISTON,AIR CYL (B)	1-33519-070-0	01	1	9910-	●	●
355	CUP; PISTON,AIR CYL (A)	1-33519-119-0	02	1	9902-9909	●
355	CUP; PISTON,AIR CYL (A)	1-33519-119-0	02	1	9910-	●	●
356	PISTON; AIR CYL (A)	1-33519-060-0	01	1	9902-9909	●
356	PISTON; AIR CYL (A)	1-33519-060-0	01	1	9910-	●	●
356	PISTON; AIR CYL (B)	1-33519-069-0	01	1	9902-9909	●
356	PISTON; AIR CYL (B)	1-33519-069-0	01	1	9910-	●	●
357	RING; GUIDE,AIR CYL	1-33519-032-0	01	1	9902-9909	●
357	RING; GUIDE,AIR CYL	1-33519-032-0	01	1	9910-	●	●
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-061-0	02	1	9902-9904	●
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-061-0	02	1	9905-9909	●		●
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-061-0	02	1	9910-0003	●	●	●
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-061-0	02	1	0004-	●		●
358	NUT; SHIFT ROD SHORT CHASSIS&LHD(EXR6MC) (B) M10 FLANGE	1-09440-061-0	02	1	0004-		●
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-062-1	02	1	9902-9904	●
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-062-1	02	1	9905-9909	●		●
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-062-1	02	1	9910-0003	●	●	●
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-062-1	02	1	0004-	●		●
358	NUT; SHIFT ROD SHORT CHASSIS&LHD(EXR6MC) (A) M8 FLANGE	1-09440-062-1	02	1	0004-		●
358	NUT; SHIFT ROD (C)	1-33519-049-0	02	1	9902-9909	●
358	NUT; SHIFT ROD (C)	1-33519-049-0	02	1	9910-	●	●
359	GASKET; AIR CYL (C)	1-09623-606-0	01	1	9902-9909	●
359	GASKET; AIR CYL (C)	1-09623-606-0	01	1	9910-	●	●
359	GASKET; AIR CYL (B)	1-33519-034-0	02	1	9902-9909	●
359	GASKET; AIR CYL (B)	1-33519-034-0	02	1	9910-	●	●
359	GASKET; AIR CYL (D)	1-33519-072-0	01	1	9902-9909	●
359	GASKET; AIR CYL (D)	1-33519-072-0	01	1	9910-	●	●
359	GASKET; AIR CYL (A)	1-33519-121-0	01	1	9902-9909	●
359	GASKET; AIR CYL (A)	1-33519-121-0	01	1	9910-	●	●
361	CYLINDER; AIR,SHIFT (B)	1-33519-117-0	01	1	9902-	●
361	CYLINDER; AIR,SHIFT (A)	1-33519-140-0	01	1	9902-9909	●
361	CYLINDER; AIR,SHIFT (A)	1-33519-140-0	01	1	9910-	●	●
361	CYLINDER; AIR,SHIFT (B)	1-33519-126-0	01	1	9910-		●
362	WASHER; AIR CYL (A)	1-09469-010-0	04	1	9902-9909	●
362	WASHER; AIR CYL (A)	1-09469-010-0	04	1	9910-	●	●
362	WASHER; AIR CYL (B)	1-33519-076-0	02	1	9902-9909	●
362	WASHER; AIR CYL (B)	1-33519-076-0	02	1	9910-	●	●
363	BOLT; AIR CYL (A)	1-33519-064-0	04	1	9902-9909	●
363	BOLT; AIR CYL (A)	1-33519-064-0	04	1	9910-	●	●
363	BOLT; AIR CYL (B)	1-33519-128-0	02	1	9902-9909	●
363	BOLT; AIR CYL (B)	1-33519-128-0	02	1	9910-	●	●
391	PLUG; SW HOLE	1-33119-171-0	03	1	9902-9909	●
391	PLUG; SW HOLE	1-33119-171-0	02	1	9910-	●	●
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-249-0	04	1	9902-9909	●
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-249-0	04	1	9910-	●	●
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33519-097-0	01	1	9910-		●
393	PIN; SW (A)	1-33519-029-0	02	1	9902-9909	●
393	PIN; SW (A)	1-33519-029-0	02	1	9910-	●	●
393	PIN; SW (B)	1-33519-077-0	01	1	9902-9909	●
393	PIN; SW (B)	1-33519-077-0	01	1	9910-	●	●
393	PIN; SW (C)	1-33549-335-0	01	1	9902-9909	●
393	PIN; SW (C)	1-33549-335-0	01	1	9910-	●	●
393	PIN; SW (D)	1-33519-098-0	01	1	9910-		●
394	SWITCH; RANGE CHANGE (A)	1-82440-080-1	01	1	9902-9909	●
394	SWITCH; RANGE CHANGE (A)	1-82440-080-1	01	1	9910-	●	●
394	SWITCH; RANGE CHANGE (B)	1-82440-095-0	01	1	9902-	●
394	SWITCH; RANGE CHANGE (B)	1-82440-095-0	02	1	9910-		●
395	GASKET; PLUNGER	1-33549-167-0	02	1	9902-	●
395	GASKET; PLUNGER	1-33549-167-0	01	1	9910-		●
396	PLUNGER; SHIFT ROD (C)	1-33519-073-0	01	1	9902-	●
396	PLUNGER; SHIFT ROD (A)	1-33519-118-0	01	1	9902-9909	●
396	PLUNGER; SHIFT ROD (A)	1-33519-118-0	01	1	9910-	●	●
396	PLUNGER; SHIFT ROD (B)	1-33529-085-0	02	1	9902-9909	●
396	PLUNGER; SHIFT ROD (B)	1-33529-085-0	02	1	9910-	●	●
398	SWITCH; REV LAMP	1-82440-095-0	01	1	9902-9909	●
398	SWITCH; REV LAMP	1-82440-095-0	01	1	9910-	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). T=2.0	1-82449-010-0	01	1	9902-9909	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). T=2.0	1-82449-010-0	01	1	9910-	●	●
476	PIN; SHIFT ROD	1-33519-040-0	01	1	9902-9909	●
476	PIN; SHIFT ROD	1-33519-040-0	01	1	9910-	●	●
510	GASKET; ADAPTER (A) T=2.0	1-82449-010-0	01	1	9902-9909	●
510	GASKET; ADAPTER (A) T=2.0	1-82449-010-0	01	1	9910-	●	●
510	GASKET; ADAPTER (B) T=2.20	1-33529-074-0	01	1	9910-		●
528	ADAPTER; SWITCH (A)	1-33119-278-0	01	1	9902-9909	●
528	ADAPTER; SWITCH (A)	1-33119-278-0	01	1	9910-	●	●
528	ADAPTER; SWITCH (B)	1-33519-099-0	01	1	9910-		●

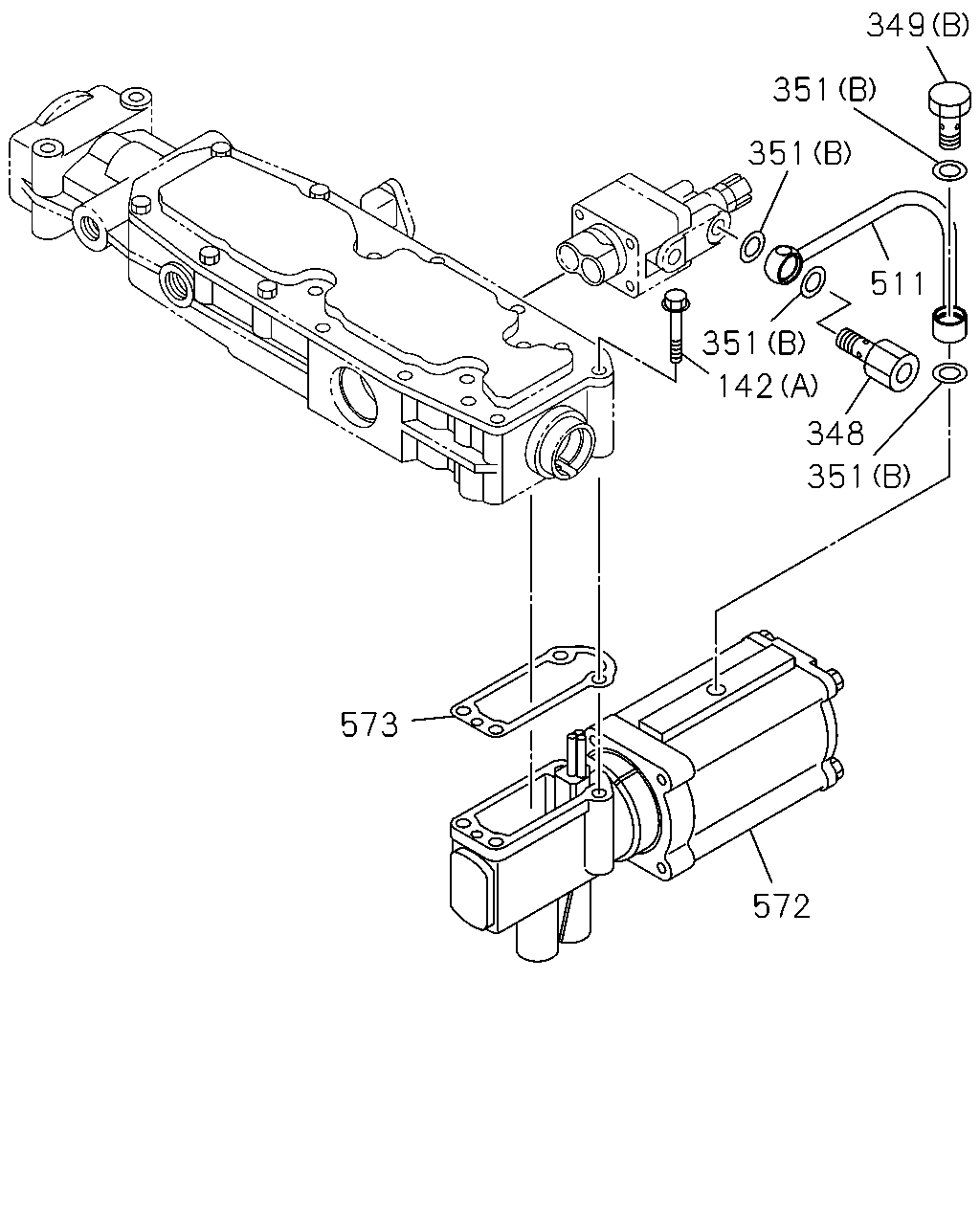

349 351 351 511 351 142 348 351 573 572

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
142	BOLT; QUAD BOX (B) M8X30	1-33549-172-0	09	1	9902-9909	●
142	BOLT; QUAD BOX (B) M8X30	1-33549-172-0	09	1	9910-	●	●
142	BOLT; QUAD BOX (A) M8X80	1-33549-256-0	14	1	9902-9909	●
142	BOLT; QUAD BOX (A) M8X80	1-33549-256-0	14	1	9910-	●	●
348	CONNECTOR; AIR HOSE	1-33549-333-0	01	1	9902-9909	●
348	CONNECTOR; AIR HOSE	1-33549-333-0	01	1	9910-	●	●
349	BOLT; EYE,AIR HOSE (B)	1-33549-144-0	01	1	9902-9909	●
349	BOLT; EYE,AIR HOSE (B)	1-33549-144-0	01	1	9910-	●	●
349	BOLT; EYE,AIR HOSE (A)	1-33549-155-0	04	1	9902-9909	●
349	BOLT; EYE,AIR HOSE (A)	1-33549-155-0	04	1	9910-	●	●
351	GASKET; CONNECTOR (A)	1-33549-184-0	08	1	9902-9909	●
351	GASKET; CONNECTOR (A)	1-33549-184-0	08	1	9910-	●	●
351	GASKET; CONNECTOR (B)	1-33549-307-0	04	1	9902-9909	●
351	GASKET; CONNECTOR (B)	1-33549-307-0	04	1	9910-	●	●
511	PIPE; AIR	1-33529-112-0	01	1	9902-9909	●
511	PIPE; AIR	1-33529-112-0	01	1	9910-	●	●
572	SERVO UNIT; GEAR SHIFT	1-33549-331-0	01	1	9902-9909	●
572	SERVO UNIT; GEAR SHIFT	1-33549-331-0	01	1	9910-	●	●
573	GASKET; SERVO UNIT	1-33549-332-0	01	1	9902-9909	●
573	GASKET; SERVO UNIT	1-33549-332-0	01	1	9910-	●	●

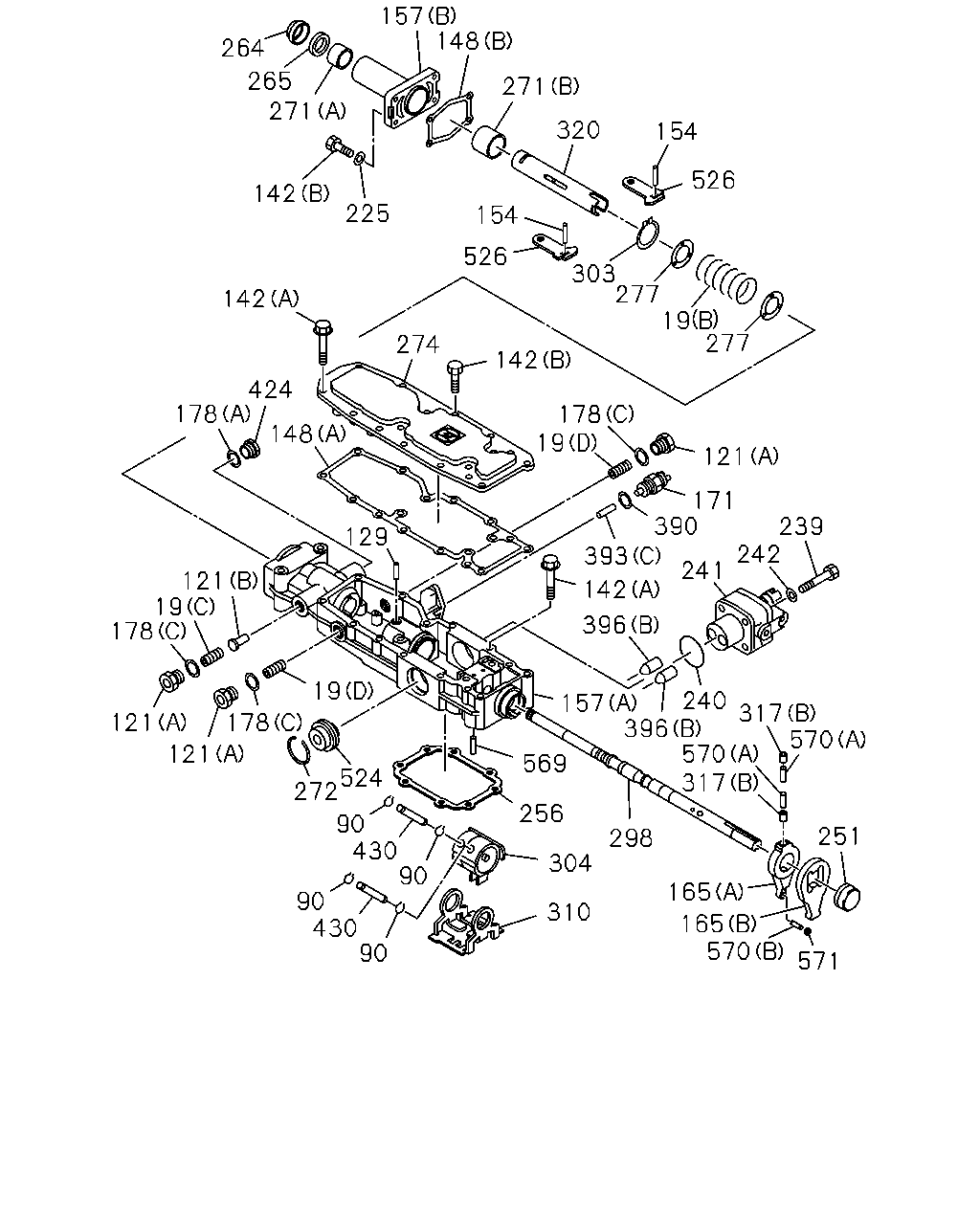

157 148 264 265 271 271 320 154 526 142 225 154 526 303 277 19 277 142 274 142 424 178 178 19 148 121 171 390 393 129 239 242 241 121 19 178 142 396 157 240 396 570 317 19 178 317 570 121 121 569 524 272 256 90 430 90 251 298 304 165 90 430 90 310 165 570 571

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	SPRING; COIL COMP (A)	1-33519-014-0	01	1	9902-9909	●
19	SPRING; COIL COMP (A)	1-33519-014-0	01	1	9910-	●	●
19	SPRING; COIL COMP (B)	1-33539-028-0	01	1	9902-9909	●
19	SPRING; COIL COMP (B)	1-33539-028-0	01	1	9910-	●	●
19	SPRING; COIL COMP (C)	1-33539-030-0	01	1	9902-9909	●
19	SPRING; COIL COMP (C)	1-33539-030-0	01	1	9910-	●	●
19	SPRING; COIL COMP TRANS SELECT DETENT HEAVY<BFU> (D)	1-33539-022-0	02	1	9902-9909	●
19	SPRING; COIL COMP TRANS SELECT DETENT HEAVY<BFU> (D)	1-33539-022-0	02	1	9910-	●
19	SPRING; COIL COMP SHORT CHASSIS&LHD(EXR6MC) (D)	1-33539-022-0	02	1	9910-		●
19	SPRING; COIL COMP EXC. TRANS SELECT DETENT HEAVY<BFU> (D)	1-33549-189-0	02	1	9902-0003	●
19	SPRING; COIL COMP EXC. TRANS SELECT DETENT HEAVY<BFU> (D)	1-33549-189-0	02	1	0004-	●
19	SPRING; COIL COMP SHORT CHASSIS&RHD(EXR5MC) (D)	1-33549-189-0	02	1	0004-		●
90	RING; SNAP,SHIFT ROD	1-33529-109-0	04	1	9902-9909	●
90	RING; SNAP,SHIFT ROD	1-33529-109-0	04	1	9910-	●	●
121	PLUG; DETENT SPR (A)	1-33549-194-0	03	1	9902-9909	●
121	PLUG; DETENT SPR (A)	1-33549-194-0	03	1	9910-	●	●
121	PLUG; DETENT SPR (B)	1-33549-305-0	01	1	9902-9909	●
121	PLUG; DETENT SPR (B)	1-33549-305-0	01	1	9910-	●	●
129	PIN; SPR,SHIFT	1-33529-107-0	01	1	9902-9909	●
129	PIN; SPR,SHIFT	1-33529-107-0	01	1	9910-	●	●
142	BOLT; QUAD BOX (B) M8X30	1-33549-172-0	09	1	9902-9909	●
142	BOLT; QUAD BOX (B) M8X30	1-33549-172-0	09	1	9910-	●	●
142	BOLT; QUAD BOX (A) M8X80	1-33549-256-0	14	1	9902-9909	●
142	BOLT; QUAD BOX (A) M8X80	1-33549-256-0	14	1	9910-	●	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33544-044-0	01	1	9902-9909	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33544-044-0	01	1	9910-	●	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33549-319-0	01	1	9902-9909	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33549-319-0	01	1	9910-	●	●
154	PIN; SELECT LEVER	1-33529-040-0	04	1	9902-9909	●
154	PIN; SELECT LEVER	1-33529-040-0	04	1	9910-	●	●
157	BOX; QUAD,TRANS (A)	1-33549-313-0	01	1	9902-9909	●
157	BOX; QUAD,TRANS (A)	1-33549-313-0	01	1	9910-	●	●
157	BOX; QUAD,TRANS (B)	1-33549-326-0	01	1	9902-9909	●
157	BOX; QUAD,TRANS (B)	1-33549-326-0	01	1	9910-	●	●
165	LEVER; SHIFT (A)	1-33549-321-0	01	1	9902-9909	●
165	LEVER; SHIFT (A)	1-33549-321-0	01	1	9910-	●	●
165	LEVER; SHIFT (B)	1-33549-325-0	01	1	9902-9909	●
165	LEVER; SHIFT (B)	1-33549-325-0	01	1	9910-	●	●
171	SWITCH; NEUTRAL	1-82440-095-0	01	1	9902-9909	●
171	SWITCH; NEUTRAL	1-82440-095-0	01	1	9910-	●	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-249-0	01	1	9902-9909	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-249-0	01	1	9910-	●	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33519-057-0	01	1	9902-9909	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33519-057-0	01	1	9910-	●	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (C)	1-33549-195-0	03	1	9902-9909	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). (C)	1-33549-195-0	03	1	9910-	●	●
225	WASHER; LK,QUAD BOX	1-33549-159-0	09	1	9902-9909	●
225	WASHER; LK,QUAD BOX	1-33549-159-0	09	1	9910-	●	●
239	BOLT; CUT OFF VALVE	1-33549-302-0	04	1	9902-9909	●
239	BOLT; CUT OFF VALVE	1-33549-302-0	04	1	9910-	●	●
240	GASKET; CUT OFF VALVE	1-33549-198-0	01	1	9902-9909	●
240	GASKET; CUT OFF VALVE	1-33549-198-0	01	1	9910-	●	●
241	VALVE; CUT OFF	1-33549-334-0	01	1	9902-9909	●
241	VALVE; CUT OFF	1-33549-334-0	01	1	9910-	●	●
242	WASHER; CUT OFF VALVE	1-33549-159-0	04	1	9902-9909	●
242	WASHER; CUT OFF VALVE	1-33549-159-0	04	1	9910-	●	●
251	COVER; SIDE	1-33549-330-0	01	1	9902-9909	●
251	COVER; SIDE	1-33549-330-0	01	1	9910-	●	●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-057-0	01	1	9902-9909	●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-057-0	01	1	9910-	●	●
264	SEAL; DUST,SHAFT	1-33549-327-0	01	1	9902-9909	●
264	SEAL; DUST,SHAFT	1-33549-327-0	01	1	9910-	●	●
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T).	1-33549-328-0	01	1	9902-9909	●
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T).	1-33549-328-0	01	1	9910-	●	●
271	BUSHING; QUAD BOX (B)	1-33549-318-0	01	1	9902-9909	●
271	BUSHING; QUAD BOX (B)	1-33549-318-0	01	1	9910-	●	●
271	BUSHING; QUAD BOX (A)	1-33549-329-0	01	1	9902-9909	●
271	BUSHING; QUAD BOX (A)	1-33549-329-0	01	1	9910-	●	●
272	RING; SNAP,QUAD BOX	1-44519-217-0	01	1	9902-9909	●
272	RING; SNAP,QUAD BOX	1-44519-217-0	01	1	9910-	●	●
274	COVER; SHAFT,QUAD BOX	1-33549-320-0	01	1	9902-9909	●
274	COVER; SHAFT,QUAD BOX	1-33549-320-0	01	1	9910-	●	●
277	PLATE; SPRING SEAT	1-33539-039-0	02	1	9902-9909	●
277	PLATE; SPRING SEAT	1-33539-039-0	02	1	9910-	●	●
298	SHAFT; SHIFT LEVER	1-33549-314-0	01	1	9902-9909	●
298	SHAFT; SHIFT LEVER	1-33549-314-0	01	1	9910-	●	●
303	RING; SNAP,SHAFT	1-33539-040-0	01	1	9902-9909	●
303	RING; SNAP,SHAFT	1-33539-040-0	01	1	9910-	●	●
304	BLOCK; SHIFT SHAFT	1-33549-315-0	01	1	9902-9909	●
304	BLOCK; SHIFT SHAFT	1-33549-315-0	01	1	9910-	●	●
310	PLATE; LOCK,SHIFT LEVER	1-33549-316-0	01	1	9902-9909	●
310	PLATE; LOCK,SHIFT LEVER	1-33549-316-0	01	1	9910-	●	●
317	BUSHING; LEVER (A)	1-09330-119-0	04	1	9902-9904	●
317	BUSHING; LEVER (A)	1-09330-119-0	04	1	9905-9909	●		●
317	BUSHING; LEVER (A)	1-09330-119-0	04	1	9910-0003	●	●	●
317	BUSHING; LEVER (A)	1-09330-119-0	04	1	0004-	●		●
317	BUSHING; LEVER SHORT CHASSIS&LHD(EXR6MC) (A)	1-09330-119-0	04	1	0004-		●
317	BUSHING; LEVER (B)	1-33549-322-0	02	1	9902-9909	●
317	BUSHING; LEVER (B)	1-33549-322-0	02	1	9910-	●	●
320	SHAFT; LEVER	1-33549-317-0	01	1	9902-9909	●
320	SHAFT; LEVER	1-33549-317-0	01	1	9910-	●	●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	9902-9909	●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	9910-	●	●
393	PIN; SW (A)	1-33519-029-0	02	1	9902-9909	●
393	PIN; SW (A)	1-33519-029-0	02	1	9910-	●	●
393	PIN; SW (B)	1-33519-077-0	01	1	9902-9909	●
393	PIN; SW (B)	1-33519-077-0	01	1	9910-	●	●
393	PIN; SW (C)	1-33549-335-0	01	1	9902-9909	●
393	PIN; SW (C)	1-33549-335-0	01	1	9910-	●	●
393	PIN; SW (D)	1-33519-098-0	01	1	9910-		●
396	PLUNGER; SHIFT ROD (C)	1-33519-073-0	01	1	9902-	●
396	PLUNGER; SHIFT ROD (A)	1-33519-118-0	01	1	9902-9909	●
396	PLUNGER; SHIFT ROD (A)	1-33519-118-0	01	1	9910-	●	●
396	PLUNGER; SHIFT ROD (B)	1-33529-085-0	02	1	9902-9909	●
396	PLUNGER; SHIFT ROD (B)	1-33529-085-0	02	1	9910-	●	●
424	PLUG; NEUTRAL SW HOLE	1-33119-171-0	01	1	9902-9909	●
424	PLUG; NEUTRAL SW HOLE	1-33119-171-0	01	1	9910-	●	●
430	PIN; SPR,SHIFT ROD	1-33529-108-0	02	1	9902-9909	●
430	PIN; SPR,SHIFT ROD	1-33529-108-0	02	1	9910-	●	●
524	DETENT; QUAD BOX	1-33549-197-0	01	1	9902-9909	●
524	DETENT; QUAD BOX	1-33549-197-0	01	1	9910-	●	●
526	LEVER; DETENT	1-33549-298-0	02	1	9902-9909	●
526	LEVER; DETENT	1-33549-298-0	02	1	9910-	●	●
569	PIN; QUADRANT BOX	1-33529-106-0	01	1	9902-9909	●
569	PIN; QUADRANT BOX	1-33529-106-0	01	1	9910-	●	●
570	PIN; SHIFT LEVER (A)	1-33529-110-0	02	1	9902-9909	●
570	PIN; SHIFT LEVER (A)	1-33529-110-0	02	1	9910-	●	●
570	PIN; SHIFT LEVER (B)	1-33529-111-0	01	1	9902-9909	●
570	PIN; SHIFT LEVER (B)	1-33529-111-0	01	1	9910-	●	●
571	ROLLER; LEVER	1-33549-324-0	01	1	9902-9909	●
571	ROLLER; LEVER	1-33549-324-0	01	1	9910-	●	●

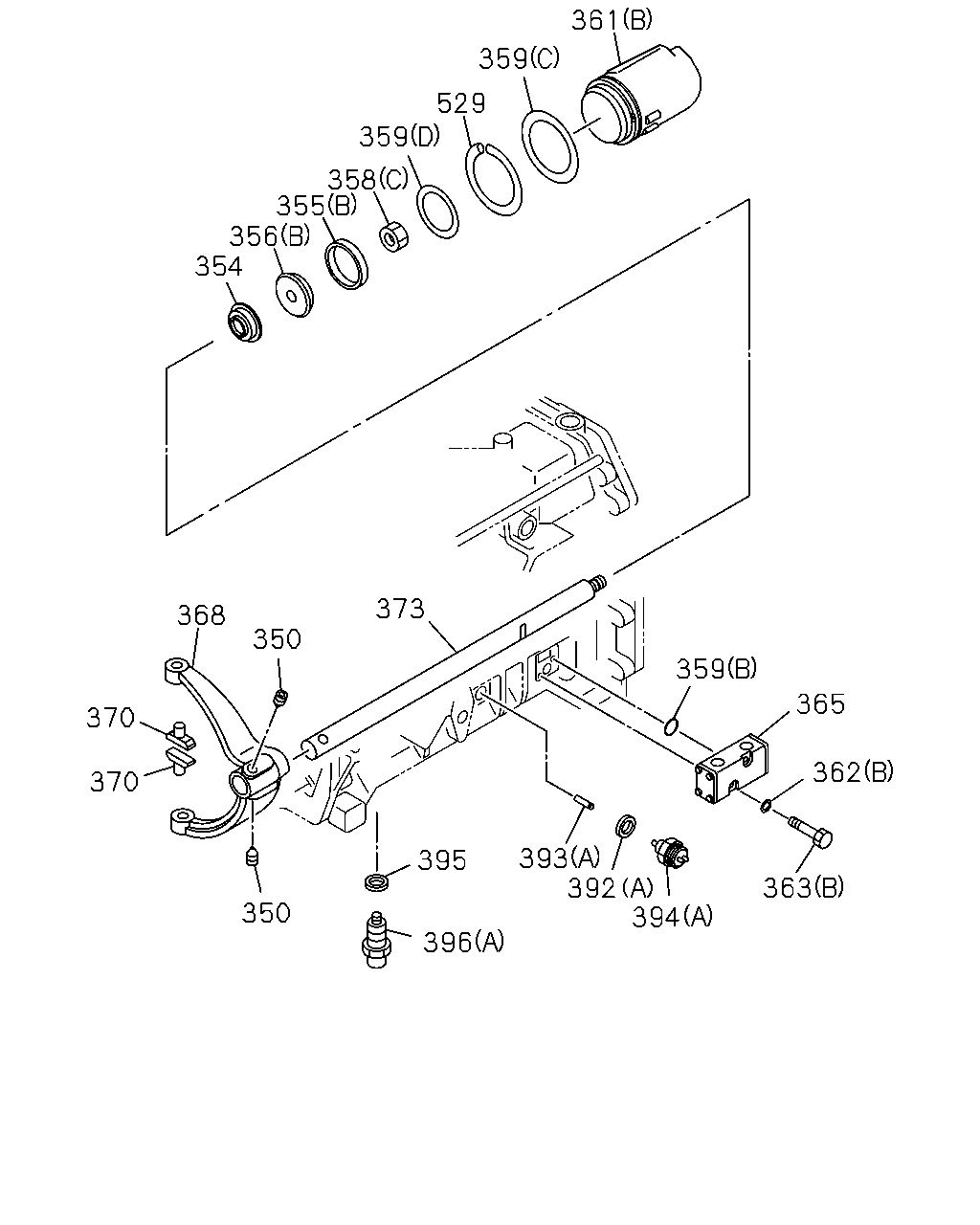

361 359 529 359 358 355 356 354 373 368 350 359 365 370 362 370 393 392 394 395 363 350 396

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
350	SCREW; SHIFT ARM	1-33519-065-0	02	1	9902-9909	●
350	SCREW; SHIFT ARM	1-33519-065-0	02	1	9910-	●	●
354	SEAL; AIR CYL	1-33519-068-0	02	1	9902-9909	●
354	SEAL; AIR CYL	1-33519-068-0	02	1	9910-	●	●
355	CUP; PISTON,AIR CYL (B)	1-33519-070-0	01	1	9902-9909	●
355	CUP; PISTON,AIR CYL (B)	1-33519-070-0	01	1	9910-	●	●
355	CUP; PISTON,AIR CYL (A)	1-33519-119-0	02	1	9902-9909	●
355	CUP; PISTON,AIR CYL (A)	1-33519-119-0	02	1	9910-	●	●
356	PISTON; AIR CYL (A)	1-33519-060-0	01	1	9902-9909	●
356	PISTON; AIR CYL (A)	1-33519-060-0	01	1	9910-	●	●
356	PISTON; AIR CYL (B)	1-33519-069-0	01	1	9902-9909	●
356	PISTON; AIR CYL (B)	1-33519-069-0	01	1	9910-	●	●
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-061-0	02	1	9902-9904	●
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-061-0	02	1	9905-9909	●		●
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-061-0	02	1	9910-0003	●	●	●
358	NUT; SHIFT ROD (B) M10 FLANGE	1-09440-061-0	02	1	0004-	●		●
358	NUT; SHIFT ROD SHORT CHASSIS&LHD(EXR6MC) (B) M10 FLANGE	1-09440-061-0	02	1	0004-		●
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-062-1	02	1	9902-9904	●
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-062-1	02	1	9905-9909	●		●
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-062-1	02	1	9910-0003	●	●	●
358	NUT; SHIFT ROD (A) M8 FLANGE	1-09440-062-1	02	1	0004-	●		●
358	NUT; SHIFT ROD SHORT CHASSIS&LHD(EXR6MC) (A) M8 FLANGE	1-09440-062-1	02	1	0004-		●
358	NUT; SHIFT ROD (C)	1-33519-049-0	02	1	9902-9909	●
358	NUT; SHIFT ROD (C)	1-33519-049-0	02	1	9910-	●	●
359	GASKET; AIR CYL (C)	1-09623-606-0	01	1	9902-9909	●
359	GASKET; AIR CYL (C)	1-09623-606-0	01	1	9910-	●	●
359	GASKET; AIR CYL (B)	1-33519-034-0	02	1	9902-9909	●
359	GASKET; AIR CYL (B)	1-33519-034-0	02	1	9910-	●	●
359	GASKET; AIR CYL (D)	1-33519-072-0	01	1	9902-9909	●
359	GASKET; AIR CYL (D)	1-33519-072-0	01	1	9910-	●	●
359	GASKET; AIR CYL (A)	1-33519-121-0	01	1	9902-9909	●
359	GASKET; AIR CYL (A)	1-33519-121-0	01	1	9910-	●	●
361	CYLINDER; AIR,SHIFT (B)	1-33519-117-0	01	1	9902-	●
361	CYLINDER; AIR,SHIFT (A)	1-33519-140-0	01	1	9902-9909	●
361	CYLINDER; AIR,SHIFT (A)	1-33519-140-0	01	1	9910-	●	●
361	CYLINDER; AIR,SHIFT (B)	1-33519-126-0	01	1	9910-		●
362	WASHER; AIR CYL (A)	1-09469-010-0	04	1	9902-9909	●
362	WASHER; AIR CYL (A)	1-09469-010-0	04	1	9910-	●	●
362	WASHER; AIR CYL (B)	1-33519-076-0	02	1	9902-9909	●
362	WASHER; AIR CYL (B)	1-33519-076-0	02	1	9910-	●	●
363	BOLT; AIR CYL (A)	1-33519-064-0	04	1	9902-9909	●
363	BOLT; AIR CYL (A)	1-33519-064-0	04	1	9910-	●	●
363	BOLT; AIR CYL (B)	1-33519-128-0	02	1	9902-9909	●
363	BOLT; AIR CYL (B)	1-33519-128-0	02	1	9910-	●	●
365	VALVE; AIR CYL	1-33519-074-0	01	1	9902-9909	●
365	VALVE; AIR CYL	1-33519-074-0	01	1	9910-	●	●
368	ARM; SHIFT,SPLITTER GEAR	1-33511-508-0	01	1	9902-9909	●
368	ARM; SHIFT,SPLITTER GEAR	1-33511-508-0	01	1	9910-	●	●
370	BLOCK; SHIFT,SPLITTER GEAR	1-33519-053-0	02	1	9902-9909	●
370	BLOCK; SHIFT,SPLITTER GEAR	1-33519-053-0	02	1	9910-	●	●
373	ROD; SHIFT,SPLITTER GEAR	1-33531-450-0	01	1	9902-	●
373	ROD; SHIFT,SPLITTER GEAR	1-33519-129-0	01	1	9910-		●
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-249-0	04	1	9902-9909	●
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-249-0	04	1	9910-	●	●
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33519-097-0	01	1	9910-		●
393	PIN; SW (A)	1-33519-029-0	02	1	9902-9909	●
393	PIN; SW (A)	1-33519-029-0	02	1	9910-	●	●
393	PIN; SW (B)	1-33519-077-0	01	1	9902-9909	●
393	PIN; SW (B)	1-33519-077-0	01	1	9910-	●	●
393	PIN; SW (C)	1-33549-335-0	01	1	9902-9909	●
393	PIN; SW (C)	1-33549-335-0	01	1	9910-	●	●
393	PIN; SW (D)	1-33519-098-0	01	1	9910-		●
394	SWITCH; RANGE CHANGE (A)	1-82440-080-1	01	1	9902-9909	●
394	SWITCH; RANGE CHANGE (A)	1-82440-080-1	01	1	9910-	●	●
394	SWITCH; RANGE CHANGE (B)	1-82440-095-0	01	1	9902-	●
394	SWITCH; RANGE CHANGE (B)	1-82440-095-0	02	1	9910-		●
395	GASKET; PLUNGER	1-33549-167-0	02	1	9902-	●
395	GASKET; PLUNGER	1-33549-167-0	01	1	9910-		●
396	PLUNGER; SHIFT ROD (C)	1-33519-073-0	01	1	9902-	●
396	PLUNGER; SHIFT ROD (A)	1-33519-118-0	01	1	9902-9909	●
396	PLUNGER; SHIFT ROD (A)	1-33519-118-0	01	1	9910-	●	●
396	PLUNGER; SHIFT ROD (B)	1-33529-085-0	02	1	9902-9909	●
396	PLUNGER; SHIFT ROD (B)	1-33529-085-0	02	1	9910-	●	●
529	SPRING; AIR CYL	1-33519-078-0	01	1	9902-9909	●
529	SPRING; AIR CYL	1-33519-078-0	01	1	9910-	●	●

78 51 51 32 51 61 102 102 349 513 351 351 353 349 351 351 349 351 351 346 346 351 351 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	ARM; SHIFT,1ST & 2ND	1-33511-565-0	01	1	9902-	●
32	ARM; SHIFT,1ST & 2ND	1-33519-127-0	01	1	9910-		●
51	BLOCK; SHIFT,1ST & 2ND (A)	1-33519-053-0	02	1	9902-9909	●
51	BLOCK; SHIFT,1ST & 2ND (A)	1-33519-053-0	02	1	9910-	●	●
51	BLOCK; SHIFT,1ST & 2ND (B)	1-33519-116-0	01	1	9902-9909	●
51	BLOCK; SHIFT,1ST & 2ND (B)	1-33519-116-0	01	1	9910-	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-522-0	01	1	9902-	●
61	ARM; SHIFT,3RD & 4TH	1-33511-510-0	01	1	9910-		●
78	ARM; SHIFT,REV	1-33511-523-0	01	1	9902-	●
78	ARM; SHIFT,REV	1-33511-511-0	01	1	9910-		●
102	BLOCK; SHIFT,3RD & 4TH	1-33519-053-0	02	1	9902-9909	●
102	BLOCK; SHIFT,3RD & 4TH	1-33519-053-0	02	1	9910-	●	●
346	HOSE; AIR (A)	1-33549-336-0	01	1	9902-	●
346	HOSE; AIR (B)	1-33549-337-0	01	1	9902-	●
346	HOSE; AIR (A)	1-33549-182-0	01	1	9910-		●
346	HOSE; AIR (B)	1-33549-183-0	01	1	9910-		●
349	BOLT; EYE,AIR HOSE (B)	1-33549-144-0	01	1	9902-9909	●
349	BOLT; EYE,AIR HOSE (B)	1-33549-144-0	01	1	9910-	●	●
349	BOLT; EYE,AIR HOSE (A)	1-33549-155-0	04	1	9902-9909	●
349	BOLT; EYE,AIR HOSE (A)	1-33549-155-0	04	1	9910-	●	●
351	GASKET; CONNECTOR (A)	1-33549-184-0	08	1	9902-9909	●
351	GASKET; CONNECTOR (A)	1-33549-184-0	08	1	9910-	●	●
351	GASKET; CONNECTOR (B)	1-33549-307-0	04	1	9902-9909	●
351	GASKET; CONNECTOR (B)	1-33549-307-0	04	1	9910-	●	●
353	CLIP; AIR HOSE	1-33549-142-0	01	1	9902-9909	●
353	CLIP; AIR HOSE	1-33549-142-0	01	1	9910-	●	●
513	CLIP; BAND L=250	5-09707-030-1	01	1	9902-9904	●
513	CLIP; BAND L=250	5-09707-030-1	01	1	9905-9909	●		●
513	CLIP; BAND L=250	5-09707-030-1	01	1	9910-0003	●	●	●
513	CLIP; BAND L=250	5-09707-030-1	01	1	0004-0004	●		●
513	CLIP; BAND SHORT CHASSIS&LHD(EXR6MC) L=250	5-09707-030-1	01	1	0004-0004		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
