4-55 — FRONT LEAF SPRING (#76638) — 23 parça

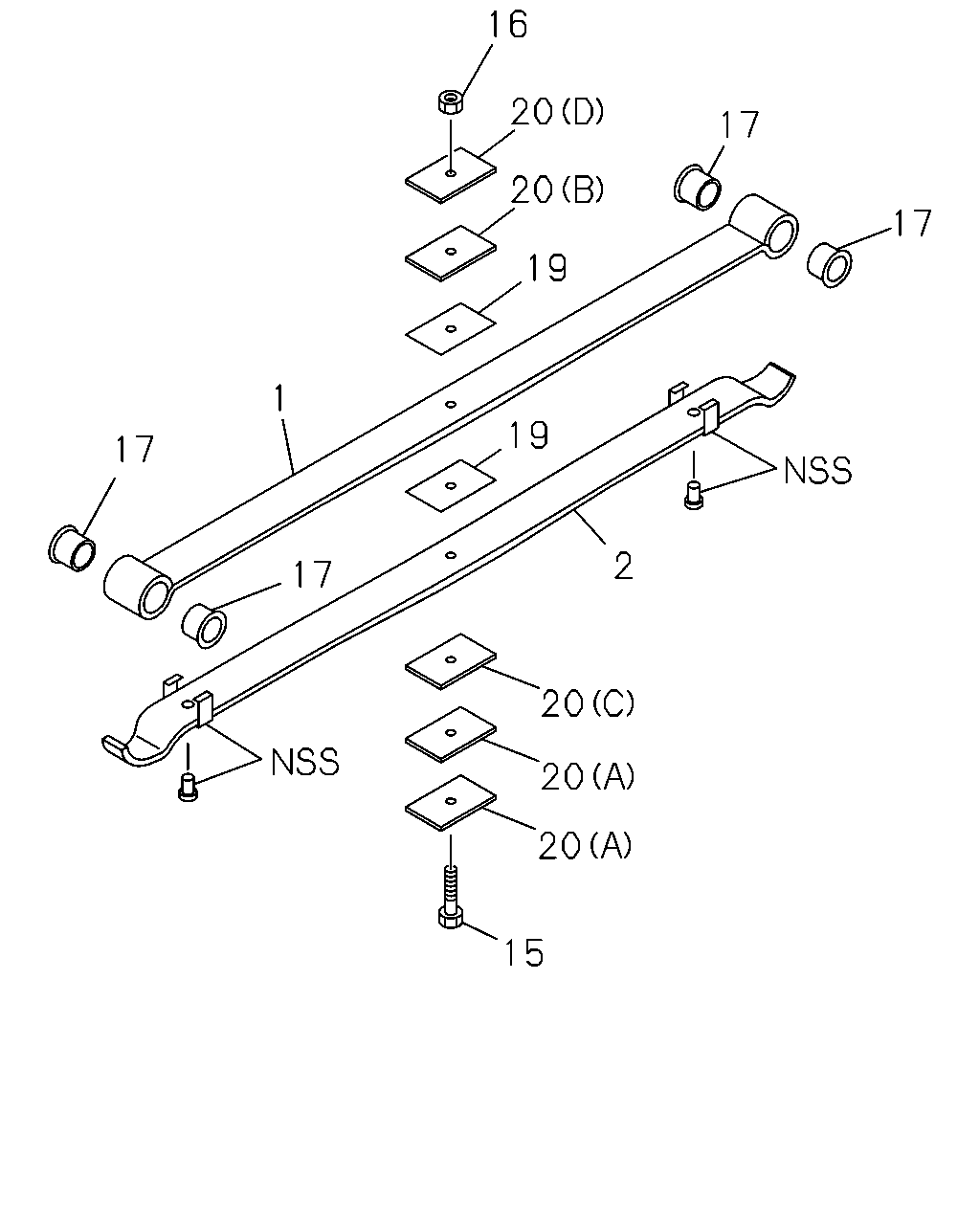

çizim 125042
16 20 17 20 17 19 1 19 17 2 17 20 20 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98001-530-0, 98001530 		8-98022-514-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98001-531-0, 98001531 		8-98022-517-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: C = 8-98085-706-1, 98085706 		8-98094-398-1 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: D = 8-98085-707-1, 98085707 		8-98094-400-1 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: E = 8-98185-967-0, 98185967 		8-98189-799-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: F = 8-98185-969-0, 98185969 		8-98189-831-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98001-530-0, 98001530 		8-98022-515-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98001-531-0, 98001531 		8-98022-518-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: C = 8-98085-706-1, 98085706 		8-98094-399-1 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: D = 8-98085-707-1, 98085707 		8-98094-401-1 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: E = 8-98185-967-0, 98185967 		8-98189-800-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: F = 8-98185-969-0, 98185969 		8-98189-832-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=80 ASM PART: A = 8-98001-530-0, 98001530, B = 8-98001-531-0, 98001531, C = 8-98085-706-1, 98085706, D = 8-98085-707-1, 98085707 		8-98041-353-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=75 ASM PART: E = 8-98185-967-0, 98185967, F = 8-98185-969-0, 98185969 		8-98136-948-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-98001-530-0, 98001530, B = 8-98001-531-0, 98001531, C = 8-98085-706-1, 98085706, D = 8-98085-707-1, 98085707, E = 8-98185-967-0, 98185967, F = 8-98185-969-0, 98185969 		1-09400-055-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
OD=43.25 ASM PART: A = 8-98001-530-0, 98001530, B = 8-98001-531-0, 98001531, C = 8-98085-706-1, 98085706, D = 8-98085-707-1, 98085707, E = 8-98185-967-0, 98185967, F = 8-98185-969-0, 98185969 		8-98040-327-0 04 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98001-530-0, 98001530, B = 8-98001-531-0, 98001531, C = 8-98085-706-1, 98085706, D = 8-98085-707-1, 98085707, E = 8-98185-967-0, 98185967, F = 8-98185-969-0, 98185969 		8-94478-008-1 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B) ASM PART: E = 8-98185-967-0, 98185967, F = 8-98185-969-0, 98185969 		8-94440-133-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B) ASM PART: A = 8-98001-530-0, 98001530, B = 8-98001-531-0, 98001531, C = 8-98085-706-1, 98085706, D = 8-98085-707-1, 98085707 		8-98040-316-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
(A) ASM PART: C = 8-98085-706-1, 98085706, D = 8-98085-707-1, 98085707 		8-98041-369-0 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
(C) ASM PART: A = 8-98001-530-0, 98001530, B = 8-98001-531-0, 98001531, C = 8-98085-706-1, 98085706, D = 8-98085-707-1, 98085707 		8-98041-455-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
(A) ASM PART: A = 8-98001-530-0, 98001530, B = 8-98001-531-0, 98001531, E = 8-98185-967-0, 98185967, F = 8-98185-969-0, 98185969 		8-98042-626-0 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
(D) ASM PART: E = 8-98185-967-0, 98185967, F = 8-98185-969-0, 98185969 		8-98189-802-0 01 1 -
