2-30A — GEAR SHIFTER AND QUADRANT BOX (#7663) — 277 parça

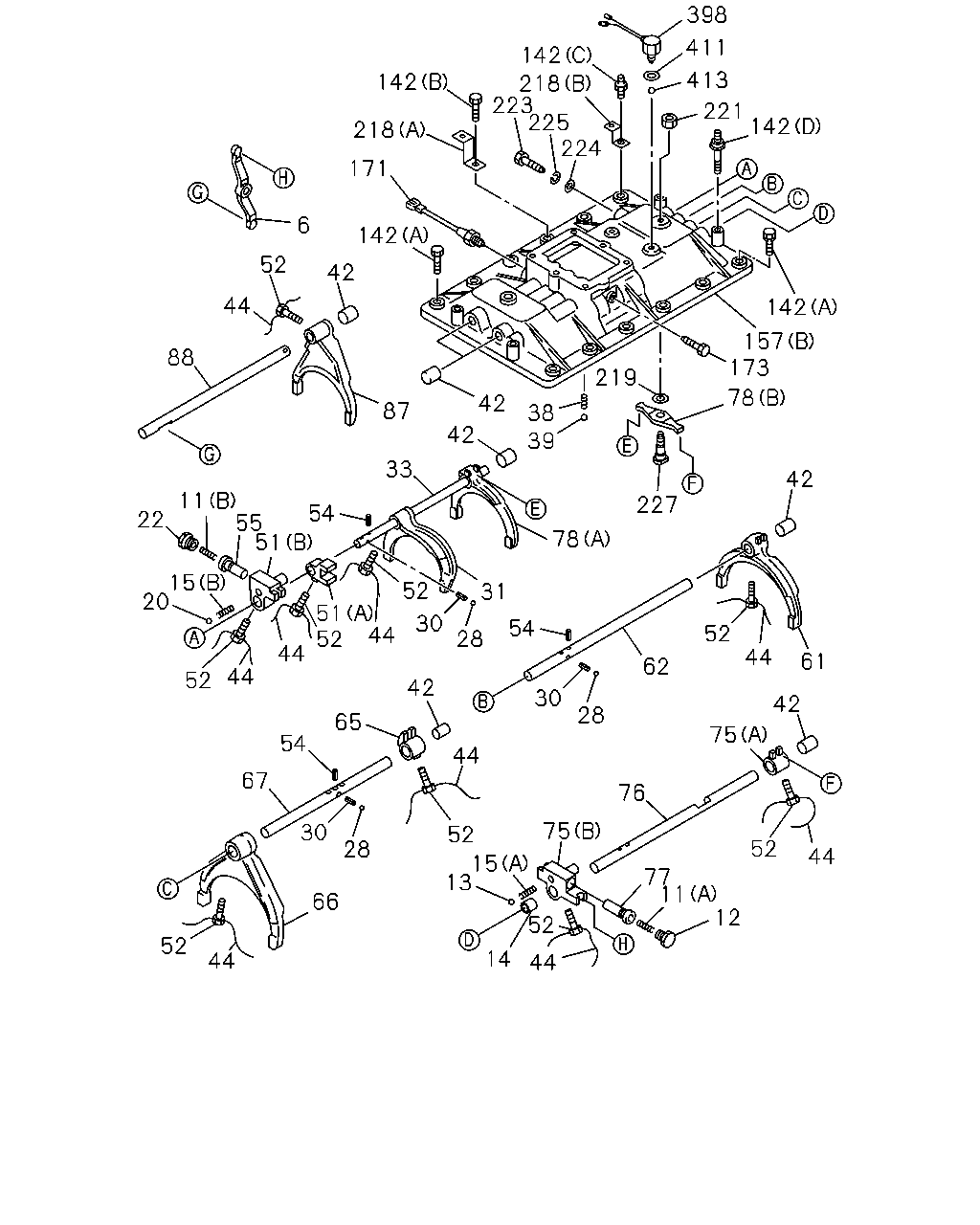

398 411 142 413 142 218 223 225 224 221 142 218 171 6 142 52 42 44 142 157 173 88 219 78 42 87 38 39 42 33 42 11 55 51 227 54 22 78 15 20 52 31 51 52 44 30 54 52 28 44 44 61 62 44 52 42 30 42 28 65 75 54 44 67 76 75 30 2 52 28 44 15 13 77 11 12 66 52 52 14 44 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ROD; SHIFT,1ST & REV (B)	1-33531-418-1	01	1	9905-	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-423-1	01	1	9905-	●
6	LEVER; RELAY	1-33511-233-1	01	1	9902-		●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	9902-9904		●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	9905-	●	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	9902-9904		●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	9905-	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-1	01	1	9902-		●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9905-9910	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	9911-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9902-9904		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9905-	●	●
14	STOPPER; SHIFT ROD,7TH TO RR	1-33537-019-0	01	1	9902-		●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-436-0	01	1	9902-		●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	9902-9904		●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	9905-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-438-0	01	1	9905-	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9902-9904		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9905-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-1	01	1	9902-		●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9905-9910	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	9911-	●
28	BALL; INTER LK	9-00097-501-0	04	1	9902-9904		●
28	BALL; INTER LK	9-00097-501-0	04	1	9905-	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	9902-9904		●
30	PIN; INTER LK	9-33534-003-0	03	1	9905-	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-291-1	01	1	9902-		●
33	ROD; SHIFT,LOW & 2ND	1-33531-426-1	01	1	9902-		●
38	SPRING; DETENT	1-09580-379-0	04	1	9902-9904		●
38	SPRING; DETENT	1-09580-379-0	04	1	9905-	●	●
39	BALL; DETENT	1-09843-012-0	04	1	9902-9904		●
39	BALL; DETENT	1-09843-012-0	04	1	9905-	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9902-9904		●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9905-	●	●
44	WIRE; LK L=180	1-09780-024-0	07	1	9902-9911		●
44	WIRE; LK L=200	9-08351-020-0	02	1	9912-		●
44	WIRE; LK L=200	9-08351-020-0	02	1	9902-9904		●
44	WIRE; LK L=200	9-08351-020-0	02	1	9905-9911	●	●
44	WIRE; LK L=180	1-09780-024-0	07	1	9912-	●	●
44	WIRE; LK L=180	1-09780-024-0	08	1	9905-9911	●
44	WIRE; LK L=200	9-08351-020-0	03	1	9912-	●
51	BLOCK; SHIFT,1ST & 2ND (A)	1-33511-256-2	01	1	9902-9905		●
51	BLOCK; SHIFT,1ST & 2ND (A)	1-33511-605-0	01	1	9906-		●
51	BLOCK; SHIFT,1ST & 2ND (B)	1-33511-298-4	01	1	9902-		●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	09	1	9902-		●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	10	1	9905-	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9902-9904		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9905-	●	●
55	SLEEVE; 1ST & 2ND	1-33516-022-1	01	1	9902-		●
61	ARM; SHIFT,3RD & 4TH	1-33511-314-2	01	1	9902-		●
62	ROD; SHIFT,3RD & 4TH	1-33531-428-1	01	1	9902-		●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-286-1	01	1	9902-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-273-1	01	1	9902-		●
67	ROD; SHIFT,5TH & 6TH	1-33531-429-1	01	1	9902-		●
75	BLOCK ASM; SHIFT,REV & 7TH (A)	1-33511-236-1	01	1	9902-		●
75	BLOCK ASM; SHIFT,REV & 7TH (B)	1-33511-300-4	01	1	9902-		●
76	ROD; SHIFT,REV & 7TH BLOCK	1-33531-432-1	01	1	9902-		●
77	SLEEVE; REV & 7TH	1-33516-022-1	01	1	9902-		●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9902-		●
78	ARM; SHIFT,REV (A)	1-33511-313-1	01	1	9902-		●
87	ARM; SHIFT,7TH	1-33511-275-1	01	1	9902-		●
88	ROD; SHIFT,REV & 7TH ARM	1-33531-433-1	01	1	9902-		●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	0-28181-028-0	12	1	9902-9904		●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	0-28181-028-0	12	1	9905-	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9902-9904		●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9905-	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	04	1	9902-9904		●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	04	1	9905-	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	02	1	9902-9904		●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	02	1	9905-	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9902-9904		●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9905-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-388-1	01	1	9902-9904		●
157	BOX; QUAD,TRANS (A)	1-33541-388-1	01	1	9905-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-399-0	01	1	9902-		●
157	BOX; QUAD,TRANS (B)	1-33541-466-0	01	1	9905-	●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9902-9904		●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	9905-	●	●
173	SCREW; SET,7TH TO REV	1-09000-446-1	01	1	9902-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-47475-689-0	01	1	9902-9904		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-47475-689-0	01	1	9905-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-425-0	01	1	9902-9904		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-425-0	01	1	9905-	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9902-		●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9902-		●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9902-		●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9902-		●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9902-		●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9902-		●
227	SPINDLE; 1ST & REV	1-33519-008-1	01	1	9905-	●
398	SWITCH; REV LAMP	1-82440-083-2	01	1	9902-9904		●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9905-	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9902-9904		●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9905-	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9902-9904		●
413	BALL; BACK SW	9-00097-013-0	01	1	9905-	●	●

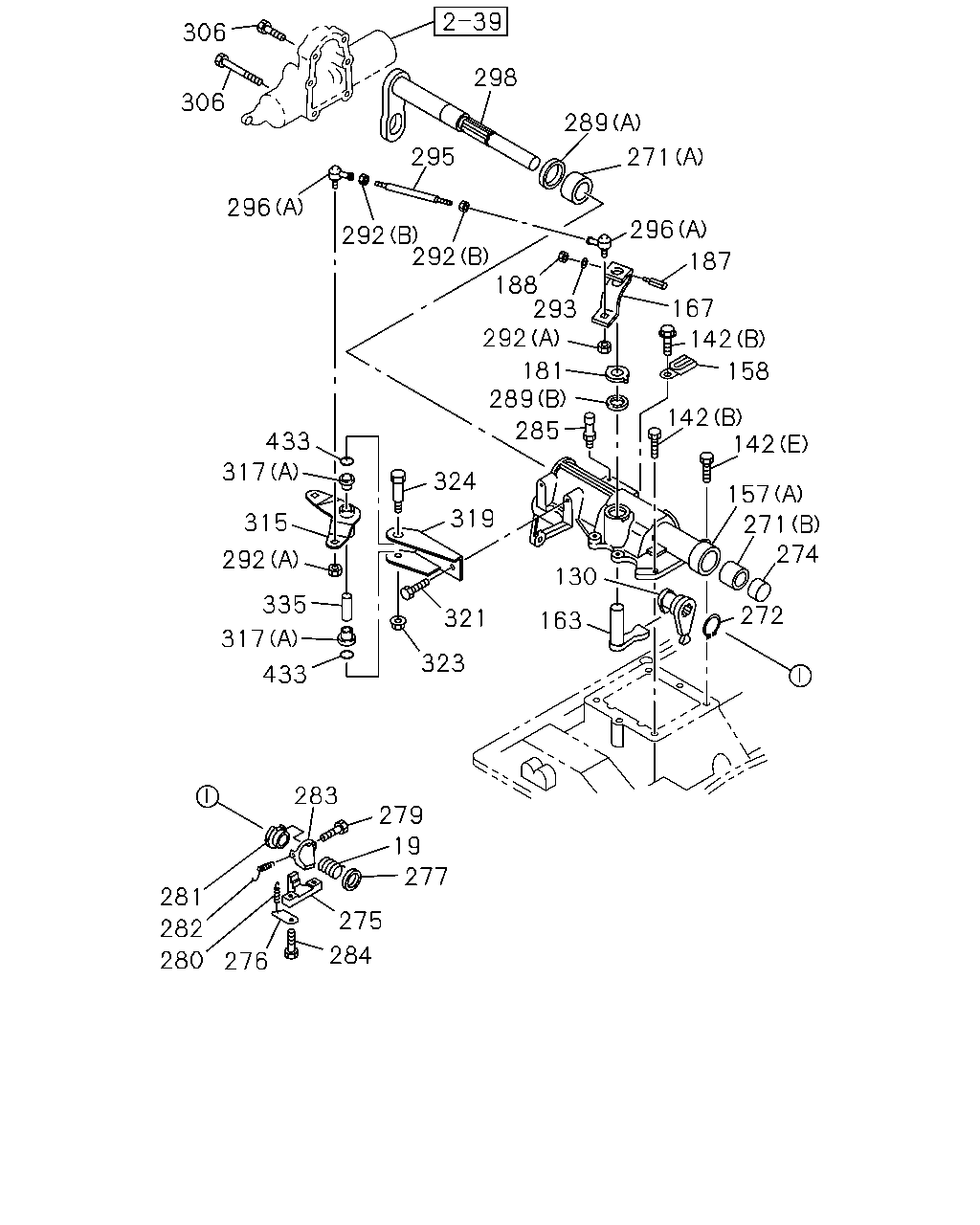

306 298 306 289 295 271 296 296 292 292 188 293 292 187 167 142 181 289 158 142 142 285 433 317 324 157 319 315 271 274 292 130 335 272 321 163 317 323 433 283 279 19 277 281 275 282 284 280 276

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	SPRING; COIL COMP	1-09580-519-0	01	1	9902-		●
130	LEVER; SHIFT,INTERNAL	1-33521-125-0	01	1	9902-		●
130	LEVER; SHIFT,INTERNAL	1-33521-124-0	01	1	9905-	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	0-28181-028-0	12	1	9902-9904		●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	0-28181-028-0	12	1	9905-	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9902-9904		●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9905-	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	04	1	9902-9904		●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	04	1	9905-	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	02	1	9902-9904		●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	02	1	9905-	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9902-9904		●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9905-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-388-1	01	1	9902-9904		●
157	BOX; QUAD,TRANS (A)	1-33541-388-1	01	1	9905-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-399-0	01	1	9902-		●
157	BOX; QUAD,TRANS (B)	1-33541-466-0	01	1	9905-	●
158	CLIP; HARNESS L=36	8-94224-891-1	02	1	9902-9904		●
158	CLIP; HARNESS L=36	8-94224-891-1	02	1	9905-	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9902-9904		●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	9905-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-138-0	01	1	9902-9904		●
167	LEVER; SELECT,EXTERNAL	1-33521-138-0	01	1	9905-	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9902-9904		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9905-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9902-9904		●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9905-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9902-9904		●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9905-	●	●
271	BUSHING; QUAD BOX (B) ID=20 OD=23	1-33549-016-0	01	1	9902-9904		●
271	BUSHING; QUAD BOX (B) ID=20 OD=23	1-33549-016-0	01	1	9905-	●	●
271	BUSHING; QUAD BOX (A) ID=28 OD=32	1-33549-104-0	01	1	9902-9904		●
271	BUSHING; QUAD BOX (A) ID=28 OD=32	1-33549-104-0	01	1	9905-	●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	9902-9904		●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	9905-	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9902-9904		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9905-	●	●
275	BLOCK; OBSTRUCT,QUAD BOX	1-33529-031-1	01	1	9902-		●
276	PLATE; SPRING RET	1-33529-010-0	01	1	9902-		●
277	PLATE; SPRING SEAT	1-33529-009-0	01	1	9902-		●
279	BOLT; STOPPER M5X8	0-20800-508-0	01	1	9902-		●
280	SPRING; COIL TENSION	1-09583-285-0	01	1	9902-		●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-030-1	01	1	9902-		●
282	BOLT; SPRING REAMER	1-33529-024-0	01	1	9902-		●
283	STOPPER; SHIFT SHAFT	1-33529-032-0	01	1	9902-		●
284	BOLT; REAMER,QUAD BOX	1-09040-075-1	02	1	9902-		●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9902-9904		●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9905-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9902-9904		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9905-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9902-9904		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9905-	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	9902-9904		●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	9905-	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9902-9904	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9905-9909	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9910-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9902-9904		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9905-	●	●
295	ROD; LINK,RELAY LEVER	9-08400-817-0	01	1	9902-9904		●
295	ROD; LINK,RELAY LEVER	9-08400-817-0	01	1	9905-	●	●
296	ROD END (A)	1-09760-108-0	02	1	9902-9904	●	●
296	ROD END (A)	1-09760-108-0	02	1	9905-9909	●	●
296	ROD END (A)	1-09760-108-0	02	1	9910-	●	●
298	SHAFT; SHIFT LEVER	1-33522-113-0	01	1	9902-9904		●
298	SHAFT; SHIFT LEVER	1-33522-113-0	01	1	9905-	●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	9902-9904		●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	9905-	●	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE	0-28181-080-0	04	1	9902-9904		●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE	0-28181-080-0	04	1	9905-	●	●
315	LEVER; SELECT	1-33651-719-0	01	1	9902-9904		●
315	LEVER; SELECT	1-33651-719-0	01	1	9905-	●	●
317	BUSHING; LEVER (A)	1-09330-119-0	02	1	9902-9904		●
317	BUSHING; LEVER (A)	1-09330-119-0	02	1	9905-	●	●
319	BRACKET; SELECT LEVER	1-33657-590-0	01	1	9902-9904		●
319	BRACKET; SELECT LEVER	1-33657-590-0	01	1	9905-	●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9902-9904		●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9905-	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	9902-9904		●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	9905-	●	●
324	BOLT; SHAFT M10X60	0-10811-060-0	01	1	9902-9904		●
324	BOLT; SHAFT M10X60	0-10811-060-0	01	1	9905-	●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	9902-9904		●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	9905-	●	●
433	GASKET; BUSHING	1-09623-636-0	02	1	9902-9904		●
433	GASKET; BUSHING	1-09623-636-0	02	1	9905-	●	●

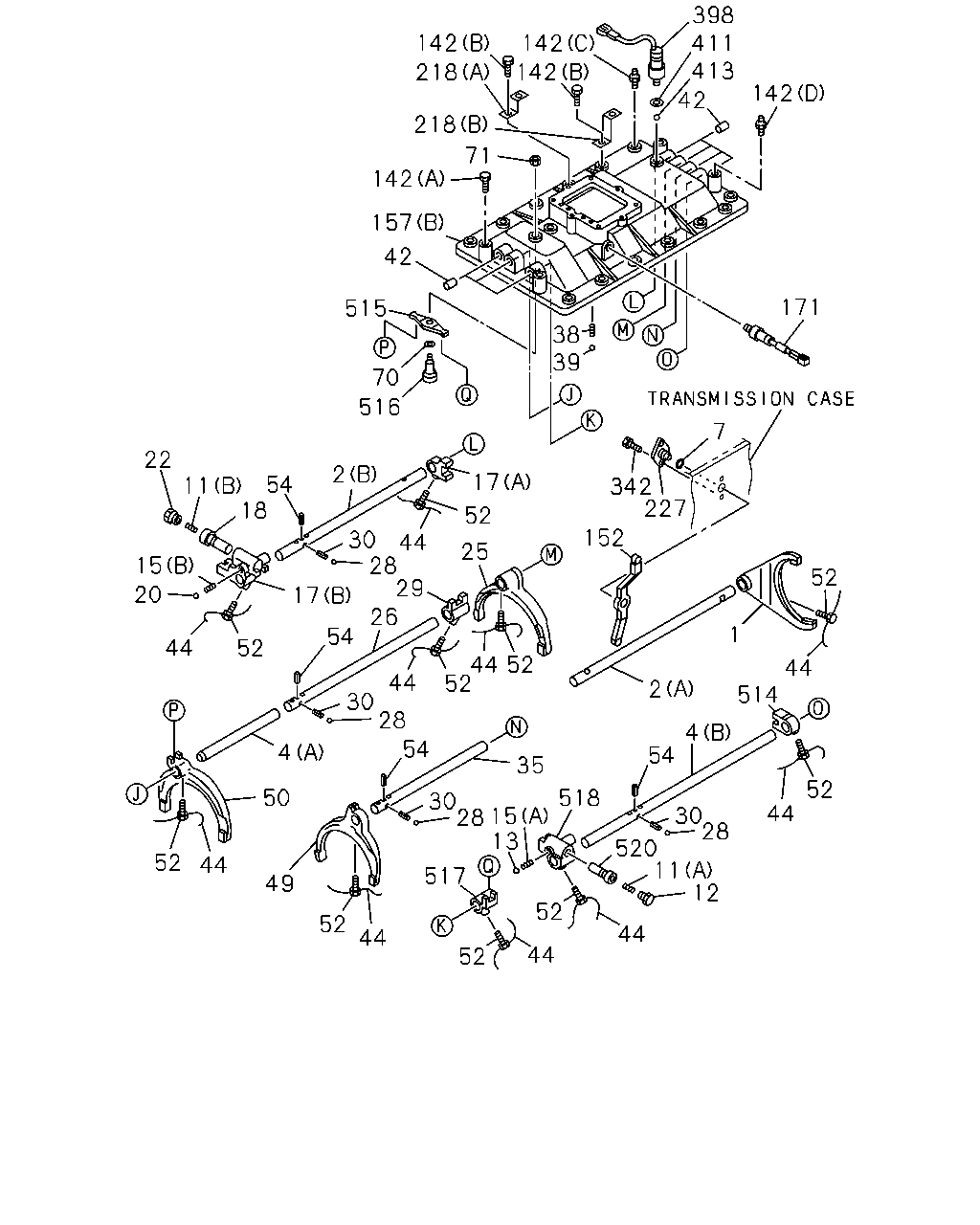

398 411 413 142 142 142 218 142 42 218 71 142 157 42 38 39 171 515 70 516 7 22 2 17 18 342 227 52 152 30 44 28 29 26 25 15 52 20 17 1 54 52 44 52 44 514 44 2 30 28 4 54 4 54 35 52 50 518 30 13 44 30 28 520 11 12 52 44 517 49 52 52 44 44 44 52 11 54 28 15 44 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV	1-33511-520-1	01	1	9905-	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-418-1	01	1	9905-	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-423-1	01	1	9905-	●
4	ROD; SHIFT,6TH (B)	1-33531-421-1	01	1	9905-	●
4	ROD; SHIFT,6TH (A)	1-33531-422-1	01	1	9905-	●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	9905-	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	9902-9904		●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	9905-	●	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	9902-9904		●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	9905-	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-1	01	1	9902-		●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9905-9910	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	9911-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9902-9904		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9905-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-436-0	01	1	9902-		●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	9902-9904		●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	9905-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-438-0	01	1	9905-	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-256-2	01	1	9905-9905	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-605-0	01	1	9906-	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-482-0	01	1	9905-9905	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-603-0	01	1	9906-	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	9905-	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9902-9904		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9905-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-1	01	1	9902-		●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9905-9910	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	9911-	●
25	ARM; SHIFT,2ND & 3RD	1-33511-435-0	01	1	9905-	●
26	ROD; SHIFT,2ND & 3RD	1-33531-419-1	01	1	9905-	●
28	BALL; INTER LK	9-00097-501-0	04	1	9902-9904		●
28	BALL; INTER LK	9-00097-501-0	04	1	9905-	●	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-286-1	01	1	9905-	●
30	PIN; INTER LK	9-33534-003-0	03	1	9902-9904		●
30	PIN; INTER LK	9-33534-003-0	03	1	9905-	●	●
35	ROD; SHIFT,4TH & 5TH BLOCK	1-33531-420-1	01	1	9905-	●
38	SPRING; DETENT	1-09580-379-0	04	1	9902-9904		●
38	SPRING; DETENT	1-09580-379-0	04	1	9905-	●	●
39	BALL; DETENT	1-09843-012-0	04	1	9902-9904		●
39	BALL; DETENT	1-09843-012-0	04	1	9905-	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9902-9904		●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9905-	●	●
44	WIRE; LK L=180	1-09780-024-0	07	1	9902-9911		●
44	WIRE; LK L=200	9-08351-020-0	02	1	9912-		●
44	WIRE; LK L=200	9-08351-020-0	02	1	9902-9904		●
44	WIRE; LK L=200	9-08351-020-0	02	1	9905-9911	●	●
44	WIRE; LK L=180	1-09780-024-0	07	1	9912-	●	●
44	WIRE; LK L=180	1-09780-024-0	08	1	9905-9911	●
44	WIRE; LK L=200	9-08351-020-0	03	1	9912-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-466-1	01	1	9905-	●
50	ARM; SHIFT,6TH	1-33511-437-0	01	1	9905-	●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	09	1	9902-		●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	10	1	9905-	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9902-9904		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9905-	●	●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	9905-	●
71	NUT; SHIFT LEVER M12 FLANGE	0-91150-212-0	01	1	9905-	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	0-28181-028-0	12	1	9902-9904		●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	0-28181-028-0	12	1	9905-	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9902-9904		●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9905-	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	04	1	9902-9904		●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	04	1	9905-	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	02	1	9902-9904		●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	02	1	9905-	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9902-9904		●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9905-	●	●
152	LEVER; RELAY,SELECT	1-33511-428-0	01	1	9905-	●
157	BOX; QUAD,TRANS (A)	1-33541-388-1	01	1	9902-9904		●
157	BOX; QUAD,TRANS (A)	1-33541-388-1	01	1	9905-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-399-0	01	1	9902-		●
157	BOX; QUAD,TRANS (B)	1-33541-466-0	01	1	9905-	●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9902-9904		●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	9905-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-47475-689-0	01	1	9902-9904		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-47475-689-0	01	1	9905-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-425-0	01	1	9902-9904		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-425-0	01	1	9905-	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9902-		●
227	SPINDLE; 1ST & REV	1-33519-008-1	01	1	9905-	●
342	BOLT M14X20	1-09044-078-0	02	1	9905-	●
398	SWITCH; REV LAMP	1-82440-083-2	01	1	9902-9904		●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9905-	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9902-9904		●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9905-	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9902-9904		●
413	BALL; BACK SW	9-00097-013-0	01	1	9905-	●	●
514	BLOCK; 6-7 SETTING	1-33511-256-2	01	1	9905-9905	●
514	BLOCK; 6-7 SETTING	1-33511-605-0	01	1	9906-	●
515	LEVER; SHIFT,6TH & 7TH	1-33511-082-0	01	1	9905-	●
516	SPINDLE; 6TH & 7TH	1-33519-012-0	01	1	9905-	●
517	BLOCK; SHIFT,6TH & 7TH	1-33511-395-1	01	1	9905-	●
518	BLOCK ASM; SHIFT,6TH & 7TH	1-33511-293-2	01	1	9905-	●
520	SLEEVE; 6TH & 7TH	1-33516-022-1	01	1	9905-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
