Sayfa 4-11 - Isuzu EPC

4-11 — FRONT HUB AND DRUM OR ROTOR (#76626) — 187 parça

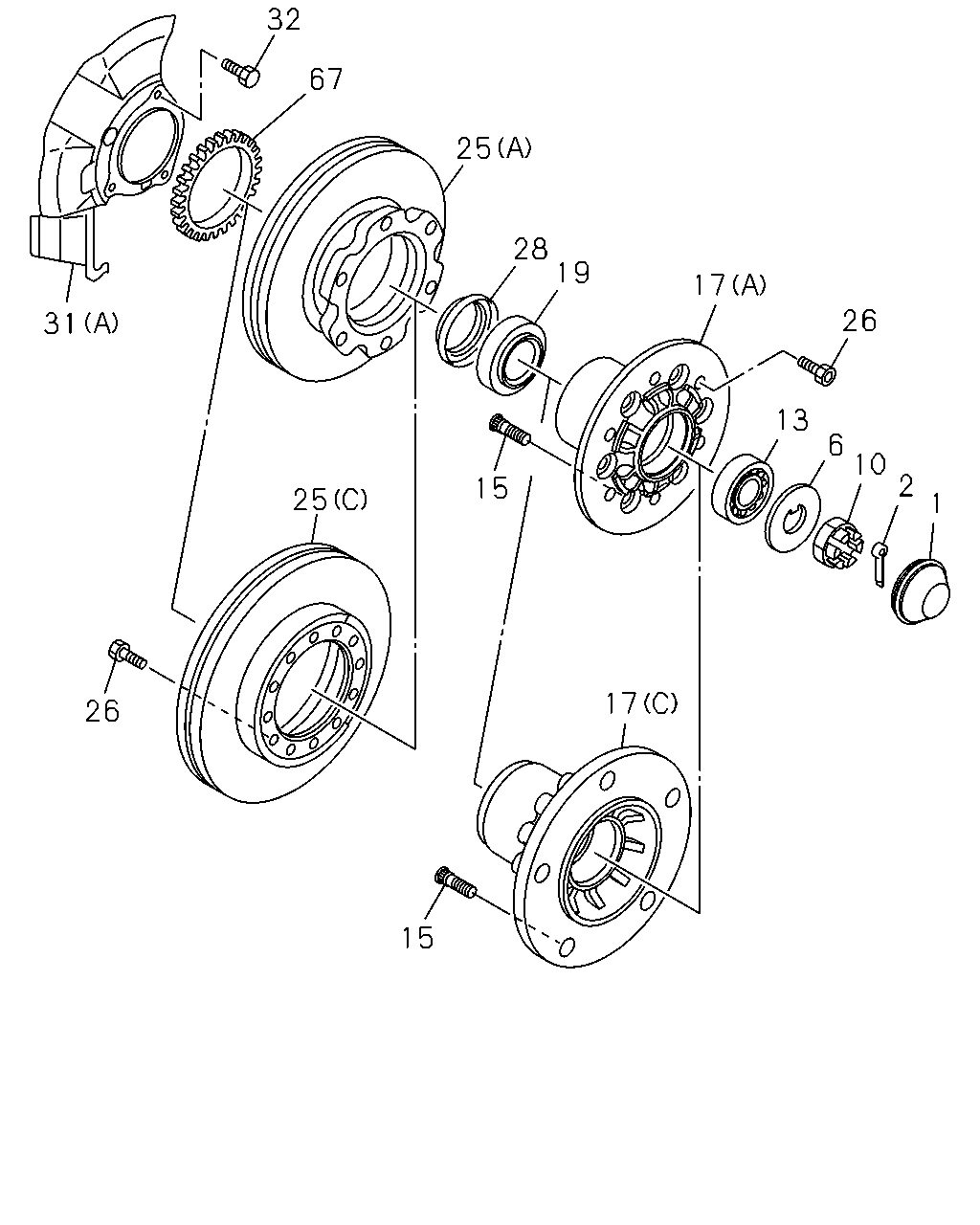

32 67 25 28 19 17 26 31 13 6 10 2 15 25 1 17 26 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.330 CAP; HUB,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0)	8-98276-604-0	02	1	1407-1407	●	●
1	06.330 CAP; HUB,FRT AXLE	8-98276-604-0	02	1	1408-	●	●	●
1	06.330 CAP; HUB,FRT AXLE	8-97360-101-0	02	1	0907-1406	●	●	●
1	06.330 CAP; HUB,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97360-101-0	02	1	1407-1407	●	●
1	06.330 CAP; HUB,FRT AXLE	8-97360-101-0	02	1	1407-1407			●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	0907-	●	●	●
6	05.812 WASHER; LK,FRT HUB FRT INDEPENDENT SUSPENSION(FF0) 06.321	8-94247-356-1	02	1	0907-1008	●
6	05.812 WASHER; LK,FRT HUB FRT INDEPENDENT SUSPENSION(FF0) 06.321	8-94247-356-1	02	1	1009-1502	●	●
6	05.812 WASHER; LK,FRT HUB FRT INDEPENDENT SUSPENSION(FF0)	8-98282-435-0	02	1	1503-	●	●
10	05.812 NUT; FRT HUB BRG 06.022	8-94247-357-1	02	1	0907-	●	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	0907-	●	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	0907-	●	●	●
15	05.812 PIN; WHEEL,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) M18X46 RH THREAD	8-98028-532-1	05	1	0907-1008	●
15	05.812 PIN; WHEEL,FRT AXLE M18X46 RH THREAD	8-98028-532-1	05	1	0907-1008		●	●
15	05.812 PIN; WHEEL,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) M18X46 RH THREAD	8-98028-532-1	05	1	1009-	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) M18X46 RH THREAD	8-98028-532-1	05	1	1009-	●
15	05.812 PIN; WHEEL,FRT AXLE M18X46 RH THREAD	8-98028-532-1	05	1	1009-		●	●
15	05.812 PIN; WHEEL,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) M18X46 LH THREAD	8-98028-533-1	05	1	0907-1008	●
15	05.812 PIN; WHEEL,FRT AXLE M18X46 LH THREAD	8-98028-533-1	05	1	0907-1008		●	●
15	05.812 PIN; WHEEL,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) M18X46 LH THREAD	8-98028-533-1	05	1	1009-	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) M18X46 LH THREAD	8-98028-533-1	05	1	1009-	●
15	05.812 PIN; WHEEL,FRT AXLE M18X46 LH THREAD	8-98028-533-1	05	1	1009-		●	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) M14X39 RH THREAD	8-97126-490-1	06	1	0907-	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) M14X39 LH THREAD	8-97126-491-1	06	1	0907-	●
17	06.307 HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) (C)	8-98049-164-0	02	1	1009-	●
17	06.307 HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98049-164-0	02	1	1009-		●
17	06.307 HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97035-160-0	02	1	0907-	●	●
17	06.307 HUB; FRT AXLE (B)	8-97035-160-0	02	1	0907-			●
17	06.307 HUB; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97017-193-0	02	1	0907-	●	●
17	06.307 HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) (A)	8-98049-154-0	02	1	0907-	●
19	06.311 BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 06.313 NTN	8-98008-156-1	02	1	1206-	●
19	06.311 BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) NSK	8-97034-255-0	02	1	1009-	●
19	06.311 BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) NSK	8-97034-255-0	02	1	1009-		●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) JTEKT	8-94248-088-2	02	1	0907-1008	●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-94248-088-2	02	1	0907-1008		●	●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) JTEKT	8-94248-088-2	02	1	1009-1009	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-94248-088-2	02	1	1009-1009			●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) JTEKT	8-98171-254-0	02	1	1010-	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1010-			●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) NSK	9-00093-149-0	02	1	0907-1008	●
19	06.311 BEARING; HUB INNER,FRT AXLE NSK	9-00093-149-0	02	1	0907-1008		●	●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) NSK	9-00093-149-0	02	1	1009-1009	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE NSK	9-00093-149-0	02	1	1009-1009			●
19	06.311 BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) NSK	8-94336-289-0	02	1	0907-	●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) BEST VALUE PARTS	1-87610-134-0	02	1	1010-	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1010-			●
25	05.809 ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) (C)	8-98171-033-0	02	1	1010-	●
25	05.809 ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98171-033-0	02	1	1010-		●
25	05.809 ROTOR; DISC BRK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97387-229-0	02	1	0907-1008	●
25	05.809 ROTOR; DISC BRK,FRT (B)	8-97387-229-0	02	1	0907-1008		●	●
25	05.809 ROTOR; DISC BRK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97387-229-0	02	1	1009-1009	●
25	05.809 ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) (B)	8-97387-229-0	02	1	1009-1009	●
25	05.809 ROTOR; DISC BRK,FRT (B)	8-97387-229-0	02	1	1009-1009		●	●
25	05.809 ROTOR; DISC BRK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97387-229-0	02	1	1010-1111	●	●
25	05.809 ROTOR; DISC BRK,FRT (B)	8-97387-229-0	02	1	1010-1111			●
25	05.809 ROTOR; DISC BRK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-97387-229-0	02	1	1112-	●	●
25	05.809 ROTOR; DISC BRK,FRT (B)	8-97387-229-0	02	1	1112-			●
25	05.809 ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) (A)	8-98001-342-0	02	1	0907-1308	●
25	05.809 ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) (A)	8-98248-893-0	02	1	1309-	●
26	05.812 BOLT; BRK,DISC TO HUB EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94474-923-0	24	1	0907-1008	●
26	05.812 BOLT; BRK,DISC TO HUB	8-94474-923-0	24	1	0907-1008		●	●
26	05.812 BOLT; BRK,DISC TO HUB EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94474-923-0	24	1	1009-	●
26	05.812 BOLT; BRK,DISC TO HUB FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD)	8-94474-923-0	24	1	1009-	●
26	05.812 BOLT; BRK,DISC TO HUB	8-94474-923-0	24	1	1009-		●	●
26	05.812 BOLT; BRK,DISC TO HUB FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD)	8-98021-780-0	12	1	0907-	●
28	06.326 SEAL; OIL,FRT HUB EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94248-117-1	02	1	0907-1008	●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	0907-1008		●	●
28	06.326 SEAL; OIL,FRT HUB EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94248-117-1	02	1	1009-	●	●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	1009-			●
28	06.326 SEAL; OIL,FRT HUB FRT INDEPENDENT SUSPENSION(FF0)	8-97211-082-0	02	1	0907-1008	●
28	06.326 SEAL; OIL,FRT HUB FRT INDEPENDENT SUSPENSION(FF0)	8-97211-082-0	02	1	1009-	●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98037-377-0	02	1	0907-1008	●
31	04.665 COVER; DUST,FRT BRAKE (B)	8-98037-377-0	02	1	0907-1008		●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98037-377-0	02	1	1009-	●	●
31	04.665 COVER; DUST,FRT BRAKE (B)	8-98037-377-0	02	1	1009-			●
31	04.665 COVER; DUST,FRT BRAKE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97353-960-1	01	1	0907-1008	●
31	04.665 COVER; DUST,FRT BRAKE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97353-960-1	01	1	1009-	●	●
31	04.665 COVER; DUST,FRT BRAKE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97353-961-1	01	1	0907-1008	●
31	04.665 COVER; DUST,FRT BRAKE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97353-961-1	01	1	1009-	●	●
32	04.665 BOLT; DUST COVER TO KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X12 FLANGE	0-28050-812-0	08	1	0907-1008	●
32	04.665 BOLT; DUST COVER TO KNUCKLE 02.343 M8X12 FLANGE	0-28050-812-0	08	1	0907-1008		●	●
32	04.665 BOLT; DUST COVER TO KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X12 FLANGE	0-28050-812-0	08	1	1009-	●	●
32	04.665 BOLT; DUST COVER TO KNUCKLE 02.343 M8X12 FLANGE	0-28050-812-0	08	1	1009-			●
32	04.665 BOLT; DUST COVER TO KNUCKLE FRT INDEPENDENT SUSPENSION(FF0) M8X10 W/LK WASHER	8-98029-928-0	06	1	0907-1008	●
32	04.665 BOLT; DUST COVER TO KNUCKLE FRT INDEPENDENT SUSPENSION(FF0) M8X10 W/LK WASHER	8-98029-928-0	06	1	1009-	●	●
67	05.811 ROTOR; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD)	8-97387-156-1	02	1	1009-	●
67	05.811 ROTOR; SENSOR FRT INDEPENDENT SUSPENSION(FF0)	8-97387-156-1	02	1	1009-		●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97387-159-0	02	1	0907-	●	●
67	05.811 ROTOR; SENSOR	8-97387-159-0	02	1	0907-			●
67	05.811 ROTOR; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD)	8-97387-157-1	02	1	0907-	●

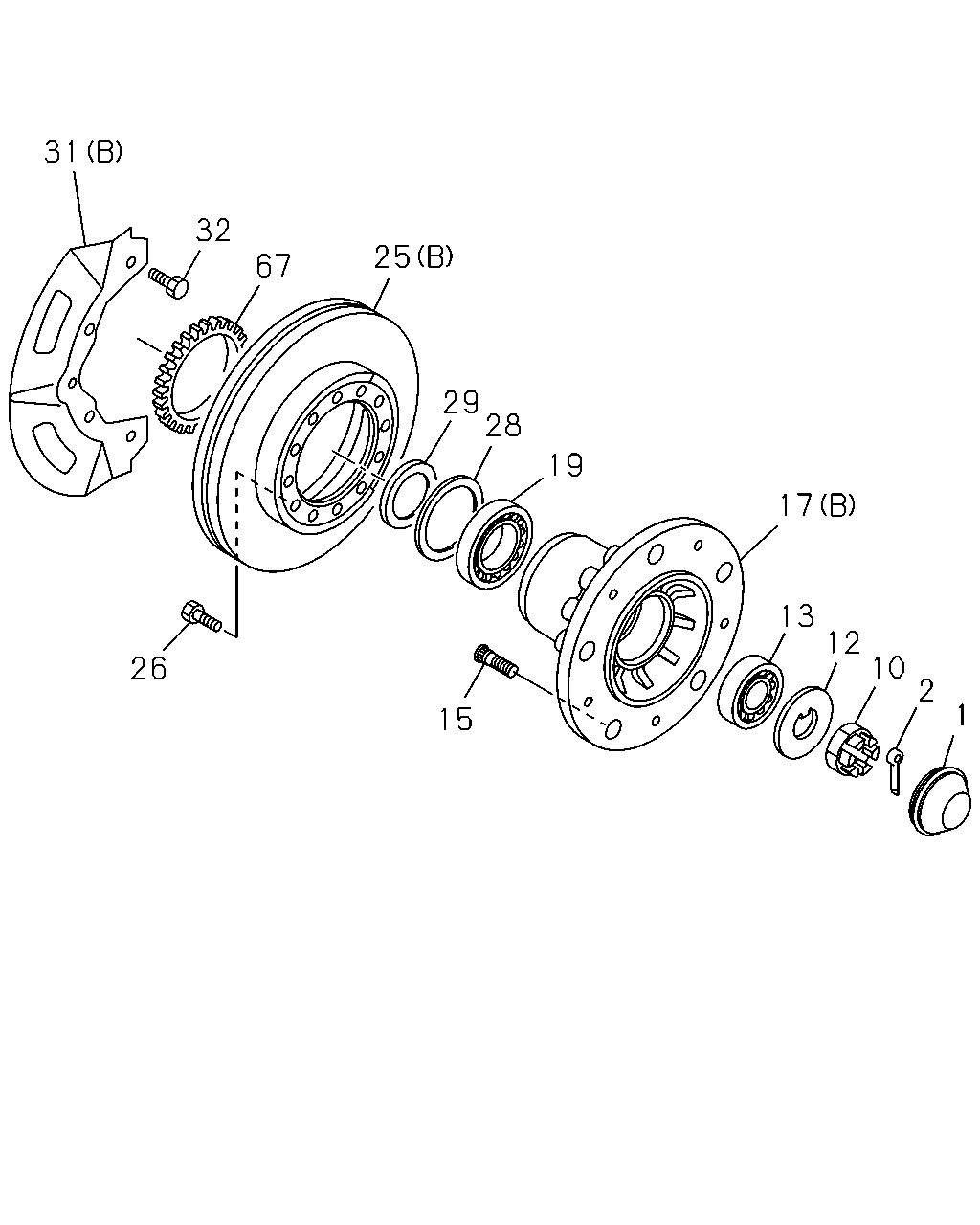

31 32 25 67 29 28 19 17 13 12 10 2 26 1 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.330 CAP; HUB,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0)	8-98276-604-0	02	1	1407-1407	●	●
1	06.330 CAP; HUB,FRT AXLE	8-98276-604-0	02	1	1408-	●	●	●
1	06.330 CAP; HUB,FRT AXLE	8-97360-101-0	02	1	0907-1406	●	●	●
1	06.330 CAP; HUB,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97360-101-0	02	1	1407-1407	●	●
1	06.330 CAP; HUB,FRT AXLE	8-97360-101-0	02	1	1407-1407			●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	0907-	●	●	●
10	05.812 NUT; FRT HUB BRG 06.022	8-94247-357-1	02	1	0907-	●	●	●
12	06.321 WASHER; LK,FRT HUB BRG EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94247-356-1	02	1	0907-1008	●
12	06.321 WASHER; LK,FRT HUB BRG	8-94247-356-1	02	1	0907-1008		●	●
12	06.321 WASHER; LK,FRT HUB BRG EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94247-356-1	02	1	1009-1502	●	●
12	06.321 WASHER; LK,FRT HUB BRG	8-94247-356-1	02	1	1009-1502			●
12	06.321 WASHER; LK,FRT HUB BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 05.812	8-98282-435-0	02	1	1503-	●	●
12	06.321 WASHER; LK,FRT HUB BRG 05.812	8-98282-435-0	02	1	1503-			●
13	06.313 BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	0907-	●	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	0907-	●	●	●
15	05.812 PIN; WHEEL,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) M18X46 RH THREAD	8-98028-532-1	05	1	0907-1008	●
15	05.812 PIN; WHEEL,FRT AXLE M18X46 RH THREAD	8-98028-532-1	05	1	0907-1008		●	●
15	05.812 PIN; WHEEL,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) M18X46 RH THREAD	8-98028-532-1	05	1	1009-	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) M18X46 RH THREAD	8-98028-532-1	05	1	1009-	●
15	05.812 PIN; WHEEL,FRT AXLE M18X46 RH THREAD	8-98028-532-1	05	1	1009-		●	●
15	05.812 PIN; WHEEL,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) M18X46 LH THREAD	8-98028-533-1	05	1	0907-1008	●
15	05.812 PIN; WHEEL,FRT AXLE M18X46 LH THREAD	8-98028-533-1	05	1	0907-1008		●	●
15	05.812 PIN; WHEEL,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) M18X46 LH THREAD	8-98028-533-1	05	1	1009-	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) M18X46 LH THREAD	8-98028-533-1	05	1	1009-	●
15	05.812 PIN; WHEEL,FRT AXLE M18X46 LH THREAD	8-98028-533-1	05	1	1009-		●	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) M14X39 RH THREAD	8-97126-490-1	06	1	0907-	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) M14X39 LH THREAD	8-97126-491-1	06	1	0907-	●
17	06.307 HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) (C)	8-98049-164-0	02	1	1009-	●
17	06.307 HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98049-164-0	02	1	1009-		●
17	06.307 HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97035-160-0	02	1	0907-	●	●
17	06.307 HUB; FRT AXLE (B)	8-97035-160-0	02	1	0907-			●
17	06.307 HUB; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97017-193-0	02	1	0907-	●	●
17	06.307 HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) (A)	8-98049-154-0	02	1	0907-	●
19	06.311 BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 06.313 NTN	8-98008-156-1	02	1	1206-	●
19	06.311 BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) NSK	8-97034-255-0	02	1	1009-	●
19	06.311 BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) NSK	8-97034-255-0	02	1	1009-		●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) JTEKT	8-94248-088-2	02	1	0907-1008	●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-94248-088-2	02	1	0907-1008		●	●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) JTEKT	8-94248-088-2	02	1	1009-1009	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-94248-088-2	02	1	1009-1009			●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) JTEKT	8-98171-254-0	02	1	1010-	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1010-			●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) NSK	9-00093-149-0	02	1	0907-1008	●
19	06.311 BEARING; HUB INNER,FRT AXLE NSK	9-00093-149-0	02	1	0907-1008		●	●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) NSK	9-00093-149-0	02	1	1009-1009	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE NSK	9-00093-149-0	02	1	1009-1009			●
19	06.311 BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) NSK	8-94336-289-0	02	1	0907-	●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) BEST VALUE PARTS	1-87610-134-0	02	1	1010-	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1010-			●
25	05.809 ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) (C)	8-98171-033-0	02	1	1010-	●
25	05.809 ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98171-033-0	02	1	1010-		●
25	05.809 ROTOR; DISC BRK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97387-229-0	02	1	0907-1008	●
25	05.809 ROTOR; DISC BRK,FRT (B)	8-97387-229-0	02	1	0907-1008		●	●
25	05.809 ROTOR; DISC BRK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97387-229-0	02	1	1009-1009	●
25	05.809 ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) (B)	8-97387-229-0	02	1	1009-1009	●
25	05.809 ROTOR; DISC BRK,FRT (B)	8-97387-229-0	02	1	1009-1009		●	●
25	05.809 ROTOR; DISC BRK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97387-229-0	02	1	1010-1111	●	●
25	05.809 ROTOR; DISC BRK,FRT (B)	8-97387-229-0	02	1	1010-1111			●
25	05.809 ROTOR; DISC BRK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-97387-229-0	02	1	1112-	●	●
25	05.809 ROTOR; DISC BRK,FRT (B)	8-97387-229-0	02	1	1112-			●
25	05.809 ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) (A)	8-98001-342-0	02	1	0907-1308	●
25	05.809 ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) (A)	8-98248-893-0	02	1	1309-	●
26	05.812 BOLT; BRK,DISC TO HUB EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94474-923-0	24	1	0907-1008	●
26	05.812 BOLT; BRK,DISC TO HUB	8-94474-923-0	24	1	0907-1008		●	●
26	05.812 BOLT; BRK,DISC TO HUB EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94474-923-0	24	1	1009-	●
26	05.812 BOLT; BRK,DISC TO HUB FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD)	8-94474-923-0	24	1	1009-	●
26	05.812 BOLT; BRK,DISC TO HUB	8-94474-923-0	24	1	1009-		●	●
26	05.812 BOLT; BRK,DISC TO HUB FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD)	8-98021-780-0	12	1	0907-	●
28	06.326 SEAL; OIL,FRT HUB EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94248-117-1	02	1	0907-1008	●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	0907-1008		●	●
28	06.326 SEAL; OIL,FRT HUB EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94248-117-1	02	1	1009-	●	●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	1009-			●
28	06.326 SEAL; OIL,FRT HUB FRT INDEPENDENT SUSPENSION(FF0)	8-97211-082-0	02	1	0907-1008	●
28	06.326 SEAL; OIL,FRT HUB FRT INDEPENDENT SUSPENSION(FF0)	8-97211-082-0	02	1	1009-	●	●
29	06.326 DISTANCE PIECE; HUB BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) NTN	8-97234-513-0	02	1	0907-1008	●
29	06.326 DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	0907-1008		●	●
29	06.326 DISTANCE PIECE; HUB BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) NTN	8-97234-513-0	02	1	1009-	●	●
29	06.326 DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	1009-			●
31	04.665 COVER; DUST,FRT BRAKE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98037-377-0	02	1	0907-1008	●
31	04.665 COVER; DUST,FRT BRAKE (B)	8-98037-377-0	02	1	0907-1008		●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98037-377-0	02	1	1009-	●	●
31	04.665 COVER; DUST,FRT BRAKE (B)	8-98037-377-0	02	1	1009-			●
31	04.665 COVER; DUST,FRT BRAKE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97353-960-1	01	1	0907-1008	●
31	04.665 COVER; DUST,FRT BRAKE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97353-960-1	01	1	1009-	●	●
31	04.665 COVER; DUST,FRT BRAKE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97353-961-1	01	1	0907-1008	●
31	04.665 COVER; DUST,FRT BRAKE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97353-961-1	01	1	1009-	●	●
32	04.665 BOLT; DUST COVER TO KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X12 FLANGE	0-28050-812-0	08	1	0907-1008	●
32	04.665 BOLT; DUST COVER TO KNUCKLE 02.343 M8X12 FLANGE	0-28050-812-0	08	1	0907-1008		●	●
32	04.665 BOLT; DUST COVER TO KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X12 FLANGE	0-28050-812-0	08	1	1009-	●	●
32	04.665 BOLT; DUST COVER TO KNUCKLE 02.343 M8X12 FLANGE	0-28050-812-0	08	1	1009-			●
32	04.665 BOLT; DUST COVER TO KNUCKLE FRT INDEPENDENT SUSPENSION(FF0) M8X10 W/LK WASHER	8-98029-928-0	06	1	0907-1008	●
32	04.665 BOLT; DUST COVER TO KNUCKLE FRT INDEPENDENT SUSPENSION(FF0) M8X10 W/LK WASHER	8-98029-928-0	06	1	1009-	●	●
67	05.811 ROTOR; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD)	8-97387-156-1	02	1	1009-	●
67	05.811 ROTOR; SENSOR FRT INDEPENDENT SUSPENSION(FF0)	8-97387-156-1	02	1	1009-		●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97387-159-0	02	1	0907-	●	●
67	05.811 ROTOR; SENSOR	8-97387-159-0	02	1	0907-			●
67	05.811 ROTOR; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD)	8-97387-157-1	02	1	0907-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
