1 |

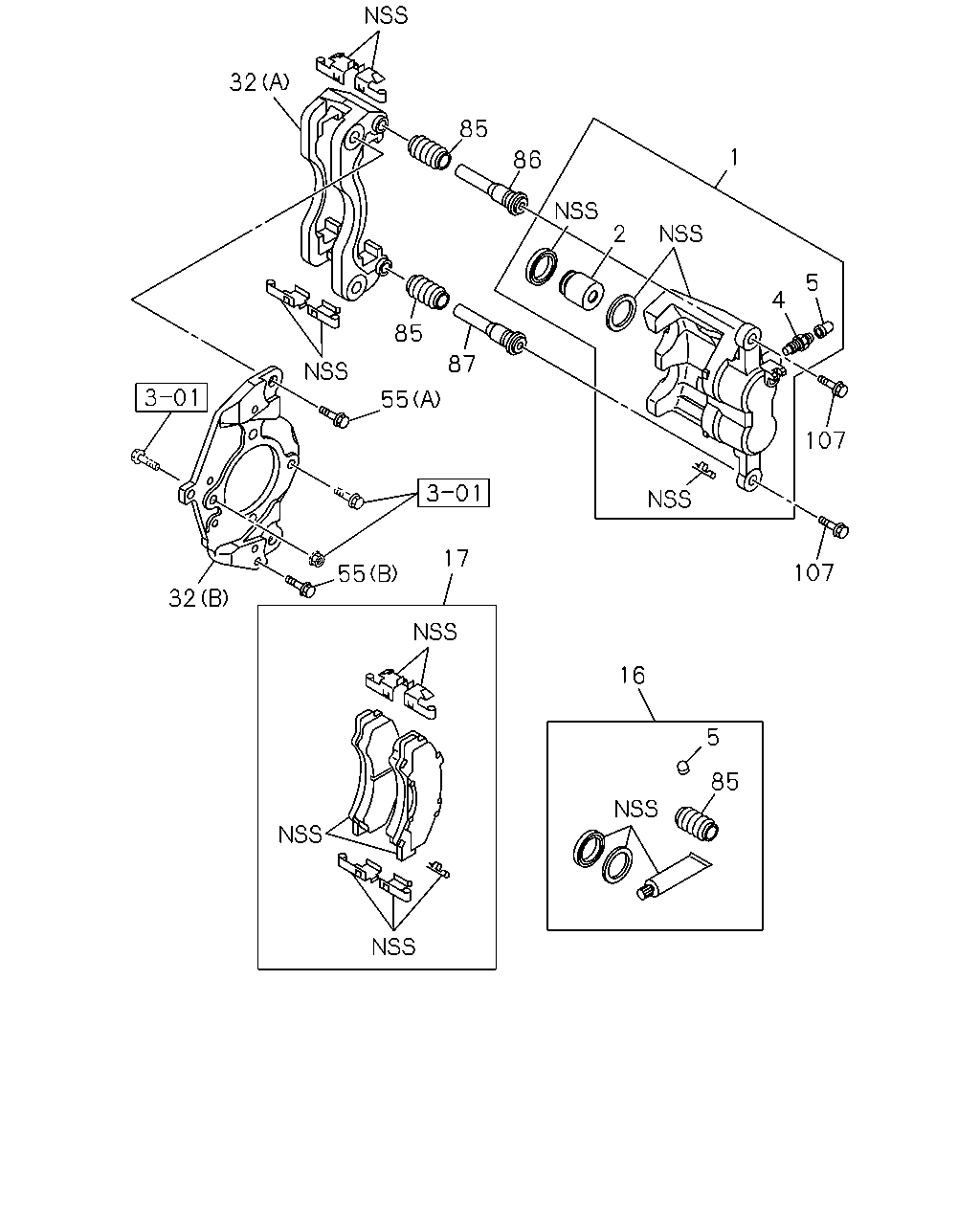

04.665 CALIPER; FRT DISC BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-97365-907-0 |
01 |
1 |
0907-1111 |
● |
|
|
| |
1 |
04.665 CALIPER; FRT DISC BRK
|
8-97365-907-0 |
01 |
1 |
0907-1111 |
|
● |
● |
| |
1 |
04.665 CALIPER; FRT DISC BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-97365-907-0 |
01 |
1 |
1112-1308 |
● |
|
|
| |
1 |
04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0)
EXC. SINGLE RR TIRE(6TD)
|
8-97365-907-0 |
01 |
1 |
1112-1308 |
● |
|
|
| |
1 |
04.665 CALIPER; FRT DISC BRK
|
8-97365-907-0 |
01 |
1 |
1112-1308 |
|
● |
● |
| |
1 |
04.665 CALIPER; FRT DISC BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-98247-730-0 |
01 |
1 |
1309-1412 |
● |
|
|
| |
1 |
04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0)
EXC. SINGLE RR TIRE(6TD)
|
8-98247-730-0 |
01 |
1 |
1309-1412 |
● |
|
|
| |
1 |
04.665 CALIPER; FRT DISC BRK
|
8-98247-730-0 |
01 |
1 |
1309-1412 |
|
● |
● |
| |
1 |
04.665 CALIPER; FRT DISC BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-98303-461-0 |
01 |
1 |
1501- |
● |
|
|
| |
1 |
04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0)
EXC. SINGLE RR TIRE(6TD)
|
8-98303-461-0 |
01 |
1 |
1501- |
● |
|
|
| |
1 |
04.665 CALIPER; FRT DISC BRK
|
8-98303-461-0 |
01 |
1 |
1501- |
|
● |
● |
| |
1 |
04.665 CALIPER; FRT DISC BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-97365-908-0 |
01 |
1 |
0907-1111 |
● |
|
|
| |
1 |
04.665 CALIPER; FRT DISC BRK
|
8-97365-908-0 |
01 |
1 |
0907-1111 |
|
● |
● |
| |
1 |
04.665 CALIPER; FRT DISC BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-97365-908-0 |
01 |
1 |
1112-1308 |
● |
|
|
| |
1 |
04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0)
EXC. SINGLE RR TIRE(6TD)
|
8-97365-908-0 |
01 |
1 |
1112-1308 |
● |
|
|
| |
1 |
04.665 CALIPER; FRT DISC BRK
|
8-97365-908-0 |
01 |
1 |
1112-1308 |
|
● |
● |
| |
1 |
04.665 CALIPER; FRT DISC BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-98247-731-0 |
01 |
1 |
1309-1412 |
● |
|
|
| |
1 |
04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0)
EXC. SINGLE RR TIRE(6TD)
|
8-98247-731-0 |
01 |
1 |
1309-1412 |
● |
|
|
| |
1 |
04.665 CALIPER; FRT DISC BRK
|
8-98247-731-0 |
01 |
1 |
1309-1412 |
|
● |
● |
| |
1 |
04.665 CALIPER; FRT DISC BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-98303-462-0 |
01 |
1 |
1501- |
● |
|
|
| |
1 |
04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0)
EXC. SINGLE RR TIRE(6TD)
|
8-98303-462-0 |
01 |
1 |
1501- |
● |
|
|
| |
1 |
04.665 CALIPER; FRT DISC BRK
|
8-98303-462-0 |
01 |
1 |
1501- |
|
● |
● |
| |
1 |
04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0)
|
8-97367-533-0 |
01 |
1 |
0907-1008 |
● |
|
|
| |
1 |
04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0)
SINGLE RR TIRE(6TD)
|
8-97367-533-0 |
01 |
1 |
1009-1412 |
● |
|
|
| |
1 |
04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0)
SINGLE RR TIRE(6TD)
|
8-98303-459-0 |
01 |
1 |
1501- |
● |
|
|
| |
1 |
04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0)
|
8-97367-534-0 |
01 |
1 |
0907-1008 |
● |
|
|
| |
1 |
04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0)
SINGLE RR TIRE(6TD)
|
8-97367-534-0 |
01 |
1 |
1009-1412 |
● |
|
|
| |
1 |
04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0)
SINGLE RR TIRE(6TD)
|
8-98303-460-0 |
01 |
1 |
1501- |
● |
|
|
| |
2 |
04.668 PISTON; CALIPER,DISC BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-97365-269-0 |
04 |
1 |
0907-1111 |
● |
|
|
| |
2 |
04.668 PISTON; CALIPER,DISC BRK,FRT
|
8-97365-269-0 |
04 |
1 |
0907-1111 |
|
● |
● |
| |
2 |
04.668 PISTON; CALIPER,DISC BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-97365-269-0 |
04 |
1 |
1112- |
● |
|
|
| |
2 |
04.668 PISTON; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
EXC. SINGLE RR TIRE(6TD)
|
8-97365-269-0 |
04 |
1 |
1112- |
● |
|
|
| |
2 |
04.668 PISTON; CALIPER,DISC BRK,FRT
|
8-97365-269-0 |
04 |
1 |
1112- |
|
● |
● |
| |
2 |
04.668 PISTON; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
|
8-97365-256-0 |
04 |
1 |
0907-1008 |
● |
|
|
| |
2 |
04.668 PISTON; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
SINGLE RR TIRE(6TD)
|
8-97365-256-0 |
04 |
1 |
1009- |
● |
|
|
| |
4 |
04.666 SCREW; BLEEDER,DISC BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-98050-476-0 |
02 |
1 |
1309-1412 |
● |
|
|
| |
4 |
04.666 SCREW; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
EXC. SINGLE RR TIRE(6TD)
|
8-98050-476-0 |
02 |
1 |
1309-1412 |
● |
|
|
| |
4 |
04.666 SCREW; BLEEDER,DISC BRK,FRT
|
8-98050-476-0 |
02 |
1 |
1309-1412 |
|
● |
● |
| |
4 |
04.666 SCREW; BLEEDER,DISC BRK,FRT
|
8-98050-476-0 |
02 |
1 |
1501- |
● |
● |
● |
| |
4 |
04.666 SCREW; BLEEDER,DISC BRK,FRT
|
1-47615-027-0 |
02 |
1 |
0907-1308 |
● |
● |
● |
| |
4 |
04.666 SCREW; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
SINGLE RR TIRE(6TD)
|
1-47615-027-0 |
02 |
1 |
1309-1412 |
● |
|
|
| |
5 |
04.666 CAP; BLEEDER,DISC BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-98050-479-0 |
02 |
1 |
1309-1412 |
● |
|
|
| |
5 |
04.666 CAP; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
EXC. SINGLE RR TIRE(6TD)
|
8-98050-479-0 |
02 |
1 |
1309-1412 |
● |
|
|
| |
5 |
04.666 CAP; BLEEDER,DISC BRK,FRT
|
8-98050-479-0 |
02 |
1 |
1309-1412 |
|
● |
● |
| |
5 |
04.666 CAP; BLEEDER,DISC BRK,FRT
|
8-98050-479-0 |
02 |
1 |
1501- |
● |
● |
● |
| |
5 |
04.666 CAP; BLEEDER,DISC BRK,FRT
|
1-47619-009-0 |
02 |
1 |
0907-1308 |
● |
● |
● |
| |
5 |
04.666 CAP; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
SINGLE RR TIRE(6TD)
|
1-47619-009-0 |
02 |
1 |
1309-1412 |
● |
|
|
| |
16 |
04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-98120-357-0 |
01 |
1 |
0907-1111 |
● |
|
|
| |
16 |
04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
|
8-98120-357-0 |
01 |
1 |
0907-1111 |
|
● |
● |
| |
16 |
04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-98120-357-0 |
01 |
1 |
1112-1310 |
● |
|
|
| |
16 |
04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
EXC. SINGLE RR TIRE(6TD)
|
8-98120-357-0 |
01 |
1 |
1112-1310 |
● |
|
|
| |
16 |
04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
|
8-98120-357-0 |
01 |
1 |
1112-1310 |
|
● |
● |
| |
16 |
04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-98248-904-0 |
01 |
1 |
1309-1412 |
● |
|
|
| |
16 |
04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
EXC. SINGLE RR TIRE(6TD)
|
8-98248-904-0 |
01 |
1 |
1309-1412 |
● |
|
|
| |
16 |
04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
|
8-98248-904-0 |
01 |
1 |
1309-1412 |
|
● |
● |
| |
16 |
04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-98302-531-0 |
01 |
1 |
1501- |
● |
|
|
| |
16 |
04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
EXC. SINGLE RR TIRE(6TD)
|
8-98302-531-0 |
01 |
1 |
1501- |
● |
|
|
| |
16 |
04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
|
8-98302-531-0 |
01 |
1 |
1501- |
|
● |
● |
| |
16 |
04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
|
8-98120-383-0 |
01 |
1 |
0907-1008 |
● |
|
|
| |
16 |
04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
SINGLE RR TIRE(6TD)
|
8-98120-383-0 |
01 |
1 |
1009-1412 |
● |
|
|
| |
16 |
04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
SINGLE RR TIRE(6TD)
|
8-98302-529-0 |
01 |
1 |
1501- |
● |
|
|
| |
17 |
05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-97329-266-0 |
01 |
1 |
0907-1111 |
● |
|
|
| |
17 |
05.017 PAD KIT; CALIPER,DISC BRK,FRT
|
8-97329-266-0 |
01 |
1 |
0907-1111 |
|
● |
● |
| |
17 |
05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-97329-266-0 |
01 |
1 |
1112-1212 |
● |
|
|
| |
17 |
05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
EXC. SINGLE RR TIRE(6TD)
|
8-97329-266-0 |
01 |
1 |
1112-1212 |
● |
|
|
| |
17 |
05.017 PAD KIT; CALIPER,DISC BRK,FRT
|
8-97329-266-0 |
01 |
1 |
1112-1212 |
|
● |
● |
| |
17 |
05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-98216-922-0 |
01 |
1 |
1301- |
● |
|
|
| |
17 |
05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
EXC. SINGLE RR TIRE(6TD)
|
8-98216-922-0 |
01 |
1 |
1301- |
● |
|
|
| |
17 |
05.017 PAD KIT; CALIPER,DISC BRK,FRT
|
8-98216-922-0 |
01 |
1 |
1301- |
|
● |
● |
| |
17 |
05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
|
8-98091-271-0 |
01 |
1 |
0907-1008 |
● |
|
|
| |
17 |
05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
SINGLE RR TIRE(6TD)
|
8-98091-271-0 |
01 |
1 |
1009-1212 |
● |
|
|
| |
17 |
05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0)
SINGLE RR TIRE(6TD)
|
8-98216-921-0 |
01 |
1 |
1301- |
● |
|
|
| |
32 |
04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. FRT INDEPENDENT SUSPENSION(FF0)
(B)
|
8-98009-726-0 |
01 |
1 |
0907- |
● |
|
● |
| |
32 |
04.665 SUPPORT; FRT DISC BRK
(B)
|
8-98009-726-0 |
01 |
1 |
0907- |
|
● |
|
| |
32 |
04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. FRT INDEPENDENT SUSPENSION(FF0)
(B)
|
8-98009-727-0 |
01 |
1 |
0907- |
● |
|
● |
| |
32 |
04.665 SUPPORT; FRT DISC BRK
(B)
|
8-98009-727-0 |
01 |
1 |
0907- |
|
● |
|
| |
32 |
04.665 SUPPORT; FRT DISC BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0)
(A)
|
8-97365-271-0 |
02 |
1 |
0907-1111 |
● |
|
|
| |
32 |
04.665 SUPPORT; FRT DISC BRK
(A)
|
8-97365-271-0 |
02 |
1 |
0907-1111 |
|
● |
● |
| |
32 |
04.665 SUPPORT; FRT DISC BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0)
(A)
|
8-97365-271-0 |
02 |
1 |
1112- |
● |
|
|
| |
32 |
04.665 SUPPORT; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0)
EXC. SINGLE RR TIRE(6TD)
(A)
|
8-97365-271-0 |
02 |
1 |
1112- |
● |
|
|
| |
32 |
04.665 SUPPORT; FRT DISC BRK
(A)
|
8-97365-271-0 |
02 |
1 |
1112- |
|
● |
● |
| |
32 |
04.665 SUPPORT; FRT DISC BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0),4
WHEEL ANTI LOCK BRAKE<JE5>
(B)
|
8-98009-728-0 |
01 |
1 |
0907- |
● |
|
● |
| |
32 |
04.665 SUPPORT; FRT DISC BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0),4
WHEEL ANTI LOCK BRAKE<JE5>
(B)
|
8-98009-729-0 |
01 |
1 |
0907- |
● |
|
● |
| |
32 |
04.665 SUPPORT; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0)
(A)
|
8-97365-258-0 |
02 |
1 |
0907-1008 |
● |
|
|
| |
32 |
04.665 SUPPORT; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0)
SINGLE RR TIRE(6TD)
(A)
|
8-97365-258-0 |
02 |
1 |
1009- |
● |
|
|
| |
55 |
04.681 BOLT; SUPPORT BRKT TO DISC BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0)
(A)
M16X31 FLANGE
|
8-97359-816-0 |
04 |
1 |
0907-1008 |
● |
|
|
| |
55 |
04.681 BOLT; SUPPORT BRKT TO DISC BRK
(A)
M16X31 FLANGE
|
8-97359-816-0 |
04 |
1 |
0907-1008 |
|
● |
● |
| |
55 |
04.681 BOLT; SUPPORT BRKT TO DISC BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0)
(A)
M16X31 FLANGE
|
8-97359-816-0 |
04 |
1 |
1009- |
● |
|
● |
| |
55 |
04.681 BOLT; SUPPORT BRKT TO DISC BRK
(A)
M16X31 FLANGE
|
8-97359-816-0 |
04 |
1 |
1009- |
|
● |
|
| |
55 |
04.681 BOLT; SUPPORT BRKT TO DISC BRK
FRT INDEPENDENT SUSPENSION(FF0)
(A)
M16X48 FLANGE
|
8-98033-656-0 |
04 |
1 |
0907-1008 |
● |
|
|
| |
55 |
04.681 BOLT; SUPPORT BRKT TO DISC BRK
FRT INDEPENDENT SUSPENSION(FF0)
(A)
M16X48 FLANGE
|
8-98033-656-0 |
04 |
1 |
1009- |
● |
|
● |
| |
55 |
04.681 BOLT; SUPPORT BRKT TO DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. FRT INDEPENDENT SUSPENSION(FF0)
06.225
(B)
M10X12 FLANGE
|
0-28051-012-0 |
02 |
1 |
0907- |
● |
|
● |
| |
55 |
04.681 BOLT; SUPPORT BRKT TO DISC BRK
06.225
(B)
M10X12 FLANGE
|
0-28051-012-0 |
02 |
1 |
0907- |
|
● |
|
| |
85 |
04.665 BOOT; PIN
|
8-98120-354-0 |
04 |
1 |
0907- |
● |
● |
● |
| |
86 |
04.665 PIN; GUIDE
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-98047-529-0 |
02 |
1 |
0907-1111 |
● |
|
|
| |
86 |
04.665 PIN; GUIDE
|
8-98047-529-0 |
02 |
1 |
0907-1111 |
|
● |
● |
| |
86 |
04.665 PIN; GUIDE
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-98047-529-0 |
02 |
1 |
1112- |
● |
|
|
| |
86 |
04.665 PIN; GUIDE
FRT INDEPENDENT SUSPENSION(FF0)
EXC. SINGLE RR TIRE(6TD)
|
8-98047-529-0 |
02 |
1 |
1112- |
● |
|
|
| |
86 |
04.665 PIN; GUIDE
|
8-98047-529-0 |
02 |
1 |
1112- |
|
● |
● |
| |
86 |
04.665 PIN; GUIDE
FRT INDEPENDENT SUSPENSION(FF0)
|
8-98047-530-0 |
02 |
1 |
0907-1008 |
● |
|
|
| |
86 |
04.665 PIN; GUIDE
FRT INDEPENDENT SUSPENSION(FF0)
SINGLE RR TIRE(6TD)
|
8-98047-530-0 |
02 |
1 |
1009- |
● |
|
|
| |
87 |
04.665 PIN; LOCK
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-98047-531-0 |
02 |
1 |
0907-1111 |
● |
|
|
| |
87 |
04.665 PIN; LOCK
|
8-98047-531-0 |
02 |
1 |
0907-1111 |
|
● |
● |
| |
87 |
04.665 PIN; LOCK
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-98047-531-0 |
02 |
1 |
1112-1310 |
● |
|
|
| |
87 |
04.665 PIN; LOCK
FRT INDEPENDENT SUSPENSION(FF0)
EXC. SINGLE RR TIRE(6TD)
|
8-98047-531-0 |
02 |
1 |
1112-1310 |
● |
|
|
| |
87 |
04.665 PIN; LOCK
|
8-98047-531-0 |
02 |
1 |
1112-1310 |
|
● |
● |
| |
87 |
04.665 PIN; LOCK
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-98248-005-0 |
02 |
1 |
1309- |
● |
|
|
| |
87 |
04.665 PIN; LOCK
FRT INDEPENDENT SUSPENSION(FF0)
EXC. SINGLE RR TIRE(6TD)
|
8-98248-005-0 |
02 |
1 |
1309- |
● |
|
|
| |
87 |
04.665 PIN; LOCK
|
8-98248-005-0 |
02 |
1 |
1309- |
|
● |
● |
| |
87 |
04.665 PIN; LOCK
FRT INDEPENDENT SUSPENSION(FF0)
|
8-98047-532-0 |
02 |
1 |
0907-1008 |
● |
|
|
| |
87 |
04.665 PIN; LOCK
FRT INDEPENDENT SUSPENSION(FF0)
SINGLE RR TIRE(6TD)
|
8-98047-532-0 |
02 |
1 |
1009- |
● |
|
|
| |
107 |
04.665 BOLT; PIN
|
8-97365-264-0 |
04 |
1 |
0907- |
● |
● |
● |
