◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10632 - FVM-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#766) — 26 parça
çizim 94144
9 13 21 36 1 3 4 21 36
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; PITMAN,STRG 1-44341-389-0 01 1 9204-
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 9204-
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 9204-
9 LINK; DRAG
FRT AXLE GREASE NON MAINTENANCE<B3L> 		1-44380-001-1 01 1 9204-9410
9 LINK; DRAG 1-44380-111-2 01 1 9411-
9 LINK; DRAG
EXC. FRT AXLE GREASE NON MAINTENANCE<B3L> 		1-44380-014-1 01 1 9204-9305
9 LINK; DRAG
EXC. FRT AXLE GREASE NON MAINTENANCE<B3L> 		1-44380-055-0 01 1 9306-9410
13 BOOT; DRAG LINK
FRT AXLE GREASE NON MAINTENANCE<B3L> 		1-43159-078-0 02 1 9204-9305
13 BOOT; DRAG LINK 1-43159-078-0 02 1 9306-
13 BOOT; DRAG LINK
EXC. FRT AXLE GREASE NON MAINTENANCE<B3L> 		1-43159-080-0 02 1 9204-9305
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 9204-
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 9204-

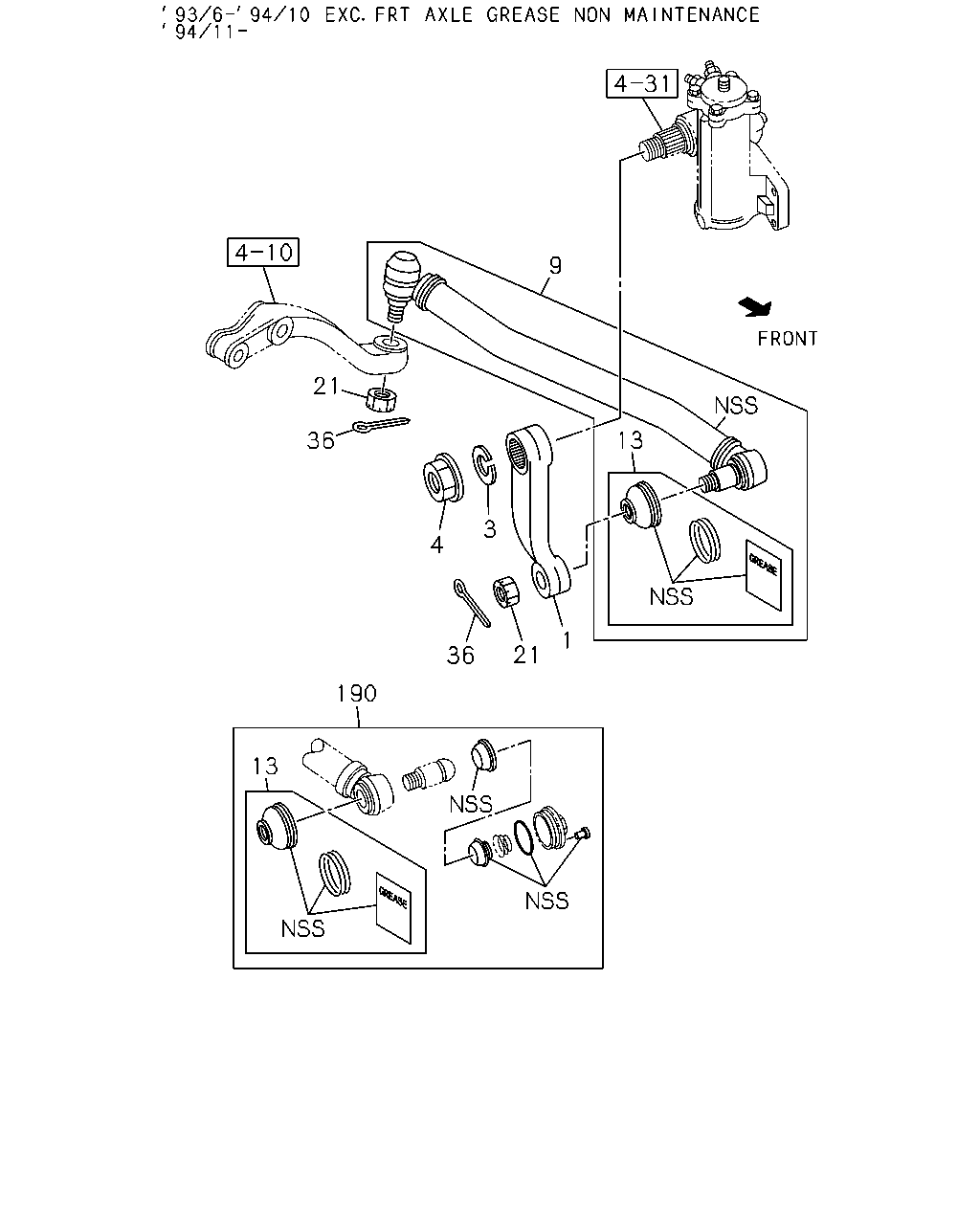

çizim 95718
9 21 13 36 3 4 1 21 36 190 13
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; PITMAN,STRG 1-44341-389-0 01 1 9204-
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 9204-
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 9204-
9 LINK; DRAG
FRT AXLE GREASE NON MAINTENANCE<B3L> 		1-44380-001-1 01 1 9204-9410
9 LINK; DRAG 1-44380-111-2 01 1 9411-
9 LINK; DRAG
EXC. FRT AXLE GREASE NON MAINTENANCE<B3L> 		1-44380-014-1 01 1 9204-9305
9 LINK; DRAG
EXC. FRT AXLE GREASE NON MAINTENANCE<B3L> 		1-44380-055-0 01 1 9306-9410
13 BOOT; DRAG LINK
FRT AXLE GREASE NON MAINTENANCE<B3L> 		1-43159-078-0 02 1 9204-9305
13 BOOT; DRAG LINK 1-43159-078-0 02 1 9306-
13 BOOT; DRAG LINK
EXC. FRT AXLE GREASE NON MAINTENANCE<B3L> 		1-43159-080-0 02 1 9204-9305
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 9204-
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 9204-
190 REPAIR KIT; DRAG LINK
EXC. FRT AXLE GREASE NON MAINTENANCE<B3L> 		1-85574-041-0 02 1 9306-9410
190 REPAIR KIT; DRAG LINK 1-85574-041-0 02 1 9411-
