2-05 — CLUTCH PIPING (#76591) — 17 parça

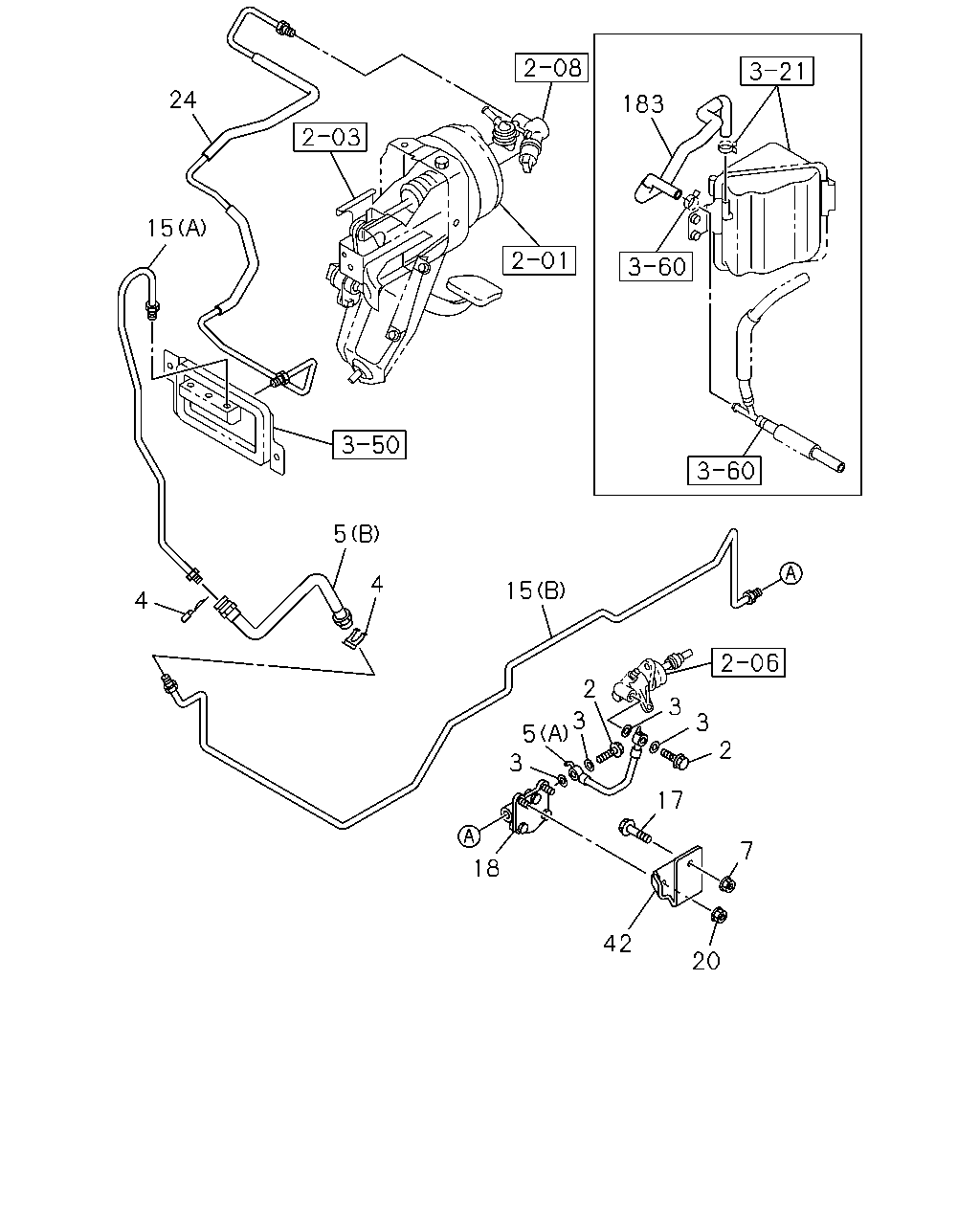

çizim 102379
24 183 15 5 4 15 4 2 3 3 3 2 5 3 17 7 18 42 20
BalonParca AdiParca NoAdetTipApplied Date
2 00.782 BOLT; EYE,SLAVE CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 M10X22 		8-98014-005-0 02 1 0907-
3 00.785 GASKET; FLEX HOSE,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0907-
4 00.785 CLIP; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-97365-304-0 02 1 0907-
5 00.785 HOSE; FLEX,CLU PIPE
CLUTCH SYSTEM AUTO ADJUSTER<8BG> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98098-575-1 01 1 0907-
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98083-907-0 01 1 0907-
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-98077-611-2 01 1 0907-
7 00.785 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907-
15 00.785 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97389-642-1 01 1 0907-
15 00.785 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98051-538-0 01 1 0907-
17 00.785 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0907-
18 00.830 DAMPER ASM; CLU OIL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-610-1 01 1 0907-
20 00.837 NUT; CLU OIL DAMPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97389-356-1 01 1 0907-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98077-617-0 01 1 0907-
42 00.785 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98041-335-1 01 1 0907-
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-98017-169-1 01 1 0907-1012
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-98121-942-0 01 1 1101-
