Sayfa 2-20B - Isuzu EPC

2-20B — MANUAL TRANSMISSION ASM AND CASE (#7658) — 422 parça

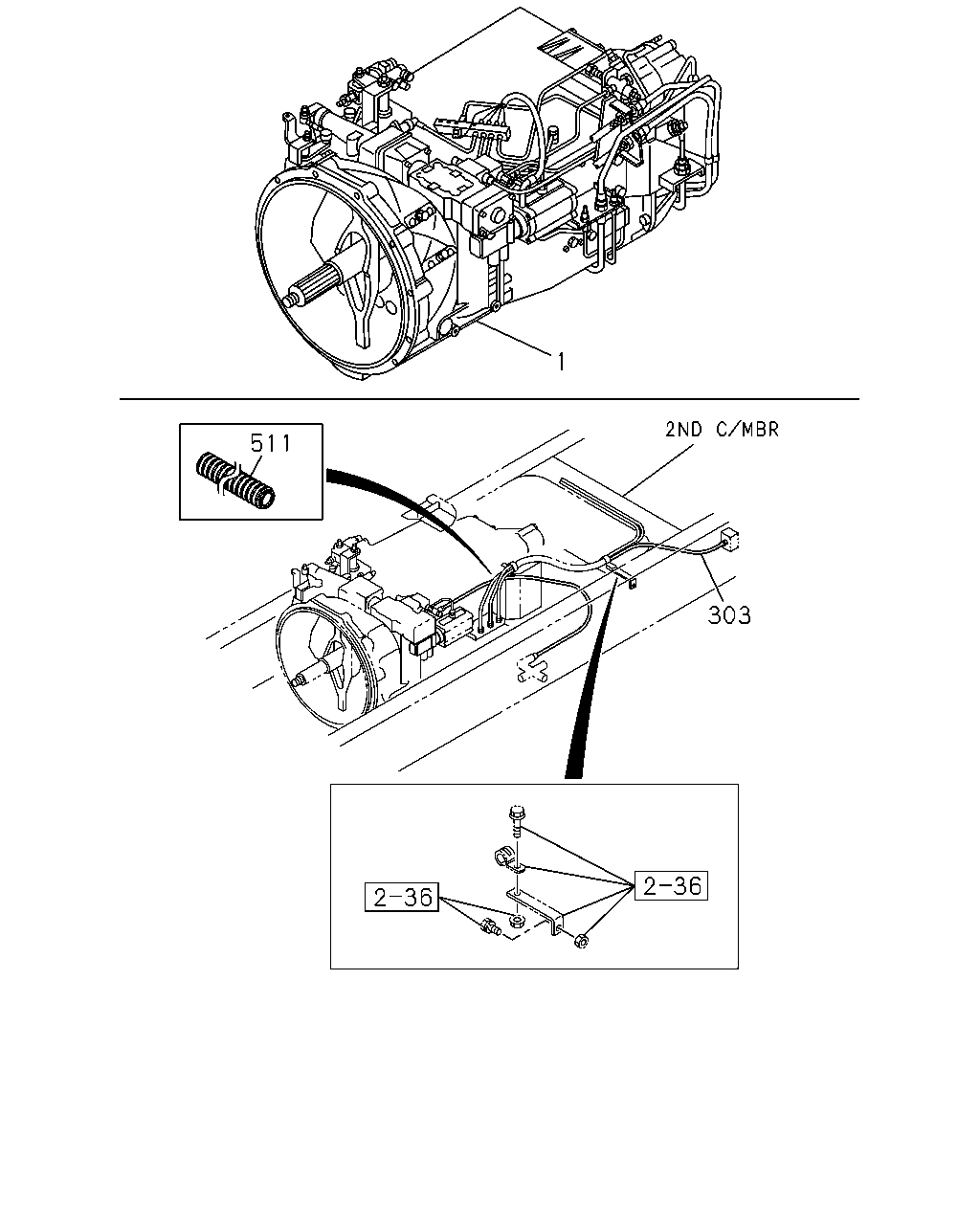

1 511 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33042-012-0	01	1	9902-	●
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU>	1-33042-165-0	01	1	9902-	●
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM)	1-33042-166-0	01	1	9902-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33042-011-0	01	1	9902-	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU>	1-33042-163-0	01	1	9902-		●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33042-019-0	01	1	9902-		●
1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33042-020-0	01	1	9902-		●
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM)	1-33042-164-0	01	1	9902-		●
1	TRANSMISSION ASM; MANUAL SHORT CHASSIS&RHD(EXR5MC) PTO ZF TRANS RR(BDM)	1-33042-034-0	01	1	0004-			●
1	TRANSMISSION ASM; MANUAL SHORT CHASSIS&RHD(EXR5MC) EXC. PTO ZF TRANS RR(BDM)	1-33042-018-0	01	1	0004-			●
1	TRANSMISSION ASM; MANUAL SHORT CHASSIS&LHD(EXR6MC) PTO ZF TRANS RR(BDM)	1-33043-021-0	01	1	9910-			●
1	TRANSMISSION ASM; MANUAL SHORT CHASSIS&LHD(EXR6MC) EXC. PTO ZF TRANS RR(BDM)	1-33043-020-0	01	1	9910-			●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9902-9909	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9902-9909	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9910-9910	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9910-9910	●
303	TUBE; NYLON SHORT CHASSIS&LHD(EXR6MC) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9910-9910			●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9910-0003	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9910-0003	●
303	TUBE; NYLON SHORT CHASSIS&LHD(EXR6MC) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9910-0003			●
303	TUBE; NYLON SHORT CHASSIS&LHD(EXR6MC) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9910-0003			●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0004-	●	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0004-	●		●
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9902-9904	●
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9905-9909	●	●
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9910-0003	●	●	●
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0004-	●	●
511	TUBE; CORRUGATE SHORT CHASSIS&LHD(EXR6MC) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0004-			●
511	TUBE; CORRUGATE L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	9902-9904	●
511	TUBE; CORRUGATE L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	9905-9909	●	●
511	TUBE; CORRUGATE L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	9910-0003	●	●	●
511	TUBE; CORRUGATE L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	0004-	●	●
511	TUBE; CORRUGATE SHORT CHASSIS&LHD(EXR6MC) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	0004-			●

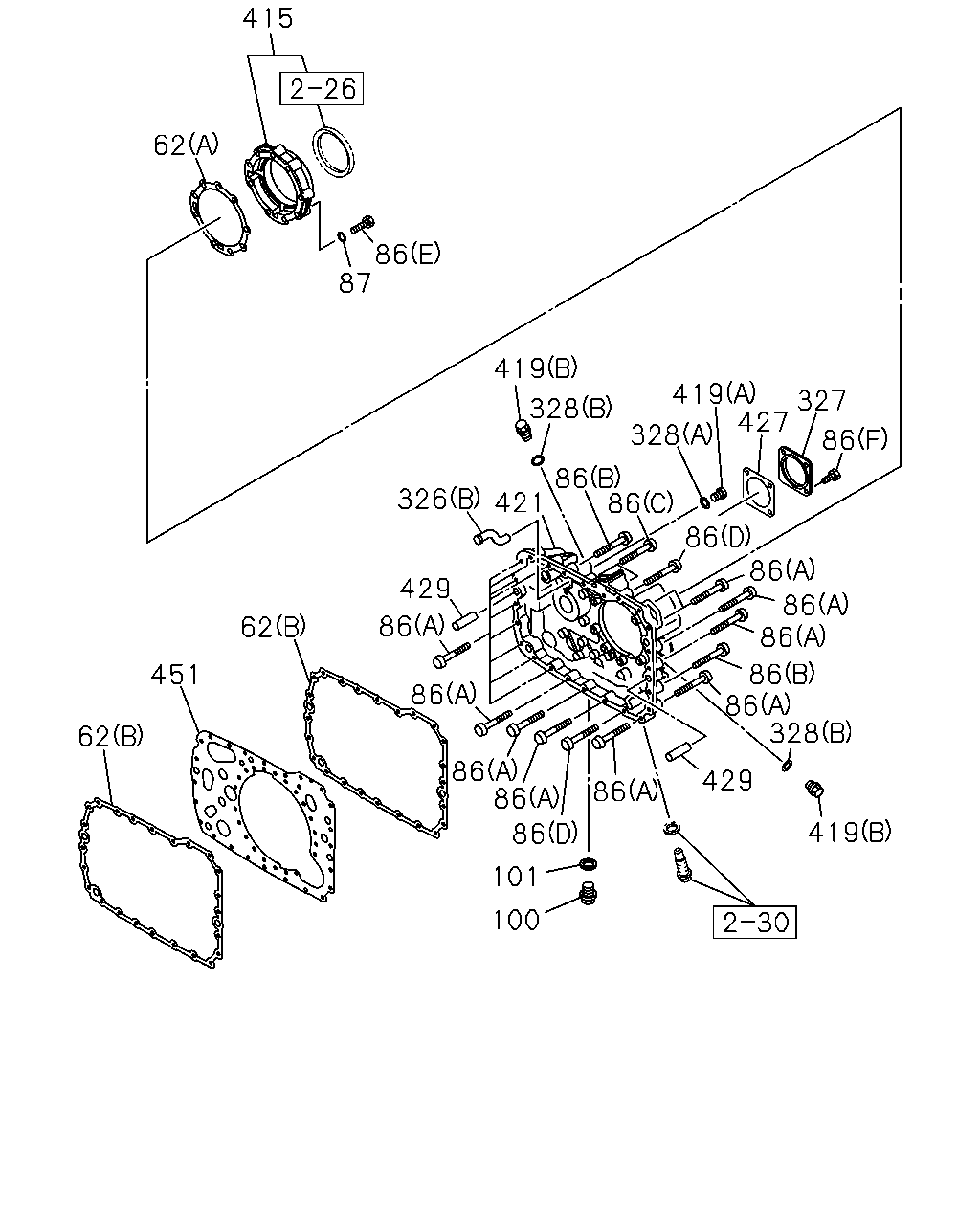

415 62 86 87 419 419 327 427 328 328 86 86 86 86 86 326 421 429 86 86 86 62 86 86 328 451 86 62 86 86 429 86 419 86 101 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33119-399-0	02	1	9902-9909	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33119-399-0	02	1	9910-	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33139-053-0	01	1	9902-9909	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33139-053-0	01	1	9910-	●	●
86	BOLT; RR COVER (A)	1-33119-266-0	18	1	9902-9909	●
86	BOLT; RR COVER (A)	1-33119-266-0	18	1	9910-	●	●
86	BOLT; RR COVER (E)	1-33139-054-0	09	1	9902-9909	●
86	BOLT; RR COVER (E)	1-33139-054-0	09	1	9910-	●	●
86	BOLT; RR COVER (B)	1-33139-056-0	02	1	9902-9909	●
86	BOLT; RR COVER (B)	1-33139-056-0	02	1	9910-	●	●
86	BOLT; RR COVER (C) M10X110	1-33139-057-0	02	1	9902-9909	●
86	BOLT; RR COVER (C) M10X110	1-33139-057-0	02	1	9910-	●	●
86	BOLT; RR COVER (D) M10X50	1-33139-058-0	02	1	9902-9909	●
86	BOLT; RR COVER (D) M10X50	1-33139-058-0	02	1	9910-	●	●
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM) (F) M12X25	1-33119-400-0	04	1	9902-9909	●
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM) (F) M12X25	1-33119-400-0	04	1	9910-	●	●
87	WASHER; LK,RR COVER	1-09469-010-0	09	1	9902-9909	●
87	WASHER; LK,RR COVER	1-09469-010-0	09	1	9910-	●	●
100	PLUG; DRAIN RR COVER	1-33119-268-0	01	1	9902-9909	●
100	PLUG; DRAIN RR COVER	1-33119-268-0	01	1	9910-	●	●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	01	1	9902-9909	●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	01	1	9910-	●	●
326	NOZZLE; OIL,OUTLET (A)	1-33119-282-0	01	1	9902-	●
326	NOZZLE; OIL,OUTLET (B)	1-33139-021-0	01	1	9902-9909	●
326	NOZZLE; OIL,OUTLET (B)	1-33139-021-0	01	1	9910-	●	●
326	NOZZLE; OIL,OUTLET (A)	1-33119-272-0	01	1	9910-		●
327	COVER; RR,COUNTER EXC. PTO ZF TRANS RR(BDM)	1-33131-165-0	01	1	9902-9909	●
327	COVER; RR,COUNTER EXC. PTO ZF TRANS RR(BDM)	1-33131-165-0	01	1	9910-	●	●
328	GASKET; PLUG (B)	1-33119-249-0	02	1	9902-9909	●
328	GASKET; PLUG (B)	1-33119-249-0	02	1	9910-	●	●
328	GASKET; PLUG (C)	1-33119-264-0	01	1	9902-9909	●
328	GASKET; PLUG (C)	1-33119-264-0	01	1	9910-	●	●
328	GASKET; PLUG (A)	1-33139-023-0	01	1	9902-9909	●
328	GASKET; PLUG (A)	1-33139-023-0	01	1	9910-	●	●
415	COVER; BRG	1-33159-039-0	01	1	9902-9909	●
415	COVER; BRG	1-33159-039-0	01	1	9910-	●	●
419	PLUG; RR COVER (B)	1-33119-171-0	02	1	9902-9909	●
419	PLUG; RR COVER (B)	1-33119-171-0	02	1	9910-	●	●
419	PLUG; RR COVER (A)	1-34119-008-0	01	1	9902-9909	●
419	PLUG; RR COVER (A)	1-34119-008-0	01	1	9910-	●	●
421	COVER; RR,TRANS	1-33131-244-0	01	1	9902-9909	●
421	COVER; RR,TRANS	1-33131-244-0	01	1	9910-	●	●
427	GASKET; RR COVER EXC. PTO ZF TRANS RR(BDM)	1-33132-054-0	01	1	9902-9909	●
427	GASKET; RR COVER EXC. PTO ZF TRANS RR(BDM)	1-33132-054-0	01	1	9910-	●	●
429	PIN; STRAIGHT	1-33119-265-0	07	1	9902-9909	●
429	PIN; STRAIGHT	1-33119-265-0	07	1	9910-	●	●
451	PLATE; RR COVER	1-33139-055-0	01	1	9902-9909	●
451	PLATE; RR COVER	1-33139-055-0	01	1	9910-	●	●

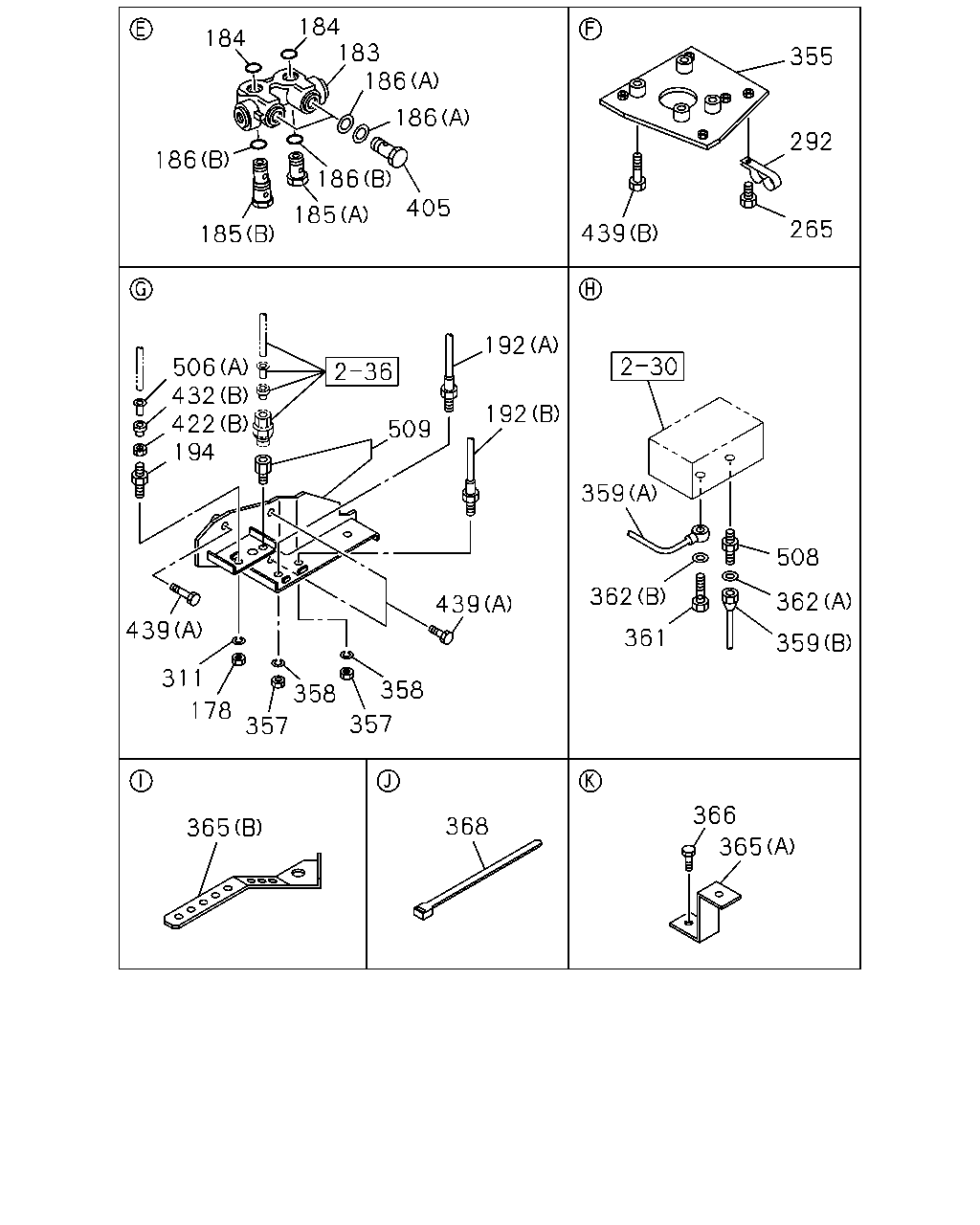

184 183 186 184 355 186 292 186 186 405 185 265 439 185 192 506 432 422 194 192 509 359 508 362 362 439 439 361 359 311 358 358 178 357 357 366 368 365 365

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
178	NUT; UNION M14	9-99111-414-0	01	1	9902-9909	●
178	NUT; UNION M14	9-99111-414-0	01	1	9910-	●		●
183	VALVE; BYPASS,TRANS	1-32569-046-0	01	1	9902-9904	●
183	VALVE; BYPASS,TRANS	1-32569-046-0	01	1	9905-9909	●	●
183	VALVE; BYPASS,TRANS	1-32569-046-0	01	1	9910-0003	●	●	●
183	VALVE; BYPASS,TRANS	1-32569-046-0	01	1	0004-	●	●
183	VALVE; BYPASS,TRANS SHORT CHASSIS&LHD(EXR6MC)	1-32569-046-0	01	1	0004-			●
184	GASKET; BYPASS VLV	1-32568-003-0	02	1	9902-9904	●
184	GASKET; BYPASS VLV	1-32568-003-0	02	1	9905-9909	●	●
184	GASKET; BYPASS VLV	1-32568-003-0	02	1	9910-0003	●	●	●
184	GASKET; BYPASS VLV	1-32568-003-0	02	1	0004-	●	●
184	GASKET; BYPASS VLV SHORT CHASSIS&LHD(EXR6MC)	1-32568-003-0	02	1	0004-			●
185	UNION; SCREW,BYPASS VLV (A) M22	1-32567-011-0	01	1	9902-9904	●
185	UNION; SCREW,BYPASS VLV (A) M22	1-32567-011-0	01	1	9905-9909	●	●
185	UNION; SCREW,BYPASS VLV (A) M22	1-32567-011-0	01	1	9910-0003	●	●	●
185	UNION; SCREW,BYPASS VLV (A) M22	1-32567-011-0	01	1	0004-	●	●
185	UNION; SCREW,BYPASS VLV SHORT CHASSIS&LHD(EXR6MC) (A) M22	1-32567-011-0	01	1	0004-			●
185	UNION; SCREW,BYPASS VLV (B)	1-32567-016-0	01	1	9902-9904	●
185	UNION; SCREW,BYPASS VLV (B)	1-32567-016-0	01	1	9905-9909	●	●
185	UNION; SCREW,BYPASS VLV (B)	1-32567-016-0	01	1	9910-0003	●	●	●
185	UNION; SCREW,BYPASS VLV (B)	1-32567-016-0	01	1	0004-	●	●
185	UNION; SCREW,BYPASS VLV SHORT CHASSIS&LHD(EXR6MC) (B)	1-32567-016-0	01	1	0004-			●
186	RING; SEAL (A) ID=22	1-32568-001-0	04	1	9902-9904	●
186	RING; SEAL (A) ID=22	1-32568-001-0	04	1	9905-9909	●	●
186	RING; SEAL (A) ID=22	1-32568-001-0	04	1	9910-0003	●	●	●
186	RING; SEAL (A) ID=22	1-32568-001-0	04	1	0004-	●	●
186	RING; SEAL SHORT CHASSIS&LHD(EXR6MC) (A) ID=22	1-32568-001-0	04	1	0004-			●
186	RING; SEAL (B) ID=22	1-32568-002-0	02	1	9902-9904	●
186	RING; SEAL (B) ID=22	1-32568-002-0	02	1	9905-9909	●	●
186	RING; SEAL (B) ID=22	1-32568-002-0	02	1	9910-0003	●	●	●
186	RING; SEAL (B) ID=22	1-32568-002-0	02	1	0004-	●	●
186	RING; SEAL SHORT CHASSIS&LHD(EXR6MC) (B) ID=22	1-32568-002-0	02	1	0004-			●
192	HOSE; FLEX,TRANS (A) L=535	1-09364-936-0	01	1	9902-9904	●
192	HOSE; FLEX,TRANS (A) L=535	1-09364-936-0	01	1	9905-	●	●
192	HOSE; FLEX,TRANS (B) L=406	1-09364-961-0	01	1	9902-9904	●
192	HOSE; FLEX,TRANS (B) L=406	1-09364-961-0	01	1	9905-9909	●	●
192	HOSE; FLEX,TRANS (B) L=406	1-09364-961-0	01	1	9910-9911	●	●
192	HOSE; FLEX,TRANS SHORT CHASSIS&LHD(EXR6MC) (B) L=406	1-09364-961-0	01	1	9910-9911			●
192	HOSE; FLEX,TRANS (B) L=406	1-09364-961-0	01	1	9912-	●	●
192	HOSE; FLEX,TRANS (A) L=311	1-09364-921-0	01	1	9910-9911			●
192	HOSE; FLEX,TRANS (A) L=400	1-09364-913-0	01	1	9912-			●
192	HOSE; FLEX,TRANS (B) L=500	1-09364-914-0	01	1	9912-			●
194	UNION; NYLON TUBE M14	1-09664-230-0	01	1	9902-9909	●
194	UNION; NYLON TUBE M14	1-09664-230-0	01	1	9910-	●		●
265	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	9902-9904	●
265	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	9905-	●	●
265	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9910-			●
292	CLIP; OIL PIPE ID=16 & 16 L=28	1-09701-219-0	01	1	9902-9904	●
292	CLIP; OIL PIPE ID=16 & 16 L=28	1-09701-219-0	01	1	9905-9909	●	●
292	CLIP; OIL PIPE ID=16 & 16 L=28	1-09701-219-0	01	1	9910-0003	●	●	●
292	CLIP; OIL PIPE ID=16 & 16 L=28	1-09701-219-0	01	1	0004-	●	●
292	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) ID=16 & 16 L=28	1-09701-219-0	01	1	0004-			●
311	WASHER; LK ID=14.2	9-09150-514-0	01	1	9902-9909	●
311	WASHER; LK ID=14.2	9-09150-514-0	01	1	9910-	●		●
355	BRACKET; OIL PIPE	1-47478-217-1	01	1	9902-9904	●
355	BRACKET; OIL PIPE	1-47478-217-1	01	1	9905-	●	●
355	BRACKET; OIL PIPE	1-47477-500-1	01	1	9910-			●
357	NUT; UNION,FLEX HOSE M22	9-09111-522-0	02	1	9902-9904	●
357	NUT; UNION,FLEX HOSE M22	9-09111-522-0	02	1	9905-9909	●	●
357	NUT; UNION,FLEX HOSE M22	9-09111-522-0	02	1	9910-0003	●	●	●
357	NUT; UNION,FLEX HOSE M22	9-09111-522-0	02	1	0004-	●	●
357	NUT; UNION,FLEX HOSE SHORT CHASSIS&LHD(EXR6MC) M22	9-09111-522-0	02	1	0004-			●
358	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	9902-9904	●
358	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	9905-9909	●	●
358	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	9910-0003	●	●	●
358	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	0004-	●	●
358	WASHER; LK,UNION SHORT CHASSIS&LHD(EXR6MC) ID=22.5	9-09150-522-0	02	1	0004-			●
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	9902-9909	●
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	9910-	●		●
359	PIPE; AIR,TRANS TO UNION (B)	1-49119-463-1	01	1	9902-	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49119-464-1	01	1	9902-	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49118-935-0	01	1	9910-			●
359	PIPE; AIR,TRANS TO UNION (B)	1-49118-937-0	01	1	9910-			●
361	BOLT; EYE,AIR PIPE M12X24 EYE-BOLT	1-09675-229-0	01	1	9902-9909	●
361	BOLT; EYE,AIR PIPE M12X24 EYE-BOLT	1-09675-229-0	01	1	9910-	●		●
362	GASKET; AIR PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9902-9909	●
362	GASKET; AIR PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9910-	●		●
362	GASKET; AIR PIPE (B) ID=12.2	1-09630-084-0	02	1	9902-9909	●
362	GASKET; AIR PIPE (B) ID=12.2	1-09630-084-0	02	1	9910-	●		●
365	BRACKET; HARNESS (B)	1-82699-490-2	01	1	9902-9904	●
365	BRACKET; HARNESS (B)	1-82699-490-2	01	1	9905-9909	●	●
365	BRACKET; HARNESS (B)	1-82699-490-2	01	1	9910-0003	●	●	●
365	BRACKET; HARNESS (B)	1-82699-490-2	01	1	0004-	●	●
365	BRACKET; HARNESS SHORT CHASSIS&LHD(EXR6MC) (B)	1-82699-490-2	01	1	0004-			●
365	BRACKET; HARNESS (A)	1-47478-012-0	01	1	9910-0008			●
365	BRACKET; HARNESS (A)	1-47479-047-0	01	1	0009-			●
366	BOLT; BRKT,HARNESS M10X16 FLANGE	0-28181-016-0	01	1	9910-0008			●
366	BOLT; BRKT,HARNESS M12X25 FLANGE	0-28181-225-0	01	1	0009-			●
368	CLIP; BAND,CABLE L=140	5-09707-031-1	02	1	9902-9904	●
368	CLIP; BAND,CABLE L=140	5-09707-031-1	02	1	9905-9909	●	●
368	CLIP; BAND,CABLE L=140	5-09707-031-1	02	1	9910-0003	●	●	●
368	CLIP; BAND,CABLE L=140	5-09707-031-1	02	1	0004-	●	●
368	CLIP; BAND,CABLE SHORT CHASSIS&LHD(EXR6MC) L=140	5-09707-031-1	02	1	0004-			●
405	BOLT; EYE,OIL PIPE M22X37	1-09675-060-0	02	1	9902-9904	●
405	BOLT; EYE,OIL PIPE M22X37	1-09675-060-0	02	1	9905-9909	●	●
405	BOLT; EYE,OIL PIPE M22X37	1-09675-060-0	02	1	9910-0003	●	●	●
405	BOLT; EYE,OIL PIPE M22X37	1-09675-060-0	02	1	0004-	●	●
405	BOLT; EYE,OIL PIPE SHORT CHASSIS&LHD(EXR6MC) M22X37	1-09675-060-0	02	1	0004-			●
422	NUT; SLEEVE (A) M14	1-09660-212-0	01	1	9902-9904	●
422	NUT; SLEEVE (A) M14	1-09660-212-0	01	1	9905-9909	●	●
422	NUT; SLEEVE (A) M14	1-09660-212-0	01	1	9910-0003	●	●	●
422	NUT; SLEEVE (A) M14	1-09660-212-0	01	1	0004-	●	●
422	NUT; SLEEVE SHORT CHASSIS&LHD(EXR6MC) (A) M14	1-09660-212-0	01	1	0004-			●
422	NUT; SLEEVE (B) M14	1-09660-767-0	01	1	9902-9909	●
422	NUT; SLEEVE (B) M14	1-09660-767-0	01	1	9910-	●
422	NUT; SLEEVE SHORT CHASSIS&LHD(EXR6MC) (B) M14	1-09660-767-0	01	1	9910-			●
432	SLEEVE; TUBE (A) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	9902-9904	●
432	SLEEVE; TUBE (A) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	9905-9909	●	●
432	SLEEVE; TUBE (A) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	9910-0003	●	●	●
432	SLEEVE; TUBE (A) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	0004-	●	●
432	SLEEVE; TUBE SHORT CHASSIS&LHD(EXR6MC) (A) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	0004-			●
432	SLEEVE; TUBE (B) ID=8.2 L=9.5	1-09666-067-0	01	1	9902-9909	●
432	SLEEVE; TUBE (B) ID=8.2 L=9.5	1-09666-067-0	01	1	9910-0003	●		●
432	SLEEVE; TUBE (B) ID=8.2 L=9.5	1-09666-067-0	01	1	0004-	●
432	SLEEVE; TUBE SHORT CHASSIS&LHD(EXR6MC) (B) ID=8.2 L=9.5	1-09666-067-0	01	1	0004-			●
439	BOLT; BRKT (B) M10X40 FLANGE	0-28781-040-0	04	1	9902-9904	●
439	BOLT; BRKT (B) M10X40 FLANGE	0-28781-040-0	04	1	9905-9909	●	●
439	BOLT; BRKT (B) M10X40 FLANGE	0-28781-040-0	04	1	9910-0003	●	●	●
439	BOLT; BRKT (B) M10X40 FLANGE	0-28781-040-0	04	1	0004-	●	●
439	BOLT; BRKT SHORT CHASSIS&LHD(EXR6MC) (B) M10X40 FLANGE	0-28781-040-0	04	1	0004-			●
439	BOLT; BRKT (A) M16X35 FLANGE	0-28881-635-0	04	1	9902-9904	●
439	BOLT; BRKT (A) M16X35 FLANGE	0-28881-635-0	04	1	9905-	●	●
439	BOLT; BRKT (A) M16X25 FLANGE	0-28881-625-0	02	1	9910-			●
439	BOLT; BRKT (A) M16X40 FLANGE	0-28881-640-0	01	1	9910-			●
506	INSERT (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	9902-9904	●
506	INSERT (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	9905-9909	●	●
506	INSERT (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	9910-0003	●	●	●
506	INSERT (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	0004-	●	●
506	INSERT SHORT CHASSIS&LHD(EXR6MC) (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	0004-			●
506	INSERT (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	9902-9909	●
506	INSERT (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	9910-0003	●
506	INSERT SHORT CHASSIS&LHD(EXR6MC) (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	9910-0003			●
506	INSERT (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	0004-	●
506	INSERT SHORT CHASSIS&LHD(EXR6MC) (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	0004-			●
508	UNION; AIR M10 & M12 STRAIGHT	1-09664-235-0	01	1	9902-9909	●
508	UNION; AIR M10 & M12 STRAIGHT	1-09664-235-0	01	1	9910-	●		●
509	BRACKET; PIPE	1-47478-215-2	01	1	9902-9904	●
509	BRACKET; PIPE	1-47478-215-2	01	1	9905-	●	●
509	BRACKET; PIPE	1-47477-447-2	01	1	9910-			●

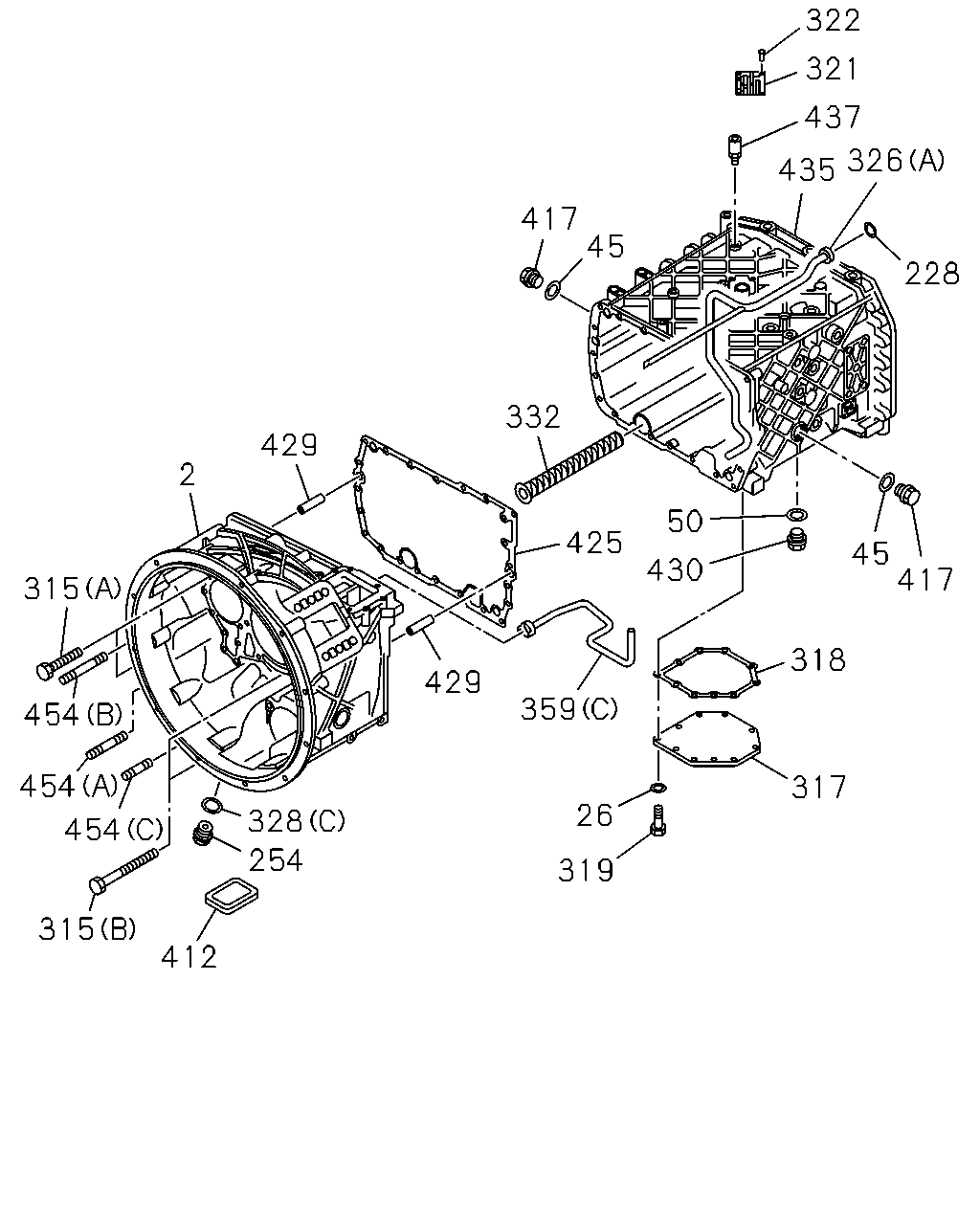

322 321 437 326 435 417 45 228 332 429 2 50 425 45 417 430 315 318 429 454 359 454 317 26 328 454 254 319 315 412

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
2	HOUSING; CLU	1-31111-194-0	01	1	9902-9909	●
2	HOUSING; CLU	1-31111-194-0	01	1	9910-	●	●
26	WASHER; PL,COVER	1-09469-010-0	10	1	9902-9909	●
26	WASHER; PL,COVER	1-09469-010-0	10	1	9910-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	02	1	9902-9909	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	02	1	9910-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	01	1	9902-9909	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	01	1	9910-	●	●
228	GASKET; NOZZLE	1-33119-273-0	01	1	9902-9909	●
228	GASKET; NOZZLE	1-33119-273-0	01	1	9910-	●	●
254	PLUG; DRAIN,OIL	1-33119-376-0	01	1	9902-9909	●
254	PLUG; DRAIN,OIL	1-33119-376-0	01	1	9910-	●	●
315	BOLT; CASE (A)	1-33119-266-0	15	1	9902-9909	●
315	BOLT; CASE (A)	1-33119-266-0	15	1	9910-	●	●
315	BOLT; CASE (B)	1-33119-267-0	07	1	9902-9909	●
315	BOLT; CASE (B)	1-33119-267-0	07	1	9910-	●	●
317	COVER; CASE	1-33119-274-0	01	1	9902-9909	●
317	COVER; CASE	1-33119-274-0	01	1	9910-	●	●
318	GASKET; COVER	1-33119-409-0	01	1	9902-9909	●
318	GASKET; COVER	1-33119-409-0	01	1	9910-	●	●
319	BOLT; COVER	1-33119-276-0	10	1	9902-9909	●
319	BOLT; COVER	1-33119-276-0	10	1	9910-	●	●
321	PLATE; NAME	1-33119-277-0	01	1	9902-9909	●
321	PLATE; NAME	1-33119-277-0	01	1	9910-	●	●
322	RIVET; NAME PLATE	1-33119-398-0	04	1	9902-9909	●
322	RIVET; NAME PLATE	1-33119-398-0	04	1	9910-	●	●
326	NOZZLE; OIL,OUTLET (A)	1-33119-282-0	01	1	9902-	●
326	NOZZLE; OIL,OUTLET (B)	1-33139-021-0	01	1	9902-9909	●
326	NOZZLE; OIL,OUTLET (B)	1-33139-021-0	01	1	9910-	●	●
326	NOZZLE; OIL,OUTLET (A)	1-33119-272-0	01	1	9910-		●
328	GASKET; PLUG (B)	1-33119-249-0	02	1	9902-9909	●
328	GASKET; PLUG (B)	1-33119-249-0	02	1	9910-	●	●
328	GASKET; PLUG (C)	1-33119-264-0	01	1	9902-9909	●
328	GASKET; PLUG (C)	1-33119-264-0	01	1	9910-	●	●
328	GASKET; PLUG (A)	1-33139-023-0	01	1	9902-9909	●
328	GASKET; PLUG (A)	1-33139-023-0	01	1	9910-	●	●
332	FILTER; OIL	1-33119-370-0	01	1	9902-9909	●
332	FILTER; OIL	1-33119-370-0	01	1	9910-	●	●
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	9902-9909	●
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	9910-	●	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49119-463-1	01	1	9902-	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49119-464-1	01	1	9902-	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49118-935-0	01	1	9910-		●
359	PIPE; AIR,TRANS TO UNION (B)	1-49118-937-0	01	1	9910-		●
412	CAP; CLU HSG	1-31119-022-0	01	1	9902-9909	●
412	CAP; CLU HSG	1-31119-022-0	01	1	9910-	●	●
417	PLUG; OIL FILLER,TRANS	1-33119-268-0	02	1	9902-9909	●
417	PLUG; OIL FILLER,TRANS	1-33119-268-0	02	1	9910-	●	●
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33119-262-0	01	1	9902-9909	●
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33119-262-0	01	1	9910-	●	●
429	PIN; STRAIGHT	1-33119-265-0	07	1	9902-9909	●
429	PIN; STRAIGHT	1-33119-265-0	07	1	9910-	●	●
430	PLUG; OIL DRAIN	1-33119-268-0	01	1	9902-9909	●
430	PLUG; OIL DRAIN	1-33119-268-0	01	1	9910-	●	●
435	CASE; TRANS	1-33111-286-0	01	1	9902-	●
435	CASE; TRANS	1-33111-290-0	01	1	9910-		●
437	BREATHER; TRANS	1-36122-004-0	01	1	9902-9909	●
437	BREATHER; TRANS	1-36122-004-0	01	1	9910-	●	●
454	STUD; CLU HSG (A) M10 L=50	1-33119-381-0	04	1	9902-9909	●
454	STUD; CLU HSG (A) M10 L=50	1-33119-381-0	04	1	9910-	●	●
454	STUD; CLU HSG (B) M10 L=80	1-33119-393-0	08	1	9902-9909	●
454	STUD; CLU HSG (B) M10 L=80	1-33119-393-0	08	1	9910-	●	●
454	STUD; CLU HSG (C) M10 L=25	1-33119-394-0	11	1	9902-9909	●
454	STUD; CLU HSG (C) M10 L=25	1-33119-394-0	11	1	9910-	●	●

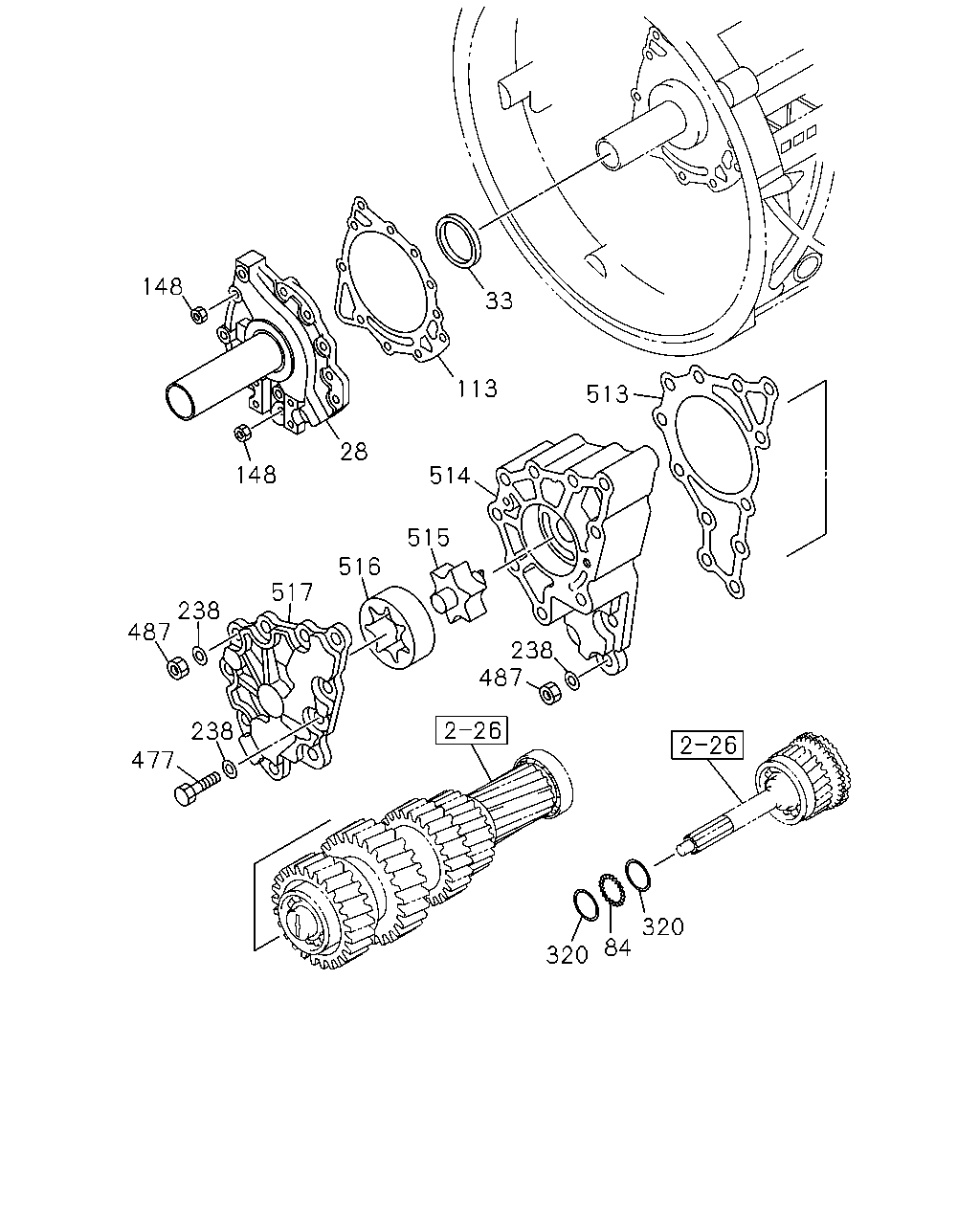

148 33 113 513 28 148 514 515 516 517 238 487 238 487 238 477 320 84 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
28	COVER; FRT,TRANS CASE	1-33121-149-0	01	1	9902-9909	●
28	COVER; FRT,TRANS CASE	1-33121-149-0	01	1	9910-	●
28	COVER; FRT,TRANS CASE SHORT CHASSIS&LHD(EXR6MC)	1-33121-149-0	01	1	9910-		●
28	COVER; FRT,TRANS CASE SHORT CHASSIS&RHD(EXR5MC)	1-33121-146-0	01	1	0004-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-248-0	01	1	9902-9909	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-248-0	01	1	9910-	●	●
84	SPACER; COVER,TRANS	1-33129-006-0	01	1	9902-9909	●
84	SPACER; COVER,TRANS	1-33129-006-0	01	1	9910-	●	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-018-0	01	1	9902-9909	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-018-0	01	1	9910-	●	●
148	NUT	1-33529-056-0	11	1	9902-9909	●
148	NUT	1-33529-056-0	11	1	9910-	●	●
238	WASHER; PL	1-09469-010-0	14	1	9902-9909	●
238	WASHER; PL	1-09469-010-0	14	1	9910-	●	●
320	WASHER; COVER	1-33129-007-0	02	1	9902-9909	●
320	WASHER; COVER	1-33129-007-0	02	1	9910-	●	●
477	BOLT; OIL PUMP	1-33529-055-0	02	1	9902-9909	●
477	BOLT; OIL PUMP	1-33529-055-0	02	1	9910-	●	●
487	NUT; COVER,OIL PUMP	1-33529-056-0	12	1	9902-9909	●
487	NUT; COVER,OIL PUMP	1-33529-056-0	12	1	9910-	●	●
513	GASKET; HOUSING	1-34159-058-0	01	1	9902-9909	●
513	GASKET; HOUSING	1-34159-058-0	01	1	9910-	●	●
514	HOUSING; OIL PUMP	1-34155-027-0	01	1	9902-9909	●
514	HOUSING; OIL PUMP	1-34155-027-0	01	1	9910-	●	●
515	SHAFT; OIL PUMP	1-34159-070-0	01	1	9902-9909	●
515	SHAFT; OIL PUMP	1-34159-070-0	01	1	9910-	●	●
516	ROTOR; OIL PUMP	1-34159-060-0	01	1	9902-9909	●
516	ROTOR; OIL PUMP	1-34159-060-0	01	1	9910-	●	●
517	COVER; OIL PUMP	1-34159-071-0	01	1	9902-9909	●
517	COVER; OIL PUMP	1-34159-071-0	01	1	9910-	●	●

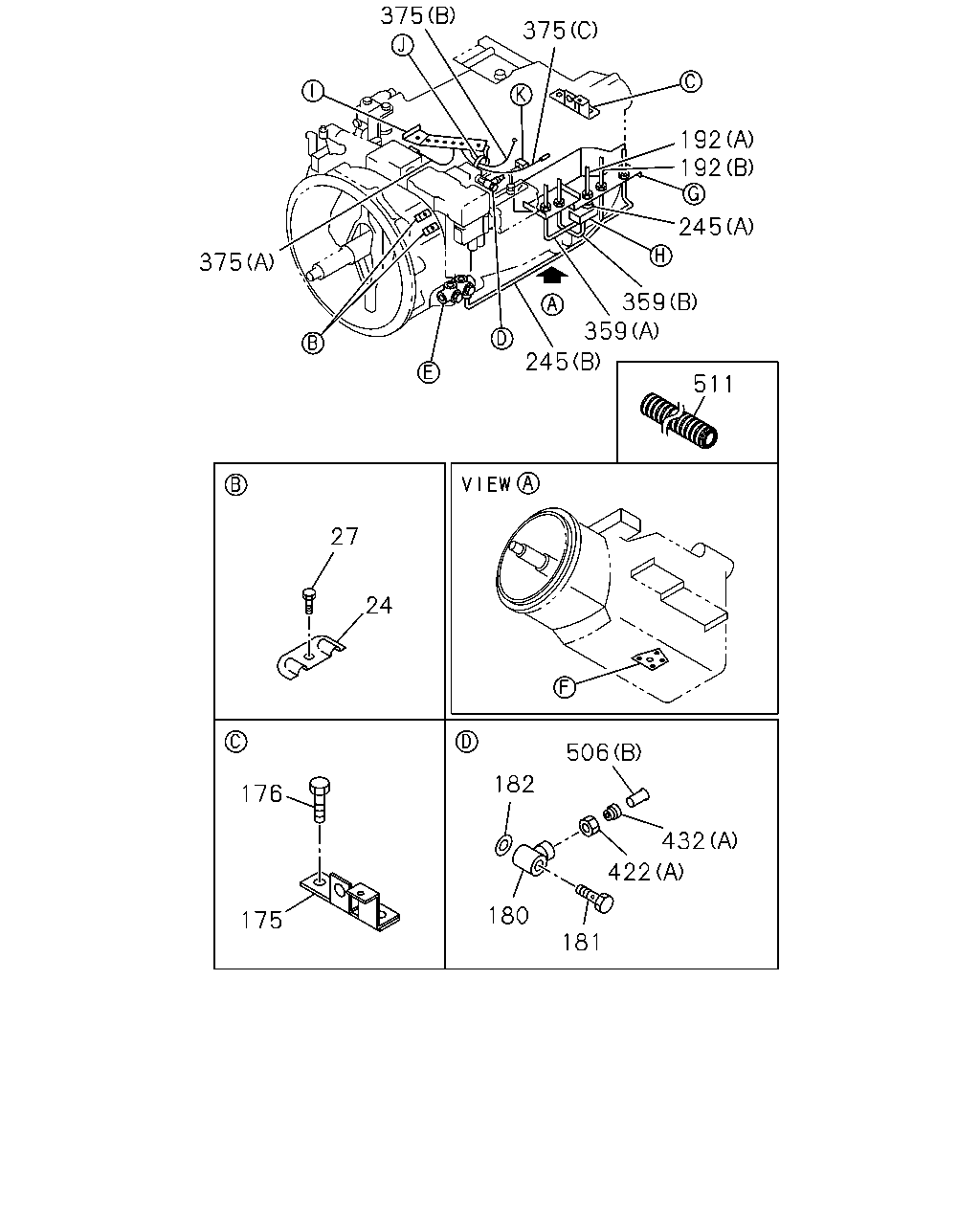

375 375 192 192 245 375 359 359 245 511 27 24 506 182 176 432 422 180 175 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	COVER; CHECK HOLE,DUST	1-31131-038-0	03	1	9902-9904	●
24	COVER; CHECK HOLE,DUST	1-31131-038-0	03	1	9905-9909	●	●
24	COVER; CHECK HOLE,DUST	1-31131-038-0	03	1	9910-0003	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-038-0	03	1	0004-	●	●
24	COVER; CHECK HOLE,DUST SHORT CHASSIS&LHD(EXR6MC)	1-31131-038-0	03	1	0004-			●
27	BOLT; COVER TO CLU HSG M16X25 FLANGE	0-28881-625-0	02	1	9902-9904	●
27	BOLT; COVER TO CLU HSG M16X25 FLANGE	0-28881-625-0	02	1	9905-9909	●	●
27	BOLT; COVER TO CLU HSG M16X25 FLANGE	0-28881-625-0	02	1	9910-0003	●	●	●
27	BOLT; COVER TO CLU HSG M16X25 FLANGE	0-28881-625-0	02	1	0004-	●	●
27	BOLT; COVER TO CLU HSG SHORT CHASSIS&LHD(EXR6MC) M16X25 FLANGE	0-28881-625-0	02	1	0004-			●
175	BRACKET; UNION	1-47477-545-0	01	1	9902-9904	●
175	BRACKET; UNION	1-47477-545-0	01	1	9905-9912	●	●
175	BRACKET; UNION	1-47477-545-0	01	1	0001-0003	●	●	●
175	BRACKET; UNION	1-47477-545-0	01	1	0004-	●	●
175	BRACKET; UNION SHORT CHASSIS&LHD(EXR6MC)	1-47477-545-0	01	1	0004-			●
175	BRACKET; UNION	1-47478-633-0	01	1	9910-9912			●
176	BOLT; UNION BRKT M16X25 FLANGE	0-28881-625-0	02	1	9902-9904	●
176	BOLT; UNION BRKT M16X25 FLANGE	0-28881-625-0	02	1	9905-9909	●	●
176	BOLT; UNION BRKT M16X25 FLANGE	0-28881-625-0	02	1	9910-0003	●	●	●
176	BOLT; UNION BRKT M16X25 FLANGE	0-28881-625-0	02	1	0004-	●	●
176	BOLT; UNION BRKT SHORT CHASSIS&LHD(EXR6MC) M16X25 FLANGE	0-28881-625-0	02	1	0004-			●
180	CONNECTOR; NYLON TUBE	1-09660-239-0	01	1	9902-9904	●
180	CONNECTOR; NYLON TUBE	1-09660-239-0	01	1	9905-9909	●	●
180	CONNECTOR; NYLON TUBE	1-09660-239-0	01	1	9910-0003	●	●	●
180	CONNECTOR; NYLON TUBE	1-09660-239-0	01	1	0004-	●	●
180	CONNECTOR; NYLON TUBE SHORT CHASSIS&LHD(EXR6MC)	1-09660-239-0	01	1	0004-			●
181	BOLT; EYE,NYLON TUBE M12 L=35.5	1-09675-169-0	01	1	9902-9904	●
181	BOLT; EYE,NYLON TUBE M12 L=35.5	1-09675-169-0	01	1	9905-9909	●	●
181	BOLT; EYE,NYLON TUBE M12 L=35.5	1-09675-169-0	01	1	9910-0003	●	●	●
181	BOLT; EYE,NYLON TUBE M12 L=35.5	1-09675-169-0	01	1	0004-	●	●
181	BOLT; EYE,NYLON TUBE SHORT CHASSIS&LHD(EXR6MC) M12 L=35.5	1-09675-169-0	01	1	0004-			●
182	GASKET; EYE BOLT,NYLON TUBE ID=12.2	9-09571-412-0	01	1	9902-9904	●
182	GASKET; EYE BOLT,NYLON TUBE ID=12.2	9-09571-412-0	01	1	9905-9909	●	●
182	GASKET; EYE BOLT,NYLON TUBE ID=12.2	9-09571-412-0	01	1	9910-0003	●	●	●
182	GASKET; EYE BOLT,NYLON TUBE ID=12.2	9-09571-412-0	01	1	0004-	●	●
182	GASKET; EYE BOLT,NYLON TUBE SHORT CHASSIS&LHD(EXR6MC) ID=12.2	9-09571-412-0	01	1	0004-			●
192	HOSE; FLEX,TRANS (A) L=535	1-09364-936-0	01	1	9902-9904	●
192	HOSE; FLEX,TRANS (A) L=535	1-09364-936-0	01	1	9905-	●	●
192	HOSE; FLEX,TRANS (B) L=406	1-09364-961-0	01	1	9902-9904	●
192	HOSE; FLEX,TRANS (B) L=406	1-09364-961-0	01	1	9905-9909	●	●
192	HOSE; FLEX,TRANS (B) L=406	1-09364-961-0	01	1	9910-9911	●	●
192	HOSE; FLEX,TRANS SHORT CHASSIS&LHD(EXR6MC) (B) L=406	1-09364-961-0	01	1	9910-9911			●
192	HOSE; FLEX,TRANS (B) L=406	1-09364-961-0	01	1	9912-	●	●
192	HOSE; FLEX,TRANS (A) L=311	1-09364-921-0	01	1	9910-9911			●
192	HOSE; FLEX,TRANS (A) L=400	1-09364-913-0	01	1	9912-			●
192	HOSE; FLEX,TRANS (B) L=500	1-09364-914-0	01	1	9912-			●
245	PIPE; OIL (B)	1-49119-467-1	01	1	9902-9904	●
245	PIPE; OIL (B)	1-49119-467-1	01	1	9905-9906	●	●
245	PIPE; OIL (B)	1-49122-031-0	01	1	9907-	●	●
245	PIPE; OIL (A)	1-49119-468-1	01	1	9902-9904	●
245	PIPE; OIL (A)	1-49119-468-1	01	1	9905-	●	●
245	PIPE; OIL (A)	1-49161-055-0	01	1	9910-			●
245	PIPE; OIL (B)	1-49161-061-0	01	1	9910-			●
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	9902-9909	●
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	9910-	●		●
359	PIPE; AIR,TRANS TO UNION (B)	1-49119-463-1	01	1	9902-	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49119-464-1	01	1	9902-	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49118-935-0	01	1	9910-			●
359	PIPE; AIR,TRANS TO UNION (B)	1-49118-937-0	01	1	9910-			●
375	CABLE; TRANS (A) L=250	1-82659-134-1	01	1	9902-9904	●
375	CABLE; TRANS (A) L=250	1-82659-134-1	01	1	9905-9909	●	●
375	CABLE; TRANS (A) L=250	1-82659-134-1	01	1	9910-0003	●	●	●
375	CABLE; TRANS (A) L=250	1-82659-134-1	01	1	0004-	●	●
375	CABLE; TRANS SHORT CHASSIS&LHD(EXR6MC) (A) L=250	1-82659-134-1	01	1	0004-			●
375	CABLE; TRANS (B) L=580	1-82659-135-1	01	1	9902-9904	●
375	CABLE; TRANS (B) L=580	1-82659-135-1	01	1	9905-9909	●	●
375	CABLE; TRANS (B) L=580	1-82659-135-1	01	1	9910-0003	●	●	●
375	CABLE; TRANS (B) L=580	1-82659-135-1	01	1	0004-	●	●
375	CABLE; TRANS SHORT CHASSIS&LHD(EXR6MC) (B) L=580	1-82659-135-1	01	1	0004-			●
375	CABLE; TRANS (C) L=880	1-82659-137-1	01	1	9902-9909	●
375	CABLE; TRANS (C) L=880	1-82659-137-1	01	1	9910-	●		●
422	NUT; SLEEVE (A) M14	1-09660-212-0	01	1	9902-9904	●
422	NUT; SLEEVE (A) M14	1-09660-212-0	01	1	9905-9909	●	●
422	NUT; SLEEVE (A) M14	1-09660-212-0	01	1	9910-0003	●	●	●
422	NUT; SLEEVE (A) M14	1-09660-212-0	01	1	0004-	●	●
422	NUT; SLEEVE SHORT CHASSIS&LHD(EXR6MC) (A) M14	1-09660-212-0	01	1	0004-			●
422	NUT; SLEEVE (B) M14	1-09660-767-0	01	1	9902-9909	●
422	NUT; SLEEVE (B) M14	1-09660-767-0	01	1	9910-	●
422	NUT; SLEEVE SHORT CHASSIS&LHD(EXR6MC) (B) M14	1-09660-767-0	01	1	9910-			●
432	SLEEVE; TUBE (A) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	9902-9904	●
432	SLEEVE; TUBE (A) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	9905-9909	●	●
432	SLEEVE; TUBE (A) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	9910-0003	●	●	●
432	SLEEVE; TUBE (A) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	0004-	●	●
432	SLEEVE; TUBE SHORT CHASSIS&LHD(EXR6MC) (A) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	0004-			●
432	SLEEVE; TUBE (B) ID=8.2 L=9.5	1-09666-067-0	01	1	9902-9909	●
432	SLEEVE; TUBE (B) ID=8.2 L=9.5	1-09666-067-0	01	1	9910-0003	●		●
432	SLEEVE; TUBE (B) ID=8.2 L=9.5	1-09666-067-0	01	1	0004-	●
432	SLEEVE; TUBE SHORT CHASSIS&LHD(EXR6MC) (B) ID=8.2 L=9.5	1-09666-067-0	01	1	0004-			●
506	INSERT (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	9902-9904	●
506	INSERT (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	9905-9909	●	●
506	INSERT (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	9910-0003	●	●	●
506	INSERT (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	0004-	●	●
506	INSERT SHORT CHASSIS&LHD(EXR6MC) (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	0004-			●
506	INSERT (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	9902-9909	●
506	INSERT (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	9910-0003	●
506	INSERT SHORT CHASSIS&LHD(EXR6MC) (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	9910-0003			●
506	INSERT (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	0004-	●
506	INSERT SHORT CHASSIS&LHD(EXR6MC) (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	0004-			●
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9902-9904	●
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9905-9909	●	●
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9910-0003	●	●	●
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0004-	●	●
511	TUBE; CORRUGATE SHORT CHASSIS&LHD(EXR6MC) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0004-			●
511	TUBE; CORRUGATE L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	9902-9904	●
511	TUBE; CORRUGATE L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	9905-9909	●	●
511	TUBE; CORRUGATE L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	9910-0003	●	●	●
511	TUBE; CORRUGATE L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	0004-	●	●
511	TUBE; CORRUGATE SHORT CHASSIS&LHD(EXR6MC) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	0004-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
