2-20A — MANUAL TRANSMISSION ASM AND CASE (#7657) — 196 parça

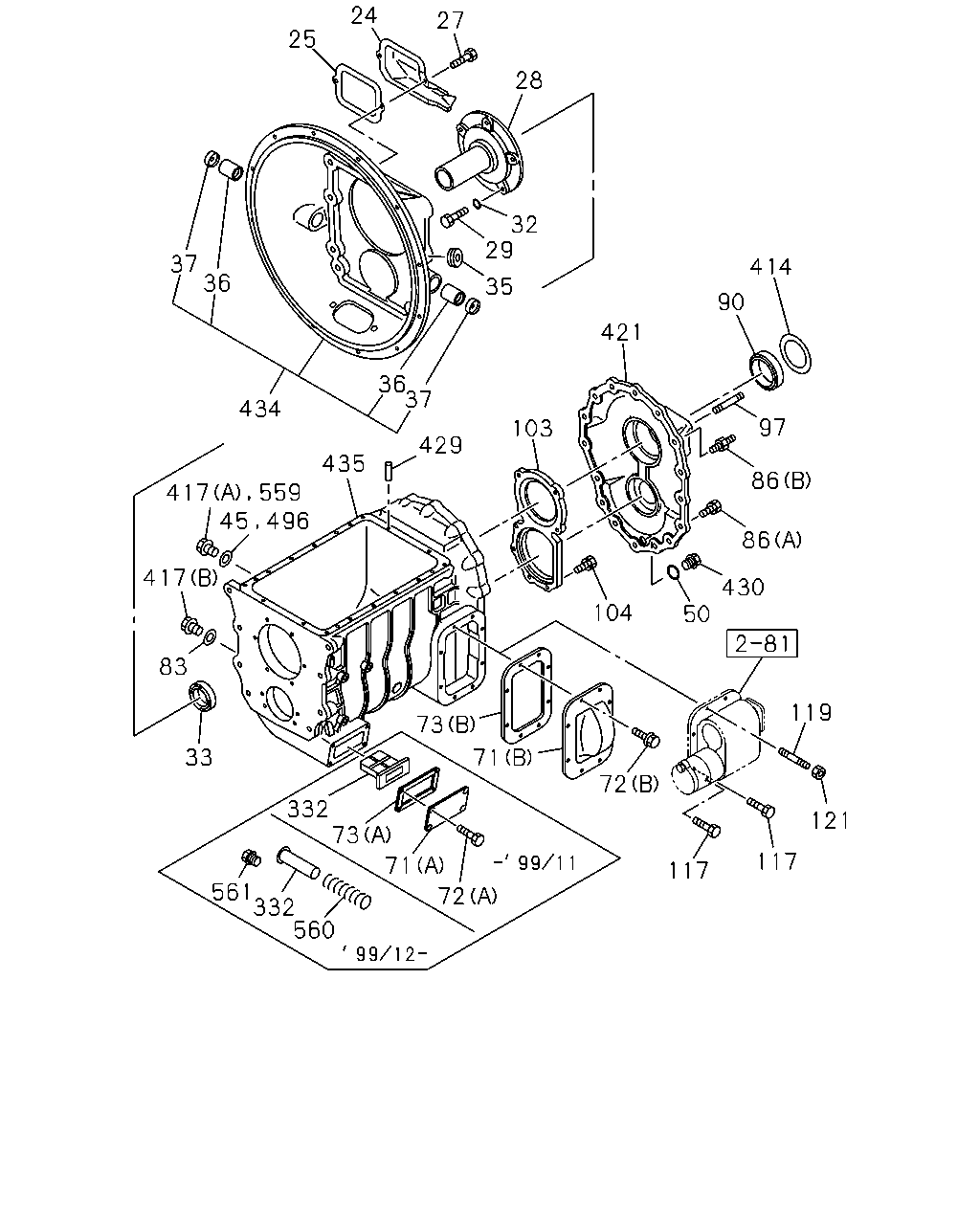

24 27 25 28 32 29 37 36 414 35 90 421 36 37 434 97 103 429 435 86 417 559 86 417 430 104 50 83 119 73 71 33 72 332 73 121 117 71 117 561 332 560 72 45 496

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	9902-9904	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	9905-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	9902-9904	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	9905-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9902-9904	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9905-	●	●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	9902-	●
28	COVER; FRT,TRANS CASE	1-33121-115-2	01	1	9905-0007		●
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	0008-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	9902-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	06	1	9905-		●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	9902-	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	06	1	9905-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	9902-9904	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	9905-	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	9902-9904	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	9905-	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	9902-9904	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	9905-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	9902-9904	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	9905-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9902-9904	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9905-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9902-9904	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9905-	●	●
71	COVER; SIDE,TRANS CASE (C)	1-33141-030-1	01	1	9902-	●
71	COVER; SIDE,TRANS CASE (B)	1-33141-044-1	01	1	9905-		●
71	COVER; SIDE,TRANS CASE (A)	1-33141-045-0	01	1	9905-9911		●
72	BOLT; SIDE COVER (A) M10X16 FLANGE	0-28181-016-0	08	1	9902-	●
72	BOLT; SIDE COVER (A) M10X16 FLANGE	0-28181-016-0	04	1	9905-9911		●
72	BOLT; SIDE COVER (B) M12X20 FLANGE	0-28181-220-0	08	1	9905-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (C)	1-33142-043-0	01	1	9902-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33142-041-0	01	1	9905-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33142-042-0	01	1	9905-9911		●
83	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=22.5	9-09571-422-0	01	1	9912-		●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	09	1	9902-	●
86	BOLT; RR COVER (A) M12X65	1-09044-077-0	02	1	9902-	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	9902-	●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28181-230-0	14	1	9905-		●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	02	1	9905-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	9902-9904	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	9905-	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	9902-9904	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	9905-	●	●
103	RETAINER; BRG	1-33151-035-1	01	1	9902-	●
103	RETAINER; BRG	1-33151-052-0	01	1	9905-		●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9902-	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-0	08	1	9905-0001		●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	07	1	0002-		●
104	BOLT; BRG RET M10X30 FLANGE	0-28181-030-0	01	1	0002-		●
117	BOLT; PTO FIX M10X22 FLANGE	0-28181-022-0	04	1	9902-	●
117	BOLT; PTO FIX M10X50 FLANGE	0-28181-050-0	02	1	9902-	●
117	BOLT; PTO FIX M12X25 FLANGE	0-28181-225-0	02	1	9905-		●
117	BOLT; PTO FIX M12X120 FLANGE	0-28186-212-0	02	1	9905-		●
119	STUD; PTO FIX M10X25 L=40	9-04411-025-0	02	1	9902-	●
119	STUD; PTO FIX M12X25 L=43	9-94411-225-0	04	1	9905-		●
121	NUT; PTO FIX M10 FLANGE	0-91150-210-0	02	1	9902-	●
121	NUT; PTO FIX M12 FLANGE	0-91150-212-0	04	1	9905-		●
332	FILTER; OIL	1-34159-051-0	01	1	9905-9911		●
332	FILTER; OIL	1-41383-003-0	01	1	9912-		●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	9902-	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	9902-9904	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	9905-	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	9912-		●
421	COVER; RR,TRANS	1-33131-197-2	01	1	9902-	●
421	COVER; RR,TRANS	1-33131-201-1	01	1	9905-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9902-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	9905-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9902-9904	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9905-	●	●
434	HOUSING; CLU	1-31110-173-2	01	1	9902-	●
434	HOUSING; CLU	1-31110-177-1	01	1	9905-0003		●
434	HOUSING; CLU	1-31110-203-0	01	1	0004-		●
435	CASE; TRANS	1-33111-195-1	01	1	9902-	●
435	CASE; TRANS	1-33111-298-1	01	1	9905-9911		●
435	CASE; TRANS	1-33111-299-3	01	1	9912-9912		●
435	CASE; TRANS	1-33111-314-0	01	1	0001-0007		●
435	CASE; TRANS	1-33111-321-0	01	1	0008-		●
496	GASKET; OIL FILTER ID=26.8	1-09623-058-0	01	1	9912-		●
559	PLUG; OIL M24X17 FLANGE	1-09604-023-0	01	1	9912-		●
560	SPRING; OIL	1-09580-504-0	01	1	9912-		●
561	PLUG PT1/4	9-99204-513-0	02	1	9912-		●

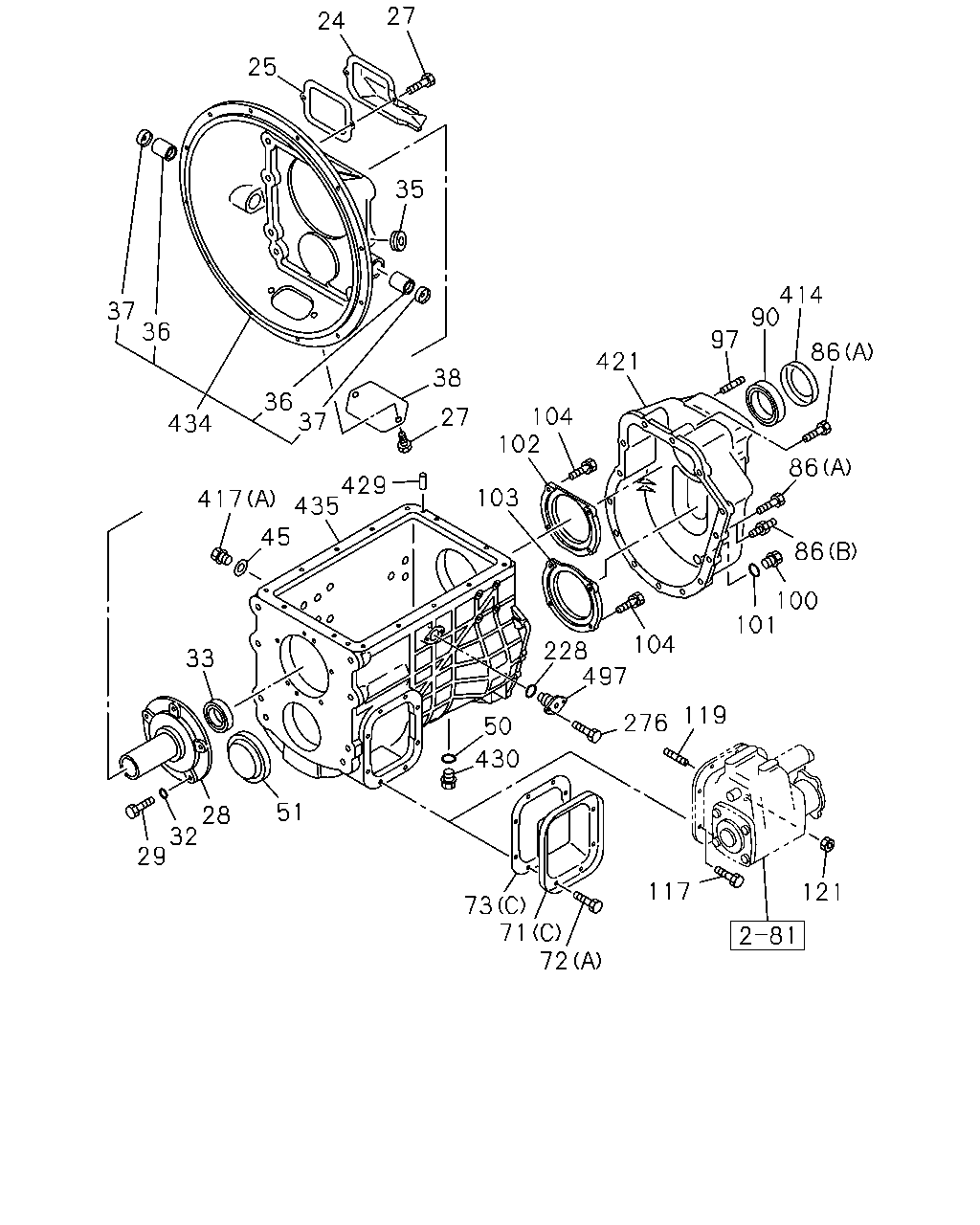

27 24 25 35 414 90 37 36 97 86 421 38 36 37 104 102 27 434 86 429 435 103 417 45 86 100 101 104 228 497 33 119 276 50 430 51 28 32 29 117 121 73 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	9902-9904	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	9905-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	9902-9904	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	9905-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9902-9904	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9905-	●	●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	9902-	●
28	COVER; FRT,TRANS CASE	1-33121-115-2	01	1	9905-0007		●
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	0008-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	9902-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	06	1	9905-		●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	9902-	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	06	1	9905-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	9902-9904	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	9905-	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	9902-9904	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	9905-	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	9902-9904	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	9905-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	9902-9904	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	9905-	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	9902-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9902-9904	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9905-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9902-9904	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9905-	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	9902-	●
71	COVER; SIDE,TRANS CASE (C)	1-33141-030-1	01	1	9902-	●
71	COVER; SIDE,TRANS CASE (B)	1-33141-044-1	01	1	9905-		●
71	COVER; SIDE,TRANS CASE (A)	1-33141-045-0	01	1	9905-9911		●
72	BOLT; SIDE COVER (A) M10X16 FLANGE	0-28181-016-0	08	1	9902-	●
72	BOLT; SIDE COVER (A) M10X16 FLANGE	0-28181-016-0	04	1	9905-9911		●
72	BOLT; SIDE COVER (B) M12X20 FLANGE	0-28181-220-0	08	1	9905-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (C)	1-33142-043-0	01	1	9902-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33142-041-0	01	1	9905-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33142-042-0	01	1	9905-9911		●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	09	1	9902-	●
86	BOLT; RR COVER (A) M12X65	1-09044-077-0	02	1	9902-	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	9902-	●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28181-230-0	14	1	9905-		●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	02	1	9905-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	9902-9904	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	9905-	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	9902-9904	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	9905-	●	●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	9902-	●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9902-	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-035-1	01	1	9902-	●
103	RETAINER; BRG	1-33151-035-1	01	1	9902-	●
103	RETAINER; BRG	1-33151-052-0	01	1	9905-		●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9902-	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-0	08	1	9905-0001		●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	07	1	0002-		●
104	BOLT; BRG RET M10X30 FLANGE	0-28181-030-0	01	1	0002-		●
117	BOLT; PTO FIX M10X22 FLANGE	0-28181-022-0	04	1	9902-	●
117	BOLT; PTO FIX M10X50 FLANGE	0-28181-050-0	02	1	9902-	●
117	BOLT; PTO FIX M12X25 FLANGE	0-28181-225-0	02	1	9905-		●
117	BOLT; PTO FIX M12X120 FLANGE	0-28186-212-0	02	1	9905-		●
119	STUD; PTO FIX M10X25 L=40	9-04411-025-0	02	1	9902-	●
119	STUD; PTO FIX M12X25 L=43	9-94411-225-0	04	1	9905-		●
121	NUT; PTO FIX M10 FLANGE	0-91150-210-0	02	1	9902-	●
121	NUT; PTO FIX M12 FLANGE	0-91150-212-0	04	1	9905-		●
228	GASKET; NOZZLE ID=24.4	1-09623-057-0	01	1	9902-	●
276	BOLT; ADAPTER M14X20	1-09044-078-0	02	1	9902-	●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	9902-	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	9902-9904	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	9905-	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	9912-		●
421	COVER; RR,TRANS	1-33131-197-2	01	1	9902-	●
421	COVER; RR,TRANS	1-33131-201-1	01	1	9905-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9902-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	9905-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9902-9904	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9905-	●	●
434	HOUSING; CLU	1-31110-173-2	01	1	9902-	●
434	HOUSING; CLU	1-31110-177-1	01	1	9905-0003		●
434	HOUSING; CLU	1-31110-203-0	01	1	0004-		●
435	CASE; TRANS	1-33111-195-1	01	1	9902-	●
435	CASE; TRANS	1-33111-298-1	01	1	9905-9911		●
435	CASE; TRANS	1-33111-299-3	01	1	9912-9912		●
435	CASE; TRANS	1-33111-314-0	01	1	0001-0007		●
435	CASE; TRANS	1-33111-321-0	01	1	0008-		●
497	ADAPTER; PLUG	1-33119-255-0	01	1	9902-	●

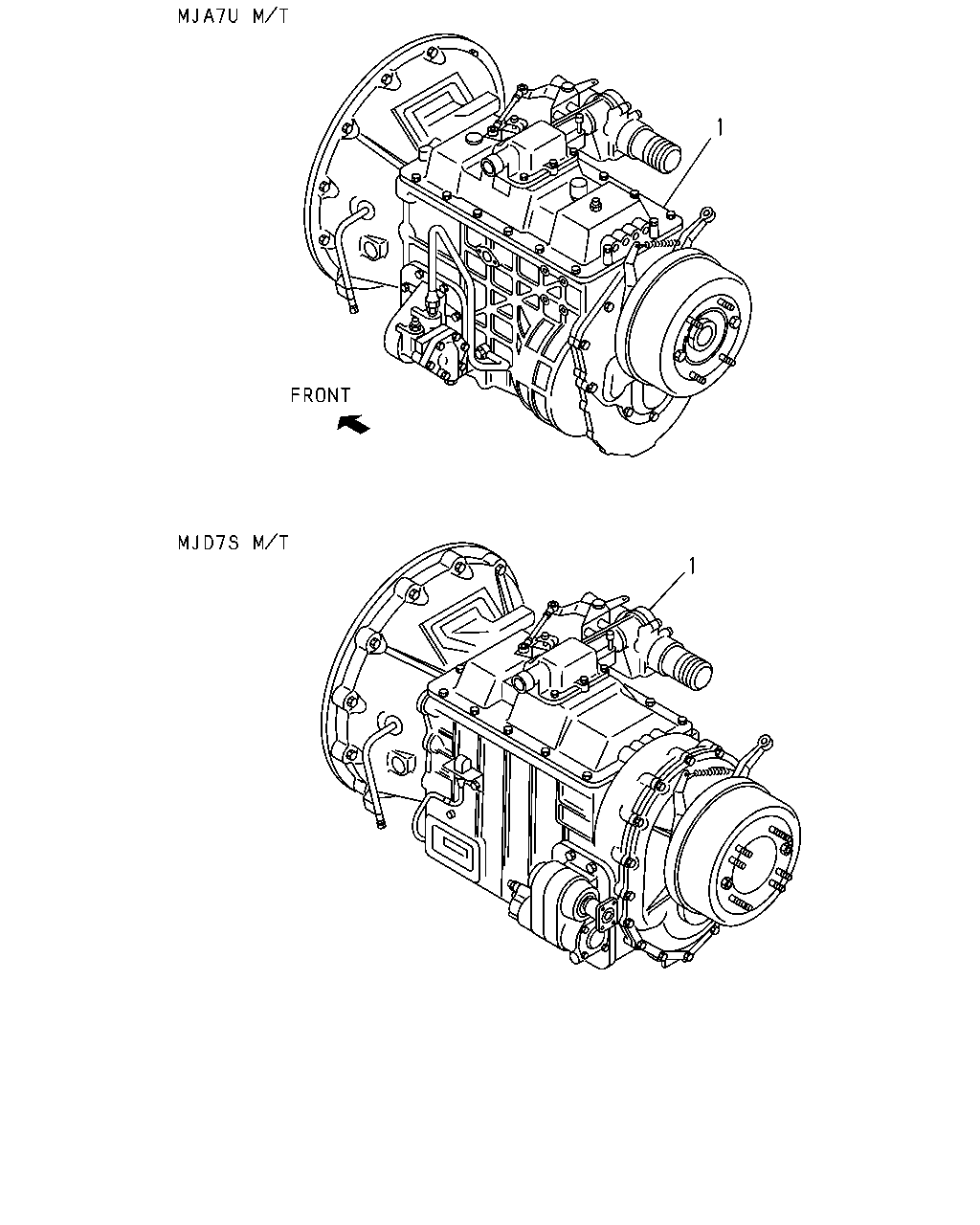

1 1

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	TRANSMISSION ASM; MANUAL	1-33042-137-0	01	1	9902-	●
	1	TRANSMISSION ASM; MANUAL	1-33041-343-0	01	1	9905-		●

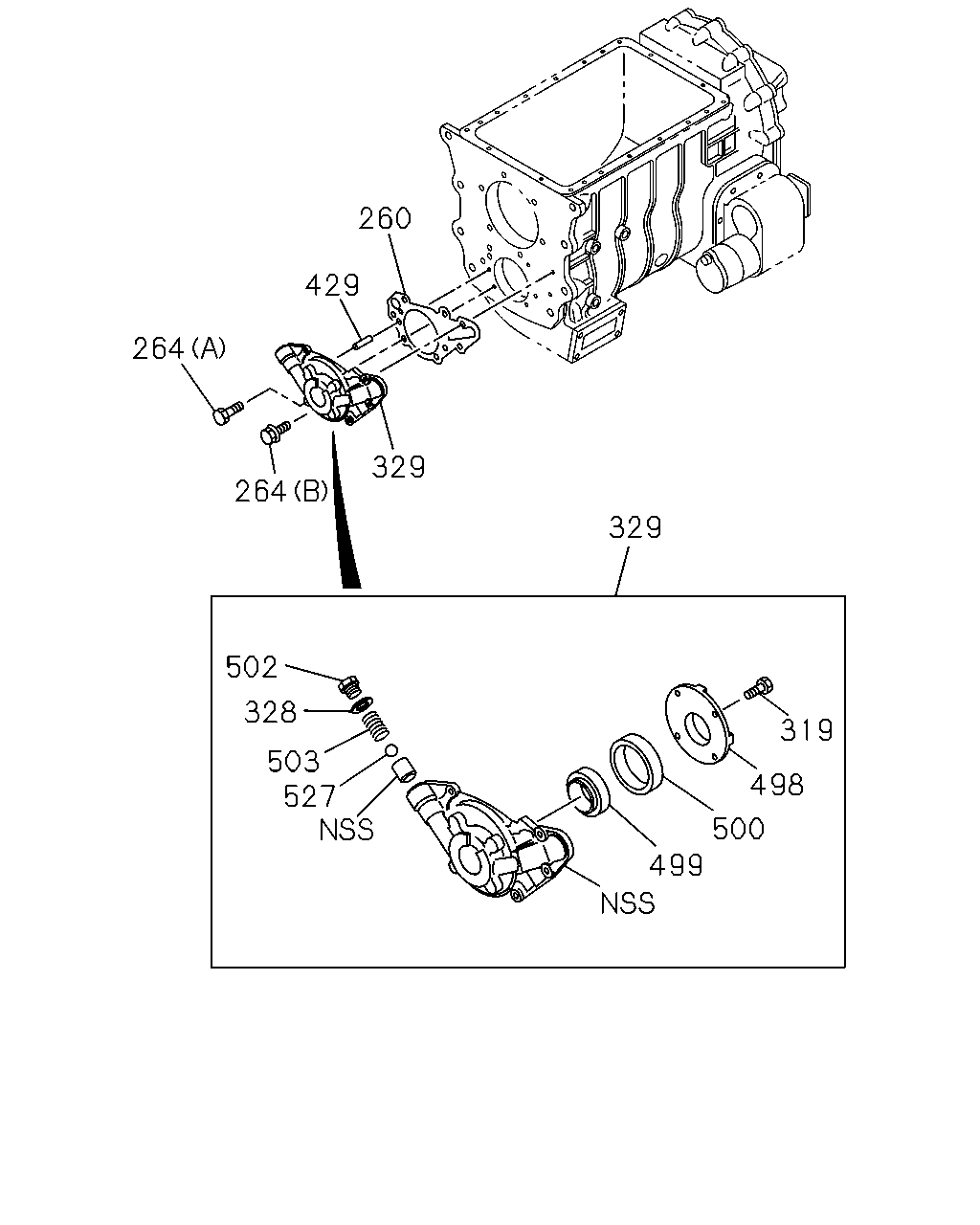

260 429 264 329 264 329 502 328 319 503 527 498 500 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
260	GASKET; OIL PUMP	1-34142-026-0	01	1	9905-		●
264	BOLT; OIL PUMP (A) M10X30 FLANGE	0-28181-030-0	05	1	9905-		●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28181-040-0	02	1	9905-		●
319	BOLT; COVER	1-34159-075-0	04	1	9905-		●
328	GASKET; PLUG	8-94244-656-0	01	1	9905-		●
329	PUMP ASM; OIL	1-34150-098-0	01	1	9905-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9902-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	9905-		●
498	COVER; ROTER,OIL PUMP	1-34159-067-1	01	1	9905-		●
499	ROTOR; INNER,OIL PUMP	1-34159-053-0	01	1	9905-		●
500	ROTOR; OUTER,OIL PUMP	1-34159-054-0	01	1	9905-		●
502	PLUG; OIL PUMP	8-94244-655-0	01	1	9905-		●
503	SPRING; OIL PUMP	5-09580-098-0	01	1	9905-		●
527	BALL; OIL PUMP	9-00097-531-0	01	1	9905-		●

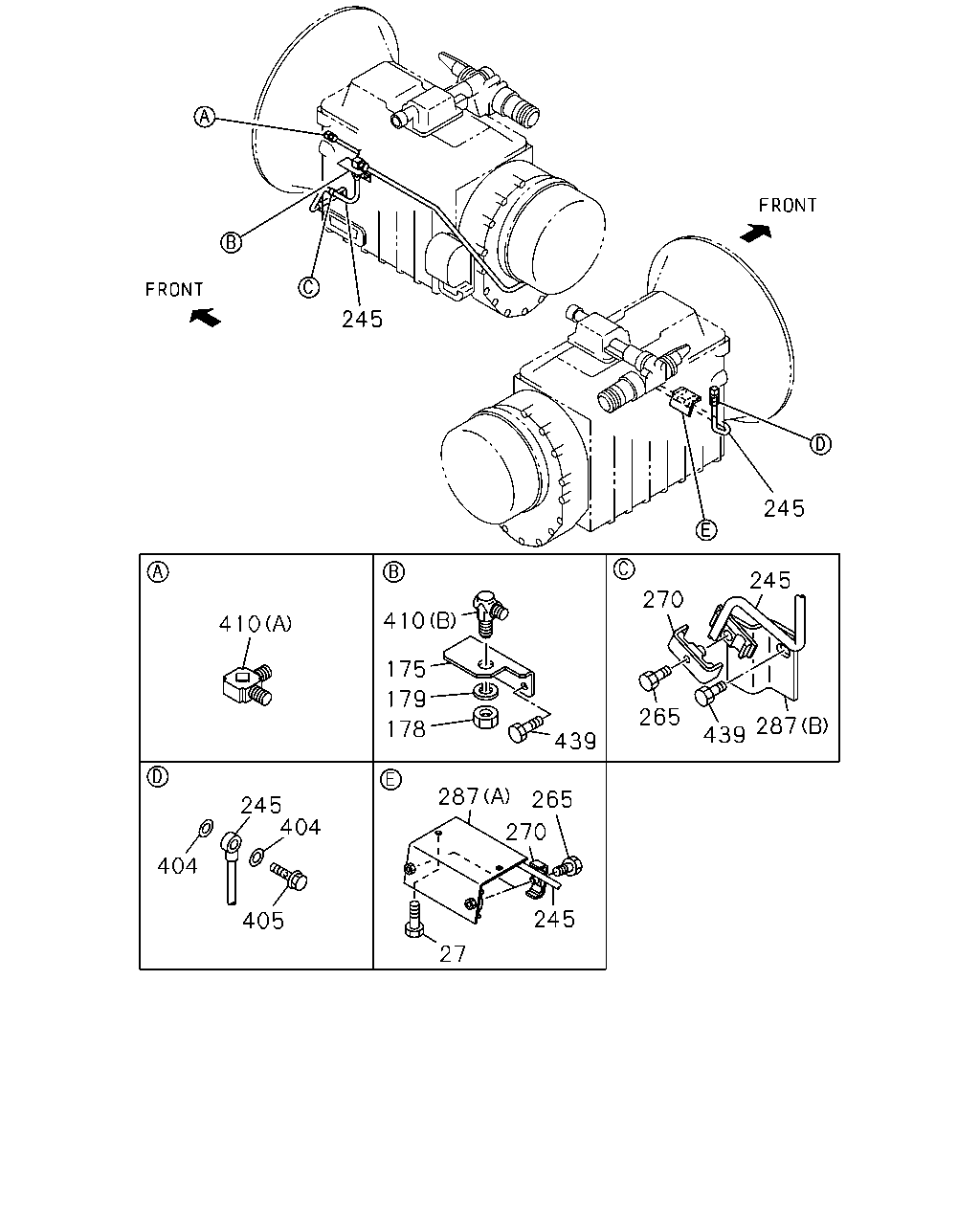

245 245 245 270 410 410 175 179 265 287 178 439 439 287 265 245 404 270 404 245 405 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9902-9904	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9905-	●	●
175	BRACKET; UNION	1-46147-216-2	01	1	9905-		●
178	NUT; UNION M16	9-99111-516-0	01	1	9905-		●
179	WASHER; LK,UNION ID=16.2	9-09150-516-0	01	1	9905-		●
245	PIPE; OIL L=738	1-32571-147-0	01	1	9905-		●
265	BOLT; CLIP M6X35 FLANGE	0-28680-635-0	03	1	9905-		●
270	CLIP; OIL PIPE ID=9 & 9 L=25	1-09701-212-2	03	1	9905-		●
287	BRACKET; CLIP,OIL PIPE (A)	1-32579-014-1	01	1	9905-		●
287	BRACKET; CLIP,OIL PIPE (B)	1-32579-015-2	01	1	9905-		●
404	GASKET; OIL PIPE ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-		●
405	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9905-		●
410	UNION; OIL PIPE (B)	1-09654-371-0	01	1	9905-		●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	01	1	9905-		●
439	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	03	1	9905-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
