◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51251 - NLR/NMR(EU)-RHD EU5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#76569) — 41 parça

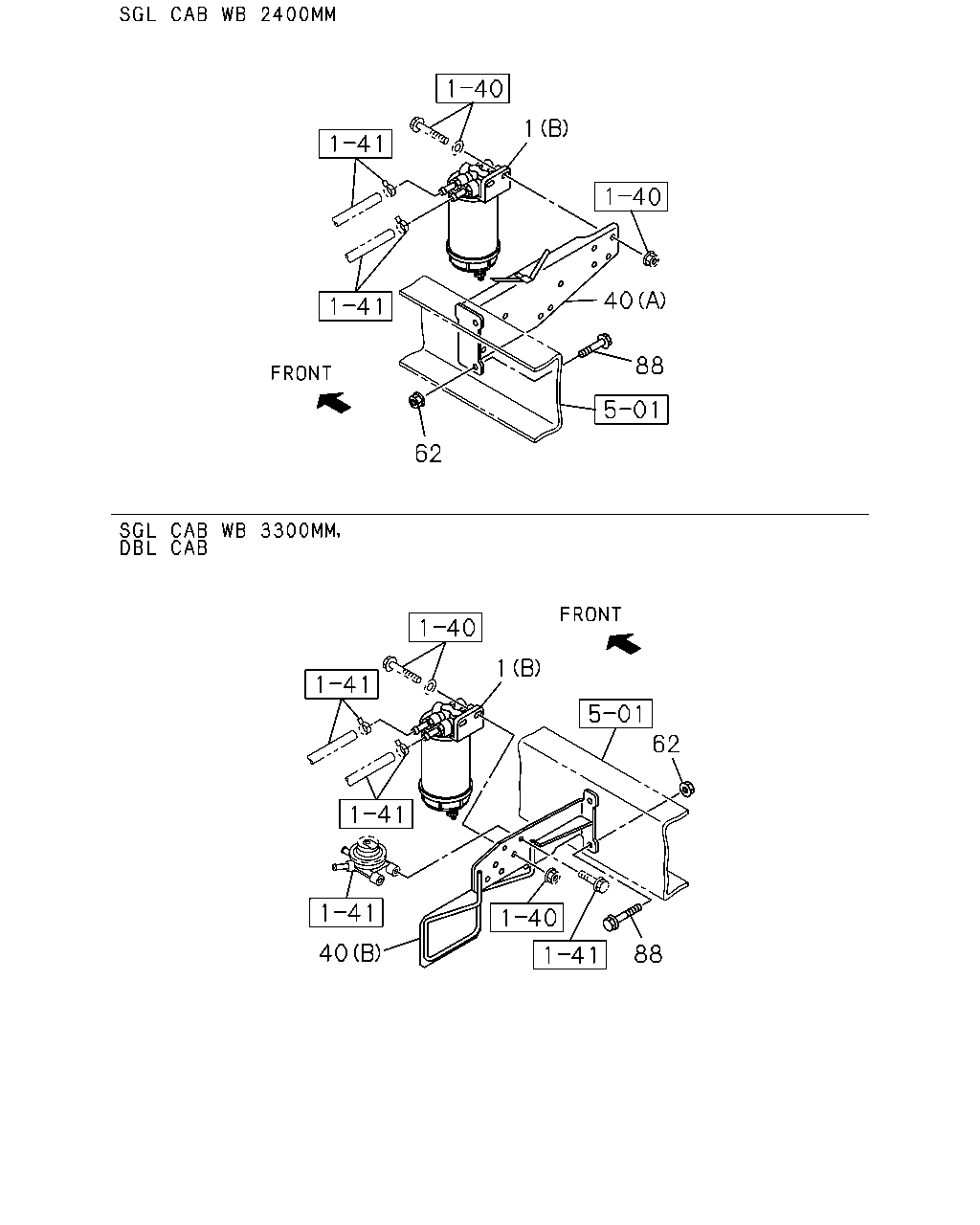

çizim 63967
1 40 88 62 1 62 40 88
BalonParca AdiParca NoAdetTipApplied Date
1 03.890 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 0907-1002
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1003-
1 03.890 FILTER ASM; FUEL
(B) 		8-98095-980-1 01 1 0907-
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98147-247-0 01 1 1205-
40 03.890 BRACKET; FUEL FILTER
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (A) 		8-98107-351-2 01 1 0907-
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W) (B) 		8-98107-354-3 01 1 0907-1204
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98107-354-3 01 1 1205-
62 03.895 NUT; FUEL FILTER
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907-
62 03.895 NUT; FUEL FILTER
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907-
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 09.171 M10X25 FLANGE 		0-28051-025-0 02 1 0907-1204
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) IDENTIFICATION LABEL FOR KD<6UT> 09.171 M10X25 FLANGE 		0-28051-025-0 02 1 1205-
88 03.895 BOLT; BRKT,FUEL FILTER
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0907-1204
88 03.895 BOLT; BRKT,FUEL FILTER
SGL CAB(NM**S*) EXC. IDENTIFICATION LABEL FOR KD<6UT> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1205-
88 03.895 BOLT; BRKT,FUEL FILTER
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) EXC. IDENTIFICATION LABEL FOR KD<6UT> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1205-
88 03.895 BOLT; BRKT,FUEL FILTER
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) IDENTIFICATION LABEL FOR KD<6UT> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1205-

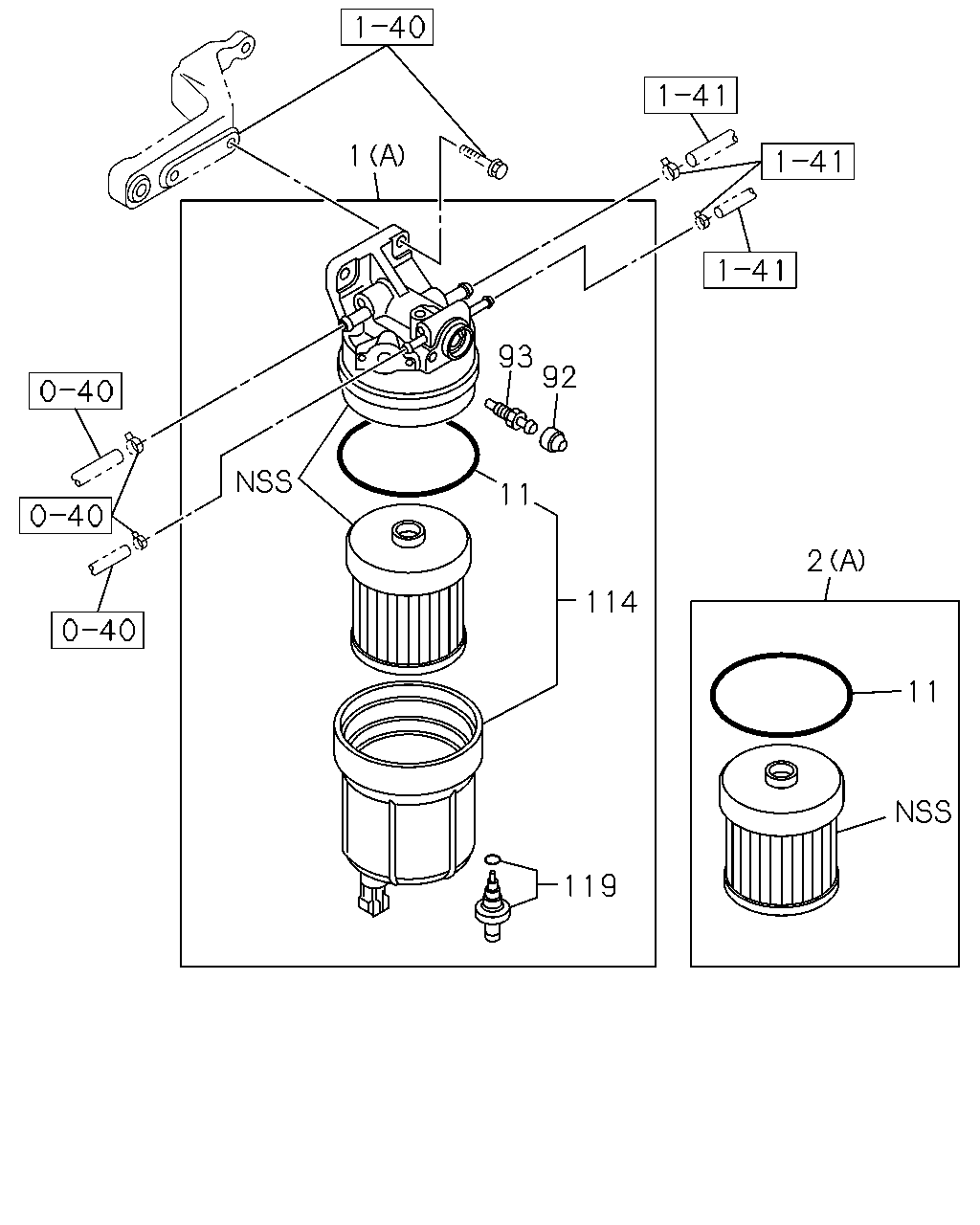

çizim 186741
1 93 92 11 2 114 11 119
BalonParca AdiParca NoAdetTipApplied Date
1 03.890 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 0907-1002
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1003-
1 03.890 FILTER ASM; FUEL
(B) 		8-98095-980-1 01 1 0907-
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98037-011-0 01 1 0907-1002
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1003-1112
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201-
2 03.890 ELEMENT KIT; FUEL FILTER
(B) 		8-98095-983-0 01 1 0907-
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-0 01 1 1201-
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98037-015-0 01 1 0907-1112
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98203-600-0 01 1 1201-
92 03.417 CAP; FUEL FILTER 8-98034-314-0 01 1 0907-
93 03.890 CONNECTOR; FUEL FILTER
M8X10 		8-98034-312-0 01 1 0907-
114 03.890 CASE ASM; FUEL FILTER 8-98039-987-1 01 1 0907-
119 03.890 PLUG; DRAIN,FUEL FILTER 8-98037-095-0 01 1 0907-

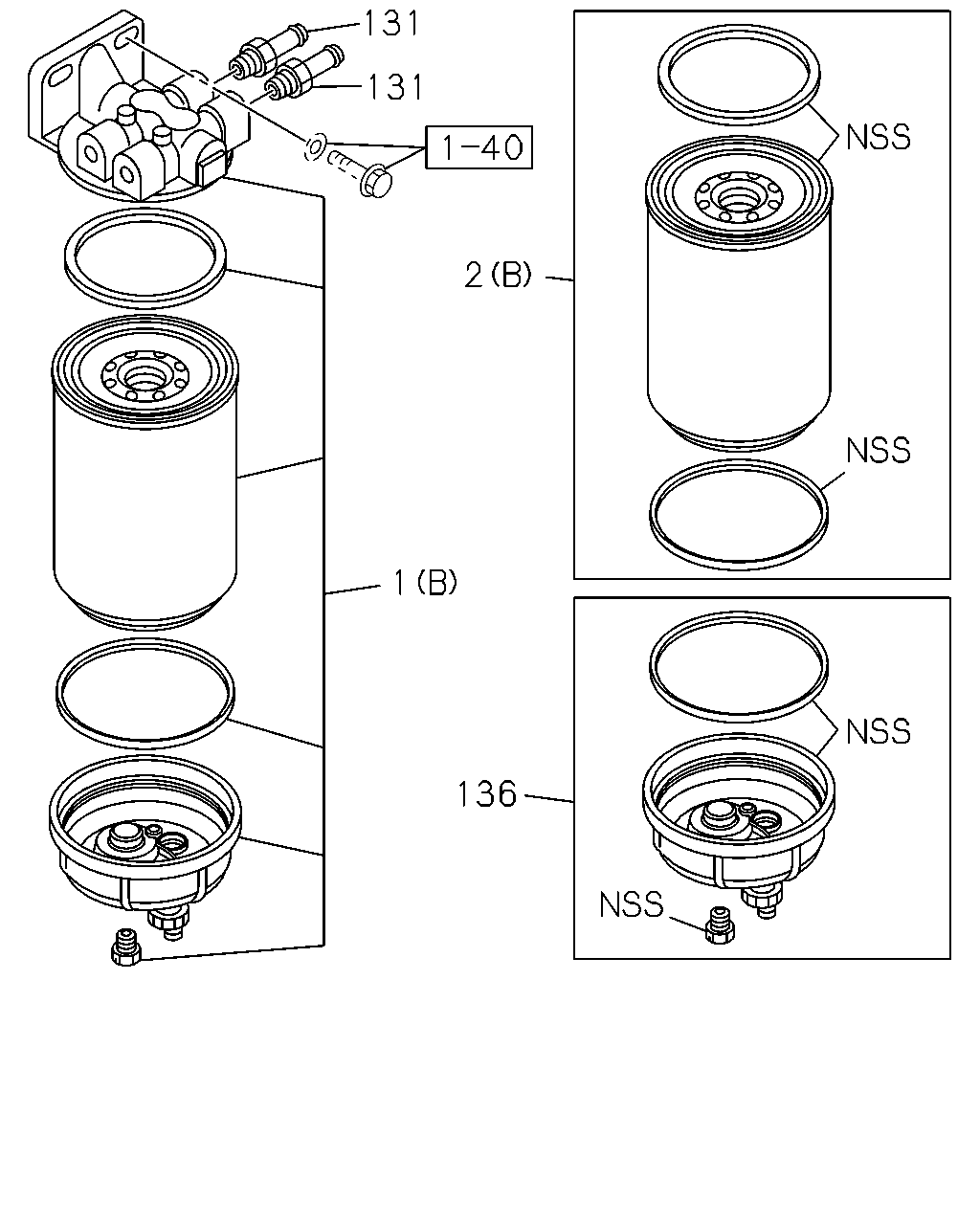

çizim 186742
131 131 2 1 136
BalonParca AdiParca NoAdetTipApplied Date
1 03.890 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 0907-1002
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1003-
1 03.890 FILTER ASM; FUEL
(B) 		8-98095-980-1 01 1 0907-
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98037-011-0 01 1 0907-1002
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1003-1112
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201-
2 03.890 ELEMENT KIT; FUEL FILTER
(B) 		8-98095-983-0 01 1 0907-
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-0 01 1 1201-
131 03.890 PIPE; FILTER
01.153 		8-97358-699-0 02 1 0907-0908
131 03.890 PIPE; FILTER
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 0909-
136 03.890 CAP KIT; FUEL FILTER 8-98096-004-0 01 1 0907-1408
136 03.890 CAP KIT; FUEL FILTER 8-98279-324-0 01 1 1409-
