2-08B — CLUTCH MASTER CYLINDER (#7655) — 12 parça

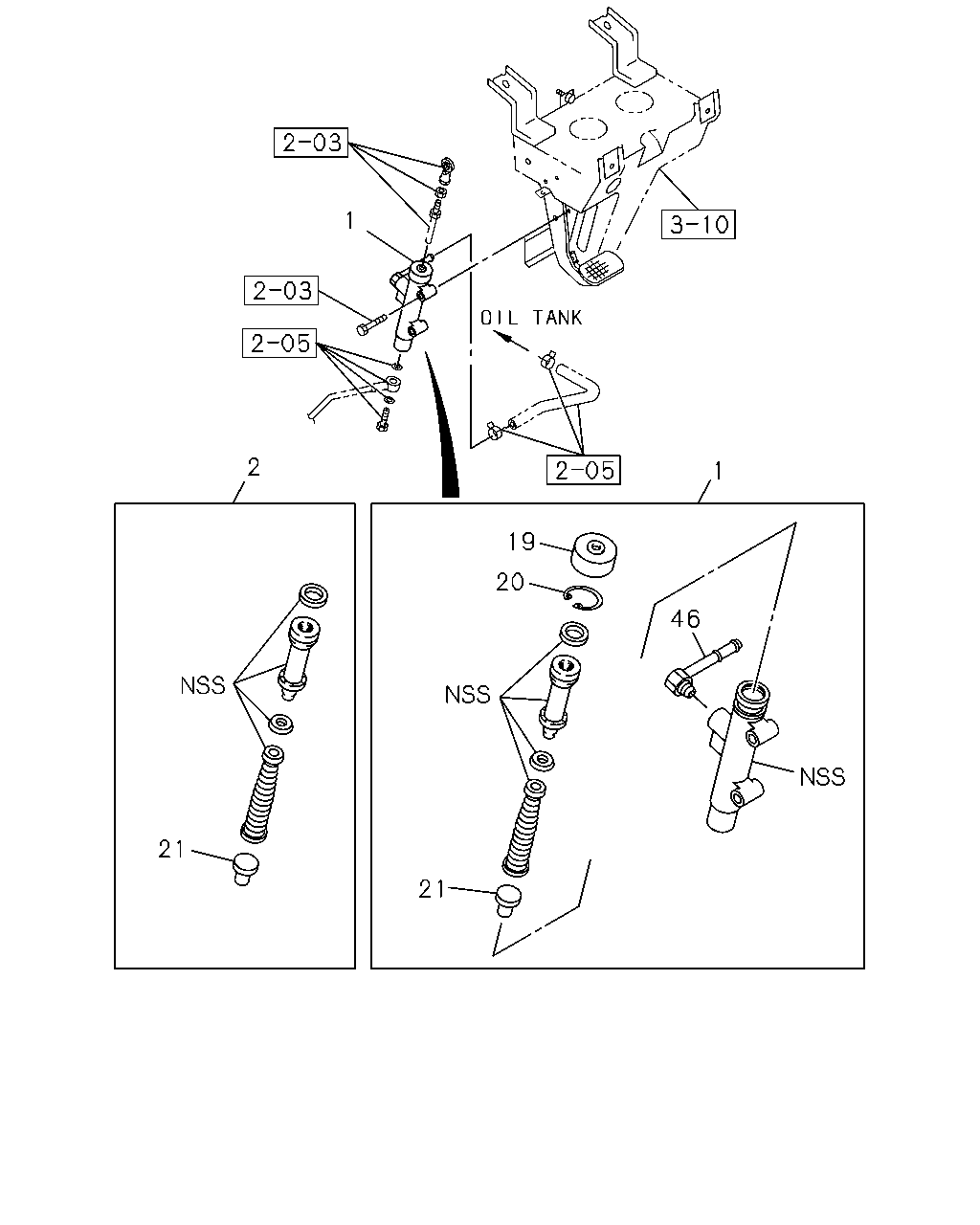

çizim 47122
2 1 19 20 46 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CYLINDER ASM; CLUTCH MASTER 1-47500-241-3 01 1 9902- ●
1 CYLINDER ASM; CLUTCH MASTER
SHORT CHASSIS&RHD(EXR5MC) 6WG1 TC-N(71L) 		1-47500-243-2 01 1 0004- ●
2 REPAIR KIT; CLU M/CYL 1-47550-046-0 01 1 9902- ●
2 REPAIR KIT; CLU M/CYL
SHORT CHASSIS&RHD(EXR5MC) 6WG1 TC-N(71L) 		1-47550-048-0 01 1 0004- ●
19 BOOT; CLU M/CYL 1-47545-011-0 01 1 9902-0003 ●
19 BOOT; CLU M/CYL 1-47545-011-0 01 1 0004- ● ● ●
20 RING; SNAP,BODY 1-47515-009-0 01 1 9902-0003 ●
20 RING; SNAP,BODY 1-47515-009-0 01 1 0004- ● ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9902-0003 ●
21 VALVE; CHECK 1-47565-004-0 01 1 0004- ● ● ●
46 CONNECTOR; PIPE 1-47517-003-0 01 1 9902- ●
46 CONNECTOR; PIPE
SHORT CHASSIS&RHD(EXR5MC) 6WG1 TC-N(71L) 		1-47517-004-0 01 1 0004- ●
