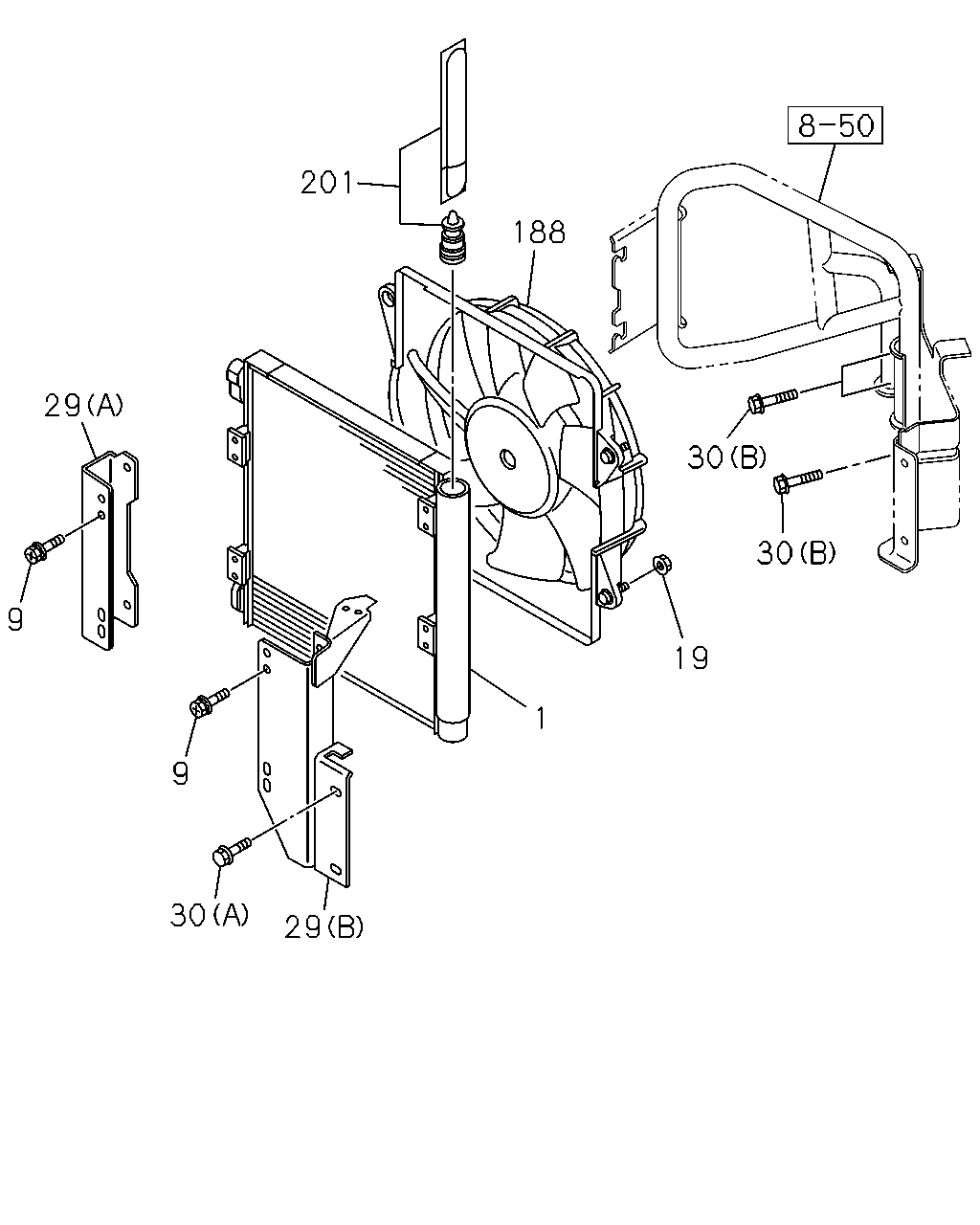

8-75 — CONDENSER (#76547) — 10 parça

201 188 29 30 30 9 19 1 9 30 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.190 CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60)	8-98145-826-1	01	1	0907-	●	●	●
9	09.190 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) M6X14	1-83539-382-0	08	1	0907-	●	●	●
19	09.190 NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) M6	1-83539-354-0	04	1	0907-	●	●	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98145-837-0	01	1	0907-	●	●	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98145-838-0	01	1	0907-	●	●	●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0907-	●	●	●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 00.029 (B) M10X30 FLANGE	0-28651-030-0	03	1	0907-	●	●	●
188	09.215 BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT(C60)	8-98145-836-0	01	1	0907-	●	●	●
201	09.195 DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	1-83535-097-0	01	1	0907-1409	●	●	●
201	09.195 DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-98282-482-0	01	1	1410-	●	●	●
