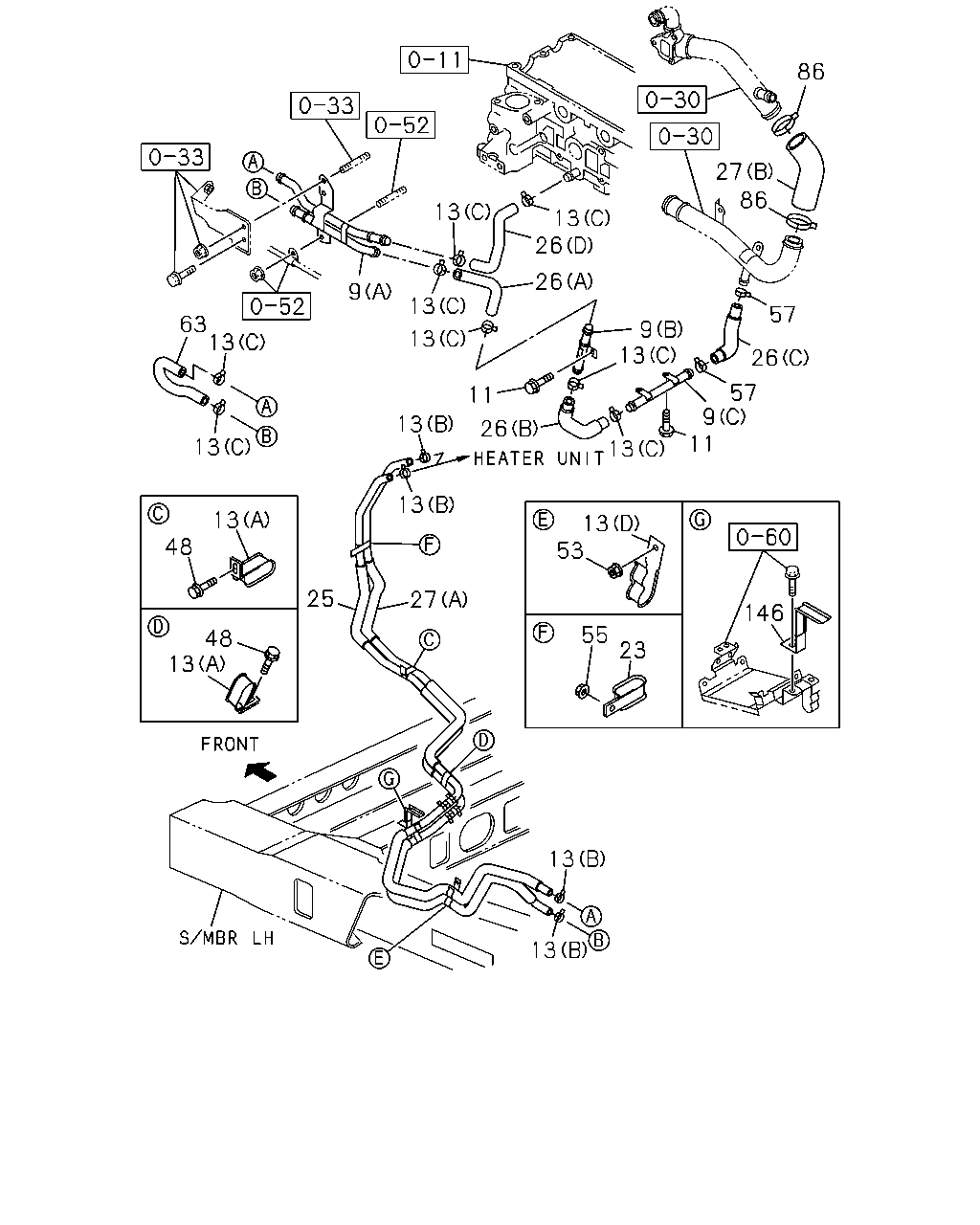

8-45 — HEATER PIPING (#76540) — 27 parça

86 27 86 13 13 26 26 9 13 57 63 13 9 13 13 26 57 9 11 11 13 26 13 13 13 13 13 53 48 25 27 146 55 48 13 23 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	08.846 PIPE; HTR (B)	8-97381-481-3	01	1	0907-	●	●	●
9	08.846 PIPE; HTR (C)	8-97383-035-1	01	1	0907-	●	●	●
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	0907-	●	●	●
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0907-	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	0907-	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	02	1	0907-	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98040-023-0	01	1	0907-	●	●	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	0907-	●	●	●
13	08.846 CLIP; HTR HOSE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	0907-	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-97359-144-0	01	1	0907-1205	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-98166-023-0	01	1	1206-	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98021-667-1	01	1	0907-	●	●	●
26	08.846 HOSE; HTR (A)	0-03516-240-0	01	1	0907-0910	●	●	●
26	08.846 HOSE; HTR (A)	8-98143-868-0	01	1	0911-	●	●	●
26	08.846 HOSE; HTR (D)	8-97383-048-1	01	1	0907-	●	●	●
26	08.846 HOSE; HTR (B)	8-98000-099-1	01	1	0907-	●	●	●
26	08.846 HOSE; HTR (C)	8-98000-101-2	01	1	0907-	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-668-3	01	1	0907-	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI (B)	8-98106-016-0	01	1	0907-	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0907-	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0907-	●	●	●
53	08.845 NUT; HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0907-	●	●	●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0907-	●	●	●
57	08.846 CLIP; HOSE 01.166 ID=20.8	8-94125-862-1	02	1	0907-	●	●	●
63	08.846 HOSE; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	0907-	●	●	●
86	08.846 CLIP; HTR HOSE	8-98110-004-0	02	1	0907-	●	●	●
146	08.846 BRACKET; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98060-001-0	01	1	0907-	●	●	●
