◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51249 - NLR/NMR(EU)-LHD EU5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#76535) — 176 parça

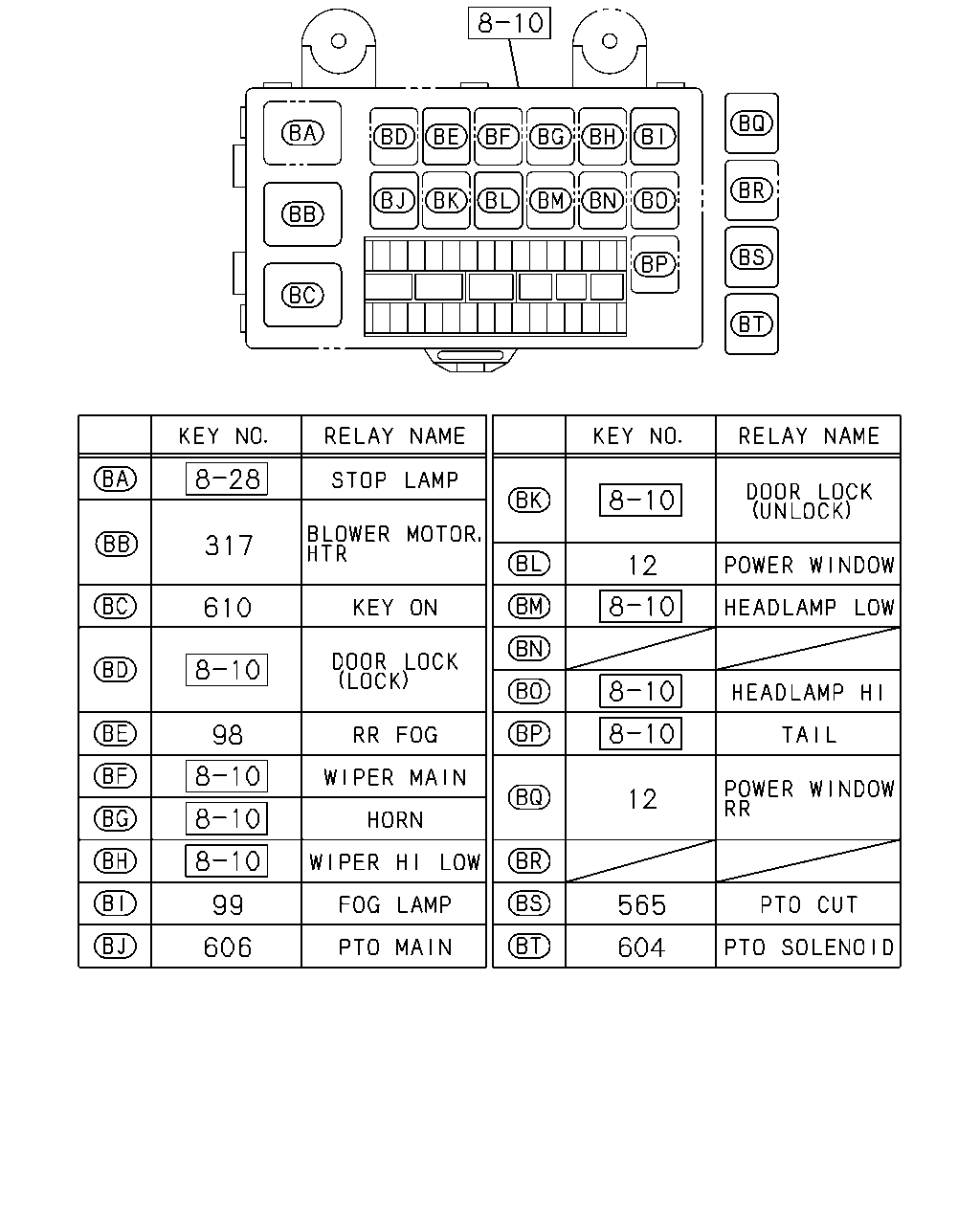

çizim 137294
317 12 610 98 12 99 565 606 604
BalonParca AdiParca NoAdetTipApplied Date A B C
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1112 ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1112 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1112 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1112 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
98 02.485 RELAY; RR FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0907- ● ● ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1111 ● ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1112- ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0907- ● ● ●
565 02.510 RELAY; PTO CUT
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0907- ●
604 02.510 RELAY; PTO SOLENOID
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0907- ●
606 02.510 RELAY; PTO MAIN
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0907- ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0907-1204 ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ● ●
610 02.510 RELAY; KEY ON
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ● ●
çizim 137820
608 151 154
BalonParca AdiParca NoAdetTipApplied Date A B C
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0907- ● ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0907- ● ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 0907-1402 ● ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ● ●

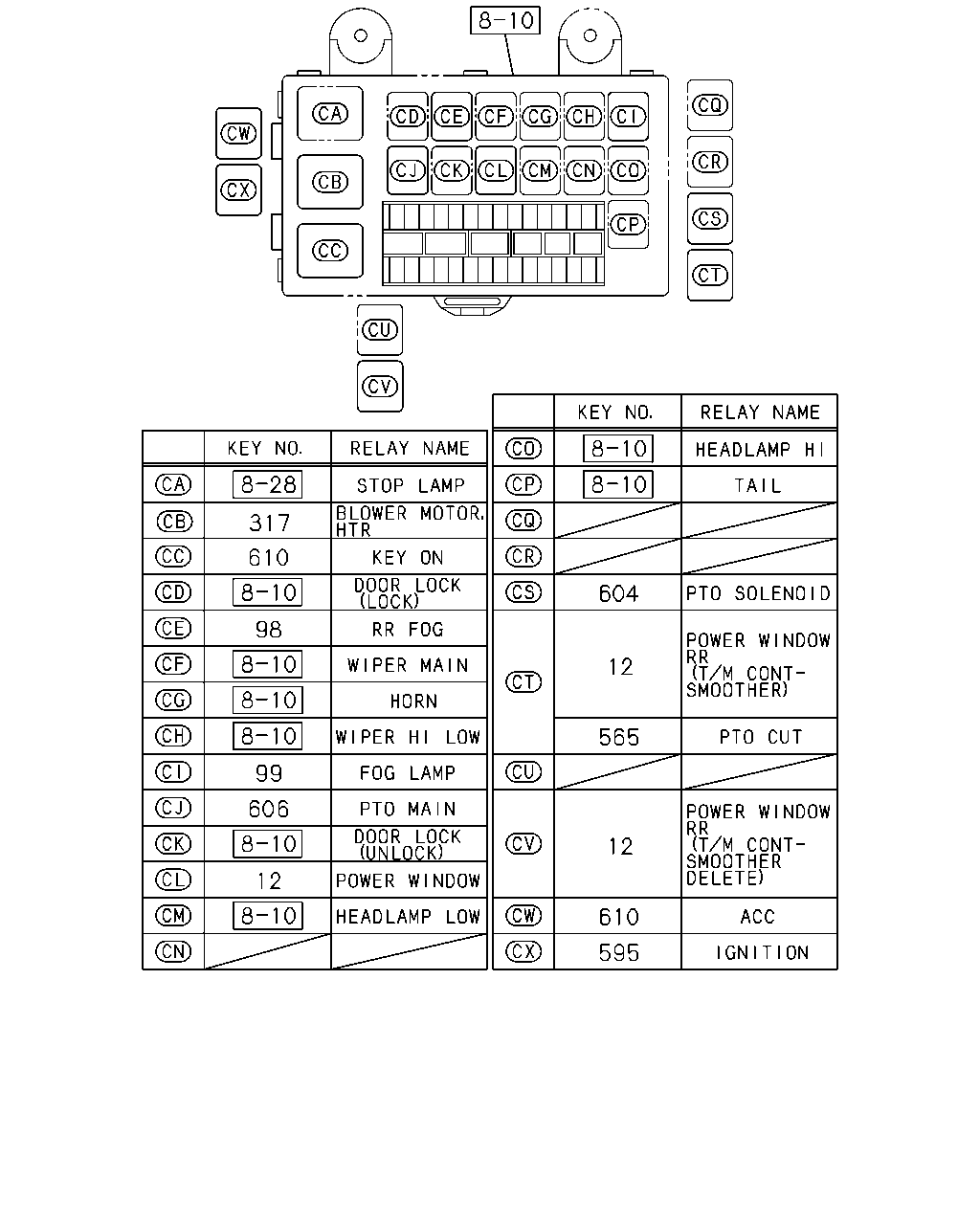

çizim 138139
317 610 604 98 12 565 99 606 12 12 610 595
BalonParca AdiParca NoAdetTipApplied Date A B C
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1112 ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1112 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1112 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1112 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
98 02.485 RELAY; RR FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0907- ● ● ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1111 ● ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1112- ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0907- ● ● ●
565 02.510 RELAY; PTO CUT
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0907- ●
595 02.510 RELAY; IGNITION
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ● ●
604 02.510 RELAY; PTO SOLENOID
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0907- ●
606 02.510 RELAY; PTO MAIN
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0907- ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0907-1204 ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ● ●
610 02.510 RELAY; KEY ON
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ● ●

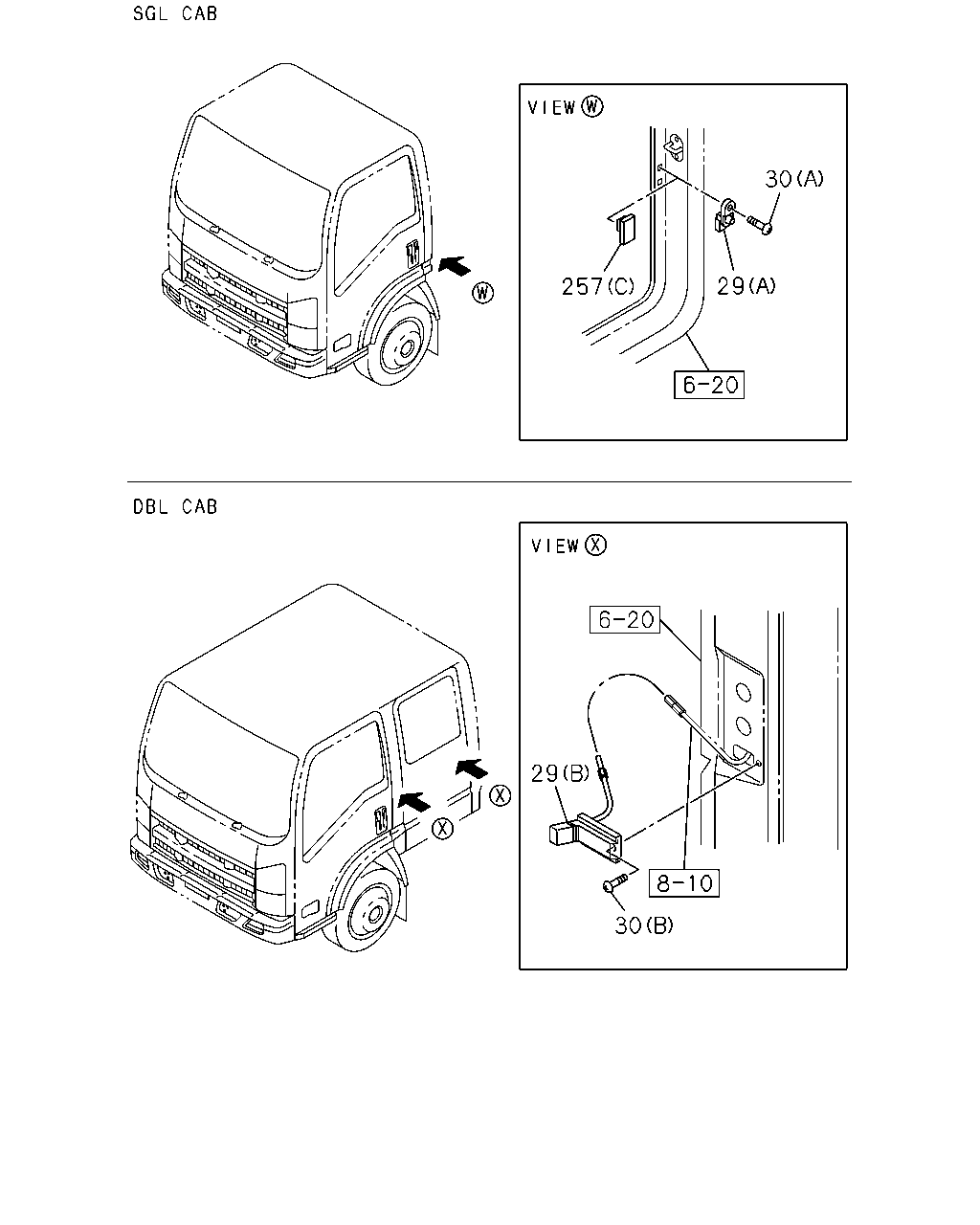

çizim 138156
30 29 257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C
29 16.263 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 01 1 0907- ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK 		8-98022-211-0 01 1 0907- ●
29 16.263 SWITCH; DOOR
REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK 		8-98022-211-0 01 1 0907- ●
29 16.263 SWITCH; DOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK 		8-98022-211-0 01 1 0907- ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 0907- ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 0907- ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 0907- ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 0907- ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18 		8-98047-201-0 02 1 0907- ●
30 16.263 SCREW; DOOR SW
REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18 		8-98047-201-0 02 1 0907- ●
30 16.263 SCREW; DOOR SW
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18 		8-98047-201-0 02 1 0907- ●
30 16.263 SCREW; DOOR SW
(A) M5X18 		8-98047-201-0 02 1 0907- ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18 		8-98047-201-0 01 1 0907- ●
30 16.263 SCREW; DOOR SW
(B) M5X16 		8-94279-341-0 04 1 0907- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 0907-0912 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-1111 ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1001-1111 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> (A) 		8-98025-954-1 01 1 1001-1111 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 1001-1111 ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1001-1111 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-1111 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1001-1111 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1001-1111 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1001-1111 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1112-1211 ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1112-1211 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1112-1211 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> (A) 		8-98025-954-1 01 1 1112-1211 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 1112-1211 ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1112-1211 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1112-1211 ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1112-1211 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1112-1211 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1212- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1212- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> (A) 		8-98025-954-1 01 1 1212- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 1212- ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1212- ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL E LECTRIC(7GR) (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1212- ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 0907- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98029-917-0 01 1 0907- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0907-0912 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> (A) 		8-98025-954-1 01 1 0907-0912 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 0907-0912 ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 0907-0912 ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 0907-0912 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 0907-0912 ● ●

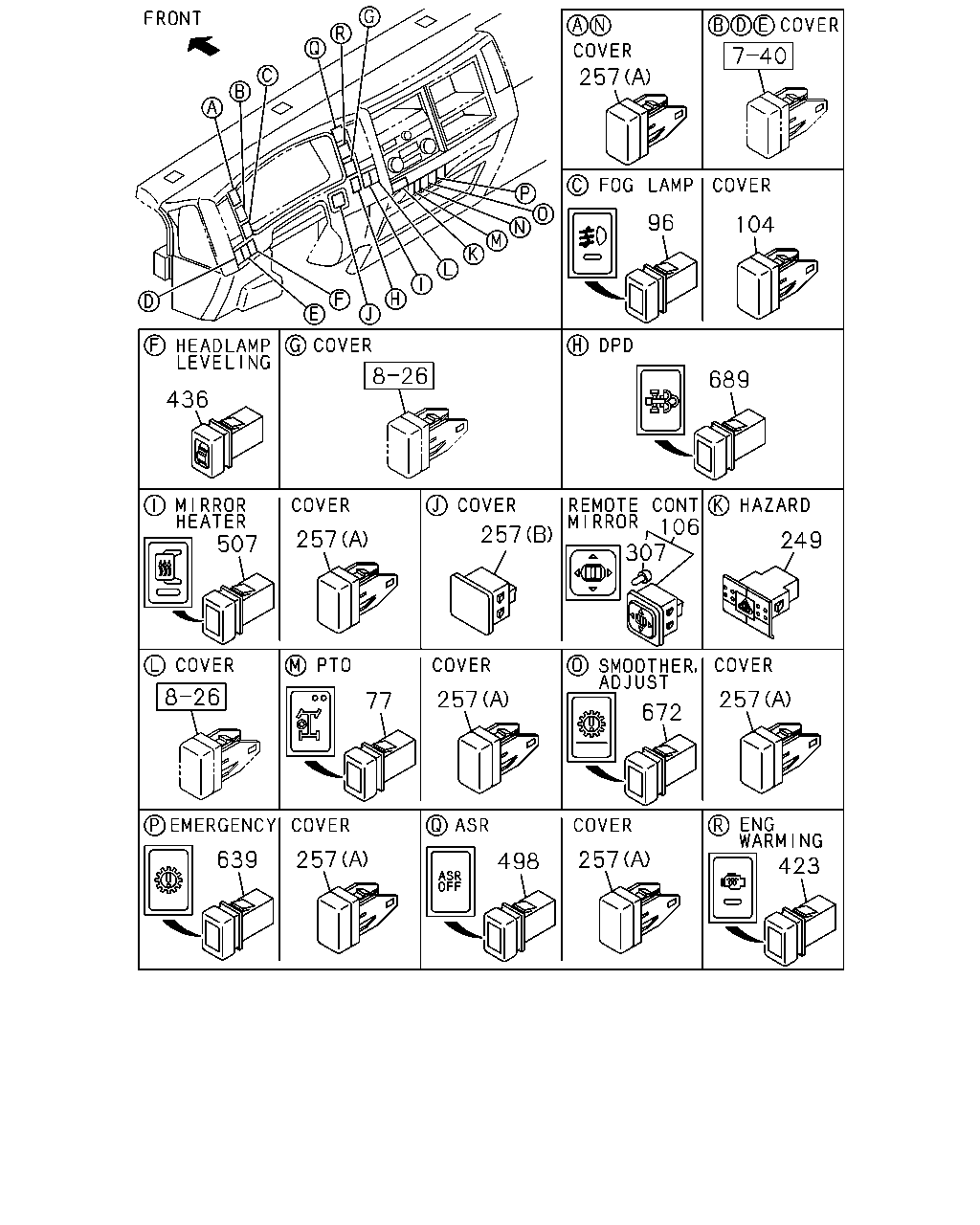

çizim 138209
257 96 104 689 436 507 106 307 257 257 249 257 257 77 672 423 257 257 639 498
BalonParca AdiParca NoAdetTipApplied Date A B C
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-1 01 1 0907-1211 ● ● ●
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 1212- ●
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 1212- ● ●
77 04.439 SWITCH; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97386-993-3 01 1 0907-1211 ●
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97386-993-4 01 1 1212- ●
96 02.485 SWITCH; FOG LAMP 8-97387-031-3 01 1 0907-1111 ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-3 01 1 1112-1112 ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-97387-031-4 01 1 1112- ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1112-1112 ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 16.081 		8-98025-954-1 01 1 1112- ● ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 0907- ● ● ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 0907- ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 0907-0912 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-1111 ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1001-1111 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> (A) 		8-98025-954-1 01 1 1001-1111 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 1001-1111 ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1001-1111 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-1111 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1001-1111 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1001-1111 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1001-1111 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1112-1211 ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1112-1211 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1112-1211 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> (A) 		8-98025-954-1 01 1 1112-1211 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 1112-1211 ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1112-1211 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1112-1211 ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1112-1211 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1112-1211 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1212- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1212- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> (A) 		8-98025-954-1 01 1 1212- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 1212- ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1212- ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL E LECTRIC(7GR) (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1212- ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 0907- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98029-917-0 01 1 0907- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0907-0912 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> (A) 		8-98025-954-1 01 1 0907-0912 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 0907-0912 ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 0907-0912 ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 0907-0912 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 0907-0912 ● ●
307 08.991 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 0907- ● ● ●
423 03.883 SWITCH; ENG WARMING 8-97387-010-2 01 1 0907- ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING 8-97386-981-2 01 1 0907- ● ● ●
498 03.883 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97386-920-2 01 1 0907- ● ● ●
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> 		8-97386-924-3 01 1 0907- ● ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 0907- ● ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-949-1 01 1 0907- ● ● ●
689 02.780 SWITCH; DPD 8-97386-921-2 01 1 0907- ● ● ●

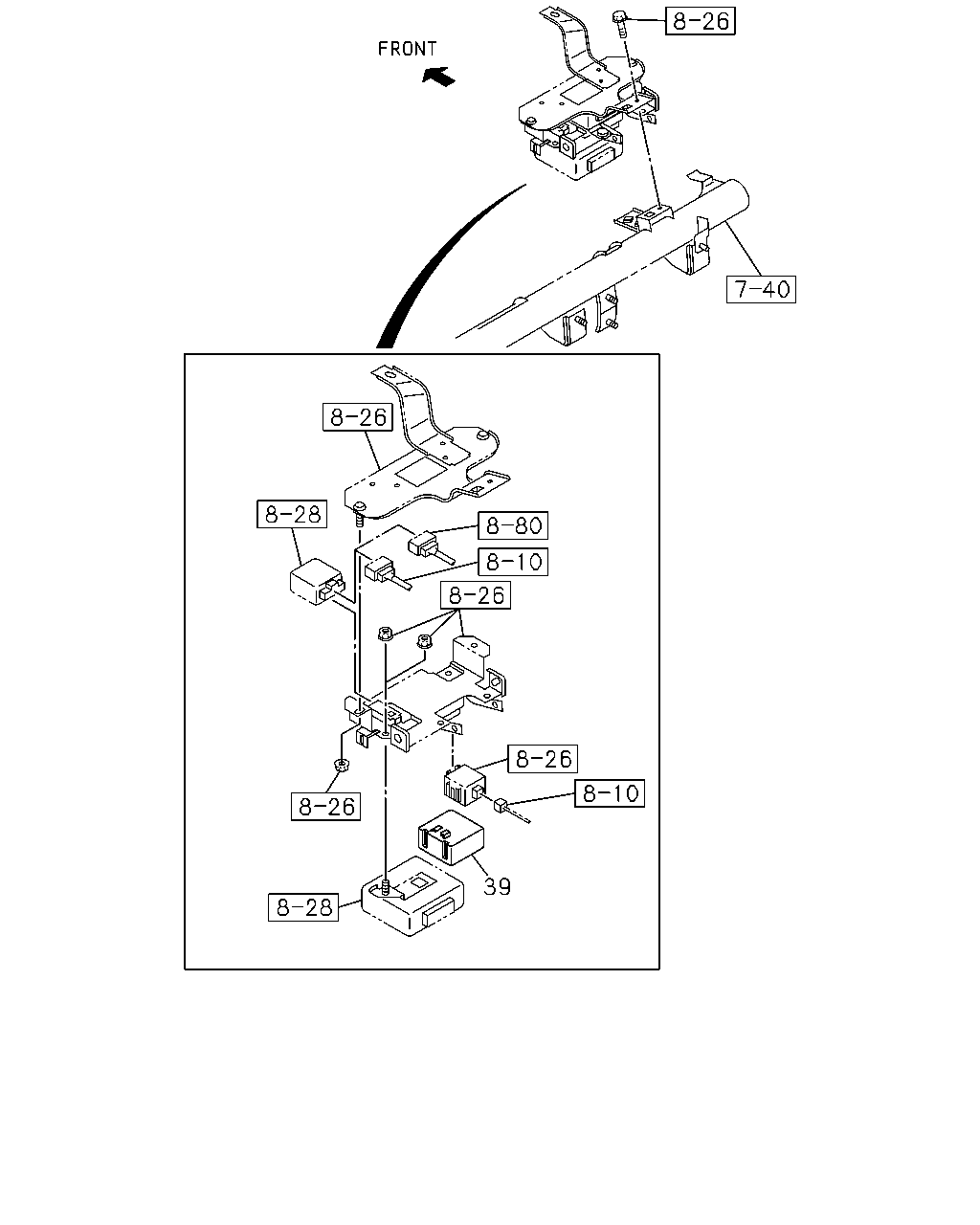

çizim 186639
39
BalonParca AdiParca NoAdetTipApplied Date A B C
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 0907- ● ●

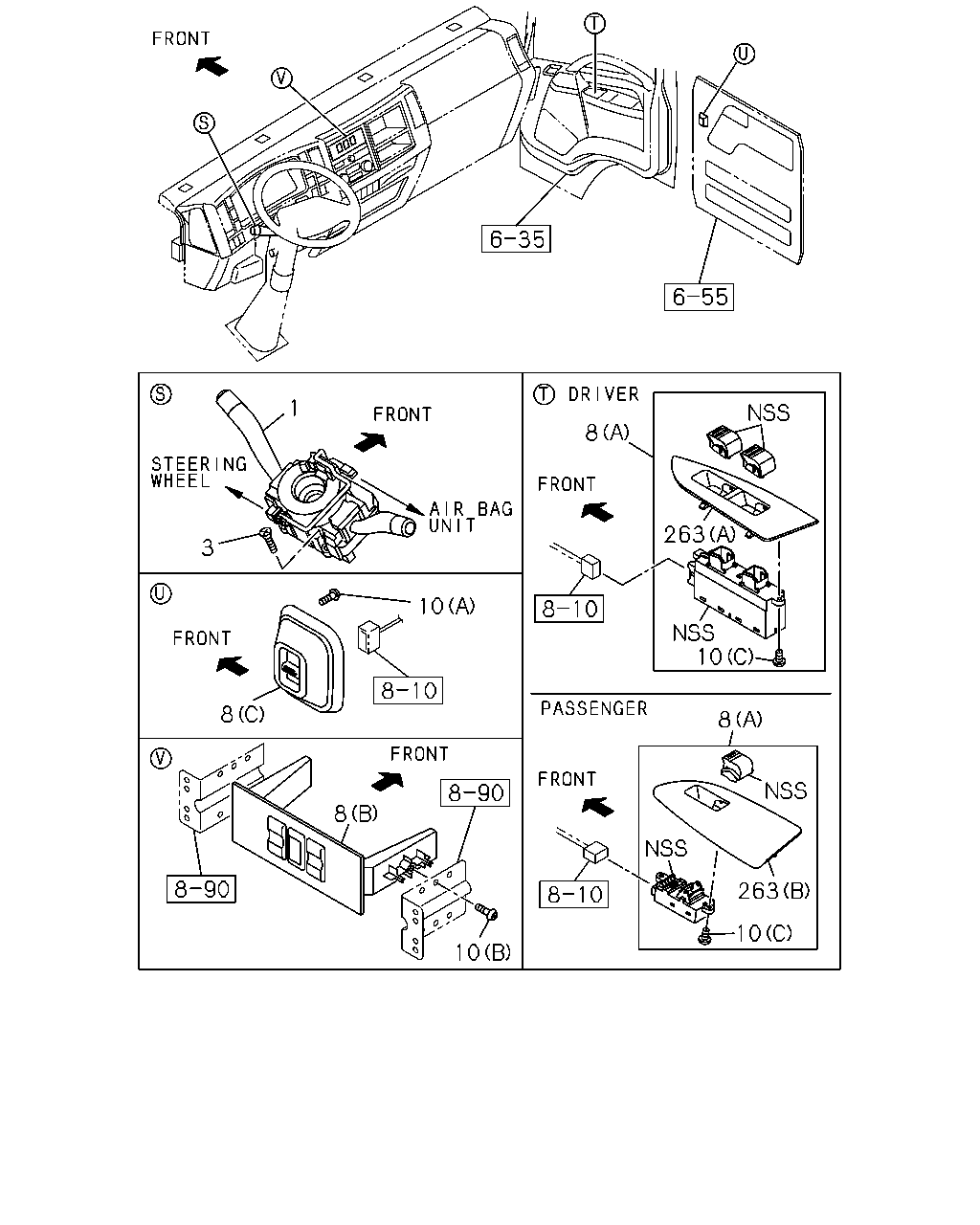

çizim 186640
1 8 263 3 10 10 8 8 8 263 10 10
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98146-639-0 01 1 0907-1210 ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98217-812-0 01 1 1211-1310 ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98243-740-0 01 1 1311- ● ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98073-850-1 01 1 0907-1310 ● ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98243-757-0 01 1 1311- ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0907- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER 		8-98001-737-2 01 1 0907- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER 		8-98001-737-2 01 1 0907- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DRIVER 		8-98129-845-0 01 1 0907-1001 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER 		8-98129-845-0 01 1 0907-1001 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 06.609 (A) DRIVER 		8-98159-544-0 01 1 1002- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 06.609 (A) DRIVER 		8-98159-544-0 01 1 1002- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-97386-987-2 01 1 0907- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (C) REAR SIDE 		8-97387-035-0 02 1 0907- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 03 1 0907- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-98153-865-0 03 1 0907- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.714 (A) M4X14 TAPPING 		0-74360-414-0 04 1 0907- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.100 (B) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0907- ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (A) 		8-98153-838-0 01 1 0907- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98153-838-0 01 1 0907- ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (B) 		8-98153-843-0 01 1 0907- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98153-843-0 01 1 0907- ●

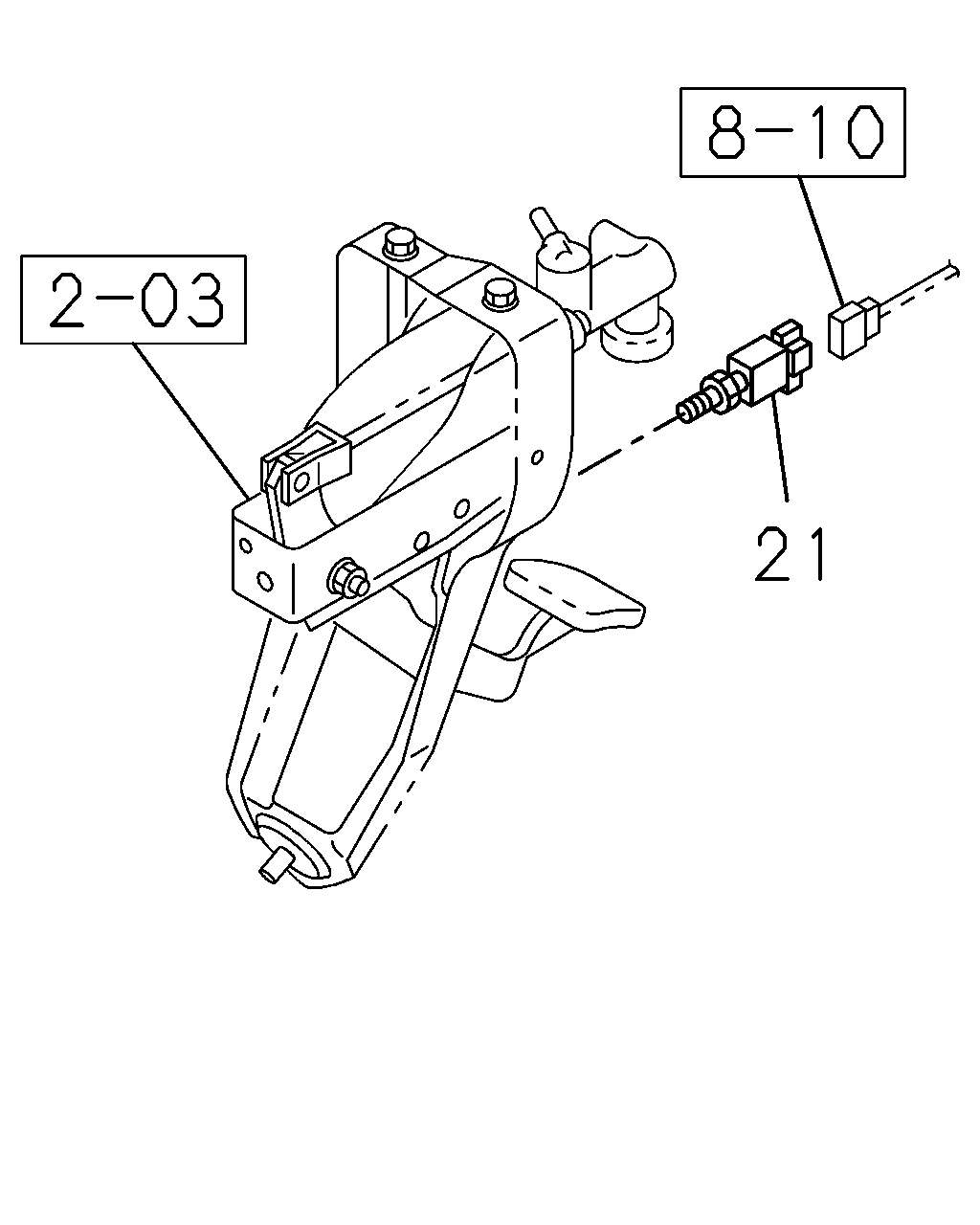

çizim 186653
21
BalonParca AdiParca NoAdetTipApplied Date A B C
21 02.575 SWITCH; CLU
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.447 		8-94109-863-0 01 1 0907-1007 ●
21 02.575 SWITCH; CLU
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.447 		8-94109-863-0 01 1 1008- ●
21 02.575 SWITCH; CLU
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0907-1007 ●
21 02.575 SWITCH; CLU
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0907-1007 ● ●
21 02.575 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97358-248-0 01 1 1008- ●
21 02.575 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-248-0 01 1 1008- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
