◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10807 - EXR FUEL TANK 400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07B - CLUTCH BOOSTER; MINIPACK ▶
2-07B — CLUTCH BOOSTER; MINIPACK (#7653) — 40 parça

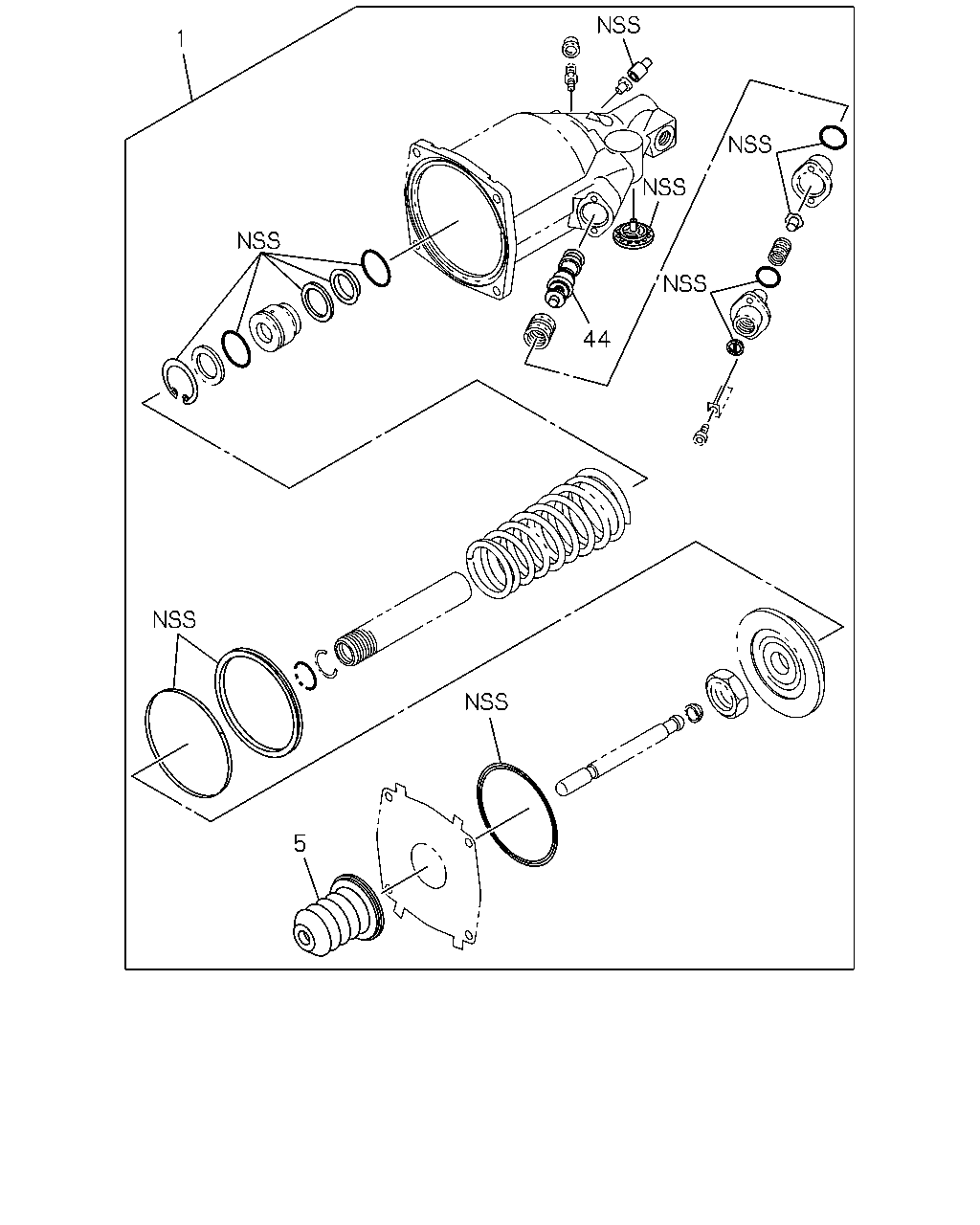

çizim 7020
1 44 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 REPAIR KIT; CLU BOOSTER 1-31829-414-0 01 1 9902-9904 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-414-0 01 1 9905-9909 ● ●
1 REPAIR KIT; CLU BOOSTER 1-31829-414-0 01 1 9910-0003 ● ● ●
1 REPAIR KIT; CLU BOOSTER 1-31829-414-0 01 1 0004- ● ●
1 REPAIR KIT; CLU BOOSTER
SHORT CHASSIS&LHD(EXR6MC) 		1-31829-414-0 01 1 0004- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-371-0 01 1 9902-9904 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-371-0 01 1 9905-9909 ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-371-0 01 1 9910-0003 ● ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-371-0 01 1 0004- ● ●
5 GUARD; PISTON,CLU BOOSTER
SHORT CHASSIS&LHD(EXR6MC) 		1-31829-371-0 01 1 0004- ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31829-413-0 01 1 9902-9904 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31829-413-0 01 1 9905-9909 ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31829-413-0 01 1 9910-0003 ● ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31829-413-0 01 1 0004- ● ●
44 PISTON; UPR VLV,CLU BOOSTER
SHORT CHASSIS&LHD(EXR6MC) 		1-31829-413-0 01 1 0004- ●

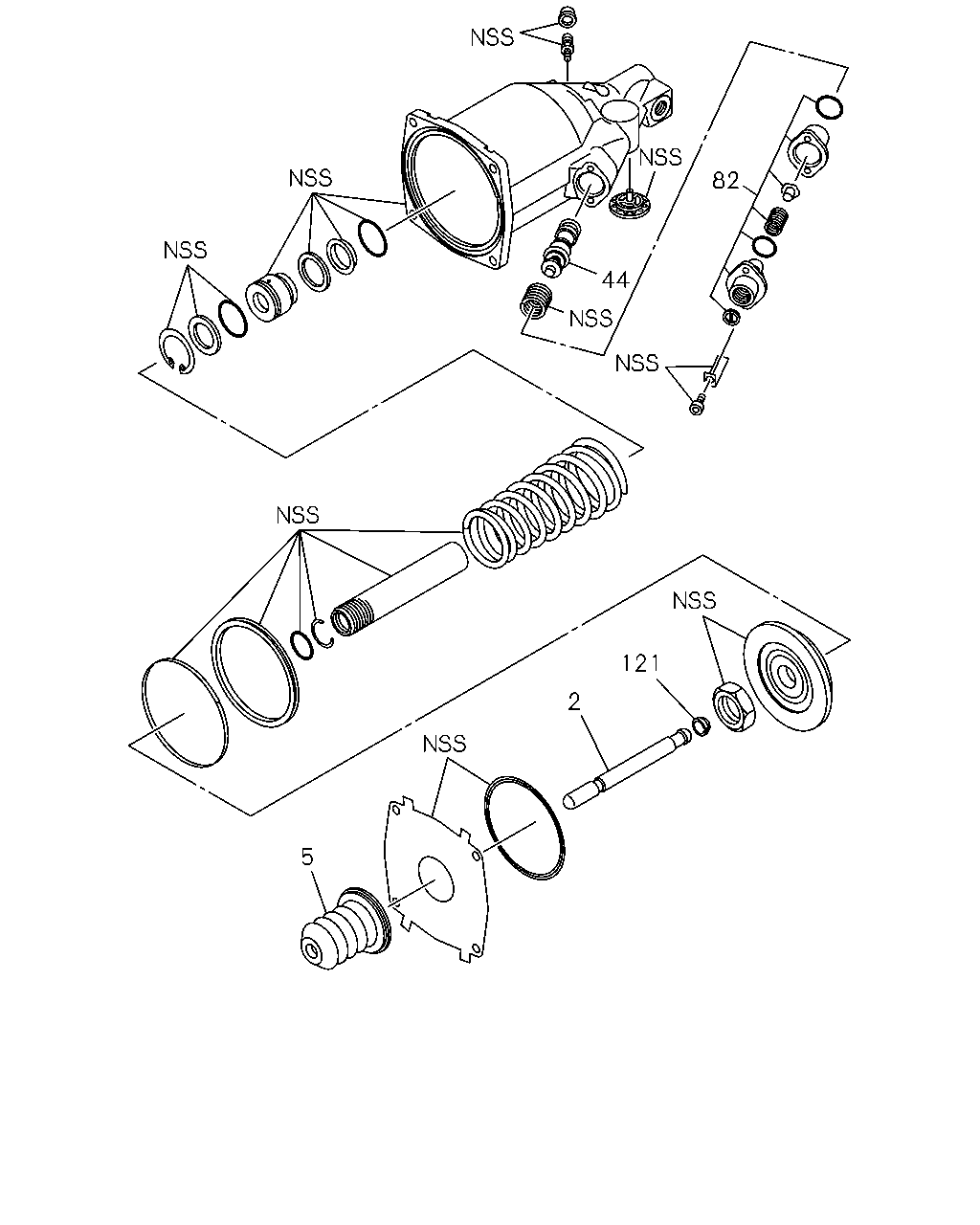

çizim 47990
82 44 121 2 5
BalonParca AdiParca NoAdetTipApplied Date A B C
2 ROD; PUSH,CLU BOOSTER 1-31829-370-0 01 1 9902-9904 ●
2 ROD; PUSH,CLU BOOSTER 1-31829-370-0 01 1 9905-9909 ● ●
2 ROD; PUSH,CLU BOOSTER 1-31829-370-0 01 1 9910-0003 ● ● ●
2 ROD; PUSH,CLU BOOSTER 1-31829-370-0 01 1 0004- ● ●
2 ROD; PUSH,CLU BOOSTER
SHORT CHASSIS&LHD(EXR6MC) 		1-31829-370-0 01 1 0004- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-371-0 01 1 9902-9904 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-371-0 01 1 9905-9909 ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-371-0 01 1 9910-0003 ● ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-371-0 01 1 0004- ● ●
5 GUARD; PISTON,CLU BOOSTER
SHORT CHASSIS&LHD(EXR6MC) 		1-31829-371-0 01 1 0004- ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31829-413-0 01 1 9902-9904 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31829-413-0 01 1 9905-9909 ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31829-413-0 01 1 9910-0003 ● ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31829-413-0 01 1 0004- ● ●
44 PISTON; UPR VLV,CLU BOOSTER
SHORT CHASSIS&LHD(EXR6MC) 		1-31829-413-0 01 1 0004- ●
82 VALVE ASM; POPPET,BOOSTER 1-31829-412-0 01 1 9902-9904 ●
82 VALVE ASM; POPPET,BOOSTER 1-31829-412-0 01 1 9905-9909 ● ●
82 VALVE ASM; POPPET,BOOSTER 1-31829-412-0 01 1 9910-0003 ● ● ●
82 VALVE ASM; POPPET,BOOSTER 1-31829-412-0 01 1 0004- ● ●
82 VALVE ASM; POPPET,BOOSTER
SHORT CHASSIS&LHD(EXR6MC) 		1-31829-412-0 01 1 0004- ●
121 GUIDE; ROD 1-31829-374-0 01 1 9902-9904 ●
121 GUIDE; ROD 1-31829-374-0 01 1 9905-9909 ● ●
121 GUIDE; ROD 1-31829-374-0 01 1 9910-0003 ● ● ●
121 GUIDE; ROD 1-31829-374-0 01 1 0004- ● ●
121 GUIDE; ROD
SHORT CHASSIS&LHD(EXR6MC) 		1-31829-374-0 01 1 0004- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
