7-50 — FRONT SEAT (#76526) — 61 parça

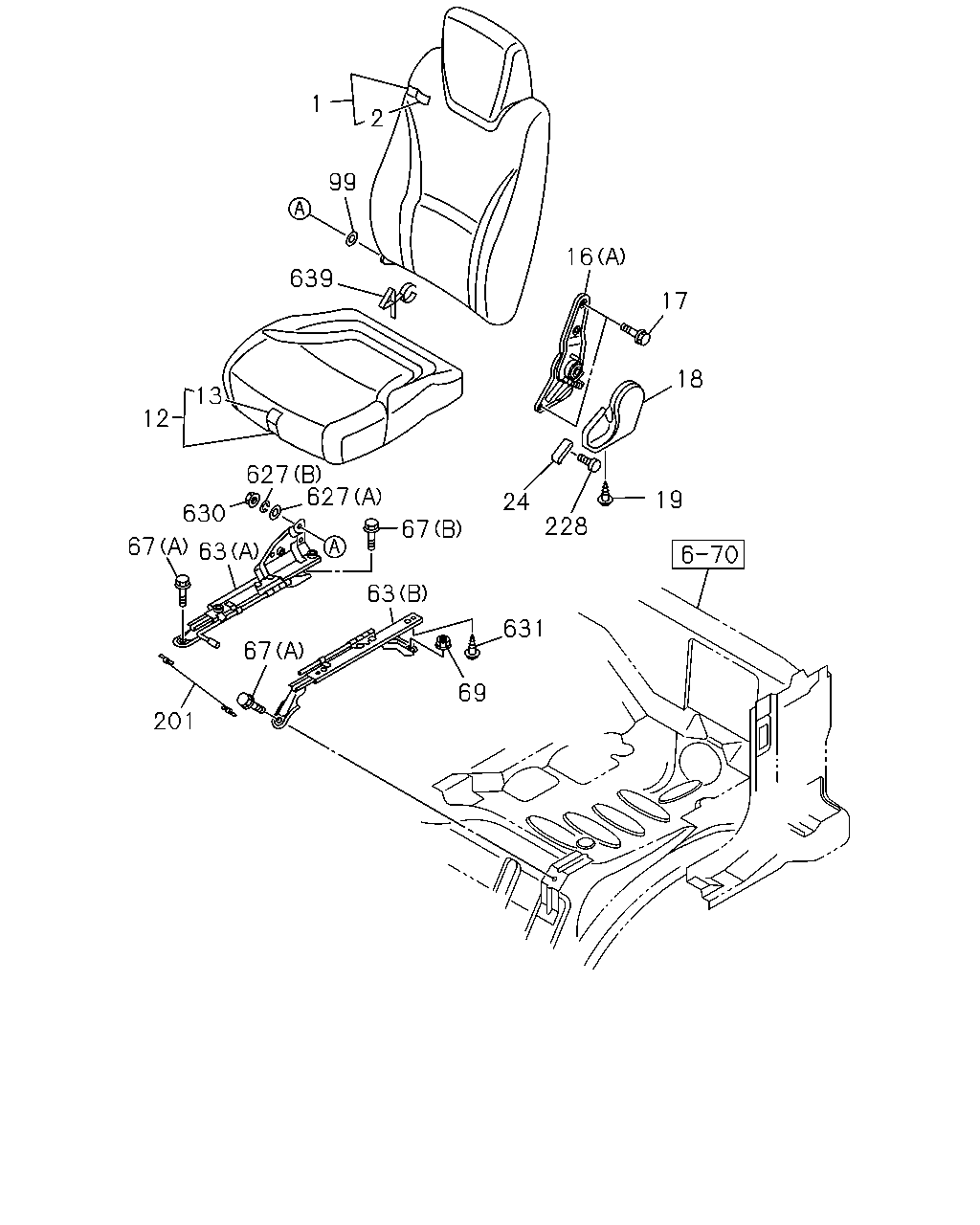

çizim 133998
1 2 99 16 639 17 18 13 12 627 627 19 24 630 228 67 67 63 63 631 67 69 201
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97409-357-4 01 1 0907-1009 ● ● ●
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97421-237-1 01 1 1010- ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97409-358-2 01 1 0907-1009 ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97421-256-0 01 1 1010- ● ● ●
12 16.670 CUSHION; SEAT,FRT
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-394-2 01 1 0907-1009 ● ● ●
12 16.670 CUSHION; SEAT,FRT
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-250-1 01 1 1010- ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-254-1 01 1 0907-1009 ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-243-1 01 1 1010- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-395-2 01 1 0907-1009 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-270-1 01 1 1010- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-262-0 01 1 0907-1009 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-262-1 01 1 1010- ● ●
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK 		8-97859-274-3 01 1 0907- ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98005-418-1 01 1 0907- ● ● ●
17 16.682 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 0907- ● ● ●
18 16.682 COVER; RECLINING
GRAY 		8-97409-361-0 01 1 0907- ● ● ●
19 16.686 SCREW; COVER
M5 		8-98062-663-0 01 1 0907- ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-362-0 01 1 0907- ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
(A) INNER 		8-98002-907-2 01 1 0907- ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
(B) OUTER 		8-98002-908-1 01 1 0907- ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 0907- ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 0907- ● ● ●
69 16.682 NUT; FRT SEAT
M10 FLANGE 		8-98055-961-0 01 1 0907- ● ● ●
99 16.716 BUSHING; SEAT BACK 8-98112-751-0 01 1 0907- ● ● ●
201 16.682 CABLE; ADJ 8-98003-086-1 01 1 0907- ● ● ●
228 16.714 SCREW; KNOB
M4 		8-98062-662-0 01 1 0907- ● ● ●
627 16.682 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 0907- ● ● ●
627 16.682 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 0907- ● ● ●
630 16.682 NUT; CAP
M8 		8-98063-225-0 01 1 0907- ● ● ●
631 16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER 		8-98062-658-0 02 1 0907- ● ● ●
631 16.682 BOLT; ADJ,SEAT
M8X32 W/LK WASHER 		8-98062-659-0 02 1 0907- ● ● ●
639 16.679 CLIP; SEAT
INSPECTION ENGINE COVER<8GA> 		8-98097-693-0 01 1 0907- ● ● ●

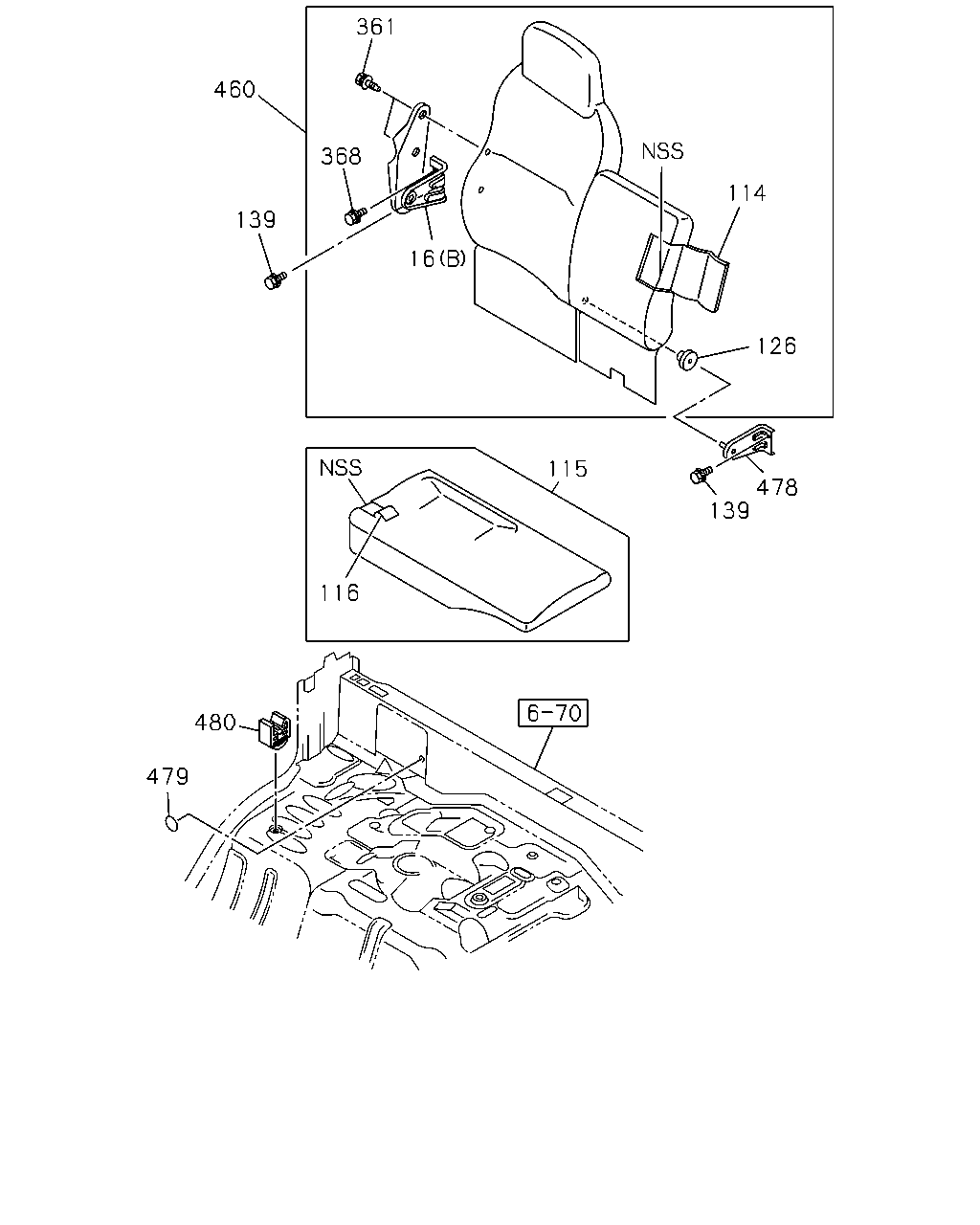

çizim 135010
361 460 368 114 139 16 126 115 478 139 116 480 479
BalonParca AdiParca NoAdetTipApplied Date A B C
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK 		8-97859-274-3 01 1 0907- ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98005-418-1 01 1 0907- ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-723-0 01 1 1001-1009 ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-294-1 01 1 1010- ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97414-178-0 01 1 0907-0912 ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-178-0 01 1 1001-1009 ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-293-1 01 1 1010- ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-276-0 01 1 0907-1009 ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-324-2 01 1 1010- ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-275-0 01 1 0907-0912 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-708-0 01 1 1001-1009 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-323-1 01 1 1010- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-291-0 01 1 0907-1009 ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-344-1 01 1 1010- ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-290-0 01 1 0907-0912 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-737-0 01 1 1001-1009 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-343-1 01 1 1010- ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-98069-558-0 01 1 0907- ● ● ●
139 16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 03 1 0907- ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 0907- ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0907- ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-694-0 01 1 1001-1009 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-281-2 01 1 1010- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
DARK GRAY 		8-97411-693-3 01 1 0907-0912 ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97411-693-3 01 1 1001-1009 ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-280-2 01 1 1010- ● ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-187-0 01 1 0907- ● ● ●
479 16.716 PLUG; HINGE
16.165 OD=25 BLACK 		1-76798-019-0 02 1 0907- ● ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 0907- ● ● ●
