◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51249 - NLR/NMR(EU)-LHD EU5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#76523) — 213 parça

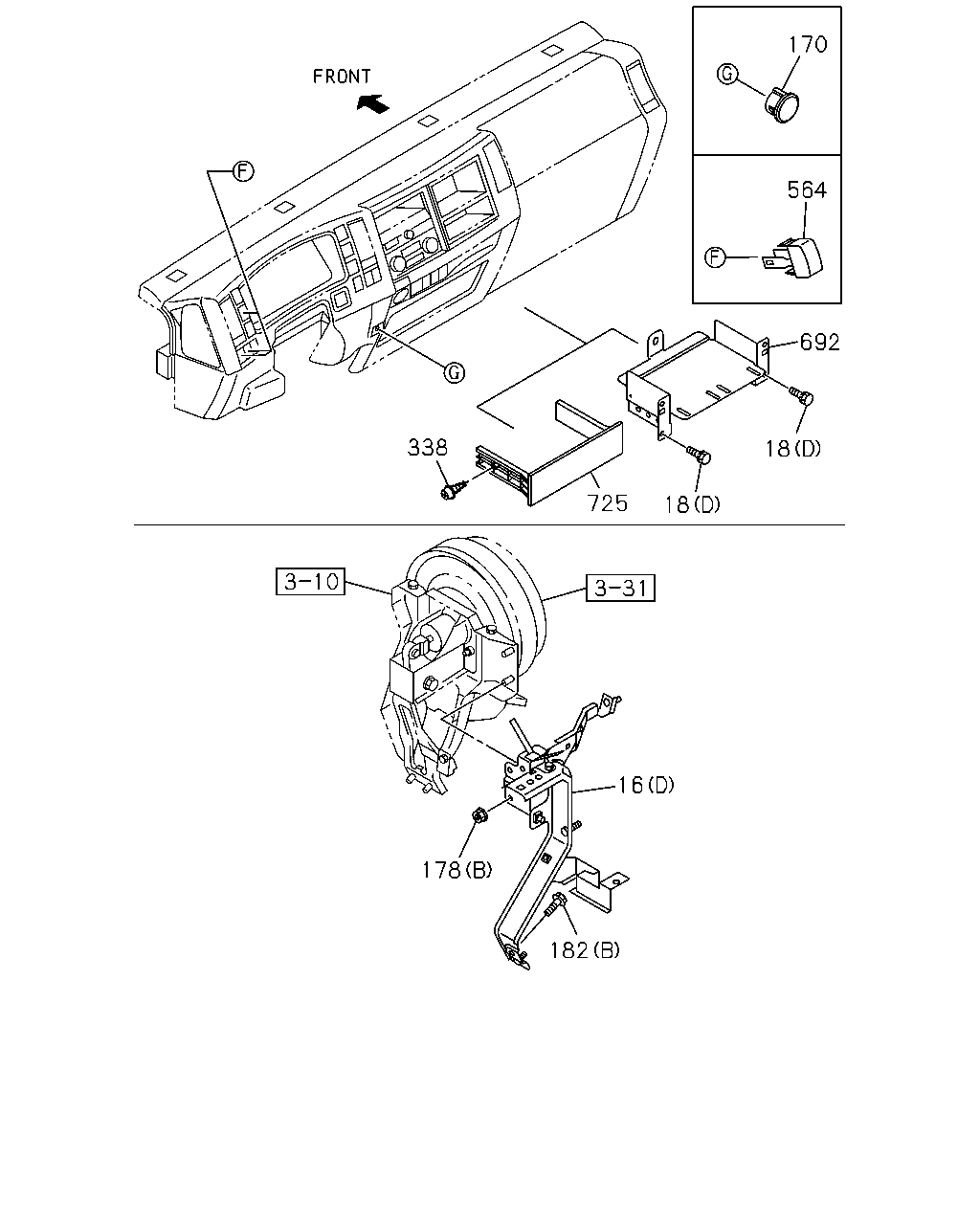

çizim 133195
170 564 692 338 18 725 18 16 178 182
BalonParca AdiParca NoAdetTipApplied Date A B C
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0907- ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 0907- ● ● ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 0907- ● ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98093-380-3 01 1 0907-1503 ● ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98278-076-0 01 1 1504- ● ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 0907- ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0907-1101 ● ● ●
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212 ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0907- ● ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0907- ● ● ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0907-1111 ● ● ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1112- ● ● ●
170 16.165 COVER; HOLE 8-98070-401-2 01 1 0907- ● ● ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 0907- ● ● ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0907- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0907-1101 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 0907- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0907-1101 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ●
338 16.081 SCREW; COVER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0907-1111 ● ● ●
338 16.081 SCREW; COVER
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> IDENTIFICATION LABEL FOR KD<6UT> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1112- ● ● ●
564 16.081 COVER; SW 8-98025-954-1 03 1 0907- ● ● ●
692 16.085 BRACKET; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 		8-98094-272-0 01 1 0907-1111 ● ● ●
692 16.085 BRACKET; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> IDENTIFICATION LABEL FOR KD<6UT> 		8-98094-272-0 01 1 1112- ● ● ●
725 16.081 COVER; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 09.650 BLACK 		8-97407-896-1 01 1 0907-1111 ● ● ●
725 16.081 COVER; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> IDENTIFICATION LABEL FOR KD<6UT> 09.650 BLACK 		8-97407-896-2 01 1 1112- ● ● ●

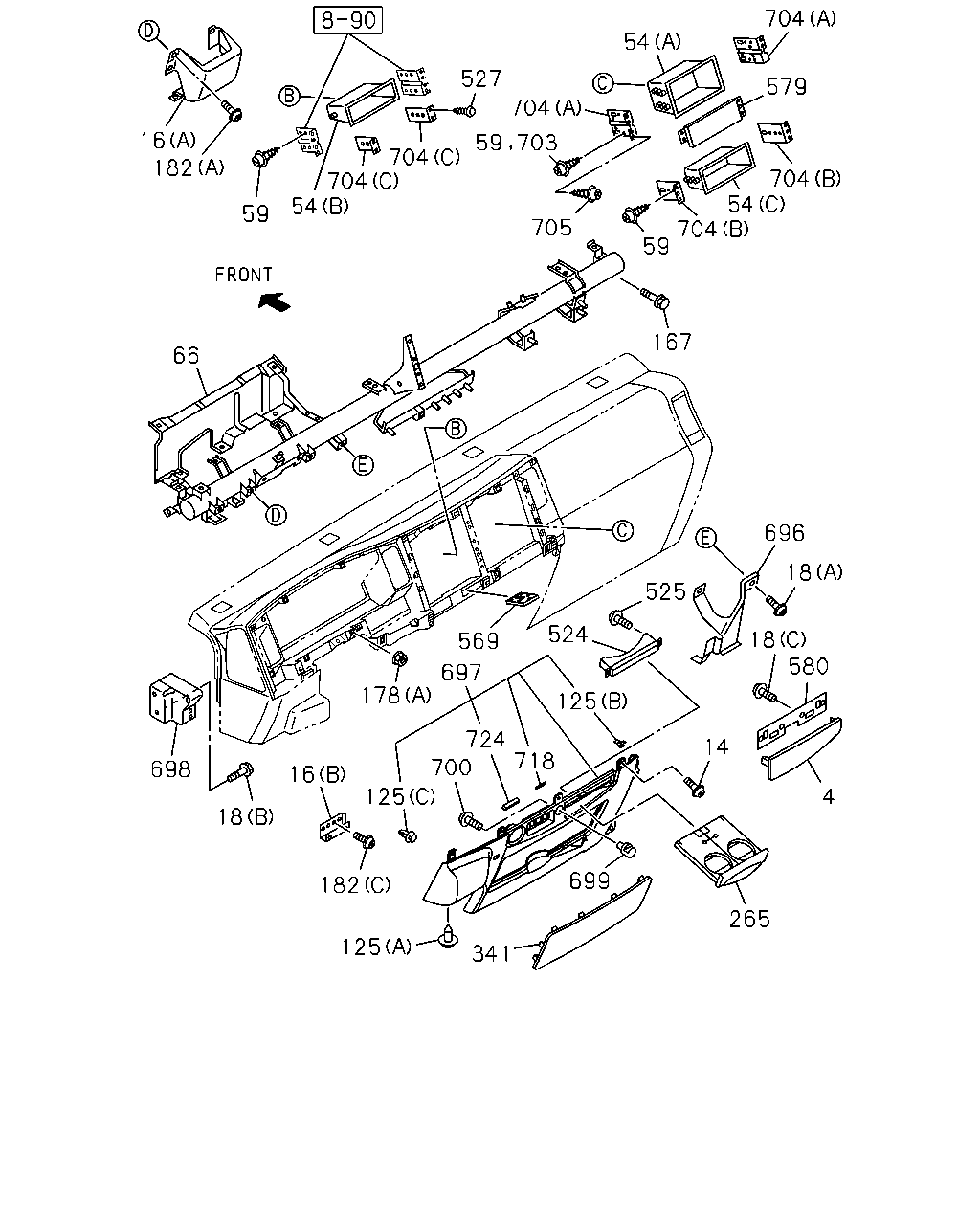

çizim 186630
341 125 182 125 699 265 4 14 580 18 18 696 525 524 125 718 724 700 178 569 697 16 18 698 167 59 704 54 704 579 704 54 705 703 704 527 59 704 704 54 59 182 16 66
BalonParca AdiParca NoAdetTipApplied Date A B C
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 0907- ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0907-1101 ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212 ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0907- ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 0907- ● ● ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 0907- ● ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98093-380-3 01 1 0907-1503 ● ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98278-076-0 01 1 1504- ● ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 0907- ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0907-1101 ● ● ●
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212 ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0907- ● ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0907- ● ● ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0907-1111 ● ● ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1112- ● ● ●
54 16.100 POCKET; CENTER CLUSTER
(B) H=69.8 BLACK 		8-97408-865-3 01 1 0907-1111 ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) H=69.8 BLACK 		8-97408-865-3 01 1 0907-1111 ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) H=69.8 BLACK 		8-97408-865-3 01 1 1112- ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. CAN INTERFACE FMS STD(8PG) (B) H=69.8 BLACK 		8-97408-865-3 01 1 1112- ● ● ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=58.4 BLACK 		8-97408-864-2 01 1 0907-0910 ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) H=58.4 BLACK 		8-97408-864-2 01 1 0907-0910 ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=58.4 BLACK 		8-97408-864-2 01 1 0911-0911 ● ●
54 16.100 POCKET; CENTER CLUSTER
TACHOGRAPH DIGITAL<EBB> (C) H=58.4 BLACK 		8-97408-864-2 01 1 0911-0911 ● ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=58.4 BLACK 		8-97408-864-2 01 1 0911-0911 ●
54 16.100 POCKET; CENTER CLUSTER
EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) H=58.4 BLACK 		8-97408-864-2 01 1 0911-0911 ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=58.4 BLACK 		8-97408-864-3 01 1 0912- ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) H=58.4 BLACK 		8-97408-864-3 01 1 0912- ●
54 16.100 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH DIGITAL<EBB> (A) H=108.4 BLACK 		8-97407-129-3 01 1 0907-1111 ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1112- ● ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0907-0910 ● ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. POWER WINDOW FRT&REAR DOOR<A31> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0907-0910 ● ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0911-0911 ● ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0911-0911 ● ●
59 16.100 SCREW; CLUSTER POCKET
TACHOGRAPH DIGITAL<EBB> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0911-0911 ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0911-0911 ●
59 16.100 SCREW; CLUSTER POCKET
EXC. POWER WINDOW FRT&REAR DOOR<A31> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0911-0911 ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0912-1111 ● ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. POWER WINDOW FRT&REAR DOOR<A31> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0912-1111 ● ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. CAN INTERFACE FMS STD(8PG) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1112-1204 ● ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1112-1204 ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. POWER WINDOW FRT&REAR DOOR<A31> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1112-1204 ●
59 16.100 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1205- ● ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. CAN INTERFACE FMS STD(8PG) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1205- ● ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1205- ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. POWER WINDOW FRT&REAR DOOR<A31> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1205- ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98192-943-0 01 1 1310- ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5>,KD PREPARATORY PACK VAR.4<7TV> 		8-98192-942-0 01 1 1310- ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> 		8-98098-027-3 01 1 0907-1309 ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> KD PREPARATORY PACK VAR.4<7TV> 		8-98098-027-3 01 1 1310- ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98098-026-3 01 1 0907-1309 ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
KD PREPARATORY PACK VAR.4<7TV> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98098-026-3 01 1 1310- ● ● ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1002- ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 06 1 0907-0911 ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 04 1 0912-1001 ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1002- ● ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 0907- ● ● ●
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 0907- ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 0907- ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 0907- ● ● ●
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 0907- ● ● ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 0907- ● ● ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0907- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0907-1101 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 0907- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0907-1101 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97407-897-2 01 1 0907-0909 ● ● ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 0910- ● ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97406-043-1 01 1 0907-1205 ● ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97423-659-0 01 1 1206- ● ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 0907- ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0907-1101 ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212 ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ● ●
527 16.100 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 0907- ● ● ●
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 0907- ● ● ●
579 16.080 COVER; INST PNL
CAN INTERFACE FMS STD(8PG) BLACK 		8-97408-909-0 01 1 1112-1208 ● ● ●
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 0907- ● ● ●
696 16.085 BRACKET; KNEE 8-98098-126-0 01 1 0907-1109 ● ● ●
696 16.085 BRACKET; KNEE 8-98071-234-0 01 1 1110-1211 ● ● ●
696 16.085 BRACKET; KNEE 8-98201-847-0 01 1 1212- ● ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97405-999-8 01 1 0907-1205 ● ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-657-1 01 1 1206- ● ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 0907- ● ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 0907- ● ● ●
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0907- ● ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0907-1101 ● ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ●
703 16.085 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0907-1111 ● ●
703 16.085 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1112- ● ● ●
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0907-1111 ● ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. CAN INTERFACE FMS STD(8PG) (B) 		8-97585-616-2 02 1 1112- ● ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98107-549-0 02 1 0907- ● ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> (A) 		8-97585-618-2 02 1 0907-1111 ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (A) 		8-97585-618-2 02 1 1112- ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0907-1101 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0907-1101 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1111 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1111 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1112-1212 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. CAN INTERFACE FMS STD(8PG) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1112-1212 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. CAN INTERFACE FMS STD(8PG) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0907-1101 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1102-1212 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ● ● ●
718 16.100 SEAL; COVER
5X30 		8-98176-199-0 01 1 1206- ● ● ●
718 16.100 SEAL; COVER
8X80 		8-98200-040-0 01 1 1110- ● ● ●
718 16.100 SEAL; COVER
4X35 		8-98200-041-0 01 1 1110- ● ● ●
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1110- ● ● ●

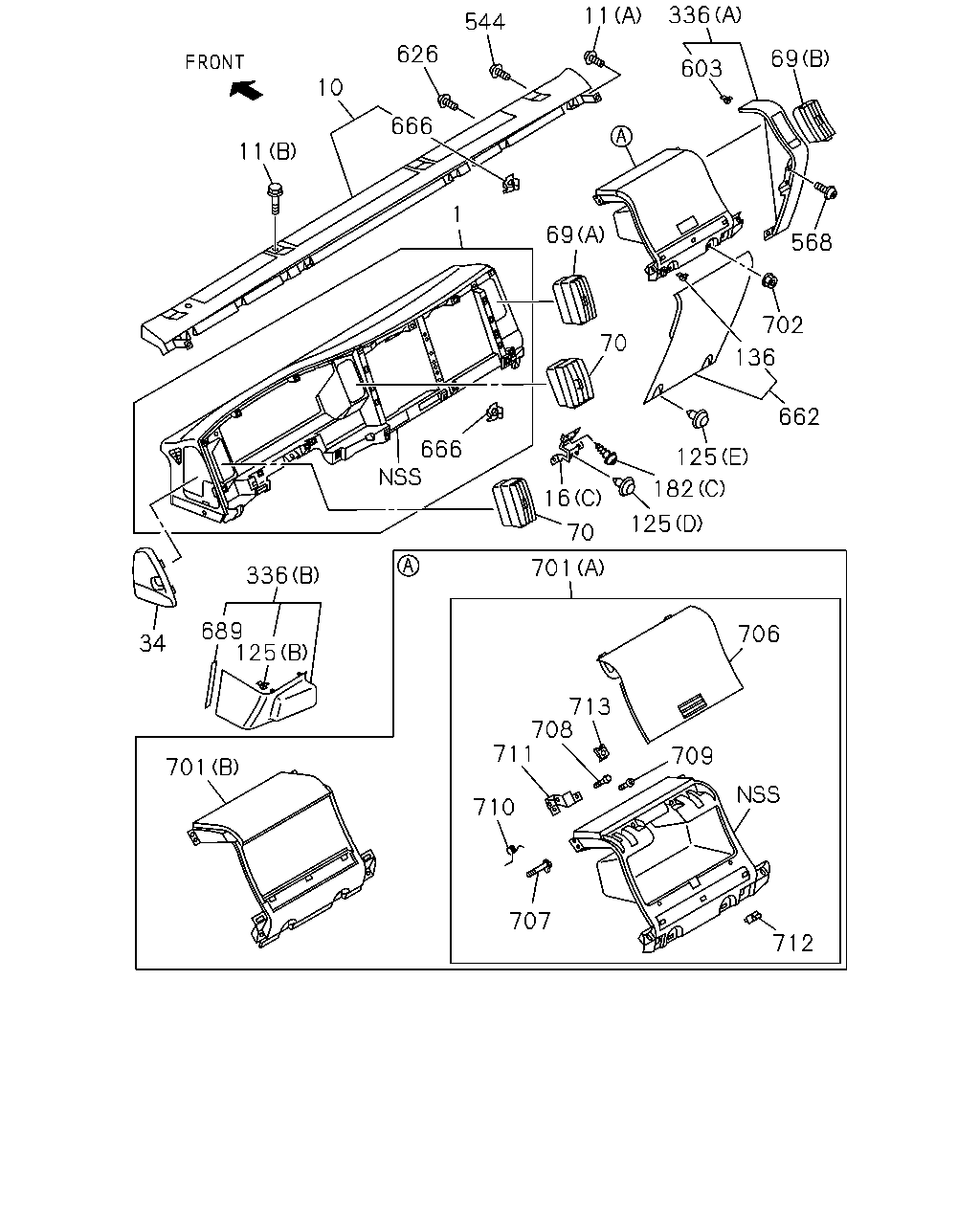

çizim 186631
712 709 707 710 711 708 713 706 701 701 125 689 34 336 70 16 125 182 125 662 136 702 70 568 69 1 603 69 336 11 666 11 10 626 666 544
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.080 PANEL; INST
GRAY 		8-97406-004-4 01 1 0907- ● ● ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97406-272-4 01 1 0907-1003 ● ● ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-684-5 01 1 1004- ● ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0907-1101 ● ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1102-1212 ● ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1301- ● ● ●
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0907- ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0907- ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 0907- ● ● ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 0907- ● ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98093-380-3 01 1 0907-1503 ● ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98278-076-0 01 1 1504- ● ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 0907- ● ● ●
34 16.085 LID; OIL TANK
GRAY 		8-97406-003-1 01 1 0907- ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 01 1 0907- ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0907- ● ● ●
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 02 1 0907- ● ● ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1002- ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 06 1 0907-0911 ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 04 1 0912-1001 ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1002- ● ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 0907- ● ● ●
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 0907- ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 0907- ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 0907- ● ● ●
136 16.085 CLIP; INST COVER 8-98021-271-0 05 1 0907- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0907-1101 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 0907- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0907-1101 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ●
336 16.081 COVER; INST PANEL SIDE
PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97415-670-1 01 1 0907- ● ● ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 0907- ● ● ●
336 16.081 COVER; INST PANEL SIDE
EXC. PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 0907- ● ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0907-1101 ● ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0907-1101 ● ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ●
603 16.090 CLIP; COVER
16.085 		8-98021-271-0 01 1 0907- ● ● ●
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 0907- ● ● ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97406-260-1 01 1 0907- ● ● ●
666 16.085 INSERT; INST PANEL 8-98037-629-0 02 1 0907-1003 ● ● ●
666 16.085 INSERT; INST PANEL 8-98037-629-0 15 1 0907- ● ● ●
689 09.743 SEAL; INST
EXC. PTO MANUAL CONTROL(6WC) 		8-98068-244-0 01 1 0907- ● ● ●
701 16.100 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97416-907-0 01 1 0907- ● ● ●
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97406-268-4 01 1 0907- ● ● ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0907- ● ● ●
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97409-510-0 01 1 0907- ● ● ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 0907-1311 ● ● ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-393-0 02 1 1312- ● ● ●
708 16.100 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 0907- ● ● ●
709 16.085 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 0907- ● ● ●
710 09.744 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.110 		8-98034-986-0 01 1 0907-1311 ● ● ●
710 09.744 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-398-0 01 1 1312- ● ● ●
710 09.744 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.110 		8-98034-987-0 01 1 0907-1311 ● ● ●
710 09.744 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-399-0 01 1 1312- ● ● ●
711 16.100 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.081 		8-98034-928-0 01 1 0907-1311 ● ● ●
711 16.100 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.081 		8-97926-396-0 01 1 1312- ● ● ●
711 16.100 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.081 		8-98034-929-0 01 1 0907-1311 ● ● ●
711 16.100 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.081 		8-97926-397-0 01 1 1312- ● ● ●
712 16.110 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 0907- ● ● ●
713 16.069 NUT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 08.845 M5 		1-09984-196-0 04 1 0907-1311 ● ● ●
713 16.069 NUT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.085 M5 		8-97926-400-0 04 1 1312- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
