Sayfa 7-30 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51249 - NLR/NMR(EU)-LHD EU5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶

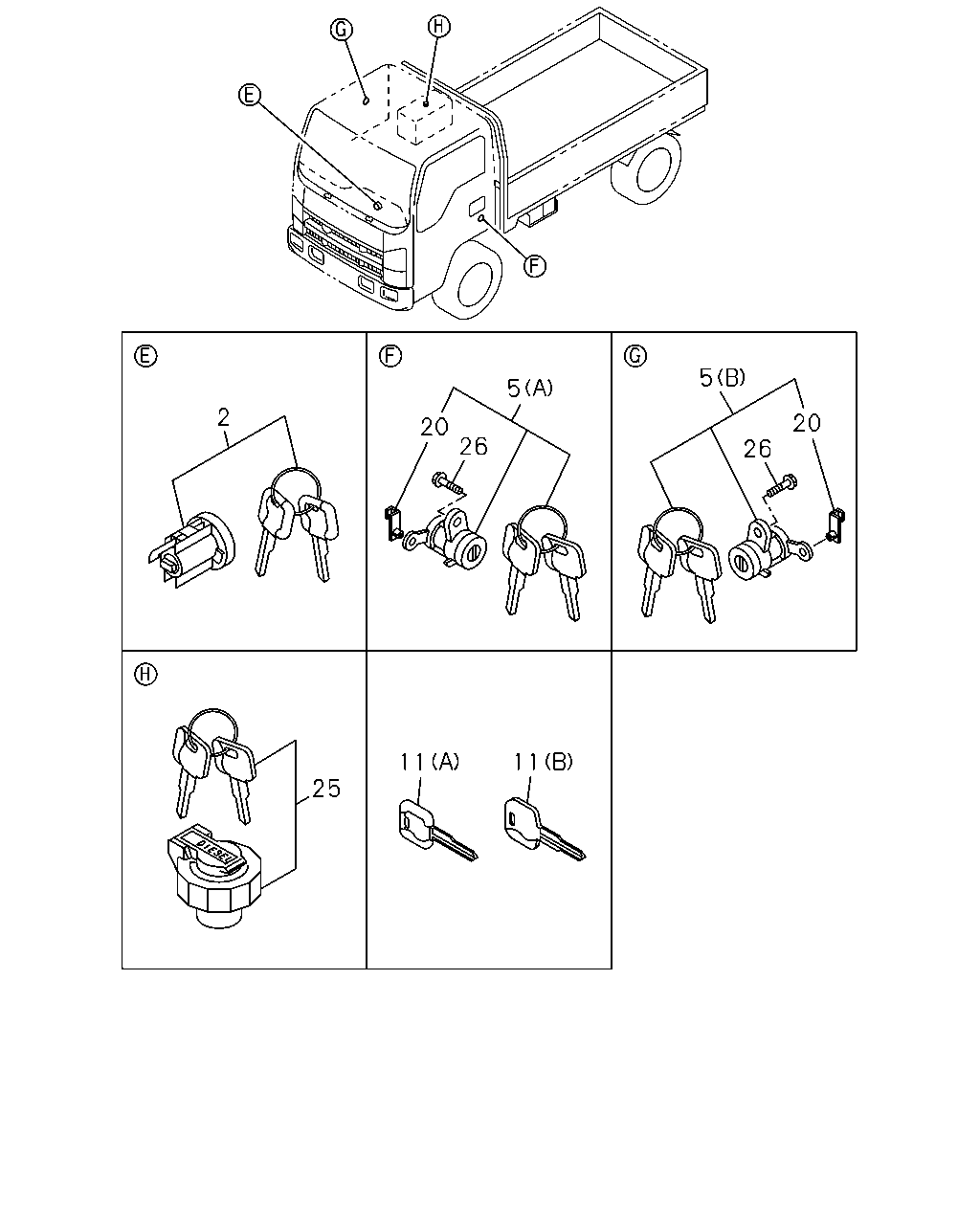

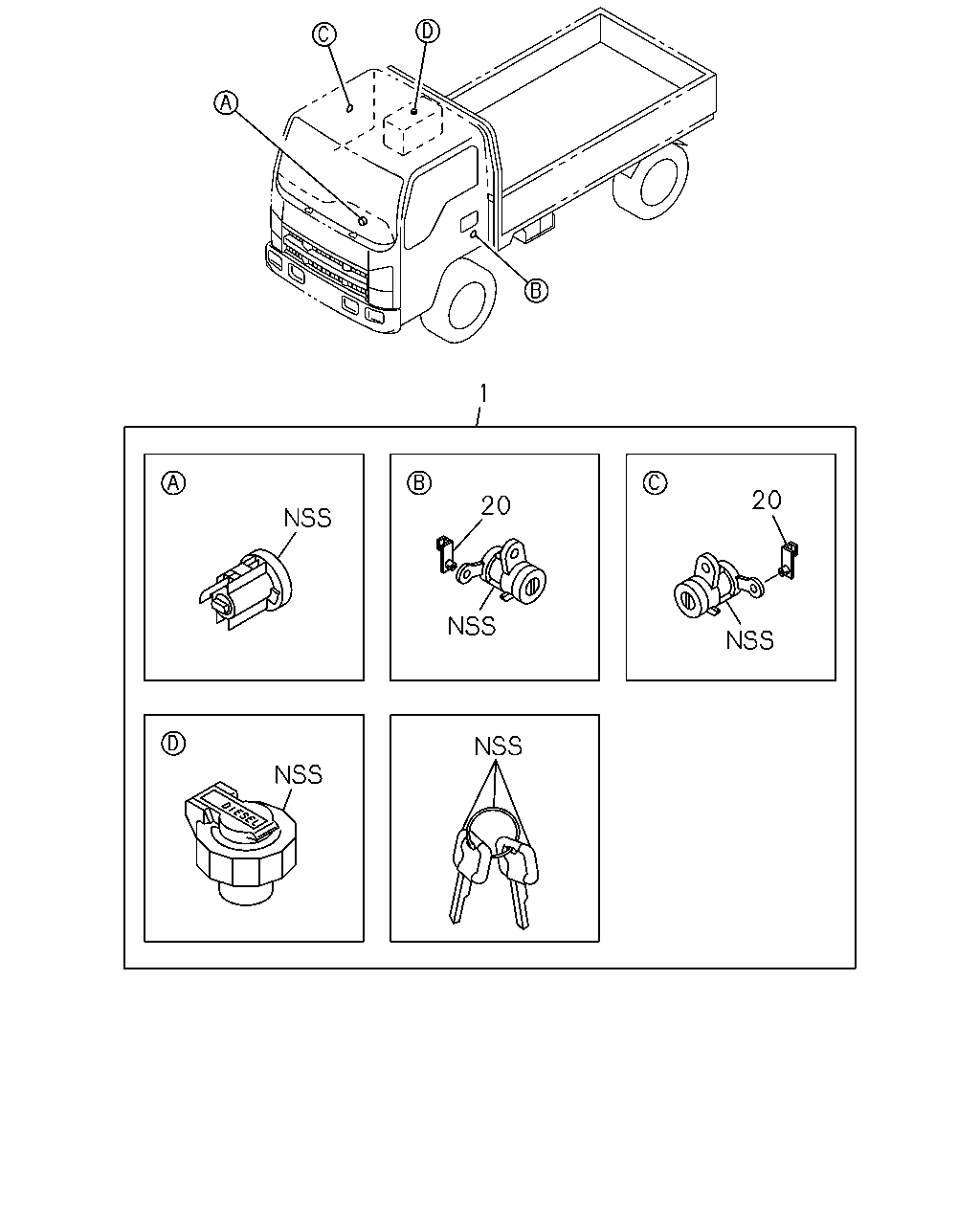

7-30 — LOCK CYLINDER SET (#76522) — 40 parça

1 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX>	8-98145-977-0	01	1	0907-1203	●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX>	8-98145-977-0	01	1	0907-1203		●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX>	8-98145-977-0	01	1	0907-1203			●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX>	8-98201-214-0	01	1	1204-	●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX>	8-98201-214-0	01	1	1204-		●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX>	8-98201-214-0	01	1	1204-			●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX>	8-98055-181-0	01	1	0907-	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100L<N02>,FUEL TANK 75L<7GX>	8-98055-181-0	01	1	0907-		●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX>	8-98055-181-0	01	1	0907-			●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX>	8-98055-182-0	01	1	0907-	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100L<N02>,FUEL TANK 75L<7GX>	8-98055-182-0	01	1	0907-		●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX>	8-98055-182-0	01	1	0907-			●

5 5 2 20 20 26 26 11 11 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	02.188 BARREL ASM; W/KEY,STRG LOCK FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX>	8-98055-147-0	01	1	0907-1203	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX>	8-98055-147-0	01	1	0907-1203		●
2	02.188 BARREL ASM; W/KEY,STRG LOCK FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX>	8-98055-147-0	01	1	0907-1203			●
2	02.188 BARREL ASM; W/KEY,STRG LOCK FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX>	8-98201-341-0	01	1	1204-	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX>	8-98201-341-0	01	1	1204-		●
2	02.188 BARREL ASM; W/KEY,STRG LOCK FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX>	8-98201-341-0	01	1	1204-			●
5	16.328 CYLINDER ASM; DOOR LOCK FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX> (B)	8-98055-149-0	01	1	0907-	●
5	16.328 CYLINDER ASM; DOOR LOCK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> (B)	8-98055-149-0	01	1	0907-		●
5	16.328 CYLINDER ASM; DOOR LOCK FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> (B)	8-98055-149-0	01	1	0907-			●
5	16.328 CYLINDER ASM; DOOR LOCK FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX> (A)	8-98055-150-0	01	1	0907-	●
5	16.328 CYLINDER ASM; DOOR LOCK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> (A)	8-98055-150-0	01	1	0907-		●
5	16.328 CYLINDER ASM; DOOR LOCK FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> (A)	8-98055-150-0	01	1	0907-			●
11	02.187 KEY; BLANK FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX> (A) IMMOBILIZER	8-98055-168-0	AR	1	0907-	●
11	02.187 KEY; BLANK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> (A) IMMOBILIZER	8-98055-168-0	AR	1	0907-		●
11	02.187 KEY; BLANK FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> (A) IMMOBILIZER	8-98055-168-0	AR	1	0907-			●
11	02.187 KEY; BLANK FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX> (B)	8-98055-170-0	AR	1	0907-	●
11	02.187 KEY; BLANK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> (B)	8-98055-170-0	AR	1	0907-		●
11	02.187 KEY; BLANK FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> (B)	8-98055-170-0	AR	1	0907-			●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX>	8-98055-181-0	01	1	0907-	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100L<N02>,FUEL TANK 75L<7GX>	8-98055-181-0	01	1	0907-		●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX>	8-98055-181-0	01	1	0907-			●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX>	8-98055-182-0	01	1	0907-	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100L<N02>,FUEL TANK 75L<7GX>	8-98055-182-0	01	1	0907-		●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX>	8-98055-182-0	01	1	0907-			●
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX>	8-98146-010-0	01	1	0907-	●
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK 100L<N02>,FUEL TANK 75L<7GX>	8-98146-010-0	01	1	0907-		●
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX>	8-98146-010-0	01	1	0907-			●
26	16.328 BOLT; KEY CYL,DOOR M6X8 FLANGE	8-98031-839-0	02	1	0907-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
