2-07A — CLUTCH BOOSTER; MINIPACK (#7652) — 101 parça

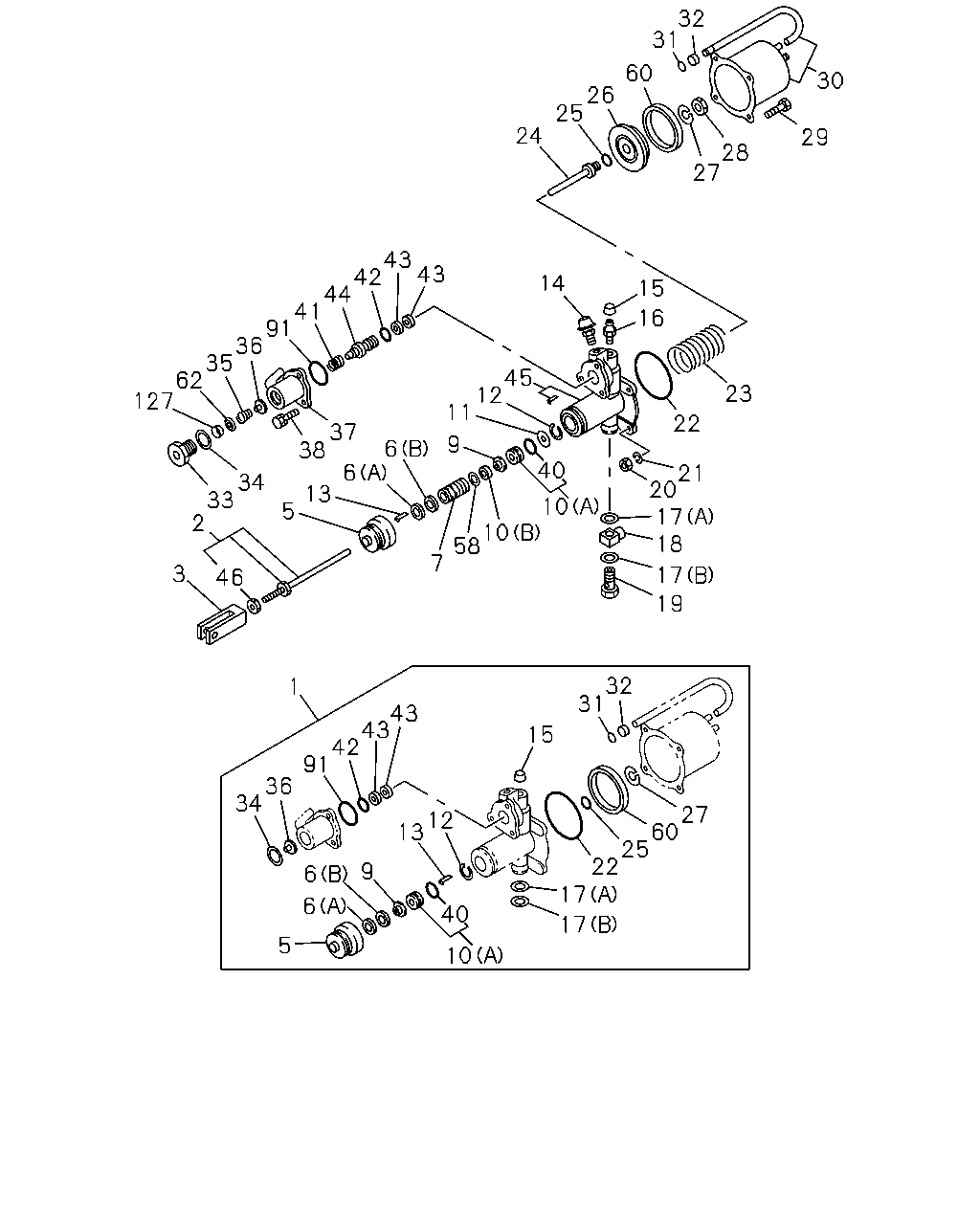

çizim 7538
32 31 60 30 26 25 24 29 28 27 43 42 43 44 41 91 36 35 62 127 14 15 16 45 12 23 11 22 37 38 9 6 40 6 21 20 17 18 34 33 2 13 10 10 58 5 7 3 17 46 19 32 31 1 43 43 42 91 15 36 34 12 13 27 60 25 22 17 9 6 6 40 17 5 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-356-0 01 1 9902-9904 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-356-0 01 1 9905- ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-160-0 01 1 9902-9904 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-160-0 01 1 9905- ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 9902-9904 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 9905- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-282-0 01 1 9902-9904 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-282-0 01 1 9905- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-283-0 01 1 9902-9904 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-283-0 01 1 9905- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-284-0 01 1 9902-9904 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-284-0 01 1 9905- ● ●
7 PISTON; CLU BOOSTER 1-31821-047-0 01 1 9902-9904 ●
7 PISTON; CLU BOOSTER 1-31821-047-0 01 1 9905- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 9902-9904 ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 9905- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 9902-9904 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 9905- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-293-0 01 1 9902-9904 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-293-0 01 1 9905- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9902-9904 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9905- ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9902-9904 ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9905- ● ●
13 PIN; SPR 1-31829-109-0 01 1 9902-9904 ●
13 PIN; SPR 1-31829-109-0 01 1 9905- ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 9902-9904 ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 9905- ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9902-9904 ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9905- ● ●
16 PLUG; END PLATE,CLU BOOSTER 1-31829-351-0 01 1 9902-9904 ●
16 PLUG; END PLATE,CLU BOOSTER 1-31829-351-0 01 1 9905- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9902-9904 ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9905- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9902-9904 ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9905- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9902-9904 ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9905- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9902-9904 ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9905- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 9902-9904 ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 9905- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 9902-9904 ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 9905- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 9902-9904 ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 9905- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-295-0 01 1 9902-9904 ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-295-0 01 1 9905- ● ●
24 ROD; PUSH,CLU BOOSTER 1-31824-121-0 01 1 9902-9904 ●
24 ROD; PUSH,CLU BOOSTER 1-31824-121-0 01 1 9905- ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 9902-9904 ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 9905- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-060-0 01 1 9902-9904 ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-060-0 01 1 9905- ● ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 9902-9904 ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 9905- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 9902-9904 ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 9905- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 9902-9904 ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 9905- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-077-0 01 1 9902-9904 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-077-0 01 1 9905- ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 9902-9904 ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 9905- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 9902-9904 ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 9905- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 9902-9904 ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 9905- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9902-9904 ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9905- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9902-9904 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9905- ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9902-9904 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9905- ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 9902-9904 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 9905- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 9902-9904 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 9905- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9902-9904 ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9905- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-422-0 01 1 9902-9904 ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-422-0 01 1 9905-0005 ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-288-0 01 1 0006- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 9902-9904 ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 9905- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 9902-9904 ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 9905- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 9902-9904 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 9905- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-080-0 01 1 9902-9904 ●
45 PLATE; END,CLU BOOSTER 1-31811-080-1 01 1 9905- ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 9902-9904 ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 9905- ● ●
58 WASHER; PISTON,CLU BOOSTER 1-31829-294-0 01 1 9902-9904 ●
58 WASHER; PISTON,CLU BOOSTER 1-31829-294-0 01 1 9905- ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 9902-9904 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 9905- ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0006- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9902-9904 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9905- ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 0006- ● ●
