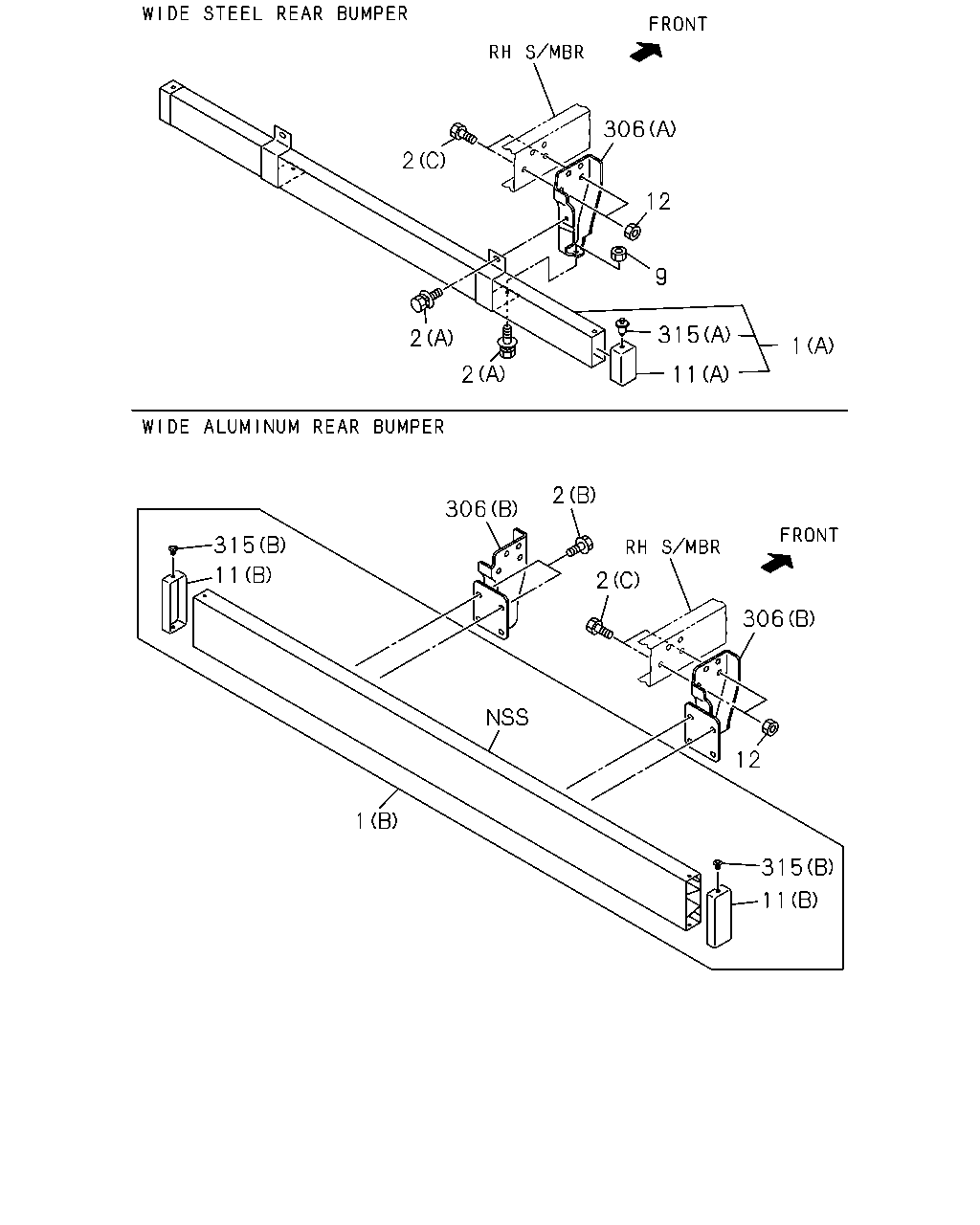

6-90 — REAR BUMPER (#76518) — 116 parça

2 306 12 9 2 2 315 11 1 306 2 2 306 12 315 11 1 11 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	07.070 BUMPER; RR WIDE STEEL REAR BUMPER<SMS> REAR WIDE TREAD(V4T) (A) STEEL BUMPER STAMP IJ2H	8-98000-145-1	01	1	0907-	●
1	07.070 BUMPER; RR WIDE STEEL REAR BUMPER<SMS> EXC. REAR WIDE TREAD(V4T) (A) STEEL BUMPER STAMP IJ2G	8-98000-144-1	01	1	0907-	●
1	07.070 BUMPER; RR REAR WIDE TREAD(V4T) WIDE ALUMINUM REAR BUMPER<7HZ> (B) ALUMINUM BUMPER STAMP IH2J	8-98088-673-0	01	1	0907-	●
1	07.070 BUMPER; RR REAR WIDE TREAD(V4T) (B) ALUMINUM BUMPER STAMP IH2J	8-98088-673-0	01	1	0907-		●
1	07.070 BUMPER; RR (B) ALUMINUM BUMPER STAMP IH2J	8-98088-673-0	01	1	0907-			●
1	07.070 BUMPER; RR WIDE ALUMINUM REAR BUMPER<7HZ> EXC. REAR WIDE TREAD(V4T) (B) ALUMINUM BUMPER STAMP IH2G	8-98088-672-0	01	1	0907-	●
1	07.070 BUMPER; RR EXC. REAR WIDE TREAD(V4T) (B) ALUMINUM BUMPER STAMP IH2G	8-98088-672-0	01	1	0907-		●
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> 01.271 (A) M10X30	8-94324-205-0	04	1	0907-1209	●
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> 00.029 (D) M10X25 FLANGE	0-28651-025-0	02	1	1210-	●
2	07.874 BOLT; BACK BAR WIDE ALUMINUM REAR BUMPER<7HZ> 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	0907-	●
2	07.874 BOLT; BACK BAR 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	0907-		●	●
2	07.874 BOLT; BACK BAR WHEEL BASE 2400MM(24W) WIDE STEEL REAR BUMPER<SMS>,WIDE ALUMINUM REAR BUMPER<7HZ> SINGLE RR TIRE(6TD) (C) M14X30	0-20851-430-0	08	1	0907-1104	●
2	07.874 BOLT; BACK BAR WHEEL BASE 3300MM(33W) WIDE STEEL REAR BUMPER<SMS>,WIDE ALUMINUM REAR BUMPER<7HZ> EXC. SINGLE RR TIRE(6TD) (C) M14X30	0-20851-430-0	08	1	0907-1104	●
2	07.874 BOLT; BACK BAR WHEEL BASE 3300MM(33W) (C) M14X30	0-20851-430-0	08	1	0907-1104		●	●
2	07.874 BOLT; BACK BAR WHEEL BASE 2400MM(24W) WIDE STEEL REAR BUMPER<SMS>,WIDE ALUMINUM REAR BUMPER<7HZ> SINGLE RR TIRE(6TD) (C) M14X30	0-20851-430-0	08	1	1105-	●
2	07.874 BOLT; BACK BAR WHEEL BASE 3300MM(33W) WIDE STEEL REAR BUMPER<SMS>,WIDE ALUMINUM REAR BUMPER<7HZ> (C) M14X30	0-20851-430-0	08	1	1105-	●
2	07.874 BOLT; BACK BAR WHEEL BASE 3300MM(33W) (C) M14X30	0-20851-430-0	08	1	1105-		●	●
2	07.874 BOLT; BACK BAR WHEEL BASE 2400MM(24W) WIDE STEEL REAR BUMPER<SMS>,WIDE ALUMINUM REAR BUMPER<7HZ> EXC. SINGLE RR TIRE(6TD) (C) M14X30	0-20851-430-0	04	1	0907-	●
2	07.874 BOLT; BACK BAR WHEEL BASE 2400MM(24W) (C) M14X30	0-20851-430-0	04	1	0907-		●	●
9	07.070 NUT; BUMPER WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE	0-91180-210-0	02	1	0907-1209	●
9	07.070 NUT; BUMPER WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE	0-91180-210-0	04	1	1210-	●
11	07.829 CAP; RR BUMPER WIDE STEEL REAR BUMPER<SMS> (A)	8-97174-008-0	02	1	0907-	●
11	07.829 CAP; RR BUMPER WIDE ALUMINUM REAR BUMPER<7HZ> (B)	1-71290-064-0	02	1	0907-	●	●	●
12	07.833 NUT; BRKT WHEEL BASE 2400MM(24W) WIDE STEEL REAR BUMPER<SMS>,WIDE ALUMINUM REAR BUMPER<7HZ> EXC. SINGLE RR TIRE(6TD) 00.429 M14 FLANGE	0-91180-214-0	04	1	0907-	●
12	07.833 NUT; BRKT WHEEL BASE 2400MM(24W) 00.429 M14 FLANGE	0-91180-214-0	04	1	0907-		●	●
12	07.833 NUT; BRKT WHEEL BASE 2400MM(24W) WIDE STEEL REAR BUMPER<SMS>,WIDE ALUMINUM REAR BUMPER<7HZ> SINGLE RR TIRE(6TD) 00.429 M14 FLANGE	0-91180-214-0	08	1	0907-1104	●
12	07.833 NUT; BRKT WHEEL BASE 3300MM(33W) WIDE STEEL REAR BUMPER<SMS>,WIDE ALUMINUM REAR BUMPER<7HZ> EXC. SINGLE RR TIRE(6TD) 00.429 M14 FLANGE	0-91180-214-0	08	1	0907-1104	●
12	07.833 NUT; BRKT WHEEL BASE 3300MM(33W) 00.429 M14 FLANGE	0-91180-214-0	08	1	0907-1104		●	●
12	07.833 NUT; BRKT WHEEL BASE 2400MM(24W) WIDE STEEL REAR BUMPER<SMS>,WIDE ALUMINUM REAR BUMPER<7HZ> SINGLE RR TIRE(6TD) 00.429 M14 FLANGE	0-91180-214-0	08	1	1105-	●
12	07.833 NUT; BRKT WHEEL BASE 3300MM(33W) WIDE STEEL REAR BUMPER<SMS>,WIDE ALUMINUM REAR BUMPER<7HZ> 00.429 M14 FLANGE	0-91180-214-0	08	1	1105-	●
12	07.833 NUT; BRKT WHEEL BASE 3300MM(33W) 00.429 M14 FLANGE	0-91180-214-0	08	1	1105-		●	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> SINGLE RR TIRE(6TD) (A) STAMP IC	8-98001-794-1	01	1	0907-1209	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> SINGLE RR TIRE(6TD) (C) STAMP IC	8-98211-480-0	01	1	1210-	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> SINGLE RR TIRE(6TD) (A) STAMP IC	8-98001-795-1	01	1	0907-1209	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> SINGLE RR TIRE(6TD) (C) STAMP IC	8-98211-481-0	01	1	1210-	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> EXC. SINGLE RR TIRE(6TD) (A) STAMP IA1	8-98039-406-0	01	1	0907-1209	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> EXC. SINGLE RR TIRE(6TD) (C) STAMP IA1	8-98208-979-0	01	1	1210-	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> EXC. SINGLE RR TIRE(6TD) (A) STAMP IA1	8-98039-407-0	01	1	0907-1209	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> EXC. SINGLE RR TIRE(6TD) (C) STAMP IA1	8-98208-980-0	01	1	1210-	●
306	07.836 BAR; BACK,RR WIDE ALUMINUM REAR BUMPER<7HZ> (B) STAMP IA3	8-98039-408-0	01	1	0907-	●
306	07.836 BAR; BACK,RR (B) STAMP IA3	8-98039-408-0	01	1	0907-		●	●
306	07.836 BAR; BACK,RR WIDE ALUMINUM REAR BUMPER<7HZ> (B) STAMP IA3	8-98039-409-0	01	1	0907-	●
306	07.836 BAR; BACK,RR (B) STAMP IA3	8-98039-409-0	01	1	0907-		●	●
315	07.829 RIVET; CAP WIDE STEEL REAR BUMPER<SMS> 08.155 (A) D8X13.5	1-09987-248-1	04	1	0907-	●
315	07.829 RIVET; CAP WIDE ALUMINUM REAR BUMPER<7HZ> (B)	1-71290-062-0	04	1	0907-	●	●	●

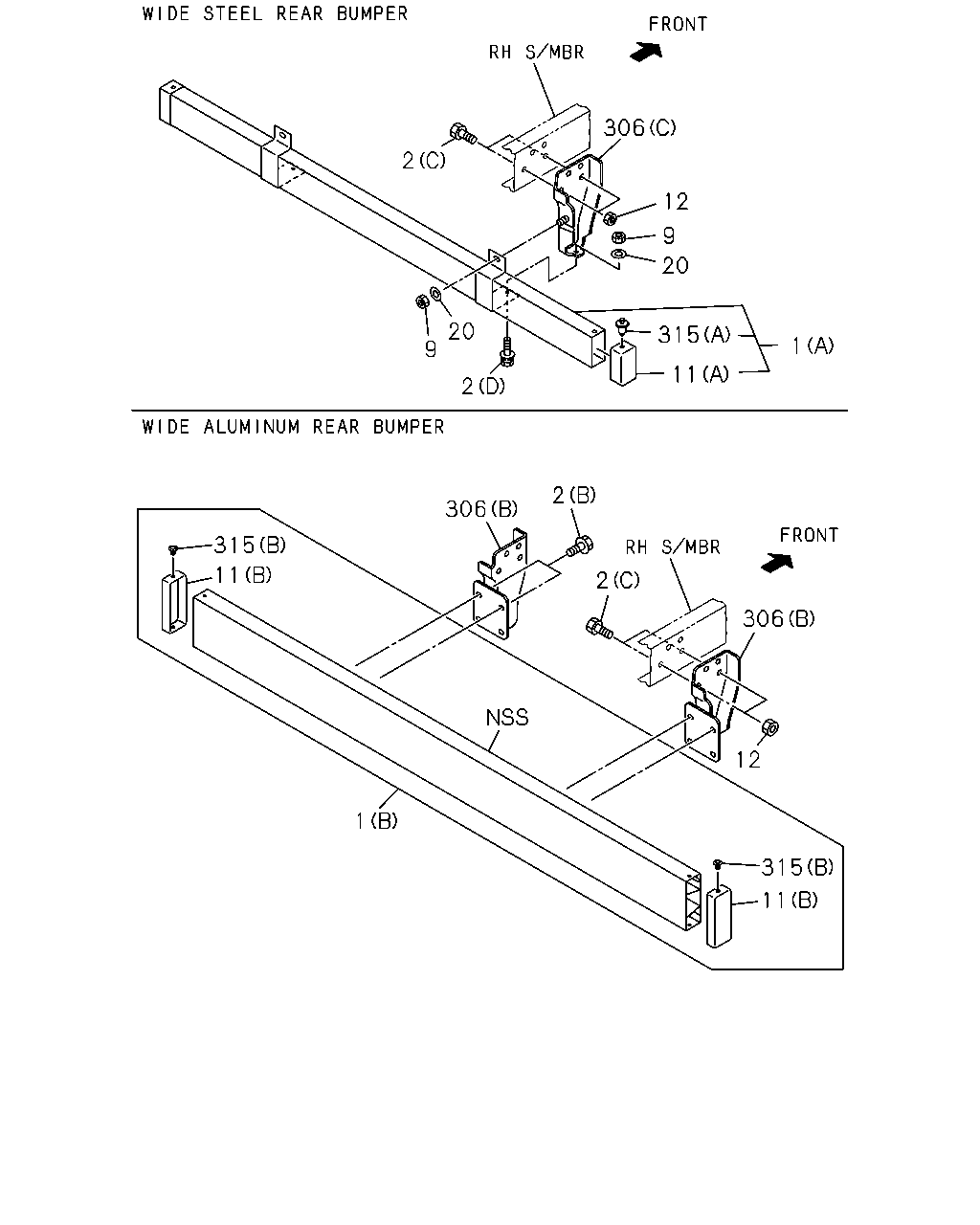

2 306 12 9 20 315 11 1 20 9 2 315 11 1 11 315 12 306 2 2 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	07.070 BUMPER; RR WIDE STEEL REAR BUMPER<SMS> REAR WIDE TREAD(V4T) (A) STEEL BUMPER STAMP IJ2H	8-98000-145-1	01	1	0907-	●
1	07.070 BUMPER; RR WIDE STEEL REAR BUMPER<SMS> EXC. REAR WIDE TREAD(V4T) (A) STEEL BUMPER STAMP IJ2G	8-98000-144-1	01	1	0907-	●
1	07.070 BUMPER; RR REAR WIDE TREAD(V4T) WIDE ALUMINUM REAR BUMPER<7HZ> (B) ALUMINUM BUMPER STAMP IH2J	8-98088-673-0	01	1	0907-	●
1	07.070 BUMPER; RR REAR WIDE TREAD(V4T) (B) ALUMINUM BUMPER STAMP IH2J	8-98088-673-0	01	1	0907-		●
1	07.070 BUMPER; RR (B) ALUMINUM BUMPER STAMP IH2J	8-98088-673-0	01	1	0907-			●
1	07.070 BUMPER; RR WIDE ALUMINUM REAR BUMPER<7HZ> EXC. REAR WIDE TREAD(V4T) (B) ALUMINUM BUMPER STAMP IH2G	8-98088-672-0	01	1	0907-	●
1	07.070 BUMPER; RR EXC. REAR WIDE TREAD(V4T) (B) ALUMINUM BUMPER STAMP IH2G	8-98088-672-0	01	1	0907-		●
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> 01.271 (A) M10X30	8-94324-205-0	04	1	0907-1209	●
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> 00.029 (D) M10X25 FLANGE	0-28651-025-0	02	1	1210-	●
2	07.874 BOLT; BACK BAR WIDE ALUMINUM REAR BUMPER<7HZ> 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	0907-	●
2	07.874 BOLT; BACK BAR 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	0907-		●	●
2	07.874 BOLT; BACK BAR WHEEL BASE 2400MM(24W) WIDE STEEL REAR BUMPER<SMS>,WIDE ALUMINUM REAR BUMPER<7HZ> SINGLE RR TIRE(6TD) (C) M14X30	0-20851-430-0	08	1	0907-1104	●
2	07.874 BOLT; BACK BAR WHEEL BASE 3300MM(33W) WIDE STEEL REAR BUMPER<SMS>,WIDE ALUMINUM REAR BUMPER<7HZ> EXC. SINGLE RR TIRE(6TD) (C) M14X30	0-20851-430-0	08	1	0907-1104	●
2	07.874 BOLT; BACK BAR WHEEL BASE 3300MM(33W) (C) M14X30	0-20851-430-0	08	1	0907-1104		●	●
2	07.874 BOLT; BACK BAR WHEEL BASE 2400MM(24W) WIDE STEEL REAR BUMPER<SMS>,WIDE ALUMINUM REAR BUMPER<7HZ> SINGLE RR TIRE(6TD) (C) M14X30	0-20851-430-0	08	1	1105-	●
2	07.874 BOLT; BACK BAR WHEEL BASE 3300MM(33W) WIDE STEEL REAR BUMPER<SMS>,WIDE ALUMINUM REAR BUMPER<7HZ> (C) M14X30	0-20851-430-0	08	1	1105-	●
2	07.874 BOLT; BACK BAR WHEEL BASE 3300MM(33W) (C) M14X30	0-20851-430-0	08	1	1105-		●	●
2	07.874 BOLT; BACK BAR WHEEL BASE 2400MM(24W) WIDE STEEL REAR BUMPER<SMS>,WIDE ALUMINUM REAR BUMPER<7HZ> EXC. SINGLE RR TIRE(6TD) (C) M14X30	0-20851-430-0	04	1	0907-	●
2	07.874 BOLT; BACK BAR WHEEL BASE 2400MM(24W) (C) M14X30	0-20851-430-0	04	1	0907-		●	●
9	07.070 NUT; BUMPER WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE	0-91180-210-0	02	1	0907-1209	●
9	07.070 NUT; BUMPER WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE	0-91180-210-0	04	1	1210-	●
11	07.829 CAP; RR BUMPER WIDE STEEL REAR BUMPER<SMS> (A)	8-97174-008-0	02	1	0907-	●
11	07.829 CAP; RR BUMPER WIDE ALUMINUM REAR BUMPER<7HZ> (B)	1-71290-064-0	02	1	0907-	●	●	●
12	07.833 NUT; BRKT WHEEL BASE 2400MM(24W) WIDE STEEL REAR BUMPER<SMS>,WIDE ALUMINUM REAR BUMPER<7HZ> EXC. SINGLE RR TIRE(6TD) 00.429 M14 FLANGE	0-91180-214-0	04	1	0907-	●
12	07.833 NUT; BRKT WHEEL BASE 2400MM(24W) 00.429 M14 FLANGE	0-91180-214-0	04	1	0907-		●	●
12	07.833 NUT; BRKT WHEEL BASE 2400MM(24W) WIDE STEEL REAR BUMPER<SMS>,WIDE ALUMINUM REAR BUMPER<7HZ> SINGLE RR TIRE(6TD) 00.429 M14 FLANGE	0-91180-214-0	08	1	0907-1104	●
12	07.833 NUT; BRKT WHEEL BASE 3300MM(33W) WIDE STEEL REAR BUMPER<SMS>,WIDE ALUMINUM REAR BUMPER<7HZ> EXC. SINGLE RR TIRE(6TD) 00.429 M14 FLANGE	0-91180-214-0	08	1	0907-1104	●
12	07.833 NUT; BRKT WHEEL BASE 3300MM(33W) 00.429 M14 FLANGE	0-91180-214-0	08	1	0907-1104		●	●
12	07.833 NUT; BRKT WHEEL BASE 2400MM(24W) WIDE STEEL REAR BUMPER<SMS>,WIDE ALUMINUM REAR BUMPER<7HZ> SINGLE RR TIRE(6TD) 00.429 M14 FLANGE	0-91180-214-0	08	1	1105-	●
12	07.833 NUT; BRKT WHEEL BASE 3300MM(33W) WIDE STEEL REAR BUMPER<SMS>,WIDE ALUMINUM REAR BUMPER<7HZ> 00.429 M14 FLANGE	0-91180-214-0	08	1	1105-	●
12	07.833 NUT; BRKT WHEEL BASE 3300MM(33W) 00.429 M14 FLANGE	0-91180-214-0	08	1	1105-		●	●
20	07.070 WASHER; PL,BUMPER WIDE STEEL REAR BUMPER<SMS> 00.002 ID=10.5 OD=32	0-91614-810-0	04	1	1210-	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> SINGLE RR TIRE(6TD) (A) STAMP IC	8-98001-794-1	01	1	0907-1209	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> SINGLE RR TIRE(6TD) (C) STAMP IC	8-98211-480-0	01	1	1210-	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> SINGLE RR TIRE(6TD) (A) STAMP IC	8-98001-795-1	01	1	0907-1209	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> SINGLE RR TIRE(6TD) (C) STAMP IC	8-98211-481-0	01	1	1210-	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> EXC. SINGLE RR TIRE(6TD) (A) STAMP IA1	8-98039-406-0	01	1	0907-1209	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> EXC. SINGLE RR TIRE(6TD) (C) STAMP IA1	8-98208-979-0	01	1	1210-	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> EXC. SINGLE RR TIRE(6TD) (A) STAMP IA1	8-98039-407-0	01	1	0907-1209	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> EXC. SINGLE RR TIRE(6TD) (C) STAMP IA1	8-98208-980-0	01	1	1210-	●
306	07.836 BAR; BACK,RR WIDE ALUMINUM REAR BUMPER<7HZ> (B) STAMP IA3	8-98039-408-0	01	1	0907-	●
306	07.836 BAR; BACK,RR (B) STAMP IA3	8-98039-408-0	01	1	0907-		●	●
306	07.836 BAR; BACK,RR WIDE ALUMINUM REAR BUMPER<7HZ> (B) STAMP IA3	8-98039-409-0	01	1	0907-	●
306	07.836 BAR; BACK,RR (B) STAMP IA3	8-98039-409-0	01	1	0907-		●	●
315	07.829 RIVET; CAP WIDE STEEL REAR BUMPER<SMS> 08.155 (A) D8X13.5	1-09987-248-1	04	1	0907-	●
315	07.829 RIVET; CAP WIDE ALUMINUM REAR BUMPER<7HZ> (B)	1-71290-062-0	04	1	0907-	●	●	●

113 114 113 114 128 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 2400MM(24W) DOOR MIRROR<6VE> WIDE ALUMINUM REAR BUMPER<7HZ> EXC. SINGLE RR TIRE(6TD) 02.664 (A)	8-98030-832-0	01	1	0907-1402	●	●	●
113	07.800 BRACKET; LICENSE PLATE SINGLE RR TIRE(6TD) DOOR MIRROR<6VE> 02.664 (A)	8-98030-832-0	01	1	0907-1402	●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 2400MM(24W) DOOR MIRROR<6VE> 02.664 (A)	8-98030-832-0	01	1	1403-	●	●	●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 2400MM(24W) WIDE ALUMINUM REAR BUMPER<7HZ> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. SINGLE RR TIRE(6TD) 02.664 (A)	8-97206-019-0	01	1	0907-1402	●	●	●
113	07.800 BRACKET; LICENSE PLATE SINGLE RR TIRE(6TD) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.664 (A)	8-97206-019-0	01	1	0907-1402	●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 2400MM(24W) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.664 (A)	8-97206-019-0	01	1	1403-	●	●	●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 2400MM(24W) WIDE ALUMINUM REAR BUMPER<7HZ> EXC. SINGLE RR TIRE(6TD),DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.664 (A)	8-97206-017-0	01	1	0907-	●	●	●
113	07.800 BRACKET; LICENSE PLATE SINGLE RR TIRE(6TD) EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.664 (A)	8-97206-017-0	01	1	0907-	●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 3300MM(33W) DOOR MIRROR<6VE> EXC. SINGLE RR TIRE(6TD) (A)	8-98079-145-0	01	1	0907-	●	●	●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 3300MM(33W) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. SINGLE RR TIRE(6TD) (A)	8-98079-146-0	01	1	0907-	●	●	●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD),DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98079-147-0	01	1	0907-	●	●	●
113	07.800 BRACKET; LICENSE PLATE SINGLE RR TIRE(6TD) (B)	8-98089-089-0	01	1	0907-	●
113	07.800 BRACKET; LICENSE PLATE SINGLE RR TIRE(6TD) (B)	8-98089-090-0	01	1	0907-	●
113	07.800 BRACKET; LICENSE PLATE EXC. SINGLE RR TIRE(6TD) (B)	8-98100-014-0	01	1	0907-	●
113	07.800 BRACKET; LICENSE PLATE (B)	8-98100-014-0	01	1	0907-		●	●
113	07.800 BRACKET; LICENSE PLATE EXC. SINGLE RR TIRE(6TD) (B)	8-98100-015-0	01	1	0907-	●
113	07.800 BRACKET; LICENSE PLATE (B)	8-98100-015-0	01	1	0907-		●	●
114	07.800 BOLT; BRKT,LICENSE PLATE SINGLE RR TIRE(6TD) 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	0907-	●
114	07.800 BOLT; BRKT,LICENSE PLATE 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0907-1402	●	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	1403-	●	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE EXC. SINGLE RR TIRE(6TD) 07.874 (B) M14X30	0-20851-430-0	04	1	0907-	●
114	07.800 BOLT; BRKT,LICENSE PLATE 07.874 (B) M14X30	0-20851-430-0	04	1	0907-		●	●
128	02.662 NUT; CROSS PLATE SINGLE RR TIRE(6TD) 03.162 M10 FLANGE	0-91180-110-0	04	1	0907-	●
128	02.662 NUT; CROSS PLATE EXC. SINGLE RR TIRE(6TD) 00.429 M14 FLANGE	0-91180-214-0	04	1	0907-	●
128	02.662 NUT; CROSS PLATE 00.429 M14 FLANGE	0-91180-214-0	04	1	0907-		●	●
