6-78 — FLOOR HOLE PLUG (#76514) — 13 parça

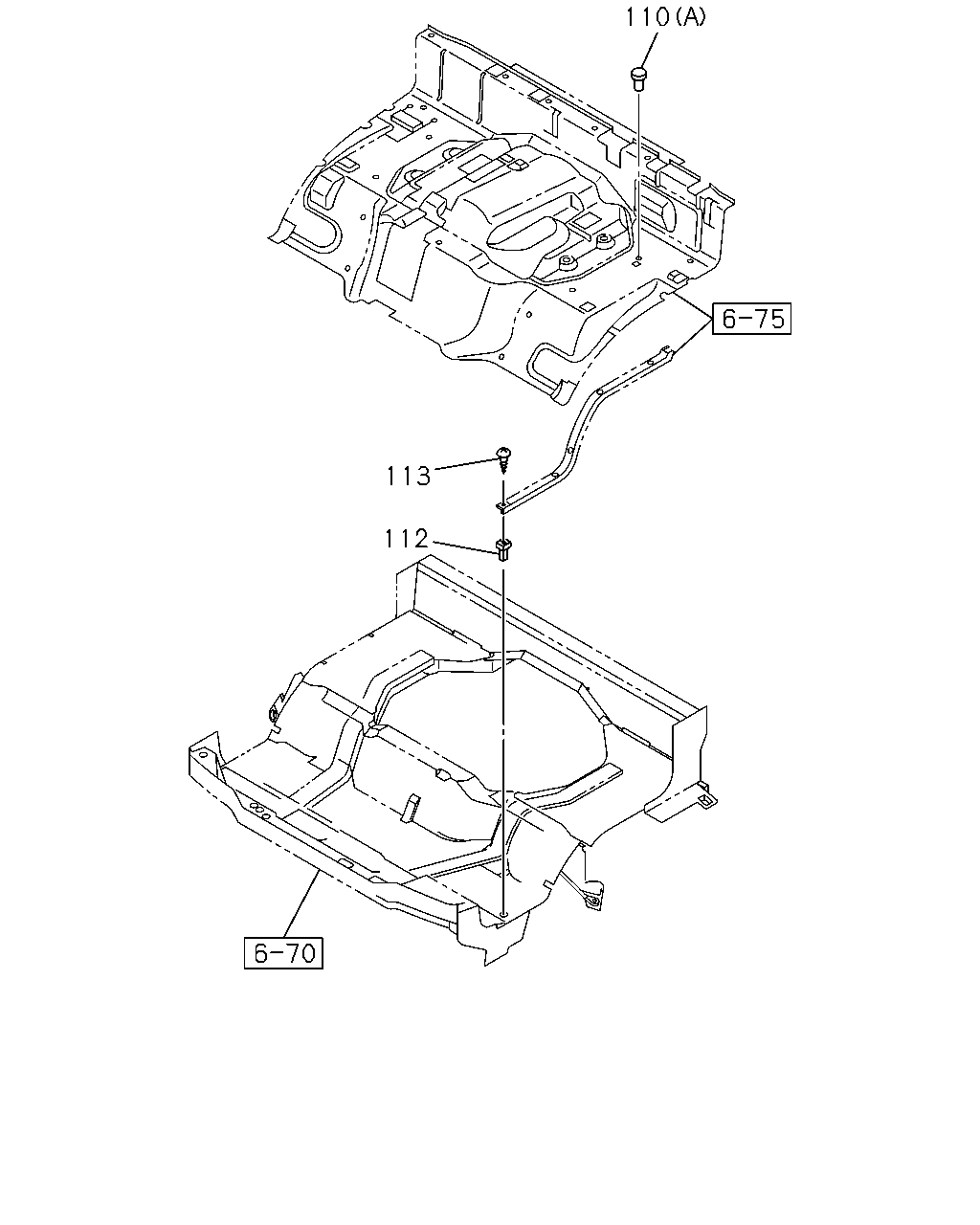

çizim 132284

110 113 112

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	110	16.802 FASTENER; FLOOR MAT (A) BLACK	8-94279-089-0	10	1	0907-	●	●
	110	16.802 FASTENER; FLOOR MAT (A) BLACK	8-94279-089-0	13	1	0907-			●
	110	16.802 FASTENER; FLOOR MAT 04.931 (B) H=15	8-94463-268-1	08	1	0907-			●
	110	16.802 FASTENER; FLOOR MAT 16.742 (C) DARK GRAY	8-97098-326-0	04	1	0907-			●
	112	16.800 GROMMET; SCREW,TRIM COVER 04.931 H=15	8-94463-268-1	08	1	0907-	●	●	●
	113	16.800 SCREW; TRIM COVER 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	0907-	●	●	●

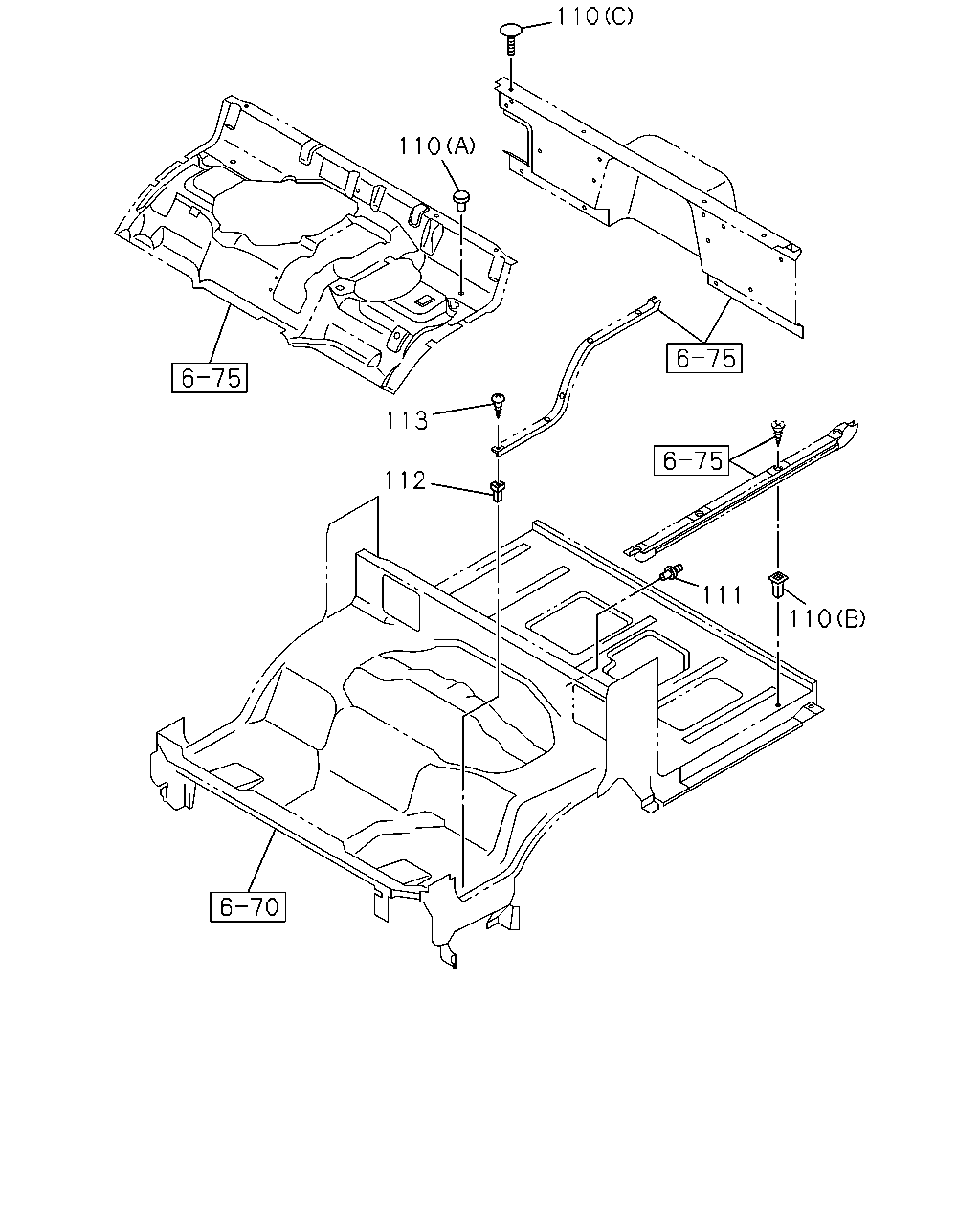

çizim 132470

110 110 113 112 111 110

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	110	16.802 FASTENER; FLOOR MAT (A) BLACK	8-94279-089-0	10	1	0907-	●	●
	110	16.802 FASTENER; FLOOR MAT (A) BLACK	8-94279-089-0	13	1	0907-			●
	110	16.802 FASTENER; FLOOR MAT 04.931 (B) H=15	8-94463-268-1	08	1	0907-			●
	110	16.802 FASTENER; FLOOR MAT 16.742 (C) DARK GRAY	8-97098-326-0	04	1	0907-			●
	111	16.800 FASTENER; FLOOR MAT,CAB RR MTG 16.802 BLACK	8-94279-089-0	09	1	0907-			●
	112	16.800 GROMMET; SCREW,TRIM COVER 04.931 H=15	8-94463-268-1	08	1	0907-	●	●	●
	113	16.800 SCREW; TRIM COVER 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	0907-	●	●	●
