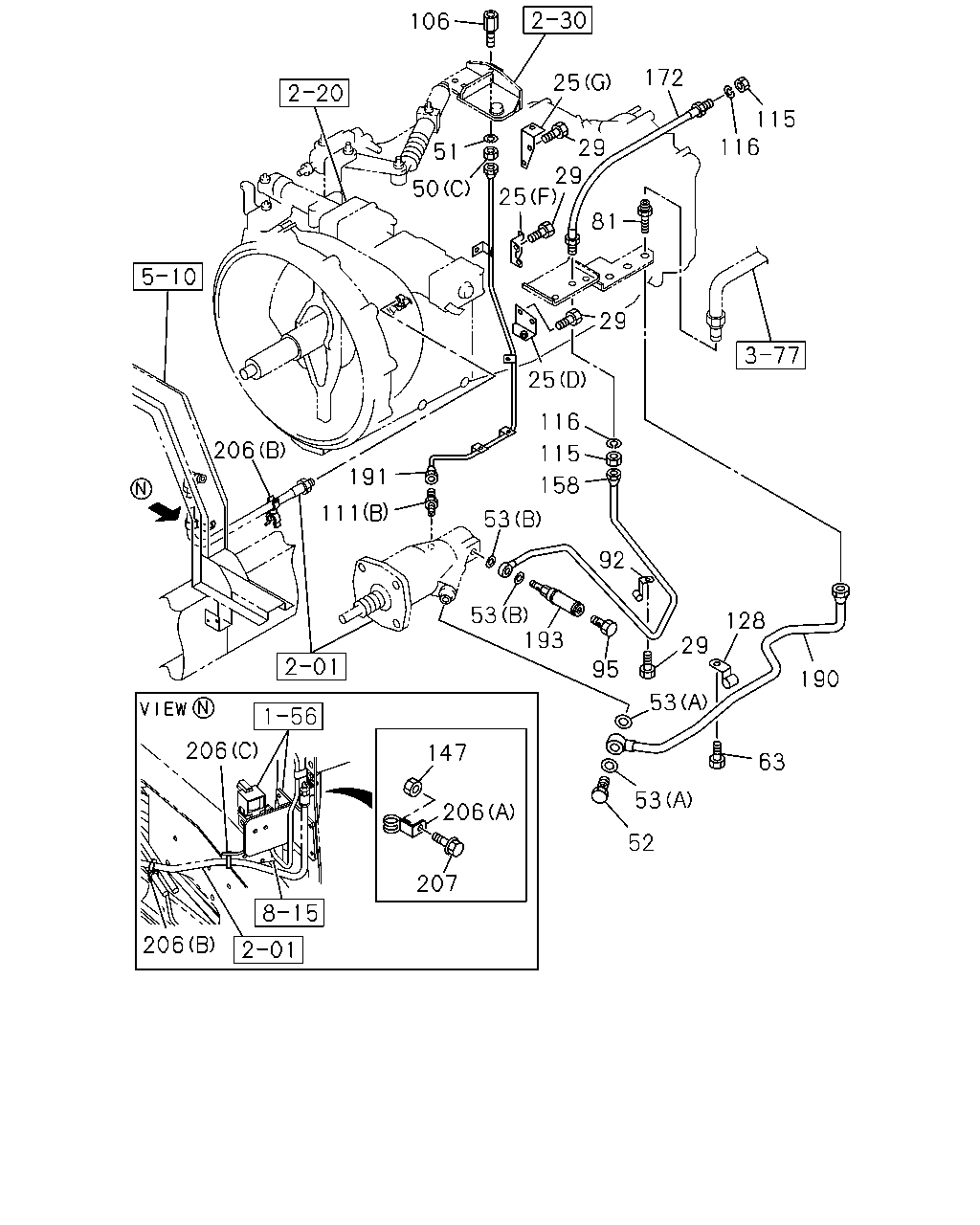

2-05B — CLUTCH PIPING (#7651) — 610 parça

106 172 25 115 116 29 29 25 51 50 81 29 25 116 206 115 191 158 111 53 92 53 193 128 29 95 190 53 206 147 63 53 206 52 207 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	01	1	9902-9903	●
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	01	1	9904-0003	●
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	01	1	0004-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (C) L=50	1-47475-299-2	01	1	0004-			●
25	BRACKET; OIL PIPE (A)	1-47478-281-0	01	1	9902-9904	●
25	BRACKET; OIL PIPE CAB UP +110MM<TGG> (A)	1-47478-582-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) CAB UP +110MM<TGG> (A)	1-47478-582-1	01	1	9905-			●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9902-0003	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	0004-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (B)	1-71907-377-3	01	1	0004-			●
25	BRACKET; OIL PIPE (E)	1-47475-881-0	01	1	9902-0003	●
25	BRACKET; OIL PIPE (E)	1-47475-881-0	01	1	0004-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (E)	1-47475-881-0	01	1	0004-			●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9902-9904	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9905-9909	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9910-0003	●	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	0004-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (D)	1-47477-498-1	01	1	0004-			●
25	BRACKET; OIL PIPE (F)	1-47477-499-1	01	1	9902-9904	●
25	BRACKET; OIL PIPE (F)	1-47477-499-1	01	1	9905-9909	●	●
25	BRACKET; OIL PIPE (F)	1-47477-499-1	01	1	9910-0003	●	●	●
25	BRACKET; OIL PIPE (F)	1-47477-499-1	01	1	0004-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (F)	1-47477-499-1	01	1	0004-			●
25	BRACKET; OIL PIPE (G)	1-47478-406-0	01	1	9902-9904	●
25	BRACKET; OIL PIPE (G)	1-47478-406-0	01	1	9905-9909	●	●
25	BRACKET; OIL PIPE (G)	1-47478-406-0	01	1	9910-0003	●	●	●
25	BRACKET; OIL PIPE (G)	1-47478-406-0	01	1	0004-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (G)	1-47478-406-0	01	1	0004-			●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXR5MC) (C) L=50	1-47475-299-2	03	1	0004-			●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXR5MC) (H)	1-47477-604-2	01	1	0004-			●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9902-9903	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	9904-0002	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	05	1	9902-9904	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	05	1	9905-9909	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	9910-	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	9902-9903	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	01	1	0003-0003	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	01	1	0004-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXR6MC) M8X20 FLANGE	0-28680-820-0	01	1	0004-			●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0003-0003	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXR6MC) M8X25 FLANGE	0-28680-825-0	01	1	0004-			●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	04	1	9910-0003	●	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	04	1	0004-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXR6MC) M8X16 FLANGE	0-28080-816-0	04	1	0004-			●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	9910-			●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXR5MC) M8X20 FLANGE	0-28680-820-0	03	1	0004-			●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXR5MC) M8X25 FLANGE	0-28680-825-0	02	1	0004-			●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9902-0003	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0004-	●	●	●
50	NUT; UNION (B) M12 FLANGE	0-91150-212-0	01	1	9902-0003	●
50	NUT; UNION (B) M12 FLANGE	0-91150-212-0	01	1	0004-	●	●	●
50	NUT; UNION SHORT CHASSIS&LHD(EXR6MC) (B) M12 FLANGE	0-91150-212-0	01	1	0004-			●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	9902-9904	●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	9905-9909	●	●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	9910-0003	●	●	●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	0004-	●	●
50	NUT; UNION SHORT CHASSIS&LHD(EXR6MC) (C) M12	9-09840-280-0	01	1	0004-			●
50	NUT; UNION SHORT CHASSIS&RHD(EXR5MC) (D) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0004-			●
51	WASHER; LK ID=12.2	9-09150-512-0	01	1	9902-9904	●
51	WASHER; LK ID=12.2	9-09150-512-0	01	1	9905-9909	●	●
51	WASHER; LK ID=12.2	9-09150-512-0	01	1	9910-0003	●	●	●
51	WASHER; LK ID=12.2	9-09150-512-0	01	1	0004-	●	●
51	WASHER; LK SHORT CHASSIS&LHD(EXR6MC) ID=12.2	9-09150-512-0	01	1	0004-			●
52	BOLT; EYE,AIR PIPE M16X30	1-09675-026-0	01	1	9902-9904	●
52	BOLT; EYE,AIR PIPE M16X30	1-09675-026-0	01	1	9905-9909	●	●
52	BOLT; EYE,AIR PIPE M16X30	1-09675-026-0	01	1	9910-0003	●	●	●
52	BOLT; EYE,AIR PIPE M16X30	1-09675-026-0	01	1	0004-	●	●
52	BOLT; EYE,AIR PIPE SHORT CHASSIS&LHD(EXR6MC) M16X30	1-09675-026-0	01	1	0004-			●
53	GASKET; JOINT BOLT (A) ID=16.2	1-09630-086-0	02	1	9902-9904	●
53	GASKET; JOINT BOLT (A) ID=16.2	1-09630-086-0	02	1	9905-9909	●	●
53	GASKET; JOINT BOLT (A) ID=16.2	1-09630-086-0	02	1	9910-0003	●	●	●
53	GASKET; JOINT BOLT (A) ID=16.2	1-09630-086-0	02	1	0004-	●	●
53	GASKET; JOINT BOLT SHORT CHASSIS&LHD(EXR6MC) (A) ID=16.2	1-09630-086-0	02	1	0004-			●
53	GASKET; JOINT BOLT (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	9902-9904	●
53	GASKET; JOINT BOLT (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	9905-9909	●	●
53	GASKET; JOINT BOLT (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	9910-0003	●	●	●
53	GASKET; JOINT BOLT (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0004-	●	●
53	GASKET; JOINT BOLT SHORT CHASSIS&LHD(EXR6MC) (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0004-			●
63	BOLT; CLIP,PIPE M8X16 FLANGE	0-28080-816-0	01	1	9902-9904	●
63	BOLT; CLIP,PIPE M8X16 FLANGE	0-28080-816-0	01	1	9905-9909	●	●
63	BOLT; CLIP,PIPE M8X16 FLANGE	0-28080-816-0	01	1	9910-0003	●	●	●
63	BOLT; CLIP,PIPE M8X16 FLANGE	0-28080-816-0	01	1	0004-	●	●
63	BOLT; CLIP,PIPE SHORT CHASSIS&LHD(EXR6MC) M8X16 FLANGE	0-28080-816-0	01	1	0004-			●
81	UNION; AIR PIPE	1-09664-233-0	01	1	9902-9904	●
81	UNION; AIR PIPE	1-09664-233-0	01	1	9905-9909	●	●
81	UNION; AIR PIPE	1-09664-233-0	01	1	9910-0003	●	●	●
81	UNION; AIR PIPE	1-09664-233-0	01	1	0004-	●	●
81	UNION; AIR PIPE SHORT CHASSIS&LHD(EXR6MC)	1-09664-233-0	01	1	0004-			●
92	CLIP; OIL PIPE ID=9 L=32	9-09524-865-0	01	1	9902-9904	●
92	CLIP; OIL PIPE ID=9 L=32	9-09524-865-0	01	1	9905-	●	●
92	CLIP; OIL PIPE ID=9 H=32 L=24	1-09701-221-0	01	1	9910-			●
95	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9902-9904	●
95	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9905-9909	●	●
95	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9910-0003	●	●	●
95	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	0004-	●	●
95	BOLT; EYE,OIL PIPE SHORT CHASSIS&LHD(EXR6MC) M14X27 FLANGE	1-09675-086-0	01	1	0004-			●
106	UNION; OIL PIPE	1-09654-384-0	01	1	9902-9904	●
106	UNION; OIL PIPE	1-09654-384-0	01	1	9905-9909	●	●
106	UNION; OIL PIPE	1-09654-384-0	01	1	9910-0003	●	●	●
106	UNION; OIL PIPE	1-09654-384-0	01	1	0004-	●	●
106	UNION; OIL PIPE SHORT CHASSIS&LHD(EXR6MC)	1-09654-384-0	01	1	0004-			●
106	UNION; OIL PIPE SHORT CHASSIS&RHD(EXR5MC) M14 STRAIGHT	9-09223-008-1	01	1	0004-			●
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9902-0003	●
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	0004-	●	●	●
111	UNION; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (A) M14 2WAY	1-09654-176-2	01	1	0004-			●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9902-9904	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9905-9909	●	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9910-0003	●	●	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0004-	●	●
111	UNION; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0004-			●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9902-9904	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9902-9904	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-0003	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-0003	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0004-	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0004-	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9902-9904	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9902-9904	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-0003	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-0003	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0004-	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0004-	●	●	●
128	CLIP; AIR PIPE ID=13	1-09701-030-1	01	1	9902-9904	●
128	CLIP; AIR PIPE ID=13	1-09701-030-1	01	1	9905-	●	●
128	CLIP; AIR PIPE ID=13 H=18 L=20	1-09701-232-0	01	1	9910-			●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9902-0003	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0004-	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-208-0	01	1	9902-0003	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-208-0	01	1	0004-	●	●	●
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER	1-49119-466-2	01	1	9902-9904	●
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER	1-49119-466-2	01	1	9905-	●	●
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER	1-49161-054-0	01	1	9910-			●
172	HOSE; FLEX,CLU BOOSTER L=470	1-09364-929-0	01	1	9902-9904	●
172	HOSE; FLEX,CLU BOOSTER L=470	1-09364-929-0	01	1	9905-	●	●
172	HOSE; FLEX,CLU BOOSTER L=420	1-09364-615-0	01	1	9910-9912			●
172	HOSE; FLEX,CLU BOOSTER L=380	1-09364-261-0	01	1	0001-			●
190	PIPE; AIR,UNION TO MINIPAC	1-49119-465-1	01	1	9902-9904	●
190	PIPE; AIR,UNION TO MINIPAC	1-49119-465-1	01	1	9905-	●	●
190	PIPE; AIR,UNION TO MINIPAC	1-49161-730-0	01	1	9910-			●
191	PIPE; OIL,UNION TO MINIPAC	1-49163-427-0	01	1	9902-9904	●
191	PIPE; OIL,UNION TO MINIPAC	1-49163-427-0	01	1	9905-	●	●
191	PIPE; OIL,UNION TO MINIPAC	1-49163-428-0	01	1	9910-			●
193	ABSORBER; CLU SHORT CHASSIS&RHD(EXR5MC)	1-31820-023-0	01	1	0004-			●
206	CLIP; TUBE (A) ID=16 H=30 L=30	1-09701-080-0	01	1	9902-9902	●
206	CLIP; TUBE (A) ID=18 L=28 H=30	1-09701-110-0	01	1	9903-0003	●
206	CLIP; TUBE (A) ID=18 L=28 H=30	1-09701-110-0	01	1	0004-	●	●	●
206	CLIP; TUBE (B) ID=13 & 12	8-94178-797-0	01	1	9902-0003	●
206	CLIP; TUBE (B) ID=13 & 12	8-94178-797-0	01	1	0004-	●	●	●
206	CLIP; TUBE (C) ID=13-18 L=14.5	1-09709-290-0	01	1	0008-	●	●	●
207	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9902-0003	●
207	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0004-	●	●	●

147 24 36 58 57 147 67 58 67 186 66 24 103 22 167 187 192 56 102 133 17 180 184 10 175 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-0	01	1	9902-0003	●
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0004-	●	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9902-0003	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0004-	●	●	●
17	BOLT; BRKT SHORT CHASSIS&RHD(EXR5MC) M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0004-			●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9902-0003	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0004-	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=628	1-47428-381-1	01	1	9902-9903	●
24	PIPE ASM; CLU,M/CYL TO UNION L=628	1-47428-381-1	01	1	9904-0003	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=628	1-47428-381-1	01	1	0004-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&LHD(EXR6MC) L=628	1-47428-381-1	01	1	0004-			●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&RHD(EXR5MC)	1-47427-608-0	01	1	0004-			●
36	BRACKET; CLIP	1-71117-191-1	01	1	9902-0003	●
36	BRACKET; CLIP	1-71117-191-1	01	1	0004-	●	●	●
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	9902-0003	●
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	0004-	●	●
56	BRACKET; FLEX HOSE SHORT CHASSIS&LHD(EXR6MC)	1-47477-603-1	01	1	0004-			●
56	BRACKET; FLEX HOSE SHORT CHASSIS&RHD(EXR5MC)	1-47477-602-1	01	1	0004-			●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9902-0003	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0004-	●	●
57	HOSE; CLU M/CYL TO OIL TANK SHORT CHASSIS&LHD(EXR6MC)	1-47427-312-0	01	1	0004-			●
57	HOSE; CLU M/CYL TO OIL TANK SHORT CHASSIS&RHD(EXR5MC)	1-47424-533-0	01	1	0004-			●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9902-0003	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0004-	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9902-0003	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0004-	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9902-0003	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0004-	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9902-0003	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0004-	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9902-0003	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0004-	●	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9902-0003	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0004-	●	●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9902-0003	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0004-	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-208-0	01	1	9902-0003	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-208-0	01	1	0004-	●	●	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9902-0003	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0004-	●	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXR6MC) (B)	1-71117-207-1	01	1	0004-			●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9902-0003	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0004-	●	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXR6MC) (A)	1-71907-376-1	01	1	0004-			●
167	BRACKET; UNION SHORT CHASSIS&RHD(EXR5MC) (A)	1-71117-183-3	01	1	0004-			●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9902-0003	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0004-	●	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9902-0003	●
180	PLUG; PIPE	9-09204-510-0	01	1	0004-	●	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9902-0003	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0004-	●	●	●
186	HOLDER; CLIP ID=8.3 & 8.3	8-94426-175-0	01	1	9902-0003	●
186	HOLDER; CLIP ID=8.3 & 8.3	8-94426-175-0	01	1	0004-	●	●
186	HOLDER; CLIP SHORT CHASSIS&LHD(EXR6MC) ID=8.3 & 8.3	8-94426-175-0	01	1	0004-			●
186	HOLDER; CLIP SHORT CHASSIS&RHD(EXR5MC)	8-94107-710-0	02	1	0004-			●
187	SEAL; BRKT	1-71117-209-2	01	1	9902-0003	●
187	SEAL; BRKT	1-71117-209-2	01	1	0004-	●	●
187	SEAL; BRKT SHORT CHASSIS&LHD(EXR6MC)	1-71117-209-2	01	1	0004-			●
187	SEAL; BRKT SHORT CHASSIS&RHD(EXR5MC)	1-71117-222-0	01	1	0004-			●
192	PLATE SHORT CHASSIS&RHD(EXR5MC)	1-71117-221-0	01	1	0004-			●

115 34 33 172 116 33 35 153 111 25 28 25 29 28 30 25 27 28 104 30 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	01	1	9902-9903	●
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	01	1	9904-0003	●
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	01	1	0004-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (C) L=50	1-47475-299-2	01	1	0004-			●
25	BRACKET; OIL PIPE (A)	1-47478-281-0	01	1	9902-9904	●
25	BRACKET; OIL PIPE CAB UP +110MM<TGG> (A)	1-47478-582-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) CAB UP +110MM<TGG> (A)	1-47478-582-1	01	1	9905-			●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9902-0003	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	0004-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (B)	1-71907-377-3	01	1	0004-			●
25	BRACKET; OIL PIPE (E)	1-47475-881-0	01	1	9902-0003	●
25	BRACKET; OIL PIPE (E)	1-47475-881-0	01	1	0004-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (E)	1-47475-881-0	01	1	0004-			●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9902-9904	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9905-9909	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9910-0003	●	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	0004-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (D)	1-47477-498-1	01	1	0004-			●
25	BRACKET; OIL PIPE (F)	1-47477-499-1	01	1	9902-9904	●
25	BRACKET; OIL PIPE (F)	1-47477-499-1	01	1	9905-9909	●	●
25	BRACKET; OIL PIPE (F)	1-47477-499-1	01	1	9910-0003	●	●	●
25	BRACKET; OIL PIPE (F)	1-47477-499-1	01	1	0004-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (F)	1-47477-499-1	01	1	0004-			●
25	BRACKET; OIL PIPE (G)	1-47478-406-0	01	1	9902-9904	●
25	BRACKET; OIL PIPE (G)	1-47478-406-0	01	1	9905-9909	●	●
25	BRACKET; OIL PIPE (G)	1-47478-406-0	01	1	9910-0003	●	●	●
25	BRACKET; OIL PIPE (G)	1-47478-406-0	01	1	0004-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (G)	1-47478-406-0	01	1	0004-			●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXR5MC) (C) L=50	1-47475-299-2	03	1	0004-			●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXR5MC) (H)	1-47477-604-2	01	1	0004-			●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9904-0001	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0003-0003	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0004-	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXR6MC) M8 FLANGE	0-91150-108-0	02	1	0004-			●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXR5MC) M8 FLANGE	0-91150-108-0	04	1	0004-			●
27	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	02	1	9902-0003	●
27	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	02	1	0004-	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9902-0003	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0004-	●	●	●
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9902-0003	●
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0004-	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXR6MC) (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0004-			●
27	NUT; BRKT (D) M8 FLANGE	0-91150-108-0	01	1	9902-0003	●
27	NUT; BRKT (D) M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXR6MC) (D) M8 FLANGE	0-91150-108-0	01	1	0004-			●
28	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9902-9903	●
28	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9904-0003	●
28	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0004-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0004-			●
28	CLIP; OIL PIPE (A) ID=9 L=20	9-09524-835-0	01	1	9902-9903	●
28	CLIP; OIL PIPE (C) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9902-0003	●
28	CLIP; OIL PIPE (C) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0004-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (C) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0004-			●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXR5MC) (D) ID=8 H=20 L=20	1-09700-604-0	01	1	0004-			●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXR5MC) (B) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	0004-			●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXR5MC) (A) ID=9 L=20	9-09524-835-0	01	1	0004-			●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9902-9903	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	9904-0002	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	05	1	9902-9904	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	05	1	9905-9909	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	9910-	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	9902-9903	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	01	1	0003-0003	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	01	1	0004-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXR6MC) M8X20 FLANGE	0-28680-820-0	01	1	0004-			●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0003-0003	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXR6MC) M8X25 FLANGE	0-28680-825-0	01	1	0004-			●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	04	1	9910-0003	●	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	04	1	0004-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXR6MC) M8X16 FLANGE	0-28080-816-0	04	1	0004-			●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	9910-			●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXR5MC) M8X20 FLANGE	0-28680-820-0	03	1	0004-			●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXR5MC) M8X25 FLANGE	0-28680-825-0	02	1	0004-			●
30	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	9902-0003	●
30	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	0004-	●	●	●
30	BOLT; BRKT (C) M8X35 FLANGE	0-28680-835-0	02	1	9902-0003	●
30	BOLT; BRKT (C) M8X35 FLANGE	0-28680-835-0	02	1	0004-	●	●	●
30	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9902-0003	●
30	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0004-	●	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXR6MC) (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0004-			●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9902-9905	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9906-0003	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9906-0003			●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0004-	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0004-			●
33	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXR5MC) (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0004-			●
33	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXR5MC) (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0004-			●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	02	1	9902-9905	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9906-0003	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&LHD(EXR6MC) (A) M8X30 FLANGE	0-28680-830-0	01	1	9906-0003			●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	0004-	●	●	●
34	BOLT; PIPE CLIP SHORT CHASSIS&RHD(EXR5MC) (A) M8X30 FLANGE	0-28680-830-0	01	1	0004-			●
34	BOLT; PIPE CLIP SHORT CHASSIS&RHD(EXR5MC) (A) M8X20 FLANGE	0-28680-820-0	01	1	0004-			●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9902-9905	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9906-0003	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXR6MC) M8 FLANGE	0-91150-108-0	01	1	9906-0003			●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0004-	●	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&RHD(EXR5MC) M8 FLANGE	0-91150-108-0	01	1	0004-			●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9902-9905	●	●
35	NUT; PIPE CLIP SHORT CHASSIS&LHD(EXR6MC) M8 FLANGE	0-91150-108-0	02	1	9902-9905			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR	1-47429-325-0	01	1	9902-9903	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR	1-49164-307-0	01	1	9904-0003	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2143	1-49164-307-0	01	1	0004-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXR6MC) L=2143	1-49164-307-0	01	1	0004-			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXR5MC) L=2889	1-49164-483-0	01	1	0004-			●
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9902-0003	●
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	0004-	●	●	●
111	UNION; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (A) M14 2WAY	1-09654-176-2	01	1	0004-			●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9902-9904	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9905-9909	●	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9910-0003	●	●	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0004-	●	●
111	UNION; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0004-			●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9902-9904	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9902-9904	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-0003	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-0003	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0004-	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0004-	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9902-9904	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9902-9904	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-0003	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-0003	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0004-	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0004-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B)	1-47428-363-0	01	1	9902-0003	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	0004-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXR6MC) (B) L=490	1-47428-363-0	01	1	0004-			●
153	PIPE ASM; CLU,UNION TO FLEX (A)	1-49163-430-0	01	1	9902-0002	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=955	1-49163-430-0	01	1	0003-0003	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=955	1-49163-430-0	01	1	0004-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXR6MC) (A) L=955	1-49163-430-0	01	1	0004-			●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXR5MC) (B) L=464	1-47424-530-2	01	1	0004-			●
172	HOSE; FLEX,CLU BOOSTER L=470	1-09364-929-0	01	1	9902-9904	●
172	HOSE; FLEX,CLU BOOSTER L=470	1-09364-929-0	01	1	9905-	●	●
172	HOSE; FLEX,CLU BOOSTER L=420	1-09364-615-0	01	1	9910-9912			●
172	HOSE; FLEX,CLU BOOSTER L=380	1-09364-261-0	01	1	0001-			●

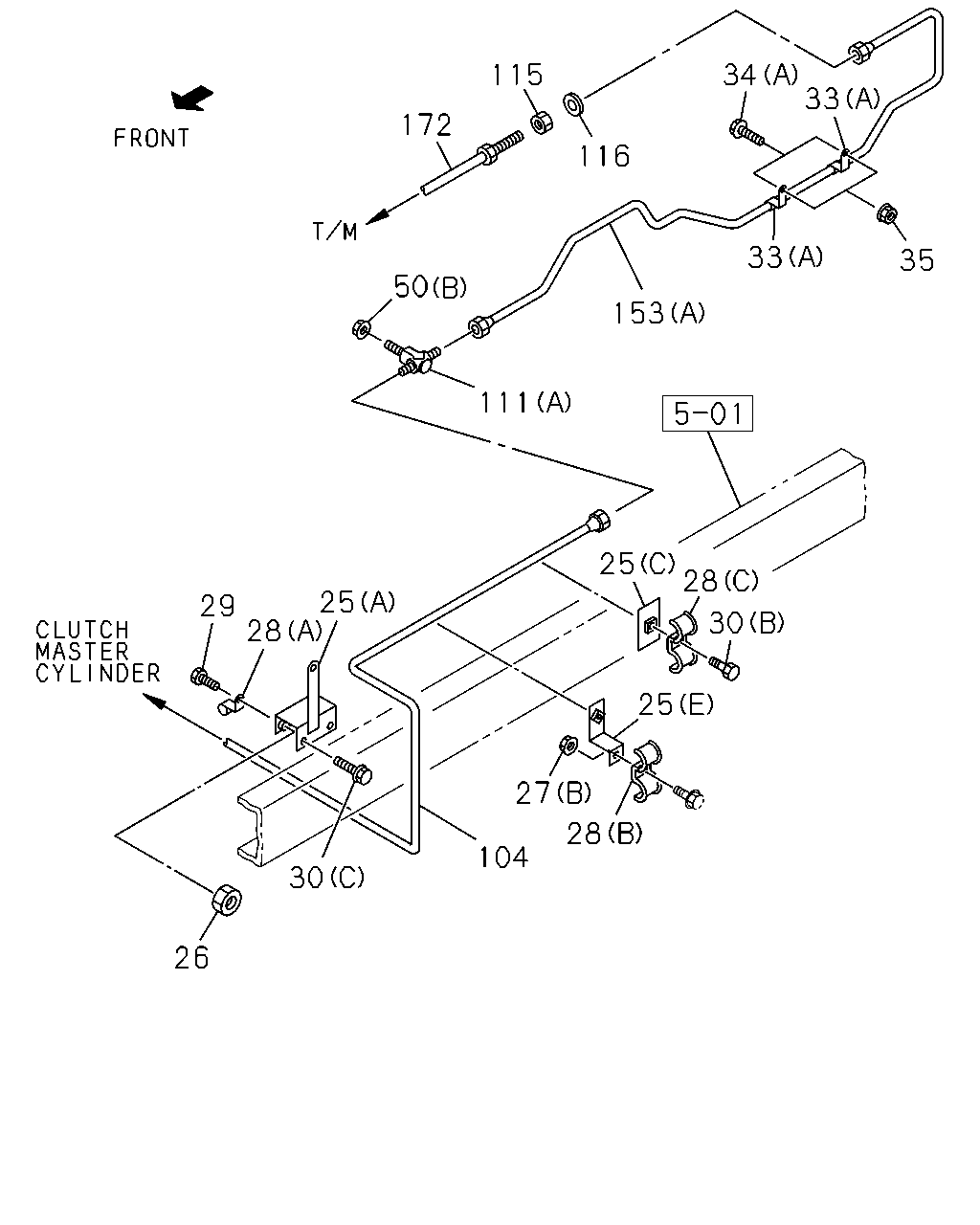

24 153 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-0	01	1	9902-0003	●
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0004-	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=628	1-47428-381-1	01	1	9902-9903	●
24	PIPE ASM; CLU,M/CYL TO UNION L=628	1-47428-381-1	01	1	9904-0003	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=628	1-47428-381-1	01	1	0004-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&LHD(EXR6MC) L=628	1-47428-381-1	01	1	0004-			●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&RHD(EXR5MC)	1-47427-608-0	01	1	0004-			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR	1-47429-325-0	01	1	9902-9903	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR	1-49164-307-0	01	1	9904-0003	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2143	1-49164-307-0	01	1	0004-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXR6MC) L=2143	1-49164-307-0	01	1	0004-			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXR5MC) L=2889	1-49164-483-0	01	1	0004-			●
153	PIPE ASM; CLU,UNION TO FLEX (B)	1-47428-363-0	01	1	9902-0003	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	0004-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXR6MC) (B) L=490	1-47428-363-0	01	1	0004-			●
153	PIPE ASM; CLU,UNION TO FLEX (A)	1-49163-430-0	01	1	9902-0002	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=955	1-49163-430-0	01	1	0003-0003	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=955	1-49163-430-0	01	1	0004-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXR6MC) (A) L=955	1-49163-430-0	01	1	0004-			●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXR5MC) (B) L=464	1-47424-530-2	01	1	0004-			●

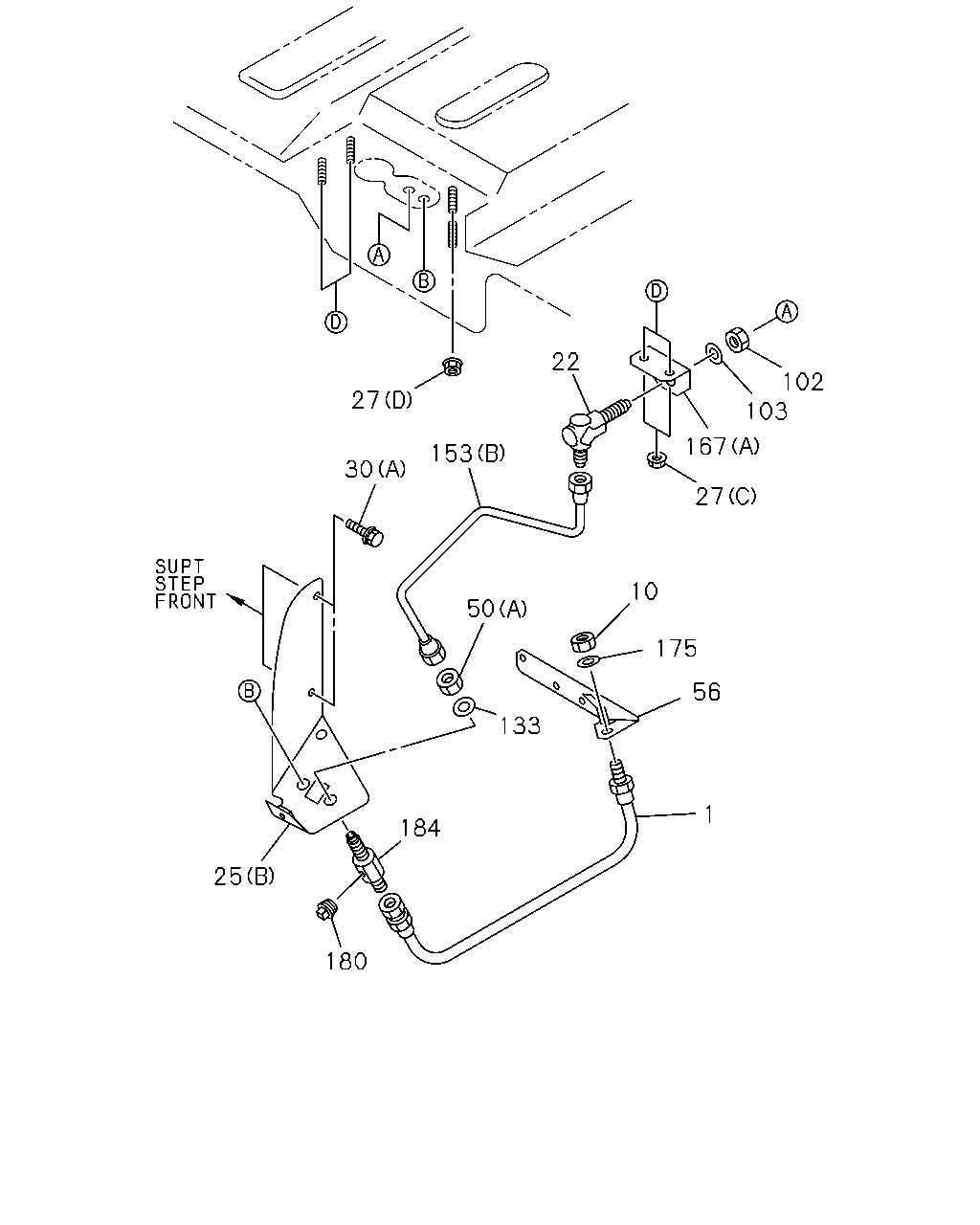

22 102 103 27 167 153 30 27 10 175 56 133 1 184 25 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-0	01	1	9902-0003	●
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0004-	●	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9902-0003	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0004-	●	●	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9902-0003	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0004-	●	●	●
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	01	1	9902-9903	●
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	01	1	9904-0003	●
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	01	1	0004-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (C) L=50	1-47475-299-2	01	1	0004-			●
25	BRACKET; OIL PIPE (A)	1-47478-281-0	01	1	9902-9904	●
25	BRACKET; OIL PIPE CAB UP +110MM<TGG> (A)	1-47478-582-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) CAB UP +110MM<TGG> (A)	1-47478-582-1	01	1	9905-			●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9902-0003	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	0004-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (B)	1-71907-377-3	01	1	0004-			●
25	BRACKET; OIL PIPE (E)	1-47475-881-0	01	1	9902-0003	●
25	BRACKET; OIL PIPE (E)	1-47475-881-0	01	1	0004-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (E)	1-47475-881-0	01	1	0004-			●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9902-9904	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9905-9909	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9910-0003	●	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	0004-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (D)	1-47477-498-1	01	1	0004-			●
25	BRACKET; OIL PIPE (F)	1-47477-499-1	01	1	9902-9904	●
25	BRACKET; OIL PIPE (F)	1-47477-499-1	01	1	9905-9909	●	●
25	BRACKET; OIL PIPE (F)	1-47477-499-1	01	1	9910-0003	●	●	●
25	BRACKET; OIL PIPE (F)	1-47477-499-1	01	1	0004-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (F)	1-47477-499-1	01	1	0004-			●
25	BRACKET; OIL PIPE (G)	1-47478-406-0	01	1	9902-9904	●
25	BRACKET; OIL PIPE (G)	1-47478-406-0	01	1	9905-9909	●	●
25	BRACKET; OIL PIPE (G)	1-47478-406-0	01	1	9910-0003	●	●	●
25	BRACKET; OIL PIPE (G)	1-47478-406-0	01	1	0004-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (G)	1-47478-406-0	01	1	0004-			●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXR5MC) (C) L=50	1-47475-299-2	03	1	0004-			●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXR5MC) (H)	1-47477-604-2	01	1	0004-			●
27	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	02	1	9902-0003	●
27	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	02	1	0004-	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9902-0003	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0004-	●	●	●
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9902-0003	●
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0004-	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXR6MC) (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0004-			●
27	NUT; BRKT (D) M8 FLANGE	0-91150-108-0	01	1	9902-0003	●
27	NUT; BRKT (D) M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXR6MC) (D) M8 FLANGE	0-91150-108-0	01	1	0004-			●
30	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	9902-0003	●
30	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	0004-	●	●	●
30	BOLT; BRKT (C) M8X35 FLANGE	0-28680-835-0	02	1	9902-0003	●
30	BOLT; BRKT (C) M8X35 FLANGE	0-28680-835-0	02	1	0004-	●	●	●
30	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9902-0003	●
30	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0004-	●	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXR6MC) (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0004-			●
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	9902-0003	●
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	0004-	●	●
56	BRACKET; FLEX HOSE SHORT CHASSIS&LHD(EXR6MC)	1-47477-603-1	01	1	0004-			●
56	BRACKET; FLEX HOSE SHORT CHASSIS&RHD(EXR5MC)	1-47477-602-1	01	1	0004-			●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9902-0003	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0004-	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9902-0003	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0004-	●	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9902-0003	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0004-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B)	1-47428-363-0	01	1	9902-0003	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	0004-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXR6MC) (B) L=490	1-47428-363-0	01	1	0004-			●
153	PIPE ASM; CLU,UNION TO FLEX (A)	1-49163-430-0	01	1	9902-0002	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=955	1-49163-430-0	01	1	0003-0003	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=955	1-49163-430-0	01	1	0004-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXR6MC) (A) L=955	1-49163-430-0	01	1	0004-			●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXR5MC) (B) L=464	1-47424-530-2	01	1	0004-			●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9902-0003	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0004-	●	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXR6MC) (B)	1-71117-207-1	01	1	0004-			●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9902-0003	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0004-	●	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXR6MC) (A)	1-71907-376-1	01	1	0004-			●
167	BRACKET; UNION SHORT CHASSIS&RHD(EXR5MC) (A)	1-71117-183-3	01	1	0004-			●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9902-0003	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0004-	●	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9902-0003	●
180	PLUG; PIPE	9-09204-510-0	01	1	0004-	●	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9902-0003	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0004-	●	●	●

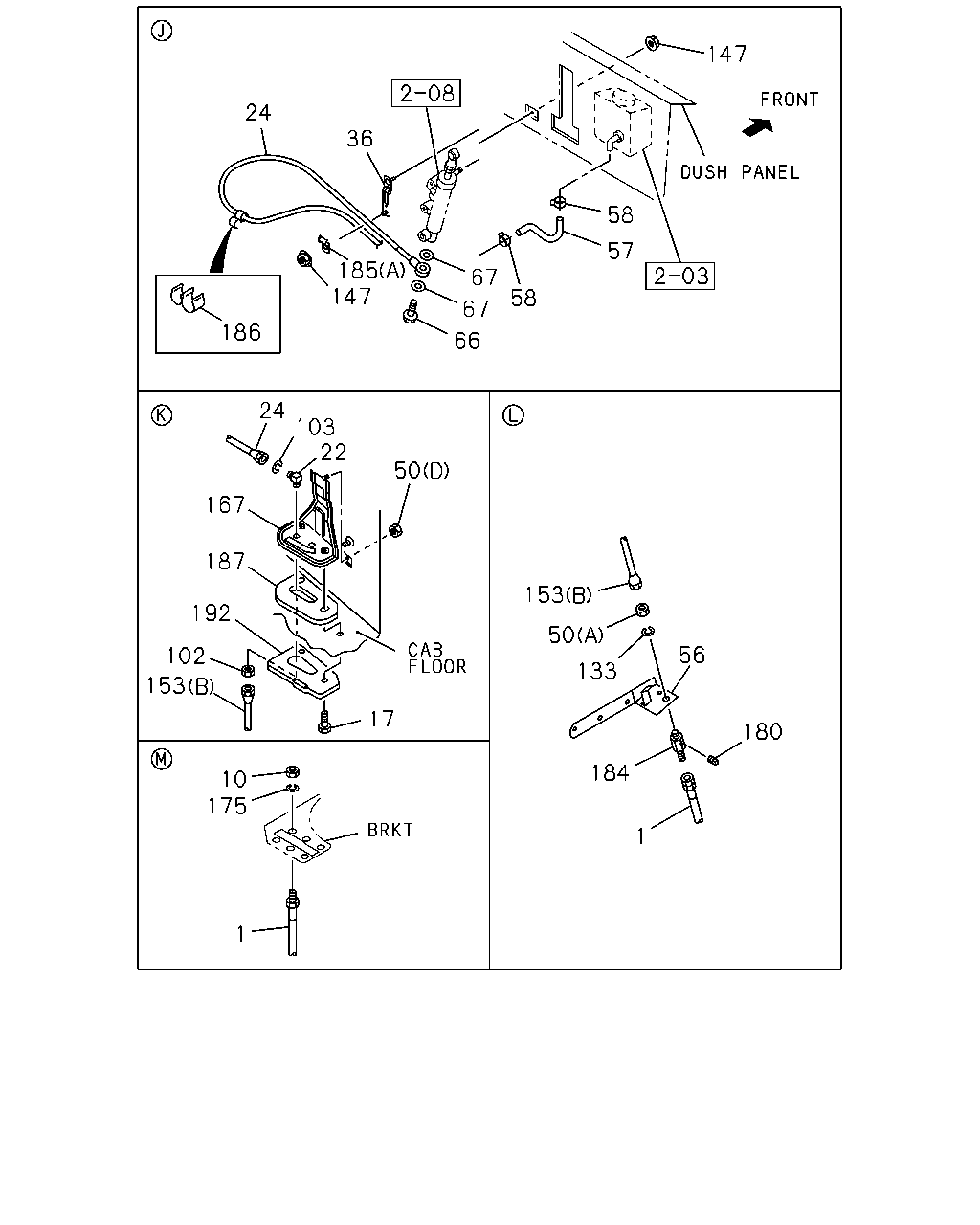

36 24 67 185 67 66 186 185 58 167 187 58 57 27 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	PIPE ASM; CLU,M/CYL TO UNION L=628	1-47428-381-1	01	1	9902-9903	●
24	PIPE ASM; CLU,M/CYL TO UNION L=628	1-47428-381-1	01	1	9904-0003	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=628	1-47428-381-1	01	1	0004-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&LHD(EXR6MC) L=628	1-47428-381-1	01	1	0004-			●
24	PIPE ASM; CLU,M/CYL TO UNION SHORT CHASSIS&RHD(EXR5MC)	1-47427-608-0	01	1	0004-			●
27	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	02	1	9902-0003	●
27	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	02	1	0004-	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9902-0003	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0004-	●	●	●
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9902-0003	●
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0004-	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXR6MC) (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0004-			●
27	NUT; BRKT (D) M8 FLANGE	0-91150-108-0	01	1	9902-0003	●
27	NUT; BRKT (D) M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXR6MC) (D) M8 FLANGE	0-91150-108-0	01	1	0004-			●
36	BRACKET; CLIP	1-71117-191-1	01	1	9902-0003	●
36	BRACKET; CLIP	1-71117-191-1	01	1	0004-	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9902-0003	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0004-	●	●
57	HOSE; CLU M/CYL TO OIL TANK SHORT CHASSIS&LHD(EXR6MC)	1-47427-312-0	01	1	0004-			●
57	HOSE; CLU M/CYL TO OIL TANK SHORT CHASSIS&RHD(EXR5MC)	1-47424-533-0	01	1	0004-			●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9902-0003	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0004-	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9902-0003	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0004-	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9902-0003	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0004-	●	●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9902-0003	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0004-	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-208-0	01	1	9902-0003	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-208-0	01	1	0004-	●	●	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9902-0003	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0004-	●	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXR6MC) (B)	1-71117-207-1	01	1	0004-			●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9902-0003	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0004-	●	●
167	BRACKET; UNION SHORT CHASSIS&LHD(EXR6MC) (A)	1-71907-376-1	01	1	0004-			●
167	BRACKET; UNION SHORT CHASSIS&RHD(EXR5MC) (A)	1-71117-183-3	01	1	0004-			●
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	9902-0003	●
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	0004-	●	●
185	CLIP; BRKT SHORT CHASSIS&LHD(EXR6MC) (B) D8X13.5	1-09987-248-1	01	1	0004-			●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	9902-0003	●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	0004-	●	●	●
186	HOLDER; CLIP ID=8.3 & 8.3	8-94426-175-0	01	1	9902-0003	●
186	HOLDER; CLIP ID=8.3 & 8.3	8-94426-175-0	01	1	0004-	●	●
186	HOLDER; CLIP SHORT CHASSIS&LHD(EXR6MC) ID=8.3 & 8.3	8-94426-175-0	01	1	0004-			●
186	HOLDER; CLIP SHORT CHASSIS&RHD(EXR5MC)	8-94107-710-0	02	1	0004-			●
187	SEAL; BRKT	1-71117-209-2	01	1	9902-0003	●
187	SEAL; BRKT	1-71117-209-2	01	1	0004-	●	●
187	SEAL; BRKT SHORT CHASSIS&LHD(EXR6MC)	1-71117-209-2	01	1	0004-			●
187	SEAL; BRKT SHORT CHASSIS&RHD(EXR5MC)	1-71117-222-0	01	1	0004-			●

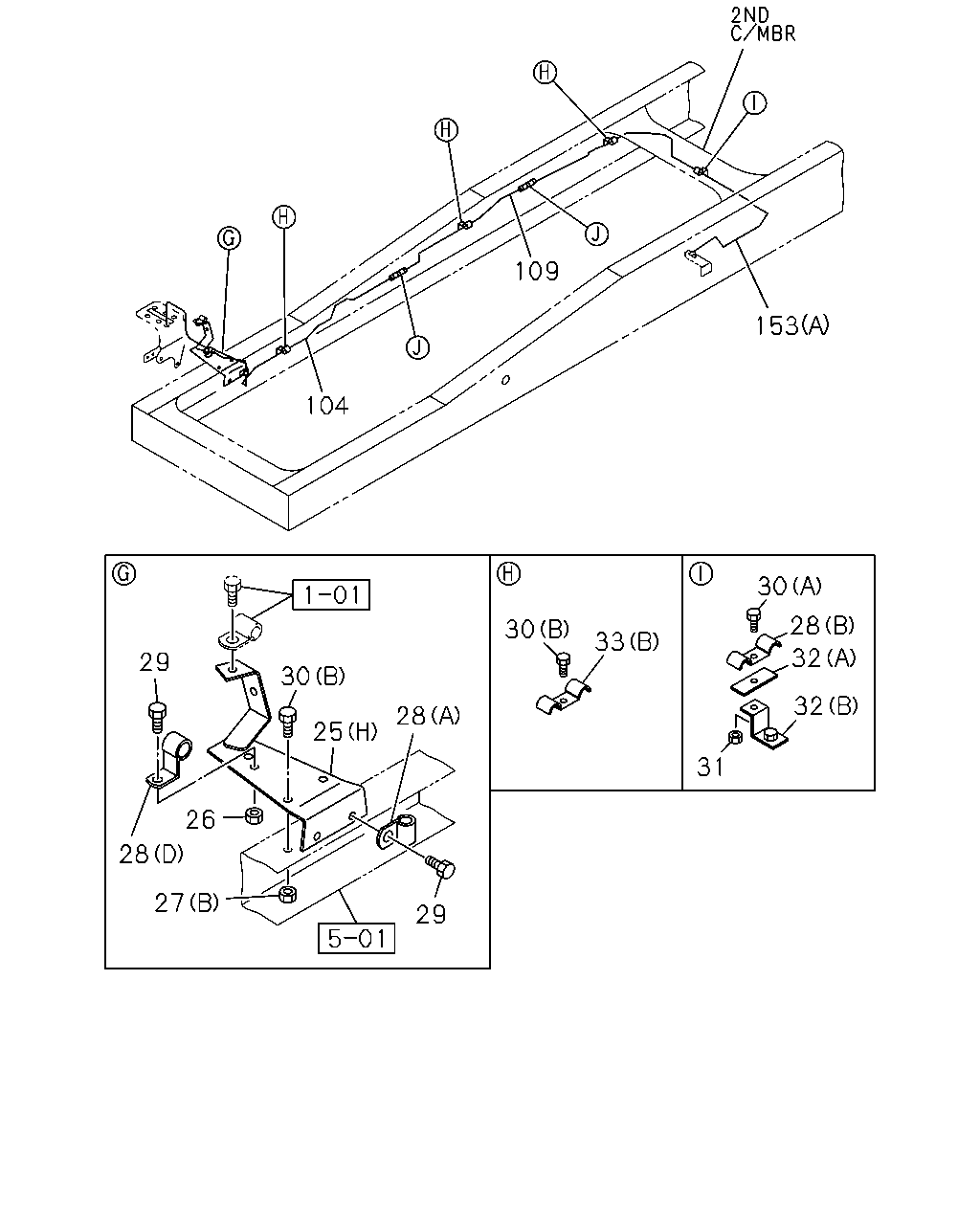

109 153 104 30 28 30 33 32 29 30 32 28 25 31 26 28 27 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	01	1	9902-9903	●
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	01	1	9904-0003	●
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	01	1	0004-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (C) L=50	1-47475-299-2	01	1	0004-			●
25	BRACKET; OIL PIPE (A)	1-47478-281-0	01	1	9902-9904	●
25	BRACKET; OIL PIPE CAB UP +110MM<TGG> (A)	1-47478-582-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) CAB UP +110MM<TGG> (A)	1-47478-582-1	01	1	9905-			●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9902-0003	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	0004-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (B)	1-71907-377-3	01	1	0004-			●
25	BRACKET; OIL PIPE (E)	1-47475-881-0	01	1	9902-0003	●
25	BRACKET; OIL PIPE (E)	1-47475-881-0	01	1	0004-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (E)	1-47475-881-0	01	1	0004-			●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9902-9904	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9905-9909	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9910-0003	●	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	0004-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (D)	1-47477-498-1	01	1	0004-			●
25	BRACKET; OIL PIPE (F)	1-47477-499-1	01	1	9902-9904	●
25	BRACKET; OIL PIPE (F)	1-47477-499-1	01	1	9905-9909	●	●
25	BRACKET; OIL PIPE (F)	1-47477-499-1	01	1	9910-0003	●	●	●
25	BRACKET; OIL PIPE (F)	1-47477-499-1	01	1	0004-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (F)	1-47477-499-1	01	1	0004-			●
25	BRACKET; OIL PIPE (G)	1-47478-406-0	01	1	9902-9904	●
25	BRACKET; OIL PIPE (G)	1-47478-406-0	01	1	9905-9909	●	●
25	BRACKET; OIL PIPE (G)	1-47478-406-0	01	1	9910-0003	●	●	●
25	BRACKET; OIL PIPE (G)	1-47478-406-0	01	1	0004-	●	●
25	BRACKET; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (G)	1-47478-406-0	01	1	0004-			●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXR5MC) (C) L=50	1-47475-299-2	03	1	0004-			●
25	BRACKET; OIL PIPE SHORT CHASSIS&RHD(EXR5MC) (H)	1-47477-604-2	01	1	0004-			●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9904-0001	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0003-0003	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0004-	●	●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXR6MC) M8 FLANGE	0-91150-108-0	02	1	0004-			●
26	NUT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXR5MC) M8 FLANGE	0-91150-108-0	04	1	0004-			●
27	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	02	1	9902-0003	●
27	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	02	1	0004-	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9902-0003	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0004-	●	●	●
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9902-0003	●
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0004-	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXR6MC) (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0004-			●
27	NUT; BRKT (D) M8 FLANGE	0-91150-108-0	01	1	9902-0003	●
27	NUT; BRKT (D) M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
27	NUT; BRKT SHORT CHASSIS&LHD(EXR6MC) (D) M8 FLANGE	0-91150-108-0	01	1	0004-			●
28	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9902-9903	●
28	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9904-0003	●
28	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0004-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0004-			●
28	CLIP; OIL PIPE (A) ID=9 L=20	9-09524-835-0	01	1	9902-9903	●
28	CLIP; OIL PIPE (C) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9902-0003	●
28	CLIP; OIL PIPE (C) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0004-	●	●
28	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (C) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0004-			●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXR5MC) (D) ID=8 H=20 L=20	1-09700-604-0	01	1	0004-			●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXR5MC) (B) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	0004-			●
28	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXR5MC) (A) ID=9 L=20	9-09524-835-0	01	1	0004-			●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9902-9903	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	9904-0002	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	05	1	9902-9904	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	05	1	9905-9909	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	9910-	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	9902-9903	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	01	1	0003-0003	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	01	1	0004-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXR6MC) M8X20 FLANGE	0-28680-820-0	01	1	0004-			●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0003-0003	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXR6MC) M8X25 FLANGE	0-28680-825-0	01	1	0004-			●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	04	1	9910-0003	●	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	04	1	0004-	●	●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&LHD(EXR6MC) M8X16 FLANGE	0-28080-816-0	04	1	0004-			●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	9910-			●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXR5MC) M8X20 FLANGE	0-28680-820-0	03	1	0004-			●
29	BOLT; CLIP,OIL PIPE SHORT CHASSIS&RHD(EXR5MC) M8X25 FLANGE	0-28680-825-0	02	1	0004-			●
30	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	9902-0003	●
30	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	0004-	●	●	●
30	BOLT; BRKT (C) M8X35 FLANGE	0-28680-835-0	02	1	9902-0003	●
30	BOLT; BRKT (C) M8X35 FLANGE	0-28680-835-0	02	1	0004-	●	●	●
30	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9902-0003	●
30	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0004-	●	●
30	BOLT; BRKT SHORT CHASSIS&LHD(EXR6MC) (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0004-			●
31	NUT; BRKT SHORT CHASSIS&RHD(EXR5MC) M8 FLANGE	0-91150-108-0	01	1	0004-			●
32	BRACKET; CLIP OIL PIPE SHORT CHASSIS&RHD(EXR5MC) (A) L=50	1-47475-299-2	01	1	0004-			●
32	BRACKET; CLIP OIL PIPE SHORT CHASSIS&RHD(EXR5MC) (B)	1-47475-881-0	01	1	0004-			●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9902-9905	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9906-0003	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9906-0003			●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0004-	●	●
33	CLIP; OIL PIPE SHORT CHASSIS&LHD(EXR6MC) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0004-			●
33	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXR5MC) (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0004-			●
33	CLIP; OIL PIPE SHORT CHASSIS&RHD(EXR5MC) (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0004-			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR	1-47429-325-0	01	1	9902-9903	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR	1-49164-307-0	01	1	9904-0003	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2143	1-49164-307-0	01	1	0004-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&LHD(EXR6MC) L=2143	1-49164-307-0	01	1	0004-			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR SHORT CHASSIS&RHD(EXR5MC) L=2889	1-49164-483-0	01	1	0004-			●
109	PIPE; AIR,UNION TO UNION SHORT CHASSIS&RHD(EXR5MC) L=1106 SERVICED BY L=1100	1-47426-387-0	01	1	0004-			●
153	PIPE ASM; CLU,UNION TO FLEX (B)	1-47428-363-0	01	1	9902-0003	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	0004-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXR6MC) (B) L=490	1-47428-363-0	01	1	0004-			●
153	PIPE ASM; CLU,UNION TO FLEX (A)	1-49163-430-0	01	1	9902-0002	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=955	1-49163-430-0	01	1	0003-0003	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=955	1-49163-430-0	01	1	0004-	●	●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&LHD(EXR6MC) (A) L=955	1-49163-430-0	01	1	0004-			●
153	PIPE ASM; CLU,UNION TO FLEX SHORT CHASSIS&RHD(EXR5MC) (B) L=464	1-47424-530-2	01	1	0004-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
