2-05A — CLUTCH PIPING (#7650) — 192 parça

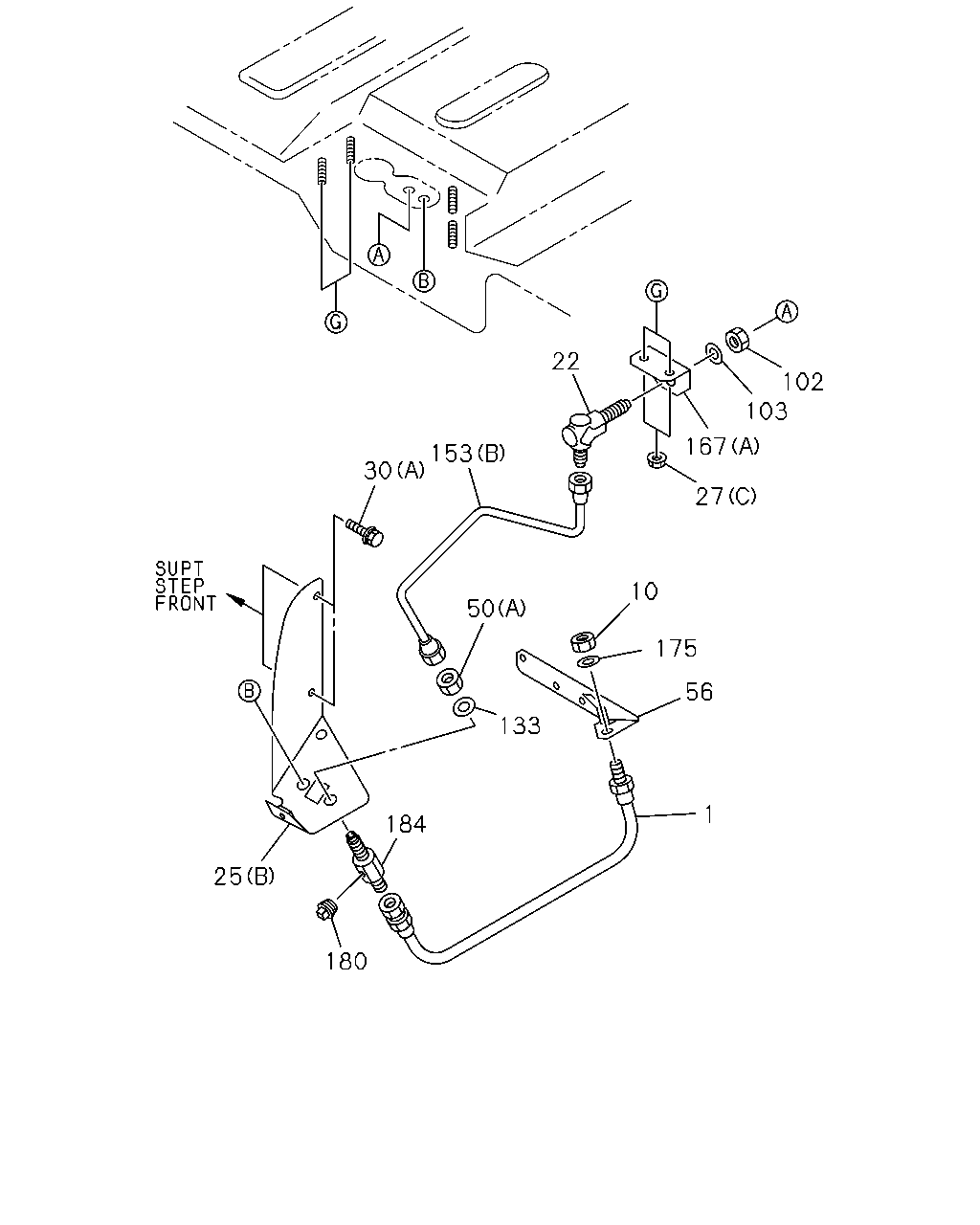

22 102 103 167 153 30 27 10 50 175 56 133 1 184 25 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-0	01	1	9902-0003	●
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0004-	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9902-0003	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0004-	●	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9902-0003	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0004-	●	●
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	01	1	9902-9903	●
25	BRACKET; OIL PIPE (A)	1-47478-281-0	01	1	9902-9904	●
25	BRACKET; OIL PIPE CAB UP +110MM<TGG> (A)	1-47478-582-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9902-0003	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	0004-	●	●
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	02	1	9904-0003	●
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	02	1	0004-	●	●
27	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	02	1	9902-0003	●
27	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	02	1	0004-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9902-0003	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0004-	●	●
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9902-0003	●
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0004-	●	●
30	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	9902-0003	●
30	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	0004-	●	●
30	BOLT; BRKT (C) M8X35 FLANGE	0-28680-835-0	02	1	9902-0003	●
30	BOLT; BRKT (C) M8X35 FLANGE	0-28680-835-0	02	1	0004-	●	●
30	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9902-0003	●
30	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0004-	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9902-0003	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0004-	●	●
50	NUT; UNION (B) M20	9-99111-420-0	01	1	9902-0003	●
50	NUT; UNION (B) M20	9-99111-420-0	01	1	0004-	●	●
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	9902-0003	●
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	0004-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9902-0003	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0004-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9902-0003	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0004-	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9902-0003	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0004-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A)	1-47426-393-0	01	1	9902-9905	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1699	1-49164-559-0	01	1	9906-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B)	1-47428-363-0	01	1	9902-0003	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	0004-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=955	1-49163-430-0	01	1	0004-	●	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9902-0003	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0004-	●	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9902-0003	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0004-	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9902-0003	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0004-	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9902-0003	●
180	PLUG; PIPE	9-09204-510-0	01	1	0004-	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9902-0003	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0004-	●	●

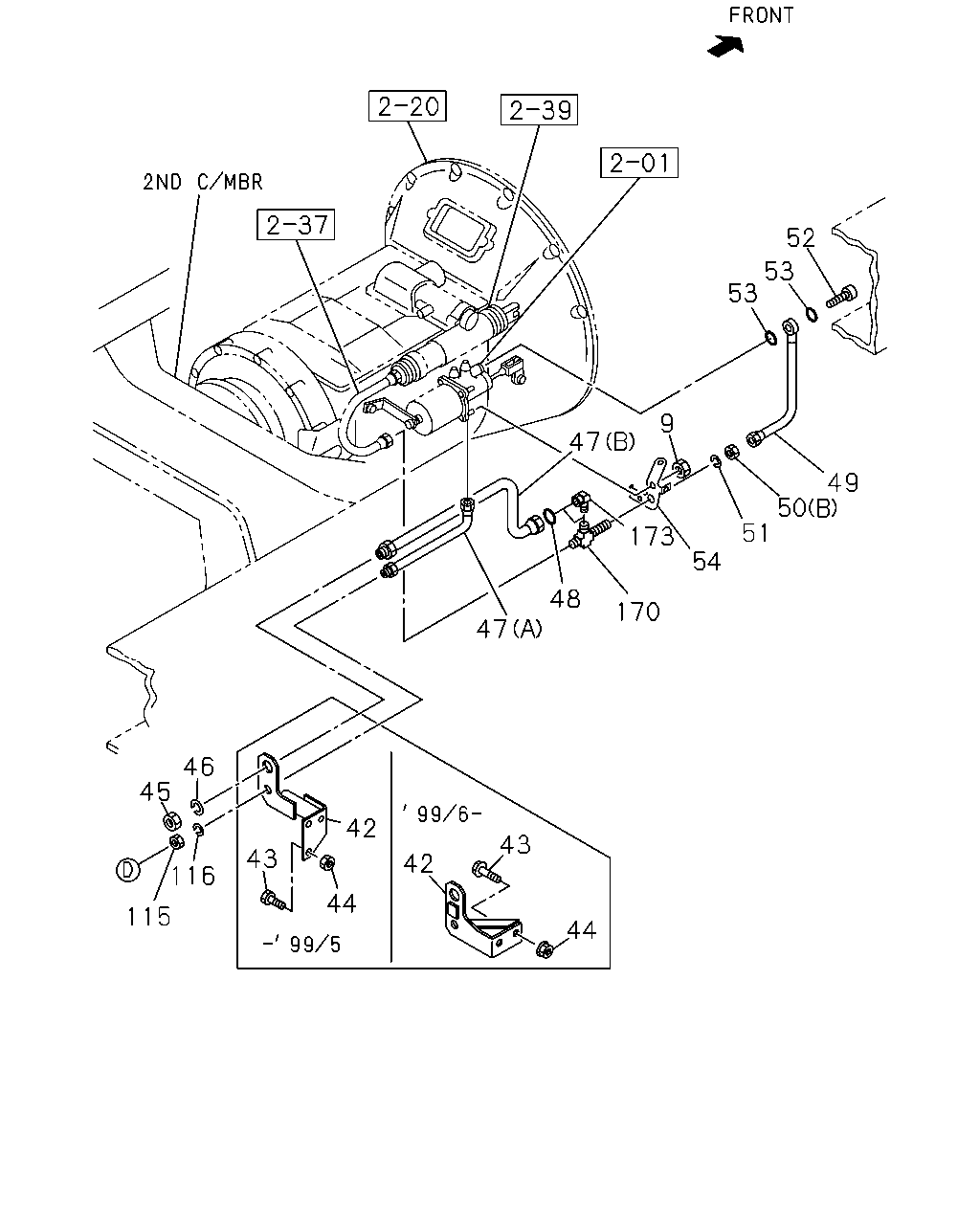

52 53 53 9 47 49 51 173 54 48 170 47 46 45 42 43 43 42 116 44 115 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9902-9904	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-414-0	01	1	9902-9905	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-475-1	01	1	9906-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9902-9903	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M10X30 FLANGE	0-28681-030-0	02	1	9904-9905	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9906-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M10 FLANGE	0-91150-210-0	02	1	9902-9905	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9906-	●	●
45	NUT; FLEX HOSE,CLU CONT M20	9-99111-420-0	01	1	9902-0003	●
45	NUT; FLEX HOSE,CLU CONT M20	9-99111-420-0	01	1	0004-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=20.2	9-09150-520-0	01	1	9902-0003	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=20.2	9-09150-520-0	01	1	0004-	●	●
47	HOSE; FLEX,CLU CONT (A) L=500	0-07806-500-1	01	1	9902-0003	●
47	HOSE; FLEX,CLU CONT (A) L=500	0-07806-500-1	01	1	0004-	●	●
47	HOSE; FLEX,CLU CONT (B) L=550	1-09364-434-0	01	1	9902-0003	●
47	HOSE; FLEX,CLU CONT (B) L=550	1-09364-434-0	01	1	0004-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9902-0003	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0004-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=293	1-49117-734-0	01	1	9902-0002	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=245	1-49117-733-0	01	1	0003-0003	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=245	1-49117-733-0	01	1	0004-	●	●
51	WASHER; LK ID=20.2	9-09150-520-0	01	1	9902-0003	●
51	WASHER; LK ID=20.2	9-09150-520-0	01	1	0004-	●	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	9902-0003	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	0004-	●	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9902-0003	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0004-	●	●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	9902-9904	●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	9905-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9902-9904	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-0003	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0004-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9902-9904	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-0003	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0004-	●	●
170	UNION; AIR PIPE	1-09656-640-0	01	1	9902-0003	●
170	UNION; AIR PIPE	1-09656-640-0	01	1	0004-	●	●
173	CONNECTOR M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9902-0003	●
173	CONNECTOR M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0004-	●	●

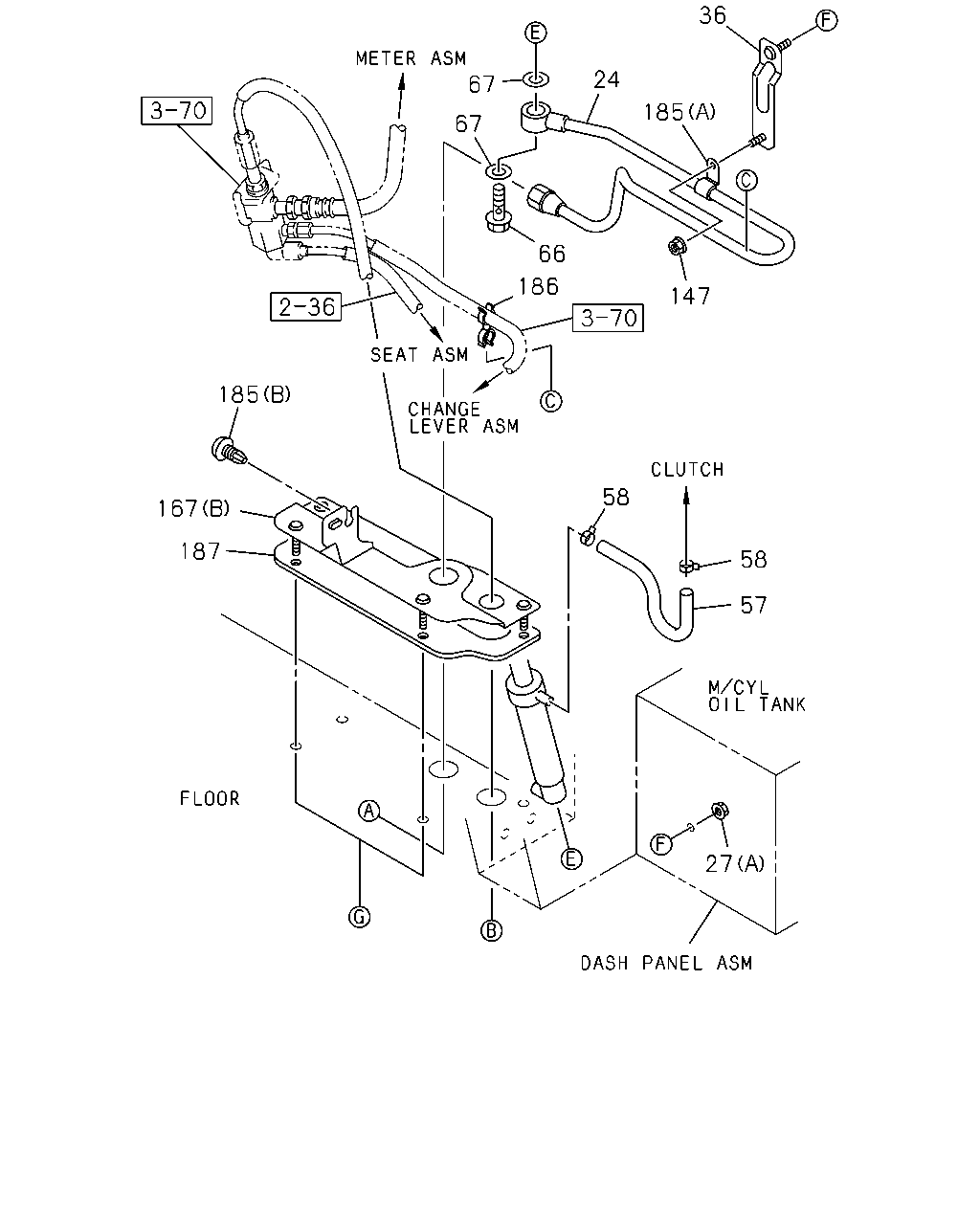

36 67 24 185 67 66 186 147 185 58 167 187 58 57 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	PIPE ASM; CLU,M/CYL TO UNION L=621	1-47428-362-1	01	1	9902-0003	●
24	PIPE ASM; CLU,M/CYL TO UNION L=621	1-47428-362-1	01	1	0004-	●	●
27	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	02	1	9902-0003	●
27	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	02	1	0004-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9902-0003	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0004-	●	●
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9902-0003	●
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0004-	●	●
36	BRACKET; CLIP	1-71117-191-1	01	1	9902-0003	●
36	BRACKET; CLIP	1-71117-191-1	01	1	0004-	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9902-0003	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0004-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9902-0003	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0004-	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9902-0003	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0004-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9902-0003	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0004-	●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9902-0003	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0004-	●	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9902-0003	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0004-	●	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9902-0003	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0004-	●	●
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	9902-0003	●
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	0004-	●	●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	9902-0003	●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	0004-	●	●
186	HOLDER; CLIP ID=8.3 & 8.3	8-94426-175-0	01	1	9902-0003	●
186	HOLDER; CLIP ID=8.3 & 8.3	8-94426-175-0	01	1	0004-	●	●
187	SEAL; BRKT	1-71117-209-2	01	1	9902-0003	●
187	SEAL; BRKT	1-71117-209-2	01	1	0004-	●	●

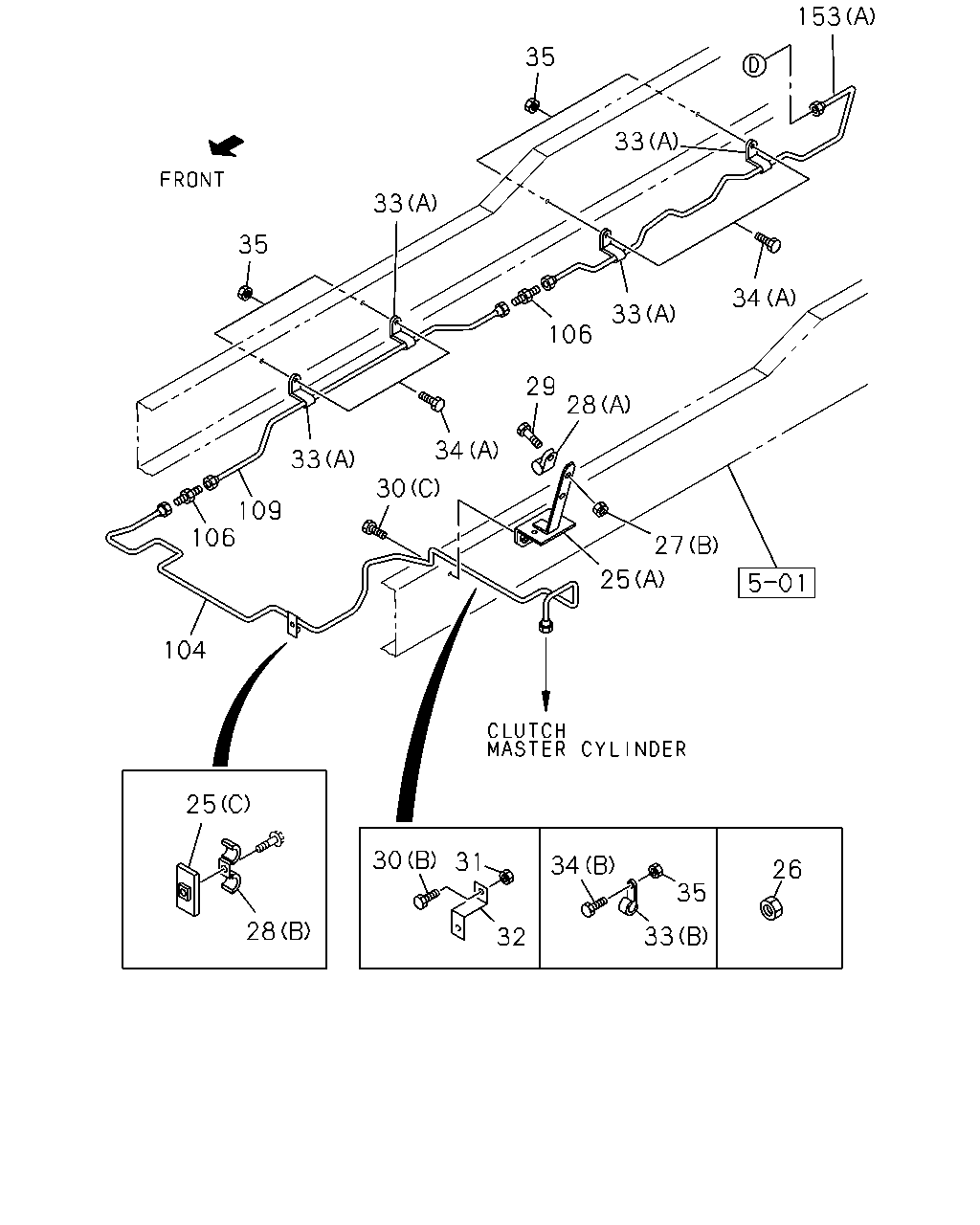

153 35 33 33 35 34 33 106 29 28 34 33 30 109 106 27 25 104 25 30 31 34 26 35 28 33 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	01	1	9902-9903	●
25	BRACKET; OIL PIPE (A)	1-47478-281-0	01	1	9902-9904	●
25	BRACKET; OIL PIPE CAB UP +110MM<TGG> (A)	1-47478-582-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9902-0003	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	0004-	●	●
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	02	1	9904-0003	●
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	02	1	0004-	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9902-9903	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9904-0001	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0003-0003	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0004-	●	●
27	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	02	1	9902-0003	●
27	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	02	1	0004-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9902-0003	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0004-	●	●
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9902-0003	●
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0004-	●	●
28	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9902-9903	●
28	CLIP; OIL PIPE (A) ID=9 L=20	9-09524-835-0	01	1	9902-9903	●
28	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	9904-0003	●
28	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0004-	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9902-9903	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	9904-0002	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	0003-	●
30	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	9902-0003	●
30	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	0004-	●	●
30	BOLT; BRKT (C) M8X35 FLANGE	0-28680-835-0	02	1	9902-0003	●
30	BOLT; BRKT (C) M8X35 FLANGE	0-28680-835-0	02	1	0004-	●	●
30	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9902-0003	●
30	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0004-	●	●
31	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9902-0003	●
31	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
32	BRACKET; CLIP OIL PIPE (B)	1-47475-881-0	01	1	9902-9903	●
32	BRACKET; CLIP OIL PIPE (B)	1-47477-235-0	01	1	9904-	●
33	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	9902-0003	●
33	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0004-	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9902-9905	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9902-9905	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	05	1	9906-0002	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0003-	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0003-	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0004-	●	●
34	BOLT; PIPE CLIP (B) M8X20 FLANGE	0-28680-820-0	01	1	9902-9903	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	02	1	9902-9905	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	02	1	9902-9905	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	05	1	9906-0002	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	02	1	0003-	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	04	1	0003-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9902-9905	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9906-0002	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9906-0002	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0003-0003	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0004-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9902-9905	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	0003-	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9902-9905	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR	1-47426-395-0	01	1	9902-0003	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	0004-	●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	02	1	9902-0003	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	02	1	0004-	●	●
109	PIPE; AIR,UNION TO UNION	1-47426-387-0	01	1	9902-9903	●
109	PIPE; AIR,UNION TO UNION	1-47426-387-0	01	1	9904-0003	●
109	PIPE; AIR,UNION TO UNION L=1015 SERVICED BY L=1100	1-47426-387-0	01	1	0004-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A)	1-47426-393-0	01	1	9902-9905	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1699	1-49164-559-0	01	1	9906-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B)	1-47428-363-0	01	1	9902-0003	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	0004-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=955	1-49163-430-0	01	1	0004-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
