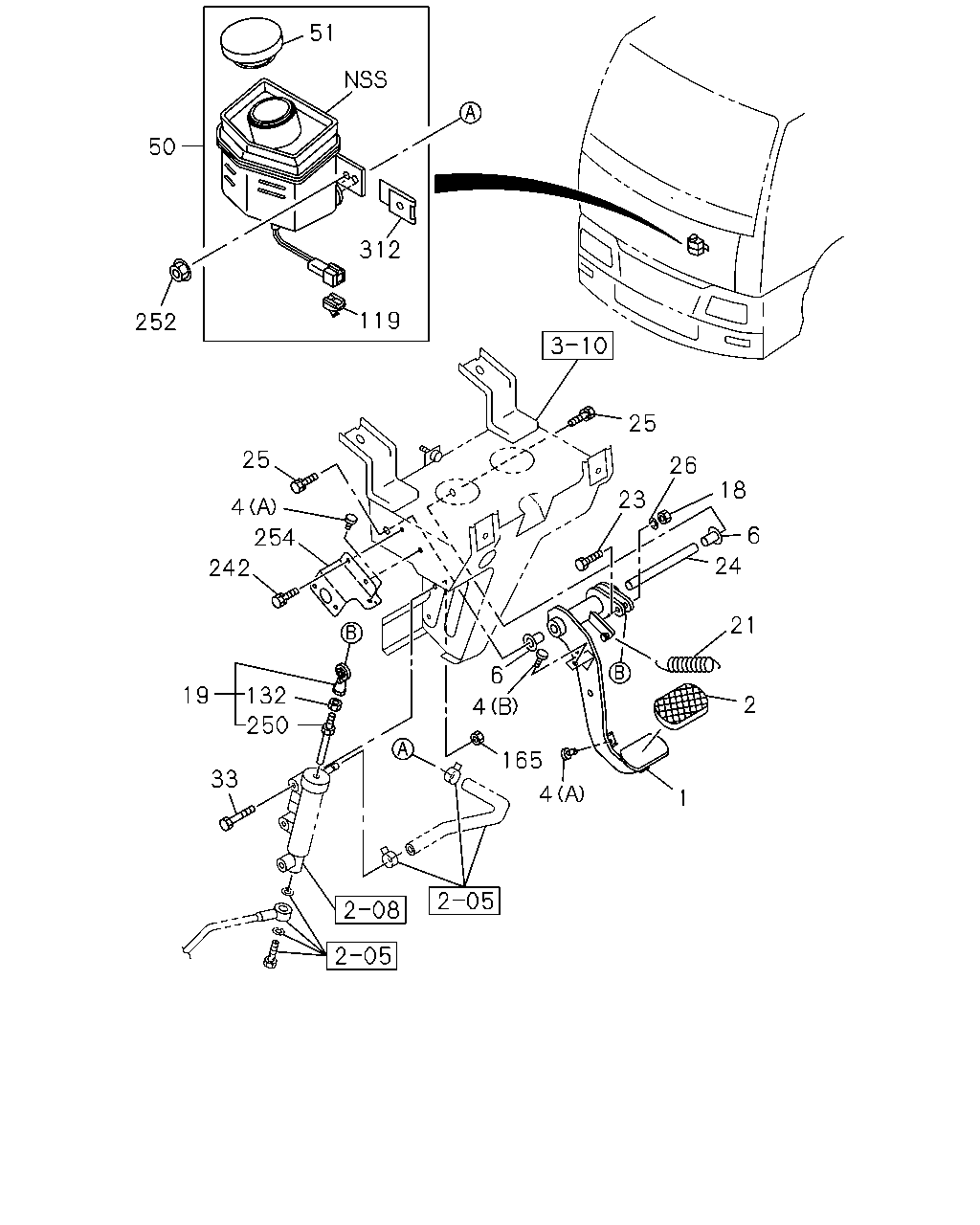

1 |
PEDAL; CLU
ISUZU M/T<X9A>
|
1-73907-440-2 |
01 |
1 |
9902- |
● |
|
| |
1 |
PEDAL; CLU
ZF M/T<X9E>
|
1-73907-472-2 |
01 |
1 |
9902- |
● |
|
| |
1 |
PEDAL; CLU
|
1-73907-469-1 |
01 |
1 |
0004- |
|
● |
| |
2 |
COVER; CLU PEDAL
|
8-94204-810-0 |
01 |
1 |
9902-0003 |
● |
|
| |
2 |
COVER; CLU PEDAL
|
8-94204-810-0 |
01 |
1 |
0004- |
● |
● |
| |
4 |
STOPPER; CLU PEDAL
(A)
|
1-47319-014-1 |
04 |
1 |
9902-9904 |
● |
|
| |
4 |
STOPPER; CLU PEDAL
ISUZU M/T<X9A>
(A)
|
1-47319-014-1 |
04 |
1 |
9905-9905 |
● |
|
| |
4 |
STOPPER; CLU PEDAL
ZF M/T<X9E>
EXC. AIR BAG(TFQ)
(A)
|
1-47319-014-1 |
04 |
1 |
9905-9905 |
● |
|
| |
4 |
STOPPER; CLU PEDAL
(B)
|
5-31419-003-0 |
01 |
1 |
9902-9904 |
● |
|
| |
4 |
STOPPER; CLU PEDAL
(A)
|
1-47319-014-1 |
04 |
1 |
9905-0003 |
● |
|
| |
4 |
STOPPER; CLU PEDAL
(A)
|
1-47319-014-1 |
04 |
1 |
0004- |
● |
● |
| |
4 |
STOPPER; CLU PEDAL
ZF M/T<X9E>
AIR BAG(TFQ)
(A)
|
1-47319-014-1 |
02 |
1 |
9905-9905 |
● |
|
| |
4 |
STOPPER; CLU PEDAL
(B)
|
5-31419-003-0 |
01 |
1 |
0004- |
|
● |
| |
6 |
BUSHING; CLU PEDAL
|
1-09330-045-0 |
02 |
1 |
9902-0003 |
● |
|
| |
6 |
BUSHING; CLU PEDAL
|
1-09330-045-0 |
02 |
1 |
0004- |
● |
● |
| |
18 |
NUT; PUSH ROD
AIR BAG(TFQ)
ISUZU M/T<X9A>
M8
|
0-91110-508-0 |
01 |
1 |
9905- |
● |
|
| |
18 |
NUT; PUSH ROD
M8
|
9-09110-508-0 |
01 |
1 |
9902-9904 |
● |
|
| |
18 |
NUT; PUSH ROD
AIR BAG(TFQ)
ZF M/T<X9E>
M8
|
9-09110-508-0 |
01 |
1 |
9905-0003 |
● |
|
| |
18 |
NUT; PUSH ROD
EXC. AIR BAG(TFQ)
M8
|
9-09110-508-0 |
01 |
1 |
9905-0003 |
● |
|
| |
18 |
NUT; PUSH ROD
AIR BAG(TFQ)
ZF M/T<X9E>
M8
|
9-09110-508-0 |
01 |
1 |
0004- |
● |
|
| |
18 |
NUT; PUSH ROD
EXC. AIR BAG(TFQ)
M8
|
9-09110-508-0 |
01 |
1 |
0004- |
● |
|
| |
18 |
NUT; PUSH ROD
M8
|
9-09110-508-0 |
01 |
1 |
0004- |
|
● |
| |
19 |
ROD ASM; PUSH,CLU
|
1-73907-320-1 |
01 |
1 |
9902-0003 |
● |
|
| |
19 |
ROD ASM; PUSH,CLU
|
1-73907-320-1 |
01 |
1 |
0004- |
● |
● |
| |
21 |
SPRING; RETURN,CLU PEDAL
ISUZU M/T<X9A>
|
1-73908-265-0 |
01 |
1 |
9902- |
● |
|
| |
21 |
SPRING; RETURN,CLU PEDAL
ZF M/T<X9E>
|
1-73907-445-0 |
01 |
1 |
9902-0003 |
● |
|
| |
21 |
SPRING; RETURN,CLU PEDAL
ZF M/T<X9E>
|
1-73907-445-0 |
01 |
1 |
0004- |
● |
|
| |
21 |
SPRING; RETURN,CLU PEDAL
|
1-73907-445-0 |
01 |
1 |
0004- |
|
● |
| |
23 |
BOLT; PUSH ROD
M8X39.7
|
1-09009-150-0 |
01 |
1 |
9902-0003 |
● |
|
| |
23 |
BOLT; PUSH ROD
M8X39.7
|
1-09009-150-0 |
01 |
1 |
0004- |
● |
● |
| |
24 |
SHAFT; CLU PEDAL
|
1-73998-936-1 |
01 |
1 |
9902-0003 |
● |
|
| |
24 |
SHAFT; CLU PEDAL
|
1-73998-936-1 |
01 |
1 |
0004- |
● |
● |
| |
25 |
BOLT; PEDAL
M10X25 W/LK WASHER
|
0-50051-025-0 |
02 |
1 |
9902-0003 |
● |
|
| |
25 |
BOLT; PEDAL
M10X25 W/LK WASHER
|
0-50051-025-0 |
02 |
1 |
0004- |
● |
● |
| |
26 |
WASHER; LK,PUSH ROD
AIR BAG(TFQ)
ISUZU M/T<X9A>
ID=8.2
|
0-91510-608-0 |
01 |
1 |
9905- |
● |
|
| |
26 |
WASHER; LK,PUSH ROD
ID=8.2
|
9-09150-608-0 |
01 |
1 |
9902-9904 |
● |
|
| |
26 |
WASHER; LK,PUSH ROD
AIR BAG(TFQ)
ZF M/T<X9E>
ID=8.2
|
9-09150-608-0 |
01 |
1 |
9905-0003 |
● |
|
| |
26 |
WASHER; LK,PUSH ROD
EXC. AIR BAG(TFQ)
ID=8.2
|
9-09150-608-0 |
01 |
1 |
9905-0003 |
● |
|
| |
26 |
WASHER; LK,PUSH ROD
AIR BAG(TFQ)
ZF M/T<X9E>
ID=8.2
|
9-09150-608-0 |
01 |
1 |
0004- |
● |
|
| |
26 |
WASHER; LK,PUSH ROD
EXC. AIR BAG(TFQ)
ID=8.2
|
9-09150-608-0 |
01 |
1 |
0004- |
● |
|
| |
26 |
WASHER; LK,PUSH ROD
ID=8.2
|
9-09150-608-0 |
01 |
1 |
0004- |
|
● |
| |
33 |
BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE
|
0-28081-060-0 |
02 |
1 |
9902-0003 |
● |
|
| |
33 |
BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE
|
0-28081-060-0 |
02 |
1 |
0004- |
● |
● |
| |
50 |
TANK; OIL,CLU
|
1-47530-182-0 |
01 |
1 |
9902-0003 |
● |
|
| |
50 |
TANK; OIL,CLU
|
1-47530-182-0 |
01 |
1 |
0004- |
● |
● |
| |
51 |
CAP; OIL TANK,CLU
|
8-94136-483-1 |
01 |
1 |
9902-0003 |
● |
|
| |
51 |
CAP; OIL TANK,CLU
|
8-94136-483-1 |
01 |
1 |
0004- |
● |
● |
| |
119 |
CLIP; CONNECTOR
OD=7 H=1.2
|
8-94364-750-0 |
01 |
1 |
9903-0003 |
● |
|
| |
119 |
CLIP; CONNECTOR
OD=7 H=1.2
|
8-94364-750-0 |
01 |
1 |
0004- |
● |
● |
| |
132 |
NUT; LK,PUSH ROD
AIR BAG(TFQ)
ISUZU M/T<X9A>
M8
|
0-91110-508-0 |
01 |
1 |
9905- |
● |
|
| |
132 |
NUT; LK,PUSH ROD
M8
|
9-09110-408-0 |
01 |
1 |
9902-9904 |
● |
|
| |
132 |
NUT; LK,PUSH ROD
AIR BAG(TFQ)
ZF M/T<X9E>
M8
|
9-09110-408-0 |
01 |
1 |
9905-0003 |
● |
|
| |
132 |
NUT; LK,PUSH ROD
EXC. AIR BAG(TFQ)
M8
|
9-09110-408-0 |
01 |
1 |
9905-0003 |
● |
|
| |
132 |
NUT; LK,PUSH ROD
AIR BAG(TFQ)
ZF M/T<X9E>
M8
|
9-09110-408-0 |
01 |
1 |
0004- |
● |
|
| |
132 |
NUT; LK,PUSH ROD
EXC. AIR BAG(TFQ)
M8
|
9-09110-408-0 |
01 |
1 |
0004- |
● |
|
| |
132 |
NUT; LK,PUSH ROD
M8
|
9-09110-408-0 |
01 |
1 |
0004- |
|
● |
| |
165 |
NUT; CLU M/CYL
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0004- |
|
● |
| |
242 |
BOLT; BRKT,CLUTCH
ISUZU M/T<X9A>
M6X16 W/LK WASHER
|
0-50040-616-0 |
02 |
1 |
9902- |
● |
|
| |
242 |
BOLT; BRKT,CLUTCH
ZF M/T<X9E>
M6X16 W/LK WASHER
|
0-50040-616-0 |
04 |
1 |
9902-0003 |
● |
|
| |
242 |
BOLT; BRKT,CLUTCH
ZF M/T<X9E>
M6X16 W/LK WASHER
|
0-50040-616-0 |
04 |
1 |
0004- |
● |
|
| |
242 |
BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER
|
0-50040-616-0 |
04 |
1 |
0004- |
|
● |
| |
250 |
ROD; PUSH,CLU
|
1-73996-219-0 |
01 |
1 |
9902-0003 |
● |
|
| |
250 |
ROD; PUSH,CLU
|
1-73996-219-0 |
01 |
1 |
0004- |
● |
● |
| |
252 |
NUT; OIL TANK
M8 FLANGE W/RUBBER
|
1-09984-176-0 |
02 |
1 |
9902-0003 |
● |
|
| |
252 |
NUT; OIL TANK
M8 FLANGE W/RUBBER
|
1-09984-176-0 |
02 |
1 |
0004- |
● |
● |
| |
254 |
BRACKET; CLU SENSOR
|
1-73998-979-4 |
01 |
1 |
9902-0003 |
● |
|
| |
254 |
BRACKET; CLU SENSOR
|
1-73998-979-4 |
01 |
1 |
0004- |
● |
● |
| |
312 |
PLATE; OIL TANK,CLU
|
1-21249-007-1 |
01 |
1 |
9902-0003 |
● |
|
| |
312 |
PLATE; OIL TANK,CLU
|
1-21249-007-1 |
01 |
1 |
0004- |
● |
● |
