Sayfa 2-01B - Isuzu EPC

2-01B — CLUTCH (#7648) — 303 parça

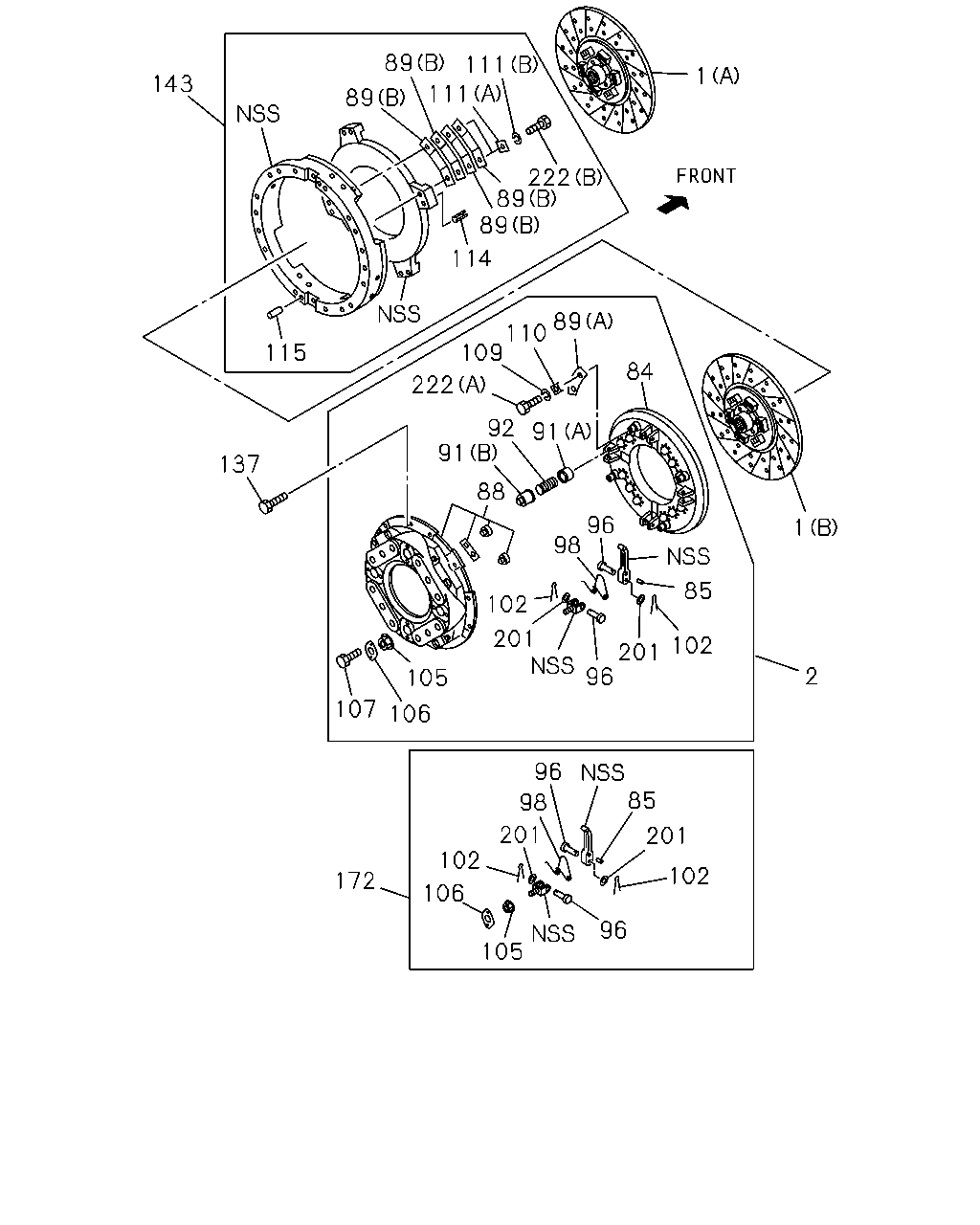

89 111 111 1 143 89 222 89 89 114 89 110 109 115 84 222 92 91 91 137 88 96 98 1 85 102 201 102 201 96 2 105 107 106 96 85 98 201 201 102 102 172 106 96 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH 6WA1 TC-C(55L) (A) FRONT 15.5"	1-31240-731-0	01	1	9902-	●
1	DISC; CLUTCH 6WA1 TC-C(55L) (B) REAR 15.5"	1-31240-732-0	01	1	9902-	●
1	DISC; CLUTCH 6WG1 TC-R(75L) (A) FRONT 15.5"	1-31240-706-0	01	1	9905-9909	●
1	DISC; CLUTCH 6WG1 TC-R(75L) (A) FRONT 15.5"	1-31240-706-0	01	1	9910-	●	●
1	DISC; CLUTCH SHORT CHASSIS&LHD(EXR6MC) 6WG1 TC-C(72L) (A) FRONT 15.5"	1-31240-706-0	01	1	9910-			●
1	DISC; CLUTCH 6WG1 TC-R(75L) (B) REAR 15.5"	1-31240-707-0	01	1	9905-9909	●
1	DISC; CLUTCH 6WG1 TC-R(75L) (B) REAR 15.5"	1-31240-707-0	01	1	9910-	●	●
1	DISC; CLUTCH SHORT CHASSIS&LHD(EXR6MC) 6WG1 TC-C(72L) (B) REAR 15.5"	1-31240-707-0	01	1	9910-			●
1	DISC; CLUTCH SHORT CHASSIS&RHD(EXR5MC) 6WG1 TC-N(71L) (A) FRONT 15.5"	1-31240-733-0	01	1	0004-			●
2	PLATE ASM; PRESSURE,CLU	1-31220-286-3	01	1	9902-0003	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-C(55L)	1-31220-286-3	01	1	0004-	●
2	PLATE ASM; PRESSURE,CLU 6WG1 TC-R(75L)	1-31220-299-0	01	1	9905-9909	●
2	PLATE ASM; PRESSURE,CLU 6WG1 TC-R(75L)	1-31220-299-3	01	1	9910-	●	●
2	PLATE ASM; PRESSURE,CLU SHORT CHASSIS&LHD(EXR6MC) 6WG1 TC-C(72L)	1-31220-299-3	01	1	9910-			●
2	PLATE ASM; PRESSURE,CLU SHORT CHASSIS&RHD(EXR5MC) 6WG1 TC-N(71L)	1-31220-322-0	01	1	0004-			●
84	PLATE; PRESSURE	1-31221-092-0	01	1	9902-9909	●
84	PLATE; PRESSURE	1-31221-092-0	01	1	9910-	●	●
84	PLATE; PRESSURE SHORT CHASSIS&LHD(EXR6MC)	1-31221-092-0	01	1	9910-			●
85	BUSHING; RELEASE LEVER	1-31239-021-0	16	1	9902-9904	●
85	BUSHING; RELEASE LEVER	1-31239-021-0	16	1	9905-9909	●
85	BUSHING; RELEASE LEVER	1-31239-021-0	16	1	9910-0003	●	●	●
85	BUSHING; RELEASE LEVER	1-31239-021-0	16	1	0004-	●	●
85	BUSHING; RELEASE LEVER SHORT CHASSIS&LHD(EXR6MC)	1-31239-021-0	16	1	0004-			●
88	COVER SUB ASM; CLU	1-31210-020-0	01	1	9905-9909	●	●
89	PLATE; STRAP (A)	1-31229-010-0	12	1	9902-9904	●
89	PLATE; STRAP (A)	1-31229-010-0	12	1	9905-9909	●
89	PLATE; STRAP (A)	1-31229-010-0	12	1	9910-0003	●	●	●
89	PLATE; STRAP (A)	1-31229-010-0	12	1	0004-	●	●
89	PLATE; STRAP SHORT CHASSIS&LHD(EXR6MC) (A)	1-31229-010-0	12	1	0004-			●
89	PLATE; STRAP (B)	1-31229-048-0	16	1	9902-0003	●
89	PLATE; STRAP 6WA1 TC-C(55L) (B)	1-31229-048-0	16	1	0004-	●
89	PLATE; STRAP 6WG1 TC-R(75L) (B)	1-31229-048-0	20	1	9905-9909	●
89	PLATE; STRAP 6WG1 TC-C(72L),6WG1 TC-R(75L) (B)	1-31229-048-0	20	1	9910-	●	●	●
91	SEAT; SPR (B)	1-31219-045-0	12	1	9902-9904	●
91	SEAT; SPR (B)	1-31219-045-0	12	1	9905-9909	●
91	SEAT; SPR (B)	1-31219-045-0	12	1	9910-0003	●	●	●
91	SEAT; SPR (B)	1-31219-045-0	12	1	0004-	●	●
91	SEAT; SPR SHORT CHASSIS&LHD(EXR6MC) (B)	1-31219-045-0	12	1	0004-			●
91	SEAT; SPR (A)	1-31219-046-0	12	1	9902-9904	●
91	SEAT; SPR (A)	1-31219-046-0	12	1	9905-9909	●
91	SEAT; SPR (A)	1-31219-046-0	12	1	9910-0003	●	●	●
91	SEAT; SPR (A)	1-31219-046-0	12	1	0004-	●	●
91	SEAT; SPR SHORT CHASSIS&LHD(EXR6MC) (A)	1-31219-046-0	12	1	0004-			●
92	SPRING; CLU	1-31214-042-0	12	1	9902-0003	●
92	SPRING; CLU 6WA1 TC-C(55L)	1-31214-042-0	12	1	0004-	●
92	SPRING; CLU 6WG1 TC-R(75L)	1-31214-055-0	12	1	9905-9909	●
92	SPRING; CLU 6WG1 TC-C(72L),6WG1 TC-R(75L)	1-31214-055-0	12	1	9910-	●	●	●
96	PIN; RELEASE LEVER	1-31232-013-0	08	1	9902-9904	●
96	PIN; RELEASE LEVER	1-31232-013-0	08	1	9905-9909	●
96	PIN; RELEASE LEVER	1-31232-013-0	08	1	9910-0003	●	●	●
96	PIN; RELEASE LEVER	1-31232-013-0	08	1	0004-	●	●
96	PIN; RELEASE LEVER SHORT CHASSIS&LHD(EXR6MC)	1-31232-013-0	08	1	0004-			●
98	SPRING; RETURN	1-31233-007-0	04	1	9902-9904	●
98	SPRING; RETURN	1-31233-007-0	04	1	9905-9909	●
98	SPRING; RETURN	1-31233-007-0	04	1	9910-0003	●	●	●
98	SPRING; RETURN	1-31233-007-0	04	1	0004-	●	●
98	SPRING; RETURN SHORT CHASSIS&LHD(EXR6MC)	1-31233-007-0	04	1	0004-			●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9902-9904	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9905-9909	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9910-0003	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0004-	●	●
102	PIN; SPLIT,RELEASE LEVER SHORT CHASSIS&LHD(EXR6MC) OD=2.7 L=22	9-08113-022-0	08	1	0004-			●
105	NUT; SUPPORT M16	1-31239-013-0	04	1	9902-9904	●
105	NUT; SUPPORT M16	1-31239-013-0	04	1	9905-9909	●
105	NUT; SUPPORT M16	1-31239-013-0	04	1	9910-0003	●	●	●
105	NUT; SUPPORT M16	1-31239-013-0	04	1	0004-	●	●
105	NUT; SUPPORT SHORT CHASSIS&LHD(EXR6MC) M16	1-31239-013-0	04	1	0004-			●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9902-9904	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9905-9909	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9910-0003	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0004-	●	●
106	PLATE; LK,LEVER SUPPORT SHORT CHASSIS&LHD(EXR6MC)	1-31239-019-0	04	1	0004-			●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9902-9904	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9905-9909	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9910-0003	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0004-	●	●
107	BOLT; LK PLATE SHORT CHASSIS&LHD(EXR6MC) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0004-			●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	9902-9904	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	9905-9909	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	9910-0003	●	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	0004-	●	●
109	WASHER; LK,STRAP SHORT CHASSIS&LHD(EXR6MC) ID=12.2	9-09150-512-0	04	1	0004-			●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	9902-9904	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	9905-9909	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	9910-0003	●	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	0004-	●	●
110	WASHER; SPECIAL,STRAP SHORT CHASSIS&LHD(EXR6MC) ID=12	1-31229-006-0	04	1	0004-			●
111	WASHER; PL,STRAP (A) ID=12	1-31229-006-0	08	1	9902-9904	●
111	WASHER; PL,STRAP (A) ID=12	1-31229-006-0	08	1	9905-9909	●
111	WASHER; PL,STRAP (A) ID=12	1-31229-006-0	08	1	9910-0003	●	●	●
111	WASHER; PL,STRAP (A) ID=12	1-31229-006-0	08	1	0004-	●	●
111	WASHER; PL,STRAP SHORT CHASSIS&LHD(EXR6MC) (A) ID=12	1-31229-006-0	08	1	0004-			●
111	WASHER; PL,STRAP (B) ID=12.2	9-09150-512-0	08	1	9902-9904	●
111	WASHER; PL,STRAP (B) ID=12.2	9-09150-512-0	08	1	9905-9909	●
111	WASHER; PL,STRAP (B) ID=12.2	9-09150-512-0	08	1	9910-0003	●	●	●
111	WASHER; PL,STRAP (B) ID=12.2	9-09150-512-0	08	1	0004-	●	●
111	WASHER; PL,STRAP SHORT CHASSIS&LHD(EXR6MC) (B) ID=12.2	9-09150-512-0	08	1	0004-			●
114	PIN; STRAIGHT,INTERMEDIATE PLATE	1-09748-033-0	04	1	9902-9904	●
114	PIN; STRAIGHT,INTERMEDIATE PLATE	1-09748-033-0	04	1	9905-9909	●
114	PIN; STRAIGHT,INTERMEDIATE PLATE	1-09748-033-0	04	1	9910-0003	●	●	●
114	PIN; STRAIGHT,INTERMEDIATE PLATE	1-09748-033-0	04	1	0004-	●	●
114	PIN; STRAIGHT,INTERMEDIATE PLATE SHORT CHASSIS&LHD(EXR6MC)	1-09748-033-0	04	1	0004-			●
115	PIN; STRAIGHT,FLYWHEEL,SPACER D=10 L=25	1-09740-039-1	02	1	9902-9904	●
115	PIN; STRAIGHT,FLYWHEEL,SPACER D=10 L=25	1-09740-039-1	02	1	9905-9909	●
115	PIN; STRAIGHT,FLYWHEEL,SPACER D=10 L=25	1-09740-039-1	02	1	9910-0003	●	●	●
115	PIN; STRAIGHT,FLYWHEEL,SPACER D=10 L=25	1-09740-039-1	02	1	0004-	●	●
115	PIN; STRAIGHT,FLYWHEEL,SPACER SHORT CHASSIS&LHD(EXR6MC) D=10 L=25	1-09740-039-1	02	1	0004-			●
137	BOLT; CLU COVER M12X80	0-28181-280-0	02	1	9902-0003	●
137	BOLT; CLU COVER M12X80	0-28181-280-0	02	1	0004-	●	●
137	BOLT; CLU COVER SHORT CHASSIS&LHD(EXR6MC) M12X80	0-28181-280-0	02	1	0004-			●
137	BOLT; CLU COVER M12X90 FLANGE	0-28181-290-0	10	1	9902-0003	●
137	BOLT; CLU COVER M12X90 FLANGE	0-28181-290-0	10	1	0004-	●	●
137	BOLT; CLU COVER SHORT CHASSIS&LHD(EXR6MC) M12X90 FLANGE	0-28181-290-0	10	1	0004-			●
137	BOLT; CLU COVER M12X30	0-28781-230-0	04	1	9902-0003	●
137	BOLT; CLU COVER M12X30	0-28781-230-0	04	1	0004-	●	●
137	BOLT; CLU COVER SHORT CHASSIS&LHD(EXR6MC) M12X30	0-28781-230-0	04	1	0004-			●
137	BOLT; CLU COVER SHORT CHASSIS&RHD(EXR5MC) M10X110 FLANGE	0-28186-011-0	12	1	0004-			●
143	PLATE; INTERMEDIATE	1-31221-108-0	01	1	9902-0003	●
143	PLATE; INTERMEDIATE 6WA1 TC-C(55L)	1-31221-108-0	01	1	0004-	●
143	PLATE; INTERMEDIATE 6WG1 TC-R(75L)	1-31221-110-0	01	1	9905-9909	●
143	PLATE; INTERMEDIATE 6WG1 TC-R(75L)	1-31221-110-0	01	1	9910-	●	●
143	PLATE; INTERMEDIATE SHORT CHASSIS&LHD(EXR6MC) 6WG1 TC-C(72L)	1-31221-110-0	01	1	9910-			●
172	LEVER KIT; RELEASE,CLU	1-87830-809-0	01	1	9902-9909	●
172	LEVER KIT; RELEASE,CLU	1-87830-809-0	01	1	9910-	●	●
172	LEVER KIT; RELEASE,CLU SHORT CHASSIS&LHD(EXR6MC)	1-87830-809-0	01	1	9910-			●
201	WASHER; PIN LEVER SUPPORT ID=14	9-09651-098-0	08	1	9902-9904	●
201	WASHER; PIN LEVER SUPPORT ID=14	9-09651-098-0	08	1	9905-9909	●
201	WASHER; PIN LEVER SUPPORT ID=14	9-09651-098-0	08	1	9910-0003	●	●	●
201	WASHER; PIN LEVER SUPPORT ID=14	9-09651-098-0	08	1	0004-	●	●
201	WASHER; PIN LEVER SUPPORT SHORT CHASSIS&LHD(EXR6MC) ID=14	9-09651-098-0	08	1	0004-			●
222	BOLT; STRAP (A) M12X30	1-09040-016-0	04	1	9902-9904	●
222	BOLT; STRAP (A) M12X30	1-09040-016-0	04	1	9905-9909	●
222	BOLT; STRAP (A) M12X30	1-09040-016-0	04	1	9910-0003	●	●	●
222	BOLT; STRAP (A) M12X30	1-09040-016-0	04	1	0004-	●	●
222	BOLT; STRAP SHORT CHASSIS&LHD(EXR6MC) (A) M12X30	1-09040-016-0	04	1	0004-			●
222	BOLT; STRAP (B) M12X26.7	1-09040-086-0	08	1	9902-9904	●
222	BOLT; STRAP (B) M12X26.7	1-09040-086-0	08	1	9905-9909	●
222	BOLT; STRAP (B) M12X26.7	1-09040-086-0	08	1	9910-0003	●	●	●
222	BOLT; STRAP (B) M12X26.7	1-09040-086-0	08	1	0004-	●	●
222	BOLT; STRAP SHORT CHASSIS&LHD(EXR6MC) (B) M12X26.7	1-09040-086-0	08	1	0004-			●

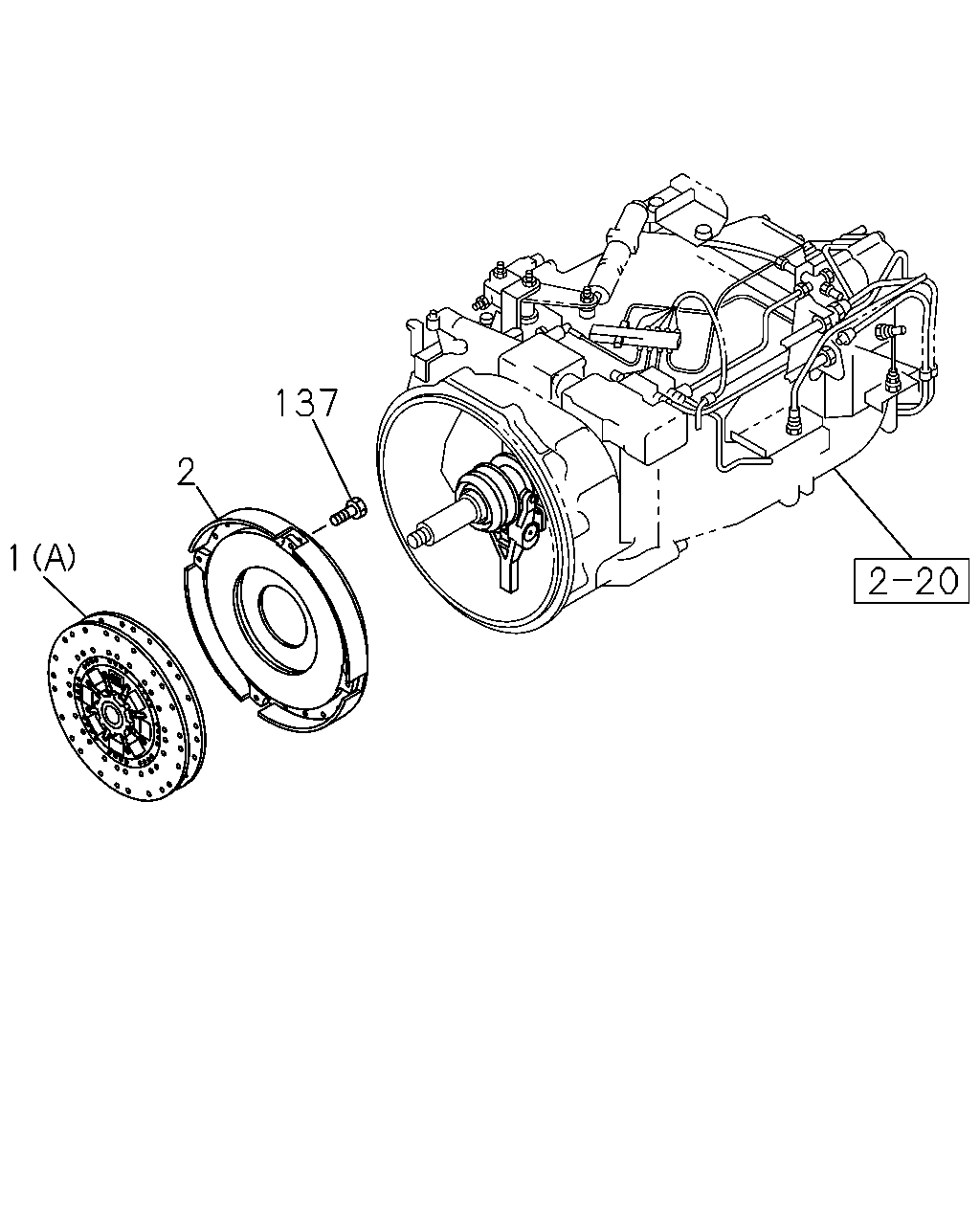

137 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH 6WA1 TC-C(55L) (A) FRONT 15.5"	1-31240-731-0	01	1	9902-	●
1	DISC; CLUTCH 6WA1 TC-C(55L) (B) REAR 15.5"	1-31240-732-0	01	1	9902-	●
1	DISC; CLUTCH 6WG1 TC-R(75L) (A) FRONT 15.5"	1-31240-706-0	01	1	9905-9909	●
1	DISC; CLUTCH 6WG1 TC-R(75L) (A) FRONT 15.5"	1-31240-706-0	01	1	9910-	●	●
1	DISC; CLUTCH SHORT CHASSIS&LHD(EXR6MC) 6WG1 TC-C(72L) (A) FRONT 15.5"	1-31240-706-0	01	1	9910-			●
1	DISC; CLUTCH 6WG1 TC-R(75L) (B) REAR 15.5"	1-31240-707-0	01	1	9905-9909	●
1	DISC; CLUTCH 6WG1 TC-R(75L) (B) REAR 15.5"	1-31240-707-0	01	1	9910-	●	●
1	DISC; CLUTCH SHORT CHASSIS&LHD(EXR6MC) 6WG1 TC-C(72L) (B) REAR 15.5"	1-31240-707-0	01	1	9910-			●
1	DISC; CLUTCH SHORT CHASSIS&RHD(EXR5MC) 6WG1 TC-N(71L) (A) FRONT 15.5"	1-31240-733-0	01	1	0004-			●
2	PLATE ASM; PRESSURE,CLU	1-31220-286-3	01	1	9902-0003	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-C(55L)	1-31220-286-3	01	1	0004-	●
2	PLATE ASM; PRESSURE,CLU 6WG1 TC-R(75L)	1-31220-299-0	01	1	9905-9909	●
2	PLATE ASM; PRESSURE,CLU 6WG1 TC-R(75L)	1-31220-299-3	01	1	9910-	●	●
2	PLATE ASM; PRESSURE,CLU SHORT CHASSIS&LHD(EXR6MC) 6WG1 TC-C(72L)	1-31220-299-3	01	1	9910-			●
2	PLATE ASM; PRESSURE,CLU SHORT CHASSIS&RHD(EXR5MC) 6WG1 TC-N(71L)	1-31220-322-0	01	1	0004-			●
137	BOLT; CLU COVER M12X80	0-28181-280-0	02	1	9902-0003	●
137	BOLT; CLU COVER M12X80	0-28181-280-0	02	1	0004-	●	●
137	BOLT; CLU COVER SHORT CHASSIS&LHD(EXR6MC) M12X80	0-28181-280-0	02	1	0004-			●
137	BOLT; CLU COVER M12X90 FLANGE	0-28181-290-0	10	1	9902-0003	●
137	BOLT; CLU COVER M12X90 FLANGE	0-28181-290-0	10	1	0004-	●	●
137	BOLT; CLU COVER SHORT CHASSIS&LHD(EXR6MC) M12X90 FLANGE	0-28181-290-0	10	1	0004-			●
137	BOLT; CLU COVER M12X30	0-28781-230-0	04	1	9902-0003	●
137	BOLT; CLU COVER M12X30	0-28781-230-0	04	1	0004-	●	●
137	BOLT; CLU COVER SHORT CHASSIS&LHD(EXR6MC) M12X30	0-28781-230-0	04	1	0004-			●
137	BOLT; CLU COVER SHORT CHASSIS&RHD(EXR5MC) M10X110 FLANGE	0-28186-011-0	12	1	0004-			●

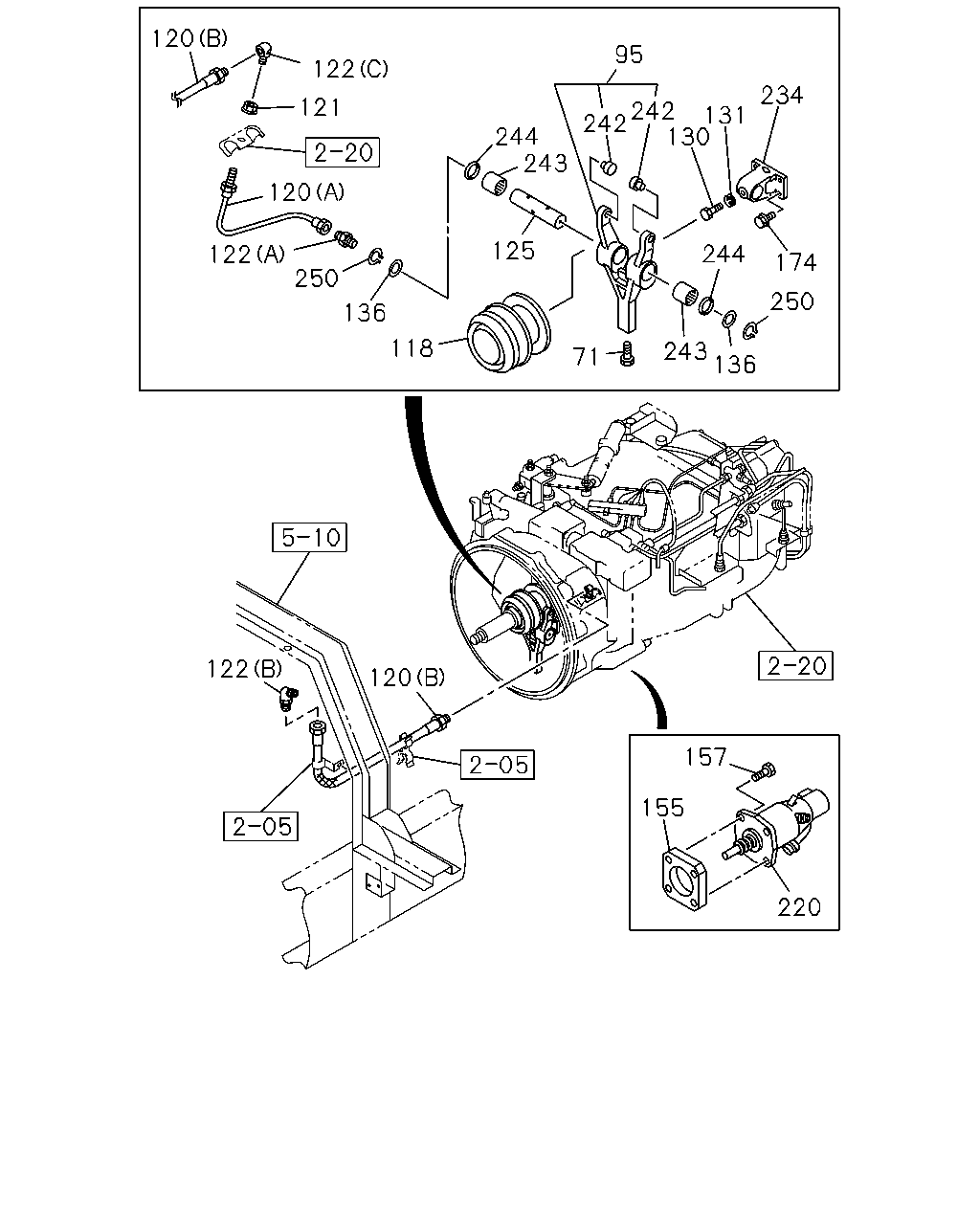

120 95 122 234 121 242 131 242 130 244 243 120 125 244 122 250 174 250 136 118 243 136 71 122 120 157 155 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
71	BOLT M4X6	9-93490-406-0	01	1	9902-9904	●
71	BOLT M4X6	9-93490-406-0	01	1	9905-9909	●	●
71	BOLT M4X6	9-93490-406-0	01	1	9910-0003	●	●	●
71	BOLT M4X6	9-93490-406-0	01	1	0004-	●	●
71	BOLT SHORT CHASSIS&LHD(EXR6MC) M4X6	9-93490-406-0	01	1	0004-			●
95	LEVER; RELEASE SHORT CHASSIS&RHD(EXR5MC)	1-31340-065-1	01	1	0004-0008			●
95	LEVER; RELEASE SHORT CHASSIS&RHD(EXR5MC)	1-31340-068-2	01	1	0009-			●
118	BEARING; CLU RELEASE	1-09820-080-0	01	1	9902-9904	●
118	BEARING; CLU RELEASE	1-09820-080-0	01	1	9905-9909	●	●
118	BEARING; CLU RELEASE	1-09820-080-0	01	1	9910-	●	●
118	BEARING; CLU RELEASE SHORT CHASSIS&LHD(EXR6MC)	1-09820-080-0	01	1	9910-			●
118	BEARING; CLU RELEASE SHORT CHASSIS&RHD(EXR5MC)	1-31310-010-0	01	1	0004-			●
120	HOSE; FLEX,SHIFT BLOCK,CLU (B) L=705	1-09364-850-0	01	1	9902-9904	●
120	HOSE; FLEX,SHIFT BLOCK,CLU (B) L=705	1-09364-850-0	01	1	9905-9909	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU (B) L=705	1-09364-850-0	01	1	9910-0003	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU (B) L=705	1-09364-850-0	01	1	0004-	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU SHORT CHASSIS&LHD(EXR6MC) (B) L=705	1-09364-850-0	01	1	0004-			●
120	HOSE; FLEX,SHIFT BLOCK,CLU (A) L=270	1-09364-903-0	01	1	9902-9904	●
120	HOSE; FLEX,SHIFT BLOCK,CLU (A) L=270	1-09364-903-0	01	1	9905-9909	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU (A) L=270	1-09364-903-0	01	1	9910-	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU SHORT CHASSIS&LHD(EXR6MC) (A) L=270	1-09364-903-0	01	1	9910-			●
120	HOSE; FLEX,SHIFT BLOCK,CLU SHORT CHASSIS&RHD(EXR5MC) (A) L=400	1-09364-934-0	01	1	0004-			●
121	NUT; SHIFT FORK M16 FLANGE	0-91160-216-0	01	1	9902-9904	●
121	NUT; SHIFT FORK M16 FLANGE	0-91160-216-0	01	1	9905-9909	●	●
121	NUT; SHIFT FORK M16 FLANGE	0-91160-216-0	01	1	9910-0003	●	●	●
121	NUT; SHIFT FORK M16 FLANGE	0-91160-216-0	01	1	0004-	●	●
121	NUT; SHIFT FORK SHORT CHASSIS&LHD(EXR6MC) M16 FLANGE	0-91160-216-0	01	1	0004-			●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9902-9904	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9905-9909	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9910-	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9902-9904	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9905-9909	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9910-	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 ELBOW	8-94338-418-1	01	1	9902-9904	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 ELBOW	8-94338-418-1	01	1	9905-9909	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 ELBOW	8-94338-418-1	01	1	9910-0003	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 ELBOW	8-94338-418-1	01	1	0004-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK SHORT CHASSIS&LHD(EXR6MC) (C) PT1/8 ELBOW	8-94338-418-1	01	1	0004-			●
125	SHAFT; CLU SHORT CHASSIS&RHD(EXR5MC)	1-31342-295-0	01	1	0004-			●
130	SCREW; SHIFT FORK SHORT CHASSIS&RHD(EXR5MC)	1-09129-016-0	01	1	0004-			●
131	WASHER; LK,SHIFT FORK SHORT CHASSIS&RHD(EXR5MC) ID=8.2	9-09150-508-0	01	1	0004-			●
136	WASHER; PL SHORT CHASSIS&RHD(EXR5MC) ID=31	9-09160-530-0	02	1	0004-			●
155	BRACKET; MINIPACK	1-31429-361-0	01	1	9902-9904	●
155	BRACKET; MINIPACK	1-31429-361-0	01	1	9905-9909	●	●
155	BRACKET; MINIPACK	1-31429-361-0	01	1	9910-0003	●	●	●
155	BRACKET; MINIPACK	1-31429-361-1	01	1	0004-	●	●
155	BRACKET; MINIPACK SHORT CHASSIS&LHD(EXR6MC)	1-31429-361-1	01	1	0004-			●
157	BOLT; BRKT M8X40 HEX SOCKET	9-05820-840-0	04	1	9902-9904	●
157	BOLT; BRKT M8X40 HEX SOCKET	9-05820-840-0	04	1	9905-9909	●	●
157	BOLT; BRKT M8X40 HEX SOCKET	9-05820-840-0	04	1	9910-0003	●	●	●
157	BOLT; BRKT M8X40 HEX SOCKET	9-05820-840-0	04	1	0004-	●	●
157	BOLT; BRKT SHORT CHASSIS&LHD(EXR6MC) M8X40 HEX SOCKET	9-05820-840-0	04	1	0004-			●
174	BOLT; BRKT SHORT CHASSIS&RHD(EXR5MC) M8X23 FLANGE	8-94174-559-2	04	1	0004-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-404-0	01	1	9902-9904	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-404-0	01	1	9905-9909	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-404-0	01	1	9910-0003	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-404-0	01	1	0004-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. SHORT CHASSIS&LHD(EXR6MC)	1-31800-404-0	01	1	0004-			●
234	BRACKET; CLU SHORT CHASSIS&RHD(EXR5MC)	1-31345-003-0	01	1	0004-0005			●
234	BRACKET; CLU SHORT CHASSIS&RHD(EXR5MC)	1-31345-004-0	01	1	0006-			●
242	BEARING; CAM FOLLOWER SHORT CHASSIS&RHD(EXR5MC)	1-31349-011-1	02	1	0004-0008			●
242	BEARING; CAM FOLLOWER SHORT CHASSIS&RHD(EXR5MC)	1-31349-060-1	02	1	0009-			●
243	BEARING; RELEASE LEVER SHORT CHASSIS&RHD(EXR5MC)	1-09811-087-0	02	1	0004-			●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). SHORT CHASSIS&RHD(EXR5MC)	1-09625-003-0	02	1	0004-			●
250	RING; SNAP,SHAFT SHORT CHASSIS&RHD(EXR5MC) ID=27.9	9-09180-030-0	02	1	0004-			●

122 121 120 120 23 179 238 122 57 116 119 118 71 122 120 157 220 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	WASHER; LK,SUPPORT,CLU FORK	1-31349-027-0	01	1	9902-9909	●
23	WASHER; LK,SUPPORT,CLU FORK	1-31349-027-0	01	1	9910-0003	●		●
23	WASHER; LK,SUPPORT,CLU FORK	1-31349-027-0	01	1	0004-	●
23	WASHER; LK,SUPPORT,CLU FORK SHORT CHASSIS&LHD(EXR6MC)	1-31349-027-0	01	1	0004-			●
57	FORK; SHIFT,CLU	1-31341-041-0	01	1	9902-9909	●
57	FORK; SHIFT,CLU	1-31341-041-0	01	1	9910-0003	●		●
57	FORK; SHIFT,CLU	1-31341-041-0	01	1	0004-	●
57	FORK; SHIFT,CLU SHORT CHASSIS&LHD(EXR6MC)	1-31341-041-0	01	1	0004-			●
71	BOLT M4X6	9-93490-406-0	01	1	9902-9904	●
71	BOLT M4X6	9-93490-406-0	01	1	9905-9909	●	●
71	BOLT M4X6	9-93490-406-0	01	1	9910-0003	●	●	●
71	BOLT M4X6	9-93490-406-0	01	1	0004-	●	●
71	BOLT SHORT CHASSIS&LHD(EXR6MC) M4X6	9-93490-406-0	01	1	0004-			●
116	BLOCK; SHIFT,CLU	1-31321-087-0	01	1	9902-9904	●
116	BLOCK; SHIFT,CLU	1-31321-087-0	01	1	9905-9909	●	●
116	BLOCK; SHIFT,CLU	1-31321-087-0	01	1	9910-	●	●
116	BLOCK; SHIFT,CLU SHORT CHASSIS&LHD(EXR6MC)	1-31321-087-0	01	1	9910-			●
118	BEARING; CLU RELEASE	1-09820-080-0	01	1	9902-9904	●
118	BEARING; CLU RELEASE	1-09820-080-0	01	1	9905-9909	●	●
118	BEARING; CLU RELEASE	1-09820-080-0	01	1	9910-	●	●
118	BEARING; CLU RELEASE SHORT CHASSIS&LHD(EXR6MC)	1-09820-080-0	01	1	9910-			●
118	BEARING; CLU RELEASE SHORT CHASSIS&RHD(EXR5MC)	1-31310-010-0	01	1	0004-			●
119	SPRING; SHIFT FORK	1-31329-020-0	02	1	9902-9904	●
119	SPRING; SHIFT FORK	1-31329-020-0	02	1	9905-9909	●	●
119	SPRING; SHIFT FORK	1-31329-020-0	02	1	9910-	●	●
119	SPRING; SHIFT FORK SHORT CHASSIS&LHD(EXR6MC)	1-31329-020-0	02	1	9910-			●
120	HOSE; FLEX,SHIFT BLOCK,CLU (B) L=705	1-09364-850-0	01	1	9902-9904	●
120	HOSE; FLEX,SHIFT BLOCK,CLU (B) L=705	1-09364-850-0	01	1	9905-9909	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU (B) L=705	1-09364-850-0	01	1	9910-0003	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU (B) L=705	1-09364-850-0	01	1	0004-	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU SHORT CHASSIS&LHD(EXR6MC) (B) L=705	1-09364-850-0	01	1	0004-			●
120	HOSE; FLEX,SHIFT BLOCK,CLU (A) L=270	1-09364-903-0	01	1	9902-9904	●
120	HOSE; FLEX,SHIFT BLOCK,CLU (A) L=270	1-09364-903-0	01	1	9905-9909	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU (A) L=270	1-09364-903-0	01	1	9910-	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU SHORT CHASSIS&LHD(EXR6MC) (A) L=270	1-09364-903-0	01	1	9910-			●
120	HOSE; FLEX,SHIFT BLOCK,CLU SHORT CHASSIS&RHD(EXR5MC) (A) L=400	1-09364-934-0	01	1	0004-			●
121	NUT; SHIFT FORK M16 FLANGE	0-91160-216-0	01	1	9902-9904	●
121	NUT; SHIFT FORK M16 FLANGE	0-91160-216-0	01	1	9905-9909	●	●
121	NUT; SHIFT FORK M16 FLANGE	0-91160-216-0	01	1	9910-0003	●	●	●
121	NUT; SHIFT FORK M16 FLANGE	0-91160-216-0	01	1	0004-	●	●
121	NUT; SHIFT FORK SHORT CHASSIS&LHD(EXR6MC) M16 FLANGE	0-91160-216-0	01	1	0004-			●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9902-9904	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9905-9909	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9910-	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9902-9904	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9905-9909	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9910-	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 ELBOW	8-94338-418-1	01	1	9902-9904	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 ELBOW	8-94338-418-1	01	1	9905-9909	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 ELBOW	8-94338-418-1	01	1	9910-0003	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 ELBOW	8-94338-418-1	01	1	0004-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK SHORT CHASSIS&LHD(EXR6MC) (C) PT1/8 ELBOW	8-94338-418-1	01	1	0004-			●
155	BRACKET; MINIPACK	1-31429-361-0	01	1	9902-9904	●
155	BRACKET; MINIPACK	1-31429-361-0	01	1	9905-9909	●	●
155	BRACKET; MINIPACK	1-31429-361-0	01	1	9910-0003	●	●	●
155	BRACKET; MINIPACK	1-31429-361-1	01	1	0004-	●	●
155	BRACKET; MINIPACK SHORT CHASSIS&LHD(EXR6MC)	1-31429-361-1	01	1	0004-			●
157	BOLT; BRKT M8X40 HEX SOCKET	9-05820-840-0	04	1	9902-9904	●
157	BOLT; BRKT M8X40 HEX SOCKET	9-05820-840-0	04	1	9905-9909	●	●
157	BOLT; BRKT M8X40 HEX SOCKET	9-05820-840-0	04	1	9910-0003	●	●	●
157	BOLT; BRKT M8X40 HEX SOCKET	9-05820-840-0	04	1	0004-	●	●
157	BOLT; BRKT SHORT CHASSIS&LHD(EXR6MC) M8X40 HEX SOCKET	9-05820-840-0	04	1	0004-			●
179	SUPPORT; CLU FORK	1-31349-026-0	01	1	9902-9909	●
179	SUPPORT; CLU FORK	1-31349-026-0	01	1	9910-	●
179	SUPPORT; CLU FORK SHORT CHASSIS&LHD(EXR6MC)	1-31349-026-0	01	1	9910-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-404-0	01	1	9902-9904	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-404-0	01	1	9905-9909	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-404-0	01	1	9910-0003	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-404-0	01	1	0004-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. SHORT CHASSIS&LHD(EXR6MC)	1-31800-404-0	01	1	0004-			●
238	CUP; SUPPORT,CLU FORK	1-31349-025-0	01	1	9902-9909	●
238	CUP; SUPPORT,CLU FORK	1-31349-025-0	01	1	9910-	●
238	CUP; SUPPORT,CLU FORK SHORT CHASSIS&LHD(EXR6MC)	1-31349-025-0	01	1	9910-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
