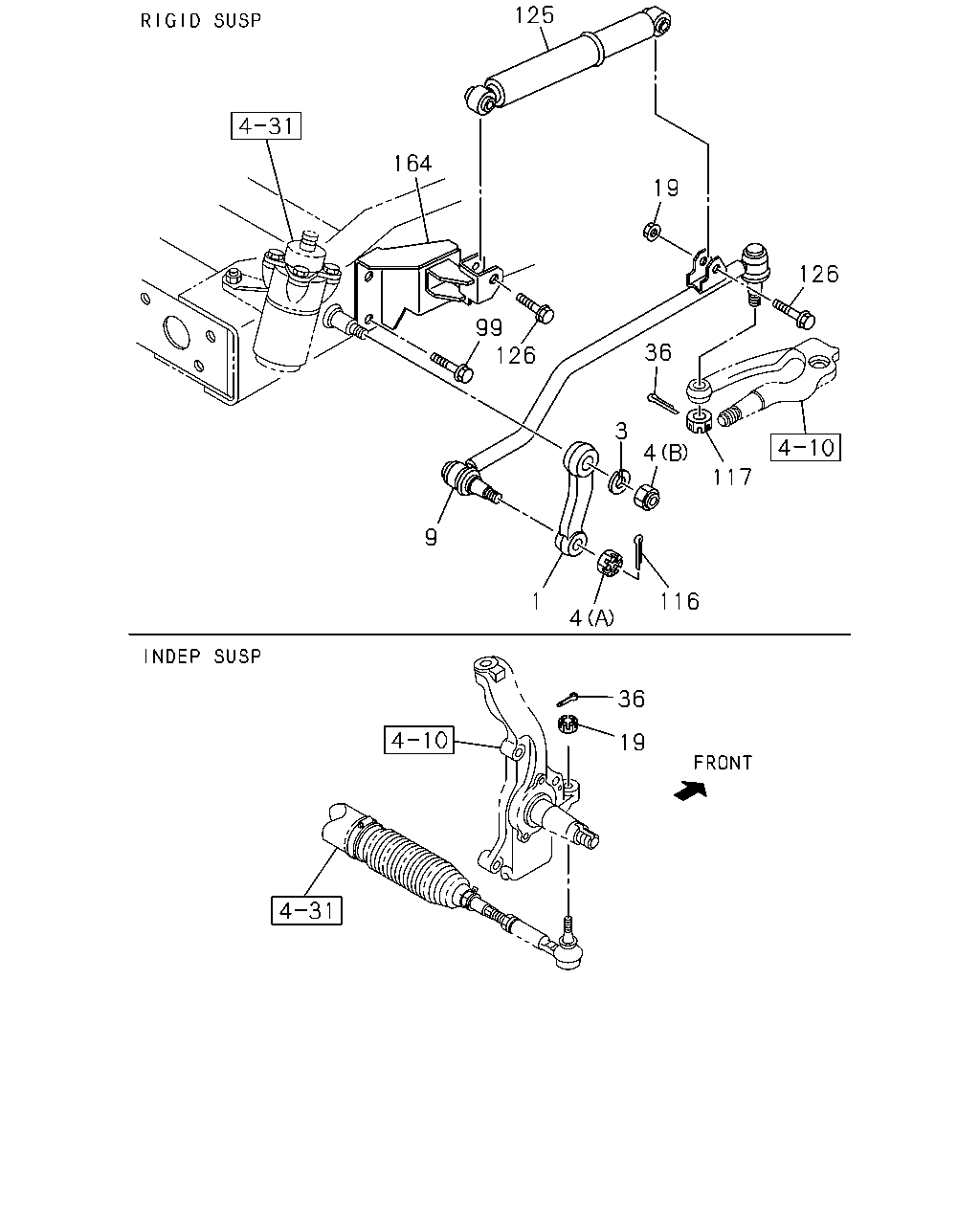

4-33 — STEERING LINKAGE (#76475) — 58 parça

125 164 19 126 99 126 36 3 4 117 9 1 116 4 36 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.859 ARM; PITMAN,STRG EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97109-289-1	01	1	0907-1008	●
1	06.859 ARM; PITMAN,STRG	8-97109-289-1	01	1	0907-1008		●	●
1	06.859 ARM; PITMAN,STRG EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97109-289-1	01	1	1009-	●		●
1	06.859 ARM; PITMAN,STRG	8-97109-289-1	01	1	1009-		●
3	06.861 WASHER; LK,PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(FF0) ID=22.5	0-91510-622-0	01	1	0907-1008	●
3	06.861 WASHER; LK,PITMAN ARM ID=22.5	0-91510-622-0	01	1	0907-1008		●	●
3	06.861 WASHER; LK,PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(FF0) ID=22.5	0-91510-622-0	01	1	1009-	●		●
3	06.861 WASHER; LK,PITMAN ARM ID=22.5	0-91510-622-0	01	1	1009-		●
4	06.861 NUT; PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M22	0-91111-522-0	01	1	0907-1008	●
4	06.861 NUT; PITMAN ARM (B) M22	0-91111-522-0	01	1	0907-1008		●	●
4	06.861 NUT; PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M22	0-91111-522-0	01	1	1009-	●		●
4	06.861 NUT; PITMAN ARM (B) M22	0-91111-522-0	01	1	1009-		●
4	06.861 NUT; PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.174 (A) M18 SLOTTED	8-97245-632-0	01	1	0907-1008	●
4	06.861 NUT; PITMAN ARM 06.174 (A) M18 SLOTTED	8-97245-632-0	01	1	0907-1008		●	●
4	06.861 NUT; PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.174 (A) M18 SLOTTED	8-97245-632-0	01	1	1009-	●		●
4	06.861 NUT; PITMAN ARM 06.174 (A) M18 SLOTTED	8-97245-632-0	01	1	1009-		●
9	06.870 LINK; DRAG EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98022-072-1	01	1	0907-1008	●
9	06.870 LINK; DRAG	8-98022-072-1	01	1	0907-1008		●	●
9	06.870 LINK; DRAG EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98022-072-1	01	1	1009-	●		●
9	06.870 LINK; DRAG	8-98022-072-1	01	1	1009-		●
19	06.865 NUT; PITMAN ARM,STOPPER FRT INDEPENDENT SUSPENSION(FF0) M16 SLOTTED	8-97387-863-0	02	1	0907-1008	●
19	06.865 NUT; PITMAN ARM,STOPPER FRT INDEPENDENT SUSPENSION(FF0) M16 SLOTTED	8-97387-863-0	02	1	1009-	●		●
19	06.865 NUT; PITMAN ARM,STOPPER EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.085 M10 FLANGE	0-91180-210-0	01	1	0907-1008	●
19	06.865 NUT; PITMAN ARM,STOPPER 04.085 M10 FLANGE	0-91180-210-0	01	1	0907-1008		●	●
19	06.865 NUT; PITMAN ARM,STOPPER EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.085 M10 FLANGE	0-91180-210-0	01	1	1009-1203	●		●
19	06.865 NUT; PITMAN ARM,STOPPER 04.085 M10 FLANGE	0-91180-210-0	01	1	1009-1203		●
19	06.865 NUT; PITMAN ARM,STOPPER EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE	0-91180-110-0	01	1	1204-	●		●
19	06.865 NUT; PITMAN ARM,STOPPER 03.162 M10 FLANGE	0-91180-110-0	01	1	1204-		●
36	06.881 PIN; SPLIT,DRAG LINK FRT INDEPENDENT SUSPENSION(FF0) L=19	8-98098-024-0	02	1	0907-1008	●
36	06.881 PIN; SPLIT,DRAG LINK FRT INDEPENDENT SUSPENSION(FF0) L=19	8-98098-024-0	02	1	1009-	●		●
36	06.881 PIN; SPLIT,DRAG LINK EXC. FRT INDEPENDENT SUSPENSION(FF0) L=19	8-98098-024-0	01	1	0907-1008	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-98098-024-0	01	1	0907-1008		●	●
36	06.881 PIN; SPLIT,DRAG LINK EXC. FRT INDEPENDENT SUSPENSION(FF0) L=19	8-98098-024-0	01	1	1009-	●		●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-98098-024-0	01	1	1009-		●
99	06.896 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0907-1008	●
99	06.896 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0907-1008		●	●
99	06.896 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-	●		●
99	06.896 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-		●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.881 L=19	8-97349-766-0	01	1	0907-1008	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER 06.881 L=19	8-97349-766-0	01	1	0907-1008		●	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.881 L=19	8-97349-766-0	01	1	1009-	●		●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER 06.881 L=19	8-97349-766-0	01	1	1009-		●
117	06.233 NUT; DRAG LINK EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.174 M18 SLOTTED	8-97245-632-0	01	1	0907-1008	●
117	06.233 NUT; DRAG LINK 06.174 M18 SLOTTED	8-97245-632-0	01	1	0907-1008		●	●
117	06.233 NUT; DRAG LINK EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.174 M18 SLOTTED	8-97245-632-0	01	1	1009-	●		●
117	06.233 NUT; DRAG LINK 06.174 M18 SLOTTED	8-97245-632-0	01	1	1009-		●
125	06.865 DAMPER; STEERING EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98046-741-2	01	1	0907-1008	●
125	06.865 DAMPER; STEERING	8-98046-741-2	01	1	0907-1008		●	●
125	06.865 DAMPER; STEERING EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98046-741-2	01	1	1009-	●		●
125	06.865 DAMPER; STEERING	8-98046-741-2	01	1	1009-		●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.685 M10X45 FLANGE	0-28051-045-0	02	1	0907-1008	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER 00.685 M10X45 FLANGE	0-28051-045-0	02	1	0907-1008		●	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.685 M10X45 FLANGE	0-28051-045-0	02	1	1009-	●		●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER 00.685 M10X45 FLANGE	0-28051-045-0	02	1	1009-		●
164	06.896 BRACKET; STEERING DAMPER EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98072-797-0	01	1	0907-1008	●
164	06.896 BRACKET; STEERING DAMPER	8-98072-797-0	01	1	0907-1008		●	●
164	06.896 BRACKET; STEERING DAMPER EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98072-797-0	01	1	1009-	●		●
164	06.896 BRACKET; STEERING DAMPER	8-98072-797-0	01	1	1009-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
