2-01A — CLUTCH (#7647) — 163 parça

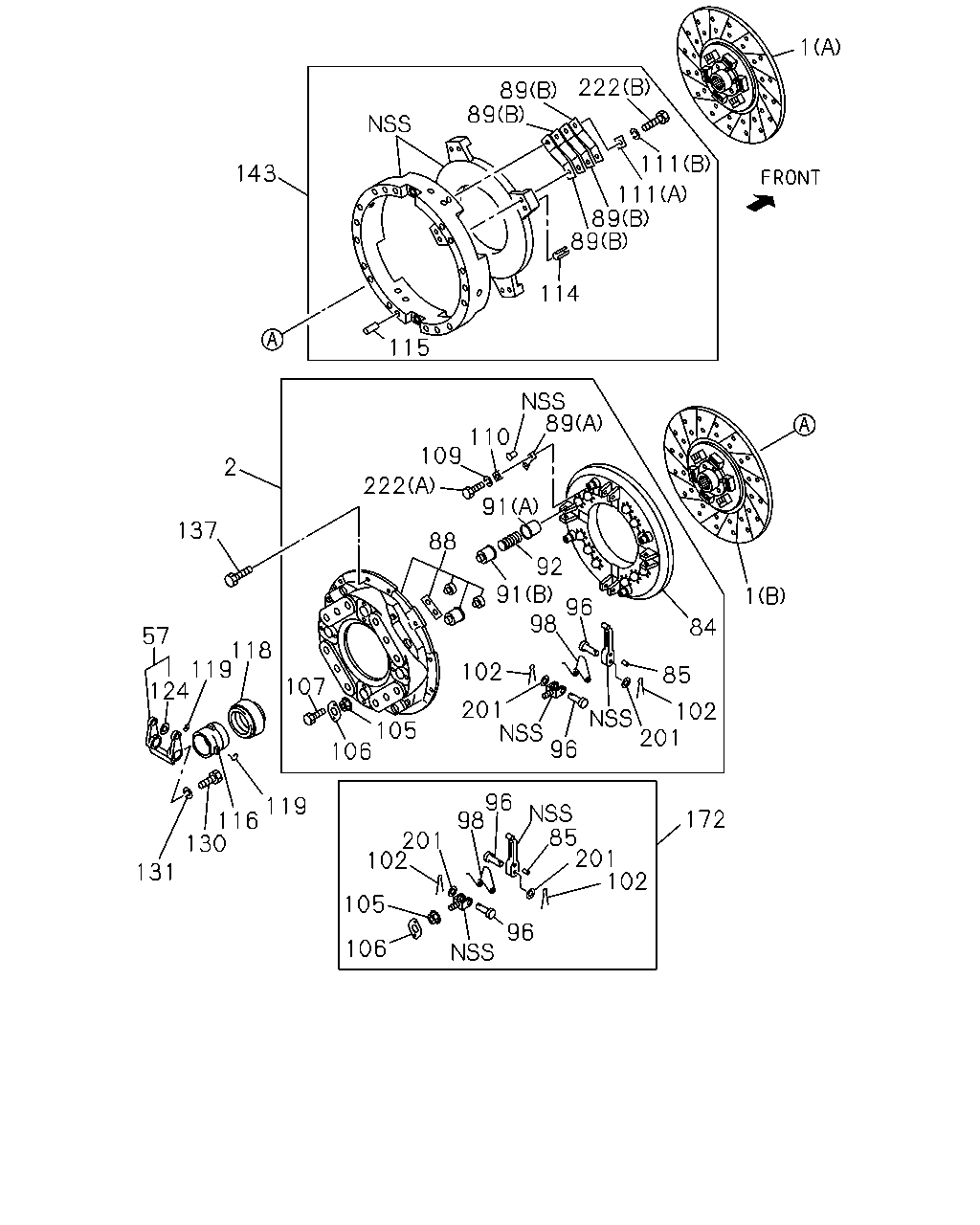

1 222 89 89 111 143 111 89 89 114 115 89 110 109 2 222 91 137 88 92 91 1 96 98 107 84 57 118 119 124 102 85 201 96 102 201 105 106 96 98 119 116 130 85 201 102 172 201 102 131 105 96 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH 6WA1 TC-C(55L) (A) FRONT 15.5"	1-31240-731-0	01	1	9902-	●
1	DISC; CLUTCH 6WA1 TC-C(55L) (B) REAR 15.5"	1-31240-732-0	01	1	9902-	●
1	DISC; CLUTCH 6WG1 TC-R(75L) (A) FRONT 15.5"	1-31240-706-0	01	1	9905-9909		●
1	DISC; CLUTCH 6WG1 TC-R(75L) (A) FRONT 15.5"	1-31240-706-0	01	1	9910-		●
1	DISC; CLUTCH 6WG1 TC-R(75L) (B) REAR 15.5"	1-31240-707-0	01	1	9905-9909		●
1	DISC; CLUTCH 6WG1 TC-R(75L) (B) REAR 15.5"	1-31240-707-0	01	1	9910-		●
2	PLATE ASM; PRESSURE,CLU	1-31220-276-2	01	1	9902-0003	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-C(55L)	1-31220-276-2	01	1	0004-	●
2	PLATE ASM; PRESSURE,CLU 6WG1 TC-R(75L)	1-31220-333-2	01	1	9905-		●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	9902-9904	●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	9905-	●	●
84	PLATE; PRESSURE	1-31221-087-0	01	1	9902-9904	●
84	PLATE; PRESSURE	1-31221-087-0	01	1	9905-	●	●
85	BUSHING; RELEASE LEVER	1-31239-021-0	16	1	9902-9904	●
85	BUSHING; RELEASE LEVER	1-31239-021-0	16	1	9905-9909	●	●
85	BUSHING; RELEASE LEVER	1-31239-021-0	16	1	9910-0003	●	●
85	BUSHING; RELEASE LEVER	1-31239-021-0	16	1	0004-	●	●
88	COVER SUB ASM; CLU	1-31210-020-0	01	1	9902-9904	●
88	COVER SUB ASM; CLU	1-31210-020-0	01	1	9905-9909	●	●
88	COVER SUB ASM; CLU	1-31210-020-1	01	1	9910-	●	●
89	PLATE; STRAP (A)	1-31229-010-0	12	1	9902-9904	●
89	PLATE; STRAP (A)	1-31229-010-0	12	1	9905-9909	●	●
89	PLATE; STRAP (A)	1-31229-010-0	12	1	9910-0003	●	●
89	PLATE; STRAP (A)	1-31229-010-0	12	1	0004-	●	●
89	PLATE; STRAP (B)	1-31229-048-0	16	1	9902-0003	●
89	PLATE; STRAP 6WA1 TC-C(55L) (B)	1-31229-048-0	16	1	0004-	●
89	PLATE; STRAP 6WG1 TC-R(75L) (B)	1-31229-048-0	20	1	9905-9909		●
89	PLATE; STRAP 6WG1 TC-R(75L) (B)	1-31229-048-0	20	1	9910-	●	●
91	SEAT; SPR (B)	1-31219-045-0	12	1	9902-9904	●
91	SEAT; SPR (B)	1-31219-045-0	12	1	9905-9909	●	●
91	SEAT; SPR (B)	1-31219-045-0	12	1	9910-0003	●	●
91	SEAT; SPR (B)	1-31219-045-0	12	1	0004-	●	●
91	SEAT; SPR (A)	1-31219-046-0	12	1	9902-9904	●
91	SEAT; SPR (A)	1-31219-046-0	12	1	9905-9909	●	●
91	SEAT; SPR (A)	1-31219-046-0	12	1	9910-0003	●	●
91	SEAT; SPR (A)	1-31219-046-0	12	1	0004-	●	●
92	SPRING; CLU	1-31214-042-0	12	1	9902-0003	●
92	SPRING; CLU 6WA1 TC-C(55L)	1-31214-042-0	12	1	0004-	●
92	SPRING; CLU 6WG1 TC-R(75L)	1-31214-055-0	12	1	9905-9909		●
92	SPRING; CLU 6WG1 TC-R(75L)	1-31214-055-0	12	1	9910-	●	●
96	PIN; RELEASE LEVER	1-31232-013-0	08	1	9902-9904	●
96	PIN; RELEASE LEVER	1-31232-013-0	08	1	9905-9909	●	●
96	PIN; RELEASE LEVER	1-31232-013-0	08	1	9910-0003	●	●
96	PIN; RELEASE LEVER	1-31232-013-0	08	1	0004-	●	●
98	SPRING; RETURN	1-31233-007-0	04	1	9902-9904	●
98	SPRING; RETURN	1-31233-007-0	04	1	9905-9909	●	●
98	SPRING; RETURN	1-31233-007-0	04	1	9910-0003	●	●
98	SPRING; RETURN	1-31233-007-0	04	1	0004-	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9902-9904	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9905-9909	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9910-0003	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0004-	●	●
105	NUT; SUPPORT M16	1-31239-013-0	04	1	9902-9904	●
105	NUT; SUPPORT M16	1-31239-013-0	04	1	9905-9909	●	●
105	NUT; SUPPORT M16	1-31239-013-0	04	1	9910-0003	●	●
105	NUT; SUPPORT M16	1-31239-013-0	04	1	0004-	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9902-9904	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9905-9909	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9910-0003	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0004-	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9902-9904	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9905-9909	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9910-0003	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0004-	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	9902-9904	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	9905-9909	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	9910-0003	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	0004-	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	9902-9904	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	9905-9909	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	9910-0003	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	0004-	●	●
111	WASHER; PL,STRAP (A) ID=12	1-31229-006-0	08	1	9902-9904	●
111	WASHER; PL,STRAP (A) ID=12	1-31229-006-0	08	1	9905-9909	●	●
111	WASHER; PL,STRAP (A) ID=12	1-31229-006-0	08	1	9910-0003	●	●
111	WASHER; PL,STRAP (A) ID=12	1-31229-006-0	08	1	0004-	●	●
111	WASHER; PL,STRAP (B) ID=12.2	9-09150-512-0	08	1	9902-9904	●
111	WASHER; PL,STRAP (B) ID=12.2	9-09150-512-0	08	1	9905-9909	●	●
111	WASHER; PL,STRAP (B) ID=12.2	9-09150-512-0	08	1	9910-0003	●	●
111	WASHER; PL,STRAP (B) ID=12.2	9-09150-512-0	08	1	0004-	●	●
114	PIN; STRAIGHT,INTERMEDIATE PLATE	1-09748-033-0	04	1	9902-9904	●
114	PIN; STRAIGHT,INTERMEDIATE PLATE	1-09748-033-0	04	1	9905-9909	●	●
114	PIN; STRAIGHT,INTERMEDIATE PLATE	1-09748-033-0	04	1	9910-0003	●	●
114	PIN; STRAIGHT,INTERMEDIATE PLATE	1-09748-033-0	04	1	0004-	●	●
115	PIN; STRAIGHT,FLYWHEEL,SPACER D=10 L=25	1-09740-039-1	02	1	9902-9904	●
115	PIN; STRAIGHT,FLYWHEEL,SPACER D=10 L=25	1-09740-039-1	02	1	9905-9909	●	●
115	PIN; STRAIGHT,FLYWHEEL,SPACER D=10 L=25	1-09740-039-1	02	1	9910-0003	●	●
115	PIN; STRAIGHT,FLYWHEEL,SPACER D=10 L=25	1-09740-039-1	02	1	0004-	●	●
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	9902-9904	●
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	9905-	●	●
118	BEARING; CLU RELEASE	9-00095-044-1	01	1	9902-9904	●
118	BEARING; CLU RELEASE	9-00095-044-1	01	1	9905-0003	●	●
118	BEARING; CLU RELEASE	1-09820-112-0	01	1	0004-	●	●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	9902-9904	●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	9905-	●	●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	9902-9904	●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	9905-	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	9902-9904	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	9905-	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9902-9904	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9905-	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9902-9904	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9905-0003	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0004-	●	●
137	BOLT; CLU COVER M12X80	0-28181-280-0	02	1	9902-0003	●
137	BOLT; CLU COVER M12X80	0-28181-280-0	02	1	0004-	●	●
137	BOLT; CLU COVER M12X90 FLANGE	0-28181-290-0	10	1	9902-0003	●
137	BOLT; CLU COVER M12X90 FLANGE	0-28181-290-0	10	1	0004-	●	●
137	BOLT; CLU COVER M12X30	0-28781-230-0	04	1	9902-0003	●
137	BOLT; CLU COVER M12X30	0-28781-230-0	04	1	0004-	●	●
143	PLATE; INTERMEDIATE	1-31221-122-0	01	1	9902-0003	●
143	PLATE; INTERMEDIATE 6WA1 TC-C(55L)	1-31221-122-0	01	1	0004-	●
143	PLATE; INTERMEDIATE 6WG1 TC-R(75L)	1-31221-109-0	01	1	9905-		●
172	LEVER KIT; RELEASE,CLU	1-87830-733-0	01	1	9902-0003	●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-C(55L)	1-87830-733-0	01	1	0004-	●
172	LEVER KIT; RELEASE,CLU 6WG1 TC-R(75L)	1-87830-915-0	01	1	9905-		●
201	WASHER; PIN LEVER SUPPORT ID=14	9-09651-098-0	08	1	9902-9904	●
201	WASHER; PIN LEVER SUPPORT ID=14	9-09651-098-0	08	1	9905-9909	●	●
201	WASHER; PIN LEVER SUPPORT ID=14	9-09651-098-0	08	1	9910-0003	●	●
201	WASHER; PIN LEVER SUPPORT ID=14	9-09651-098-0	08	1	0004-	●	●
222	BOLT; STRAP (A) M12X30	1-09040-016-0	04	1	9902-9904	●
222	BOLT; STRAP (A) M12X30	1-09040-016-0	04	1	9905-9909	●	●
222	BOLT; STRAP (A) M12X30	1-09040-016-0	04	1	9910-0003	●	●
222	BOLT; STRAP (A) M12X30	1-09040-016-0	04	1	0004-	●	●
222	BOLT; STRAP (B) M12X26.7	1-09040-086-0	08	1	9902-9904	●
222	BOLT; STRAP (B) M12X26.7	1-09040-086-0	08	1	9905-9909	●	●
222	BOLT; STRAP (B) M12X26.7	1-09040-086-0	08	1	9910-0003	●	●
222	BOLT; STRAP (B) M12X26.7	1-09040-086-0	08	1	0004-	●	●

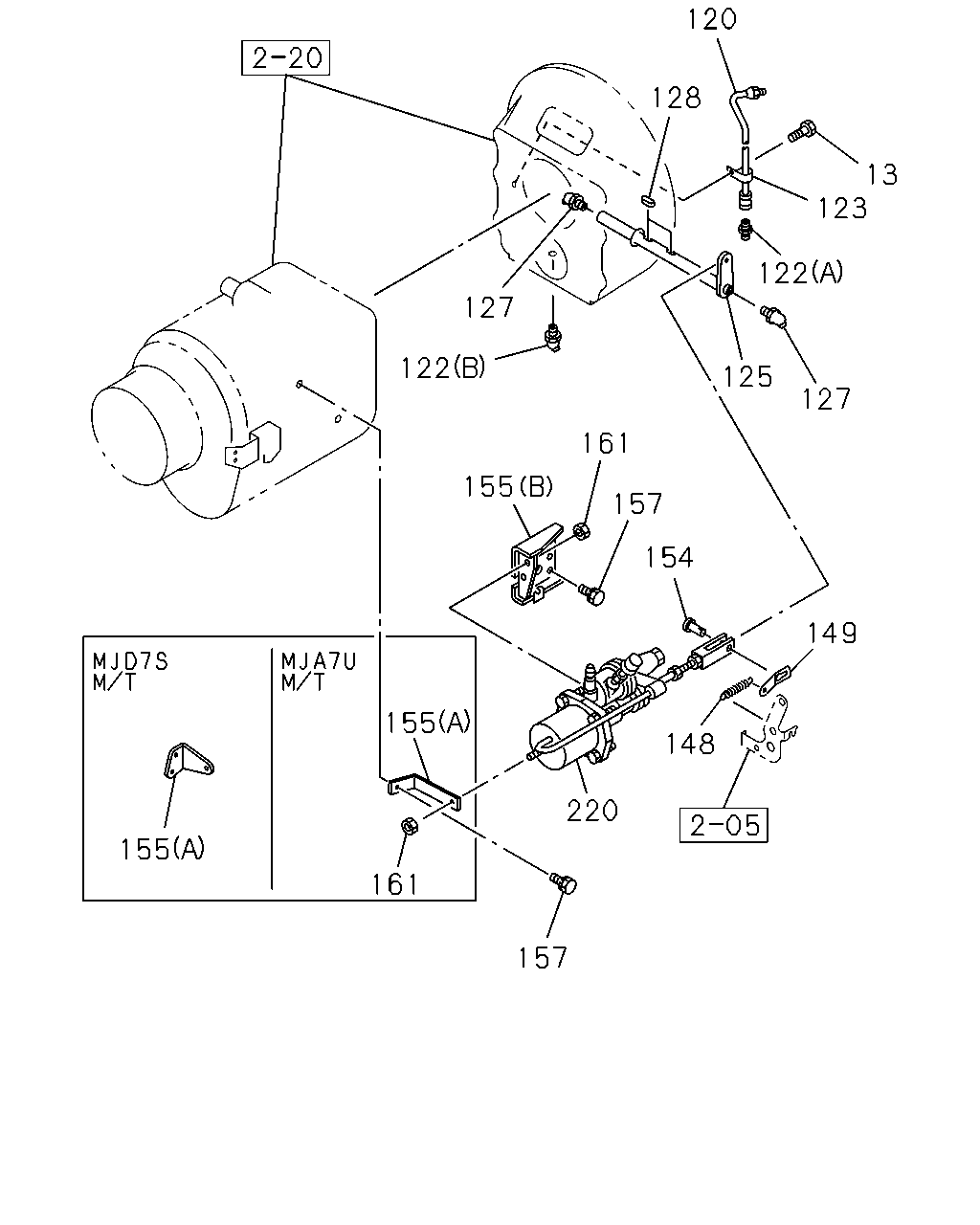

120 128 13 123 122 127 122 125 127 161 155 157 154 149 155 148 220 155 161 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9902-9904	●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9905-	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9902-9904	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9905-0003	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0004-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9902-9904	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9905-9909	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9910-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9902-9904	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9905-9909	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9910-	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9902-9904	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9905-	●	●
125	SHAFT; CLU	1-31342-262-0	01	1	9902-9904	●
125	SHAFT; CLU	1-31342-262-0	01	1	9905-	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9902-9904	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9905-	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	9902-9904	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	9905-	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9902-9904	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9905-	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-048-0	01	1	9902-9904	●
149	EYE; SPRING,RETURN SPRING	1-31426-048-0	01	1	9905-	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9902-9904	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9905-	●	●
155	BRACKET; MINIPACK (B)	1-31429-323-1	01	1	9902-9904	●
155	BRACKET; MINIPACK (B)	1-31429-323-1	01	1	9905-	●	●
155	BRACKET; MINIPACK (A)	1-31429-324-0	01	1	9902-	●
155	BRACKET; MINIPACK (A)	1-31429-350-0	01	1	9905-		●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9902-9904	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9905-	●	●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	9902-9904	●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	9905-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-386-1	01	1	9902-9904	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-386-3	01	1	9905-	●	●
