Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#76469) — 190 parça

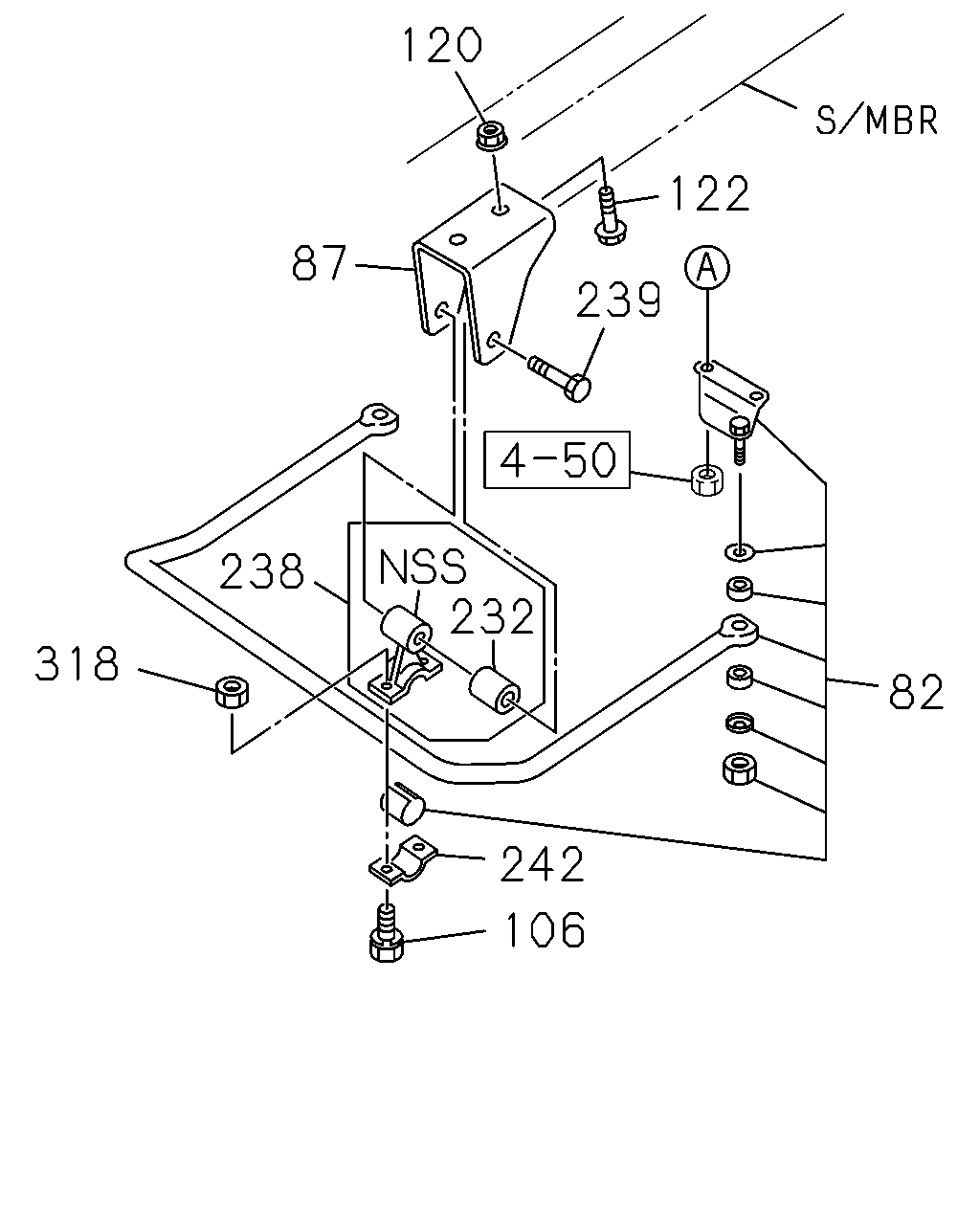

120 122 87 239 232 238 318 82 242 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98002-084-2	01	1	0907-	●
87	07.242 BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98051-506-0	01	1	0907-	●
87	07.242 BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98051-507-0	01	1	0907-	●
106	06.216 BOLT; CAP FIX FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 M10X25 FLANGE	0-28651-025-0	04	1	0907-	●
120	06.308 NUT; STAB BAR BRKT FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) 05.816 M12 FLANGE	0-91180-212-0	04	1	0907-	●
122	07.242 BOLT; BRKT FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.509 M12X30 FLANGE	0-28661-230-0	04	1	0907-	●
232	07.243 BUSHING; LINK ROD FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97239-911-0	02	1	0907-	●
238	07.240 ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97239-908-0	02	1	0907-	●
239	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) M14X70 FLANGE	0-28851-470-0	02	1	0907-	●
242	07.242 CAP; LINK ROD FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94178-430-2	02	1	0907-	●
318	07.242 NUT; CAP FIX FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.085 M10 FLANGE	0-91180-210-0	04	1	0907-1006	●
318	07.242 NUT; CAP FIX FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE	0-91180-110-0	04	1	1007-	●

86 2 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98120-606-0	01	1	0907-1008	●
2	06.020 KNUCKLE; FRT AXLE	8-98120-606-0	01	1	0907-1008		●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98120-606-1	01	1	1009-	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98120-607-0	01	1	0907-1008	●
2	06.020 KNUCKLE; FRT AXLE	8-98120-607-0	01	1	0907-1008		●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98120-607-1	01	1	1009-	●	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98001-154-0	01	1	0907-1008	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98001-154-0	01	1	1009-	●	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98001-155-0	01	1	0907-1008	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98001-155-0	01	1	1009-	●	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98001-156-0	01	1	0907-1008	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98001-156-0	01	1	1009-	●	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98001-157-0	01	1	0907-1008	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98001-157-0	01	1	1009-	●	●
2	06.020 KNUCKLE; FRT AXLE	8-97261-549-2	01	1	0907-			●
2	06.020 KNUCKLE; FRT AXLE	8-97261-550-2	01	1	0907-			●
86	07.428 BOLT; TORSION BAR,HEIGHT CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98088-329-0	02	1	0907-1008	●
86	07.428 BOLT; TORSION BAR,HEIGHT CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98088-329-0	02	1	1009-	●	●
132	07.436 COLLAR; TORSION BAR FRT INDEPENDENT SUSPENSION(FF0) 06.234 M24	0-91111-524-0	02	1	0907-1008	●
132	07.436 COLLAR; TORSION BAR FRT INDEPENDENT SUSPENSION(FF0) 06.234 M24	0-91111-524-0	02	1	1009-	●	●

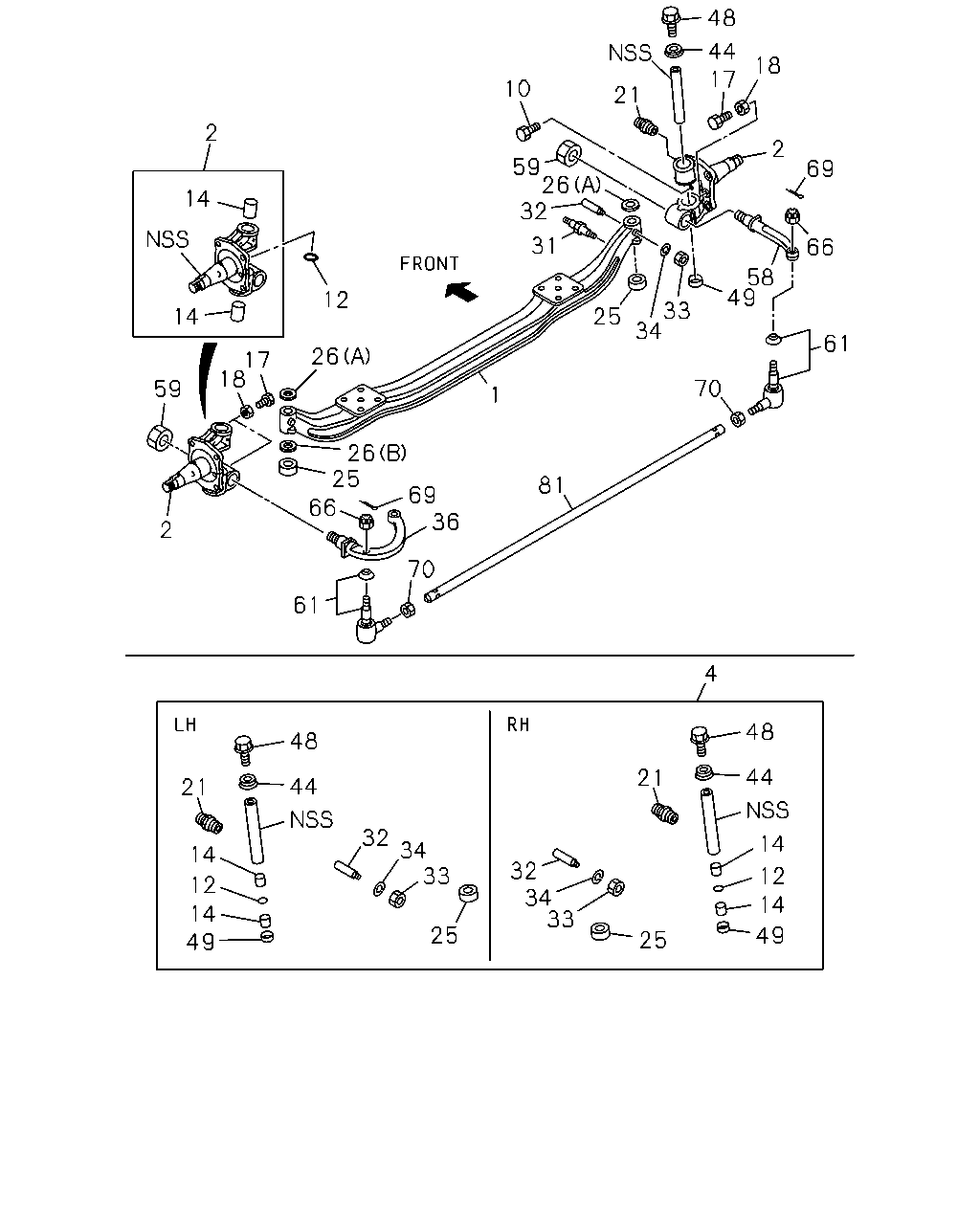

48 44 17 18 10 21 2 2 59 26 32 69 14 31 66 58 49 12 33 34 25 14 61 26 17 18 70 59 1 26 25 81 69 36 66 2 70 61 4 48 48 44 21 44 21 32 14 34 33 14 32 34 33 12 12 14 14 49 25 49 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.008 AXLE; FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97262-000-2	01	1	0907-1008	●
1	06.008 AXLE; FRT	8-97262-000-2	01	1	0907-1008		●	●
1	06.008 AXLE; FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97262-000-4	01	1	1009-	●	●
1	06.008 AXLE; FRT	8-97262-000-4	01	1	1009-			●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98120-606-0	01	1	0907-1008	●
2	06.020 KNUCKLE; FRT AXLE	8-98120-606-0	01	1	0907-1008		●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98120-606-1	01	1	1009-	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98120-607-0	01	1	0907-1008	●
2	06.020 KNUCKLE; FRT AXLE	8-98120-607-0	01	1	0907-1008		●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98120-607-1	01	1	1009-	●	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98001-154-0	01	1	0907-1008	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98001-154-0	01	1	1009-	●	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98001-155-0	01	1	0907-1008	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98001-155-0	01	1	1009-	●	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98001-156-0	01	1	0907-1008	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98001-156-0	01	1	1009-	●	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98001-157-0	01	1	0907-1008	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98001-157-0	01	1	1009-	●	●
2	06.020 KNUCKLE; FRT AXLE	8-97261-549-2	01	1	0907-			●
2	06.020 KNUCKLE; FRT AXLE	8-97261-550-2	01	1	0907-			●
4	06.203 KING PIN KIT	5-87832-219-2	01	1	0907-			●
4	06.203 KING PIN KIT EXC. FRT INDEPENDENT SUSPENSION(FF0) W/NOTCH	5-87832-252-0	01	1	0907-1008	●
4	06.203 KING PIN KIT W/NOTCH	5-87832-252-0	01	1	0907-1008		●
4	06.203 KING PIN KIT EXC. FRT INDEPENDENT SUSPENSION(FF0) W/NOTCH	5-87832-252-1	01	1	1109-	●	●
10	06.009 PLUG; PLATE,KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97360-117-0	01	1	0907-1008	●
10	06.009 PLUG; PLATE,KNUCKLE	8-97360-117-0	01	1	0907-1008		●	●
10	06.009 PLUG; PLATE,KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97360-117-0	01	1	1009-	●	●
10	06.009 PLUG; PLATE,KNUCKLE	8-97360-117-0	01	1	1009-			●
12	06.021 GASKET; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98084-500-0	02	1	0907-1008	●
12	06.021 GASKET; KNUCKLE	8-98084-500-0	02	1	0907-1008		●	●
12	06.021 GASKET; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98084-500-0	02	1	1009-	●	●
12	06.021 GASKET; KNUCKLE	8-98084-500-0	02	1	1009-			●
14	06.021 BUSHING; KING PIN EXC. FRT INDEPENDENT SUSPENSION(FF0) W/NOTCH	8-98113-104-0	04	1	0907-1008	●
14	06.021 BUSHING; KING PIN W/NOTCH	8-98113-104-0	04	1	0907-1008		●
14	06.021 BUSHING; KING PIN EXC. FRT INDEPENDENT SUSPENSION(FF0) W/NOTCH	8-98113-104-0	04	1	1009-	●	●
14	06.021 BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-3	04	1	0907-			●
17	06.009 BOLT; STOPPER KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0) M12X24 EYE-BOLT	8-97360-059-0	03	1	0907-1008	●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	8-97360-059-0	03	1	0907-1008		●	●
17	06.009 BOLT; STOPPER KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0) M12X24 EYE-BOLT	8-97360-059-0	03	1	1009-	●	●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	8-97360-059-0	03	1	1009-			●
18	06.216 NUT; STOPPER BOLT,KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.439 M12	0-91111-512-0	03	1	0907-1008	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 04.439 M12	0-91111-512-0	03	1	0907-1008		●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.439 M12	0-91111-512-0	03	1	1009-	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 04.439 M12	0-91111-512-0	03	1	1009-			●
21	06.166 NIPPLE; GREASE,KING PIN EXC. FRT INDEPENDENT SUSPENSION(FF0) 05.601 M6 STRAIGHT	0-90301-406-0	04	1	0907-1008	●
21	06.166 NIPPLE; GREASE,KING PIN 05.601 M6 STRAIGHT	0-90301-406-0	04	1	0907-1008		●	●
21	06.166 NIPPLE; GREASE,KING PIN EXC. FRT INDEPENDENT SUSPENSION(FF0) 05.601 M6 STRAIGHT	0-90301-406-0	04	1	1009-	●	●
21	06.166 NIPPLE; GREASE,KING PIN 05.601 M6 STRAIGHT	0-90301-406-0	04	1	1009-			●
25	06.210 BEARING; THRUST,KING PIN EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.021	8-94248-883-2	02	1	0907-1008	●
25	06.210 BEARING; THRUST,KING PIN 06.021	8-94248-883-2	02	1	0907-1008		●	●
25	06.210 BEARING; THRUST,KING PIN EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.021	8-94248-883-3	02	1	1009-	●	●
25	06.210 BEARING; THRUST,KING PIN 06.021	8-94248-883-3	02	1	1009-			●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.50	8-94162-574-0	AR	1	0907-1008	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.50	8-94162-574-0	AR	1	0907-1008		●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.50	8-94162-574-0	AR	1	1009-	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.50	8-94162-574-0	AR	1	1009-			●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.55	8-94162-575-0	AR	1	0907-1008	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.55	8-94162-575-0	AR	1	0907-1008		●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.55	8-94162-575-0	AR	1	1009-	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.55	8-94162-575-0	AR	1	1009-			●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.60	8-94162-576-0	AR	1	0907-1008	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.60	8-94162-576-0	AR	1	0907-1008		●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.60	8-94162-576-0	AR	1	1009-	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.60	8-94162-576-0	AR	1	1009-			●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.65	8-94162-577-0	AR	1	0907-1008	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.65	8-94162-577-0	AR	1	0907-1008		●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.65	8-94162-577-0	AR	1	1009-	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.65	8-94162-577-0	AR	1	1009-			●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 05.460 (B) T=1.95	8-94168-490-0	02	1	0907-1008	●
26	06.022 SHIM; KING PIN,BRG 05.460 (B) T=1.95	8-94168-490-0	02	1	0907-1008		●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 05.460 (B) T=1.95	8-94168-490-0	02	1	1009-	●	●
26	06.022 SHIM; KING PIN,BRG 05.460 (B) T=1.95	8-94168-490-0	02	1	1009-			●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.70	8-94174-352-0	AR	1	0907-1008	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.70	8-94174-352-0	AR	1	0907-1008		●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.70	8-94174-352-0	AR	1	1009-	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.70	8-94174-352-0	AR	1	1009-			●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.80	8-94174-354-0	AR	1	0907-1008	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.80	8-94174-354-0	AR	1	0907-1008		●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.80	8-94174-354-0	AR	1	1009-	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.80	8-94174-354-0	AR	1	1009-			●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.90	8-94174-356-0	AR	1	0907-1008	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.90	8-94174-356-0	AR	1	0907-1008		●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.90	8-94174-356-0	AR	1	1009-	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.90	8-94174-356-0	AR	1	1009-			●
31	07.347 PIN; S/ABS,LWR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97141-944-0	02	1	0907-1008	●
31	07.347 PIN; S/ABS,LWR	8-97141-944-0	02	1	0907-1008		●	●
31	07.347 PIN; S/ABS,LWR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97141-944-0	02	1	1009-	●	●
31	07.347 PIN; S/ABS,LWR	8-97141-944-0	02	1	1009-			●
32	06.216 BOLT; KEY,KING PIN EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97141-945-1	02	1	0907-1008	●
32	06.216 BOLT; KEY,KING PIN	8-97141-945-1	02	1	0907-1008		●	●
32	06.216 BOLT; KEY,KING PIN EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97141-945-2	02	1	1009-	●	●
32	06.216 BOLT; KEY,KING PIN	8-97141-945-2	02	1	1009-			●
33	06.216 NUT; KEY BOLT EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.833 M10	0-91110-510-0	02	1	0907-1008	●
33	06.216 NUT; KEY BOLT 00.833 M10	0-91110-510-0	02	1	0907-1008		●	●
33	06.216 NUT; KEY BOLT EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.833 M10	0-91110-510-0	02	1	1009-	●	●
33	06.216 NUT; KEY BOLT 00.833 M10	0-91110-510-0	02	1	1009-			●
34	06.216 WASHER; LK,KEY BOLT EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.606 ID=10.2	0-91510-510-0	02	1	0907-1008	●
34	06.216 WASHER; LK,KEY BOLT 06.606 ID=10.2	0-91510-510-0	02	1	0907-1008		●	●
34	06.216 WASHER; LK,KEY BOLT EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.606 ID=10.2	0-91510-510-0	02	1	1009-	●	●
34	06.216 WASHER; LK,KEY BOLT 06.606 ID=10.2	0-91510-510-0	02	1	1009-			●
36	06.103 ARM; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97168-291-4	01	1	0907-1008	●
36	06.103 ARM; KNUCKLE	8-97168-291-4	01	1	0907-1008		●	●
36	06.103 ARM; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97168-291-4	01	1	1009-	●	●
36	06.103 ARM; KNUCKLE	8-97168-291-4	01	1	1009-			●
44	06.225 COVER; KING PIN EXC. FRT INDEPENDENT SUSPENSION(FF0) OD=36	8-97360-023-0	02	1	0907-1008	●
44	06.225 COVER; KING PIN OD=36	8-97360-023-0	02	1	0907-1008		●	●
44	06.225 COVER; KING PIN EXC. FRT INDEPENDENT SUSPENSION(FF0) OD=36	8-97360-023-0	02	1	1009-	●	●
44	06.225 COVER; KING PIN OD=36	8-97360-023-0	02	1	1009-			●
48	06.225 BOLT; COVER EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X12 FLANGE	0-28051-012-0	02	1	0907-1008	●
48	06.225 BOLT; COVER M10X12 FLANGE	0-28051-012-0	02	1	0907-1008		●	●
48	06.225 BOLT; COVER EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X12 FLANGE	0-28051-012-0	02	1	1009-	●	●
48	06.225 BOLT; COVER M10X12 FLANGE	0-28051-012-0	02	1	1009-			●
49	06.225 CAP; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97360-024-0	02	1	0907-1008	●
49	06.225 CAP; KNUCKLE	8-97360-024-0	02	1	0907-1008		●	●
49	06.225 CAP; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97360-024-0	02	1	1009-	●	●
49	06.225 CAP; KNUCKLE	8-97360-024-0	02	1	1009-			●
58	06.103 ARM; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97168-292-0	01	1	0907-1008	●
58	06.103 ARM; TIE ROD	8-97168-292-0	01	1	0907-1008		●	●
58	06.103 ARM; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97168-292-0	01	1	1009-	●	●
58	06.103 ARM; TIE ROD	8-97168-292-0	01	1	1009-			●
59	06.104 NUT; TIE ROD ARM EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97360-123-0	02	1	0907-1008	●
59	06.104 NUT; TIE ROD ARM	8-97360-123-0	02	1	0907-1008		●	●
59	06.104 NUT; TIE ROD ARM EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97360-123-0	02	1	1009-	●	●
59	06.104 NUT; TIE ROD ARM	8-97360-123-0	02	1	1009-			●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97142-100-1	01	1	0907-1008	●
61	06.233 ROD END; TIE ROD	8-97142-100-1	01	1	0907-1008		●	●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97142-100-1	01	1	1009-1309	●	●
61	06.233 ROD END; TIE ROD	8-97142-100-1	01	1	1009-1309			●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97107-348-2	01	1	1310-	●	●
61	06.233 ROD END; TIE ROD	8-97107-348-2	01	1	1310-			●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97142-101-1	01	1	0907-1008	●
61	06.233 ROD END; TIE ROD	8-97142-101-1	01	1	0907-1008		●	●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97142-101-1	01	1	1009-1309	●	●
61	06.233 ROD END; TIE ROD	8-97142-101-1	01	1	1009-1309			●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97107-349-2	01	1	1310-	●	●
61	06.233 ROD END; TIE ROD	8-97107-349-2	01	1	1310-			●
66	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(FF0) M16 SLOTTED	0-91116-516-0	02	1	0907-1008	●
66	06.234 NUT; TIE ROD END M16 SLOTTED	0-91116-516-0	02	1	0907-1008		●	●
66	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(FF0) M16 SLOTTED	0-91116-516-0	02	1	1009-1204	●	●
66	06.234 NUT; TIE ROD END M16 SLOTTED	0-91116-516-0	02	1	1009-1204			●
66	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 M16 SLOTTED	8-98049-689-0	02	1	1205-	●	●
66	06.234 NUT; TIE ROD END 06.216 M16 SLOTTED	8-98049-689-0	02	1	1205-			●
69	06.255 PIN; SPLIT,TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(FF0) OD=3.7 L=20	0-81124-020-0	02	1	0907-1008	●
69	06.255 PIN; SPLIT,TIE ROD END OD=3.7 L=20	0-81124-020-0	02	1	0907-1008		●	●
69	06.255 PIN; SPLIT,TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(FF0) OD=3.7 L=20	0-81124-020-0	02	1	1009-	●	●
69	06.255 PIN; SPLIT,TIE ROD END OD=3.7 L=20	0-81124-020-0	02	1	1009-			●
70	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(FF0) M20 LH THREAD	8-94254-726-0	01	1	0907-1008	●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	0907-1008		●	●
70	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(FF0) M20 LH THREAD	8-94254-726-0	01	1	1009-	●	●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	1009-			●
70	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(FF0) M20	8-98043-530-0	01	1	0907-1008	●
70	06.234 NUT; TIE ROD END M20	8-98043-530-0	01	1	0907-1008		●	●
70	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(FF0) M20	8-98043-530-0	01	1	1009-	●	●
70	06.234 NUT; TIE ROD END M20	8-98043-530-0	01	1	1009-			●
81	06.230 ROD; TIE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97142-024-0	01	1	0907-1008	●
81	06.230 ROD; TIE	8-97142-024-0	01	1	0907-1008		●	●
81	06.230 ROD; TIE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97142-024-0	01	1	1009-	●	●
81	06.230 ROD; TIE	8-97142-024-0	01	1	1009-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
