3-58 — FIXING PARTS; OIL PIPING (#76466) — 89 parça

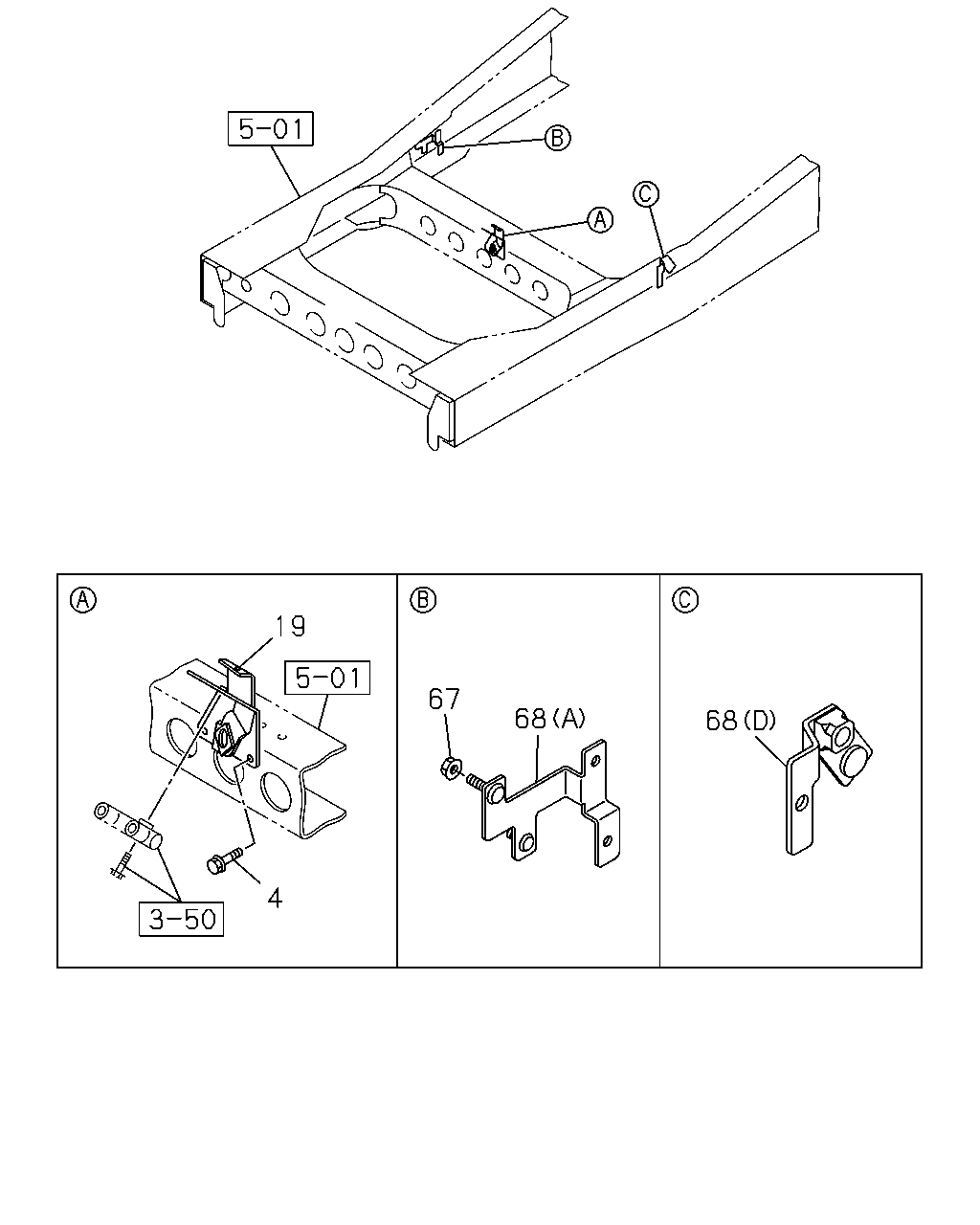

çizim 121499
19 67 68 68 4
BalonParca AdiParca NoAdetTipApplied Date A B C
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0907- ● ● ●
4 04.686 BOLT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0907- ● ● ●
4 04.686 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0907- ● ● ●
19 04.686 BRACKET; OIL PIPE 8-98009-117-2 01 1 0907-1006 ● ● ●
19 04.686 BRACKET; OIL PIPE 8-98162-759-0 01 1 1007- ● ● ●
67 04.686 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ● ●
67 04.686 NUT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ● ● ●
68 04.686 BRACKET; CLIP
(A) 		8-98039-558-2 01 1 0907- ● ● ●
68 04.686 BRACKET; CLIP
(D) 		8-98136-287-1 01 1 0907- ● ● ●
68 04.686 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98060-870-2 01 1 0907- ● ● ●
68 04.686 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98090-213-1 01 1 0907-1009 ● ● ●
68 04.686 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (E) 		8-98178-046-0 01 1 1010- ● ● ●

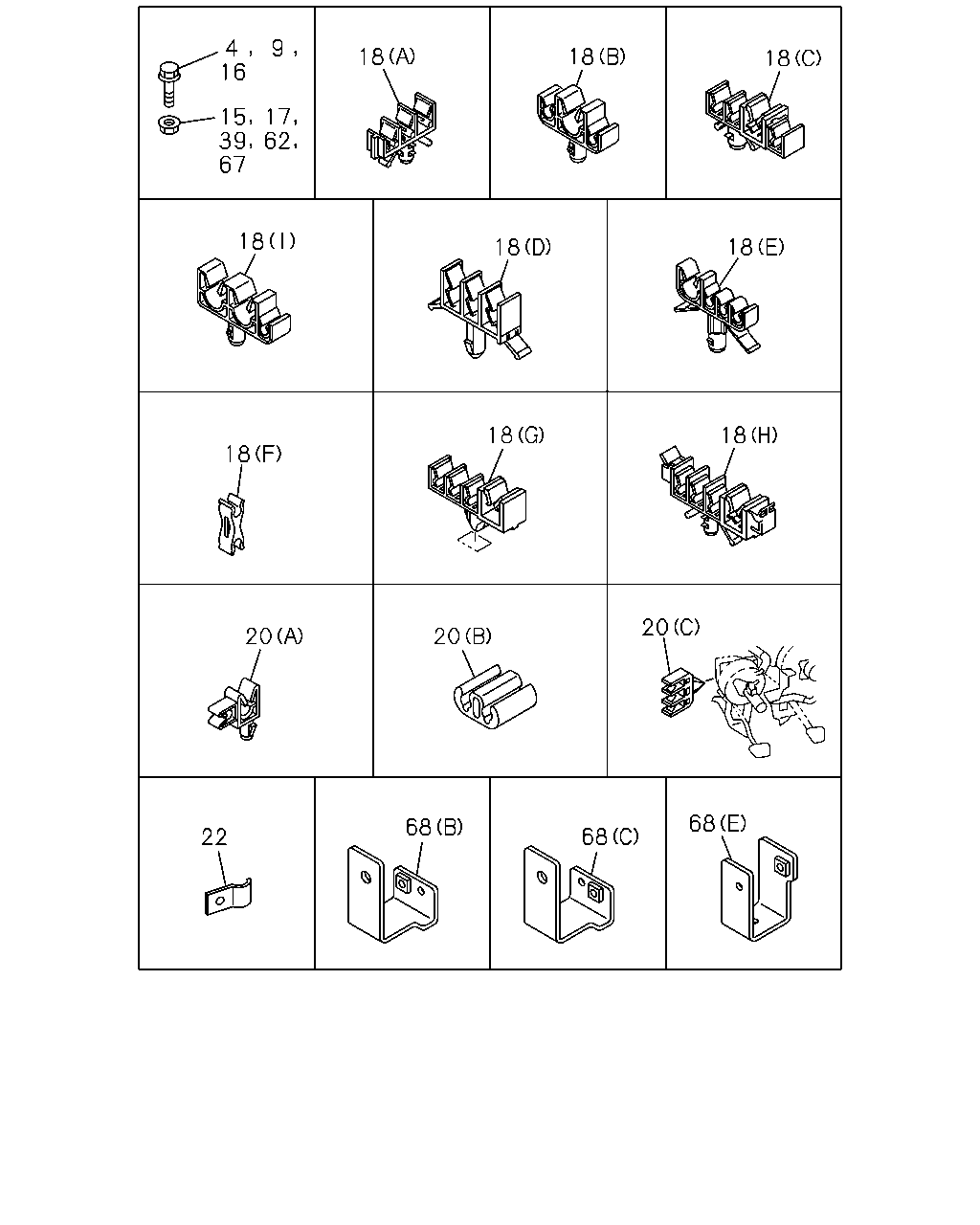

çizim 121574
9 4 16 18 18 18 15 39 67 17 62 18 18 18 18 18 18 20 20 20 68 68 68 22
BalonParca AdiParca NoAdetTipApplied Date A B C
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0907- ● ● ●
4 04.686 BOLT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0907- ● ● ●
4 04.686 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0907- ● ● ●
9 04.686 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ●
9 04.686 BOLT; BRKT
SINGLE RR TIRE(6TD) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ●
9 04.686 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0907-1111 ●
9 04.686 BOLT; BRKT
EXC. SINGLE RR TIRE(6TD) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0907-1111 ●
9 04.686 BOLT; BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0907-1111 ● ●
9 04.686 BOLT; BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0907-1111 ●
9 04.686 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0907-1111 ●
9 04.686 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1112- ●
9 04.686 BOLT; BRKT
EXC. SINGLE RR TIRE(6TD) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1112- ●
9 04.686 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1112- ● ●
9 04.686 BOLT; BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1112- ● ●
15 04.686 NUT; CLIP,OIL PIPE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0907-1008 ●
15 04.686 NUT; CLIP,OIL PIPE
01.062 M6 FLANGE 		0-91180-106-0 02 1 0907-1008 ● ●
15 04.686 NUT; CLIP,OIL PIPE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1009- ● ●
15 04.686 NUT; CLIP,OIL PIPE
01.062 M6 FLANGE 		0-91180-106-0 02 1 1009- ●
16 04.686 BOLT; BRKT TO FRAME
FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0907-1008 ●
16 04.686 BOLT; BRKT TO FRAME
FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1009- ● ●
17 04.686 NUT; BRKT TO FRAME
EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907-1008 ●
17 04.686 NUT; BRKT TO FRAME
01.062 M8 FLANGE 		0-91180-108-0 02 1 0907-1008 ● ●
17 04.686 NUT; BRKT TO FRAME
EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1009- ● ●
17 04.686 NUT; BRKT TO FRAME
01.062 M8 FLANGE 		0-91180-108-0 02 1 1009- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2800MM(28W) (H) ID=10 & 4.76X3 		8-97326-158-1 01 1 1112- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2800MM(28W) (H) ID=10 & 4.76X3 		8-97326-158-1 01 1 0911-1003 ●
18 04.686 CLIP; BRK PIPE
(B) ID=12 & 6.35 & 4.76 		8-97305-169-1 04 1 0907- ● ● ●
18 04.686 CLIP; BRK PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 0907-1008 ●
18 04.686 CLIP; BRK PIPE
FRT INDEPENDENT SUSPENSION(FF0) (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 0907-1008 ●
18 04.686 CLIP; BRK PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 0907-1008 ● ●
18 04.686 CLIP; BRK PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1009- ● ●
18 04.686 CLIP; BRK PIPE
FRT INDEPENDENT SUSPENSION(FF0) (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1009- ● ●
18 04.686 CLIP; BRK PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1009- ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (F) ID=4.6X2 		8-94241-454-0 01 1 0907-1111 ● ●
18 04.686 CLIP; BRK PIPE
04.868 (F) ID=4.6X2 		8-94241-454-0 01 1 0907-1111 ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (F) ID=4.6X2 		8-94241-454-0 01 1 1112- ● ● ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) (E) ID=10 & 4.76X3 		8-97168-820-0 01 1 0907-1111 ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97168-820-0 01 1 0907-1111 ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3 		8-97168-820-0 01 1 0907-1111 ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) (E) ID=10 & 4.76X3 		8-97168-820-0 01 1 1112- ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3 		8-97168-820-0 01 1 1112- ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) (H) ID=10 & 4.76X3 		8-97326-158-1 03 1 0907- ● ● ●
18 04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (I) ID=10 OR 12X2 & 4.76 		8-98058-323-0 01 1 0907- ● ● ●
18 04.686 CLIP; BRK PIPE
(D) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0907- ● ● ●
18 04.686 CLIP; BRK PIPE
03.162 (A) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 0907- ● ● ●
18 04.686 CLIP; BRK PIPE
(G) ID=10 & 4.76X3 		8-97168-819-0 07 1 0907- ● ● ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97168-820-0 02 1 0907- ● ● ●
18 04.686 CLIP; BRK PIPE
03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76 		8-97326-156-2 01 1 0907- ● ● ●
18 04.686 CLIP; BRK PIPE
(H) ID=10 & 4.76X3 		8-97326-158-1 04 1 0907- ● ● ●
18 04.686 CLIP; BRK PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 0907- ● ● ●
18 04.686 CLIP; BRK PIPE
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 0907- ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 0907- ● ● ●
20 04.686 CLIP; BRK PIPE
03.162 (B) ID=6.35 & 6.35 		8-94474-113-0 01 1 0907- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) ID=12 & 6.35 		8-97215-437-0 01 1 0907- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.785 B=14 L=16 		9-09916-996-0 02 1 0907-1008 ●
22 04.686 CLIP; PIPE TO FRAME
00.785 B=14 L=16 		9-09916-996-0 02 1 0907-1008 ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.785 B=14 L=16 		9-09916-996-0 02 1 1009- ● ●
22 04.686 CLIP; PIPE TO FRAME
00.785 B=14 L=16 		9-09916-996-0 02 1 1009- ●
39 04.686 NUT; BRKT FIX
4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ●
39 04.686 NUT; BRKT FIX
SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ●
39 04.686 NUT; BRKT FIX
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907-1111 ●
39 04.686 NUT; BRKT FIX
EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907-1111 ●
39 04.686 NUT; BRKT FIX
03.162 M10 FLANGE 		0-91180-110-0 01 1 0907-1111 ● ●
39 04.686 NUT; BRKT FIX
03.162 M10 FLANGE 		0-91180-110-0 01 1 0907-1111 ●
39 04.686 NUT; BRKT FIX
4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907-1111 ●
39 04.686 NUT; BRKT FIX
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1112- ●
39 04.686 NUT; BRKT FIX
EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1112- ●
39 04.686 NUT; BRKT FIX
4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1112- ● ●
39 04.686 NUT; BRKT FIX
03.162 M10 FLANGE 		0-91180-110-0 01 1 1112- ● ●
62 04.686 NUT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ● ●
67 04.686 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ● ●
67 04.686 NUT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ● ● ●
68 04.686 BRACKET; CLIP
(A) 		8-98039-558-2 01 1 0907- ● ● ●
68 04.686 BRACKET; CLIP
(D) 		8-98136-287-1 01 1 0907- ● ● ●
68 04.686 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98060-870-2 01 1 0907- ● ● ●
68 04.686 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98090-213-1 01 1 0907-1009 ● ● ●
68 04.686 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (E) 		8-98178-046-0 01 1 1010- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
