3-30 — BRAKE MASTER CYLINDER (#76460) — 94 parça

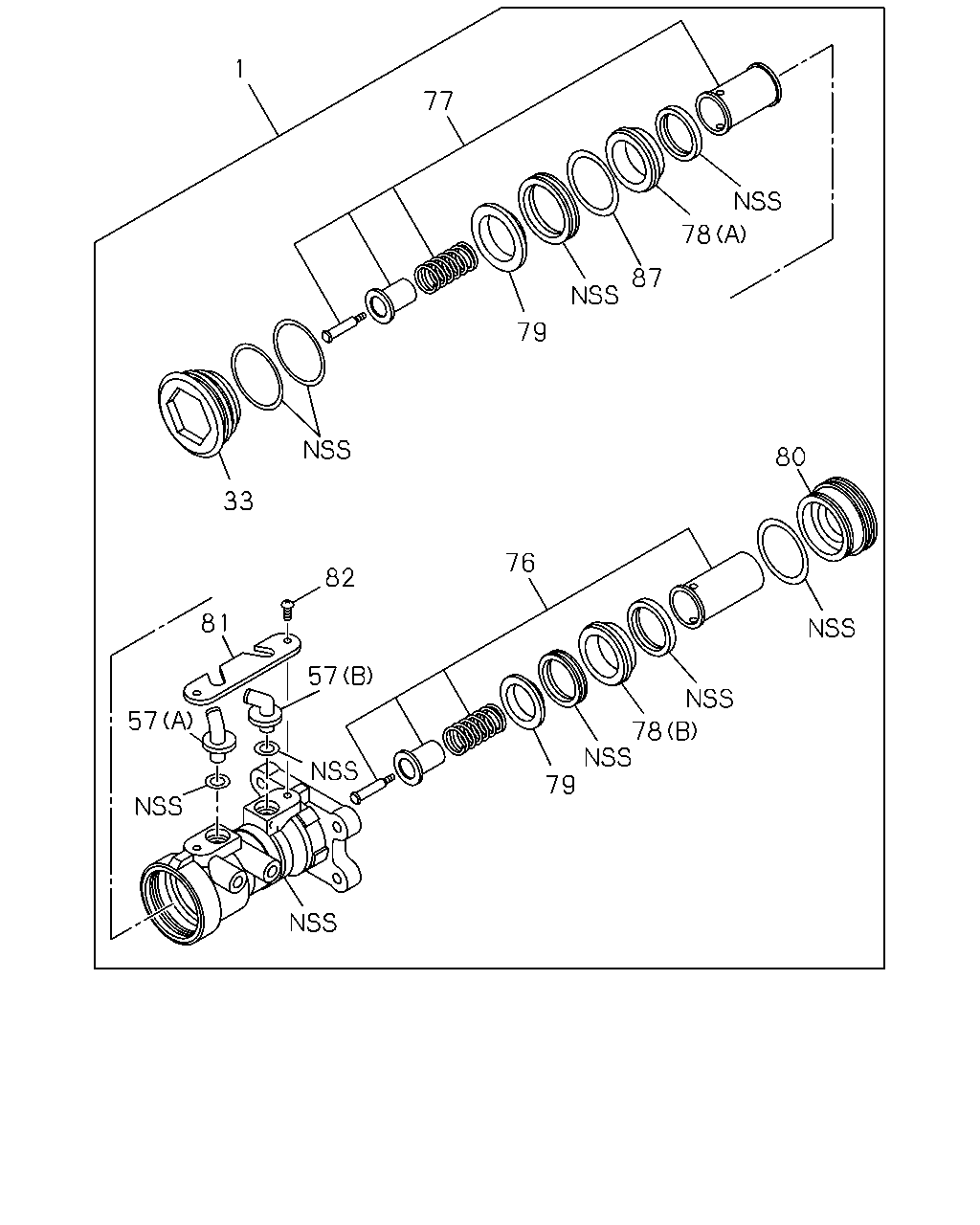

çizim 117061
1 77 78 87 79 80 33 76 82 81 57 57 78 79
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.650 CYLINDER ASM; BRK MASTER
FRT INDEPENDENT SUSPENSION(FF0) 		8-98032-617-0 01 1 0907-1008 ●
1 04.650 CYLINDER ASM; BRK MASTER
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98032-617-0 01 1 0907-1008 ●
1 04.650 CYLINDER ASM; BRK MASTER
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 		8-98032-617-0 01 1 1009- ●
1 04.650 CYLINDER ASM; BRK MASTER
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98032-617-0 01 1 1009- ●
1 04.650 CYLINDER ASM; BRK MASTER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98032-602-0 01 1 0907-1008 ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98032-602-0 01 1 0907-1008 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) 		8-98032-602-0 01 1 1009- ●
1 04.650 CYLINDER ASM; BRK MASTER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98032-602-0 01 1 1009- ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98032-602-0 01 1 1009- ● ●
33 04.661 PLUG; END,M/CYL
FRT INDEPENDENT SUSPENSION(FF0) 		8-97186-696-0 01 1 0907-1008 ●
33 04.661 PLUG; END,M/CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97186-696-0 01 1 0907-1008 ●
33 04.661 PLUG; END,M/CYL
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 		8-97186-696-0 01 1 1009- ●
33 04.661 PLUG; END,M/CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97186-696-0 01 1 1009- ●
33 04.661 PLUG; END,M/CYL
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97186-697-0 01 1 0907-1008 ●
33 04.661 PLUG; END,M/CYL 8-97186-697-0 01 1 0907-1008 ● ●
33 04.661 PLUG; END,M/CYL
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) 		8-97186-697-0 01 1 1009- ●
33 04.661 PLUG; END,M/CYL
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97186-697-0 01 1 1009- ●
33 04.661 PLUG; END,M/CYL 8-97186-697-0 01 1 1009- ● ●
57 04.651 NIPPLE; BRK M/CYL
(A) 		8-97130-441-0 01 1 0907- ● ● ●
57 04.651 NIPPLE; BRK M/CYL
(B) 		8-97130-442-0 01 1 0907- ● ● ●
76 04.653 PISTON ASM; PRIMARY
FRT INDEPENDENT SUSPENSION(FF0) 		8-97224-636-0 01 1 0907-1008 ●
76 04.653 PISTON ASM; PRIMARY
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97224-636-0 01 1 0907-1008 ●
76 04.653 PISTON ASM; PRIMARY
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 		8-97224-636-0 01 1 1009- ●
76 04.653 PISTON ASM; PRIMARY
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97224-636-0 01 1 1009- ●
76 04.653 PISTON ASM; PRIMARY
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97224-643-0 01 1 0907-1008 ●
76 04.653 PISTON ASM; PRIMARY 8-97224-643-0 01 1 0907-1008 ● ●
76 04.653 PISTON ASM; PRIMARY
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) 		8-97224-643-0 01 1 1009- ●
76 04.653 PISTON ASM; PRIMARY
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97224-643-0 01 1 1009- ●
76 04.653 PISTON ASM; PRIMARY 8-97224-643-0 01 1 1009- ● ●
77 04.653 PISTON ASM; SECONDARY
FRT INDEPENDENT SUSPENSION(FF0) 		8-97224-635-0 01 1 0907-1008 ●
77 04.653 PISTON ASM; SECONDARY
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97224-635-0 01 1 0907-1008 ●
77 04.653 PISTON ASM; SECONDARY
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 		8-97224-635-0 01 1 1009- ●
77 04.653 PISTON ASM; SECONDARY
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97224-635-0 01 1 1009- ●
77 04.653 PISTON ASM; SECONDARY
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97224-642-0 01 1 0907-1008 ●
77 04.653 PISTON ASM; SECONDARY 8-97224-642-0 01 1 0907-1008 ● ●
77 04.653 PISTON ASM; SECONDARY
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) 		8-97224-642-0 01 1 1009- ●
77 04.653 PISTON ASM; SECONDARY
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97224-642-0 01 1 1009- ●
77 04.653 PISTON ASM; SECONDARY 8-97224-642-0 01 1 1009- ● ●
78 04.651 BUSHING; MASTER CYL
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97130-454-0 01 1 0907-1008 ●
78 04.651 BUSHING; MASTER CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) 		8-97130-454-0 01 1 0907-1008 ●
78 04.651 BUSHING; MASTER CYL
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) (A) 		8-97130-454-0 01 1 1009- ●
78 04.651 BUSHING; MASTER CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) 		8-97130-454-0 01 1 1009- ●
78 04.651 BUSHING; MASTER CYL
FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97217-310-0 01 1 0907-1008 ●
78 04.651 BUSHING; MASTER CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-97217-310-0 01 1 0907-1008 ●
78 04.651 BUSHING; MASTER CYL
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) (B) 		8-97217-310-0 01 1 1009- ●
78 04.651 BUSHING; MASTER CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-97217-310-0 01 1 1009- ●
78 04.651 BUSHING; MASTER CYL
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97130-455-0 01 1 0907-1008 ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-455-0 01 1 0907-1008 ● ●
78 04.651 BUSHING; MASTER CYL
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) (A) 		8-97130-455-0 01 1 1009- ●
78 04.651 BUSHING; MASTER CYL
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97130-455-0 01 1 1009- ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-455-0 01 1 1009- ● ●
78 04.651 BUSHING; MASTER CYL
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97217-312-0 01 1 0907-1008 ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-312-0 01 1 0907-1008 ● ●
78 04.651 BUSHING; MASTER CYL
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) (B) 		8-97217-312-0 01 1 1009- ●
78 04.651 BUSHING; MASTER CYL
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97217-312-0 01 1 1009- ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-312-0 01 1 1009- ● ●
79 04.651 SUPPORTER; CUP
FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-462-0 02 1 0907-1008 ●
79 04.651 SUPPORTER; CUP
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97130-462-0 02 1 0907-1008 ●
79 04.651 SUPPORTER; CUP
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 		8-97130-462-0 02 1 1009- ●
79 04.651 SUPPORTER; CUP
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97130-462-0 02 1 1009- ●
79 04.651 SUPPORTER; CUP
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-463-0 02 1 0907-1008 ●
79 04.651 SUPPORTER; CUP 8-97130-463-0 02 1 0907-1008 ● ●
79 04.651 SUPPORTER; CUP
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) 		8-97130-463-0 02 1 1009- ●
79 04.651 SUPPORTER; CUP
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-463-0 02 1 1009- ●
79 04.651 SUPPORTER; CUP 8-97130-463-0 02 1 1009- ● ●
80 04.651 COVER; MASTER CYL
FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-448-0 01 1 0907-1008 ●
80 04.651 COVER; MASTER CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97130-448-0 01 1 0907-1008 ●
80 04.651 COVER; MASTER CYL
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 		8-97130-448-0 01 1 1009- ●
80 04.651 COVER; MASTER CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97130-448-0 01 1 1009- ●
80 04.651 COVER; MASTER CYL
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-449-0 01 1 0907-1008 ●
80 04.651 COVER; MASTER CYL 8-97130-449-0 01 1 0907-1008 ● ●
80 04.651 COVER; MASTER CYL
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) 		8-97130-449-0 01 1 1009- ●
80 04.651 COVER; MASTER CYL
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-449-0 01 1 1009- ●
80 04.651 COVER; MASTER CYL 8-97130-449-0 01 1 1009- ● ●
81 04.651 HOLDER; NIPPLE 8-97315-168-0 01 1 0907- ● ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 0907- ● ● ●
87 04.662 SPACER; CUP
FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-458-0 01 1 0907-1008 ●
87 04.662 SPACER; CUP
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97130-458-0 01 1 0907-1008 ●
87 04.662 SPACER; CUP
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 		8-97130-458-0 01 1 1009- ●
87 04.662 SPACER; CUP
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97130-458-0 01 1 1009- ●
87 04.662 SPACER; CUP
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-459-0 01 1 0907-1008 ●
87 04.662 SPACER; CUP 8-97130-459-0 01 1 0907-1008 ● ●
87 04.662 SPACER; CUP
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) 		8-97130-459-0 01 1 1009- ●
87 04.662 SPACER; CUP
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-459-0 01 1 1009- ●
87 04.662 SPACER; CUP 8-97130-459-0 01 1 1009- ● ●
çizim 186691
2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 04.649 REPAIR KIT; BRK,M/CYL
FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-470-0 01 1 0907-1008 ●
2 04.649 REPAIR KIT; BRK,M/CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97130-470-0 01 1 0907-1008 ●
2 04.649 REPAIR KIT; BRK,M/CYL
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 		8-97130-470-0 01 1 1009- ●
2 04.649 REPAIR KIT; BRK,M/CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97130-470-0 01 1 1009- ●
2 04.649 REPAIR KIT; BRK,M/CYL
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-471-0 01 1 0907-1008 ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-471-0 01 1 0907-1008 ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) 		8-97130-471-0 01 1 1009- ●
2 04.649 REPAIR KIT; BRK,M/CYL
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-471-0 01 1 1009- ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-471-0 01 1 1009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
