◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10807 - EXR FUEL TANK 400L ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#7646) — 27 parça

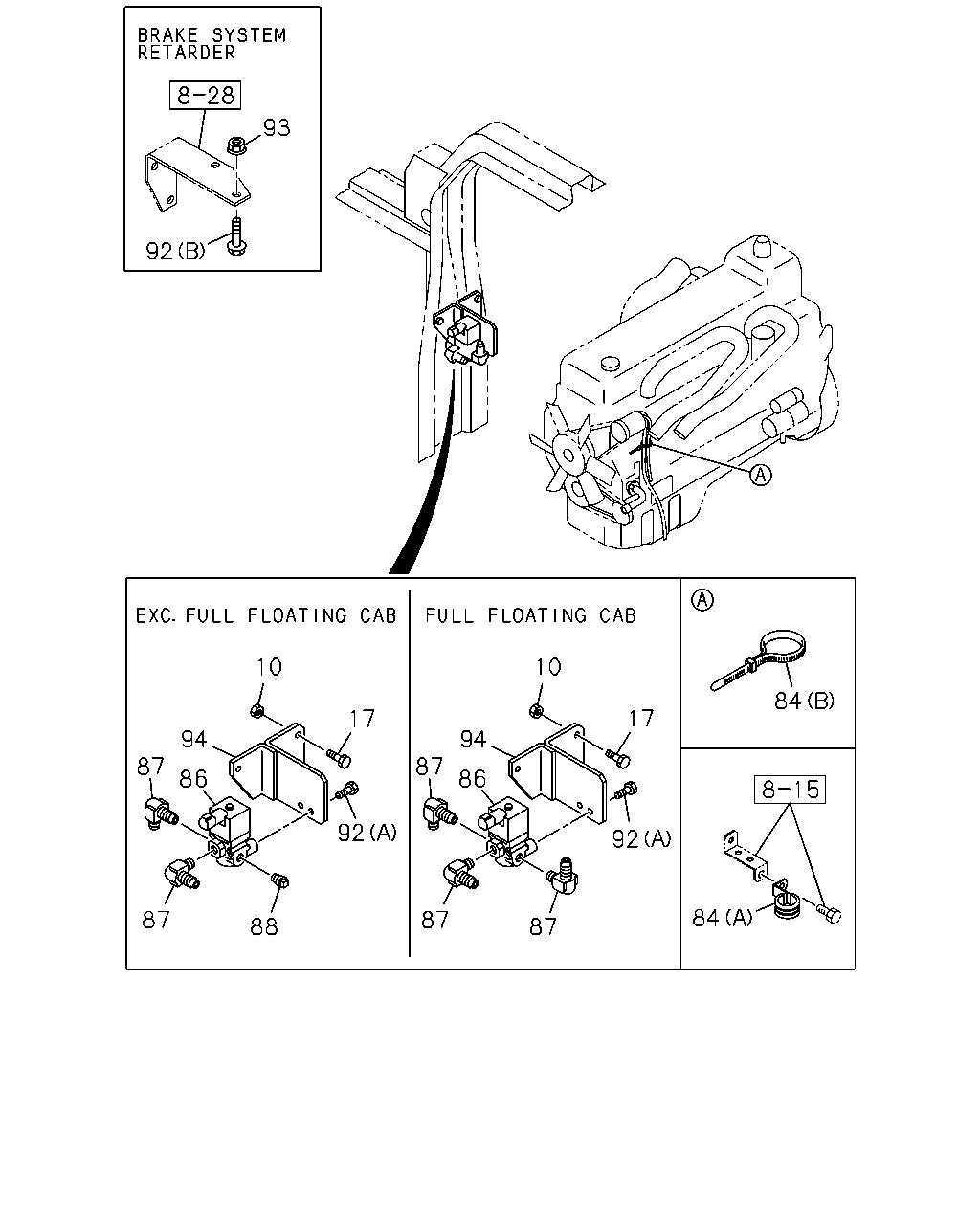

çizim 43650
92 10 10 84 17 17 94 94 87 87 86 86 92 92 84 87 87 88 87 93
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 03 1 9902-0003 ● ● ●
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 03 1 0004- ● ● ● ●
17 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 9902-0003 ● ● ●
17 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 0004- ● ● ● ●
84 CLIP; HARNESS
(A) ID=26 L=27 		1-09701-006-0 01 1 9902-0003 ● ● ●
84 CLIP; HARNESS
(A) ID=26 L=27 		1-09701-006-0 01 1 0004- ● ● ● ●
84 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 9902-9903 ● ● ●
84 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 9902-9903 ● ● ●
84 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 9904-0003 ● ● ●
84 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 0004- ● ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-871-1 01 1 9902-0003 ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0004- ● ● ● ●
87 CONNECTOR
FULL FLOATING CAB<W16> M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 9902- ● ● ●
87 CONNECTOR
EXC. FULL FLOATING CAB<W16> M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9902-0003 ● ● ●
87 CONNECTOR
EXC. FULL FLOATING CAB<W16> M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0004- ● ● ●
87 CONNECTOR
M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0004- ●
88 PLUG
EXC. FULL FLOATING CAB<W16> PT1/4 		9-99204-513-0 01 1 9902-0003 ● ● ●
88 PLUG
EXC. FULL FLOATING CAB<W16> PT1/4 		9-99204-513-0 01 1 0004- ● ● ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 0004- ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9902-0003 ● ● ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0004- ● ● ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> (B) M8X70 FLANGE 		0-28080-870-0 02 1 9902-0003 ● ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> (B) M8X70 FLANGE 		0-28080-870-0 02 1 0004- ● ● ● ●
93 NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91150-108-0 02 1 9902-0003 ● ● ●
93 NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91150-108-0 02 1 0004- ● ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-273-0 01 1 9902-0003 ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-273-0 01 1 0004- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
