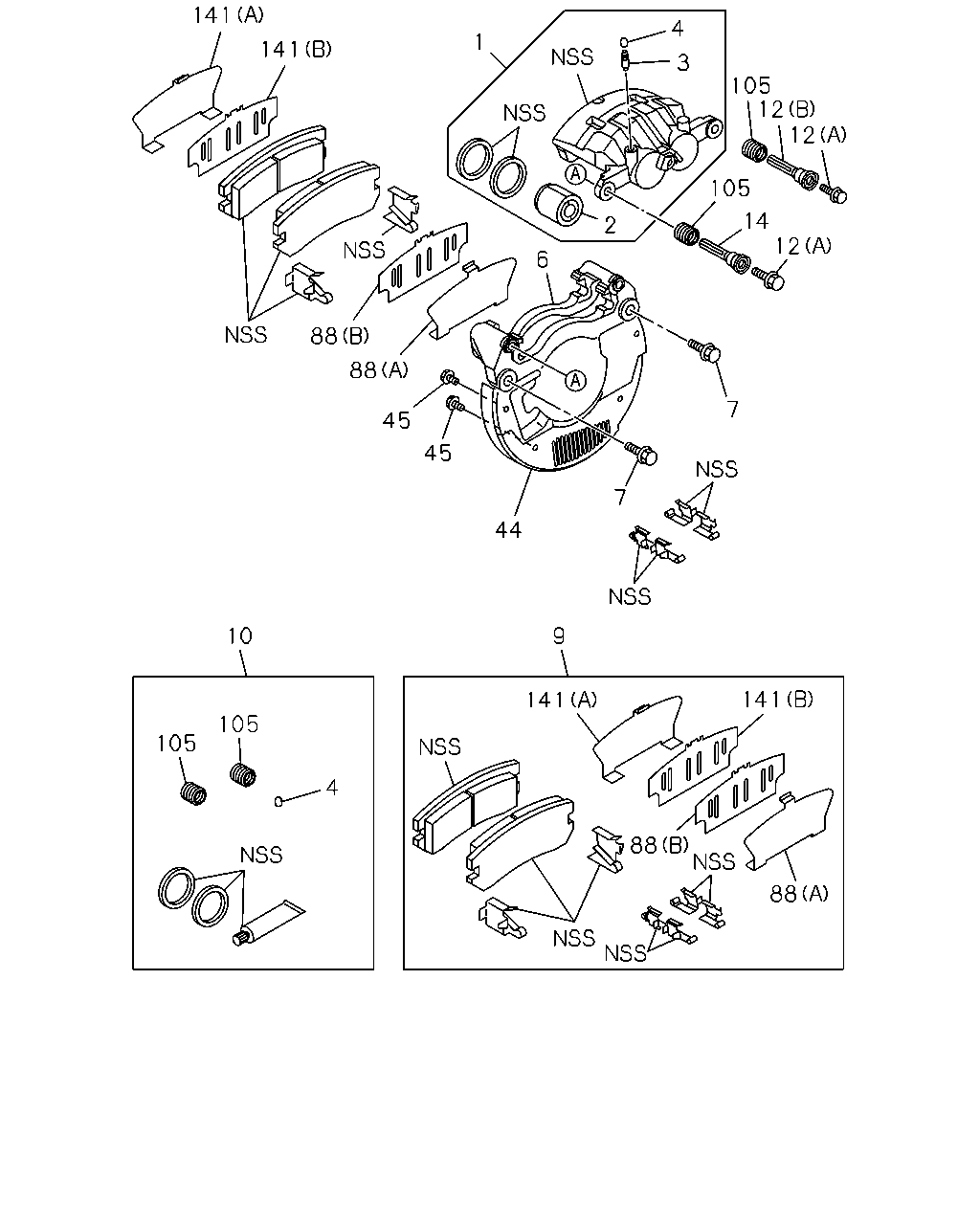

3-06 — REAR DISC BRAKE CALIPER (#76454) — 52 parça

141 4 1 141 3 105 12 12 105 14 12 2 6 88 88 7 45 45 7 44 10 9 141 141 105 105 4 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.665 CALIPER; RR DISC BRK 4 WHEEL DISC BRAKE<JF9>	8-98082-925-0	01	1	0907-1412	●
1	04.665 CALIPER; RR DISC BRK	8-98082-925-0	01	1	0907-1412		●	●
1	04.665 CALIPER; RR DISC BRK 4 WHEEL DISC BRAKE<JF9>	8-98303-471-0	01	1	1501-	●
1	04.665 CALIPER; RR DISC BRK	8-98303-471-0	01	1	1501-		●	●
1	04.665 CALIPER; RR DISC BRK 4 WHEEL DISC BRAKE<JF9>	8-98082-926-0	01	1	0907-1412	●
1	04.665 CALIPER; RR DISC BRK	8-98082-926-0	01	1	0907-1412		●	●
1	04.665 CALIPER; RR DISC BRK 4 WHEEL DISC BRAKE<JF9>	8-98303-472-0	01	1	1501-	●
1	04.665 CALIPER; RR DISC BRK	8-98303-472-0	01	1	1501-		●	●
2	04.665 PISTON; CALIPER,RR 4 WHEEL DISC BRAKE<JF9>	8-98082-934-0	04	1	0907-	●
2	04.665 PISTON; CALIPER,RR	8-98082-934-0	04	1	0907-		●	●
3	04.665 SCREW; BLEEDER,CALIPER,RR 4 WHEEL DISC BRAKE<JF9> 04.666	8-98050-476-0	02	1	0907-	●
3	04.665 SCREW; BLEEDER,CALIPER,RR 04.666	8-98050-476-0	02	1	0907-		●	●
4	04.665 CAP; BLEEDER SCREW,CALIPER,RR 4 WHEEL DISC BRAKE<JF9> 04.666	8-98050-479-0	02	1	0907-	●
4	04.665 CAP; BLEEDER SCREW,CALIPER,RR 04.666	8-98050-479-0	02	1	0907-		●	●
6	04.665 BRACKET; SUPPORT,RR DISC BRK 4 WHEEL DISC BRAKE<JF9>	8-98082-935-0	02	1	0907-	●
6	04.665 BRACKET; SUPPORT,RR DISC BRK	8-98082-935-0	02	1	0907-		●	●
7	04.665 BOLT; DISC BRK 4 WHEEL DISC BRAKE<JF9> 04.681 M16X48 FLANGE	8-98033-656-0	04	1	0907-	●
7	04.665 BOLT; DISC BRK 04.681 M16X48 FLANGE	8-98033-656-0	04	1	0907-		●	●
9	04.667 PAD KIT; CALIPER,RR 4 WHEEL DISC BRAKE<JF9> 05.017	8-98091-271-0	01	1	0907-1212	●
9	04.667 PAD KIT; CALIPER,RR 05.017	8-98091-271-0	01	1	0907-1212		●	●
9	04.667 PAD KIT; CALIPER,RR 4 WHEEL DISC BRAKE<JF9> 05.017	8-98216-921-0	01	1	1301-	●
9	04.667 PAD KIT; CALIPER,RR 05.017	8-98216-921-0	01	1	1301-		●	●
10	04.665 REPAIR KIT; DISC BRK,RR 4 WHEEL DISC BRAKE<JF9>	8-98120-359-0	01	1	0907-1412	●
10	04.665 REPAIR KIT; DISC BRK,RR	8-98120-359-0	01	1	0907-1412		●	●
10	04.665 REPAIR KIT; DISC BRK,RR 4 WHEEL DISC BRAKE<JF9>	8-98302-533-0	01	1	1501-	●
10	04.665 REPAIR KIT; DISC BRK,RR	8-98302-533-0	01	1	1501-		●	●
12	04.665 PIN; RET,CALIPER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (A)	8-97365-264-0	04	1	0907-	●
12	04.665 PIN; RET,CALIPER,RR DISC BRK (A)	8-97365-264-0	04	1	0907-		●	●
12	04.665 PIN; RET,CALIPER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (B)	8-98047-532-0	02	1	0907-	●
12	04.665 PIN; RET,CALIPER,RR DISC BRK (B)	8-98047-532-0	02	1	0907-		●	●
14	04.665 PIN; GUIDE,CALIPER 4 WHEEL DISC BRAKE<JF9>	8-98047-530-0	02	1	0907-	●
14	04.665 PIN; GUIDE,CALIPER	8-98047-530-0	02	1	0907-		●	●
44	04.665 COVER; DUST 4 WHEEL DISC BRAKE<JF9>	8-98083-524-0	01	1	0907-1502	●
44	04.665 COVER; DUST	8-98083-524-0	01	1	0907-1502		●	●
44	04.665 COVER; DUST 4 WHEEL DISC BRAKE<JF9>	8-98191-950-0	01	1	1503-	●
44	04.665 COVER; DUST	8-98191-950-0	01	1	1503-		●	●
44	04.665 COVER; DUST 4 WHEEL DISC BRAKE<JF9>	8-98083-525-0	01	1	0907-1502	●
44	04.665 COVER; DUST	8-98083-525-0	01	1	0907-1502		●	●
44	04.665 COVER; DUST 4 WHEEL DISC BRAKE<JF9>	8-98191-951-0	01	1	1503-	●
44	04.665 COVER; DUST	8-98191-951-0	01	1	1503-		●	●
45	04.665 BOLT; DUST COVER SET 4 WHEEL DISC BRAKE<JF9> 02.343 M8X12 FLANGE	0-28050-812-0	08	1	0907-	●
45	04.665 BOLT; DUST COVER SET 02.343 M8X12 FLANGE	0-28050-812-0	08	1	0907-		●	●
88	04.665 SHIM; PAD INNER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (A)	8-98092-330-0	02	1	0907-	●
88	04.665 SHIM; PAD INNER,RR DISC BRK (A)	8-98092-330-0	02	1	0907-		●	●
88	04.665 SHIM; PAD INNER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (B)	8-98092-331-0	02	1	0907-	●
88	04.665 SHIM; PAD INNER,RR DISC BRK (B)	8-98092-331-0	02	1	0907-		●	●
105	04.665 BOOT; PIN 4 WHEEL DISC BRAKE<JF9>	8-98120-354-0	04	1	0907-	●
105	04.665 BOOT; PIN	8-98120-354-0	04	1	0907-		●	●
141	04.665 SHIM; PAD OUTER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (A)	8-98092-330-0	02	1	0907-	●
141	04.665 SHIM; PAD OUTER,RR DISC BRK (A)	8-98092-330-0	02	1	0907-		●	●
141	04.665 SHIM; PAD OUTER,RR DISC BRK 4 WHEEL DISC BRAKE<JF9> (B)	8-98092-331-0	02	1	0907-	●
141	04.665 SHIM; PAD OUTER,RR DISC BRK (B)	8-98092-331-0	02	1	0907-		●	●
