Isuzu WW
▶
TRUCKS
▶
EXR
▶
10807 - EXR FUEL TANK 400L
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER
▶

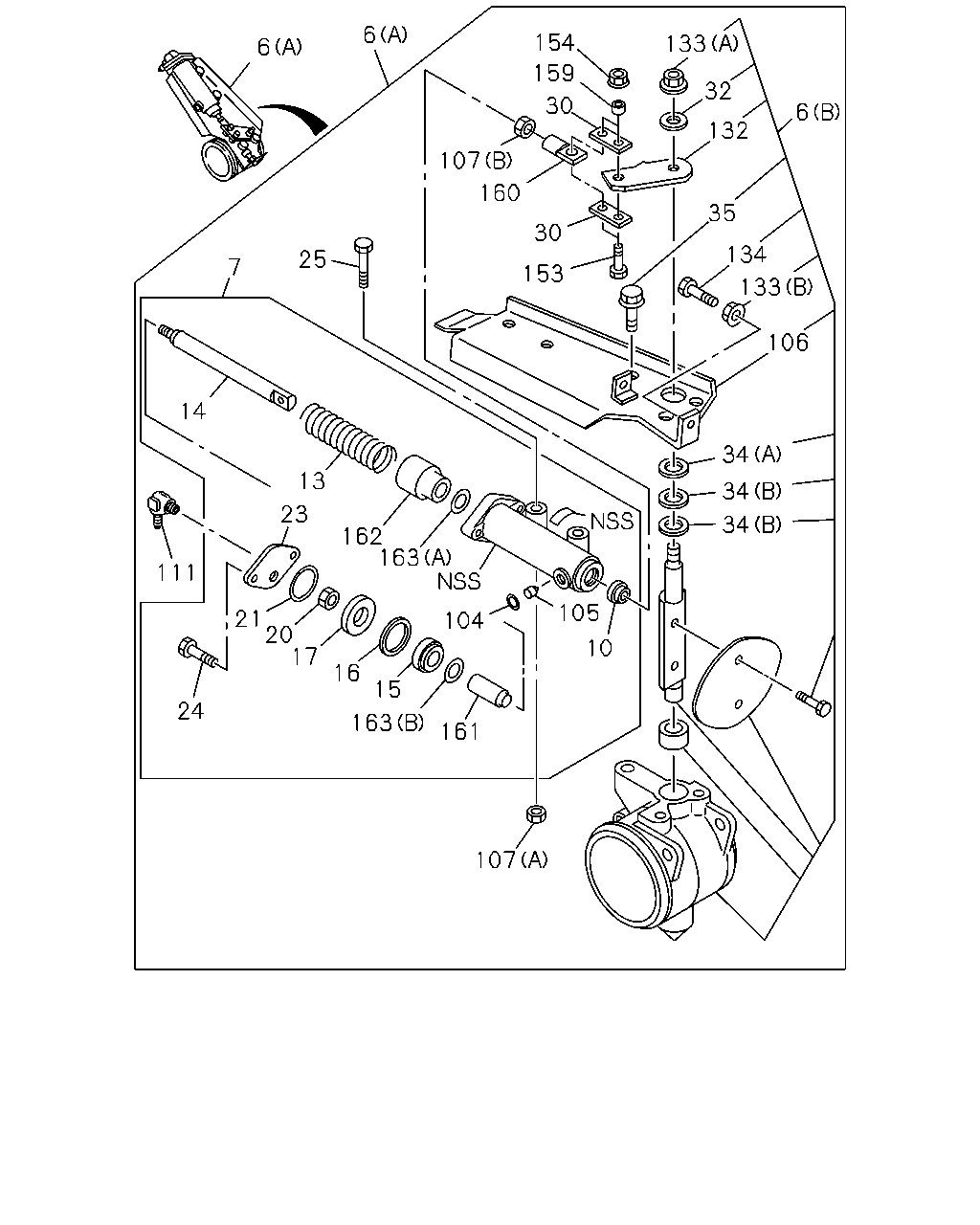

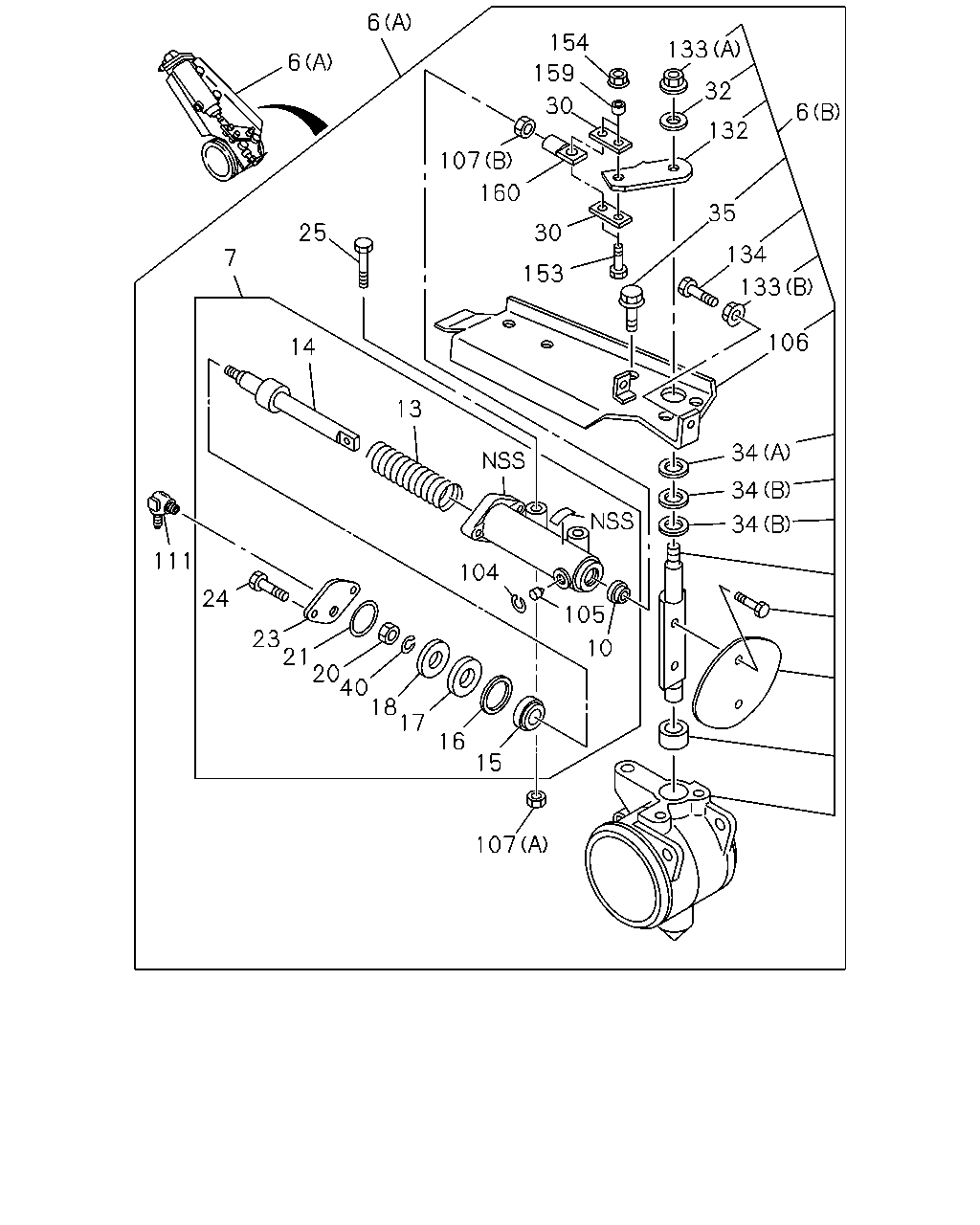

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#7645) — 322 parça
Tümü
A - 6WA1 TC-C
B - 6WG1 TC-R
C - 6WG1 TC-C
D - 6WG1 TC-N
◀
[155A] VALVE ASM 6WG1 (144 parça)
[155A] VALVE ASM 6WA1 (134 parça)

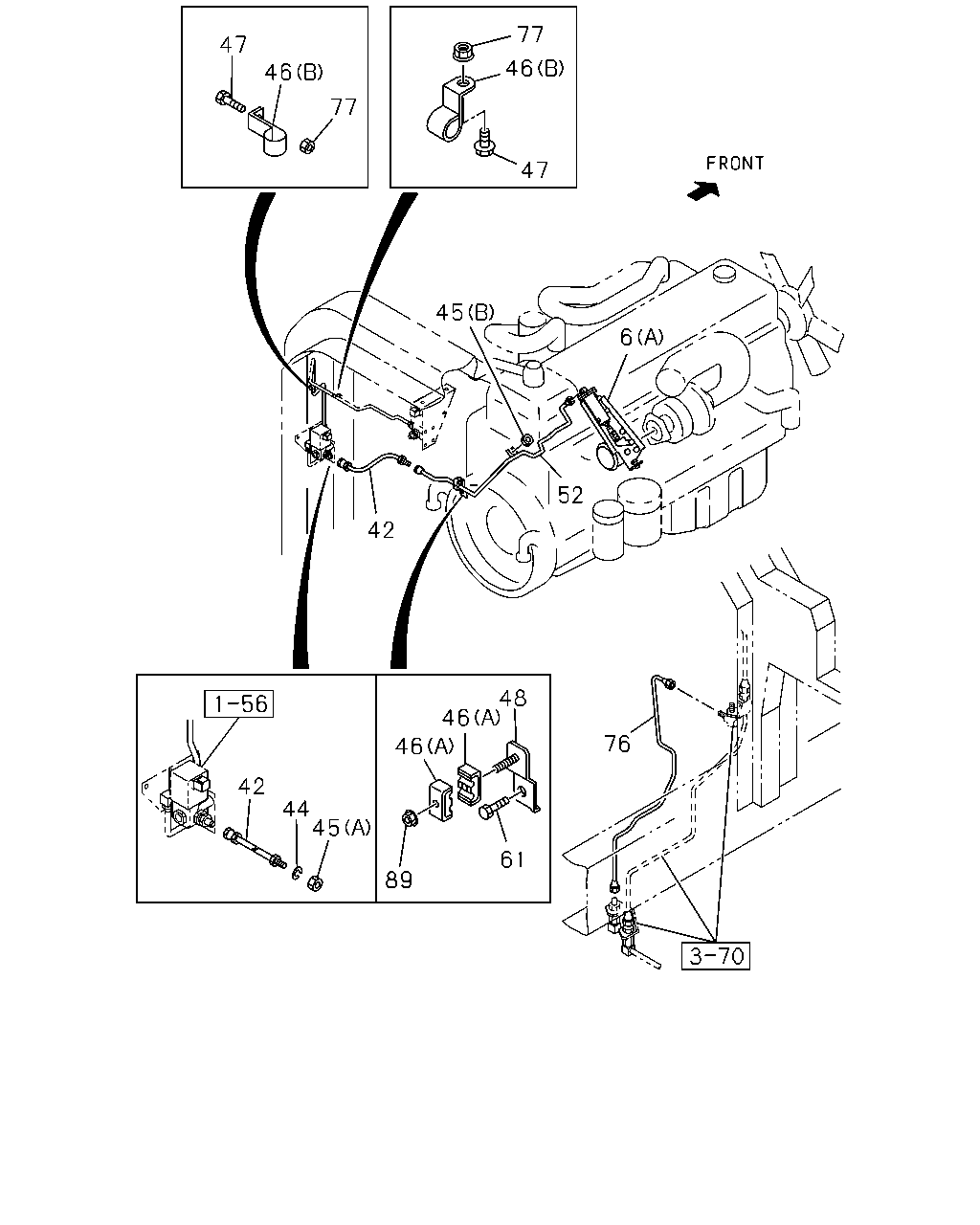

[155A] PIPE AND CLIP (44 parça)
▶
6
154
133
6
159
32
30
6
132
107
160
35
30
134
25
7
153
133
106
14
34
13
34
23
34
162
163
111
105
21
20
17
104
10
16
15
24
163
161
107
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
6
VALVE; EXH BRAKE
(A)
1-14144-603-3
01
1
9902-
●
6
VALVE; EXH BRAKE
(B)
1-14144-616-0
01
1
9902-
●
6
VALVE; EXH BRAKE
(B)
1-22181-154-0
01
1
9905-9909
●
6
VALVE; EXH BRAKE
(B)
1-22181-154-0
01
1
9910-0003
●
●
6
VALVE; EXH BRAKE
(B)
1-22181-154-0
01
1
0004-
●
●
●
6
VALVE; EXH BRAKE
(A)
1-22190-646-0
01
1
9905-9909
●
6
VALVE; EXH BRAKE
(A)
1-22190-646-0
01
1
9910-0003
●
●
6
VALVE; EXH BRAKE
(A)
1-22190-646-0
01
1
0004-
●
●
●
7
CYLINDER ASM; CONT
1-22190-592-1
01
1
9902-
●
7
CYLINDER ASM; CONT
1-22190-642-0
01
1
9905-9909
●
7
CYLINDER ASM; CONT
1-22190-642-0
01
1
9910-0003
●
●
7
CYLINDER ASM; CONT
1-22190-642-0
01
1
0004-
●
●
●
10
SEAL; DUST,CONT
1-22189-016-0
01
1
9902-
●
10
SEAL; DUST,CONT
1-22199-071-0
01
1
9905-9909
●
10
SEAL; DUST,CONT
1-22199-071-0
01
1
9910-0003
●
●
10
SEAL; DUST,CONT
1-22199-071-0
01
1
0004-
●
●
●
13
SPRING; CONT CYL
1-22199-077-0
01
1
9902-
●
13
SPRING; CONT CYL
1-22199-173-0
01
1
9905-9909
●
13
SPRING; CONT CYL
1-22199-173-0
01
1
9910-0003
●
●
13
SPRING; CONT CYL
1-22199-173-0
01
1
0004-
●
●
●
14
SHAFT; CONT CYL
1-22199-142-0
01
1
9902-
●
14
SHAFT; CONT CYL
1-22199-158-0
01
1
9905-9909
●
14
SHAFT; CONT CYL
1-22199-158-0
01
1
9910-0003
●
●
14
SHAFT; CONT CYL
1-22199-158-0
01
1
0004-
●
●
●
15
PLATE; CONT CYL
1-22199-096-0
01
1
9902-
●
15
PLATE; CONT CYL
1-22199-168-0
01
1
9905-9909
●
15
PLATE; CONT CYL
1-22199-168-0
01
1
9910-0003
●
●
15
PLATE; CONT CYL
1-22199-168-0
01
1
0004-
●
●
●
16
RING; WEAR,CONT CYL
1-22189-161-0
01
1
9902-
●
16
RING; WEAR,CONT CYL
1-22199-169-0
01
1
9905-9909
●
16
RING; WEAR,CONT CYL
1-22199-169-0
01
1
9910-0003
●
●
16
RING; WEAR,CONT CYL
1-22199-169-0
01
1
0004-
●
●
●
17
GASKET; CONT CYL
1-22189-160-0
01
1
9902-
●
17
GASKET; CONT CYL
1-22199-170-0
01
1
9905-9909
●
17
GASKET; CONT CYL
1-22199-170-0
01
1
9910-0003
●
●
17
GASKET; CONT CYL
1-22199-170-0
01
1
0004-
●
●
●
20
NUT; CONT CYL
9-83315-085-0
01
1
9902-
●
20
NUT; CONT CYL
M8 FLANGE
0-91150-108-0
01
1
9905-9909
●
20
NUT; CONT CYL
M8 FLANGE
0-91150-108-0
01
1
9910-0003
●
●
20
NUT; CONT CYL
M8 FLANGE
0-91150-108-0
01
1
0004-
●
●
●
21
GASKET; COVER
9-88510-372-0
01
1
9902-
●
21
GASKET; COVER
1-22199-171-0
01
1
9905-9909
●
21
GASKET; COVER
1-22199-171-0
01
1
9910-0003
●
●
21
GASKET; COVER
1-22199-171-0
01
1
0004-
●
●
●
23
COVER; CONT CYL
1-22199-066-0
01
1
9902-
●
23
COVER; CONT CYL
1-22199-172-0
01
1
9905-9909
●
23
COVER; CONT CYL
1-22199-172-0
01
1
9910-0003
●
●
23
COVER; CONT CYL
1-22199-172-0
01
1
0004-
●
●
●
24
BOLT; COVER
1-22199-155-0
02
1
9902-9904
●
24
BOLT; COVER
1-22199-155-0
02
1
9905-9909
●
●
24
BOLT; COVER
1-22199-155-0
02
1
9910-0003
●
●
●
24
BOLT; COVER
1-22199-155-0
02
1
0004-
●
●
●
●
25
BOLT; CONT CYL
M10X60 FLANGE
1-22199-160-0
02
1
9902-
●
25
BOLT; CONT CYL
1-19519-244-0
02
1
9905-9909
●
25
BOLT; CONT CYL
1-19519-244-0
02
1
9910-0003
●
●
25
BOLT; CONT CYL
1-19519-244-0
02
1
0004-
●
●
●
30
ROD; LINK,CONT CYL
1-22199-165-0
02
1
9902-
●
30
ROD; LINK,CONT CYL
1-22199-162-0
02
1
9905-9909
●
30
ROD; LINK,CONT CYL
1-22199-162-0
02
1
9910-0003
●
●
30
ROD; LINK,CONT CYL
1-22199-162-0
02
1
0004-
●
●
●
32
WASHER; LK
ID=10.5 OD=26
9-09164-710-0
01
1
9902-9904
●
32
WASHER; LK
ID=10.5 OD=26
9-09164-710-0
01
1
9905-9909
●
●
32
WASHER; LK
ID=10.5 OD=26
9-09164-710-0
01
1
9910-0003
●
●
●
32
WASHER; LK
ID=10.5 OD=26
9-09164-710-0
01
1
0004-
●
●
●
●
34
RING; SEAL
(A) ID=21
1-22189-158-0
01
1
9902-9904
●
34
RING; SEAL
(A) ID=21
1-22189-158-0
01
1
9905-9909
●
●
34
RING; SEAL
(A) ID=21
1-22189-158-0
01
1
9910-0003
●
●
●
34
RING; SEAL
(A) ID=21
1-22189-158-0
01
1
0004-
●
●
●
●
34
RING; SEAL
(B) ID=18.8
1-22189-159-0
02
1
9902-9904
●
34
RING; SEAL
(B) ID=18.8
1-22189-159-0
02
1
9905-9909
●
●
34
RING; SEAL
(B) ID=18.8
1-22189-159-0
02
1
9910-0003
●
●
●
34
RING; SEAL
(B) ID=18.8
1-22189-159-0
02
1
0004-
●
●
●
●
35
BOLT; PLATE FIX
M10X20
0-28021-020-0
03
1
9902-9904
●
35
BOLT; PLATE FIX
M10X20
0-28021-020-0
03
1
9905-9909
●
●
35
BOLT; PLATE FIX
M10X20
0-28021-020-0
03
1
9910-0003
●
●
●
35
BOLT; PLATE FIX
M10X20
0-28021-020-0
03
1
0004-
●
●
●
●
104
RING; RET
9-88510-331-0
01
1
9902-9904
●
104
RING; RET
9-88510-331-0
01
1
9905-9909
●
●
104
RING; RET
9-88510-331-0
01
1
9910-0003
●
●
●
104
RING; RET
9-88510-331-0
01
1
0004-
●
●
●
●
105
FILTER; CONT CYL
9-88510-330-0
01
1
9902-9904
●
105
FILTER; CONT CYL
9-88510-330-0
01
1
9905-9909
●
●
105
FILTER; CONT CYL
9-88510-330-0
01
1
9910-0003
●
●
●
105
FILTER; CONT CYL
9-88510-330-0
01
1
0004-
●
●
●
●
106
BRACKET; CONT CYL
1-22186-138-0
01
1
9902-
●
106
BRACKET; CONT CYL
1-22186-144-0
01
1
9905-9909
●
106
BRACKET; CONT CYL
1-22186-144-0
01
1
9910-0003
●
●
106
BRACKET; CONT CYL
1-22186-144-0
01
1
0004-
●
●
●
107
NUT; CONT CYL
(A)
9-83315-080-0
02
1
9902-
●
107
NUT; CONT CYL
(B)
9-83315-085-0
01
1
9902-
●
107
NUT; CONT CYL
(A) M10 FLANGE
0-91150-110-0
02
1
9905-9909
●
107
NUT; CONT CYL
(A) M10 FLANGE
0-91150-110-0
02
1
9910-0003
●
●
107
NUT; CONT CYL
(A) M10 FLANGE
0-91150-110-0
02
1
0004-
●
●
●
107
NUT; CONT CYL
(B) M8
9-09110-508-0
01
1
9905-9909
●
107
NUT; CONT CYL
(B) M8
9-09110-508-0
01
1
9910-0003
●
●
107
NUT; CONT CYL
(B) M8
9-09110-508-0
01
1
0004-
●
●
●
111
ELBOW; CONT CYL
PT1/4 & M12 ELBOW
1-09650-117-1
01
1
9902-9904
●
111
ELBOW; CONT CYL
PT1/4 & M12 ELBOW
1-09650-117-1
01
1
9905-9909
●
●
111
ELBOW; CONT CYL
PT1/4 & M12 ELBOW
1-09650-117-1
01
1
9910-0003
●
●
●
111
ELBOW; CONT CYL
PT1/4 & M12 ELBOW
1-09650-117-1
01
1
0004-
●
●
●
●
132
LEVER; BRK VLV
1-22196-346-0
01
1
9902-9904
●
132
LEVER; BRK VLV
1-22196-346-0
01
1
9905-9909
●
●
132
LEVER; BRK VLV
1-22196-346-0
01
1
9910-0003
●
●
●
132
LEVER; BRK VLV
1-22196-346-0
01
1
0004-
●
●
●
●
133
NUT; LK
(B) M8 FLANGE
0-91150-108-0
02
1
9902-9904
●
133
NUT; LK
(B) M8 FLANGE
0-91150-108-0
02
1
9905-9909
●
●
133
NUT; LK
(B) M8 FLANGE
0-91150-108-0
02
1
9910-0003
●
●
●
133
NUT; LK
(B) M8 FLANGE
0-91150-108-0
02
1
0004-
●
●
●
●
133
NUT; LK
(A) M10 FLANGE
0-91150-110-0
01
1
9902-9904
●
133
NUT; LK
(A) M10 FLANGE
0-91150-110-0
01
1
9905-9909
●
●
133
NUT; LK
(A) M10 FLANGE
0-91150-110-0
01
1
9910-0003
●
●
●
133
NUT; LK
(A) M10 FLANGE
0-91150-110-0
01
1
0004-
●
●
●
●
134
BOLT; STOPPER
M8X30
1-09000-112-1
02
1
9902-9904
●
134
BOLT; STOPPER
M8X30
1-09000-112-1
02
1
9905-9909
●
●
134
BOLT; STOPPER
M8X30
1-09000-112-1
02
1
9910-0003
●
●
●
134
BOLT; STOPPER
M8X30
1-09000-112-1
02
1
0004-
●
●
●
●
153
BOLT; CLEVIS,CONT CYL
1-33739-200-0
02
1
9902-
●
153
BOLT; CLEVIS,CONT CYL
M8X25 FLANGE
0-28080-825-0
02
1
9905-9909
●
153
BOLT; CLEVIS,CONT CYL
M8X25 FLANGE
0-28080-825-0
02
1
9910-0003
●
●
153
BOLT; CLEVIS,CONT CYL
M8X25 FLANGE
0-28080-825-0
02
1
0004-
●
●
●
154
NUT; CLEVIS,CONT CYL
M8 FLANGE
0-91150-108-0
02
1
9902-9904
●
154
NUT; CLEVIS,CONT CYL
M8 FLANGE
0-91150-108-0
02
1
9905-9909
●
●
154
NUT; CLEVIS,CONT CYL
M8 FLANGE
0-91150-108-0
02
1
9910-0003
●
●
●
154
NUT; CLEVIS,CONT CYL
M8 FLANGE
0-91150-108-0
02
1
0004-
●
●
●
●
159
COLLAR; CONT CYL
1-22199-151-0
02
1
9902-9904
●
159
COLLAR; CONT CYL
1-22199-151-0
02
1
9905-9909
●
●
159
COLLAR; CONT CYL
1-22199-151-0
02
1
9910-0003
●
●
●
159
COLLAR; CONT CYL
1-22199-151-0
02
1
0004-
●
●
●
●
160
JOINT; CONT CYL
1-22199-164-0
01
1
9902-9904
●
160
JOINT; CONT CYL
1-22199-164-0
01
1
9905-9909
●
●
160
JOINT; CONT CYL
1-22199-164-0
01
1
9910-0003
●
●
●
160
JOINT; CONT CYL
1-22199-164-0
01
1
0004-
●
●
●
●
161
PROTECTOR; CONT CYL
1-22199-146-0
01
1
9905-9909
●
161
PROTECTOR; CONT CYL
1-22199-146-0
01
1
9910-0003
●
●
161
PROTECTOR; CONT CYL
1-22199-146-0
01
1
0004-
●
●
●
162
GUIDE; CONT CYL
1-22199-147-0
01
1
9905-9909
●
162
GUIDE; CONT CYL
1-22199-147-0
01
1
9910-0003
●
●
162
GUIDE; CONT CYL
1-22199-147-0
01
1
0004-
●
●
●
163
WASHER; CONT CYL
(A)
1-22199-148-0
01
1
9905-9909
●
163
WASHER; CONT CYL
(A)
1-22199-148-0
01
1
9910-0003
●
●
163
WASHER; CONT CYL
(A)
1-22199-148-0
01
1
0004-
●
●
●
163
WASHER; CONT CYL
(B)
1-22199-179-0
01
1
9905-9909
●
163
WASHER; CONT CYL
(B)
1-22199-179-0
01
1
9910-0003
●
●
163
WASHER; CONT CYL
(B)
1-22199-179-0
01
1
0004-
●
●
●
6
154
133
6
159
32
30
6
132
107
160
35
25
30
134
7
153
133
106
14
13
34
34
34
111
104
24
105
23
21
20
40
18
17
10
16
15
107
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
6
VALVE; EXH BRAKE
(A)
1-14144-603-3
01
1
9902-
●
6
VALVE; EXH BRAKE
(B)
1-14144-616-0
01
1
9902-
●
6
VALVE; EXH BRAKE
(B)
1-22181-154-0
01
1
9905-9909
●
6
VALVE; EXH BRAKE
(B)
1-22181-154-0
01
1
9910-0003
●
●
6
VALVE; EXH BRAKE
(B)
1-22181-154-0
01
1
0004-
●
●
●
6
VALVE; EXH BRAKE
(A)
1-22190-646-0
01
1
9905-9909
●
6
VALVE; EXH BRAKE
(A)
1-22190-646-0
01
1
9910-0003
●
●
6
VALVE; EXH BRAKE
(A)
1-22190-646-0
01
1
0004-
●
●
●
7
CYLINDER ASM; CONT
1-22190-592-1
01
1
9902-
●
7
CYLINDER ASM; CONT
1-22190-642-0
01
1
9905-9909
●
7
CYLINDER ASM; CONT
1-22190-642-0
01
1
9910-0003
●
●
7
CYLINDER ASM; CONT
1-22190-642-0
01
1
0004-
●
●
●
10
SEAL; DUST,CONT
1-22189-016-0
01
1
9902-
●
10
SEAL; DUST,CONT
1-22199-071-0
01
1
9905-9909
●
10
SEAL; DUST,CONT
1-22199-071-0
01
1
9910-0003
●
●
10
SEAL; DUST,CONT
1-22199-071-0
01
1
0004-
●
●
●
13
SPRING; CONT CYL
1-22199-077-0
01
1
9902-
●
13
SPRING; CONT CYL
1-22199-173-0
01
1
9905-9909
●
13
SPRING; CONT CYL
1-22199-173-0
01
1
9910-0003
●
●
13
SPRING; CONT CYL
1-22199-173-0
01
1
0004-
●
●
●
14
SHAFT; CONT CYL
1-22199-142-0
01
1
9902-
●
14
SHAFT; CONT CYL
1-22199-158-0
01
1
9905-9909
●
14
SHAFT; CONT CYL
1-22199-158-0
01
1
9910-0003
●
●
14
SHAFT; CONT CYL
1-22199-158-0
01
1
0004-
●
●
●
15
PLATE; CONT CYL
1-22199-096-0
01
1
9902-
●
15
PLATE; CONT CYL
1-22199-168-0
01
1
9905-9909
●
15
PLATE; CONT CYL
1-22199-168-0
01
1
9910-0003
●
●
15
PLATE; CONT CYL
1-22199-168-0
01
1
0004-
●
●
●
16
RING; WEAR,CONT CYL
1-22189-161-0
01
1
9902-
●
16
RING; WEAR,CONT CYL
1-22199-169-0
01
1
9905-9909
●
16
RING; WEAR,CONT CYL
1-22199-169-0
01
1
9910-0003
●
●
16
RING; WEAR,CONT CYL
1-22199-169-0
01
1
0004-
●
●
●
17
GASKET; CONT CYL
1-22189-160-0
01
1
9902-
●
17
GASKET; CONT CYL
1-22199-170-0
01
1
9905-9909
●
17
GASKET; CONT CYL
1-22199-170-0
01
1
9910-0003
●
●
17
GASKET; CONT CYL
1-22199-170-0
01
1
0004-
●
●
●
18
RETAINER; CONT CYL
9-88510-324-0
01
1
9902-
●
20
NUT; CONT CYL
9-83315-085-0
01
1
9902-
●
20
NUT; CONT CYL
M8 FLANGE
0-91150-108-0
01
1
9905-9909
●
20
NUT; CONT CYL
M8 FLANGE
0-91150-108-0
01
1
9910-0003
●
●
20
NUT; CONT CYL
M8 FLANGE
0-91150-108-0
01
1
0004-
●
●
●
21
GASKET; COVER
9-88510-372-0
01
1
9902-
●
21
GASKET; COVER
1-22199-171-0
01
1
9905-9909
●
21
GASKET; COVER
1-22199-171-0
01
1
9910-0003
●
●
21
GASKET; COVER
1-22199-171-0
01
1
0004-
●
●
●
23
COVER; CONT CYL
1-22199-066-0
01
1
9902-
●
23
COVER; CONT CYL
1-22199-172-0
01
1
9905-9909
●
23
COVER; CONT CYL
1-22199-172-0
01
1
9910-0003
●
●
23
COVER; CONT CYL
1-22199-172-0
01
1
0004-
●
●
●
24
BOLT; COVER
1-22199-155-0
02
1
9902-9904
●
24
BOLT; COVER
1-22199-155-0
02
1
9905-9909
●
●
24
BOLT; COVER
1-22199-155-0
02
1
9910-0003
●
●
●
24
BOLT; COVER
1-22199-155-0
02
1
0004-
●
●
●
●
25
BOLT; CONT CYL
M10X60 FLANGE
1-22199-160-0
02
1
9902-
●
25
BOLT; CONT CYL
1-19519-244-0
02
1
9905-9909
●
25
BOLT; CONT CYL
1-19519-244-0
02
1
9910-0003
●
●
25
BOLT; CONT CYL
1-19519-244-0
02
1
0004-
●
●
●
30
ROD; LINK,CONT CYL
1-22199-165-0
02
1
9902-
●
30
ROD; LINK,CONT CYL
1-22199-162-0
02
1
9905-9909
●
30
ROD; LINK,CONT CYL
1-22199-162-0
02
1
9910-0003
●
●
30
ROD; LINK,CONT CYL
1-22199-162-0
02
1
0004-
●
●
●
32
WASHER; LK
ID=10.5 OD=26
9-09164-710-0
01
1
9902-9904
●
32
WASHER; LK
ID=10.5 OD=26
9-09164-710-0
01
1
9905-9909
●
●
32
WASHER; LK
ID=10.5 OD=26
9-09164-710-0
01
1
9910-0003
●
●
●
32
WASHER; LK
ID=10.5 OD=26
9-09164-710-0
01
1
0004-
●
●
●
●
34
RING; SEAL
(A) ID=21
1-22189-158-0
01
1
9902-9904
●
34
RING; SEAL
(A) ID=21
1-22189-158-0
01
1
9905-9909
●
●
34
RING; SEAL
(A) ID=21
1-22189-158-0
01
1
9910-0003
●
●
●
34
RING; SEAL
(A) ID=21
1-22189-158-0
01
1
0004-
●
●
●
●
34
RING; SEAL
(B) ID=18.8
1-22189-159-0
02
1
9902-9904
●
34
RING; SEAL
(B) ID=18.8
1-22189-159-0
02
1
9905-9909
●
●
34
RING; SEAL
(B) ID=18.8
1-22189-159-0
02
1
9910-0003
●
●
●
34
RING; SEAL
(B) ID=18.8
1-22189-159-0
02
1
0004-
●
●
●
●
35
BOLT; PLATE FIX
M10X20
0-28021-020-0
03
1
9902-9904
●
35
BOLT; PLATE FIX
M10X20
0-28021-020-0
03
1
9905-9909
●
●
35
BOLT; PLATE FIX
M10X20
0-28021-020-0
03
1
9910-0003
●
●
●
35
BOLT; PLATE FIX
M10X20
0-28021-020-0
03
1
0004-
●
●
●
●
40
WASHER; LK,COVER
ID=8.2
9-09150-508-0
01
1
9902-
●
104
RING; RET
9-88510-331-0
01
1
9902-9904
●
104
RING; RET
9-88510-331-0
01
1
9905-9909
●
●
104
RING; RET
9-88510-331-0
01
1
9910-0003
●
●
●
104
RING; RET
9-88510-331-0
01
1
0004-
●
●
●
●
105
FILTER; CONT CYL
9-88510-330-0
01
1
9902-9904
●
105
FILTER; CONT CYL
9-88510-330-0
01
1
9905-9909
●
●
105
FILTER; CONT CYL
9-88510-330-0
01
1
9910-0003
●
●
●
105
FILTER; CONT CYL
9-88510-330-0
01
1
0004-
●
●
●
●
106
BRACKET; CONT CYL
1-22186-138-0
01
1
9902-
●
106
BRACKET; CONT CYL
1-22186-144-0
01
1
9905-9909
●
106
BRACKET; CONT CYL
1-22186-144-0
01
1
9910-0003
●
●
106
BRACKET; CONT CYL
1-22186-144-0
01
1
0004-
●
●
●
107
NUT; CONT CYL
(A)
9-83315-080-0
02
1
9902-
●
107
NUT; CONT CYL
(B)
9-83315-085-0
01
1
9902-
●
107
NUT; CONT CYL
(A) M10 FLANGE
0-91150-110-0
02
1
9905-9909
●
107
NUT; CONT CYL
(A) M10 FLANGE
0-91150-110-0
02
1
9910-0003
●
●
107
NUT; CONT CYL
(A) M10 FLANGE
0-91150-110-0
02
1
0004-
●
●
●
107
NUT; CONT CYL
(B) M8
9-09110-508-0
01
1
9905-9909
●
107
NUT; CONT CYL
(B) M8
9-09110-508-0
01
1
9910-0003
●
●
107
NUT; CONT CYL
(B) M8
9-09110-508-0
01
1
0004-
●
●
●
111
ELBOW; CONT CYL
PT1/4 & M12 ELBOW
1-09650-117-1
01
1
9902-9904
●
111
ELBOW; CONT CYL
PT1/4 & M12 ELBOW
1-09650-117-1
01
1
9905-9909
●
●
111
ELBOW; CONT CYL
PT1/4 & M12 ELBOW
1-09650-117-1
01
1
9910-0003
●
●
●
111
ELBOW; CONT CYL
PT1/4 & M12 ELBOW
1-09650-117-1
01
1
0004-
●
●
●
●
132
LEVER; BRK VLV
1-22196-346-0
01
1
9902-9904
●
132
LEVER; BRK VLV
1-22196-346-0
01
1
9905-9909
●
●
132
LEVER; BRK VLV
1-22196-346-0
01
1
9910-0003
●
●
●
132
LEVER; BRK VLV
1-22196-346-0
01
1
0004-
●
●
●
●
133
NUT; LK
(B) M8 FLANGE
0-91150-108-0
02
1
9902-9904
●
133
NUT; LK
(B) M8 FLANGE
0-91150-108-0
02
1
9905-9909
●
●
133
NUT; LK
(B) M8 FLANGE
0-91150-108-0
02
1
9910-0003
●
●
●
133
NUT; LK
(B) M8 FLANGE
0-91150-108-0
02
1
0004-
●
●
●
●
133
NUT; LK
(A) M10 FLANGE
0-91150-110-0
01
1
9902-9904
●
133
NUT; LK
(A) M10 FLANGE
0-91150-110-0
01
1
9905-9909
●
●
133
NUT; LK
(A) M10 FLANGE
0-91150-110-0
01
1
9910-0003
●
●
●
133
NUT; LK
(A) M10 FLANGE
0-91150-110-0
01
1
0004-
●
●
●
●
134
BOLT; STOPPER
M8X30
1-09000-112-1
02
1
9902-9904
●
134
BOLT; STOPPER
M8X30
1-09000-112-1
02
1
9905-9909
●
●
134
BOLT; STOPPER
M8X30
1-09000-112-1
02
1
9910-0003
●
●
●
134
BOLT; STOPPER
M8X30
1-09000-112-1
02
1
0004-
●
●
●
●
153
BOLT; CLEVIS,CONT CYL
1-33739-200-0
02
1
9902-
●
153
BOLT; CLEVIS,CONT CYL
M8X25 FLANGE
0-28080-825-0
02
1
9905-9909
●
153
BOLT; CLEVIS,CONT CYL
M8X25 FLANGE
0-28080-825-0
02
1
9910-0003
●
●
153
BOLT; CLEVIS,CONT CYL
M8X25 FLANGE
0-28080-825-0
02
1
0004-
●
●
●
154
NUT; CLEVIS,CONT CYL
M8 FLANGE
0-91150-108-0
02
1
9902-9904
●
154
NUT; CLEVIS,CONT CYL
M8 FLANGE
0-91150-108-0
02
1
9905-9909
●
●
154
NUT; CLEVIS,CONT CYL
M8 FLANGE
0-91150-108-0
02
1
9910-0003
●
●
●
154
NUT; CLEVIS,CONT CYL
M8 FLANGE
0-91150-108-0
02
1
0004-
●
●
●
●
159
COLLAR; CONT CYL
1-22199-151-0
02
1
9902-9904
●
159
COLLAR; CONT CYL
1-22199-151-0
02
1
9905-9909
●
●
159
COLLAR; CONT CYL
1-22199-151-0
02
1
9910-0003
●
●
●
159
COLLAR; CONT CYL
1-22199-151-0
02
1
0004-
●
●
●
●
160
JOINT; CONT CYL
1-22199-164-0
01
1
9902-9904
●
160
JOINT; CONT CYL
1-22199-164-0
01
1
9905-9909
●
●
160
JOINT; CONT CYL
1-22199-164-0
01
1
9910-0003
●
●
●
160
JOINT; CONT CYL
1-22199-164-0
01
1
0004-
●
●
●
●
77
47
46
46
77
47
45
6
52
42
48
46
76
46
42
44
45
61
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
6
VALVE; EXH BRAKE
(A)
1-14144-603-3
01
1
9902-
●
6
VALVE; EXH BRAKE
(B)
1-14144-616-0
01
1
9902-
●
6
VALVE; EXH BRAKE
(B)
1-22181-154-0
01
1
9905-9909
●
6
VALVE; EXH BRAKE
(B)
1-22181-154-0
01
1
9910-0003
●
●
6
VALVE; EXH BRAKE
(B)
1-22181-154-0
01
1
0004-
●
●
●
6
VALVE; EXH BRAKE
(A)
1-22190-646-0
01
1
9905-9909
●
6
VALVE; EXH BRAKE
(A)
1-22190-646-0
01
1
9910-0003
●
●
6
VALVE; EXH BRAKE
(A)
1-22190-646-0
01
1
0004-
●
●
●
42
HOSE; FLEX,EXH BRK
L=320
1-09363-656-0
01
1
9902-0003
●
●
●
42
HOSE; FLEX,EXH BRK
L=320
1-09363-656-0
01
1
0004-
●
●
●
●
44
WASHER; LK,FLEX HOSE
ID=12.2
9-09150-512-0
01
1
9902-0003
●
●
●
44
WASHER; LK,FLEX HOSE
ID=12.2
9-09150-512-0
01
1
0004-
●
●
●
●
45
NUT; FLEX HOSE
(B) M8 FLANGE
0-91150-108-0
01
1
9902-9904
●
45
NUT; FLEX HOSE
(B) M8 FLANGE
0-91150-108-0
01
1
9905-9909
●
●
45
NUT; FLEX HOSE
(B) M8 FLANGE
0-91150-108-0
01
1
9910-0003
●
●
●
45
NUT; FLEX HOSE
(B) M8 FLANGE
0-91150-108-0
01
1
0004-
●
●
●
●
45
NUT; FLEX HOSE
(A) M12
9-09840-280-0
01
1
9902-0003
●
●
●
45
NUT; FLEX HOSE
(A) M12
9-09840-280-0
01
1
0004-
●
●
●
●
46
CLIP; AIR PIPE
(A)
1-09701-132-0
02
1
9902-9904
●
46
CLIP; AIR PIPE
(A)
1-09701-132-0
02
1
9905-9909
●
●
46
CLIP; AIR PIPE
(A)
1-09701-132-0
02
1
9910-0003
●
●
●
46
CLIP; AIR PIPE
(A)
1-09701-132-1
02
1
0004-
●
●
●
●
46
CLIP; AIR PIPE
WHEEL BASE 3500MM(35W) (B) ID=6 H=20 L=20
1-09700-603-0
02
1
9902-
●
●
●
47
BOLT; CLIP
WHEEL BASE 3500MM(35W) M8X25 FLANGE
0-28680-825-0
02
1
9902-
●
●
●
48
BRACKET; AIR PIPE
1-47477-407-0
01
1
9902-9904
●
48
BRACKET; AIR PIPE
1-47477-407-0
01
1
9905-9909
●
●
48
BRACKET; AIR PIPE
1-47477-407-0
01
1
9910-0003
●
●
●
48
BRACKET; AIR PIPE
1-47477-407-0
01
1
0004-
●
●
●
●
52
PIPE ASM; AIR FLEX HOSE
1-19192-904-0
01
1
9902-9904
●
52
PIPE ASM; AIR FLEX HOSE
1-19192-904-0
01
1
9905-9909
●
●
52
PIPE ASM; AIR FLEX HOSE
1-19192-904-0
01
1
9910-0003
●
●
●
52
PIPE ASM; AIR FLEX HOSE
1-19192-904-0
01
1
0004-
●
●
●
●
61
BOLT; BRKT AIR PIPE
M14X20 FLANGE
0-28981-420-0
01
1
9902-9904
●
61
BOLT; BRKT AIR PIPE
M14X20 FLANGE
0-28981-420-0
01
1
9905-9909
●
●
61
BOLT; BRKT AIR PIPE
M14X20 FLANGE
0-28981-420-0
01
1
9910-0003
●
●
●
61
BOLT; BRKT AIR PIPE
M14X20 FLANGE
0-28981-420-0
01
1
0004-
●
●
●
●
76
PIPE ASM; AIR UNION TO UNION
WHEEL BASE 3200MM(32W) L=794 SERVICED BY L=800
1-47428-812-0
01
1
9905-0003
●
●
●
76
PIPE ASM; AIR UNION TO UNION
WHEEL BASE 3200MM(32W) L=794 SERVICED BY L=800
1-47428-812-0
01
1
0004-
●
●
●
●
76
PIPE ASM; AIR UNION TO UNION
WHEEL BASE 3500MM(35W) L=708 SERVICED BY L=800
1-47428-812-0
01
1
9902-
●
●
●
77
NUT; CLIP
WHEEL BASE 3500MM(35W) M8 FLANGE
0-91150-108-0
02
1
9902-
●
●
●
89
NUT; BRKT
M6 FLANGE
0-91150-106-0
01
1
9902-9904
●
89
NUT; BRKT
M6 FLANGE
0-91150-106-0
01
1
9905-9909
●
●
89
NUT; BRKT
M6 FLANGE
0-91150-106-0
01
1
9910-0003
●
●
●
89
NUT; BRKT
M6 FLANGE
0-91150-106-0
01
1
0004-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
