Sayfa 1-50 - Isuzu EPC

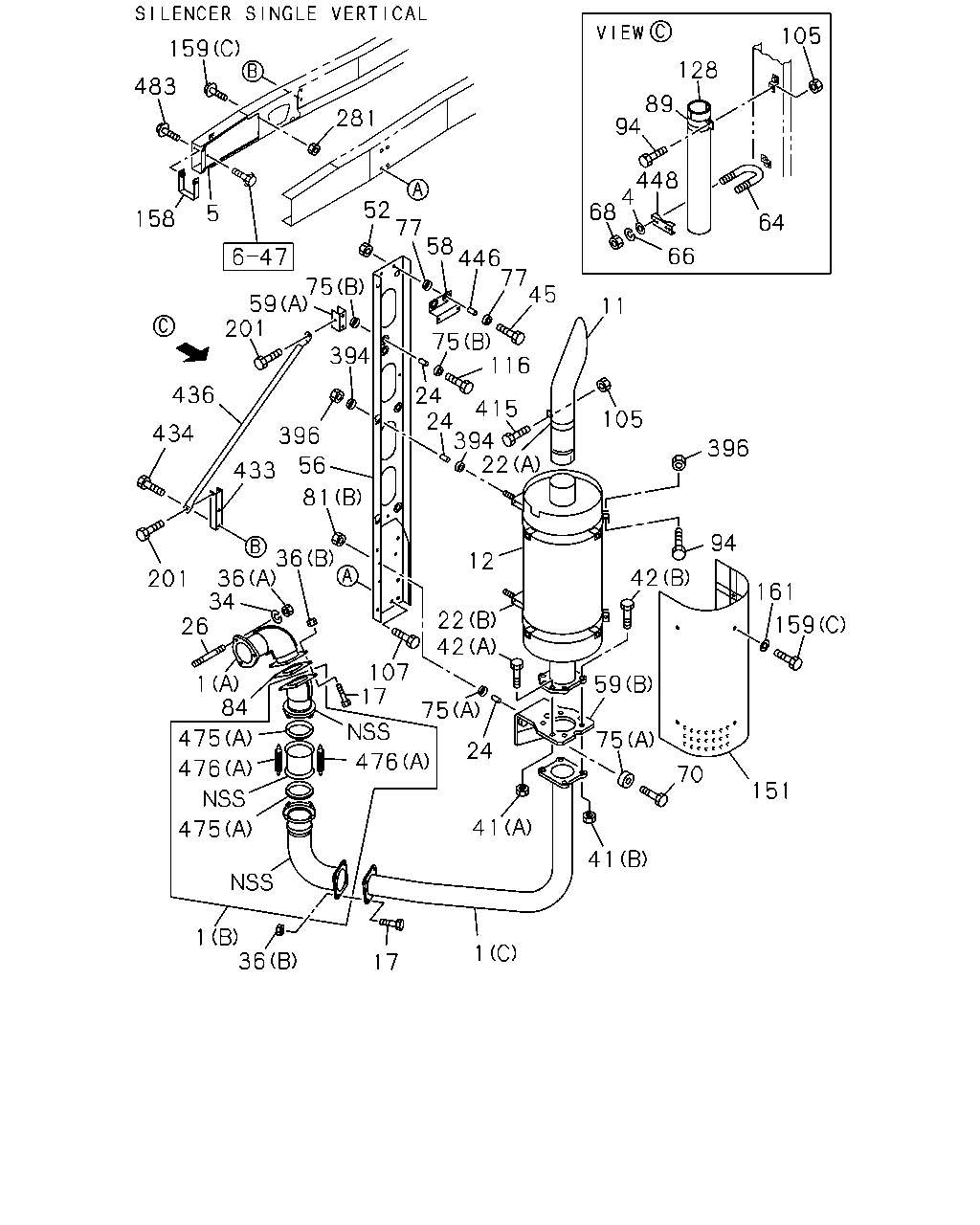

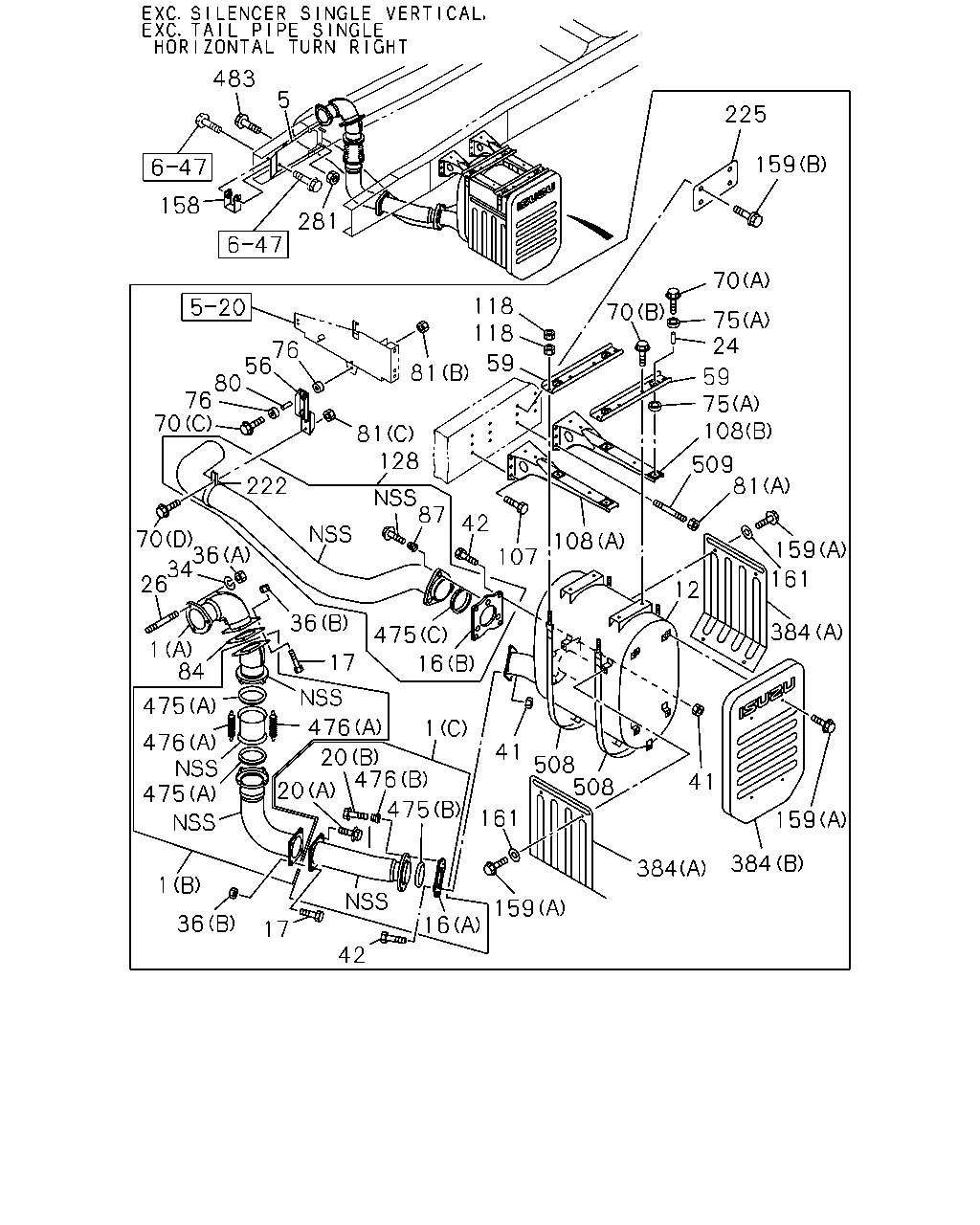

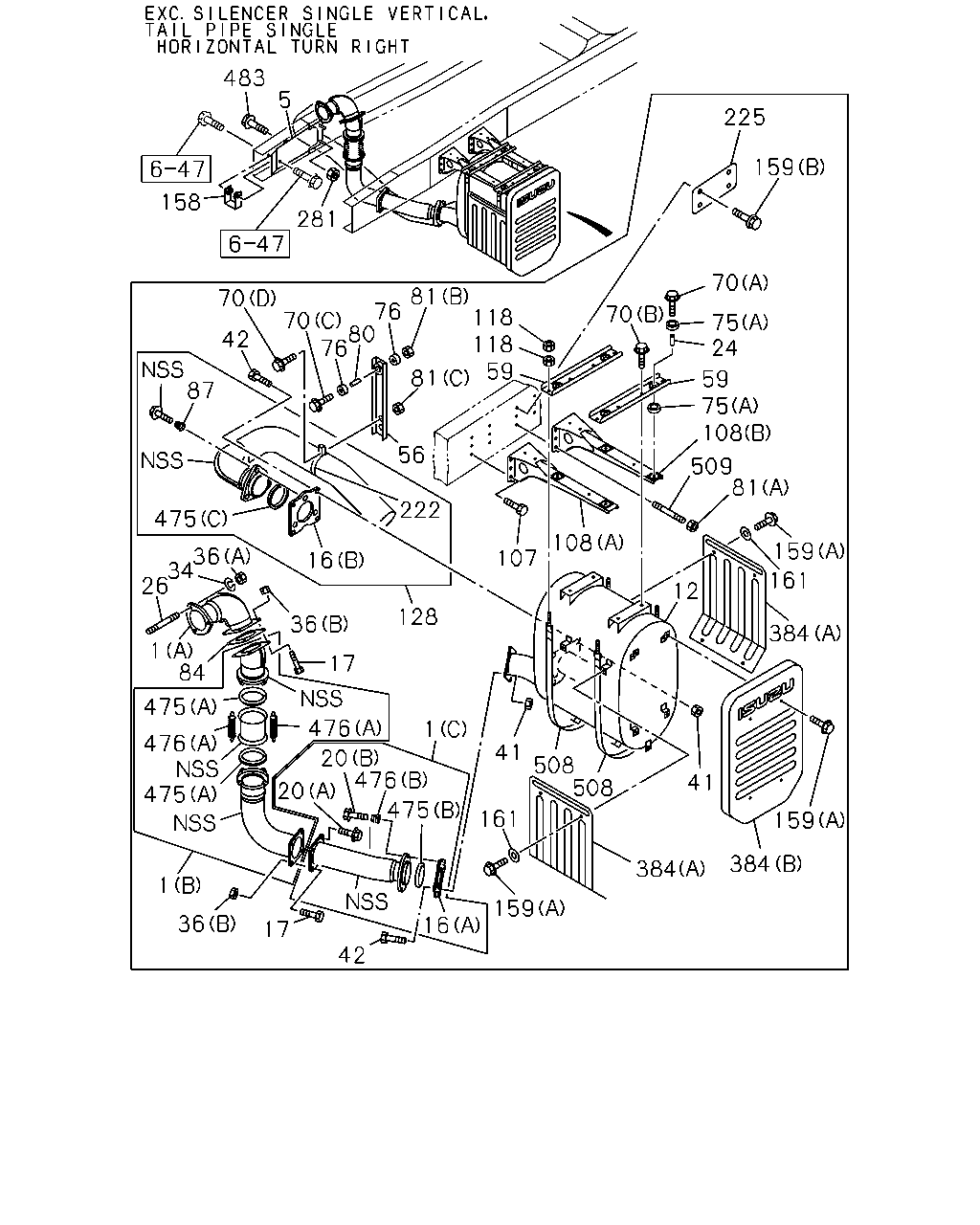

1-50 — EXHAUST PIPE AND SILENCER (#7644) — 487 parça

483 5 225 159 158 281 70 118 118 70 75 24 76 56 80 76 70 59 81 59 75 108 81 128 509 81 222 87 42 70 36 34 26 108 159 107 12 161 36 1 84 384 475 17 16 475 476 1 476 475 41 20 476 508 508 41 20 475 161 159 384 384 1 159 36 16 17 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH (A)	1-22122-227-1	01	1	9902-0003	●	●	●
1	PIPE; EXH (A)	1-22122-227-1	01	1	0004-	●	●	●	●
1	PIPE; EXH (B)	1-22122-818-0	01	1	9902-0003	●	●	●
1	PIPE; EXH (B)	1-22122-818-0	01	1	0004-	●	●	●	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (C)	1-22123-085-1	01	1	9902-	●	●	●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-22122-861-0	01	1	9902-0003	●	●	●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-22122-861-0	01	1	0004-	●	●	●
1	PIPE; EXH (C)	1-22122-861-0	01	1	0004-				●
5	PROTECTOR; HEAT	1-22119-405-0	01	1	9903-0003	●	●	●
5	PROTECTOR; HEAT	1-22119-405-0	01	1	0004-	●	●	●	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-866-0	01	1	9902-9909	●	●	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-866-0	01	1	9910-0003	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-942-0	01	1	0004-	●
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	1-22140-862-0	01	1	9902-0003	●	●	●
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	1-22140-968-3	01	1	0004-	●	●	●
12	SILENCER ASM; EXH	1-22140-968-3	01	1	0004-				●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-865-0	01	1	9910-0003		●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-925-2	01	1	0004-		●
16	FLANGE; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22115-194-0	01	1	9902-0003	●		●
16	FLANGE; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22115-194-0	01	1	0004-	●	●	●
16	FLANGE; EXH PIPE (B)	1-22115-194-0	01	1	0004-				●
16	FLANGE; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22115-148-1	01	1	9902-0003	●	●	●
16	FLANGE; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22115-148-1	01	1	0004-	●	●	●
16	FLANGE; EXH PIPE (A)	1-22115-148-1	01	1	0004-				●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	07	1	9902-0003	●	●	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	07	1	0004-	●	●	●	●
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X51.4	1-09009-167-0	02	1	0004-	●	●	●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	1-09009-167-0	02	1	0004-				●
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X30 FLANGE	0-28691-230-0	01	1	9902-0003	●	●	●
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X30 FLANGE	0-28691-230-0	01	1	0004-	●	●	●
20	BOLT; FLANGE,EXH PIPE (A) M12X30 FLANGE	0-28691-230-0	01	1	0004-				●
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X51.4	1-09009-167-0	02	1	9902-0003	●	●	●
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	9902-	●	●	●
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	9902-0003	●	●	●
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	0004-	●	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	0004-				●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	9902-0003	●	●	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	0004-	●	●	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	9902-0003	●	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	0004-	●	●	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	03	1	9902-0003	●	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	03	1	0004-	●	●	●	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	08	1	9902-0003	●	●	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	08	1	0004-	●	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10	9-09110-510-0	01	1	9902-	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12	9-99110-512-0	04	1	9902-	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	08	1	9902-0003	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	08	1	0004-	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	0004-				●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28681-035-0	01	1	9902-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	04	1	9902-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	08	1	9902-0003	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	08	1	0004-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0004-				●
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22151-788-0	01	1	9902-	●		●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-767-3	01	1	9902-9909	●	●	●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-767-3	01	1	9910-	●
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22151-737-2	01	1	9905-0003	●	●	●
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22151-737-2	01	1	0004-	●	●	●
56	BRACKET; CLAMP,EXH PIPE	1-22151-737-2	01	1	0004-				●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-795-0	01	1	9910-		●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (A)	1-22119-252-1	01	1	9902-	●	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	9902-	●	●	●
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28>	1-22151-710-1	02	1	9902-0003	●	●	●
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28>	1-22151-710-1	02	1	0004-	●	●	●
59	BRACKET; EXH SILENCER,FRT	1-22151-710-1	02	1	0004-				●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M8X50 FLANGE	0-28080-850-0	02	1	9902-	●		●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X60 FLANGE	0-28081-060-0	04	1	9902-	●	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X25 FLANGE	0-28081-025-0	04	1	9902-0003	●	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X25 FLANGE	0-28081-025-0	04	1	0004-	●	●	●
70	BOLT; BRKT (A) M10X25 FLANGE	0-28081-025-0	04	1	0004-				●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28081-050-0	05	1	9902-0003	●	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28081-050-0	05	1	0004-	●	●	●
70	BOLT; BRKT (C) M10X50 FLANGE	0-28081-050-0	05	1	0004-				●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (D) M8X40 FLANGE	0-28680-840-0	02	1	9905-0003	●	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (D) M8X40 FLANGE	0-28680-840-0	02	1	0004-	●	●	●
70	BOLT; BRKT (D) M8X40 FLANGE	0-28680-840-0	02	1	0004-				●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	08	1	9902-0003	●	●	●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	08	1	0004-	●	●	●	●
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> (B) OD=40	1-22159-094-0	04	1	9902-	●	●	●
76	SUPPORT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	02	1	9902-0003	●	●	●
76	SUPPORT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	02	1	0004-	●	●	●
76	SUPPORT; BRKT OD=40	1-22159-094-0	02	1	0004-				●
80	COLLAR; DIST,SUPPORT RUBBER EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	01	1	9902-0003	●	●	●
80	COLLAR; DIST,SUPPORT RUBBER EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	01	1	0004-	●	●	●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	0004-				●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	04	1	9902-	●	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91150-212-0	08	1	9902-0003	●	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91150-212-0	08	1	0004-	●	●	●
81	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	08	1	0004-				●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91150-108-0	02	1	9902-0003	●	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91150-108-0	02	1	0004-	●	●	●
81	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0004-				●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	01	1	9902-0003	●	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	01	1	0004-	●	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0004-				●
84	GASKET; EXH PIPE	1-22116-030-0	01	1	9902-0003	●	●	●
84	GASKET; EXH PIPE	1-22116-030-0	01	1	0004-	●	●	●	●
87	SPRING; PRE SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	8-94141-851-0	03	1	9902-0003	●		●
87	SPRING; PRE SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	8-94141-851-0	03	1	0004-	●	●	●
87	SPRING; PRE SILENCER	8-94141-851-0	03	1	0004-				●
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28081-245-0	04	1	9902-	●	●	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28681-240-0	04	1	9902-0003	●	●	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28681-240-0	04	1	0004-	●	●	●
107	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	0004-				●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22131-774-2	01	1	9902-0003	●	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22131-774-3	01	1	0004-	●	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22131-774-3	01	1	0004-				●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22131-775-3	01	1	9902-0003	●	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22131-775-3	01	1	0004-	●	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22131-775-3	01	1	0004-				●
118	NUT; SILENCER MTG BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	08	1	9902-0003	●	●	●
118	NUT; SILENCER MTG BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	08	1	0004-	●	●	●
118	NUT; SILENCER MTG BRKT M10	9-09110-510-0	08	1	0004-				●
128	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22123-207-0	01	1	9902-	●		●
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-087-1	01	1	9902-	●	●	●
128	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22122-841-1	01	1	9905-0003	●	●	●
128	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22122-841-2	01	1	0004-	●	●	●
128	PIPE; EXH,RR	1-22122-841-2	01	1	0004-				●
158	BRACKET; HEAT PROTECTOR	1-22119-368-0	01	1	9902-0003	●	●	●
158	BRACKET; HEAT PROTECTOR	1-22119-368-0	01	1	0004-	●	●	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (C) M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	9902-	●	●	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28680-820-0	02	1	9902-0003	●	●	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28680-820-0	02	1	0004-0005	●	●	●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28680-820-0	02	1	0004-0005				●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28680-820-0	02	1	0006-	●		●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	9902-0003	●	●	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	0004-	●	●	●
159	BOLT; HEAT PROTECTOR (A) M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	0004-				●
161	WASHER; PL,HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> ID=10.5 OD=26	9-09160-710-0	08	1	9902-0003	●	●	●
161	WASHER; PL,HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> ID=10.5 OD=26	9-09160-710-0	08	1	0004-	●	●	●
161	WASHER; PL,HEAT PROTECTOR ID=10.5 OD=26	9-09160-710-0	08	1	0004-				●
222	CLAMP; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22133-172-2	01	1	9902-9910	●		●
222	CLAMP; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22133-276-0	01	1	9911-0003	●		●
222	CLAMP; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22133-276-0	01	1	0004-	●	●	●
222	CLAMP; EXH PIPE	1-22133-276-0	01	1	0004-				●
225	PROTECTOR; HEAT EXC. SILENCER SINGLE VERTICAL<N28>	1-22119-404-0	01	1	9902-0003	●	●	●
225	PROTECTOR; HEAT EXC. SILENCER SINGLE VERTICAL<N28>	1-22119-404-0	01	1	0004-0005	●	●	●
225	PROTECTOR; HEAT	1-22119-404-0	01	1	0004-0005				●
225	PROTECTOR; HEAT EXC. SILENCER SINGLE VERTICAL<N28>	1-22119-404-0	01	1	0006-0007	●	●	●
225	PROTECTOR; HEAT EXC. SILENCER SINGLE VERTICAL<N28>	1-22119-489-0	01	1	0008-	●	●	●
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	02	1	9903-0003	●	●	●
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	02	1	0004-	●	●	●	●
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22119-378-3	01	1	9902-0003	●	●	●
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22119-378-3	01	1	0004-	●	●	●
384	PROTECTOR; HEAT SILENCER MTG (B)	1-22119-378-3	01	1	0004-				●
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22119-379-1	02	1	9902-0003	●	●	●
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22119-379-1	02	1	0004-	●	●	●
384	PROTECTOR; HEAT SILENCER MTG (A)	1-22119-379-1	02	1	0004-				●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (C) OD=122	1-22119-297-0	01	1	9902-0003	●		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (C) OD=122	1-22119-297-0	01	1	0004-	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (C) OD=122	1-22119-297-0	01	1	0004-				●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	9902-0003	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0004-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-0	01	1	9902-0003	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-0	01	1	0004-	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0004-				●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-298-0	04	1	9902-0003	●	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-298-0	04	1	0004-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	9902-0003	●	●	●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	0004-	●	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0004-				●
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28680-830-0	01	1	9902-0003	●	●	●
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28680-830-0	01	1	0004-	●	●	●	●
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-264-1	02	1	9902-0003	●	●	●
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-264-1	02	1	0004-	●	●	●
508	BAND; EXHAUST SILENCER	1-22159-264-1	02	1	0004-				●
509	STUD; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X32 L=54	1-09300-096-0	04	1	9902-0003	●	●	●
509	STUD; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X32 L=54	1-09300-096-0	04	1	0004-	●	●	●
509	STUD; BRKT M12X32 L=54	1-09300-096-0	04	1	0004-				●

105 159 128 483 89 94 281 448 4 68 52 77 58 446 77 45 5 158 64 66 75 59 201 11 75 116 394 436 24 24 394 22 415 105 434 396 396 56 433 81 94 36 12 42 36 34 26 201 161 22 42 159 1 84 107 17 59 75 475 75 24 476 476 70 151 41 475 41 1 36 1 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH (A)	1-22122-227-1	01	1	9902-0003	●	●	●
1	PIPE; EXH (A)	1-22122-227-1	01	1	0004-	●	●	●	●
1	PIPE; EXH (B)	1-22122-818-0	01	1	9902-0003	●	●	●
1	PIPE; EXH (B)	1-22122-818-0	01	1	0004-	●	●	●	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (C)	1-22123-085-1	01	1	9902-	●	●	●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-22122-861-0	01	1	9902-0003	●	●	●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-22122-861-0	01	1	0004-	●	●	●
1	PIPE; EXH (C)	1-22122-861-0	01	1	0004-				●
4	WASHER; PL,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	9-09160-708-0	02	1	9902-	●	●	●
5	PROTECTOR; HEAT	1-22119-405-0	01	1	9903-0003	●	●	●
5	PROTECTOR; HEAT	1-22119-405-0	01	1	0004-	●	●	●	●
11	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-086-1	01	1	9902-	●	●	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-866-0	01	1	9902-9909	●	●	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-866-0	01	1	9910-0003	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-942-0	01	1	0004-	●
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	1-22140-862-0	01	1	9902-0003	●	●	●
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	1-22140-968-3	01	1	0004-	●	●	●
12	SILENCER ASM; EXH	1-22140-968-3	01	1	0004-				●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-865-0	01	1	9910-0003		●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-925-2	01	1	0004-		●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	07	1	9902-0003	●	●	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	07	1	0004-	●	●	●	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22133-266-1	01	1	9902-	●	●	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22133-269-0	02	1	9902-9909	●	●	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22133-269-0	02	1	9910-	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22133-270-0	02	1	9910-		●
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	9902-	●	●	●
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	9902-0003	●	●	●
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	0004-	●	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	0004-				●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	9902-0003	●	●	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	0004-	●	●	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	9902-0003	●	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	0004-	●	●	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	03	1	9902-0003	●	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	03	1	0004-	●	●	●	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	08	1	9902-0003	●	●	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	08	1	0004-	●	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10	9-09110-510-0	01	1	9902-	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12	9-99110-512-0	04	1	9902-	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	08	1	9902-0003	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	08	1	0004-	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	0004-				●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28681-035-0	01	1	9902-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	04	1	9902-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	08	1	9902-0003	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	08	1	0004-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0004-				●
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28081-050-0	02	1	9902-	●	●	●
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	02	1	9902-	●	●	●
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22151-788-0	01	1	9902-	●		●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-767-3	01	1	9902-9909	●	●	●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-767-3	01	1	9910-	●
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22151-737-2	01	1	9905-0003	●	●	●
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22151-737-2	01	1	0004-	●	●	●
56	BRACKET; CLAMP,EXH PIPE	1-22151-737-2	01	1	0004-				●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-795-0	01	1	9910-		●
58	BRACKET; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22131-799-0	01	1	9902-	●	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (A)	1-22119-252-1	01	1	9902-	●	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	9902-	●	●	●
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28>	1-22151-710-1	02	1	9902-0003	●	●	●
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28>	1-22151-710-1	02	1	0004-	●	●	●
59	BRACKET; EXH SILENCER,FRT	1-22151-710-1	02	1	0004-				●
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22113-097-0	01	1	9902-	●	●	●
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	9-09150-508-0	02	1	9902-	●	●	●
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9902-	●	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M8X50 FLANGE	0-28080-850-0	02	1	9902-	●		●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X60 FLANGE	0-28081-060-0	04	1	9902-	●	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X25 FLANGE	0-28081-025-0	04	1	9902-0003	●	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X25 FLANGE	0-28081-025-0	04	1	0004-	●	●	●
70	BOLT; BRKT (A) M10X25 FLANGE	0-28081-025-0	04	1	0004-				●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28081-050-0	05	1	9902-0003	●	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28081-050-0	05	1	0004-	●	●	●
70	BOLT; BRKT (C) M10X50 FLANGE	0-28081-050-0	05	1	0004-				●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (D) M8X40 FLANGE	0-28680-840-0	02	1	9905-0003	●	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (D) M8X40 FLANGE	0-28680-840-0	02	1	0004-	●	●	●
70	BOLT; BRKT (D) M8X40 FLANGE	0-28680-840-0	02	1	0004-				●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	08	1	9902-0003	●	●	●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	08	1	0004-	●	●	●	●
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> (B) OD=40	1-22159-094-0	04	1	9902-	●	●	●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	9902-	●	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	04	1	9902-	●	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91150-212-0	08	1	9902-0003	●	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91150-212-0	08	1	0004-	●	●	●
81	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	08	1	0004-				●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91150-108-0	02	1	9902-0003	●	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91150-108-0	02	1	0004-	●	●	●
81	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0004-				●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	01	1	9902-0003	●	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	01	1	0004-	●	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0004-				●
84	GASKET; EXH PIPE	1-22116-030-0	01	1	9902-0003	●	●	●
84	GASKET; EXH PIPE	1-22116-030-0	01	1	0004-	●	●	●	●
89	CLAMP; EXH SILENCER,RR SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	9902-	●	●	●
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28681-040-0	03	1	9902-	●	●	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	02	1	9902-	●	●	●
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28081-245-0	04	1	9902-	●	●	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28681-240-0	04	1	9902-0003	●	●	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28681-240-0	04	1	0004-	●	●	●
107	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	0004-				●
116	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28081-050-0	02	1	9902-	●	●	●
128	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22123-207-0	01	1	9902-	●		●
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-087-1	01	1	9902-	●	●	●
128	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22122-841-1	01	1	9905-0003	●	●	●
128	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22122-841-2	01	1	0004-	●	●	●
128	PIPE; EXH,RR	1-22122-841-2	01	1	0004-				●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22159-327-1	01	1	9902-9903	●	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22159-334-0	01	1	9904-	●	●	●
158	BRACKET; HEAT PROTECTOR	1-22119-368-0	01	1	9902-0003	●	●	●
158	BRACKET; HEAT PROTECTOR	1-22119-368-0	01	1	0004-	●	●	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (C) M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	9902-	●	●	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28680-820-0	02	1	9902-0003	●	●	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28680-820-0	02	1	0004-0005	●	●	●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28680-820-0	02	1	0004-0005				●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28680-820-0	02	1	0006-	●		●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	9902-0003	●	●	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	0004-	●	●	●
159	BOLT; HEAT PROTECTOR (A) M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	0004-				●
161	WASHER; PL,HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> ID=10.5 OD=26	9-09160-710-0	08	1	9902-0003	●	●	●
161	WASHER; PL,HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> ID=10.5 OD=26	9-09160-710-0	08	1	0004-	●	●	●
161	WASHER; PL,HEAT PROTECTOR ID=10.5 OD=26	9-09160-710-0	08	1	0004-				●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28681-025-0	04	1	9902-	●	●	●
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	02	1	9903-0003	●	●	●
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	02	1	0004-	●	●	●	●
394	RUBBER; SUPPORT,CLAMP SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	08	1	9902-	●	●	●
396	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	06	1	9902-	●	●	●
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28681-040-0	01	1	9902-	●	●	●
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-811-0	01	1	9902-	●	●	●
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X30 FLANGE	0-28681-030-0	02	1	9902-	●	●	●
436	STAY; SUPPORT,EXH SILENCER SINGLE VERTICAL<N28>	1-22131-798-2	02	1	9902-	●	●	●
446	PIECE; DIST,EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	02	1	9902-	●	●	●
448	PIECE; DIST,U-BOLT SILENCER SINGLE VERTICAL<N28>	1-22113-095-0	01	1	9902-	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (C) OD=122	1-22119-297-0	01	1	9902-0003	●		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (C) OD=122	1-22119-297-0	01	1	0004-	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (C) OD=122	1-22119-297-0	01	1	0004-				●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	9902-0003	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0004-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-0	01	1	9902-0003	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-0	01	1	0004-	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0004-				●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-298-0	04	1	9902-0003	●	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-298-0	04	1	0004-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	9902-0003	●	●	●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	0004-	●	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0004-				●
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28680-830-0	01	1	9902-0003	●	●	●
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28680-830-0	01	1	0004-	●	●	●	●

483 5 225 159 158 281 70 70 81 76 70 118 80 76 118 59 70 75 24 42 87 81 59 75 108 56 509 81 222 475 108 159 36 34 26 107 16 12 161 128 36 1 84 384 17 475 476 1 476 475 41 20 476 508 508 41 20 475 161 159 384 384 1 159 36 16 17 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH (A)	1-22122-227-1	01	1	9902-0003	●	●	●
1	PIPE; EXH (A)	1-22122-227-1	01	1	0004-	●	●	●	●
1	PIPE; EXH (B)	1-22122-818-0	01	1	9902-0003	●	●	●
1	PIPE; EXH (B)	1-22122-818-0	01	1	0004-	●	●	●	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (C)	1-22123-085-1	01	1	9902-	●	●	●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-22122-861-0	01	1	9902-0003	●	●	●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-22122-861-0	01	1	0004-	●	●	●
1	PIPE; EXH (C)	1-22122-861-0	01	1	0004-				●
5	PROTECTOR; HEAT	1-22119-405-0	01	1	9903-0003	●	●	●
5	PROTECTOR; HEAT	1-22119-405-0	01	1	0004-	●	●	●	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-866-0	01	1	9902-9909	●	●	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-866-0	01	1	9910-0003	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-942-0	01	1	0004-	●
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	1-22140-862-0	01	1	9902-0003	●	●	●
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	1-22140-968-3	01	1	0004-	●	●	●
12	SILENCER ASM; EXH	1-22140-968-3	01	1	0004-				●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-865-0	01	1	9910-0003		●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-925-2	01	1	0004-		●
16	FLANGE; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22115-194-0	01	1	9902-0003	●		●
16	FLANGE; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22115-194-0	01	1	0004-	●	●	●
16	FLANGE; EXH PIPE (B)	1-22115-194-0	01	1	0004-				●
16	FLANGE; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22115-148-1	01	1	9902-0003	●	●	●
16	FLANGE; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22115-148-1	01	1	0004-	●	●	●
16	FLANGE; EXH PIPE (A)	1-22115-148-1	01	1	0004-				●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	07	1	9902-0003	●	●	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	07	1	0004-	●	●	●	●
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X51.4	1-09009-167-0	02	1	0004-	●	●	●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	1-09009-167-0	02	1	0004-				●
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X30 FLANGE	0-28691-230-0	01	1	9902-0003	●	●	●
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X30 FLANGE	0-28691-230-0	01	1	0004-	●	●	●
20	BOLT; FLANGE,EXH PIPE (A) M12X30 FLANGE	0-28691-230-0	01	1	0004-				●
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X51.4	1-09009-167-0	02	1	9902-0003	●	●	●
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	9902-	●	●	●
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	9902-0003	●	●	●
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	0004-	●	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	0004-				●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	9902-0003	●	●	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	0004-	●	●	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	9902-0003	●	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	0004-	●	●	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	03	1	9902-0003	●	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	03	1	0004-	●	●	●	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	08	1	9902-0003	●	●	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	08	1	0004-	●	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10	9-09110-510-0	01	1	9902-	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12	9-99110-512-0	04	1	9902-	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	08	1	9902-0003	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	08	1	0004-	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	0004-				●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28681-035-0	01	1	9902-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	04	1	9902-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	08	1	9902-0003	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	08	1	0004-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0004-				●
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22151-788-0	01	1	9902-	●		●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-767-3	01	1	9902-9909	●	●	●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-767-3	01	1	9910-	●
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22151-737-2	01	1	9905-0003	●	●	●
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22151-737-2	01	1	0004-	●	●	●
56	BRACKET; CLAMP,EXH PIPE	1-22151-737-2	01	1	0004-				●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-795-0	01	1	9910-		●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (A)	1-22119-252-1	01	1	9902-	●	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	9902-	●	●	●
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28>	1-22151-710-1	02	1	9902-0003	●	●	●
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28>	1-22151-710-1	02	1	0004-	●	●	●
59	BRACKET; EXH SILENCER,FRT	1-22151-710-1	02	1	0004-				●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M8X50 FLANGE	0-28080-850-0	02	1	9902-	●		●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X60 FLANGE	0-28081-060-0	04	1	9902-	●	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X25 FLANGE	0-28081-025-0	04	1	9902-0003	●	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X25 FLANGE	0-28081-025-0	04	1	0004-	●	●	●
70	BOLT; BRKT (A) M10X25 FLANGE	0-28081-025-0	04	1	0004-				●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28081-050-0	05	1	9902-0003	●	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28081-050-0	05	1	0004-	●	●	●
70	BOLT; BRKT (C) M10X50 FLANGE	0-28081-050-0	05	1	0004-				●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (D) M8X40 FLANGE	0-28680-840-0	02	1	9905-0003	●	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (D) M8X40 FLANGE	0-28680-840-0	02	1	0004-	●	●	●
70	BOLT; BRKT (D) M8X40 FLANGE	0-28680-840-0	02	1	0004-				●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	08	1	9902-0003	●	●	●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	08	1	0004-	●	●	●	●
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> (B) OD=40	1-22159-094-0	04	1	9902-	●	●	●
76	SUPPORT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	02	1	9902-0003	●	●	●
76	SUPPORT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	02	1	0004-	●	●	●
76	SUPPORT; BRKT OD=40	1-22159-094-0	02	1	0004-				●
80	COLLAR; DIST,SUPPORT RUBBER EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	01	1	9902-0003	●	●	●
80	COLLAR; DIST,SUPPORT RUBBER EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	01	1	0004-	●	●	●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	0004-				●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	04	1	9902-	●	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91150-212-0	08	1	9902-0003	●	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91150-212-0	08	1	0004-	●	●	●
81	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	08	1	0004-				●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91150-108-0	02	1	9902-0003	●	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91150-108-0	02	1	0004-	●	●	●
81	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0004-				●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	01	1	9902-0003	●	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	01	1	0004-	●	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0004-				●
84	GASKET; EXH PIPE	1-22116-030-0	01	1	9902-0003	●	●	●
84	GASKET; EXH PIPE	1-22116-030-0	01	1	0004-	●	●	●	●
87	SPRING; PRE SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	8-94141-851-0	03	1	9902-0003	●		●
87	SPRING; PRE SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	8-94141-851-0	03	1	0004-	●	●	●
87	SPRING; PRE SILENCER	8-94141-851-0	03	1	0004-				●
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28081-245-0	04	1	9902-	●	●	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28681-240-0	04	1	9902-0003	●	●	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28681-240-0	04	1	0004-	●	●	●
107	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	0004-				●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22131-774-2	01	1	9902-0003	●	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22131-774-3	01	1	0004-	●	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22131-774-3	01	1	0004-				●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22131-775-3	01	1	9902-0003	●	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22131-775-3	01	1	0004-	●	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22131-775-3	01	1	0004-				●
118	NUT; SILENCER MTG BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	08	1	9902-0003	●	●	●
118	NUT; SILENCER MTG BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	08	1	0004-	●	●	●
118	NUT; SILENCER MTG BRKT M10	9-09110-510-0	08	1	0004-				●
128	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22123-207-0	01	1	9902-	●		●
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-087-1	01	1	9902-	●	●	●
128	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22122-841-1	01	1	9905-0003	●	●	●
128	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22122-841-2	01	1	0004-	●	●	●
128	PIPE; EXH,RR	1-22122-841-2	01	1	0004-				●
158	BRACKET; HEAT PROTECTOR	1-22119-368-0	01	1	9902-0003	●	●	●
158	BRACKET; HEAT PROTECTOR	1-22119-368-0	01	1	0004-	●	●	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (C) M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	9902-	●	●	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28680-820-0	02	1	9902-0003	●	●	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28680-820-0	02	1	0004-0005	●	●	●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28680-820-0	02	1	0004-0005				●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28680-820-0	02	1	0006-	●		●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	9902-0003	●	●	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	0004-	●	●	●
159	BOLT; HEAT PROTECTOR (A) M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	0004-				●
161	WASHER; PL,HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> ID=10.5 OD=26	9-09160-710-0	08	1	9902-0003	●	●	●
161	WASHER; PL,HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> ID=10.5 OD=26	9-09160-710-0	08	1	0004-	●	●	●
161	WASHER; PL,HEAT PROTECTOR ID=10.5 OD=26	9-09160-710-0	08	1	0004-				●
222	CLAMP; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22133-172-2	01	1	9902-9910	●		●
222	CLAMP; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22133-276-0	01	1	9911-0003	●		●
222	CLAMP; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22133-276-0	01	1	0004-	●	●	●
222	CLAMP; EXH PIPE	1-22133-276-0	01	1	0004-				●
225	PROTECTOR; HEAT EXC. SILENCER SINGLE VERTICAL<N28>	1-22119-404-0	01	1	9902-0003	●	●	●
225	PROTECTOR; HEAT EXC. SILENCER SINGLE VERTICAL<N28>	1-22119-404-0	01	1	0004-0005	●	●	●
225	PROTECTOR; HEAT	1-22119-404-0	01	1	0004-0005				●
225	PROTECTOR; HEAT EXC. SILENCER SINGLE VERTICAL<N28>	1-22119-404-0	01	1	0006-0007	●	●	●
225	PROTECTOR; HEAT EXC. SILENCER SINGLE VERTICAL<N28>	1-22119-489-0	01	1	0008-	●	●	●
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	02	1	9903-0003	●	●	●
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	02	1	0004-	●	●	●	●
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22119-378-3	01	1	9902-0003	●	●	●
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22119-378-3	01	1	0004-	●	●	●
384	PROTECTOR; HEAT SILENCER MTG (B)	1-22119-378-3	01	1	0004-				●
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22119-379-1	02	1	9902-0003	●	●	●
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22119-379-1	02	1	0004-	●	●	●
384	PROTECTOR; HEAT SILENCER MTG (A)	1-22119-379-1	02	1	0004-				●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (C) OD=122	1-22119-297-0	01	1	9902-0003	●		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (C) OD=122	1-22119-297-0	01	1	0004-	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (C) OD=122	1-22119-297-0	01	1	0004-				●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	9902-0003	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0004-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-0	01	1	9902-0003	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-0	01	1	0004-	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0004-				●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-298-0	04	1	9902-0003	●	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-298-0	04	1	0004-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	9902-0003	●	●	●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	0004-	●	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0004-				●
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28680-830-0	01	1	9902-0003	●	●	●
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28680-830-0	01	1	0004-	●	●	●	●
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-264-1	02	1	9902-0003	●	●	●
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-264-1	02	1	0004-	●	●	●
508	BAND; EXHAUST SILENCER	1-22159-264-1	02	1	0004-				●
509	STUD; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X32 L=54	1-09300-096-0	04	1	9902-0003	●	●	●
509	STUD; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X32 L=54	1-09300-096-0	04	1	0004-	●	●	●
509	STUD; BRKT M12X32 L=54	1-09300-096-0	04	1	0004-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
