Sayfa 1-41 - Isuzu EPC

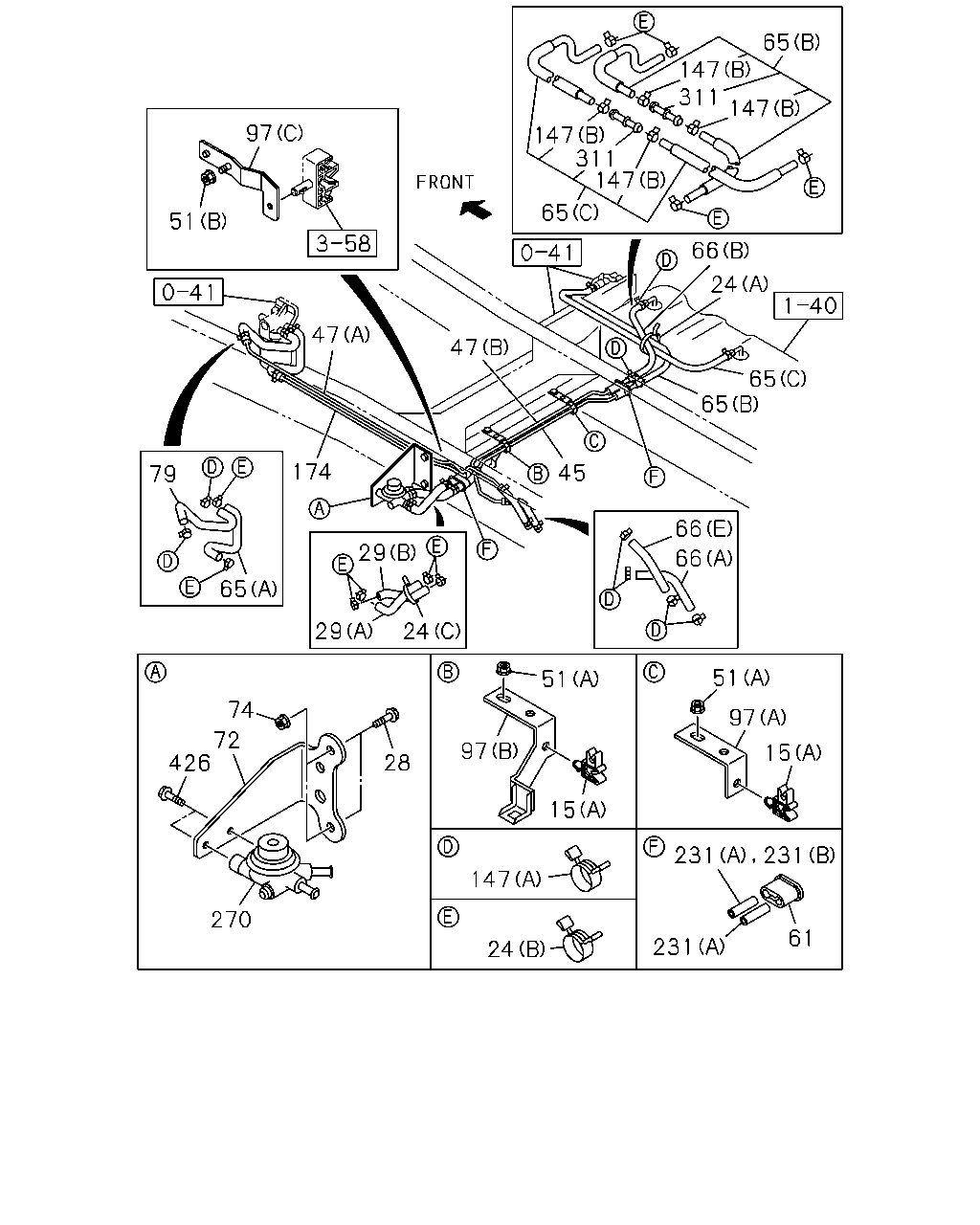

1-41 — FUEL PIPING; CHASSIS (#76429) — 307 parça

66 47 24 47 65 45 174 66 66 29 79 29 65 29 51 51 97 97 15 270 15 426 231 97 24 61 147 51 231 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	0907-	●	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W) 02.559 (B) ID=28 L=60	1-09700-585-1	02	1	0907-			●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) 02.559 (A) L=250	5-09707-030-1	01	1	0907-	●	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	0907-0910	●	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	0907-0910	●	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	0907-0910			●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	0911-1003	●	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	0911-1003	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	0911-1003		●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	0911-1003			●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	1004-1111	●	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	1004-1111	●	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	1004-1111			●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	1112-	●	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	1112-	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	1112-		●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	1112-			●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911	●	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	0912-	●	●	●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	08	1	0907-0911	●	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-	●	●	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) (A) L=200 SERVICED BY L=3000	0-01859-300-0	01	1	0907-	●	●	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) (B)	8-98120-599-0	01	1	0907-	●	●	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (D)	8-98138-300-0	01	1	0907-	●	●	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98139-112-1	01	1	0907-	●	●	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (C)	8-98139-113-1	01	1	0907-	●	●	●
45	03.163 PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-580-3	01	1	0907-	●	●	●
45	03.163 PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-579-3	01	1	0907-	●	●	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	0907-1008	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	0907-1008	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) L=971	8-98137-013-2	01	1	0907-1008		●	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1009-	●		●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1009-	●		●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) L=971	8-98137-013-2	01	1	1009-		●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=865	8-98137-016-0	01	1	0907-	●	●	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) L=994	8-98137-014-2	01	1	0907-1008	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) L=994	8-98137-014-2	01	1	0907-1008		●	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) L=994	8-98137-014-2	01	1	1009-	●		●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) L=994	8-98137-014-2	01	1	1009-		●
47	03.163 PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=984	8-98137-015-0	01	1	0907-	●	●	●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0907-	●	●	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	0907-	●	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	02	1	0907-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (D)	8-98120-597-0	01	1	0907-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) FUEL TANK 63L<6EF> (D)	8-98120-579-0	01	1	0907-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (E)	8-98120-598-1	01	1	0907-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (C)	8-98139-110-1	01	1	0907-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-98139-111-1	01	1	0907-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98120-600-0	01	1	0907-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 63L<6EF> (C) L=380	8-97389-805-1	01	1	0907-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0907-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (C) L=500	8-98057-029-0	01	1	0907-0910	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (C) L=500	8-98057-029-0	01	1	0911-1003	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (C) L=500	8-98057-029-0	01	1	0911-1003		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (C) L=500	8-98057-029-0	01	1	1004-1111	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (C) L=500	8-98057-029-0	01	1	1112-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (C) L=500	8-98057-029-0	01	1	1112-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	0907-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (E) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	0907-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (D) L=630	8-97389-802-1	01	1	0907-			●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (D) L=960	8-98133-498-0	01	1	0907-			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	0907-	●	●	●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	0907-	●	●	●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	0907-	●	●	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	0907-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W) (B) ID=16	8-98008-098-0	02	1	0912-			●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0907-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16	8-98008-098-0	04	1	0912-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	08	1	0907-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	08	1	0912-	●	●	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	0907-1008	●
174	03.163 PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	0907-1008	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	0907-1008		●	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1009-	●		●
174	03.163 PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1009-	●		●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1009-		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-632-1	01	1	0907-1008	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-632-1	01	1	0907-1008		●	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-632-1	01	1	1009-	●		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-632-1	01	1	1009-		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	0907-	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	03	1	0907-	●	●	●
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	0907-1408	●	●	●
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●	●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0907-	●	●	●

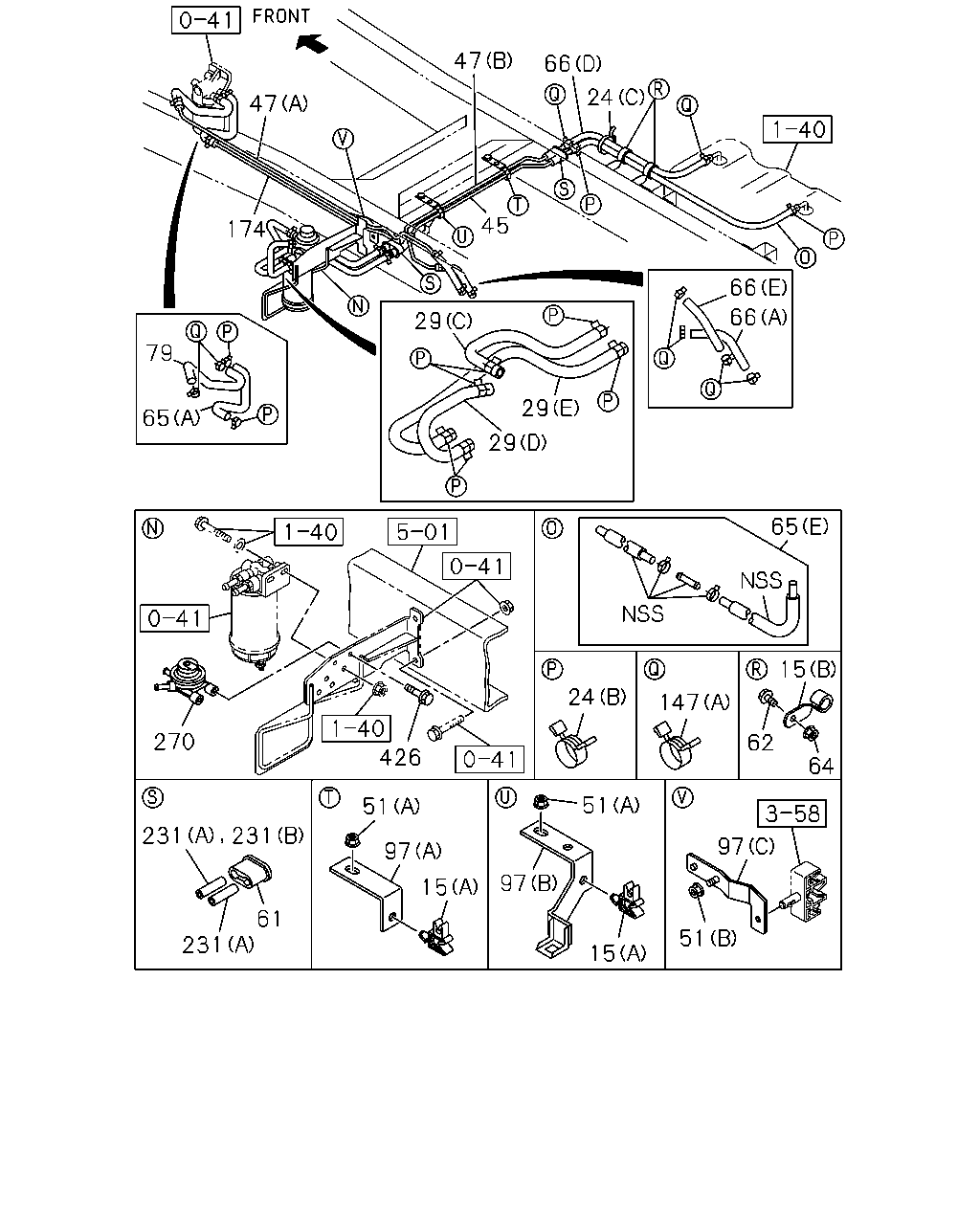

47 66 24 47 45 174 66 66 29 79 29 65 29 65 15 24 147 270 62 426 64 51 51 231 97 97 97 15 61 51 231 15 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	0907-	●	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W) 02.559 (B) ID=28 L=60	1-09700-585-1	02	1	0907-			●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) 02.559 (A) L=250	5-09707-030-1	01	1	0907-	●	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	0907-0910	●	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	0907-0910	●	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	0907-0910			●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	0911-1003	●	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	0911-1003	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	0911-1003		●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	0911-1003			●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	1004-1111	●	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	1004-1111	●	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	1004-1111			●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	1112-	●	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	1112-	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	1112-		●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	1112-			●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911	●	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	0912-	●	●	●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	08	1	0907-0911	●	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-	●	●	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) (A) L=200 SERVICED BY L=3000	0-01859-300-0	01	1	0907-	●	●	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) (B)	8-98120-599-0	01	1	0907-	●	●	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (D)	8-98138-300-0	01	1	0907-	●	●	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98139-112-1	01	1	0907-	●	●	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (C)	8-98139-113-1	01	1	0907-	●	●	●
45	03.163 PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-580-3	01	1	0907-	●	●	●
45	03.163 PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-579-3	01	1	0907-	●	●	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	0907-1008	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	0907-1008	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) L=971	8-98137-013-2	01	1	0907-1008		●	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1009-	●		●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1009-	●		●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) L=971	8-98137-013-2	01	1	1009-		●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=865	8-98137-016-0	01	1	0907-	●	●	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) L=994	8-98137-014-2	01	1	0907-1008	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) L=994	8-98137-014-2	01	1	0907-1008		●	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) L=994	8-98137-014-2	01	1	1009-	●		●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) L=994	8-98137-014-2	01	1	1009-		●
47	03.163 PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=984	8-98137-015-0	01	1	0907-	●	●	●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0907-	●	●	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	0907-	●	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	02	1	0907-	●	●	●
62	03.162 BOLT; CLIP FIX WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0907-			●
64	03.162 NUT; CLIP WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (D)	8-98120-597-0	01	1	0907-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) FUEL TANK 63L<6EF> (D)	8-98120-579-0	01	1	0907-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (E)	8-98120-598-1	01	1	0907-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (C)	8-98139-110-1	01	1	0907-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-98139-111-1	01	1	0907-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98120-600-0	01	1	0907-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 63L<6EF> (C) L=380	8-97389-805-1	01	1	0907-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0907-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (C) L=500	8-98057-029-0	01	1	0907-0910	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (C) L=500	8-98057-029-0	01	1	0911-1003	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (C) L=500	8-98057-029-0	01	1	0911-1003		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (C) L=500	8-98057-029-0	01	1	1004-1111	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (C) L=500	8-98057-029-0	01	1	1112-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (C) L=500	8-98057-029-0	01	1	1112-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	0907-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (E) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	0907-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (D) L=630	8-97389-802-1	01	1	0907-			●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (D) L=960	8-98133-498-0	01	1	0907-			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	0907-	●	●	●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	0907-	●	●	●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	0907-	●	●	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	0907-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W) (B) ID=16	8-98008-098-0	02	1	0912-			●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0907-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16	8-98008-098-0	04	1	0912-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	08	1	0907-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	08	1	0912-	●	●	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	0907-1008	●
174	03.163 PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	0907-1008	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	0907-1008		●	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1009-	●		●
174	03.163 PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1009-	●		●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1009-		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-632-1	01	1	0907-1008	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-632-1	01	1	0907-1008		●	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-632-1	01	1	1009-	●		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-632-1	01	1	1009-		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	0907-	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	03	1	0907-	●	●	●
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	0907-1408	●	●	●
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●	●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0907-	●	●	●

627 313 629 629 628 629 639 629 628

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
313	03.163 COOLER ASM; FUEL	8-98141-558-0	01	1	0907-	●	●	●
627	03.162 BOLT; FUEL CLR SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1511-	●
627	03.162 BOLT; FUEL CLR EXC. SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1511-	●
627	03.162 BOLT; FUEL CLR 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1511-		●	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	0907-1308	●	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	0907-1308	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 3300MM(33W) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	0907-1308			●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT&RR 195-16C-75R DISC 16X5.5J-116.5WHITE(BQV),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205- 16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1309-1510	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1309-1510	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1309-1510		●
627	03.162 BOLT; FUEL CLR WHEEL BASE 3300MM(33W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1309-1510			●
627	03.162 BOLT; FUEL CLR SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1511-	●
627	03.162 BOLT; FUEL CLR EXC. REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1511-		●
628	03.162 NUT; FUEL CLR 01.062 M6 FLANGE	0-91180-106-0	04	1	0907-	●	●	●
629	03.162 BRACKET; FUEL CLR SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) (B)	8-98142-069-1	01	1	1511-	●
629	03.162 BRACKET; FUEL CLR EXC. REAR WIDE TREAD(V4T) (B)	8-98142-069-1	01	1	1511-		●
629	03.162 BRACKET; FUEL CLR (C)	8-98146-892-0	02	1	0907-	●	●	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) (A)	8-98142-066-1	01	1	0907-1308	●	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) (A)	8-98142-066-1	01	1	0907-1308	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) (A)	8-98142-066-1	01	1	0907-1308			●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT&RR 195-16C-75R DISC 16X5.5J-116.5WHITE(BQV),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205- 16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) (A)	8-98142-066-1	01	1	1309-	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) (A)	8-98142-066-1	01	1	1309-	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) REAR WIDE TREAD(V4T) (A)	8-98142-066-1	01	1	1309-		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) (A)	8-98142-066-1	01	1	1309-			●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) (B)	8-98142-067-1	01	1	0907-1308	●	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) (B)	8-98142-067-1	01	1	0907-1308	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) (B)	8-98142-067-1	01	1	0907-1308			●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT&RR 195-16C-75R DISC 16X5.5J-116.5WHITE(BQV),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205- 16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) (B)	8-98142-067-1	01	1	1309-1510	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) (B)	8-98142-067-1	01	1	1309-1510	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) REAR WIDE TREAD(V4T) (B)	8-98142-067-1	01	1	1309-1510		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) (B)	8-98142-067-1	01	1	1309-1510			●
629	03.162 BRACKET; FUEL CLR SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) (B)	8-98142-067-1	01	1	1511-	●
629	03.162 BRACKET; FUEL CLR EXC. SINGLE RR TIRE(6TD) (B)	8-98142-067-1	01	1	1511-	●
629	03.162 BRACKET; FUEL CLR (B)	8-98142-067-1	01	1	1511-		●	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0907-1308	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0907-1308	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0907-1308		●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0907-1308			●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT&RR 195-16C-75R DISC 16X5.5J-116.5WHITE(BQV),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205- 16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1309-1510	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1309-1510	●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1309-1510		●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 3300MM(33W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1309-1510			●
639	03.162 BOLT; BRKT,FUEL CLR EXC. REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1511-	●
639	03.162 BOLT; BRKT,FUEL CLR REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1511-	●
639	03.162 BOLT; BRKT,FUEL CLR 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1511-		●	●

65 147 311 147 97 147 311 147 65 51 66 24 47 47 65 65 174 45 79 66 29 66 65 29 24 51 51 74 97 72 426 97 15 28 15 231 147 270 61 231 24 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	0907-	●	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W) 02.559 (B) ID=28 L=60	1-09700-585-1	02	1	0907-			●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) 02.559 (A) L=250	5-09707-030-1	01	1	0907-	●	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	0907-0910	●	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	0907-0910	●	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	0907-0910			●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	0911-1003	●	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	0911-1003	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	0911-1003		●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	0911-1003			●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	1004-1111	●	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	1004-1111	●	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	1004-1111			●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	1112-	●	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	1112-	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	1112-		●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	1112-			●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911	●	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	0912-	●	●	●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	08	1	0907-0911	●	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-	●	●	●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0907-	●	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) (A) L=200 SERVICED BY L=3000	0-01859-300-0	01	1	0907-	●	●	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) (B)	8-98120-599-0	01	1	0907-	●	●	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (D)	8-98138-300-0	01	1	0907-	●	●	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98139-112-1	01	1	0907-	●	●	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (C)	8-98139-113-1	01	1	0907-	●	●	●
45	03.163 PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-580-3	01	1	0907-	●	●	●
45	03.163 PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-579-3	01	1	0907-	●	●	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	0907-1008	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	0907-1008	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) L=971	8-98137-013-2	01	1	0907-1008		●	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1009-	●		●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1009-	●		●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) L=971	8-98137-013-2	01	1	1009-		●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=865	8-98137-016-0	01	1	0907-	●	●	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) L=994	8-98137-014-2	01	1	0907-1008	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) L=994	8-98137-014-2	01	1	0907-1008		●	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) L=994	8-98137-014-2	01	1	1009-	●		●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) L=994	8-98137-014-2	01	1	1009-		●
47	03.163 PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=984	8-98137-015-0	01	1	0907-	●	●	●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0907-	●	●	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	0907-	●	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	02	1	0907-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (D)	8-98120-597-0	01	1	0907-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) FUEL TANK 63L<6EF> (D)	8-98120-579-0	01	1	0907-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (E)	8-98120-598-1	01	1	0907-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (C)	8-98139-110-1	01	1	0907-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-98139-111-1	01	1	0907-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98120-600-0	01	1	0907-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 63L<6EF> (C) L=380	8-97389-805-1	01	1	0907-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0907-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (C) L=500	8-98057-029-0	01	1	0907-0910	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (C) L=500	8-98057-029-0	01	1	0911-1003	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (C) L=500	8-98057-029-0	01	1	0911-1003		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (C) L=500	8-98057-029-0	01	1	1004-1111	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (C) L=500	8-98057-029-0	01	1	1112-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (C) L=500	8-98057-029-0	01	1	1112-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	0907-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (E) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	0907-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (D) L=630	8-97389-802-1	01	1	0907-			●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (D) L=960	8-98133-498-0	01	1	0907-			●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W)	8-98107-370-0	01	1	0907-	●	●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0907-	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	0907-	●	●	●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	0907-	●	●	●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	0907-	●	●	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	0907-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W) (B) ID=16	8-98008-098-0	02	1	0912-			●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0907-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16	8-98008-098-0	04	1	0912-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	08	1	0907-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	08	1	0912-	●	●	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	0907-1008	●
174	03.163 PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	0907-1008	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	0907-1008		●	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1009-	●		●
174	03.163 PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1009-	●		●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1009-		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-632-1	01	1	0907-1008	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-632-1	01	1	0907-1008		●	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-632-1	01	1	1009-	●		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-632-1	01	1	1009-		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	0907-	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	03	1	0907-	●	●	●
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	0907-1408	●	●	●
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●	●
311	03.163 JOINT; HOSE WHEEL BASE 3300MM(33W)	8-97353-668-0	01	1	0912-			●
311	03.163 JOINT; HOSE WHEEL BASE 2400MM(24W)	8-97353-668-0	02	1	0907-	●	●	●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0907-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
