◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51249 - NLR/NMR(EU)-LHD EU5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#76428) — 94 parça

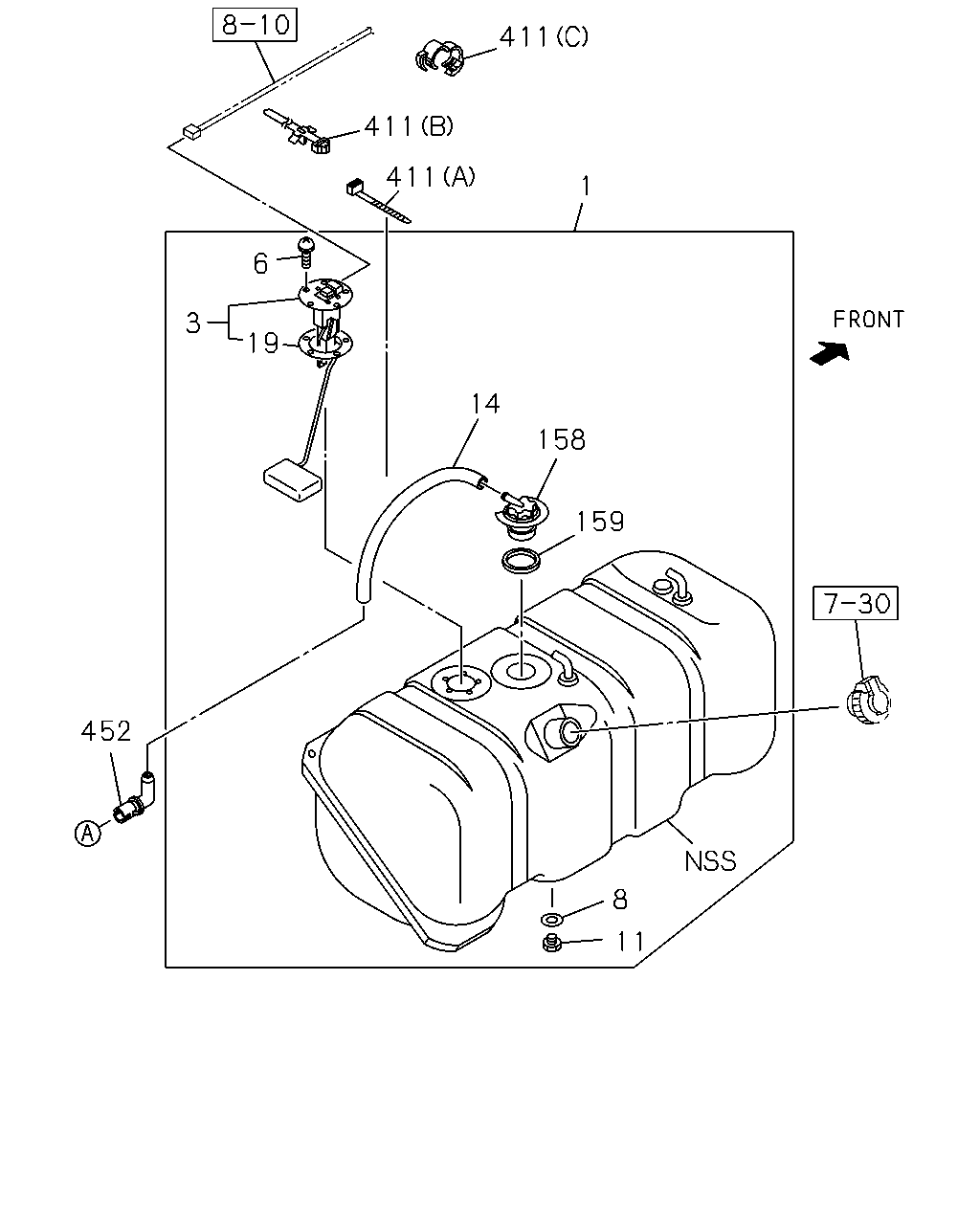

çizim 92933
411 411 411 1 6 3 19 14 158 159 452 8 11
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.001 TANK; FUEL
FUEL TANK 63L<6EF> 756X375X323 57L 		8-98147-352-4 01 1 0907- ● ●
1 03.001 TANK; FUEL
FUEL TANK 100L<N02> 1003X348X375 100L 		8-98104-008-4 01 1 0907- ● ●
1 03.001 TANK; FUEL
FUEL TANK 75L<7GX> 756X375X375 70L 		8-98104-005-4 01 1 0907- ● ● ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 63L<6EF> 		8-98147-557-0 01 1 0907- ● ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 100L<N02> 		8-98113-178-0 01 1 0907- ● ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 75L<7GX> 		8-98113-177-0 01 1 0907- ● ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX> M5X12 W/LK WASHER 		0-36220-512-0 05 1 0907- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> M5X12 W/LK WASHER 		0-36220-512-0 05 1 0907- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> M5X12 W/LK WASHER 		0-36220-512-0 05 1 0907- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX> 08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0907- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> 08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0907- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> 08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0907- ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX> 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0907- ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0907- ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0907- ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100L<N02> L=420 		8-98157-809-0 01 1 0907- ● ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> L=320 		8-98157-805-0 01 1 0907- ● ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 75L<7GX> L=320 		8-98157-805-0 01 1 0907- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX> ID=42 OD=71 		5-83148-001-0 01 1 0907- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> ID=42 OD=71 		5-83148-001-0 01 1 0907- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> ID=42 OD=71 		5-83148-001-0 01 1 0907- ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX> 		8-97179-645-0 01 1 0907- ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> 		8-97179-645-0 01 1 0907- ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> 		8-97179-645-0 01 1 0907- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX> 		8-97326-488-0 01 1 0907- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> 		8-97326-488-0 01 1 0907- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> 		8-97326-488-0 01 1 0907- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(C) ID=20 		8-94241-972-0 01 1 0907- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) L=170.3 		1-09987-182-0 01 1 0907- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (A) L=140 		5-09707-031-1 02 1 0907- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2400MM(24W) 03.162 (A) L=140 		5-09707-031-1 01 1 0907- ●
452 03.028 BREATHER; FUEL TANK 8-97357-261-0 01 1 0907- ● ● ●
çizim 93099
322 322 43 43 49 1 44 44 42 42 653 42 49
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.001 TANK; FUEL
FUEL TANK 63L<6EF> 756X375X323 57L 		8-98147-352-4 01 1 0907- ● ●
1 03.001 TANK; FUEL
FUEL TANK 100L<N02> 1003X348X375 100L 		8-98104-008-4 01 1 0907- ● ●
1 03.001 TANK; FUEL
FUEL TANK 75L<7GX> 756X375X375 70L 		8-98104-005-4 01 1 0907- ● ● ●
42 03.023 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 0907- ● ● ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 63L<6EF> FRONT 		8-98148-222-0 01 1 0907- ● ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 63L<6EF> REAR 		8-98148-223-0 01 1 0907- ● ●
43 03.015 BRACKET; FUEL TANK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> FRONT 		8-97384-056-1 01 1 0907- ● ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 75L<7GX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT 		8-97384-056-1 01 1 0907- ● ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 75L<7GX> FRONT 		8-97384-056-1 01 1 0907- ●
43 03.015 BRACKET; FUEL TANK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> REAR 		8-97384-081-1 01 1 0907- ● ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 75L<7GX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR 		8-97384-081-1 01 1 0907- ● ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 75L<7GX> REAR 		8-97384-081-1 01 1 0907- ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 100L<N02> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT 		8-98061-738-1 01 1 0907- ● ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 100L<N02> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR 		8-98061-739-1 01 1 0907- ● ●
44 03.023 BAND; FUEL TANK
FUEL TANK 63L<6EF> L=613 		8-97169-230-2 02 1 0907-1312 ● ●
44 03.023 BAND; FUEL TANK
FUEL TANK 63L<6EF> L=613 		8-98245-202-0 02 1 1401- ● ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> 04.085 M10 FLANGE 		0-91180-210-0 07 1 0907- ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W) FUEL TANK 75L<7GX> 04.085 M10 FLANGE 		0-91180-210-0 07 1 0907- ●
49 03.023 NUT; BRKT
WHEEL BASE 2400MM(24W) 04.085 M10 FLANGE 		0-91180-210-0 08 1 0907-0910 ● ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 04.085 M10 FLANGE 		0-91180-210-0 08 1 0907-0910 ● ●
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 0907-0910 ●
49 03.023 NUT; BRKT
WHEEL BASE 2400MM(24W) 04.085 M10 FLANGE 		0-91180-210-0 08 1 0911-1003 ● ●
49 03.023 NUT; BRKT
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 04.085 M10 FLANGE 		0-91180-210-0 08 1 0911-1003 ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 04.085 M10 FLANGE 		0-91180-210-0 08 1 0911-1003 ●
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 0911-1003 ●
49 03.023 NUT; BRKT
WHEEL BASE 2400MM(24W) 04.085 M10 FLANGE 		0-91180-210-0 08 1 1004-1111 ● ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 04.085 M10 FLANGE 		0-91180-210-0 08 1 1004-1111 ● ●
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 1004-1111 ●
49 03.023 NUT; BRKT
WHEEL BASE 2400MM(24W) 04.085 M10 FLANGE 		0-91180-210-0 08 1 1112- ● ●
49 03.023 NUT; BRKT
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 04.085 M10 FLANGE 		0-91180-210-0 08 1 1112- ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 04.085 M10 FLANGE 		0-91180-210-0 08 1 1112- ●
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 1112- ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> 07.068 M10X30 FLANGE 		0-28661-030-0 07 1 0907- ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W) FUEL TANK 75L<7GX> 07.068 M10X30 FLANGE 		0-28661-030-0 07 1 0907- ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 2400MM(24W) 07.068 M10X30 FLANGE 		0-28661-030-0 08 1 0907-0910 ● ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 07.068 M10X30 FLANGE 		0-28661-030-0 08 1 0907-0910 ● ●
322 03.895 BOLT; BRKT FIX
07.068 M10X30 FLANGE 		0-28661-030-0 08 1 0907-0910 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 2400MM(24W) 07.068 M10X30 FLANGE 		0-28661-030-0 08 1 0911-1003 ● ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 07.068 M10X30 FLANGE 		0-28661-030-0 08 1 0911-1003 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 07.068 M10X30 FLANGE 		0-28661-030-0 08 1 0911-1003 ●
322 03.895 BOLT; BRKT FIX
07.068 M10X30 FLANGE 		0-28661-030-0 08 1 0911-1003 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 2400MM(24W) 07.068 M10X30 FLANGE 		0-28661-030-0 08 1 1004-1111 ● ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 07.068 M10X30 FLANGE 		0-28661-030-0 08 1 1004-1111 ● ●
322 03.895 BOLT; BRKT FIX
07.068 M10X30 FLANGE 		0-28661-030-0 08 1 1004-1111 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 2400MM(24W) 07.068 M10X30 FLANGE 		0-28661-030-0 08 1 1112- ● ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 07.068 M10X30 FLANGE 		0-28661-030-0 08 1 1112- ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 07.068 M10X30 FLANGE 		0-28661-030-0 08 1 1112- ●
322 03.895 BOLT; BRKT FIX
07.068 M10X30 FLANGE 		0-28661-030-0 08 1 1112- ●
653 03.022 BAND KIT; FUEL TANK
FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> 		5-87411-970-0 02 1 0907- ● ●
653 03.022 BAND KIT; FUEL TANK
FUEL TANK 75L<7GX> 		5-87411-970-0 02 1 0907- ●

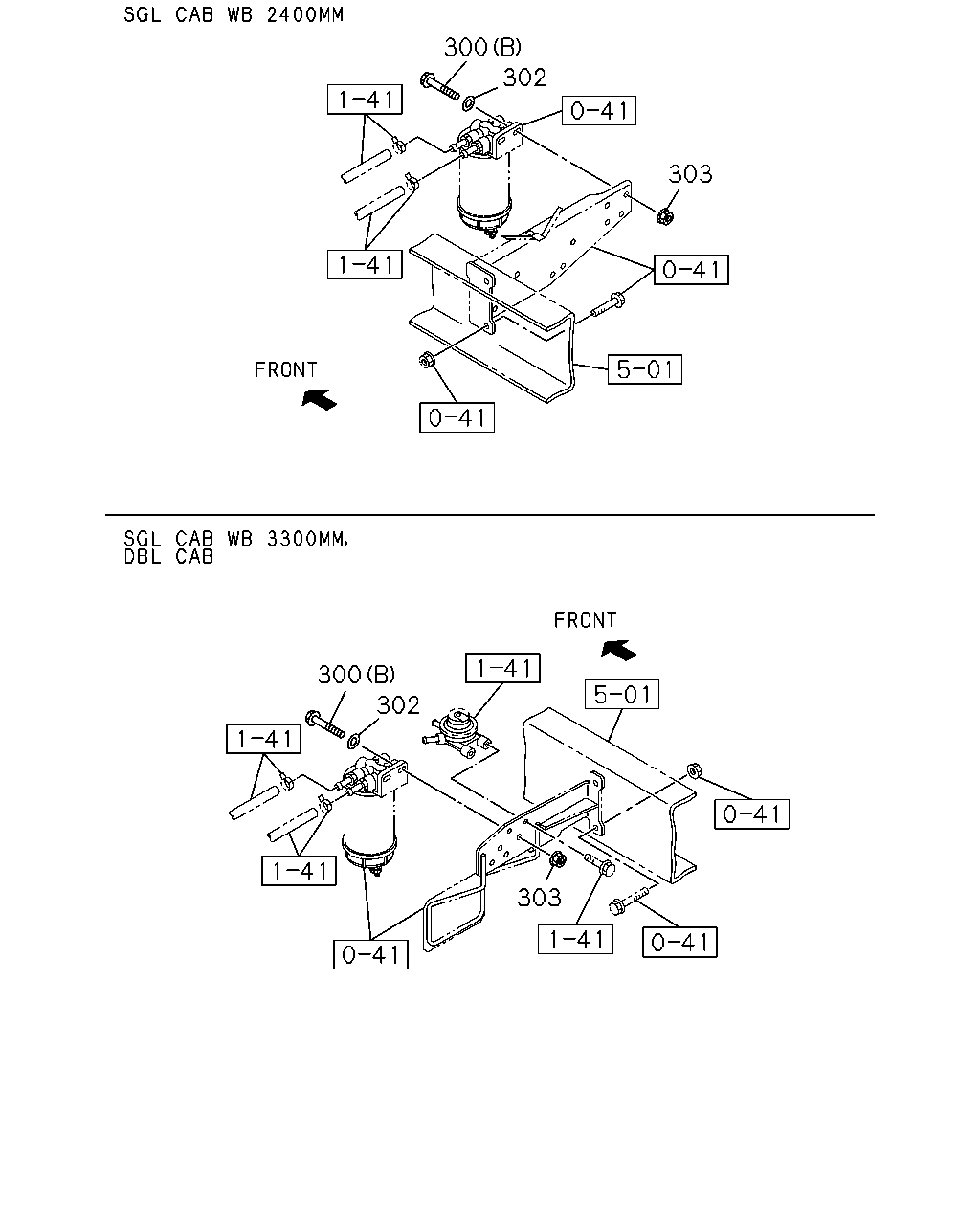

çizim 93242
300 302 303 300 302 303
BalonParca AdiParca NoAdetTipApplied Date A B C
300 03.162 BOLT; BRKT TO BODY
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0907- ● ● ●
300 03.162 BOLT; BRKT TO BODY
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0907- ● ● ●
302 03.162 WASHER; PL,SEDIMENTER
04.085 ID=10.5 OD=26 		0-91614-710-0 02 1 0907- ● ● ●
303 03.162 NUT; SEDIMENTER BRKT
M10 FLANGE 		0-91180-110-0 02 1 0907- ● ● ●

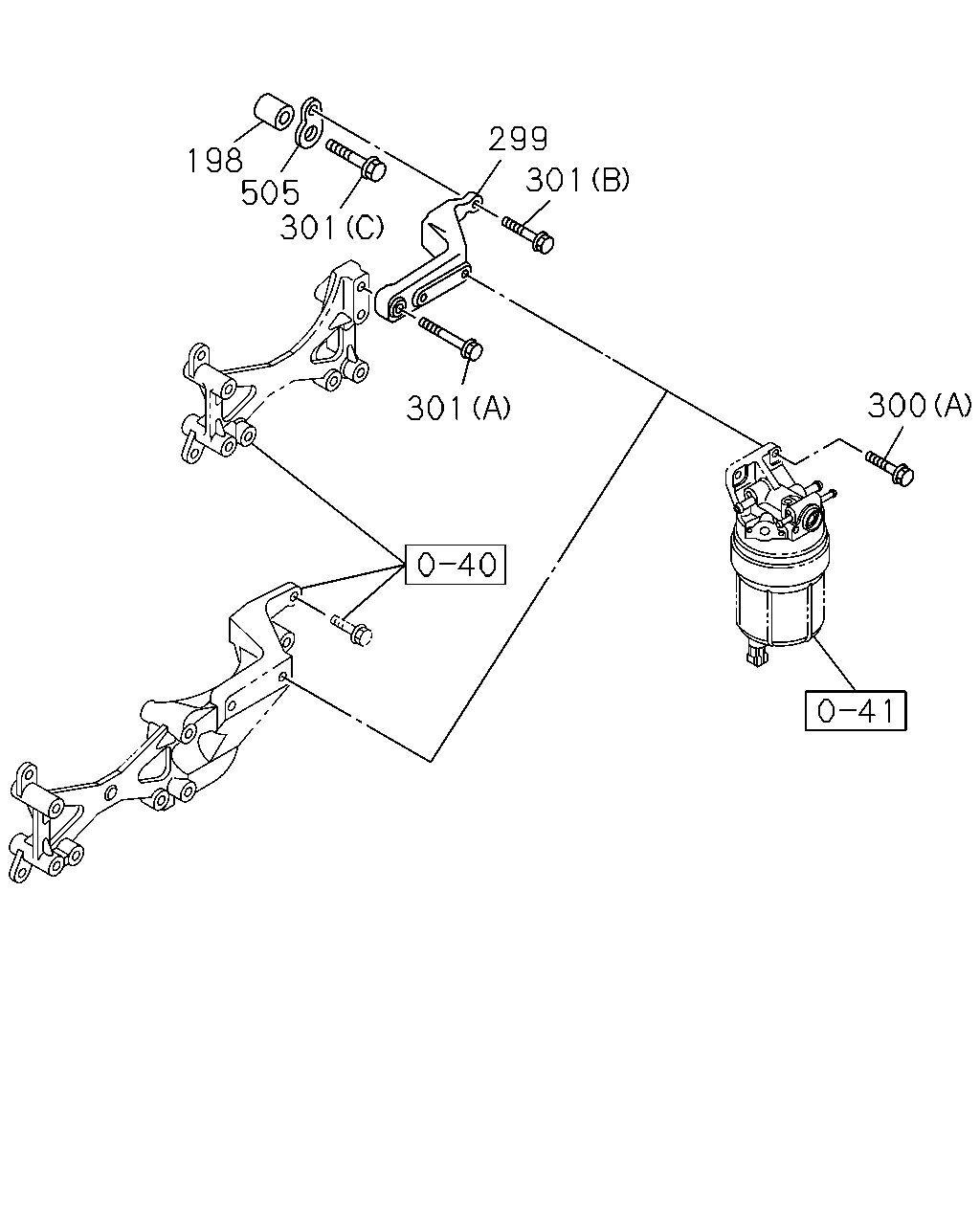

çizim 186670
299 198 505 301 301 300 301
BalonParca AdiParca NoAdetTipApplied Date A B C
198 03.107 SPACER 8-98081-509-0 01 1 0907-1001 ● ● ●
299 03.162 BRACKET; FUEL FILTER 8-98009-087-4 01 1 0907-1001 ● ● ●
300 03.162 BOLT; BRKT TO BODY
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0907- ● ● ●
300 03.162 BOLT; BRKT TO BODY
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0907- ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
(B) M8X40 FLANGE 		0-28060-840-0 01 1 0907-1001 ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
(A) M8X66 FLANGE 		8-98081-507-0 01 1 0907-1001 ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
(C) M14X58 FLANGE 		8-98081-508-0 01 1 0907-1001 ● ● ●
505 03.163 BRACKET 8-98081-486-0 01 1 0907-1001 ● ● ●
