1-41 — FUEL PIPING; CHASSIS (#7642) — 106 parça

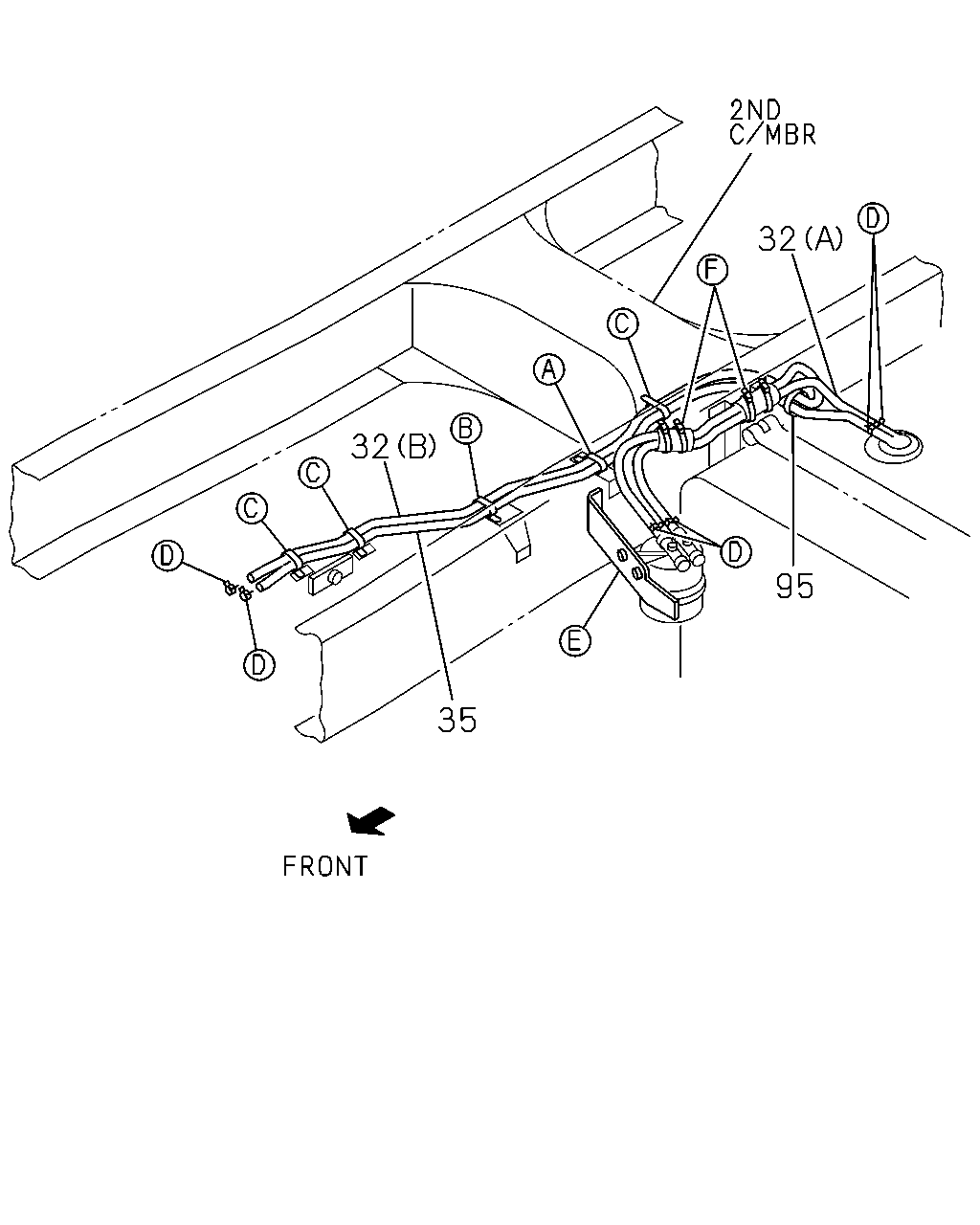

32 32 95 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 3200MM(32W) (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9905-0003	●	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 3200MM(32W) (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	0004-	●	●	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 3200MM(32W) (B) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	9905-0003	●	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 3200MM(32W) (B) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	0004-	●	●	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 3500MM(35W) (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9902-	●	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 3500MM(35W) (B) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	9902-9903	●	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 3500MM(35W) (B) L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	9904-	●	●	●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 3200MM(32W) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9905-0003	●	●	●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 3200MM(32W) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	0004-	●	●	●	●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 3500MM(35W) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	9902-	●	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9902-0003	●	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0004-	●	●	●	●

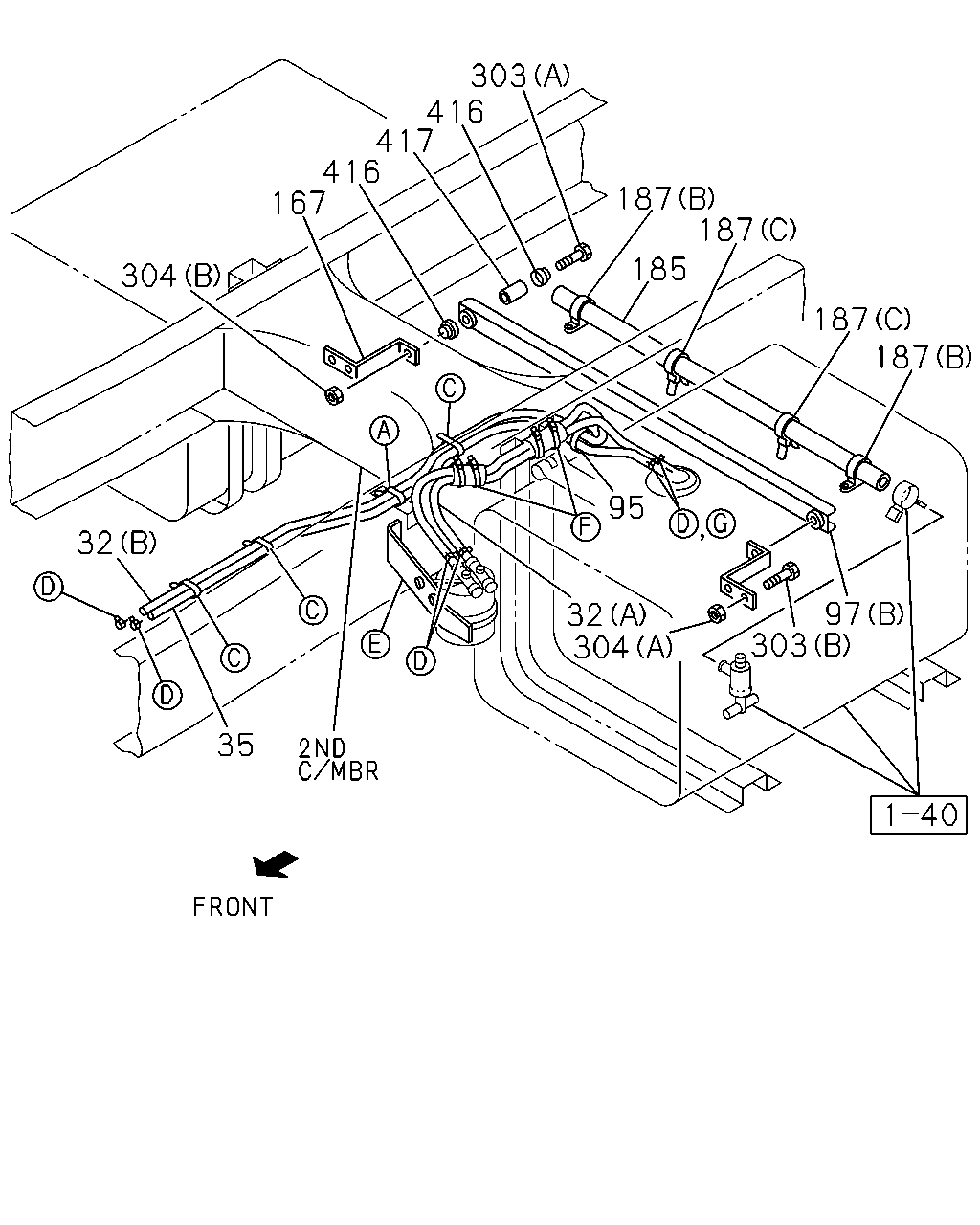

303 416 417 416 167 187 187 185 304 187 187 95 32 97 303 32 304 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 3200MM(32W) (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9905-0003	●	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 3200MM(32W) (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	0004-	●	●	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 3200MM(32W) (B) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	9905-0003	●	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 3200MM(32W) (B) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	0004-	●	●	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 3500MM(35W) (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9902-	●	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 3500MM(35W) (B) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	9902-9903	●	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 3500MM(35W) (B) L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	9904-	●	●	●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 3200MM(32W) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9905-0003	●	●	●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 3200MM(32W) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	0004-	●	●	●	●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 3500MM(35W) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	9902-	●	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9902-0003	●	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0004-	●	●	●	●
97	BRACKET; CLIP FUEL TANK 400L+400L<NAR> (B)	1-53461-494-1	01	1	9902-	●
97	BRACKET; CLIP ZF M/T<X9E> (C)	1-47478-442-0	01	1	9902-0003	●		●
97	BRACKET; CLIP ZF M/T<X9E> (C)	1-47478-442-0	01	1	0004-	●	●	●	●
97	BRACKET; CLIP (A) L=112	1-47475-694-1	01	1	9902-0003	●	●	●
97	BRACKET; CLIP (A) L=112	1-47475-694-1	01	1	0004-0008	●	●	●	●
167	BRACKET FUEL TANK 400L+400L<NAR>	1-47478-031-0	02	1	9902-	●
185	PIPE; FUEL TANK TO TANK FUEL TANK 400L+400L<NAR> L=2200 SERVICED BY L=3000	0-01262-300-0	01	1	9902-	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 400L+400L<NAR> (A) ID=19	8-94238-569-0	02	1	9902-	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 400L+400L<NAR> (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9902-	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 400L+400L<NAR> (C) ID=22 L=52	9-09917-431-0	02	1	9902-	●
303	BOLT; BRKT FUEL TANK 400L+400L<NAR> (A) M10X50 FLANGE	0-28081-050-0	02	1	9902-	●
303	BOLT; BRKT FUEL TANK 400L+400L<NAR> (B) M8X25 FLANGE	0-28680-825-0	02	1	9902-9908	●
303	BOLT; BRKT FUEL TANK 400L+400L<NAR> (B) M8X25 FLANGE	0-28680-825-0	04	1	9909-	●
304	NUT; BRKT FUEL TANK 400L+400L<NAR> (A) M8 FLANGE	0-91150-108-0	02	1	9902-9908	●
304	NUT; BRKT FUEL TANK 400L+400L<NAR> (A) M8 FLANGE	0-91150-108-0	04	1	9909-	●
304	NUT; BRKT FUEL TANK 400L+400L<NAR> (B) M10 FLANGE	0-91150-210-0	02	1	9902-	●
416	RUBBER; SUPPORT FUEL TANK 400L+400L<NAR> OD=40	1-22159-094-0	04	1	9902-	●
417	TUBE; DISTANCE,BRKT FUEL TANK 400L+400L<NAR> L=22	9-22159-024-0	02	1	9902-	●

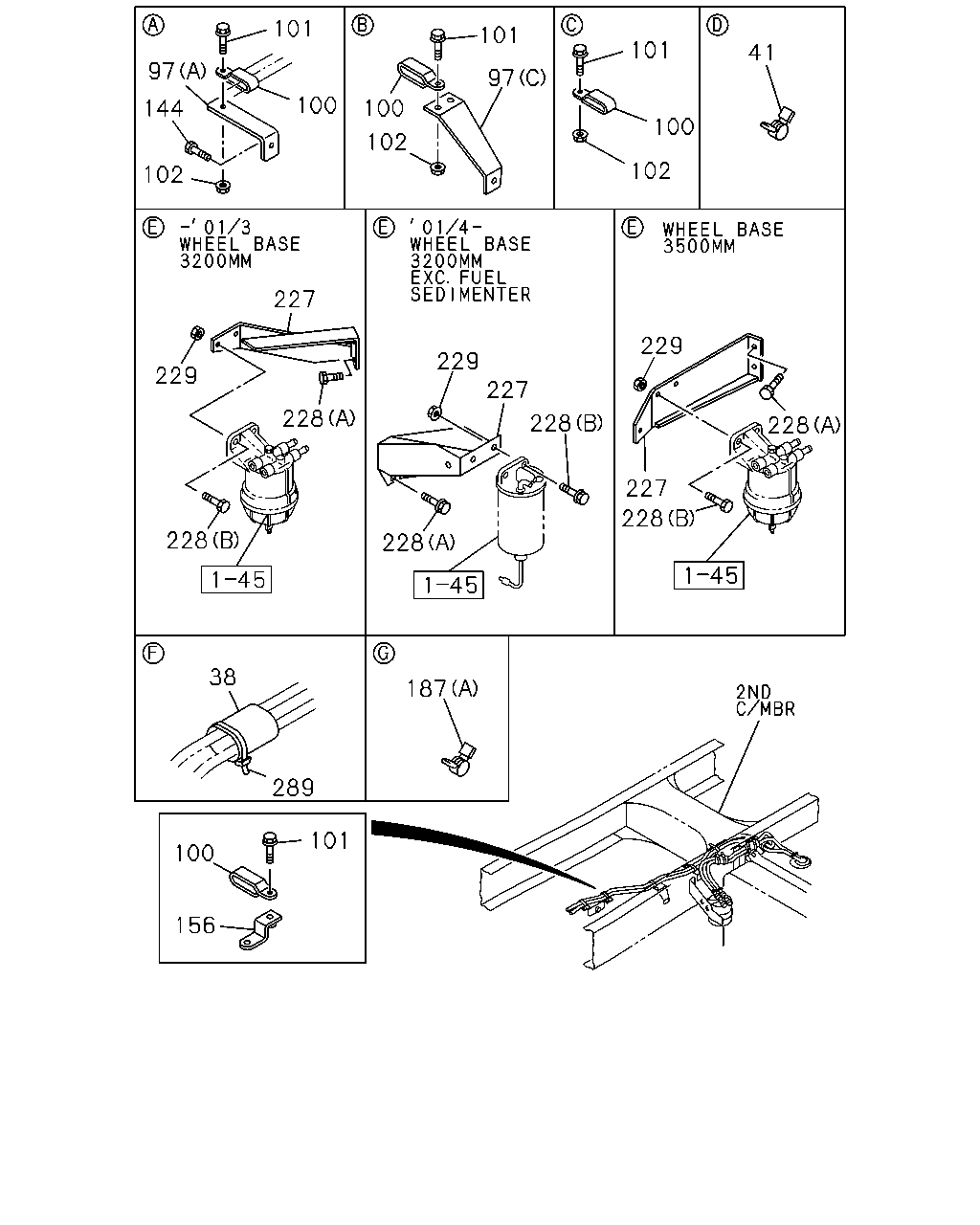

101 101 101 41 97 97 100 100 144 100 102 102 102 227 229 229 227 229 228 228 228 227 228 228 228 38 187 289 101 100 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
38	SLEEVE; RUBBER,RUBBER HOSE L=1300	1-09360-677-1	02	1	9902-0003	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=1300	1-09360-677-1	02	1	0004-	●	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9902-0003	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	0004-	●	●	●	●
97	BRACKET; CLIP FUEL TANK 400L+400L<NAR> (B)	1-53461-494-1	01	1	9902-	●
97	BRACKET; CLIP ZF M/T<X9E> (C)	1-47478-442-0	01	1	9902-0003	●		●
97	BRACKET; CLIP ZF M/T<X9E> (C)	1-47478-442-0	01	1	0004-	●	●	●	●
97	BRACKET; CLIP (A) L=112	1-47475-694-1	01	1	9902-0003	●	●	●
97	BRACKET; CLIP (A) L=112	1-47475-694-1	01	1	0004-0008	●	●	●	●
100	CLIP; FUEL PIPE WHEEL BASE 3200MM(32W) ISUZU M/T<X9A> ID=16X2 L=20	9-09535-536-0	05	1	9902-	●		●
100	CLIP; FUEL PIPE WHEEL BASE 3500MM(35W) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	05	1	9902-	●		●
100	CLIP; FUEL PIPE WHEEL BASE 3200MM(32W) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	06	1	9905-0003	●		●
100	CLIP; FUEL PIPE WHEEL BASE 3200MM(32W) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	06	1	0004-	●	●	●
100	CLIP; FUEL PIPE WHEEL BASE 3200MM(32W) ID=16X2 L=20	9-09535-536-0	06	1	0004-				●
100	CLIP; FUEL PIPE WHEEL BASE 3500MM(35W) ISUZU M/T<X9A> ID=16X2 L=20	9-09535-536-0	04	1	9902-	●		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 3200MM(32W) ISUZU M/T<X9A> M8X25 FLANGE	0-28680-825-0	05	1	9902-	●		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 3500MM(35W) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	05	1	9902-	●		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 3200MM(32W) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	06	1	9905-0003	●		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 3200MM(32W) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	06	1	0004-	●	●	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 3200MM(32W) M8X25 FLANGE	0-28680-825-0	06	1	0004-				●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 3500MM(35W) ISUZU M/T<X9A> M8X25 FLANGE	0-28680-825-0	04	1	9902-	●		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	01	1	9902-0003	●		●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9902-0003	●		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	01	1	0004-0008	●	●	●	●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0004-0008	●	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	01	1	0004-0008				●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0009-	●	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	01	1	0009-				●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 3200MM(32W) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	9902-9908	●		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 3500MM(35W) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	9902-9908	●		●
102	NUT; CLIP,FUEL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	9909-0008	●		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 3200MM(32W) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	0009-	●		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 3500MM(35W) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	0009-	●		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 3200MM(32W) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	9905-9908	●		●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	9909-0003	●		●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	0004-0008	●	●	●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 3200MM(32W) M8 FLANGE	0-91150-108-0	03	1	0004-0008				●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 3200MM(32W) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0009-	●	●	●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 3200MM(32W) M8 FLANGE	0-91150-108-0	04	1	0009-				●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 3500MM(35W) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	9902-9908	●		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 3500MM(35W) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0009-	●		●
144	BOLT; CLIP,FUEL PIPE,C/MBR M8X35 FLANGE	0-28680-835-0	01	1	9902-0003	●		●
144	BOLT; CLIP,FUEL PIPE,C/MBR ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	01	1	9902-0003	●		●
144	BOLT; CLIP,FUEL PIPE,C/MBR M8X35 FLANGE	0-28680-835-0	01	1	0004-0008	●	●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	01	1	0004-0008	●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR M8X35 FLANGE	0-28680-835-0	01	1	0004-0008				●
144	BOLT; CLIP,FUEL PIPE,C/MBR ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	01	1	0009-	●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR M8X35 FLANGE	0-28680-835-0	01	1	0009-				●
156	BRACKET; FUEL HOSE ZF M/T<X9E>	1-47478-306-0	02	1	9902-0003	●	●	●
156	BRACKET; FUEL HOSE ZF M/T<X9E>	1-47478-306-0	02	1	0004-	●	●	●	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 400L+400L<NAR> (A) ID=19	8-94238-569-0	02	1	9902-	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 400L+400L<NAR> (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9902-	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 400L+400L<NAR> (C) ID=22 L=52	9-09917-431-0	02	1	9902-	●
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 3200MM(32W)	1-22518-163-0	01	1	9905-0003	●	●	●
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 3200MM(32W)	1-22518-163-0	01	1	0004-	●	●	●	●
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 3500MM(35W)	1-22518-168-2	01	1	9902-	●	●	●
228	BOLT; BRKT,SEDIMENTER (A) M10X30 FLANGE	0-28681-030-0	02	1	9902-0003	●	●	●
228	BOLT; BRKT,SEDIMENTER (A) M10X30 FLANGE	0-28681-030-0	02	1	0004-	●	●	●	●
228	BOLT; BRKT,SEDIMENTER (B) M10X35 FLANGE	0-28681-035-0	02	1	9902-0003	●	●	●
228	BOLT; BRKT,SEDIMENTER (B) M10X35 FLANGE	0-28681-035-0	02	1	0004-	●	●	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	04	1	9902-0003	●	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	04	1	0004-	●	●	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	9902-0003	●	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	0004-	●	●	●	●
