0-60 — ENGINE ELECTRICAL CONTROL PARTS (#76418) — 62 parça

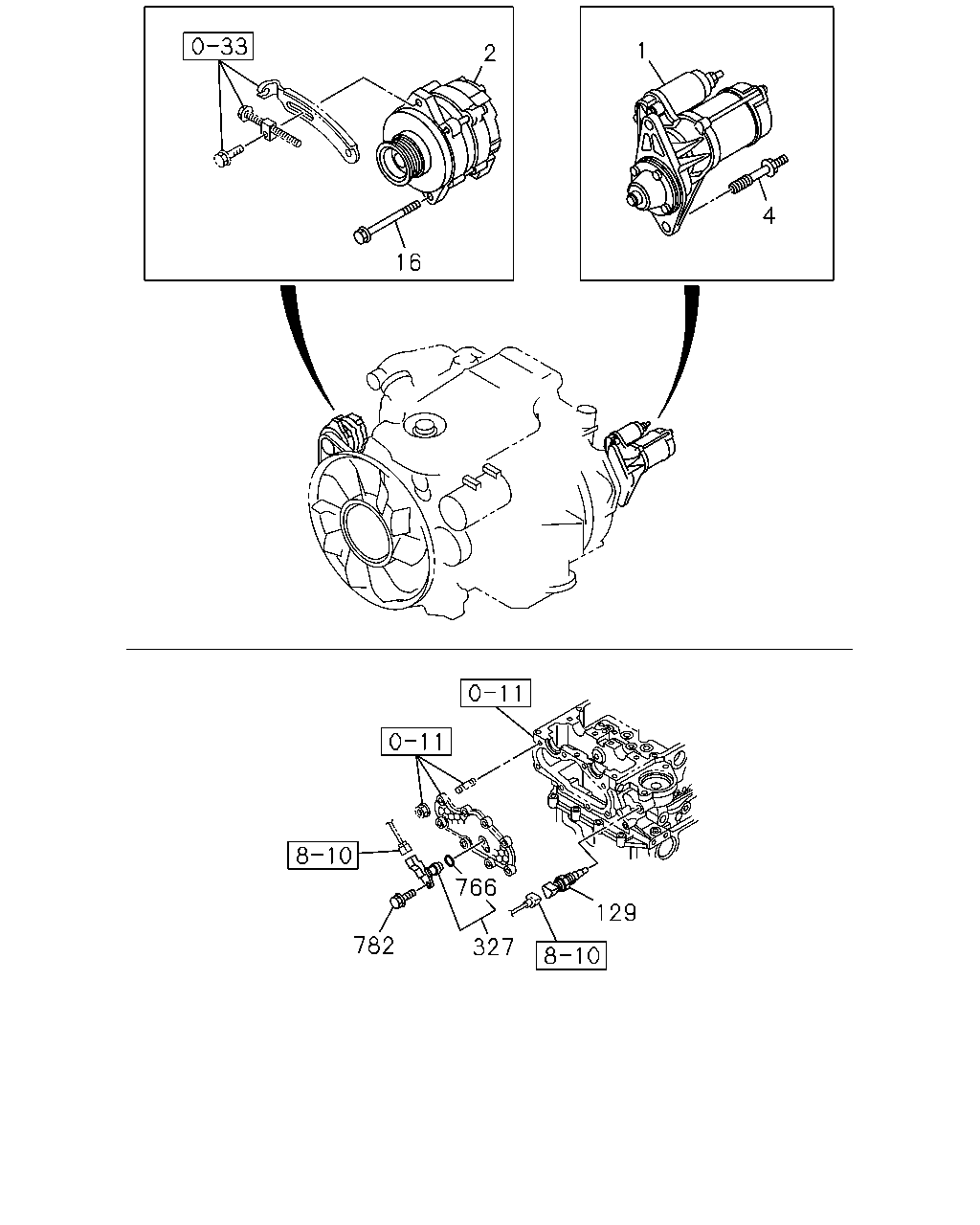

çizim 72599
1 2 4 16 766 129 782 327
BalonParca AdiParca NoAdetTipApplied Date
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0907-1006
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208-
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0907-1006
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-98029-887-2 01 1 0907-
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A 		8-98029-889-2 01 1 0907-
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0907-
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 0907-
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0907-
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 0907-
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0907-
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0907-

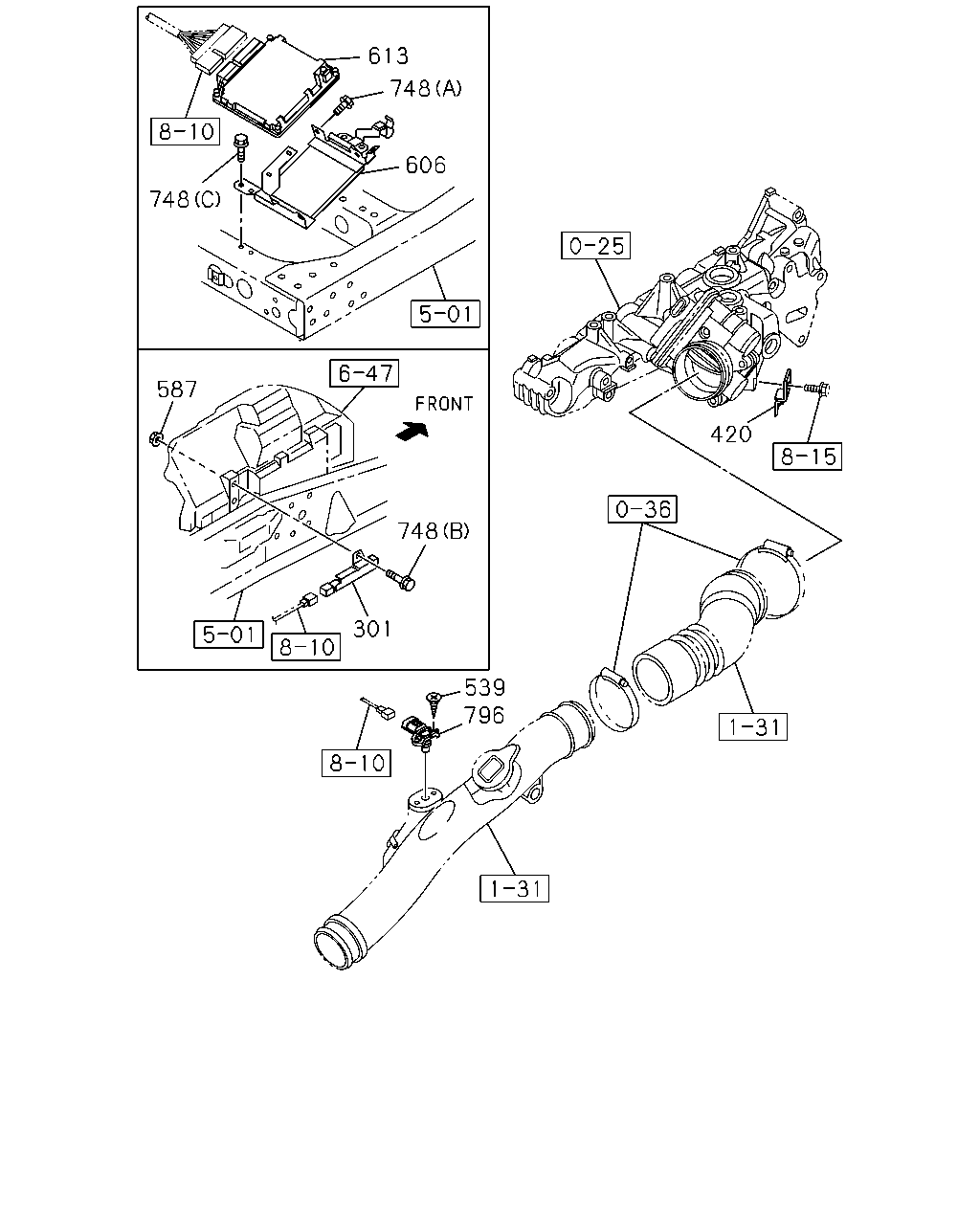

çizim 72764
613 748 606 748 587 420 748 301 539 796
BalonParca AdiParca NoAdetTipApplied Date
301 02.510 RESISTOR; DROPPING 8-97357-613-0 01 1 0907-
420 02.183 BRACKET; HARNESS 8-98009-094-0 01 1 0907-
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0907-
587 03.671 NUT; RESISTOR & RELAY
04.115 M6 W/DISHED WASHER 		8-98029-921-0 02 1 0907-
606 03.680 BRACKET; CONT UNIT
SGL CAB(NM**S*) 		8-98011-948-3 01 1 0907-
606 03.680 BRACKET; CONT UNIT
DBL CAB(NM**W*) 		8-98038-714-3 01 1 0907-
613 03.670 CONTROL UNIT; ENG
NLR SGL CAB(NM**SE) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-260-5 01 1 0907-
613 03.670 CONTROL UNIT; ENG
NLR SGL CAB(NM**SE) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-255-4 01 1 0907-
613 03.670 CONTROL UNIT; ENG
NLR SGL CAB(NM**SE) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98122-262-5 01 1 0907-
613 03.670 CONTROL UNIT; ENG
NLR SGL CAB(NM**SE) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-257-4 01 1 0907-
613 03.670 CONTROL UNIT; ENG
NMR(NM***N) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-259-5 01 1 0907-1111
613 03.670 CONTROL UNIT; ENG
NMR(NM***N) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-259-5 01 1 1112-
613 03.670 CONTROL UNIT; ENG
NMR(NM***N) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-254-4 01 1 0907-1111
613 03.670 CONTROL UNIT; ENG
NMR(NM***N) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-254-4 01 1 1112-
613 03.670 CONTROL UNIT; ENG
DBL CAB(NM**W*) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-266-5 01 1 0907-
613 03.670 CONTROL UNIT; ENG
DBL CAB(NM**W*) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-264-4 01 1 0907-
613 03.670 CONTROL UNIT; ENG
DBL CAB(NM**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98122-267-5 01 1 0907-
613 03.670 CONTROL UNIT; ENG
DBL CAB(NM**W*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-265-4 01 1 0907-
748 02.500 BOLT; CONT UNIT
03.162 (A) M6X12 FLANGE 		0-28050-612-0 04 1 0907-
748 02.500 BOLT; CONT UNIT
03.162 (B) M6X20 FLANGE 		0-28650-620-0 02 1 0907-
748 02.500 BOLT; CONT UNIT
06.216 (C) M8X25 FLANGE 		0-28650-825-0 04 1 0907-
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0907-

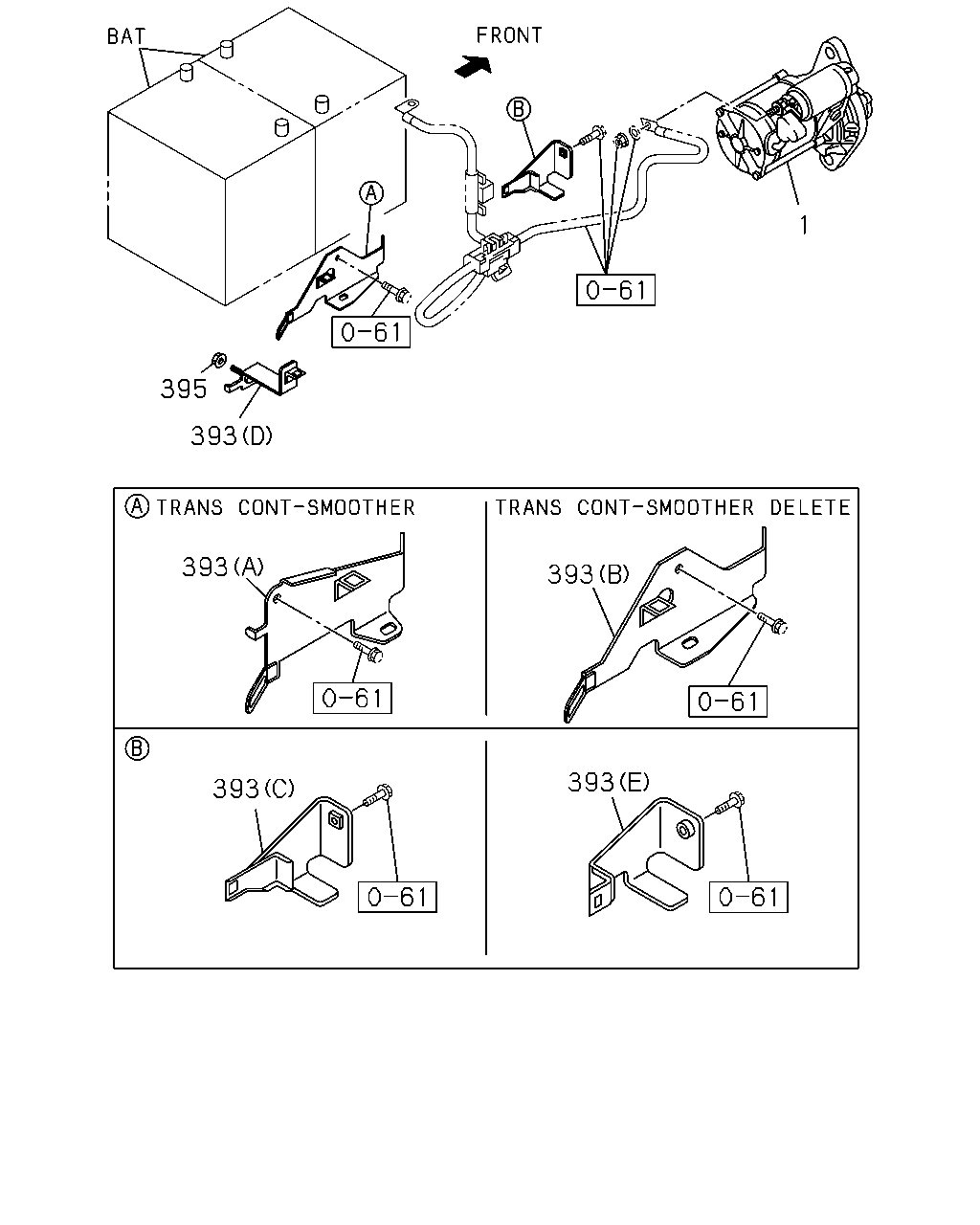

çizim 73611
1 395 393 393 393 393 393
BalonParca AdiParca NoAdetTipApplied Date
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0907-1006
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208-
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0907-1006
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98028-600-3 01 1 0907-
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (C) 		8-98018-903-0 01 1 0907-1103
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) (C) 		8-98018-903-0 01 1 0907-1103
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (E) 		8-98123-872-0 01 1 1104-
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) (E) 		8-98123-872-0 01 1 1104-
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (D) 		8-98136-192-0 01 1 0907-0909
393 02.343 BRACKET; HARNESS TO BODY
NLR SGL CAB(NM**SE) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (D) 		8-98136-192-0 01 1 0910-1003
393 02.343 BRACKET; HARNESS TO BODY
NMR(NM***N) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (D) 		8-98136-192-0 01 1 0910-1003
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (D) 		8-98136-192-0 01 1 1004-1007
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (D) 		8-98136-192-0 01 1 1008-1111
393 02.343 BRACKET; HARNESS TO BODY
NLR SGL CAB(NM**SE) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (D) 		8-98136-192-0 01 1 1112-1308
393 02.343 BRACKET; HARNESS TO BODY
NMR(NM***N) WHEEL BASE 3300MM(33W) (D) 		8-98136-192-0 01 1 1112-1308
393 02.343 BRACKET; HARNESS TO BODY
NLR SGL CAB(NM**SE) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (D) 		8-98245-494-0 01 1 1309-
393 02.343 BRACKET; HARNESS TO BODY
NMR(NM***N) WHEEL BASE 3300MM(33W) (D) 		8-98245-494-0 01 1 1309-
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98028-601-3 01 1 0907-
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907-0909
395 02.343 NUT; BRKT FIX
NLR SGL CAB(NM**SE) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0910-1003
395 02.343 NUT; BRKT FIX
NMR(NM***N) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0910-1003
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1004-1111
395 02.343 NUT; BRKT FIX
NLR SGL CAB(NM**SE) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1112-
395 02.343 NUT; BRKT FIX
NMR(NM***N) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1112-
çizim 186649
10 46
BalonParca AdiParca NoAdetTipApplied Date
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0907-
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0907-
çizim 186664
897
BalonParca AdiParca NoAdetTipApplied Date
897 02.510 DRM 8-98082-814-6 01 1 0907-
