Isuzu WW
▶
TRUCKS
▶
NLR
▶
51249 - NLR/NMR(EU)-LHD EU5
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶

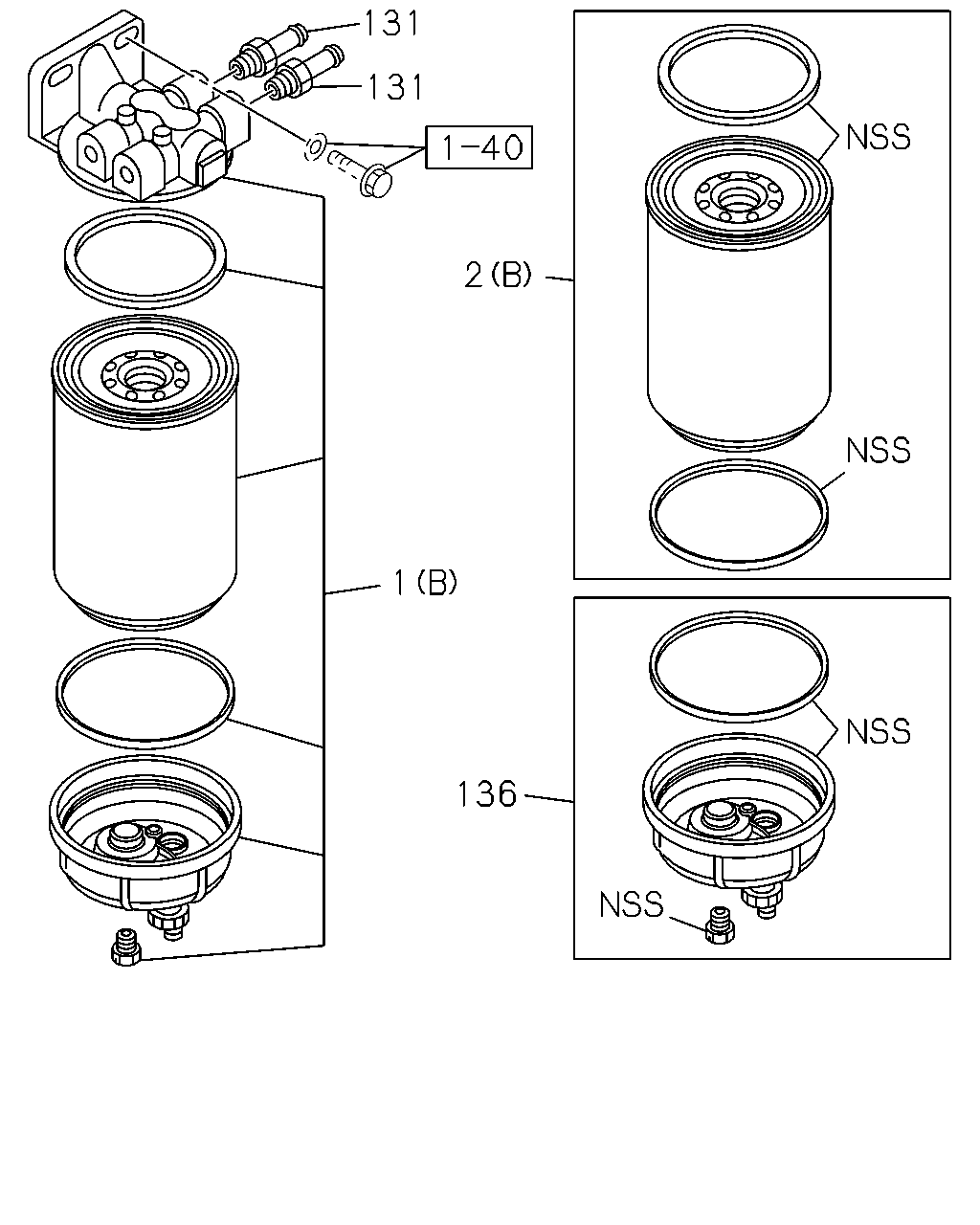

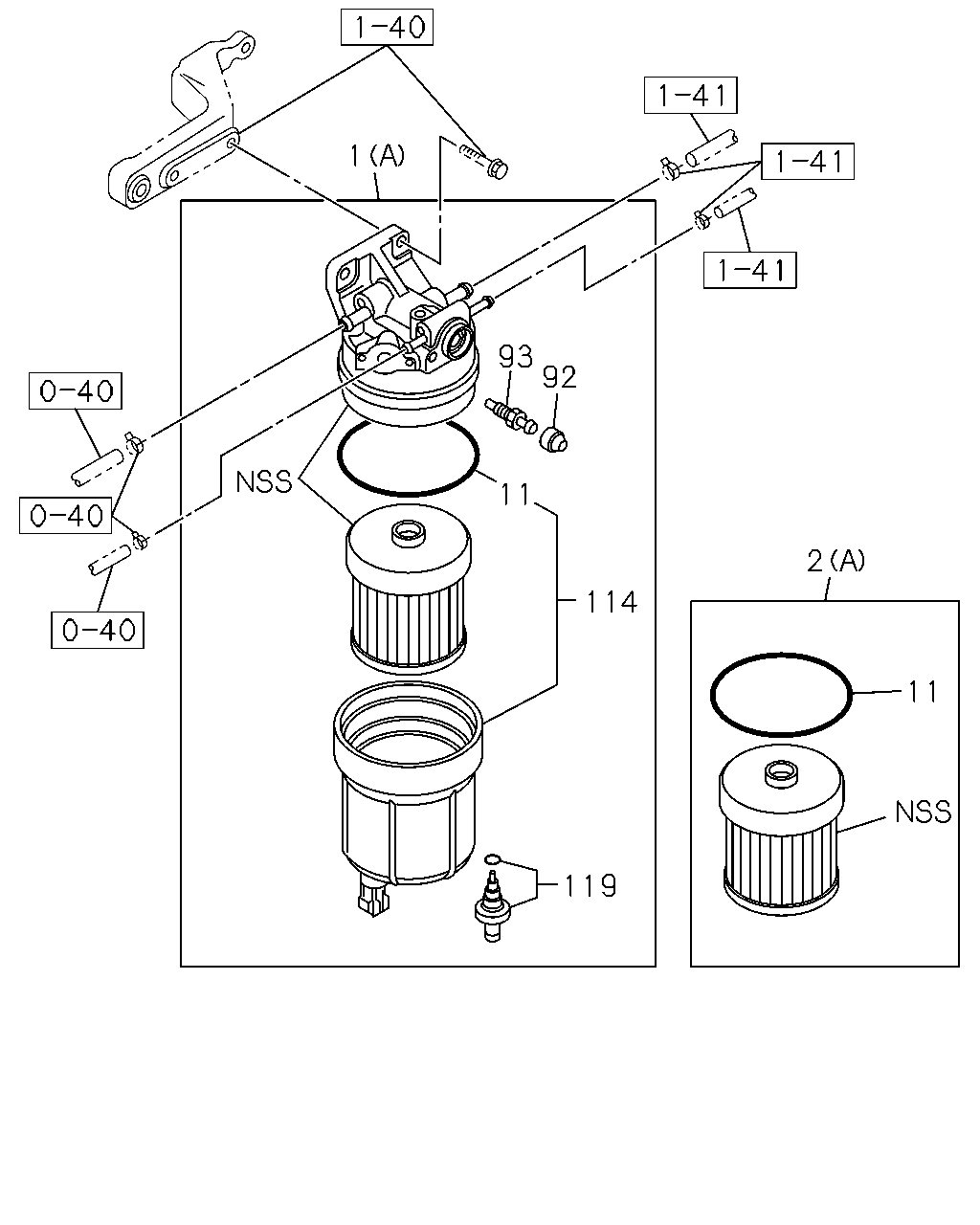

0-41 — FUEL FILTER AND BRACKET
(#76413) — 42 parça
◀
[041A] MAIN FILTER (14 parça)
[041A] SEDIMENTER BRACKET AND FIX (16 parça)
[041A] SEDIMENTER (12 parça)
▶
1
93
92
11
2
114
11
119
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.890 FILTER ASM; FUEL
(A)
8-98060-050-1
01
1
0907-1002
1
03.890 FILTER ASM; FUEL
(A)
8-98162-903-3
01
1
1003-
1
03.890 FILTER ASM; FUEL
(B)
8-98095-980-1
01
1
0907-
2
03.890 ELEMENT KIT; FUEL FILTER
(A)
8-98037-011-0
01
1
0907-1002
2
03.890 ELEMENT KIT; FUEL FILTER
(A)
8-98162-897-0
01
1
1003-1112
2
03.890 ELEMENT KIT; FUEL FILTER
(A)
8-98203-599-0
01
1
1201-
2
03.890 ELEMENT KIT; FUEL FILTER
(B)
8-98095-983-0
01
1
0907-
2
03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS
1-87610-093-0
01
1
1201-
11
03.890 GASKET; CASE TO BODY,FUEL FILTER
8-98037-015-0
01
1
0907-1112
11
03.890 GASKET; CASE TO BODY,FUEL FILTER
8-98203-600-0
01
1
1201-
92
03.417 CAP; FUEL FILTER
8-98034-314-0
01
1
0907-
93
03.890 CONNECTOR; FUEL FILTER
M8X10
8-98034-312-0
01
1
0907-
114
03.890 CASE ASM; FUEL FILTER
8-98039-987-1
01
1
0907-
119
03.890 PLUG; DRAIN,FUEL FILTER
8-98037-095-0
01
1
0907-
1
40
88
1
62
40
88
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.890 FILTER ASM; FUEL
(A)
8-98060-050-1
01
1
0907-1002
1
03.890 FILTER ASM; FUEL
(A)
8-98162-903-3
01
1
1003-
1
03.890 FILTER ASM; FUEL
(B)
8-98095-980-1
01
1
0907-
40
03.890 BRACKET; FUEL FILTER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)
8-98147-247-0
01
1
1205-
40
03.890 BRACKET; FUEL FILTER
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (A)
8-98107-351-2
01
1
0907-
40
03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W) (B)
8-98107-354-3
01
1
0907-1204
40
03.890 BRACKET; FUEL FILTER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) IDENTIFICATION LABEL FOR KD<6UT> (B)
8-98107-354-3
01
1
1205-
62
03.895 NUT; FUEL FILTER
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE
0-91180-110-0
02
1
0907-
62
03.895 NUT; FUEL FILTER
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE
0-91180-110-0
01
1
0907-
88
03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 09.171 M10X25 FLANGE
0-28051-025-0
02
1
0907-1204
88
03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) IDENTIFICATION LABEL FOR KD<6UT> 09.171 M10X25 FLANGE
0-28051-025-0
02
1
1205-
88
03.895 BOLT; BRKT,FUEL FILTER
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE
0-28651-030-0
02
1
0907-1204
88
03.895 BOLT; BRKT,FUEL FILTER
NLR SGL CAB(NM**SE) EXC. IDENTIFICATION LABEL FOR KD<6UT> 00.029 M10X30 FLANGE
0-28651-030-0
02
1
1205-
88
03.895 BOLT; BRKT,FUEL FILTER
DBL CAB(NM**W*) WHEEL BASE 3300MM(33W) EXC. IDENTIFICATION LABEL FOR KD<6UT> 00.029 M10X30 FLANGE
0-28651-030-0
02
1
1205-
88
03.895 BOLT; BRKT,FUEL FILTER
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) IDENTIFICATION LABEL FOR KD<6UT> 00.029 M10X30 FLANGE
0-28651-030-0
02
1
1205-
88
03.895 BOLT; BRKT,FUEL FILTER
NMR(NM***N) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. IDENTIFICATION LABEL FOR KD<6UT> 00.029 M10X30 FLANGE
0-28651-030-0
02
1
1205-
131
131
2
1
136
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.890 FILTER ASM; FUEL
(A)
8-98060-050-1
01
1
0907-1002
1
03.890 FILTER ASM; FUEL
(A)
8-98162-903-3
01
1
1003-
1
03.890 FILTER ASM; FUEL
(B)
8-98095-980-1
01
1
0907-
2
03.890 ELEMENT KIT; FUEL FILTER
(A)
8-98037-011-0
01
1
0907-1002
2
03.890 ELEMENT KIT; FUEL FILTER
(A)
8-98162-897-0
01
1
1003-1112
2
03.890 ELEMENT KIT; FUEL FILTER
(A)
8-98203-599-0
01
1
1201-
2
03.890 ELEMENT KIT; FUEL FILTER
(B)
8-98095-983-0
01
1
0907-
2
03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS
1-87610-093-0
01
1
1201-
131
03.890 PIPE; FILTER
01.153
8-97358-699-0
02
1
0907-0908
131
03.890 PIPE; FILTER
NPTF3/8-18 OD=10
8-98122-953-0
02
1
0909-
136
03.890 CAP KIT; FUEL FILTER
8-98096-004-0
01
1
0907-1408
136
03.890 CAP KIT; FUEL FILTER
8-98279-324-0
01
1
1409-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
