1-40 — FUEL TANK (#7641) — 92 parça

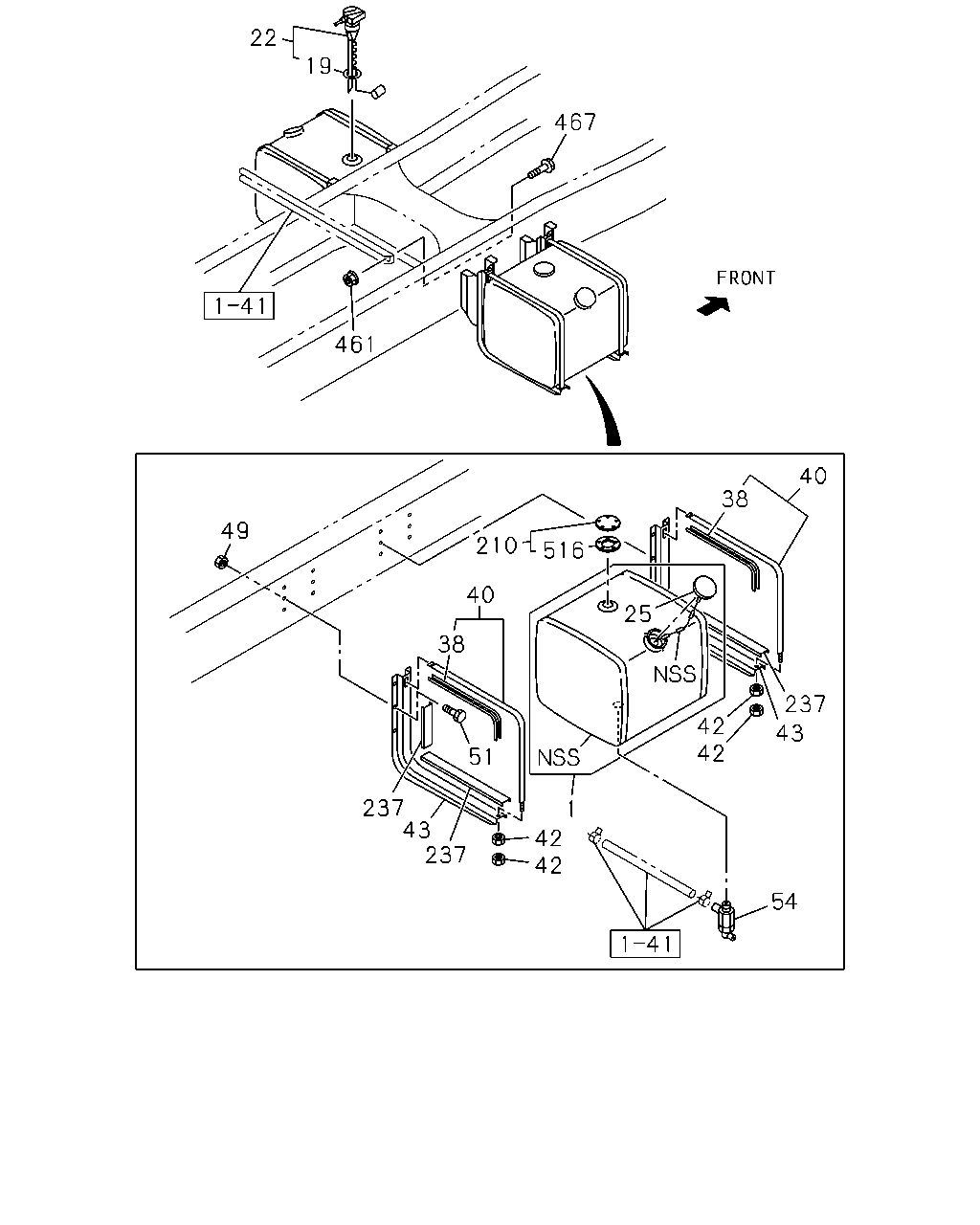

22 19 467 461 40 38 49 210 516 40 25 38 237 42 42 43 51 237 43 237 1 42 42 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; FUEL FUEL TANK 400L+400L<NAR> 1020X680X625 400L	1-87411-168-0	02	1	9902-	●
1	TANK; FUEL EXC. FUEL TANK 400L+400L<NAR> 1020X680X625 400L	1-87411-168-0	01	1	9902-0003	●	●	●
1	TANK; FUEL EXC. FUEL TANK 400L+400L<NAR> 1020X680X625 400L	1-87411-168-0	01	1	0004-	●	●	●
1	TANK; FUEL 1020X680X625 400L	1-87411-168-0	01	1	0004-				●
19	GASKET; FUEL TANK UNIT ID=58	1-83149-005-0	01	1	9902-0003	●	●	●
19	GASKET; FUEL TANK UNIT ID=58	1-83149-005-0	01	1	0004-	●	●	●	●
22	UNIT; FUEL TANK	1-83141-132-0	01	1	9902-0003	●	●	●
22	UNIT; FUEL TANK	1-83141-132-0	01	1	0004-	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L+400L<NAR>	1-22440-056-0	02	1	9902-	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 400L+400L<NAR>	1-22440-056-0	01	1	9902-0003	●	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 400L+400L<NAR>	1-22440-056-0	01	1	0004-	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-056-0	01	1	0004-				●
38	INSULATION; SUPPORT BELT FUEL TANK 400L+400L<NAR> L=1156	1-22553-039-1	04	1	9902-	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 400L+400L<NAR> L=1156	1-22553-039-0	02	1	9902-0003	●	●	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 400L+400L<NAR> L=1156	1-22553-039-1	02	1	0004-	●	●	●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	0004-				●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L+400L<NAR> L=1205	1-22550-227-2	04	1	9902-	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 400L+400L<NAR> L=1205	1-22550-227-1	02	1	9902-0003	●	●	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 400L+400L<NAR> L=1205	1-22550-227-2	02	1	0004-	●	●	●
40	BELT; SUPPORT,FUEL TANK L=1205	1-22550-227-2	02	1	0004-				●
42	NUT; SUPPORT BELT FUEL TANK 400L+400L<NAR> M10	9-09110-510-0	08	1	9902-	●
42	NUT; SUPPORT BELT EXC. FUEL TANK 400L+400L<NAR> M10	9-09110-510-0	04	1	9902-0003	●	●	●
42	NUT; SUPPORT BELT EXC. FUEL TANK 400L+400L<NAR> M10	9-09110-510-0	04	1	0004-	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0004-				●
43	BRACKET; FUEL TANK FUEL TANK 400L+400L<NAR>	1-53461-458-2	04	1	9902-	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 400L+400L<NAR>	1-53461-458-2	02	1	9902-0003	●	●	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 400L+400L<NAR>	1-53461-458-2	02	1	0004-	●	●	●
43	BRACKET; FUEL TANK	1-53461-458-2	02	1	0004-				●
49	NUT; BRKT FUEL TANK 400L+400L<NAR> M12	9-99110-512-0	24	1	9902-0001	●
49	NUT; BRKT FUEL TANK 400L+400L<NAR> M12	9-99110-512-0	16	1	0002-	●
49	NUT; BRKT EXC. FUEL TANK 400L+400L<NAR> M12	9-99110-512-0	12	1	9902-0001	●	●	●
49	NUT; BRKT EXC. FUEL TANK 400L+400L<NAR> M12	9-99110-512-0	08	1	0002-0003	●	●	●
49	NUT; BRKT EXC. FUEL TANK 400L+400L<NAR> M12	9-99110-512-0	08	1	0004-	●	●	●
49	NUT; BRKT M12	9-99110-512-0	08	1	0004-				●
51	BOLT; BRKT TO FRAME FUEL TANK 400L+400L<NAR> M12X40 FLANGE	0-28681-240-0	24	1	9902-	●
54	COCK ASM; FUEL TANK FUEL TANK 400L+400L<NAR>	1-09680-085-0	02	1	9902-	●
210	CAP; FUEL TANK FUEL TANK 400L+400L<NAR>	1-22411-076-0	01	1	9902-	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L+400L<NAR>	1-22553-037-0	08	1	9902-	●
237	GASKET; BRKT TO FUEL TANK EXC. FUEL TANK 400L+400L<NAR>	1-22553-037-0	04	1	9902-0003	●	●	●
237	GASKET; BRKT TO FUEL TANK EXC. FUEL TANK 400L+400L<NAR>	1-22553-037-0	04	1	0004-	●	●	●
237	GASKET; BRKT TO FUEL TANK	1-22553-037-0	04	1	0004-				●
461	NUT; CLIP,FUEL PIPE FUEL TANK 400L+400L<NAR> M8 FLANGE	0-91150-108-0	02	1	9902-	●
467	BOLT FUEL TANK 400L+400L<NAR> M8X25 FLANGE	0-28680-825-0	02	1	9902-9903	●
467	BOLT FUEL TANK 400L+400L<NAR> M8X20 FLANGE	0-28680-820-0	02	1	9904-	●
516	GASKET; CAP FUEL TANK 400L+400L<NAR> ID=58	1-83149-005-0	01	1	9902-	●

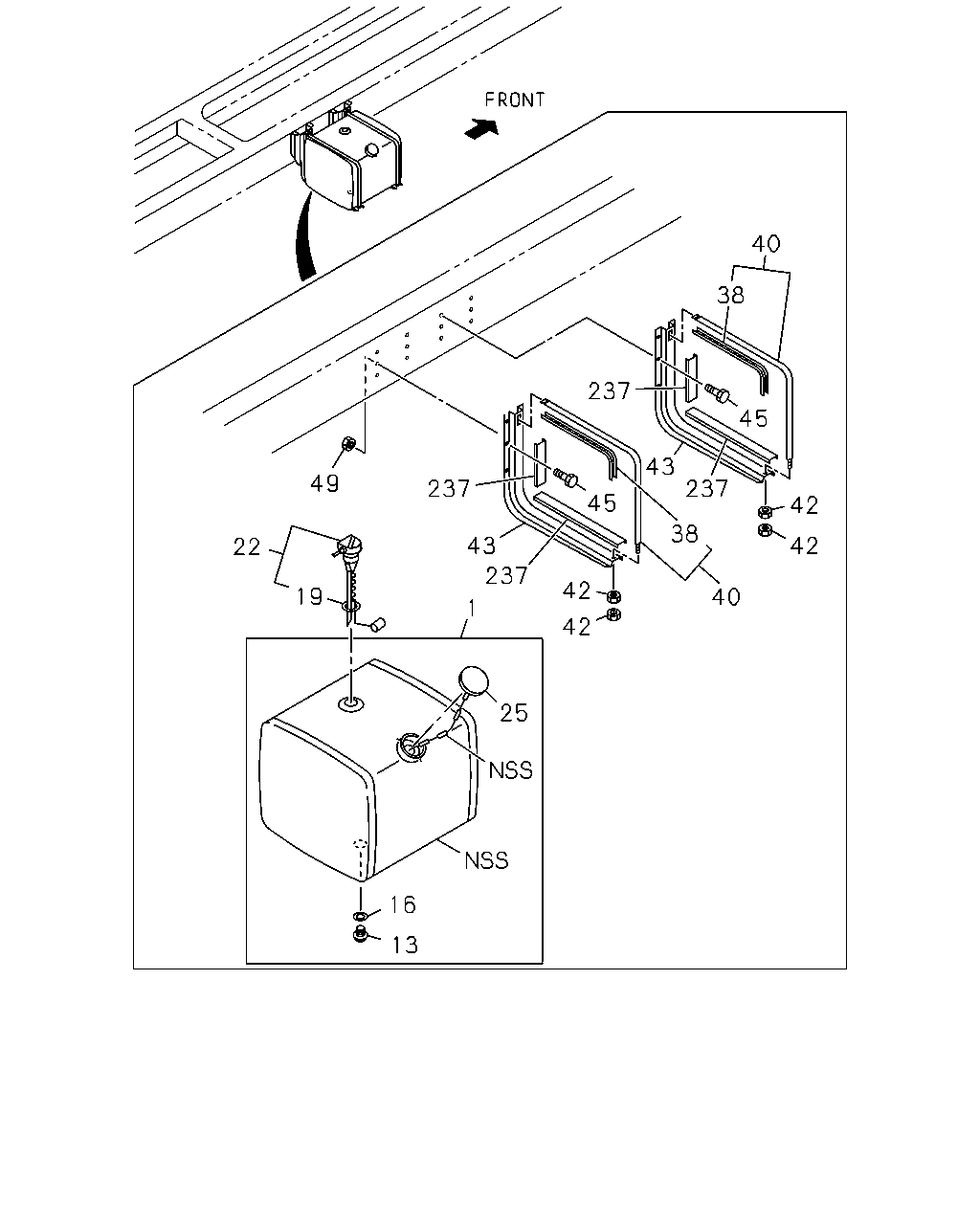

40 38 237 45 43 49 237 237 45 42 38 43 42 22 237 42 19 40 1 42 25 16 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; FUEL FUEL TANK 400L+400L<NAR> 1020X680X625 400L	1-87411-168-0	02	1	9902-	●
1	TANK; FUEL EXC. FUEL TANK 400L+400L<NAR> 1020X680X625 400L	1-87411-168-0	01	1	9902-0003	●	●	●
1	TANK; FUEL EXC. FUEL TANK 400L+400L<NAR> 1020X680X625 400L	1-87411-168-0	01	1	0004-	●	●	●
1	TANK; FUEL 1020X680X625 400L	1-87411-168-0	01	1	0004-				●
13	PLUG; SCREW,SUB TANK JOINT EXC. FUEL TANK 400L+400L<NAR> M18X12	9-99202-318-0	01	1	9902-0003	●	●	●
13	PLUG; SCREW,SUB TANK JOINT EXC. FUEL TANK 400L+400L<NAR> M18X12	9-99202-318-0	01	1	0004-	●	●	●
13	PLUG; SCREW,SUB TANK JOINT M18X12	9-99202-318-0	01	1	0004-				●
16	GASKET; PLUG EXC. FUEL TANK 400L+400L<NAR> T=1.60	1-22416-001-0	01	1	9902-0003	●	●	●
16	GASKET; PLUG EXC. FUEL TANK 400L+400L<NAR> T=1.60	1-22416-001-0	01	1	0004-	●	●	●
16	GASKET; PLUG T=1.60	1-22416-001-0	01	1	0004-				●
19	GASKET; FUEL TANK UNIT ID=58	1-83149-005-0	01	1	9902-0003	●	●	●
19	GASKET; FUEL TANK UNIT ID=58	1-83149-005-0	01	1	0004-	●	●	●	●
22	UNIT; FUEL TANK	1-83141-132-0	01	1	9902-0003	●	●	●
22	UNIT; FUEL TANK	1-83141-132-0	01	1	0004-	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L+400L<NAR>	1-22440-056-0	02	1	9902-	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 400L+400L<NAR>	1-22440-056-0	01	1	9902-0003	●	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 400L+400L<NAR>	1-22440-056-0	01	1	0004-	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-056-0	01	1	0004-				●
38	INSULATION; SUPPORT BELT FUEL TANK 400L+400L<NAR> L=1156	1-22553-039-1	04	1	9902-	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 400L+400L<NAR> L=1156	1-22553-039-0	02	1	9902-0003	●	●	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 400L+400L<NAR> L=1156	1-22553-039-1	02	1	0004-	●	●	●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	0004-				●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L+400L<NAR> L=1205	1-22550-227-2	04	1	9902-	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 400L+400L<NAR> L=1205	1-22550-227-1	02	1	9902-0003	●	●	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 400L+400L<NAR> L=1205	1-22550-227-2	02	1	0004-	●	●	●
40	BELT; SUPPORT,FUEL TANK L=1205	1-22550-227-2	02	1	0004-				●
42	NUT; SUPPORT BELT FUEL TANK 400L+400L<NAR> M10	9-09110-510-0	08	1	9902-	●
42	NUT; SUPPORT BELT EXC. FUEL TANK 400L+400L<NAR> M10	9-09110-510-0	04	1	9902-0003	●	●	●
42	NUT; SUPPORT BELT EXC. FUEL TANK 400L+400L<NAR> M10	9-09110-510-0	04	1	0004-	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0004-				●
43	BRACKET; FUEL TANK FUEL TANK 400L+400L<NAR>	1-53461-458-2	04	1	9902-	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 400L+400L<NAR>	1-53461-458-2	02	1	9902-0003	●	●	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 400L+400L<NAR>	1-53461-458-2	02	1	0004-	●	●	●
43	BRACKET; FUEL TANK	1-53461-458-2	02	1	0004-				●
45	BOLT; BRKT,FUEL TANK EXC. FUEL TANK 400L+400L<NAR> M12X40 FLANGE	0-28681-240-0	12	1	9902-0003	●	●	●
45	BOLT; BRKT,FUEL TANK EXC. FUEL TANK 400L+400L<NAR> M12X40 FLANGE	0-28681-240-0	12	1	0004-	●	●	●
45	BOLT; BRKT,FUEL TANK M12X40 FLANGE	0-28681-240-0	12	1	0004-				●
49	NUT; BRKT FUEL TANK 400L+400L<NAR> M12	9-99110-512-0	24	1	9902-0001	●
49	NUT; BRKT FUEL TANK 400L+400L<NAR> M12	9-99110-512-0	16	1	0002-	●
49	NUT; BRKT EXC. FUEL TANK 400L+400L<NAR> M12	9-99110-512-0	12	1	9902-0001	●	●	●
49	NUT; BRKT EXC. FUEL TANK 400L+400L<NAR> M12	9-99110-512-0	08	1	0002-0003	●	●	●
49	NUT; BRKT EXC. FUEL TANK 400L+400L<NAR> M12	9-99110-512-0	08	1	0004-	●	●	●
49	NUT; BRKT M12	9-99110-512-0	08	1	0004-				●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L+400L<NAR>	1-22553-037-0	08	1	9902-	●
237	GASKET; BRKT TO FUEL TANK EXC. FUEL TANK 400L+400L<NAR>	1-22553-037-0	04	1	9902-0003	●	●	●
237	GASKET; BRKT TO FUEL TANK EXC. FUEL TANK 400L+400L<NAR>	1-22553-037-0	04	1	0004-	●	●	●
237	GASKET; BRKT TO FUEL TANK	1-22553-037-0	04	1	0004-				●
