Sayfa 9-01 - Isuzu EPC

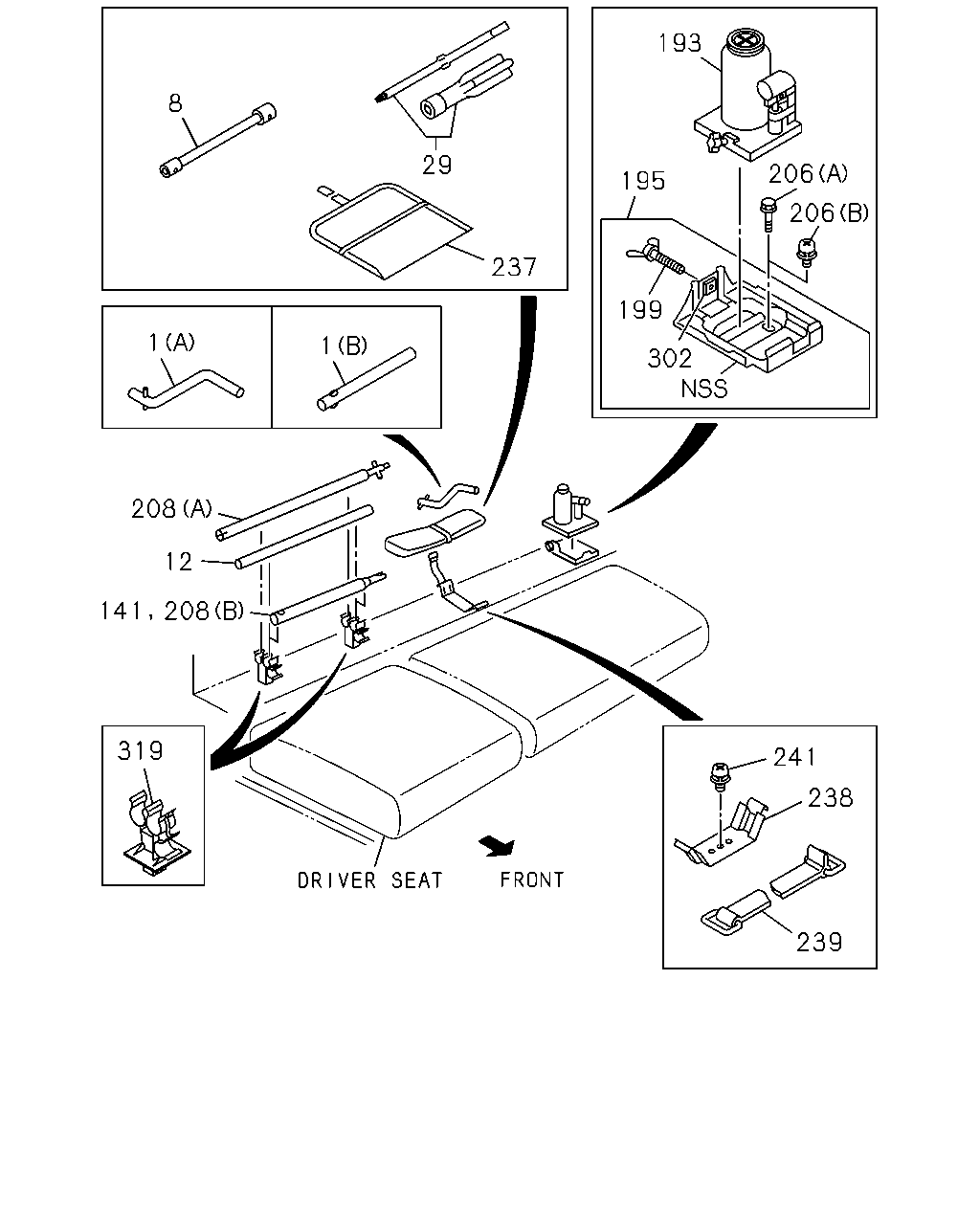

9-01 — TOOLS (#76394) — 142 parça

193 8 29 206 195 206 237 199 1 1 302 208 12 319 241 238 239 141 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 08.821 (B) L=280	1-85515-007-0	01	1	0905-0906	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 08.821 (B) L=280	1-85515-007-0	01	1	0907-1104	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W) 08.821 (B) L=280	1-85515-007-0	01	1	0907-1104		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL LESS<7NC> EXC. SPARE WHEEL CARRIER<P10> 08.821 (B) L=280	1-85515-007-0	01	1	0907-1104			●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 08.821 (B) L=280	1-85515-007-0	01	1	0907-1104			●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 08.821 (B) L=280	1-85515-007-0	01	1	1105-1108	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W) 08.821 (B) L=280	1-85515-007-0	01	1	1105-1108		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL LESS<7NC> EXC. SPARE WHEEL CARRIER<P10> 08.821 (B) L=280	1-85515-007-0	01	1	1105-1108			●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> EXC. SPARE WHEEL CARRIER<P10> 08.821 (B) L=280	1-85515-007-0	01	1	1105-1108			●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 08.821 (B) L=280	1-85515-007-0	01	1	1105-1108			●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=280	8-98181-251-0	01	1	1109-	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W) (B) L=280	8-98181-251-0	01	1	1109-		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL LESS<7NC> EXC. SPARE WHEEL CARRIER<P10> (B) L=280	8-98181-251-0	01	1	1109-			●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> EXC. SPARE WHEEL CARRIER<P10> (B) L=280	8-98181-251-0	01	1	1109-			●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (B) L=280	8-98181-251-0	01	1	1109-			●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 4400MM(44W) (A)	8-97218-985-0	01	1	0905-0906	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	0907-	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (A)	8-97218-985-0	01	1	0907-			●
8	08.821 WRENCH; WHEEL FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) B=41X19 L=330	8-94386-490-1	01	1	0907-1008	●		●
8	08.821 WRENCH; WHEEL FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) B=41X19 L=330	8-94386-490-1	01	1	1009-	●		●
8	08.821 WRENCH; WHEEL FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) B=41X21 L=440	1-85113-015-1	01	1	0905-1201	●	●
8	08.821 WRENCH; WHEEL FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) B=41X21 L=440	1-85113-015-1	01	1	1202-	●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4400MM(44W) OD=25 L=590	8-97332-988-0	01	1	0905-0906	●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> OD=25 L=590	8-97332-988-0	01	1	0907-1001	●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2700MM(27W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> OD=25 L=590	8-97332-988-0	01	1	0907-1001			●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480	1-85116-011-0	01	1	1002-1407	●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2700MM(27W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 08.820 OD=25 L=480	1-85116-011-0	01	1	1002-1407			●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> OD=25 L=480	8-98257-407-0	01	1	1408-	●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2700MM(27W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> OD=25 L=480	8-98257-407-0	01	1	1408-			●
29	08.821 DRIVER; SCREW FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) <+>,<-> L=160	8-94242-798-1	01	1	0905-0906	●	●
29	08.821 DRIVER; SCREW FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DIS C 16X5.5J-116.5 WHITE(BQV),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FR T&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK (CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) <+>,<-> L=160	8-94242-798-1	01	1	0907-1008	●
29	08.821 DRIVER; SCREW FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) <+>,<-> L=160	8-94242-798-1	01	1	0907-1008		●
29	08.821 DRIVER; SCREW FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) <+>,<-> L=160	8-94242-798-1	01	1	0907-1008			●
29	08.821 DRIVER; SCREW FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DIS C 16X5.5J-116.5 WHITE(BQV),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FR T&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK (CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) <+>,<-> L=160	8-94242-798-1	01	1	1009-1201	●
29	08.821 DRIVER; SCREW FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) <+>,<-> L=160	8-94242-798-1	01	1	1009-1201		●
29	08.821 DRIVER; SCREW FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) <+>,<-> L=160	8-94242-798-1	01	1	1009-1201			●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	1202-	●
29	08.821 DRIVER; SCREW FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) <+>,<-> L=160	8-94242-798-1	01	1	1202-		●
29	08.821 DRIVER; SCREW FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) <+>,<-> L=160	8-94242-798-1	01	1	1202-			●
141	08.821 HANDLE; WRENCH WHEEL BASE 3300MM(33W) 08.820 L=580	1-85515-005-1	01	1	0907-1108		●
141	08.821 HANDLE; WRENCH WHEEL BASE 3300MM(33W) 08.820 L=580	8-98181-249-0	01	1	1109-		●
193	08.820 JACK ASM FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) 4TON	8-98012-285-0	01	1	0905-0906	●	●
193	08.820 JACK ASM FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DIS C 16X5.5J-116.5 WHITE(BQV),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FR T&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK (CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) 4TON	8-98012-285-0	01	1	0907-1008	●
193	08.820 JACK ASM FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) 4TON	8-98012-285-0	01	1	0907-1008		●
193	08.820 JACK ASM FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) 4TON	8-98012-285-0	01	1	0907-1008			●
193	08.820 JACK ASM FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DIS C 16X5.5J-116.5 WHITE(BQV),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FR T&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK (CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) 4TON	8-98012-285-0	01	1	1009-1201	●
193	08.820 JACK ASM FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) 4TON	8-98012-285-0	01	1	1009-1201		●
193	08.820 JACK ASM FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) 4TON	8-98012-285-0	01	1	1009-1201			●
193	08.820 JACK ASM 4TON	8-98012-285-0	01	1	1202-	●
193	08.820 JACK ASM FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) 4TON	8-98012-285-0	01	1	1202-		●
193	08.820 JACK ASM FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) 4TON	8-98012-285-0	01	1	1202-			●
195	08.820 BRACKET; JACK FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW)	8-98033-737-2	01	1	0905-0906	●
195	08.820 BRACKET; JACK FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DIS C 16X5.5J-116.5 WHITE(BQV),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FR T&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK (CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW)	8-98033-737-2	01	1	0907-1008	●
195	08.820 BRACKET; JACK FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV)	8-98033-737-2	01	1	0907-1008			●
195	08.820 BRACKET; JACK FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DIS C 16X5.5J-116.5 WHITE(BQV),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FR T&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK (CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA)	8-98033-737-2	01	1	1009-1201	●
195	08.820 BRACKET; JACK FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA)	8-98033-737-2	01	1	1009-1201			●
195	08.820 BRACKET; JACK	8-98033-737-2	01	1	1202-	●
195	08.820 BRACKET; JACK FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA)	8-98033-737-2	01	1	1202-			●
195	08.820 BRACKET; JACK FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW)	8-94262-068-3	01	1	0905-1201		●
195	08.820 BRACKET; JACK FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW)	8-94262-068-3	01	1	1202-		●
199	08.820 BOLT; JACK FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M8X50 WING	8-98005-537-0	01	1	0905-0906	●
199	08.820 BOLT; JACK FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DIS C 16X5.5J-116.5 WHITE(BQV),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FR T&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK (CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M8X50 WING	8-98005-537-0	01	1	0907-1008	●
199	08.820 BOLT; JACK FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) M8X50 WING	8-98005-537-0	01	1	0907-1008			●
199	08.820 BOLT; JACK FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DIS C 16X5.5J-116.5 WHITE(BQV),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FR T&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK (CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M8X50 WING	8-98005-537-0	01	1	1009-1201	●
199	08.820 BOLT; JACK FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M8X50 WING	8-98005-537-0	01	1	1009-1201			●
199	08.820 BOLT; JACK M8X50 WING	8-98005-537-0	01	1	1202-	●
199	08.820 BOLT; JACK FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M8X50 WING	8-98005-537-0	01	1	1202-			●
199	08.820 BOLT; JACK FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M8X50 WING	8-94279-136-0	01	1	0905-1201		●
199	08.820 BOLT; JACK FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M8X50 WING	8-94279-136-0	01	1	1202-		●
206	08.820 SCREW; OIL JACK BRKT 06.216 (A)BOLT M8X25 FLANGE	0-28650-825-0	01	1	0905-0906	●
206	08.820 SCREW; OIL JACK BRKT 06.216 (A)BOLT M8X25 FLANGE	0-28650-825-0	01	1	0907-	●		●
206	08.820 SCREW; OIL JACK BRKT 16.570 (B) M6X16	0-38050-616-0	01	1	0905-		●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=580	1-85515-005-1	01	1	0905-0906	●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=580	1-85515-005-1	01	1	0907-1104	●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL LESS<7NC> EXC. SPARE WHEEL CARRIER<P10> (B) L=580	1-85515-005-1	01	1	0907-1104			●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (B) L=580	1-85515-005-1	01	1	0907-1104			●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=580	1-85515-005-1	01	1	1105-1108	●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL LESS<7NC> EXC. SPARE WHEEL CARRIER<P10> (B) L=580	1-85515-005-1	01	1	1105-1108			●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> EXC. SPARE WHEEL CARRIER<P10> (B) L=580	1-85515-005-1	01	1	1105-1108			●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (B) L=580	1-85515-005-1	01	1	1105-1108			●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=580	8-98181-249-0	01	1	1109-	●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL LESS<7NC> EXC. SPARE WHEEL CARRIER<P10> (B) L=580	8-98181-249-0	01	1	1109-			●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> EXC. SPARE WHEEL CARRIER<P10> (B) L=580	8-98181-249-0	01	1	1109-			●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (B) L=580	8-98181-249-0	01	1	1109-			●
208	08.820 HANDLE; JACK WHEEL BASE 4400MM(44W) (A) L=642	8-97217-800-0	01	1	0905-0906	●	●
208	08.820 HANDLE; JACK WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-97217-800-0	01	1	0907-1108	●	●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (A) L=642	8-97217-800-0	01	1	0907-1108			●
208	08.820 HANDLE; JACK WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-98181-477-0	01	1	1109-	●	●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (A) L=642	8-98181-477-0	01	1	1109-			●
237	08.821 BAG; TOOL FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW)	8-97130-903-0	01	1	0905-0906	●	●
237	08.821 BAG; TOOL FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DIS C 16X5.5J-116.5 WHITE(BQV),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FR T&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK (CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW)	8-97130-903-1	01	1	0907-1008	●
237	08.821 BAG; TOOL FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW)	8-97130-903-1	01	1	0907-1008		●
237	08.821 BAG; TOOL FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV)	8-97130-903-1	01	1	0907-1008			●
237	08.821 BAG; TOOL FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DIS C 16X5.5J-116.5 WHITE(BQV),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FR T&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK (CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA)	8-97130-903-1	01	1	1009-1201	●
237	08.821 BAG; TOOL FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW)	8-97130-903-1	01	1	1009-1201		●
237	08.821 BAG; TOOL FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA)	8-97130-903-1	01	1	1009-1201			●
237	08.821 BAG; TOOL	8-97130-903-1	01	1	1202-	●
237	08.821 BAG; TOOL FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW)	8-97130-903-1	01	1	1202-		●
237	08.821 BAG; TOOL FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA)	8-97130-903-1	01	1	1202-			●
238	08.820 SUPPORT; TOOL BAG	8-97994-977-0	01	1	0905-0906	●
238	08.820 SUPPORT; TOOL BAG	8-97994-977-0	01	1	0907-	●		●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	0905-0906	●	●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	0907-	●	●	●
241	08.820 SCREW; TOOL BAG SUPPORT 16.570 M6X16	0-38050-616-0	01	1	0905-0906	●
241	08.820 SCREW; TOOL BAG SUPPORT 16.570 M6X16	0-38050-616-0	01	1	0907-	●		●
302	08.820 NUT; JACK BRKT FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW)	8-98021-556-0	01	1	0905-0906	●
302	08.820 NUT; JACK BRKT FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DIS C 16X5.5J-116.5 WHITE(BQV),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FR T&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK (CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW)	8-98021-556-0	01	1	0907-1008	●
302	08.820 NUT; JACK BRKT FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV)	8-98021-556-0	01	1	0907-1008			●
302	08.820 NUT; JACK BRKT FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DIS C 16X5.5J-116.5 WHITE(BQV),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FR T&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK (CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA)	8-98021-556-0	01	1	1009-1201	●
302	08.820 NUT; JACK BRKT FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA)	8-98021-556-0	01	1	1009-1201			●
302	08.820 NUT; JACK BRKT	8-98021-556-0	01	1	1202-	●
302	08.820 NUT; JACK BRKT FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA)	8-98021-556-0	01	1	1202-			●
302	08.820 NUT; JACK BRKT FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW)	8-94279-522-0	01	1	0905-1201		●
302	08.820 NUT; JACK BRKT FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW)	8-94279-522-0	01	1	1202-		●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	0905-0906	●	●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	0907-	●	●	●

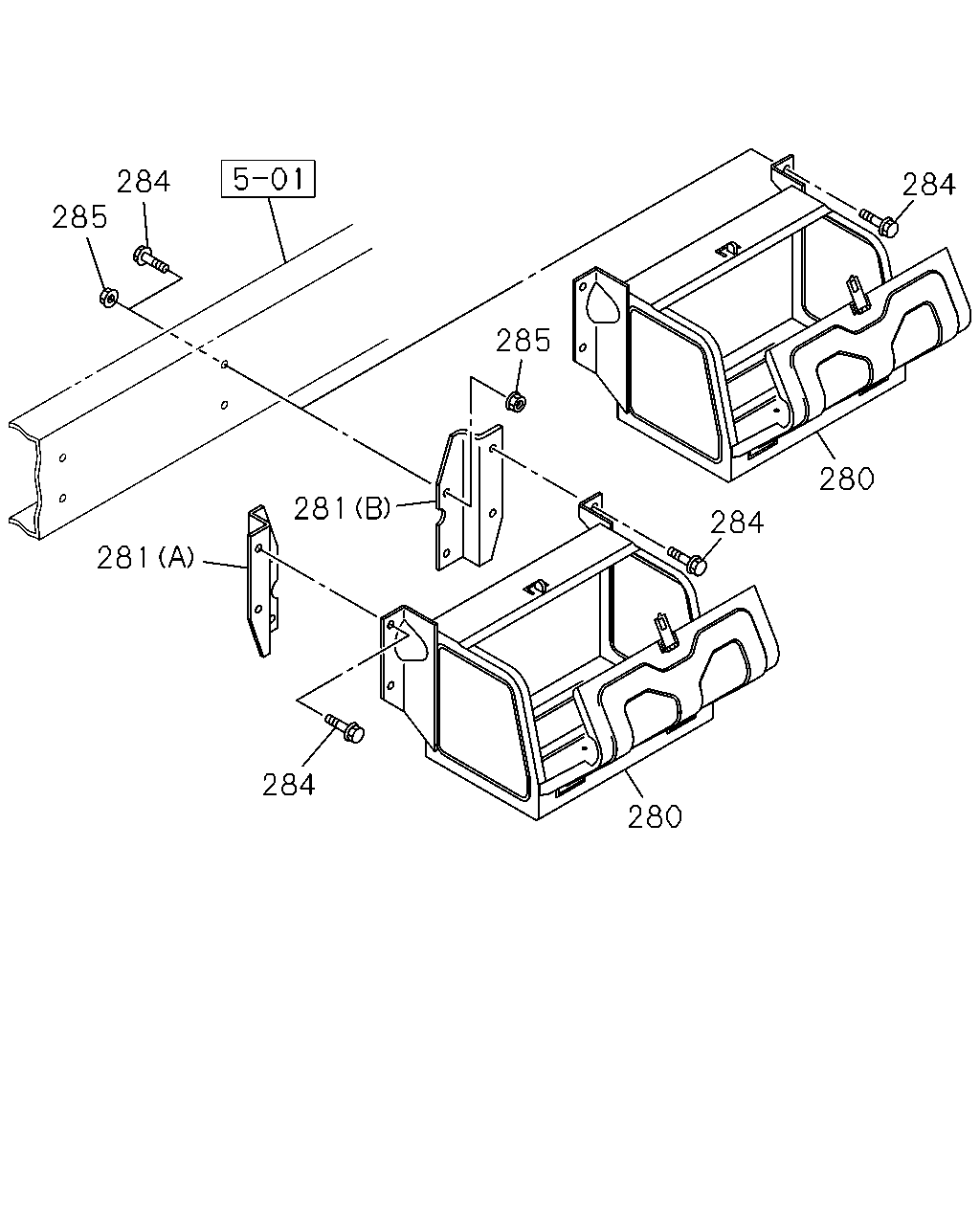

284 285 284 285 280 281 284 281 284 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2>	8-97384-079-0	01	1	0905-0906	●	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2>	8-97384-079-0	01	1	0907-	●	●	●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> (B)	8-98045-642-1	01	1	0905-0906		●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98045-642-1	01	1	0907-	●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B)	8-98045-642-1	01	1	0907-		●	●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (B)	8-98045-642-1	01	1	0907-		●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> (A)	8-98130-709-0	01	1	0905-0906		●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98130-709-0	01	1	0907-	●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A)	8-98130-709-0	01	1	0907-		●	●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A)	8-98130-709-0	01	1	0907-		●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0905-0906	●	●
284	08.821 BOLT; TOOL BOX WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0905-0906		●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0907-	●	●	●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0907-	●	●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0907-		●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0907-			●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	0905-0906	●
285	08.821 NUT; TOOL BOX WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	0905-0906		●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	0907-	●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	0907-	●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	0907-		●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	0907-		●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	0907-			●

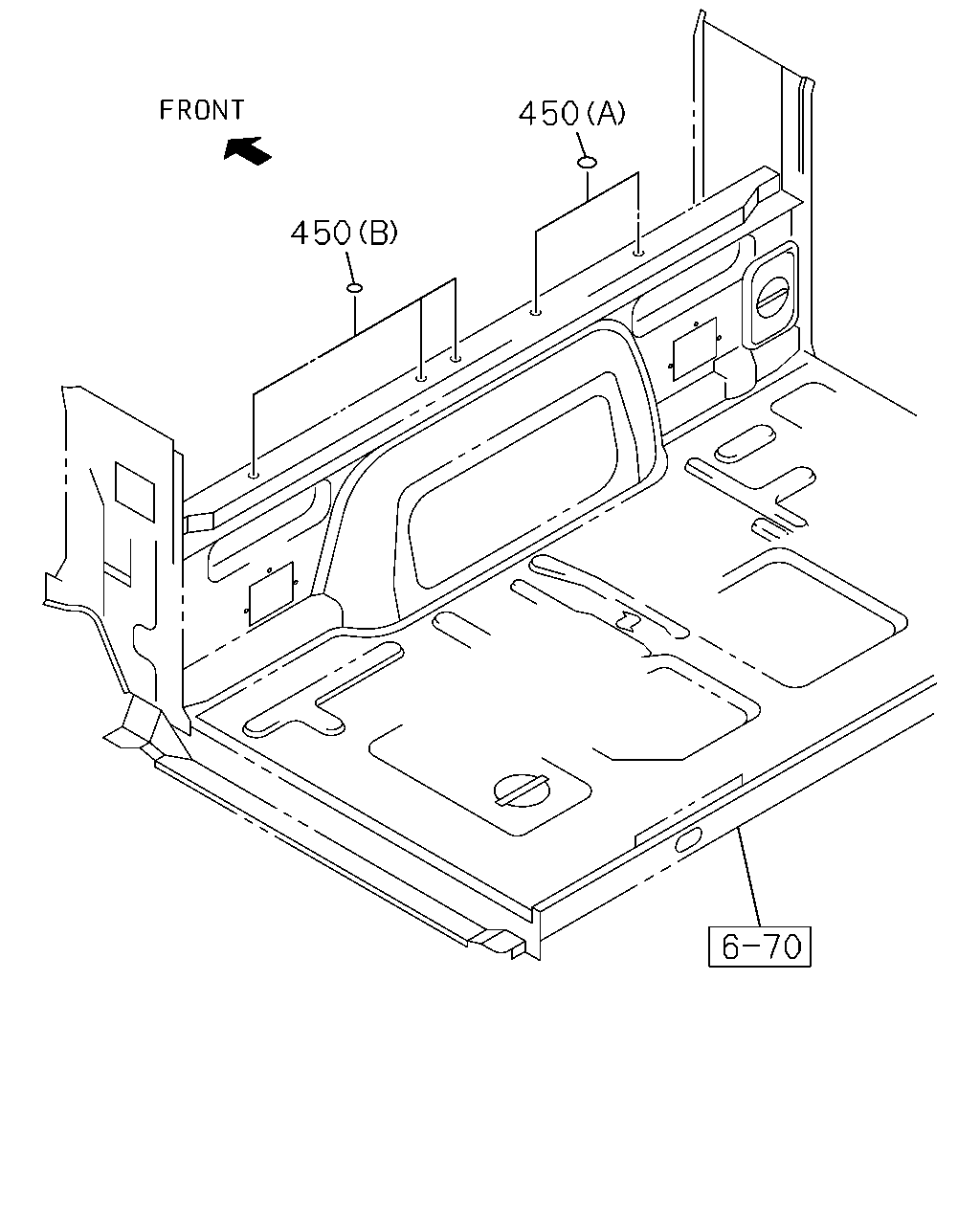

450 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
450	16.064 SEAL; HOLE 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	03	1	0905-	●
450	16.064 SEAL; HOLE 02.580 (A) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0905-	●
450	16.064 SEAL; HOLE 02.580 (A) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0905-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
