Sayfa 8-60 - Isuzu EPC

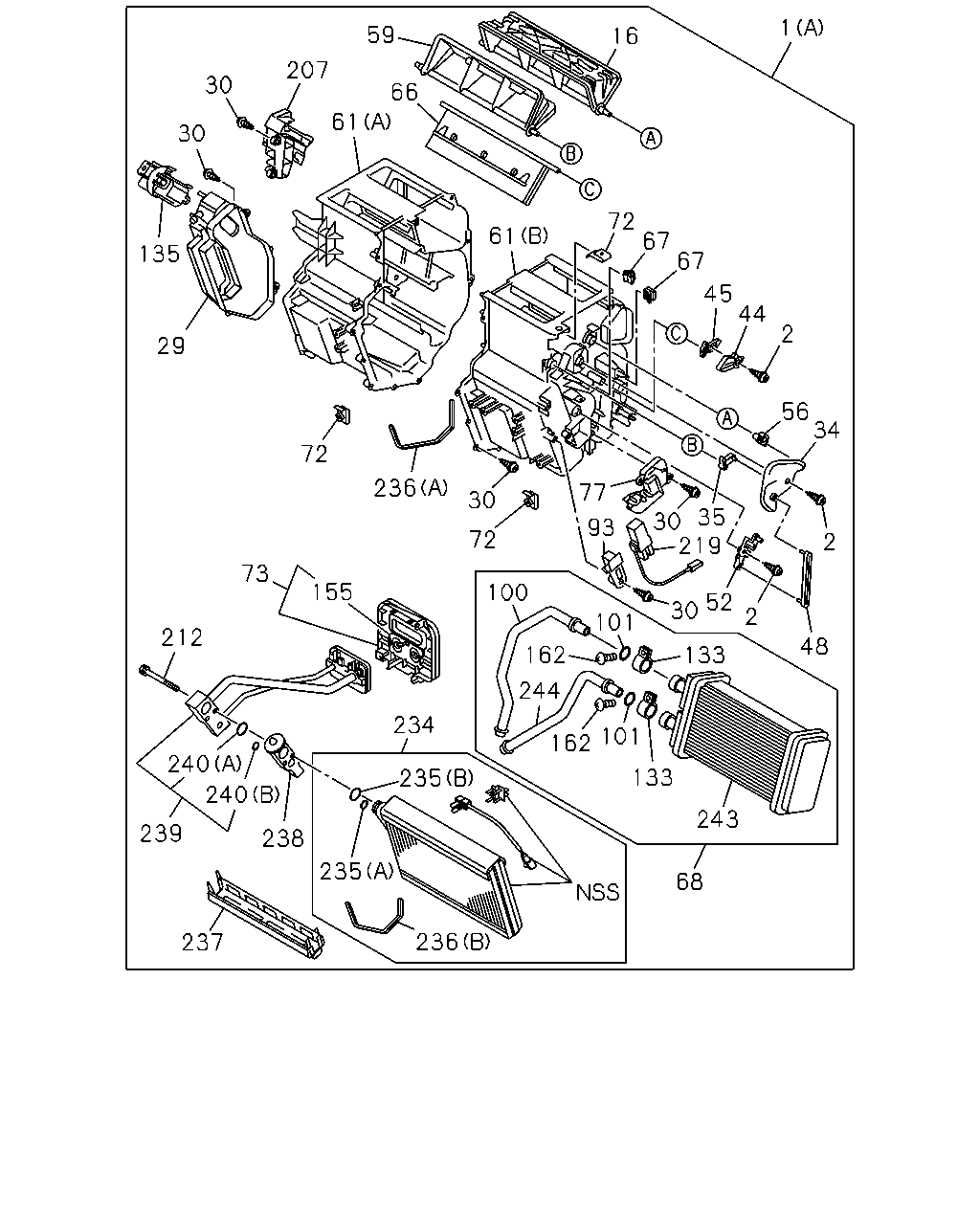

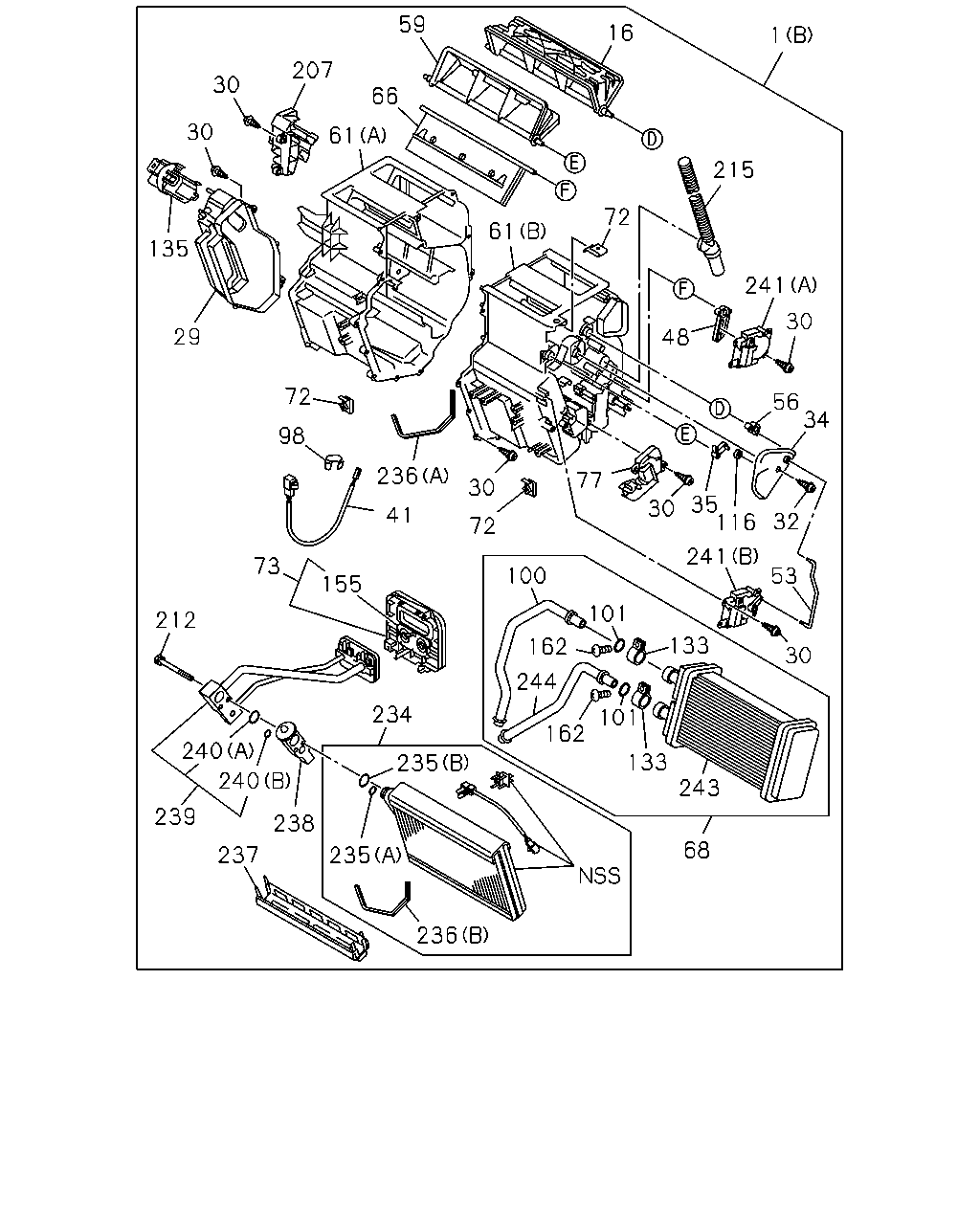

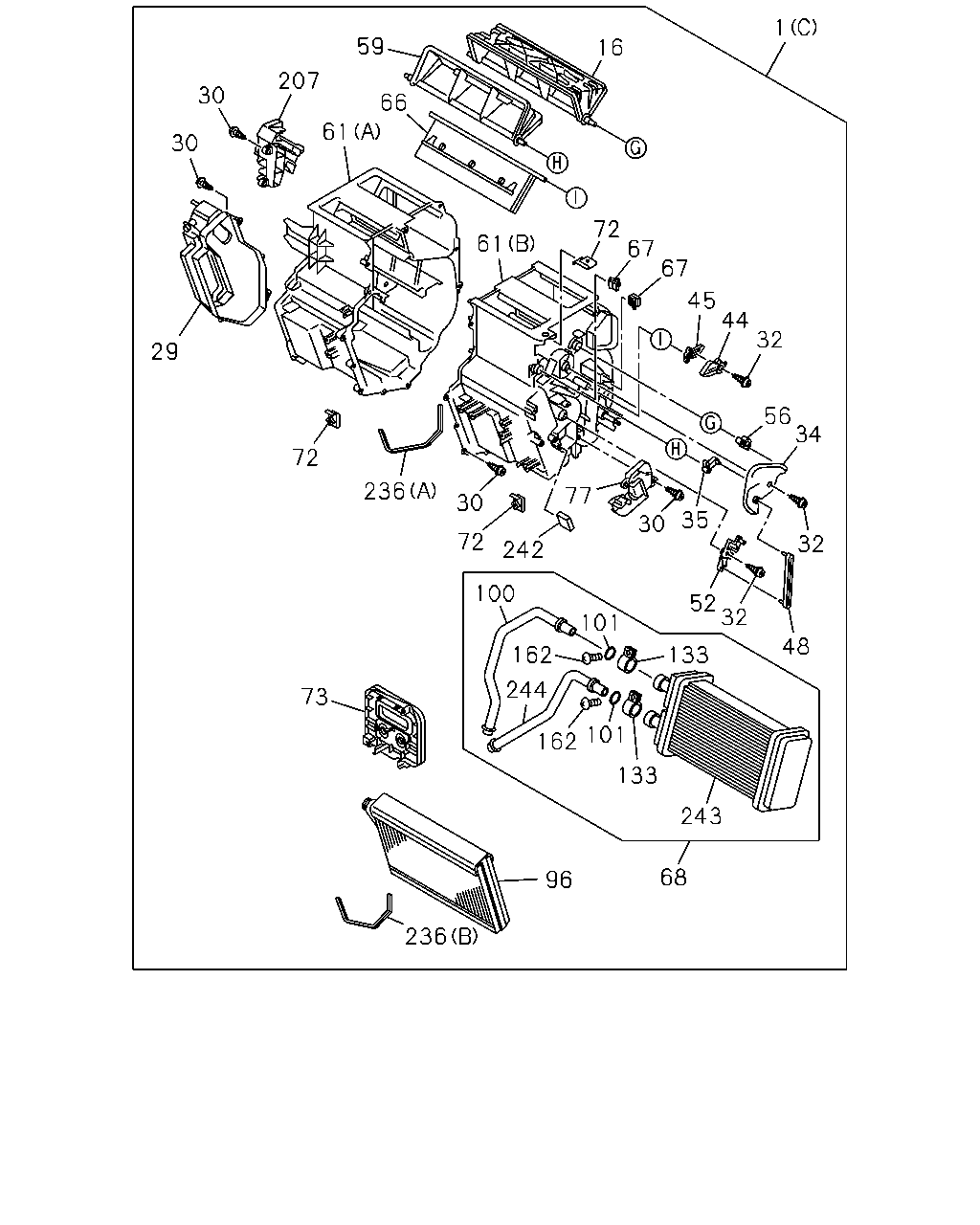

8-60 — HEATER UNIT; FRONT (#76387) — 290 parça

1 59 16 207 30 66 61 30 72 67 67 61 45 44 32 29 56 34 72 77 236 30 35 30 72 32 242 100 52 32 101 48 162 133 244 73 101 162 133 243 68 96 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (C)	8-98062-756-1	01	1	0905-0906	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (C)	8-98062-756-1	01	1	0907-	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	0905-0906	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	0907-	●	●	●
1	08.845 HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98021-973-4	01	1	0905-0906	●	●
1	08.845 HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98021-973-4	01	1	0907-	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-387-0	01	1	0905-0906	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-387-0	01	1	0907-	●	●	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	0905-0906	●	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	0907-	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	0905-0906	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	0907-	●	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	0905-0906	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	0907-	●	●	●
30	08.845 SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16 TAPPING	8-97957-708-0	31	1	0905-0906	●	●
30	08.845 SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16 TAPPING	8-97957-708-0	31	1	0907-	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16	8-98047-416-0	03	1	0905-0906	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16	8-98047-416-0	03	1	0907-	●	●	●
32	08.852 SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16	8-98047-416-0	01	1	0905-0906	●	●
32	08.852 SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16	8-98047-416-0	01	1	0907-	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-389-0	01	1	0905-0906	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-389-0	01	1	0907-	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-467-0	01	1	0905-0906	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-467-0	01	1	0907-	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-392-0	01	1	0905-0906	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-392-0	01	1	0907-	●	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-394-0	01	1	0905-0906	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-394-0	01	1	0907-	●	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-395-0	01	1	0905-0906	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-395-0	01	1	0907-	●	●	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	0905-0906	●	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	0907-	●	●	●
48	09.786 LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-468-0	01	1	0905-0906	●	●
48	09.786 LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-468-0	01	1	0907-	●	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-390-0	01	1	0905-0906	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-390-0	01	1	0907-	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-393-0	01	1	0905-0906	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-393-0	01	1	0907-	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-386-0	01	1	0905-0906	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-386-0	01	1	0907-	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	0905-0906	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	0907-	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	0905-0906	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	0907-	●	●	●
61	08.854 CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-465-0	01	1	0905-0906	●	●
61	08.854 CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-465-0	01	1	0907-	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-385-0	01	1	0905-0906	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-385-0	01	1	0907-	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	0905-0906	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	0907-	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-380-0	01	1	0905-0906	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-380-0	01	1	0907-	●	●	●
72	08.845 NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M6	8-98047-428-0	03	1	0905-0906	●	●
72	08.845 NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M6	8-98047-428-0	03	1	0907-	●	●	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	0905-0906	●	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	0907-	●	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98074-118-0	01	1	0905-0906	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98074-118-0	01	1	0907-	●	●	●
77	08.857 COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-414-0	01	1	0905-0906	●	●
77	08.857 COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-414-0	01	1	0907-	●	●	●
96	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	0905-0906	●	●
96	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	0907-	●	●	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-528-0	01	1	0905-0906	●	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-528-0	01	1	0907-	●	●	●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-531-0	02	1	0905-0906	●	●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-531-0	02	1	0907-	●	●	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-530-0	02	1	0905-0906	●	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-530-0	02	1	0907-	●	●	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-529-0	02	1	0905-0906	●	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-529-0	02	1	0907-	●	●	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	0905-0906	●	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	0907-	●	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-420-0	01	1	0905-0906	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-420-0	01	1	0907-	●	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-421-0	01	1	0905-0906	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-421-0	01	1	0907-	●	●	●
242	08.855 GASKET; CASE HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	0905-0906	●	●
242	08.855 GASKET; CASE HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	0907-	●	●	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.656	8-98048-508-0	01	1	0905-0906	●	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.656	8-98048-508-0	01	1	0907-	●	●	●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-510-0	01	1	0905-0906	●	●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-510-0	01	1	0907-	●	●	●

1 59 16 207 30 66 61 30 72 67 67 61 135 45 44 2 29 56 34 72 236 77 30 30 35 219 93 72 2 73 155 100 52 30 2 101 212 48 162 133 244 234 101 162 240 133 235 240 243 239 238 235 68 236 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (C)	8-98062-756-1	01	1	0905-0906	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (C)	8-98062-756-1	01	1	0907-	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	0905-0906	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	0907-	●	●	●
1	08.845 HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98021-973-4	01	1	0905-0906	●	●
1	08.845 HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98021-973-4	01	1	0907-	●	●	●
2	08.854 SCREW; LEVER AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-98047-416-0	03	1	0905-0906	●	●
2	08.854 SCREW; LEVER AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-98047-416-0	03	1	0907-	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-387-0	01	1	0905-0906	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-387-0	01	1	0907-	●	●	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	0905-0906	●	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	0907-	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	0905-0906	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	0907-	●	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	0905-0906	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	0907-	●	●	●
30	08.845 SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16 TAPPING	8-97957-708-0	31	1	0905-0906	●	●
30	08.845 SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16 TAPPING	8-97957-708-0	31	1	0907-	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-389-0	01	1	0905-0906	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-389-0	01	1	0907-	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-467-0	01	1	0905-0906	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-467-0	01	1	0907-	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-392-0	01	1	0905-0906	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-392-0	01	1	0907-	●	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-394-0	01	1	0905-0906	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-394-0	01	1	0907-	●	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-395-0	01	1	0905-0906	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-395-0	01	1	0907-	●	●	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	0905-0906	●	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	0907-	●	●	●
48	09.786 LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-468-0	01	1	0905-0906	●	●
48	09.786 LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-468-0	01	1	0907-	●	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-390-0	01	1	0905-0906	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-390-0	01	1	0907-	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-393-0	01	1	0905-0906	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-393-0	01	1	0907-	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-386-0	01	1	0905-0906	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-386-0	01	1	0907-	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	0905-0906	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	0907-	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	0905-0906	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	0907-	●	●	●
61	08.854 CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-465-0	01	1	0905-0906	●	●
61	08.854 CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-465-0	01	1	0907-	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-385-0	01	1	0905-0906	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-385-0	01	1	0907-	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	0905-0906	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	0907-	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-380-0	01	1	0905-0906	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-380-0	01	1	0907-	●	●	●
72	08.845 NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M6	8-98047-428-0	03	1	0905-0906	●	●
72	08.845 NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M6	8-98047-428-0	03	1	0907-	●	●	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	0905-0906	●	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	0907-	●	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98074-118-0	01	1	0905-0906	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98074-118-0	01	1	0907-	●	●	●
77	08.857 COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-414-0	01	1	0905-0906	●	●
77	08.857 COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-414-0	01	1	0907-	●	●	●
93	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-427-0	01	1	0905-0906	●	●
93	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-427-0	01	1	0907-	●	●	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-528-0	01	1	0905-0906	●	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-528-0	01	1	0907-	●	●	●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-531-0	02	1	0905-0906	●	●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-531-0	02	1	0907-	●	●	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-530-0	02	1	0905-0906	●	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-530-0	02	1	0907-	●	●	●
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-384-0	01	1	0905-0906	●	●
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-384-0	01	1	0907-	●	●	●
155	09.260 GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-431-0	01	1	0905-0906	●	●
155	09.260 GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-431-0	01	1	0907-	●	●	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-529-0	02	1	0905-0906	●	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-529-0	02	1	0907-	●	●	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	0905-0906	●	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	0907-	●	●	●
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) M5X61	8-98047-415-0	02	1	0905-0906	●	●
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) M5X61	8-98047-415-0	02	1	0907-	●	●	●
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	0905-0906	●	●
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	0907-	●	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98074-116-1	01	1	0905-0906	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98074-116-1	01	1	0907-	●	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.260 (A) ID=11.7	8-97095-907-0	01	1	0905-0906	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.260 (A) ID=11.7	8-97095-907-0	01	1	0907-	●	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (B) ID=14.5	8-97095-908-0	01	1	0905-0906	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (B) ID=14.5	8-97095-908-0	01	1	0907-	●	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-420-0	01	1	0905-0906	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-420-0	01	1	0907-	●	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-421-0	01	1	0905-0906	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-421-0	01	1	0907-	●	●	●
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-382-0	01	1	0905-0906	●	●
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-382-0	01	1	0907-	●	●	●
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-383-0	01	1	0905-0906	●	●
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-383-0	01	1	0907-	●	●	●
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98074-115-0	01	1	0905-0906	●	●
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98074-115-0	01	1	0907-	●	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (B) ID=7.4	8-97095-906-0	01	1	0905-0906	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (B) ID=7.4	8-97095-906-0	01	1	0907-	●	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (A) ID=14.5	8-97095-908-0	01	1	0905-0906	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (A) ID=14.5	8-97095-908-0	01	1	0907-	●	●	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.656	8-98048-508-0	01	1	0905-0906	●	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.656	8-98048-508-0	01	1	0907-	●	●	●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-510-0	01	1	0905-0906	●	●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-510-0	01	1	0907-	●	●	●

59 16 1 207 30 66 30 61 215 72 61 135 241 30 29 48 72 56 34 98 236 77 30 35 116 30 41 32 72 241 73 100 53 155 101 212 133 162 30 244 234 101 162 240 133 235 240 243 239 238 68 237 235 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (C)	8-98062-756-1	01	1	0905-0906	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (C)	8-98062-756-1	01	1	0907-	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	0905-0906	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	0907-	●	●	●
1	08.845 HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98021-973-4	01	1	0905-0906	●	●
1	08.845 HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98021-973-4	01	1	0907-	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-387-0	01	1	0905-0906	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-387-0	01	1	0907-	●	●	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	0905-0906	●	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	0907-	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	0905-0906	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	0907-	●	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	0905-0906	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	0907-	●	●	●
30	08.845 SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16 TAPPING	8-97957-708-0	31	1	0905-0906	●	●
30	08.845 SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16 TAPPING	8-97957-708-0	31	1	0907-	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16	8-98047-416-0	03	1	0905-0906	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16	8-98047-416-0	03	1	0907-	●	●	●
32	08.852 SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16	8-98047-416-0	01	1	0905-0906	●	●
32	08.852 SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16	8-98047-416-0	01	1	0907-	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-389-0	01	1	0905-0906	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-389-0	01	1	0907-	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-467-0	01	1	0905-0906	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-467-0	01	1	0907-	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-392-0	01	1	0905-0906	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-392-0	01	1	0907-	●	●	●
41	08.852 THERMOSTAT; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-475-0	01	1	0905-0906	●	●
41	08.852 THERMOSTAT; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-475-0	01	1	0907-	●	●	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	0905-0906	●	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	0907-	●	●	●
48	09.786 LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-468-0	01	1	0905-0906	●	●
48	09.786 LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-468-0	01	1	0907-	●	●	●
53	08.866 ROD; SHUTTER LEVER FULLAUTO AIR CONDITIONER(C68)	8-98047-469-0	01	1	0905-0906	●	●
53	08.866 ROD; SHUTTER LEVER FULLAUTO AIR CONDITIONER(C68)	8-98047-469-0	01	1	0907-	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-393-0	01	1	0905-0906	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-393-0	01	1	0907-	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-386-0	01	1	0905-0906	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-386-0	01	1	0907-	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	0905-0906	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	0907-	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	0905-0906	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	0907-	●	●	●
61	08.854 CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-465-0	01	1	0905-0906	●	●
61	08.854 CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-465-0	01	1	0907-	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-385-0	01	1	0905-0906	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-385-0	01	1	0907-	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-380-0	01	1	0905-0906	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-380-0	01	1	0907-	●	●	●
72	08.845 NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M6	8-98047-428-0	03	1	0905-0906	●	●
72	08.845 NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M6	8-98047-428-0	03	1	0907-	●	●	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	0905-0906	●	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	0907-	●	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98074-118-0	01	1	0905-0906	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98074-118-0	01	1	0907-	●	●	●
77	08.857 COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-414-0	01	1	0905-0906	●	●
77	08.857 COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-414-0	01	1	0907-	●	●	●
98	08.854 CLIP; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-477-0	01	1	0905-0906	●	●
98	08.854 CLIP; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-477-0	01	1	0907-	●	●	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-528-0	01	1	0905-0906	●	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-528-0	01	1	0907-	●	●	●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-531-0	02	1	0905-0906	●	●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-531-0	02	1	0907-	●	●	●
116	08.854 BUSHING; LEVER FULLAUTO AIR CONDITIONER(C68)	8-98045-897-0	01	1	0905-0906	●	●
116	08.854 BUSHING; LEVER FULLAUTO AIR CONDITIONER(C68)	8-98045-897-0	01	1	0907-	●	●	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-530-0	02	1	0905-0906	●	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-530-0	02	1	0907-	●	●	●
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-384-0	01	1	0905-0906	●	●
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-384-0	01	1	0907-	●	●	●
155	09.260 GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-431-0	01	1	0905-0906	●	●
155	09.260 GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-431-0	01	1	0907-	●	●	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-529-0	02	1	0905-0906	●	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-529-0	02	1	0907-	●	●	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	0905-0906	●	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	0907-	●	●	●
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) M5X61	8-98047-415-0	02	1	0905-0906	●	●
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) M5X61	8-98047-415-0	02	1	0907-	●	●	●
215	08.854 DUCT ASM; SUB FULLAUTO AIR CONDITIONER(C68)	8-98047-476-0	01	1	0905-0906	●	●
215	08.854 DUCT ASM; SUB FULLAUTO AIR CONDITIONER(C68)	8-98047-476-0	01	1	0907-	●	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98074-116-1	01	1	0905-0906	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98074-116-1	01	1	0907-	●	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.260 (A) ID=11.7	8-97095-907-0	01	1	0905-0906	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.260 (A) ID=11.7	8-97095-907-0	01	1	0907-	●	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (B) ID=14.5	8-97095-908-0	01	1	0905-0906	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (B) ID=14.5	8-97095-908-0	01	1	0907-	●	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-420-0	01	1	0905-0906	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-420-0	01	1	0907-	●	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-421-0	01	1	0905-0906	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-421-0	01	1	0907-	●	●	●
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-382-0	01	1	0905-0906	●	●
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-382-0	01	1	0907-	●	●	●
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-383-0	01	1	0905-0906	●	●
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-383-0	01	1	0907-	●	●	●
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98074-115-0	01	1	0905-0906	●	●
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98074-115-0	01	1	0907-	●	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (B) ID=7.4	8-97095-906-0	01	1	0905-0906	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (B) ID=7.4	8-97095-906-0	01	1	0907-	●	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (A) ID=14.5	8-97095-908-0	01	1	0905-0906	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (A) ID=14.5	8-97095-908-0	01	1	0907-	●	●	●
241	08.855 MOTOR ASM; SERVO FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-473-0	01	1	0905-0906	●	●
241	08.855 MOTOR ASM; SERVO FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-473-0	01	1	0907-	●	●	●
241	08.855 MOTOR ASM; SERVO FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-474-0	01	1	0905-0906	●	●
241	08.855 MOTOR ASM; SERVO FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-474-0	01	1	0907-	●	●	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.656	8-98048-508-0	01	1	0905-0906	●	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.656	8-98048-508-0	01	1	0907-	●	●	●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-510-0	01	1	0905-0906	●	●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-510-0	01	1	0907-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
