Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#76383) — 125 parça

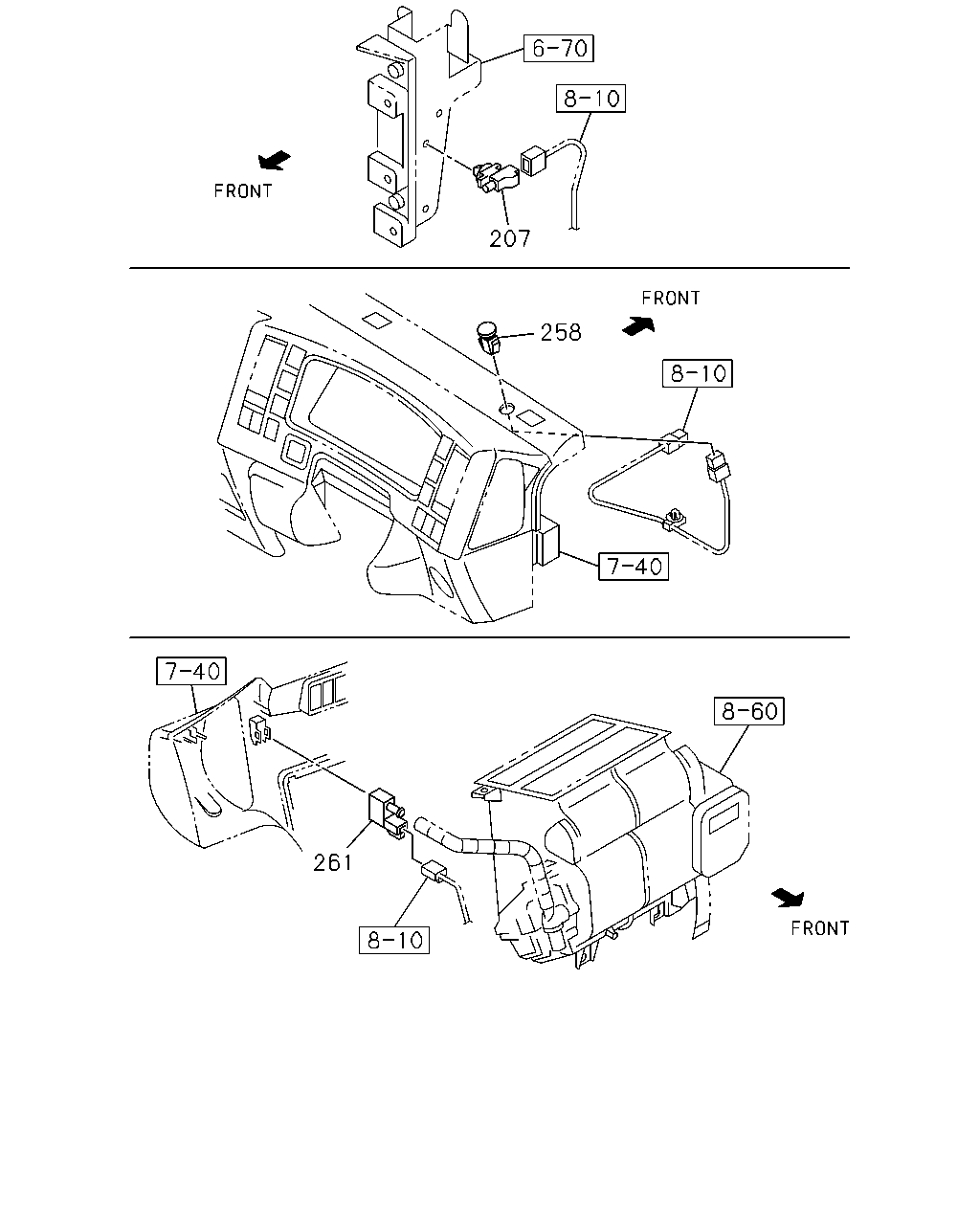

207 258 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
207	08.845 SENSOR; AMBIENT FULLAUTO AIR CONDITIONER(C68) 01.150	8-98008-687-0	01	1	0905-0906	●	●
207	08.845 SENSOR; AMBIENT FULLAUTO AIR CONDITIONER(C68) 01.150	8-98008-687-0	01	1	0907-	●	●	●
258	08.845 SENSOR; SUN FULLAUTO AIR CONDITIONER(C68)	8-97386-826-0	01	1	0905-0906	●	●
258	08.845 SENSOR; SUN FULLAUTO AIR CONDITIONER(C68)	8-97386-826-0	01	1	0907-	●	●	●
261	08.845 SENSOR; IN CAR FULLAUTO AIR CONDITIONER(C68)	8-97386-701-0	01	1	0905-0906	●	●
261	08.845 SENSOR; IN CAR FULLAUTO AIR CONDITIONER(C68)	8-97386-701-0	01	1	0907-	●	●	●

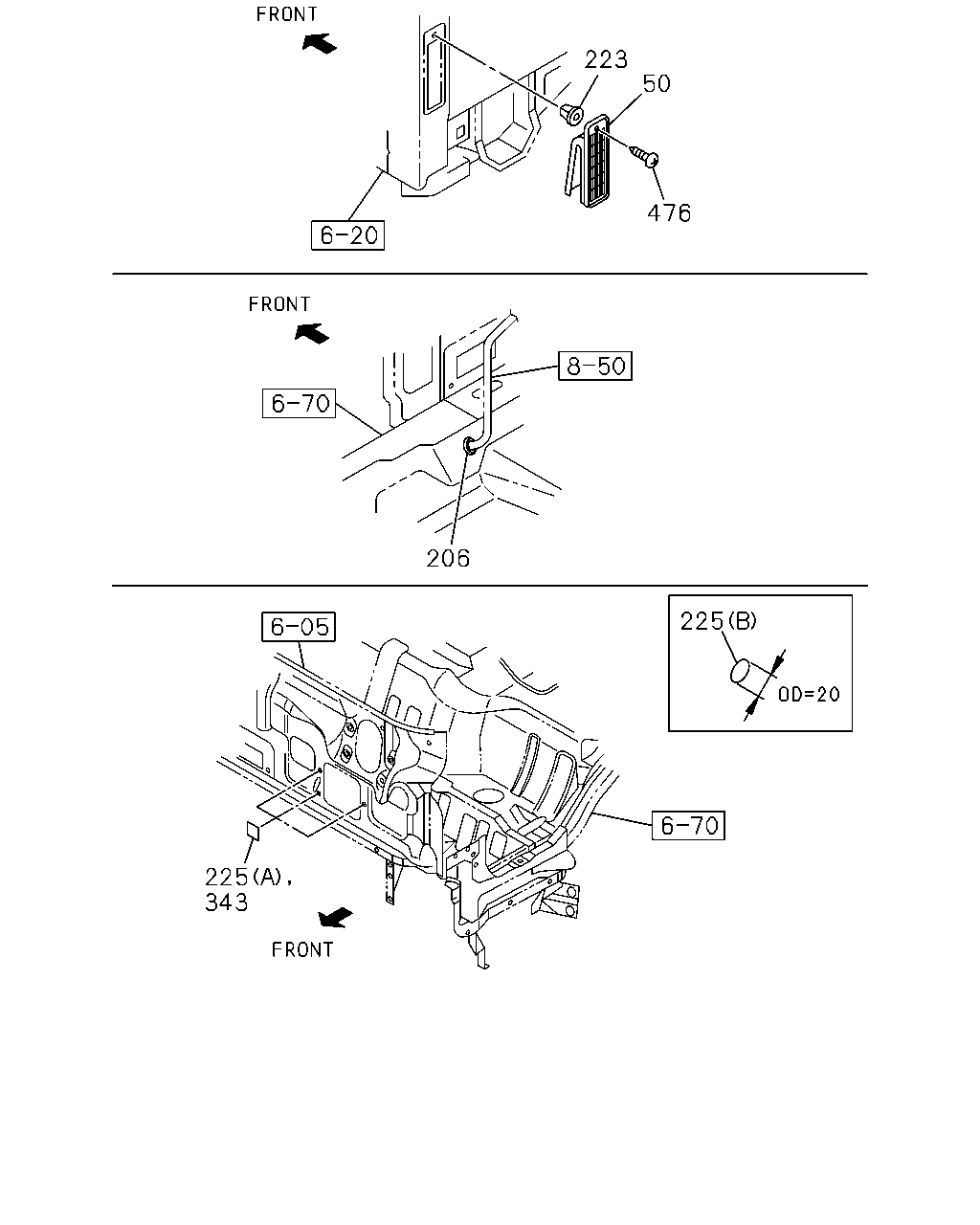

223 50 476 206 225 225 343

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
50	08.845 VALVE ASM; HTR	8-98080-998-1	01	1	0905-0906	●
50	08.845 VALVE ASM; HTR	8-98080-998-1	01	1	0907-	●		●
50	08.845 VALVE ASM; HTR	8-98080-999-2	01	1	0905-		●
206	09.743 GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	0905-0906	●	●
206	09.743 GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	0907-	●	●	●
223	08.845 GROMMET; SCREW 02.679 D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	0905-0906	●	●
223	08.845 GROMMET; SCREW 02.679 D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	0907-	●	●	●
225	08.845 SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97856-616-0	02	1	1303-	●	●	●
225	08.845 SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97856-616-0	03	1	0905-0906	●	●
225	08.845 SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97856-616-0	03	1	0907-1302	●	●	●
225	08.845 SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97856-616-0	01	1	1303-	●	●	●
225	08.845 SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0905-0906	●	●
225	08.845 SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0907-	●	●	●
343	08.845 SEAL; AIR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97856-616-0	02	1	0905-0906	●	●
343	08.845 SEAL; AIR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97856-616-0	02	1	0907-	●	●	●
476	09.222 SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	0905-0906	●	●
476	09.222 SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	0907-	●	●	●

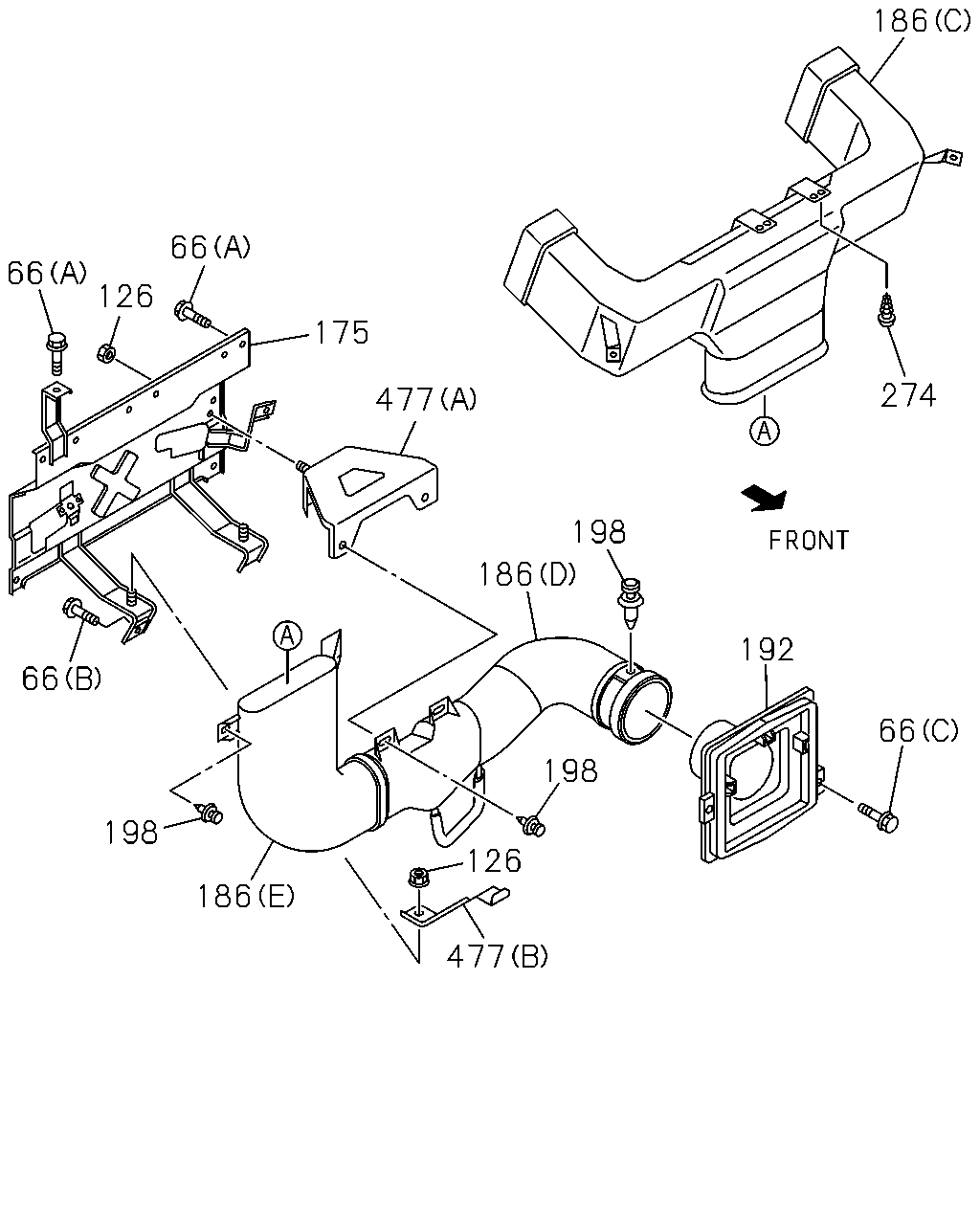

186 66 66 126 175 274 477 198 186 192 66 66 198 198 126 186 477

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0905-0906	●	●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0907-	●	●	●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0905-0906	●	●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0907-	●	●	●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0905-0906	●	●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0907-	●	●	●
126	09.262 NUT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	02	1	0905-0906	●	●
126	09.262 NUT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	02	1	0907-1001	●	●	●
126	09.262 NUT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68),KD PREPARATORY PACK VAR.4<7TV> 01.062 M6 FLANGE	0-91180-106-0	01	1	1002-	●	●	●
126	09.262 NUT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	01	1	1002-	●	●	●
175	09.262 BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98091-544-5	01	1	0905-0906	●	●
175	09.262 BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98091-544-5	01	1	0907-1206	●	●	●
175	09.262 BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98221-688-0	01	1	1207-	●	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97585-466-7	01	1	0905-0906	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97585-466-7	01	1	0907-1410	●	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98285-582-0	01	1	1411-	●	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97585-486-5	01	1	0905-0906	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97585-486-6	01	1	0907-1410	●	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98285-585-0	01	1	1411-	●	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98054-363-0	01	1	0905-0906	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98054-363-0	01	1	0907-	●	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (E)	8-98054-371-0	01	1	0905-0906	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (E)	8-98054-371-0	01	1	0907-	●	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (D)	8-98054-379-2	01	1	0905-0906	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (D)	8-98054-379-2	01	1	0907-	●	●	●
192	09.262 DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 03.417	8-98054-386-3	01	1	0905-0906	●	●
192	09.262 DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 03.417	8-98054-386-4	01	1	0907-	●	●	●
198	09.787 CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 09.264	1-09987-144-0	05	1	0905-0906	●	●
198	09.787 CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 09.264	1-09987-144-0	05	1	0907-	●	●	●
274	08.852 SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0905-0906	●	●
274	08.852 SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0907-1101	●	●	●
274	08.852 SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●	●	●
274	08.852 SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●	●
477	09.786 BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98091-304-0	01	1	0905-0906	●	●
477	09.786 BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98091-304-0	01	1	0907-	●	●	●
477	09.786 BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98132-529-1	01	1	0905-0906	●	●
477	09.786 BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98132-529-1	01	1	0907-1001	●	●	●
477	09.786 BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98132-529-1	01	1	1002-1005	●	●	●
477	09.786 BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98164-455-0	01	1	1006-	●	●	●

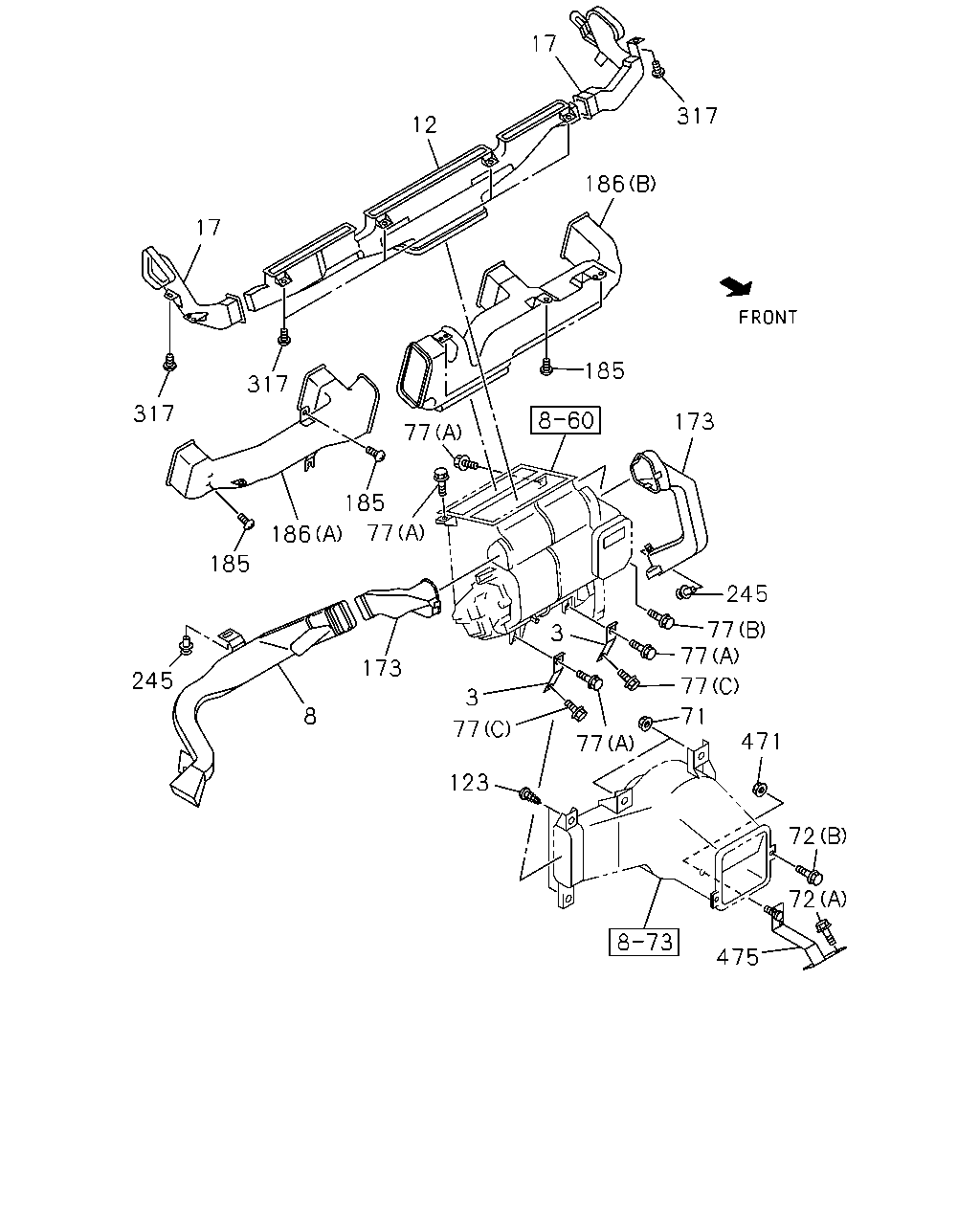

17 317 12 186 17 185 317 317 173 77 185 77 186 185 245 77 77 3 173 245 77 3 8 71 77 471 77 123 72 72 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	08.854 BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98082-473-1	02	1	0905-0906	●	●
3	08.854 BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98082-473-1	02	1	0907-	●	●	●
8	09.786 DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98084-146-0	01	1	0905-0906	●	●
8	09.786 DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98084-146-0	01	1	0907-	●	●	●
12	09.779 NOZZLE; DEFROSTER	8-97585-480-4	01	1	0905-0906	●	●
12	09.779 NOZZLE; DEFROSTER	8-97585-480-4	01	1	0907-	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-469-1	01	1	0905-0906	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-469-1	01	1	0907-	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-475-5	01	1	0905-0906	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-475-5	01	1	0907-	●	●	●
71	08.845 NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	02	1	0905-0906	●	●
71	08.845 NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	02	1	0907-	●	●	●
72	08.857 BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.085 (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0905-0906	●	●
72	08.857 BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.085 (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0907-	●	●	●
72	08.857 BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0905-0906	●	●
72	08.857 BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0907-	●	●	●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 02.343 (A) M6X16 FLANGE	0-28650-616-0	04	1	0905-0906	●	●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 02.343 (A) M6X16 FLANGE	0-28650-616-0	04	1	0907-	●	●	●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	0905-0906	●	●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	0907-	●	●	●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0905-0906	●	●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0907-	●	●	●
123	09.786 SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0905-0906	●	●
123	09.786 SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0907-1101	●	●	●
123	09.786 SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●	●	●
123	09.786 SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●	●
173	09.786 DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-504-3	01	1	0905-0906	●	●
173	09.786 DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-504-3	01	1	0907-	●	●	●
173	09.786 DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98084-145-0	01	1	0905-0906	●	●
173	09.786 DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98084-145-0	01	1	0907-1411	●	●	●
173	09.786 DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98246-555-0	01	1	1412-	●	●	●
185	09.262 SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0905-0906	●	●
185	09.262 SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0907-1003	●	●	●
185	09.262 SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1004-1101	●	●	●
185	09.262 SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212	●	●	●
185	09.262 SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97585-466-7	01	1	0905-0906	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97585-466-7	01	1	0907-1410	●	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98285-582-0	01	1	1411-	●	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97585-486-5	01	1	0905-0906	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97585-486-6	01	1	0907-1410	●	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98285-585-0	01	1	1411-	●	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98054-363-0	01	1	0905-0906	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98054-363-0	01	1	0907-	●	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (E)	8-98054-371-0	01	1	0905-0906	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (E)	8-98054-371-0	01	1	0907-	●	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (D)	8-98054-379-2	01	1	0905-0906	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (D)	8-98054-379-2	01	1	0907-	●	●	●
245	09.786 CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 09.264	1-09987-144-0	02	1	0905-0906	●	●
245	09.786 CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 09.264	1-09987-144-0	02	1	0907-	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0905-0906	●	●
317	09.264 SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0907-1101	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0905-0906	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0907-1101	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●	●
471	08.866 NUT; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	01	1	0905-0906	●	●
471	08.866 NUT; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	01	1	0907-	●	●	●
475	09.277 BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3>	8-98165-379-0	01	1	1009-	●		●
475	09.277 BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97387-092-1	01	1	0905-0906	●	●
475	09.277 BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97387-092-2	01	1	0907-	●	●	●
