◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51240 - NNR/NPR EU-RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#76370) — 288 parça

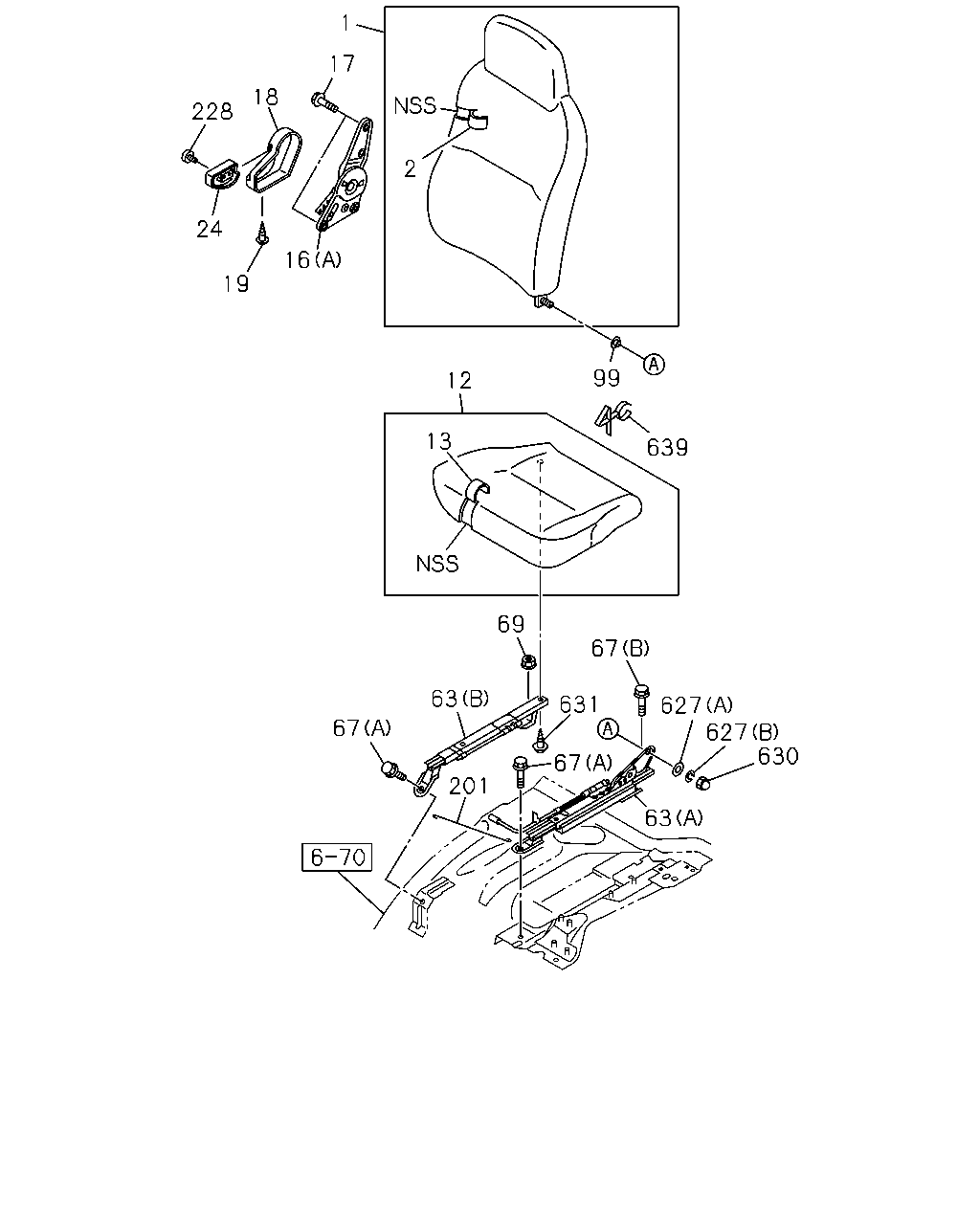

çizim 134319
1 17 18 228 2 24 16 19 99 12 13 639 69 67 63 631 627 627 630 67 67 201 63
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97414-145-5 01 1 0905-0906 ● ●
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97414-145-5 01 1 0907-1009 ● ● ●
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97421-235-1 01 1 1010- ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97414-146-1 01 1 0905-0906 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97414-146-1 01 1 0907-1009 ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97421-254-0 01 1 1010- ● ● ●
12 16.670 CUSHION; SEAT,FRT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-256-0 01 1 0905-0906 ●
12 16.670 CUSHION; SEAT,FRT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-256-0 01 1 0907-1009 ● ●
12 16.670 CUSHION; SEAT,FRT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-245-1 01 1 1010- ● ●
12 16.670 CUSHION; SEAT,FRT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> DARK GRAY 		8-97414-150-1 01 1 0905-0906 ●
12 16.670 CUSHION; SEAT,FRT
DARK GRAY 		8-97414-150-1 01 1 0905-0906 ●
12 16.670 CUSHION; SEAT,FRT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> DARK GRAY 		8-97414-150-1 01 1 0907-1009 ● ●
12 16.670 CUSHION; SEAT,FRT
DARK GRAY 		8-97414-150-1 01 1 0907-1009 ●
12 16.670 CUSHION; SEAT,FRT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> DARK GRAY 		8-97421-248-1 01 1 1010- ● ●
12 16.670 CUSHION; SEAT,FRT
DARK GRAY 		8-97421-248-1 01 1 1010- ●
12 16.670 CUSHION; SEAT,FRT
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-252-1 01 1 0905-0906 ●
12 16.670 CUSHION; SEAT,FRT
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-252-1 01 1 0907-1009 ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-241-1 01 1 1010- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-264-0 01 1 0905-0906 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-264-0 01 1 0907-1009 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-264-1 01 1 1010- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> DARK GRAY 		8-97414-151-1 01 1 0905-0906 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97414-151-1 01 1 0905-0906 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> DARK GRAY 		8-97414-151-1 01 1 0907-1009 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97414-151-1 01 1 0907-1009 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> DARK GRAY 		8-97421-268-1 01 1 1010- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97421-268-1 01 1 1010- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-260-0 01 1 0905-0906 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-260-0 01 1 0907-1009 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-260-1 01 1 1010- ● ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 0905-0906 ● ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 0907- ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK 		8-97859-273-3 01 1 0905-0906 ● ●
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK 		8-97859-273-3 01 1 0907- ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
(C) BLACK 		8-97859-274-3 01 1 0905-0906 ● ●
16 16.682 ADJUSTER ASM; RECLINING
(C) BLACK 		8-97859-274-3 01 1 0907- ● ● ●
17 16.682 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 0905-0906 ● ●
17 16.682 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 0907- ● ● ●
18 16.682 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 0905-0906 ● ●
18 16.682 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 0907- ● ● ●
19 16.686 SCREW; COVER
M5 		8-98062-663-0 01 1 0905-0906 ● ●
19 16.686 SCREW; COVER
M5 		8-98062-663-0 01 1 0907- ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 0905-0906 ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 0907- ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (C) 		8-98114-417-0 01 1 0905-0906 ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (C) 		8-98114-417-1 01 1 0907- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (D) 		8-98114-419-0 01 1 0905-0906 ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (D) 		8-98114-419-1 01 1 0907- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> (A) 		8-97382-800-2 01 1 0905-0906 ●
63 16.682 ADJUSTER; SEAT SLIDE
(A) 		8-97382-800-2 01 1 0905-0906 ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> (A) 		8-97382-800-2 01 1 0907- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
(A) 		8-97382-800-2 01 1 0907- ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> (B) 		8-97382-801-1 01 1 0905-0906 ●
63 16.682 ADJUSTER; SEAT SLIDE
(B) 		8-97382-801-1 01 1 0905-0906 ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> (B) 		8-97382-801-1 01 1 0907- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
(B) 		8-97382-801-1 01 1 0907- ●
67 16.682 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 0905-0906 ● ●
67 16.682 BOLT; FRT SEAT TO BODY
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> (A) M10X20 FLANGE 		8-98055-941-0 02 1 0905-0906 ●
67 16.682 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 0907- ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> (A) M10X20 FLANGE 		8-98055-941-0 02 1 0907- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 0905-0906 ● ●
67 16.682 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 0907- ● ● ●
69 16.682 NUT; FRT SEAT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> M10 FLANGE 		8-98055-961-0 02 1 0905-0906 ●
69 16.682 NUT; FRT SEAT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> M10 FLANGE 		8-98055-961-0 02 1 0907- ● ●
69 16.682 NUT; FRT SEAT
M10 FLANGE 		8-98055-961-0 01 1 0905-0906 ● ●
69 16.682 NUT; FRT SEAT
M10 FLANGE 		8-98055-961-0 01 1 0907- ● ● ●
99 16.716 BUSHING; SEAT BACK 8-98112-751-0 01 1 0905-0906 ● ●
99 16.716 BUSHING; SEAT BACK 8-98112-751-0 01 1 0907- ● ● ●
201 16.682 CABLE; ADJ
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> 		8-98114-421-0 01 1 0905-0906 ●
201 16.682 CABLE; ADJ
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> 		8-98114-421-0 01 1 0907- ● ●
201 16.682 CABLE; ADJ
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> 		8-98003-086-1 01 1 0905-0906 ●
201 16.682 CABLE; ADJ 8-98003-086-1 01 1 0905-0906 ●
201 16.682 CABLE; ADJ
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> 		8-98003-086-1 01 1 0907- ● ●
201 16.682 CABLE; ADJ 8-98003-086-1 01 1 0907- ●
228 16.714 SCREW; KNOB
M4 		8-98062-662-0 01 1 0905-0906 ● ●
228 16.714 SCREW; KNOB
M4 		8-98062-662-0 01 1 0907- ● ● ●
627 16.682 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 0905-0906 ● ●
627 16.682 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 0907- ● ● ●
627 16.682 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 0905-0906 ● ●
627 16.682 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 0907- ● ● ●
630 16.682 NUT; CAP
M8 		8-98063-225-0 01 1 0905-0906 ● ●
630 16.682 NUT; CAP
M8 		8-98063-225-0 01 1 0907- ● ● ●
631 16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER 		8-98062-658-0 02 1 0905-0906 ● ●
631 16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER 		8-98062-658-0 02 1 0907- ● ● ●
631 16.682 BOLT; ADJ,SEAT
M8X32 W/LK WASHER 		8-98062-659-0 02 1 0905-0906 ● ●
631 16.682 BOLT; ADJ,SEAT
M8X32 W/LK WASHER 		8-98062-659-0 02 1 0907- ● ● ●
639 16.679 CLIP; SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> 		8-98097-693-0 01 1 0905-0906 ●
639 16.679 CLIP; SEAT 8-98097-693-0 01 1 0905-0906 ●
639 16.679 CLIP; SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> 		8-98097-693-0 01 1 0907- ● ●
639 16.679 CLIP; SEAT 8-98097-693-0 01 1 0907- ●

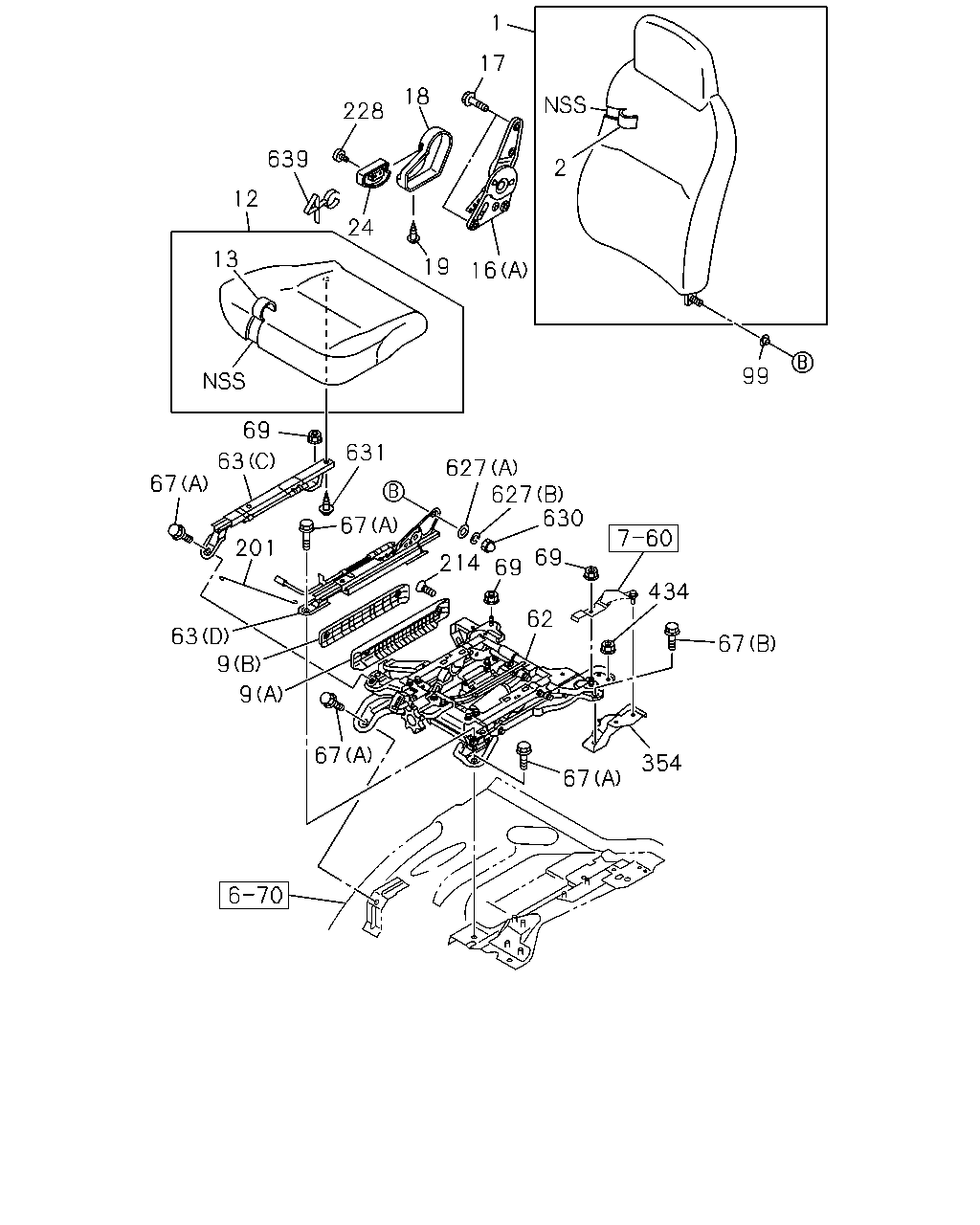

çizim 135049
1 17 18 228 639 2 12 24 13 19 16 99 69 631 63 627 627 630 67 67 201 69 214 69 434 62 63 9 67 9 67 354 67
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97414-145-5 01 1 0905-0906 ● ●
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97414-145-5 01 1 0907-1009 ● ● ●
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97421-235-1 01 1 1010- ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97414-146-1 01 1 0905-0906 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97414-146-1 01 1 0907-1009 ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97421-254-0 01 1 1010- ● ● ●
9 16.682 COVER; SIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) UPPER GRAY 		8-97415-722-0 01 1 0905-0906 ●
9 16.682 COVER; SIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) UPPER GRAY 		8-97415-722-0 01 1 0907- ● ●
9 16.682 COVER; SIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (B) LOWER GRAY 		8-97415-723-0 01 1 0905-0906 ●
9 16.682 COVER; SIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (B) LOWER GRAY 		8-97415-723-0 01 1 0907- ● ●
12 16.670 CUSHION; SEAT,FRT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-256-0 01 1 0905-0906 ●
12 16.670 CUSHION; SEAT,FRT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-256-0 01 1 0907-1009 ● ●
12 16.670 CUSHION; SEAT,FRT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-245-1 01 1 1010- ● ●
12 16.670 CUSHION; SEAT,FRT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> DARK GRAY 		8-97414-150-1 01 1 0905-0906 ●
12 16.670 CUSHION; SEAT,FRT
DARK GRAY 		8-97414-150-1 01 1 0905-0906 ●
12 16.670 CUSHION; SEAT,FRT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> DARK GRAY 		8-97414-150-1 01 1 0907-1009 ● ●
12 16.670 CUSHION; SEAT,FRT
DARK GRAY 		8-97414-150-1 01 1 0907-1009 ●
12 16.670 CUSHION; SEAT,FRT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> DARK GRAY 		8-97421-248-1 01 1 1010- ● ●
12 16.670 CUSHION; SEAT,FRT
DARK GRAY 		8-97421-248-1 01 1 1010- ●
12 16.670 CUSHION; SEAT,FRT
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-252-1 01 1 0905-0906 ●
12 16.670 CUSHION; SEAT,FRT
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-252-1 01 1 0907-1009 ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-241-1 01 1 1010- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-264-0 01 1 0905-0906 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-264-0 01 1 0907-1009 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-264-1 01 1 1010- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> DARK GRAY 		8-97414-151-1 01 1 0905-0906 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97414-151-1 01 1 0905-0906 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> DARK GRAY 		8-97414-151-1 01 1 0907-1009 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97414-151-1 01 1 0907-1009 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> DARK GRAY 		8-97421-268-1 01 1 1010- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97421-268-1 01 1 1010- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-260-0 01 1 0905-0906 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-260-0 01 1 0907-1009 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-260-1 01 1 1010- ● ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 0905-0906 ● ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 0907- ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK 		8-97859-273-3 01 1 0905-0906 ● ●
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK 		8-97859-273-3 01 1 0907- ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
(C) BLACK 		8-97859-274-3 01 1 0905-0906 ● ●
16 16.682 ADJUSTER ASM; RECLINING
(C) BLACK 		8-97859-274-3 01 1 0907- ● ● ●
17 16.682 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 0905-0906 ● ●
17 16.682 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 0907- ● ● ●
18 16.682 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 0905-0906 ● ●
18 16.682 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 0907- ● ● ●
19 16.686 SCREW; COVER
M5 		8-98062-663-0 01 1 0905-0906 ● ●
19 16.686 SCREW; COVER
M5 		8-98062-663-0 01 1 0907- ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 0905-0906 ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 0907- ● ● ●
62 16.686 DAMPER ASM; SEAT SUSP
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97415-702-3 01 1 0905-0906 ●
62 16.686 DAMPER ASM; SEAT SUSP
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97415-702-3 01 1 0907- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (C) 		8-98114-417-0 01 1 0905-0906 ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (C) 		8-98114-417-1 01 1 0907- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (D) 		8-98114-419-0 01 1 0905-0906 ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (D) 		8-98114-419-1 01 1 0907- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> (A) 		8-97382-800-2 01 1 0905-0906 ●
63 16.682 ADJUSTER; SEAT SLIDE
(A) 		8-97382-800-2 01 1 0905-0906 ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> (A) 		8-97382-800-2 01 1 0907- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
(A) 		8-97382-800-2 01 1 0907- ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> (B) 		8-97382-801-1 01 1 0905-0906 ●
63 16.682 ADJUSTER; SEAT SLIDE
(B) 		8-97382-801-1 01 1 0905-0906 ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> (B) 		8-97382-801-1 01 1 0907- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
(B) 		8-97382-801-1 01 1 0907- ●
67 16.682 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 0905-0906 ● ●
67 16.682 BOLT; FRT SEAT TO BODY
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> (A) M10X20 FLANGE 		8-98055-941-0 02 1 0905-0906 ●
67 16.682 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 0907- ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> (A) M10X20 FLANGE 		8-98055-941-0 02 1 0907- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 0905-0906 ● ●
67 16.682 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 0907- ● ● ●
69 16.682 NUT; FRT SEAT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> M10 FLANGE 		8-98055-961-0 02 1 0905-0906 ●
69 16.682 NUT; FRT SEAT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> M10 FLANGE 		8-98055-961-0 02 1 0907- ● ●
69 16.682 NUT; FRT SEAT
M10 FLANGE 		8-98055-961-0 01 1 0905-0906 ● ●
69 16.682 NUT; FRT SEAT
M10 FLANGE 		8-98055-961-0 01 1 0907- ● ● ●
99 16.716 BUSHING; SEAT BACK 8-98112-751-0 01 1 0905-0906 ● ●
99 16.716 BUSHING; SEAT BACK 8-98112-751-0 01 1 0907- ● ● ●
201 16.682 CABLE; ADJ
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> 		8-98114-421-0 01 1 0905-0906 ●
201 16.682 CABLE; ADJ
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> 		8-98114-421-0 01 1 0907- ● ●
201 16.682 CABLE; ADJ
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> 		8-98003-086-1 01 1 0905-0906 ●
201 16.682 CABLE; ADJ 8-98003-086-1 01 1 0905-0906 ●
201 16.682 CABLE; ADJ
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> 		8-98003-086-1 01 1 0907- ● ●
201 16.682 CABLE; ADJ 8-98003-086-1 01 1 0907- ●
214 16.682 SCREW; SIDE COVER
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> 		8-98130-276-0 04 1 0905-0906 ●
214 16.682 SCREW; SIDE COVER
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> 		8-98130-276-0 04 1 0907- ● ●
228 16.714 SCREW; KNOB
M4 		8-98062-662-0 01 1 0905-0906 ● ●
228 16.714 SCREW; KNOB
M4 		8-98062-662-0 01 1 0907- ● ● ●
354 16.686 BRACKET; SUSPENSION DEVICE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> 16.714 		8-98090-867-1 01 1 0905-0906 ●
354 16.686 BRACKET; SUSPENSION DEVICE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> 16.714 		8-98090-867-1 01 1 0907- ● ●
434 16.716 NUT; BRKT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> 16.682 M10 FLANGE 		8-98055-961-0 01 1 0905-0906 ●
434 16.716 NUT; BRKT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> 16.682 M10 FLANGE 		8-98055-961-0 01 1 0907- ● ●
627 16.682 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 0905-0906 ● ●
627 16.682 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 0907- ● ● ●
627 16.682 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 0905-0906 ● ●
627 16.682 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 0907- ● ● ●
630 16.682 NUT; CAP
M8 		8-98063-225-0 01 1 0905-0906 ● ●
630 16.682 NUT; CAP
M8 		8-98063-225-0 01 1 0907- ● ● ●
631 16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER 		8-98062-658-0 02 1 0905-0906 ● ●
631 16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER 		8-98062-658-0 02 1 0907- ● ● ●
631 16.682 BOLT; ADJ,SEAT
M8X32 W/LK WASHER 		8-98062-659-0 02 1 0905-0906 ● ●
631 16.682 BOLT; ADJ,SEAT
M8X32 W/LK WASHER 		8-98062-659-0 02 1 0907- ● ● ●
639 16.679 CLIP; SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> 		8-98097-693-0 01 1 0905-0906 ●
639 16.679 CLIP; SEAT 8-98097-693-0 01 1 0905-0906 ●
639 16.679 CLIP; SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> 		8-98097-693-0 01 1 0907- ● ●
639 16.679 CLIP; SEAT 8-98097-693-0 01 1 0907- ●

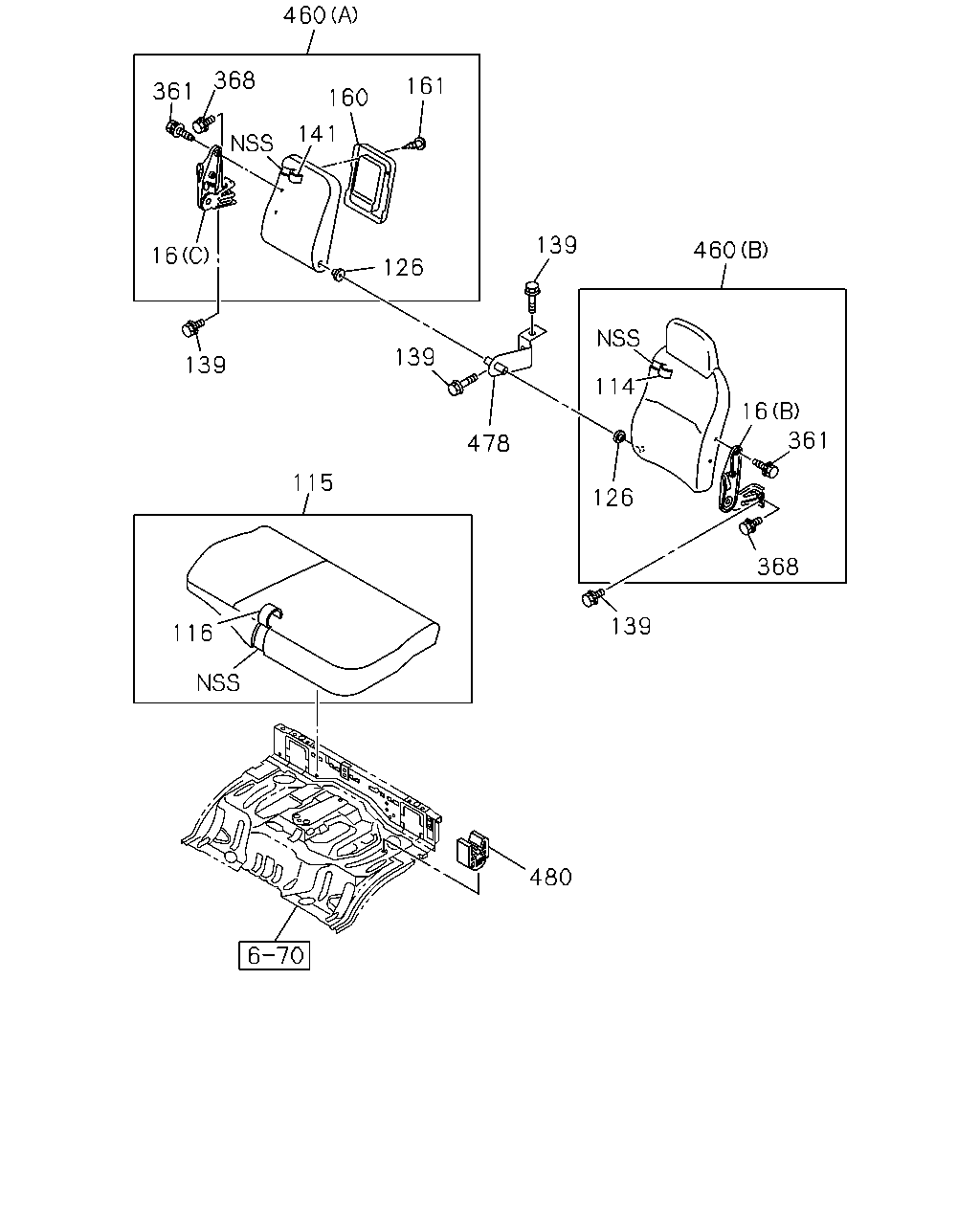

çizim 135094
460 368 161 361 160 141 139 460 16 126 139 139 114 16 361 478 115 126 368 139 116 480
BalonParca AdiParca NoAdetTipApplied Date A B C
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 0905-0906 ● ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 0907- ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK 		8-97859-273-3 01 1 0905-0906 ● ●
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK 		8-97859-273-3 01 1 0907- ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
(C) BLACK 		8-97859-274-3 01 1 0905-0906 ● ●
16 16.682 ADJUSTER ASM; RECLINING
(C) BLACK 		8-97859-274-3 01 1 0907- ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-721-0 01 1 1001-1009 ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-292-0 01 1 1010- ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97409-277-1 01 1 0905-0906 ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97409-277-1 01 1 0907-0912 ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-277-1 01 1 1001-1009 ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97409-277-1 01 1 1001-1009 ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-291-0 01 1 1010- ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-291-0 01 1 1010- ●
115 16.720 CUSHION ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-274-0 01 1 0905-0906 ●
115 16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97416-274-0 01 1 0905-0906 ●
115 16.720 CUSHION ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-274-0 01 1 0907-1009 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97416-274-0 01 1 0907-1009 ●
115 16.720 CUSHION ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-321-2 01 1 1010- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-321-2 01 1 1010- ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-273-0 01 1 0905-0906 ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-273-0 01 1 0907-0912 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-706-0 01 1 1001-1009 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-320-2 01 1 1010- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-289-0 01 1 0905-0906 ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY 		8-97416-289-0 01 1 0905-0906 ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-289-0 01 1 0907-1009 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY 		8-97416-289-0 01 1 0907-1009 ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-341-1 01 1 1010- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY 		8-97421-341-1 01 1 1010- ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-288-0 01 1 0905-0906 ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-288-0 01 1 0907-0912 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-735-0 01 1 1001-1009 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-340-1 01 1 1010- ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-98069-558-0 02 1 0905-0906 ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-98069-558-0 02 1 0907- ● ● ●
139 16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 04 1 0905-0906 ● ●
139 16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 04 1 0907- ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-727-0 01 1 1001-1009 ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-306-0 01 1 1010- ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
DARK GRAY 		8-97409-334-1 01 1 0905-0906 ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
DARK GRAY 		8-97409-334-1 01 1 0907-0912 ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-334-1 01 1 1001-1009 ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
DARK GRAY 		8-97409-334-1 01 1 1001-1009 ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-305-1 01 1 1010- ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
DARK GRAY 		8-97421-305-1 01 1 1010- ●
160 16.650 CONSOLE; UPR,BACK CENTER
GRAY 		8-97405-361-1 01 1 0905-0906 ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
GRAY 		8-97405-361-1 01 1 0907- ● ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 0905-0906 ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 0907- ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 04 1 0905-0906 ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 04 1 0907- ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 0905-0906 ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 0907- ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97418-692-0 01 1 1001-1009 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97421-279-0 01 1 1010- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97418-698-1 01 1 1001-1009 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97421-300-1 01 1 1010- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
(B) DARK GRAY 		8-97405-335-4 01 1 0905-0906 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
(B) DARK GRAY 		8-97405-335-4 01 1 0907-0912 ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97405-335-4 01 1 1001-1009 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
(B) DARK GRAY 		8-97405-335-4 01 1 1001-1009 ●
460 16.670 BACK ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97421-278-0 01 1 1010- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
(B) DARK GRAY 		8-97421-278-0 01 1 1010- ●
460 16.670 BACK ASM; PASSENGER SEAT
(A) DARK GRAY 		8-97405-338-2 01 1 0905-0906 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
(A) DARK GRAY 		8-97405-338-2 01 1 0907-0912 ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97405-338-3 01 1 1001-1009 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
(A) DARK GRAY 		8-97405-338-3 01 1 1001-1009 ●
460 16.670 BACK ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97421-299-1 01 1 1010- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
(A) DARK GRAY 		8-97421-299-1 01 1 1010- ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-98002-092-0 01 1 0905-0906 ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-98002-092-0 01 1 0907- ● ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 0905-0906 ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 0907- ● ● ●
çizim 186478
115 116 480
BalonParca AdiParca NoAdetTipApplied Date A B C
115 16.720 CUSHION ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-274-0 01 1 0905-0906 ●
115 16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97416-274-0 01 1 0905-0906 ●
115 16.720 CUSHION ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-274-0 01 1 0907-1009 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97416-274-0 01 1 0907-1009 ●
115 16.720 CUSHION ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-321-2 01 1 1010- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-321-2 01 1 1010- ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-273-0 01 1 0905-0906 ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-273-0 01 1 0907-0912 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-706-0 01 1 1001-1009 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-320-2 01 1 1010- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-289-0 01 1 0905-0906 ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY 		8-97416-289-0 01 1 0905-0906 ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-289-0 01 1 0907-1009 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY 		8-97416-289-0 01 1 0907-1009 ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-341-1 01 1 1010- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY 		8-97421-341-1 01 1 1010- ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-288-0 01 1 0905-0906 ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-288-0 01 1 0907-0912 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-735-0 01 1 1001-1009 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-340-1 01 1 1010- ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 0905-0906 ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 0907- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
