◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51240 - NNR/NPR EU-RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#76366) — 365 parça

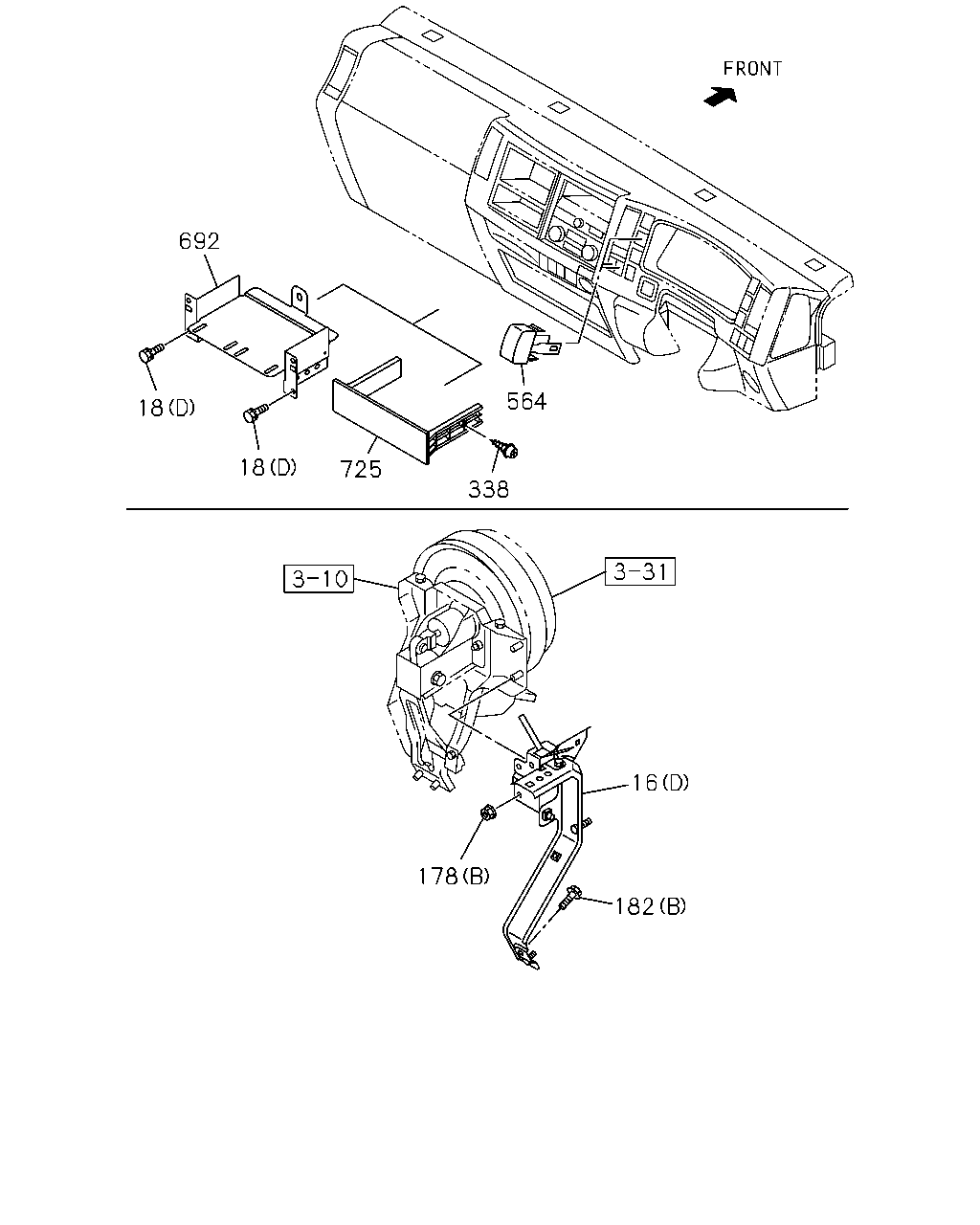

çizim 133194
692 564 18 18 725 338 16 178 182
BalonParca AdiParca NoAdetTipApplied Date A B C
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-532-0 01 1 0905-0906 ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-532-0 01 1 0907- ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0905-0906 ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0907- ● ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-799-6 01 1 0905-0906 ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-799-6 01 1 0907- ● ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0905-0906 ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0907- ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0905-0906 ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0907-1101 ● ● ●
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212 ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0905-0906 ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0907- ● ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0905-0906 ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0907- ● ● ●
18 16.085 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0905-0906 ● ●
18 16.085 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0907-1111 ● ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0907-1111 ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1112-1112 ● ● ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1112- ● ● ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 0905-0906 ● ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 0907- ● ● ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0905-0906 ● ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0907- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0905-0906 ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0907-1101 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 0905-0906 ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 0907- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0905-0906 ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0907-1101 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
(D) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 0905-0906 ● ●
182 16.085 BOLT; BRKT,INST PANEL
(D) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 0907- ● ● ●
338 16.081 SCREW; COVER
IDENTIFICATION LABEL FOR KD<6UT> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0905-0906 ● ●
338 16.081 SCREW; COVER
IDENTIFICATION LABEL FOR KD<6UT> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0907-1111 ● ●
338 16.081 SCREW; COVER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0907-1111 ●
338 16.081 SCREW; COVER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1112-1112 ● ● ●
338 16.081 SCREW; COVER
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> IDENTIFICATION LABEL FOR KD<6UT> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1112- ● ● ●
564 16.081 COVER; SW 8-98025-954-1 03 1 0905-0906 ● ●
564 16.081 COVER; SW 8-98025-954-1 03 1 0907- ● ● ●
692 16.085 BRACKET; TACHOGRAPH
IDENTIFICATION LABEL FOR KD<6UT> 		8-98094-271-0 01 1 0905-0906 ● ●
692 16.085 BRACKET; TACHOGRAPH
IDENTIFICATION LABEL FOR KD<6UT> 		8-98094-271-0 01 1 0907-1111 ● ●
692 16.085 BRACKET; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 		8-98094-271-0 01 1 0907-1111 ●
692 16.085 BRACKET; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> IDENTIFICATION LABEL FOR KD<6UT> 		8-98094-271-0 01 1 1112- ● ● ●
725 16.081 COVER; TACHOGRAPH
IDENTIFICATION LABEL FOR KD<6UT> 09.650 BLACK 		8-97407-896-1 01 1 0905-0906 ● ●
725 16.081 COVER; TACHOGRAPH
IDENTIFICATION LABEL FOR KD<6UT> 09.650 BLACK 		8-97407-896-1 01 1 0907-1111 ● ●
725 16.081 COVER; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 09.650 BLACK 		8-97407-896-1 01 1 0907-1111 ●
725 16.081 COVER; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 09.650 BLACK 		8-97407-896-1 01 1 1112-1112 ● ● ●
725 16.081 COVER; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> IDENTIFICATION LABEL FOR KD<6UT> 09.650 BLACK 		8-97407-896-2 01 1 1112- ● ● ●

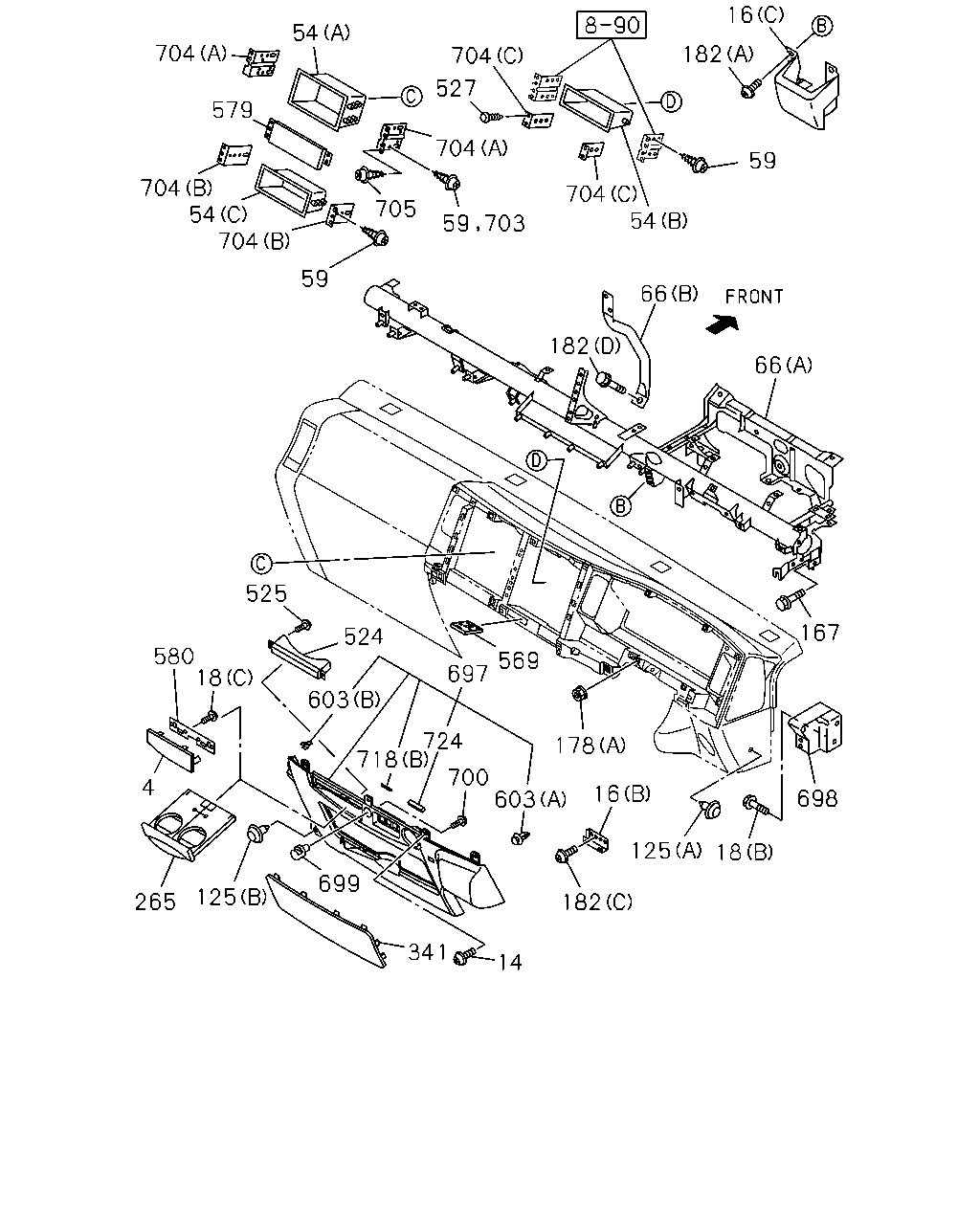

çizim 186475
14 341 699 125 265 4 182 125 18 16 603 700 718 698 178 569 697 603 524 18 580 525 66 182 66 167 59 54 704 59 703 705 59 704 54 704 704 527 704 54 579 704 16 182 724
BalonParca AdiParca NoAdetTipApplied Date A B C
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 0905-0906 ● ●
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 0907- ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0905-0906 ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0907-1101 ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212 ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-532-0 01 1 0905-0906 ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-532-0 01 1 0907- ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0905-0906 ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0907- ● ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-799-6 01 1 0905-0906 ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-799-6 01 1 0907- ● ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0905-0906 ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0907- ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0905-0906 ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0907-1101 ● ● ●
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212 ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0905-0906 ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0907- ● ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0905-0906 ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0907- ● ● ●
18 16.085 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0905-0906 ● ●
18 16.085 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0907-1111 ● ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0907-1111 ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1112-1112 ● ● ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1112- ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH DIGITAL<EBB> (A) H=108.4 BLACK 		8-97407-129-3 01 1 0907-1111 ●
54 16.100 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1112- ● ● ●
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0905-0906 ●
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0907- ● ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0905-0906 ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C) H=69.8 BLACK 		8-97408-865-2 01 1 0905-0906 ● ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 0907-1111 ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C) H=69.8 BLACK 		8-97408-865-3 01 1 0907-1111 ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. CAN INTERFACE FMS STD(8PG) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1112- ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1112- ● ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0905-0906 ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0905-0906 ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0907-0910 ● ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0907-0910 ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0911-1111 ● ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0911-1111 ● ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0911-1111 ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1112- ● ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. CAN INTERFACE FMS STD(8PG) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1112- ● ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1112- ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98124-678-2 01 1 0905-0906 ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98124-678-2 01 1 0907-1204 ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98199-359-1 01 1 1205- ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97585-578-1 01 1 0905-0906 ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97585-578-1 01 1 0907- ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98106-831-3 01 1 0905-0906 ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98106-831-3 01 1 0907-1204 ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98199-358-1 01 1 1205- ● ● ●
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1002- ● ● ●
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97418-529-0 02 1 0910-0911 ● ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0905-0906 ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0905-0906 ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0907-0909 ● ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0907-0909 ● ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0910-0911 ● ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0912-1001 ● ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0912-1001 ● ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 1002- ● ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 0905-0906 ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 0907- ● ● ●
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 0905-0906 ● ●
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 0907- ● ● ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 0905-0906 ● ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 0907- ● ● ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0905-0906 ● ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0907- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0905-0906 ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0907-1101 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 0905-0906 ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 0907- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0905-0906 ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0907-1101 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
(D) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 0905-0906 ● ●
182 16.085 BOLT; BRKT,INST PANEL
(D) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 0907- ● ● ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97407-897-2 01 1 0905-0906 ● ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97407-897-2 01 1 0907-0909 ● ● ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 0910- ● ● ●
341 16.110 LID; FUSE BOX
02.483 GRAY 		8-97406-265-3 01 1 0905-0906 ● ●
341 16.110 LID; FUSE BOX
02.483 GRAY 		8-97406-265-3 01 1 0907-1205 ● ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1206- ● ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 0905-0906 ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 0907- ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0905-0906 ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0907-1101 ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212 ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ● ●
527 16.100 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.742 DARK GRAY 		8-97098-326-0 01 1 0905-0906 ● ●
527 16.100 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.742 DARK GRAY 		8-97098-326-0 01 1 0907- ● ● ●
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 0905-0906 ● ●
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 0907- ● ● ●
579 16.080 COVER; INST PNL
CAN INTERFACE FMS STD(8PG) BLACK 		8-97408-909-0 01 1 1112-1208 ● ● ●
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 0905-0906 ● ●
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 0907- ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 03 1 1002- ● ● ●
603 16.090 CLIP; COVER
(C) 		8-98152-030-0 02 1 0910-0911 ● ● ●
603 16.090 CLIP; COVER
(C) 		8-98152-030-0 02 1 1002- ● ● ●
603 16.090 CLIP; COVER
(D) 		8-98152-031-0 02 1 0910-0911 ● ● ●
603 16.090 CLIP; COVER
(D) 		8-98152-031-0 02 1 1002- ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 0910-0911 ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 0912-1001 ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 0912-1001 ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 1002- ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 0905-0906 ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 0905-0906 ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 0907-0909 ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 0907-0909 ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 03 1 0910-0911 ● ● ●
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 0905-0906 ● ●
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 0907- ● ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97405-256-8 01 1 0905-0906 ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97405-256-8 01 1 0907-1205 ● ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1206- ● ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 0905-0906 ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 0907- ● ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 0905-0906 ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 0907- ● ● ●
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0905-0906 ● ●
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0907- ● ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0905-0906 ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0907-1101 ● ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ●
703 16.085 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0907-1111 ●
703 16.085 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1112- ● ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> (A) 		8-97585-618-2 02 1 0907-1111 ●
704 16.085 BRACKET; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (A) 		8-97585-618-2 02 1 1112- ● ● ●
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0905-0906 ● ●
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0907-1111 ● ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. CAN INTERFACE FMS STD(8PG) (B) 		8-97585-616-2 02 1 1112- ● ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		8-98107-549-0 02 1 0905-0906 ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		8-98107-549-0 02 1 0907- ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0905-0906 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0907-1101 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0907-1101 ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1111 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1111 ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1112-1212 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. CAN INTERFACE FMS STD(8PG) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1112-1212 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. CAN INTERFACE FMS STD(8PG) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0905-0906 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0907-1101 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1102-1212 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ● ● ●
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 0905-0906 ● ●
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 0907- ● ● ●
718 16.100 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1110- ● ● ●
718 16.100 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1110- ● ● ●
718 16.100 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1206- ● ● ●
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1110- ● ● ●

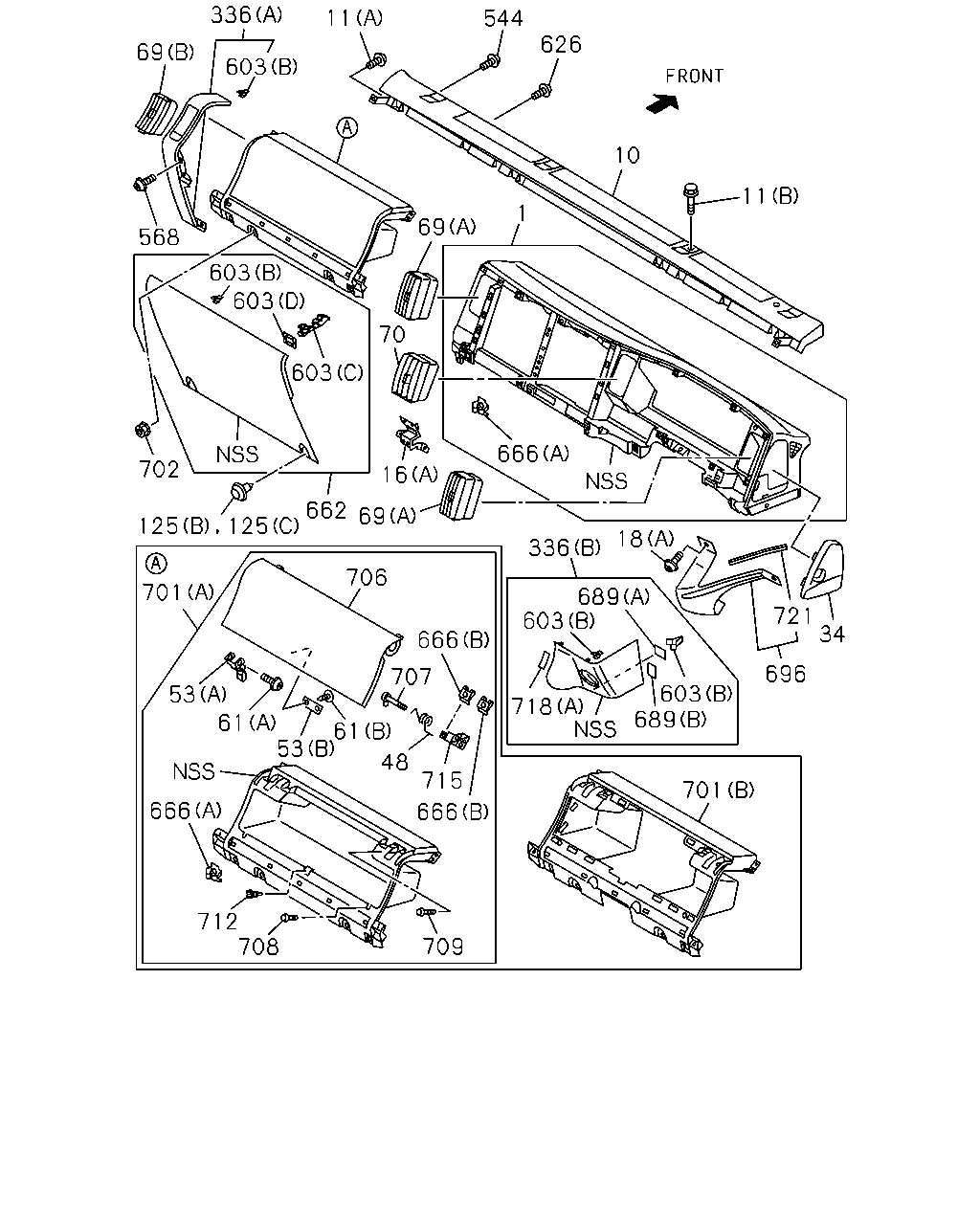

çizim 186476
336 603 69 11 544 10 11 69 603 568 603 603 16 662 666 69 125 702 125 701 706 666 707 48 715 666 61 53 61 53 666 712 708 701 696 603 689 718 603 336 721 34 18 689 626 709 70 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.080 PANEL; INST
GRAY 		8-97405-253-8 01 1 0905-0906 ● ●
1 16.080 PANEL; INST
GRAY 		8-97405-253-8 01 1 0907- ● ● ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97405-265-4 01 1 0905-0906 ● ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97405-265-4 01 1 0907-1003 ● ● ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1004- ● ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0905-0906 ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0907-1101 ● ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1102-1212 ● ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1301- ● ● ●
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0905-0906 ● ●
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0907- ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-532-0 01 1 0905-0906 ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-532-0 01 1 0907- ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0905-0906 ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0907- ● ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-799-6 01 1 0905-0906 ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-799-6 01 1 0907- ● ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0905-0906 ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0907- ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0905-0906 ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0907-1101 ● ● ●
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212 ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0905-0906 ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0907- ● ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0905-0906 ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0907- ● ● ●
18 16.085 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0905-0906 ● ●
18 16.085 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0907-1111 ● ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0907-1111 ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1112-1112 ● ● ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1112- ● ● ●
34 16.085 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 0905-0906 ● ●
34 16.085 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 0907- ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 0905-0906 ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 0907-1311 ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-410-0 01 1 1312-1405 ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-763-0 01 1 1406- ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 0905-0906 ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 0907-1311 ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-411-0 01 1 1312-1405 ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-764-0 01 1 1406- ● ● ●
53 16.115 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-913-0 01 1 0905-0906 ● ●
53 16.115 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-913-0 01 1 0907-1405 ● ● ●
53 16.115 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98270-765-0 01 1 1406- ● ● ●
61 16.100 SCREW; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-915-0 01 1 0905-0906 ● ●
61 16.100 SCREW; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-915-0 01 1 0907-1405 ● ● ●
61 16.100 SCREW; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M4X85 		8-97926-404-0 02 1 1406- ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0905-0906 ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0907- ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0905-0906 ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0907- ● ● ●
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0905-0906 ● ●
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0907- ● ● ●
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1002- ● ● ●
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97418-529-0 02 1 0910-0911 ● ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0905-0906 ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0905-0906 ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0907-0909 ● ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0907-0909 ● ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0910-0911 ● ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0912-1001 ● ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0912-1001 ● ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 1002- ● ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 0905-0906 ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 0907- ● ● ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 0905-0906 ● ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 0907- ● ● ●
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-688-1 01 1 0905-0906 ● ●
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-688-1 01 1 0907- ● ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0905-0906 ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0907-1101 ● ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212 ● ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0905-0906 ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0907-1101 ● ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 03 1 1002- ● ● ●
603 16.090 CLIP; COVER
(C) 		8-98152-030-0 02 1 0910-0911 ● ● ●
603 16.090 CLIP; COVER
(C) 		8-98152-030-0 02 1 1002- ● ● ●
603 16.090 CLIP; COVER
(D) 		8-98152-031-0 02 1 0910-0911 ● ● ●
603 16.090 CLIP; COVER
(D) 		8-98152-031-0 02 1 1002- ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 0910-0911 ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 0912-1001 ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 0912-1001 ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 1002- ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 0905-0906 ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 0905-0906 ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 0907-0909 ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 0907-0909 ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 03 1 0910-0911 ● ● ●
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 0905-0906 ● ●
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 0907- ● ● ●
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 0905-0906 ● ●
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 0907- ● ● ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97405-258-0 01 1 0905-0906 ● ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97405-258-0 01 1 0907-0909 ● ● ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97418-533-0 01 1 0910-0911 ● ● ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97405-258-1 01 1 0912-1001 ● ● ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97418-533-2 01 1 1002- ● ● ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98037-629-0 02 1 0905-0906 ● ●
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 02 1 0905-0906 ● ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98037-629-0 02 1 0907-1003 ● ● ●
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 02 1 0907-1003 ● ● ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98037-629-0 02 1 1004- ● ● ●
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 0905-0906 ● ●
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 0907- ● ● ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98038-450-0 04 1 0905-0906 ● ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98038-450-0 04 1 0907-1311 ● ● ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M5 		8-97926-400-0 04 1 1312- ● ● ●
689 09.743 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 0905-0906 ● ●
689 09.743 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 0907- ● ● ●
689 09.743 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 0905-0906 ● ●
689 09.743 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 0907- ● ● ●
696 16.085 BRACKET; KNEE 8-97589-189-4 01 1 0905-0906 ● ●
696 16.085 BRACKET; KNEE 8-97589-189-4 01 1 0907-1211 ● ● ●
696 16.085 BRACKET; KNEE 8-98199-366-0 01 1 1212- ● ● ●
701 16.100 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97416-908-2 01 1 0905-0906 ● ●
701 16.100 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97416-908-2 01 1 0907- ● ● ●
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97415-542-6 01 1 0905-0906 ● ●
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97415-542-6 01 1 0907-1405 ● ● ●
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97429-702-1 01 1 1406- ● ● ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0905-0906 ● ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0907- ● ● ●
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97415-541-0 01 1 0905-0906 ● ●
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97415-541-0 01 1 0907-1405 ● ● ●
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97429-992-0 01 1 1406- ● ● ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 0905-0906 ● ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 0907-1311 ● ● ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-393-0 02 1 1312- ● ● ●
708 16.100 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 0905-0906 ● ●
708 16.100 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 0907- ● ● ●
709 16.085 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 0905-0906 ● ●
709 16.085 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 0907- ● ● ●
712 16.110 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 0905-0906 ● ●
712 16.110 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 0907- ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 0905-0906 ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 0907-1311 ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-396-0 01 1 1312- ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 0905-0906 ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 0907-1311 ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-397-0 01 1 1312- ● ● ●
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 0905-0906 ● ●
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 0907- ● ● ●
718 16.100 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1110- ● ● ●
718 16.100 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1110- ● ● ●
718 16.100 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1206- ● ● ●
721 16.650 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 0905-0906 ● ●
721 16.650 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 0907-1211 ● ● ●
721 16.650 FINISHER; BRKT,KNEE
L=75 		8-98176-240-0 01 1 1212- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
