1 |

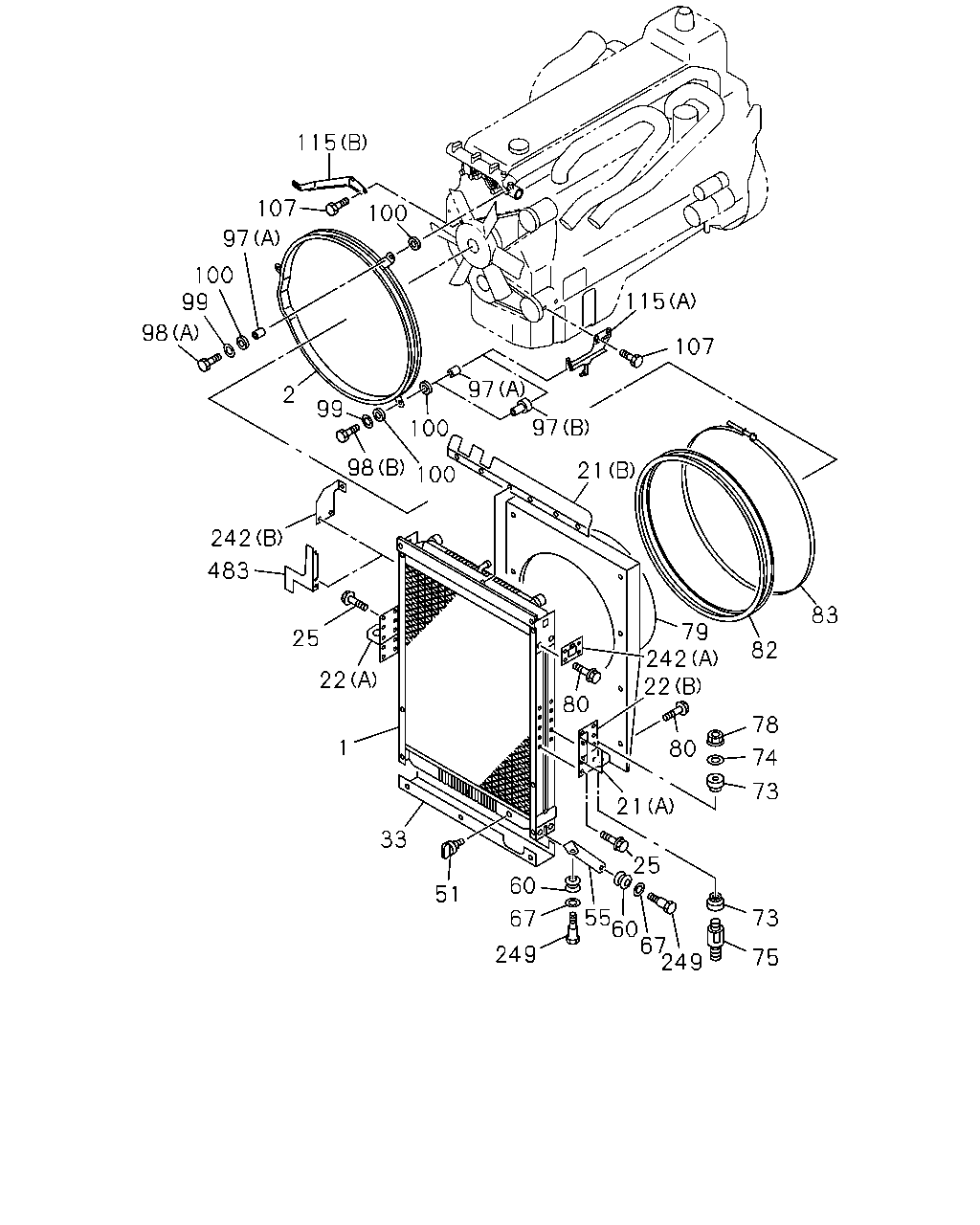

RADIATOR ASM
BRAZIL EQUIPMENT(TKK)
EXC. ELECTRONIC GOV RED3(KG5)
|
1-21410-730-0 |
01 |
1 |
9905-0005 |
● |
|
|
|
| |
1 |
RADIATOR ASM
|
1-21410-730-0 |
01 |
1 |
9905-0005 |
|
● |
|
|
| |
1 |
RADIATOR ASM
CAB UP +110MM<TGG>
BRAZIL EQUIPMENT(TKK)
|
1-21410-730-1 |
01 |
1 |
0006- |
● |
|
|
|
| |
1 |
RADIATOR ASM
|
1-21410-730-1 |
01 |
1 |
0006- |
|
● |
|
|
| |
1 |
RADIATOR ASM
ELECTRONIC GOV RED3(KG5)
INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR<Q3T>
|
1-21410-761-0 |
01 |
1 |
9902-0005 |
● |
|
|
|
| |
1 |
RADIATOR ASM
CAB UP +110MM<TGG>
EXC. BRAZIL EQUIPMENT(TKK),RADIATOR HEAVY
DUTY<V05>
|
1-21410-761-0 |
01 |
1 |
0006- |
● |
|
|
|
| |
1 |
RADIATOR ASM
RADIATOR HEAVY DUTY<V05>
EXC. ELECTRONIC GOV RED3(KG5)
|
1-21410-786-0 |
01 |
1 |
9905-0005 |
● |
|
|
|
| |
1 |
RADIATOR ASM
CAB UP +110MM<TGG>
RADIATOR HEAVY DUTY<V05>
|
1-21410-786-0 |
01 |
1 |
0006- |
● |
|
|
|
| |
1 |
RADIATOR ASM
|
1-21410-806-0 |
01 |
1 |
9910-0003 |
|
|
● |
|
| |
1 |
RADIATOR ASM
|
1-21410-806-0 |
01 |
1 |
0004- |
|
|
● |
● |
| |
1 |
RADIATOR ASM
|
1-21410-806-0 |
01 |
1 |
0004- |
|
|
|
● |
| |
2 |
GUIDE; FAN
EXC. BRAZIL EQUIPMENT(TKK),RADIATOR HEAVY
DUTY<V05>
|
1-21551-369-0 |
01 |
1 |
0006- |
● |
|
|
|
| |
2 |
GUIDE; FAN
|
1-21551-420-0 |
01 |
1 |
9902-0003 |
● |
● |
● |
|
| |
2 |
GUIDE; FAN
|
1-21551-420-0 |
01 |
1 |
0004-0005 |
● |
● |
● |
● |
| |
2 |
GUIDE; FAN
BRAZIL EQUIPMENT(TKK)
|
1-21551-420-0 |
01 |
1 |
0006- |
● |
|
|
|
| |
2 |
GUIDE; FAN
RADIATOR HEAVY DUTY<V05>
|
1-21551-420-0 |
01 |
1 |
0006- |
● |
|
|
|
| |
2 |
GUIDE; FAN
|
1-21551-420-0 |
01 |
1 |
0006- |
|
● |
● |
● |
| |
21 |
SEAL; RAD
BRAZIL EQUIPMENT(TKK)
EXC. ELECTRONIC GOV RED3(KG5)
(B)
|
1-21460-104-0 |
01 |
1 |
9905-0005 |
● |
|
|
|
| |
21 |
SEAL; RAD
(B)
|
1-21460-104-0 |
01 |
1 |
9905-0005 |
|
● |
|
|
| |
21 |
SEAL; RAD
CAB UP +110MM<TGG>
BRAZIL EQUIPMENT(TKK)
(B)
|
1-21460-104-0 |
01 |
1 |
0006- |
● |
|
|
|
| |
21 |
SEAL; RAD
(B)
|
1-21460-104-0 |
01 |
1 |
0006- |
|
● |
|
|
| |
21 |
SEAL; RAD
BRAZIL EQUIPMENT(TKK)
EXC. ELECTRONIC GOV RED3(KG5)
(A)
|
1-21460-114-0 |
01 |
1 |
9905-0005 |
● |
|
|
|
| |
21 |
SEAL; RAD
(A)
|
1-21460-114-0 |
01 |
1 |
9905-0005 |
|
● |
|
|
| |
21 |
SEAL; RAD
CAB UP +110MM<TGG>
BRAZIL EQUIPMENT(TKK)
(A)
|
1-21460-114-0 |
01 |
1 |
0006- |
● |
|
|
|
| |
21 |
SEAL; RAD
(A)
|
1-21460-114-0 |
01 |
1 |
0006- |
|
● |
|
|
| |
21 |
SEAL; RAD
ELECTRONIC GOV RED3(KG5)
INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR<Q3T>
(B)
|
1-21460-094-0 |
01 |
1 |
9902-0005 |
● |
|
|
|
| |
21 |
SEAL; RAD
CAB UP +110MM<TGG>
EXC. BRAZIL EQUIPMENT(TKK),RADIATOR HEAVY
DUTY<V05>
(B)
|
1-21460-094-0 |
01 |
1 |
0006- |
● |
|
|
|
| |
21 |
SEAL; RAD
RADIATOR HEAVY DUTY<V05>
EXC. ELECTRONIC GOV RED3(KG5)
(B)
|
1-21460-103-0 |
01 |
1 |
9905-0005 |
● |
|
|
|
| |
21 |
SEAL; RAD
CAB UP +110MM<TGG>
RADIATOR HEAVY DUTY<V05>
(B)
|
1-21460-103-0 |
01 |
1 |
0006- |
● |
|
|
|
| |
21 |
SEAL; RAD
(B)
|
1-21460-098-0 |
01 |
1 |
9910- |
|
|
● |
|
| |
21 |
SEAL; RAD
(B)
|
1-21460-096-0 |
01 |
1 |
0004- |
|
|
|
● |
| |
21 |
SEAL; RAD
(B)
|
1-21460-096-0 |
01 |
1 |
0004- |
|
|
|
● |
| |
22 |
BRACKET; RAD MTG
ELECTRONIC GOV RED3(KG5)
INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR<Q3T>
(A)
|
1-21464-503-0 |
01 |
1 |
9902-9904 |
● |
|
|
|
| |
22 |
BRACKET; RAD MTG
(A)
|
1-21464-503-0 |
01 |
1 |
9905- |
● |
● |
|
|
| |
22 |
BRACKET; RAD MTG
ELECTRONIC GOV RED3(KG5)
INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR<Q3T>
(B)
|
1-21464-504-0 |
01 |
1 |
9902-9904 |
● |
|
|
|
| |
22 |
BRACKET; RAD MTG
(B)
|
1-21464-504-0 |
01 |
1 |
9905- |
● |
● |
|
|
| |
22 |
BRACKET; RAD MTG
(A)
|
1-21464-658-0 |
01 |
1 |
9910-0003 |
|
|
● |
|
| |
22 |
BRACKET; RAD MTG
(A)
|
1-21464-658-0 |
01 |
1 |
0004- |
|
|
● |
● |
| |
22 |
BRACKET; RAD MTG
(B)
|
1-21464-659-0 |
01 |
1 |
9910-0003 |
|
|
● |
|
| |
22 |
BRACKET; RAD MTG
(B)
|
1-21464-659-0 |
01 |
1 |
0004- |
|
|
● |
● |
| |
25 |
BOLT; BRKT
ELECTRONIC GOV RED3(KG5)
INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR<Q3T>
M8X16 FLANGE
|
0-28080-816-0 |
18 |
1 |
9902-9904 |
● |
|
|
|
| |
25 |
BOLT; BRKT
M8X16 FLANGE
|
0-28080-816-0 |
18 |
1 |
9905-9909 |
● |
● |
|
|
| |
25 |
BOLT; BRKT
M8X16 FLANGE
|
0-28080-816-0 |
18 |
1 |
9910-0003 |
● |
● |
● |
|
| |
25 |
BOLT; BRKT
M8X16 FLANGE
|
0-28080-816-0 |
18 |
1 |
0004- |
● |
● |
● |
|
| |
33 |
PROTECTOR; RAD
ELECTRONIC GOV RED3(KG5)
INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR<Q3T>
|
1-21419-050-0 |
01 |
1 |
9902-9904 |
● |
|
|
|
| |
33 |
PROTECTOR; RAD
|
1-21419-050-0 |
01 |
1 |
9905- |
● |
● |
|
|
| |
33 |
PROTECTOR; RAD
|
1-21419-049-0 |
01 |
1 |
9910-0003 |
|
|
● |
|
| |
33 |
PROTECTOR; RAD
|
1-21419-049-0 |
01 |
1 |
0004- |
|
|
● |
● |
| |
51 |
PLUG; DRAIN
ELECTRONIC GOV RED3(KG5)
INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR<Q3T>
W/GASKET
|
1-09609-009-0 |
01 |
1 |
9902-9904 |
● |
|
|
|
| |
51 |
PLUG; DRAIN
W/GASKET
|
1-09609-009-0 |
01 |
1 |
9905-9909 |
● |
● |
|
|
| |
51 |
PLUG; DRAIN
W/GASKET
|
1-09609-009-0 |
01 |
1 |
9910-0003 |
● |
● |
● |
|
| |
51 |
PLUG; DRAIN
W/GASKET
|
1-09609-009-0 |
01 |
1 |
0004- |
● |
● |
● |
|
| |
55 |
STAY; RAD TO UPR MBR
ELECTRONIC GOV RED3(KG5)
|
1-21464-573-0 |
01 |
1 |
9902-0005 |
● |
|
|
|
| |
55 |
STAY; RAD TO UPR MBR
CAB UP +110MM<TGG>
EXC. BRAZIL EQUIPMENT(TKK),RADIATOR HEAVY
DUTY<V05>
|
1-21464-573-0 |
01 |
1 |
0006- |
● |
|
|
|
| |
55 |
STAY; RAD TO UPR MBR
ELECTRONIC GOV RED3(KG5)
|
1-21464-572-0 |
01 |
1 |
9902-0005 |
● |
|
|
|
| |
55 |
STAY; RAD TO UPR MBR
CAB UP +110MM<TGG>
EXC. BRAZIL EQUIPMENT(TKK),RADIATOR HEAVY
DUTY<V05>
|
1-21464-572-0 |
01 |
1 |
0006- |
● |
|
|
|
| |
55 |
STAY; RAD TO UPR MBR
EXC. ELECTRONIC GOV RED3(KG5)
|
1-21464-473-0 |
01 |
1 |
9902-9904 |
● |
|
|
|
| |
55 |
STAY; RAD TO UPR MBR
EXC. ELECTRONIC GOV RED3(KG5)
|
1-21464-473-0 |
01 |
1 |
9905-0005 |
● |
|
|
|
| |
55 |
STAY; RAD TO UPR MBR
|
1-21464-473-0 |
01 |
1 |
9905-0005 |
|
● |
|
|
| |
55 |
STAY; RAD TO UPR MBR
CAB UP +110MM<TGG>
BRAZIL EQUIPMENT(TKK)
|
1-21464-473-0 |
01 |
1 |
0006- |
● |
|
|
|
| |
55 |
STAY; RAD TO UPR MBR
CAB UP +110MM<TGG>
RADIATOR HEAVY DUTY<V05>
|
1-21464-473-0 |
01 |
1 |
0006- |
● |
|
|
|
| |
55 |
STAY; RAD TO UPR MBR
|
1-21464-473-0 |
01 |
1 |
0006- |
|
● |
|
|
| |
55 |
STAY; RAD TO UPR MBR
EXC. ELECTRONIC GOV RED3(KG5)
|
1-21464-472-0 |
01 |
1 |
9902-9904 |
● |
|
|
|
| |
55 |
STAY; RAD TO UPR MBR
EXC. ELECTRONIC GOV RED3(KG5)
|
1-21464-472-0 |
01 |
1 |
9905-0005 |
● |
|
|
|
| |
55 |
STAY; RAD TO UPR MBR
|
1-21464-472-0 |
01 |
1 |
9905-0005 |
|
● |
|
|
| |
55 |
STAY; RAD TO UPR MBR
CAB UP +110MM<TGG>
BRAZIL EQUIPMENT(TKK)
|
1-21464-472-0 |
01 |
1 |
0006- |
● |
|
|
|
| |
55 |
STAY; RAD TO UPR MBR
CAB UP +110MM<TGG>
RADIATOR HEAVY DUTY<V05>
|
1-21464-472-0 |
01 |
1 |
0006- |
● |
|
|
|
| |
55 |
STAY; RAD TO UPR MBR
|
1-21464-472-0 |
01 |
1 |
0006- |
|
● |
|
|
| |
55 |
STAY; RAD TO UPR MBR
|
1-21464-694-0 |
01 |
1 |
9910-0003 |
|
|
● |
|
| |
55 |
STAY; RAD TO UPR MBR
|
1-21464-694-0 |
01 |
1 |
0004- |
|
|
● |
● |
| |
55 |
STAY; RAD TO UPR MBR
|
1-21464-693-0 |
01 |
1 |
9910-0003 |
|
|
● |
|
| |
55 |
STAY; RAD TO UPR MBR
|
1-21464-693-0 |
01 |
1 |
0004- |
|
|
● |
● |
| |
60 |
GROMMET
|
1-09332-117-0 |
04 |
1 |
9902-0003 |
● |
● |
● |
|
| |
60 |
GROMMET
|
1-09332-117-0 |
04 |
1 |
0004- |
● |
● |
● |
● |
| |
67 |
WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26
|
9-09160-612-0 |
04 |
1 |
9902-0003 |
● |
● |
● |
|
| |
67 |
WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26
|
9-09160-612-0 |
04 |
1 |
0004- |
● |
● |
● |
● |
| |
73 |
RUBBER; CUSHION,RAD MTG
T=14
|
1-21467-004-0 |
04 |
1 |
9902-0003 |
● |
● |
● |
|
| |
73 |
RUBBER; CUSHION,RAD MTG
T=14
|
1-21467-004-0 |
04 |
1 |
0004- |
● |
● |
● |
● |
| |
74 |
WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22
|
1-09503-154-1 |
02 |
1 |
9902-0003 |
● |
● |
● |
|
| |
74 |
WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22
|
1-09503-154-1 |
02 |
1 |
0004- |
● |
● |
● |
● |
| |
75 |
BOLT; CUSHION RUBBER,RAD MTG
|
1-21466-005-0 |
02 |
1 |
9902-0003 |
● |
● |
● |
|
| |
75 |
BOLT; CUSHION RUBBER,RAD MTG
|
1-21466-005-0 |
02 |
1 |
0004- |
● |
● |
● |
● |
| |
78 |
NUT; CUSHION RUBBER
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9902-0003 |
● |
● |
● |
|
| |
78 |
NUT; CUSHION RUBBER
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0004- |
● |
● |
● |
● |
| |
79 |
GUIDE; FAN,RAD
ELECTRONIC GOV RED3(KG5)
INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR<Q3T>
|
1-21551-438-0 |
01 |
1 |
9902-0005 |
● |
|
|
|
| |
79 |
GUIDE; FAN,RAD
CAB UP +110MM<TGG>
EXC. BRAZIL EQUIPMENT(TKK),RADIATOR HEAVY
DUTY<V05>
|
1-21551-438-0 |
01 |
1 |
0006- |
● |
|
|
|
| |
79 |
GUIDE; FAN,RAD
EXC. ELECTRONIC GOV RED3(KG5)
|
1-21551-416-1 |
01 |
1 |
9905-9909 |
● |
|
|
|
| |
79 |
GUIDE; FAN,RAD
|
1-21551-416-1 |
01 |
1 |
9905-9909 |
|
● |
|
|
| |
79 |
GUIDE; FAN,RAD
EXC. ELECTRONIC GOV RED3(KG5)
|
1-21551-416-2 |
01 |
1 |
9910- |
● |
|
|
|
| |
79 |
GUIDE; FAN,RAD
|
1-21551-416-2 |
01 |
1 |
9910- |
|
● |
|
|
| |
79 |
GUIDE; FAN,RAD
ENG LOW TORQUE<Q3R>
|
1-21551-416-2 |
01 |
1 |
9910- |
|
|
● |
|
| |
80 |
BOLT; FAN GUIDE
BRAZIL EQUIPMENT(TKK)
EXC. ELECTRONIC GOV RED3(KG5)
M8X12 FLANGE
|
0-28080-812-0 |
13 |
1 |
9905-0005 |
● |
|
|
|
| |
80 |
BOLT; FAN GUIDE
M8X12 FLANGE
|
0-28080-812-0 |
13 |
1 |
9905-0005 |
|
● |
|
|
| |
80 |
BOLT; FAN GUIDE
CAB UP +110MM<TGG>
RADIATOR HEAVY DUTY<V05>
M8X12 FLANGE
|
0-28080-812-0 |
15 |
1 |
0006- |
● |
|
|
|
| |
80 |
BOLT; FAN GUIDE
ELECTRONIC GOV RED3(KG5)
INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR<Q3T>
M8X12 FLANGE
|
0-28080-812-0 |
14 |
1 |
9902-0005 |
● |
|
|
|
| |
80 |
BOLT; FAN GUIDE
CAB UP +110MM<TGG>
BRAZIL EQUIPMENT(TKK)
M8X12 FLANGE
|
0-28080-812-0 |
13 |
1 |
0006- |
● |
|
|
|
| |
80 |
BOLT; FAN GUIDE
M8X12 FLANGE
|
0-28080-812-0 |
13 |
1 |
0006- |
|
● |
|
|
| |
80 |
BOLT; FAN GUIDE
RADIATOR HEAVY DUTY<V05>
EXC. ELECTRONIC GOV RED3(KG5)
M8X12 FLANGE
|
0-28080-812-0 |
15 |
1 |
9905-0005 |
● |
|
|
|
| |
80 |
BOLT; FAN GUIDE
CAB UP +110MM<TGG>
EXC. BRAZIL EQUIPMENT(TKK),RADIATOR HEAVY
DUTY<V05>
M8X12 FLANGE
|
0-28080-812-0 |
14 |
1 |
0006- |
● |
|
|
|
| |
80 |
BOLT; FAN GUIDE
M8X12 FLANGE
|
0-28080-812-0 |
17 |
1 |
9910- |
|
|
● |
|
| |
80 |
BOLT; FAN GUIDE
M8X12 FLANGE
|
0-28080-812-0 |
18 |
1 |
0004- |
|
|
|
● |
| |
82 |
COVER; FAN,RAD
ELECTRONIC GOV RED3(KG5)
|
1-21559-134-1 |
01 |
1 |
9902-0005 |
● |
|
|
|
| |
82 |
COVER; FAN,RAD
EXC. BRAZIL EQUIPMENT(TKK),RADIATOR HEAVY
DUTY<V05>
|
1-21559-134-1 |
01 |
1 |
0006- |
● |
|
|
|
| |
82 |
COVER; FAN,RAD
EXC. ELECTRONIC GOV RED3(KG5)
|
1-21559-262-1 |
01 |
1 |
9902-9904 |
● |
|
|
|
| |
82 |
COVER; FAN,RAD
EXC. ELECTRONIC GOV RED3(KG5)
|
1-21559-262-1 |
01 |
1 |
9905-9909 |
● |
|
|
|
| |
82 |
COVER; FAN,RAD
|
1-21559-262-1 |
01 |
1 |
9905-9909 |
|
● |
|
|
| |
82 |
COVER; FAN,RAD
EXC. ELECTRONIC GOV RED3(KG5)
|
1-21559-262-1 |
01 |
1 |
9910-0003 |
● |
|
|
|
| |
82 |
COVER; FAN,RAD
|
1-21559-262-1 |
01 |
1 |
9910-0003 |
|
● |
● |
|
| |
82 |
COVER; FAN,RAD
EXC. ELECTRONIC GOV RED3(KG5)
|
1-21559-262-1 |
01 |
1 |
0004-0005 |
● |
|
|
|
| |
82 |
COVER; FAN,RAD
|
1-21559-262-1 |
01 |
1 |
0004-0005 |
|
● |
● |
● |
| |
82 |
COVER; FAN,RAD
BRAZIL EQUIPMENT(TKK)
|
1-21559-262-1 |
01 |
1 |
0006- |
● |
|
|
|
| |
82 |
COVER; FAN,RAD
RADIATOR HEAVY DUTY<V05>
|
1-21559-262-1 |
01 |
1 |
0006- |
● |
|
|
|
| |
82 |
COVER; FAN,RAD
|
1-21559-262-1 |
01 |
1 |
0006- |
|
● |
● |
● |
| |
83 |
CLIP; FAN COVER
ELECTRONIC GOV RED3(KG5)
|
1-09707-127-1 |
01 |
1 |
9902-0005 |
● |
|
|
|
| |
83 |
CLIP; FAN COVER
EXC. BRAZIL EQUIPMENT(TKK),RADIATOR HEAVY
DUTY<V05>
|
1-09707-127-1 |
01 |
1 |
0006- |
● |
|
|
|
| |
83 |
CLIP; FAN COVER
EXC. ELECTRONIC GOV RED3(KG5)
|
1-09707-152-0 |
02 |
1 |
9902-9904 |
● |
|
|
|
| |
83 |
CLIP; FAN COVER
EXC. ELECTRONIC GOV RED3(KG5)
|
1-09707-152-0 |
02 |
1 |
9905-9909 |
● |
|
|
|
| |
83 |
CLIP; FAN COVER
|
1-09707-152-0 |
02 |
1 |
9905-9909 |
|
● |
|
|
| |
83 |
CLIP; FAN COVER
EXC. ELECTRONIC GOV RED3(KG5)
|
1-09707-152-0 |
02 |
1 |
9910-0003 |
● |
|
|
|
| |
83 |
CLIP; FAN COVER
|
1-09707-152-0 |
02 |
1 |
9910-0003 |
|
● |
● |
|
| |
83 |
CLIP; FAN COVER
EXC. ELECTRONIC GOV RED3(KG5)
|
1-09707-152-1 |
02 |
1 |
0004-0005 |
● |
|
|
|
| |
83 |
CLIP; FAN COVER
|
1-09707-152-1 |
02 |
1 |
0004-0005 |
|
● |
● |
● |
| |
83 |
CLIP; FAN COVER
BRAZIL EQUIPMENT(TKK)
|
1-09707-152-2 |
02 |
1 |
0006- |
● |
|
|
|
| |
83 |
CLIP; FAN COVER
RADIATOR HEAVY DUTY<V05>
|
1-09707-152-2 |
02 |
1 |
0006- |
● |
|
|
|
| |
83 |
CLIP; FAN COVER
|
1-09707-152-2 |
02 |
1 |
0006- |
|
● |
● |
● |
| |
97 |
TUBE; DIST,FAN GUIDE
EXC. BRAZIL EQUIPMENT(TKK),RADIATOR HEAVY
DUTY<V05>
(A)
ID=11.8 L=27
|
1-21559-149-0 |
01 |
1 |
0006- |
● |
|
|
|
| |
97 |
TUBE; DIST,FAN GUIDE
EXC. BRAZIL EQUIPMENT(TKK),RADIATOR HEAVY
DUTY<V05>
(B)
|
1-21559-273-0 |
02 |
1 |
0006- |
● |
|
|
|
| |
97 |
TUBE; DIST,FAN GUIDE
(A)
ID=11.8 L=27
|
1-21559-149-0 |
03 |
1 |
9902-0003 |
● |
● |
● |
|
| |
97 |
TUBE; DIST,FAN GUIDE
(A)
ID=11.8 L=27
|
1-21559-149-0 |
03 |
1 |
0004-0005 |
● |
● |
● |
● |
| |
97 |
TUBE; DIST,FAN GUIDE
BRAZIL EQUIPMENT(TKK)
(A)
ID=11.8 L=27
|
1-21559-149-0 |
03 |
1 |
0006- |
● |
|
|
|
| |
97 |
TUBE; DIST,FAN GUIDE
RADIATOR HEAVY DUTY<V05>
(A)
ID=11.8 L=27
|
1-21559-149-0 |
03 |
1 |
0006- |
● |
|
|
|
| |
97 |
TUBE; DIST,FAN GUIDE
(A)
ID=11.8 L=27
|
1-21559-149-0 |
03 |
1 |
0006- |
|
● |
● |
● |
| |
98 |
BOLT; RAD FAN GUIDE
(B)
M10X40 FLANGE
|
0-28081-040-0 |
01 |
1 |
9902-9904 |
● |
|
|
|
| |
98 |
BOLT; RAD FAN GUIDE
(B)
M10X40 FLANGE
|
0-28081-040-0 |
01 |
1 |
9905-9909 |
● |
● |
|
|
| |
98 |
BOLT; RAD FAN GUIDE
(B)
M10X40 FLANGE
|
0-28081-040-0 |
01 |
1 |
9910-0003 |
● |
● |
● |
|
| |
98 |
BOLT; RAD FAN GUIDE
(B)
M10X40 FLANGE
|
0-28081-040-0 |
01 |
1 |
0004- |
● |
● |
● |
● |
| |
98 |
BOLT; RAD FAN GUIDE
(A)
M10X60 FLANGE
|
0-28081-060-0 |
02 |
1 |
9902-9904 |
● |
|
|
|
| |
98 |
BOLT; RAD FAN GUIDE
(A)
M10X60 FLANGE
|
0-28081-060-0 |
02 |
1 |
9905-9909 |
● |
● |
|
|
| |
98 |
BOLT; RAD FAN GUIDE
(A)
M10X60 FLANGE
|
0-28081-060-0 |
02 |
1 |
9910-0003 |
● |
● |
● |
|
| |
98 |
BOLT; RAD FAN GUIDE
(A)
M10X60 FLANGE
|
0-28081-060-0 |
02 |
1 |
0004- |
● |
● |
● |
● |
| |
99 |
WASHER; PL
ID=10.5 OD=26
|
9-09164-710-0 |
03 |
1 |
9902-9904 |
● |
|
|
|
| |
99 |
WASHER; PL
ID=10.5 OD=26
|
9-09164-710-0 |
03 |
1 |
9905-9909 |
● |
● |
|
|
| |
99 |
WASHER; PL
ID=10.5 OD=26
|
9-09164-710-0 |
03 |
1 |
9910-0003 |
● |
● |
● |
|
| |
99 |
WASHER; PL
ID=10.5 OD=26
|
9-09164-710-0 |
03 |
1 |
0004- |
● |
● |
● |
● |
| |
100 |
RUBBER; MTG
|
1-09337-017-0 |
06 |
1 |
9902-9904 |
● |
|
|
|
| |
100 |
RUBBER; MTG
|
1-09337-017-0 |
06 |
1 |
9905-9909 |
● |
● |
|
|
| |
100 |
RUBBER; MTG
|
1-09337-017-0 |
06 |
1 |
9910-0003 |
● |
● |
● |
|
| |
100 |
RUBBER; MTG
|
1-09337-017-0 |
06 |
1 |
0004- |
● |
● |
● |
● |
| |
107 |
BOLT; BRKT TO STAY
M14X25 FLANGE
|
0-28981-425-0 |
02 |
1 |
9902-9904 |
● |
|
|
|
| |
107 |
BOLT; BRKT TO STAY
M14X25 FLANGE
|
0-28981-425-0 |
02 |
1 |
9905-9909 |
● |
● |
|
|
| |
107 |
BOLT; BRKT TO STAY
M14X25 FLANGE
|
0-28981-425-0 |
02 |
1 |
9910-0003 |
● |
● |
● |
|
| |
107 |
BOLT; BRKT TO STAY
M14X25 FLANGE
|
0-28981-425-0 |
02 |
1 |
0004- |
● |
● |
● |
● |
| |
115 |
BRACKET; FAN GUIDE
(A)
|
1-21559-353-0 |
01 |
1 |
9902-9904 |
● |
|
|
|
| |
115 |
BRACKET; FAN GUIDE
(A)
|
1-21559-353-0 |
01 |
1 |
9905-9909 |
● |
● |
|
|
| |
115 |
BRACKET; FAN GUIDE
(A)
|
1-21559-353-0 |
01 |
1 |
9910-0003 |
● |
● |
● |
|
| |
115 |
BRACKET; FAN GUIDE
(A)
|
1-21559-353-0 |
01 |
1 |
0004- |
● |
● |
● |
● |
| |
115 |
BRACKET; FAN GUIDE
(B)
|
1-21559-354-0 |
01 |
1 |
9902-9904 |
● |
|
|
|
| |
115 |
BRACKET; FAN GUIDE
(B)
|
1-21559-354-0 |
01 |
1 |
9905-9909 |
● |
● |
|
|
| |
115 |
BRACKET; FAN GUIDE
(B)
|
1-21559-354-0 |
01 |
1 |
9910-0003 |
● |
● |
● |
|
| |
115 |
BRACKET; FAN GUIDE
(B)
|
1-21559-354-0 |
01 |
1 |
0004- |
● |
● |
● |
● |
| |
242 |
BRACKET; RAD
BRAZIL EQUIPMENT(TKK)
EXC. ELECTRONIC GOV RED3(KG5)
(B)
|
1-21464-515-0 |
01 |
1 |
9905-0005 |
● |
|
|
|
| |
242 |
BRACKET; RAD
(B)
|
1-21464-515-0 |
01 |
1 |
9905-0005 |
|
● |
|
|
| |
242 |
BRACKET; RAD
CAB UP +110MM<TGG>
BRAZIL EQUIPMENT(TKK)
(B)
|
1-21464-515-0 |
01 |
1 |
0006- |
● |
|
|
|
| |
242 |
BRACKET; RAD
(B)
|
1-21464-515-0 |
01 |
1 |
0006- |
|
● |
|
|
| |
242 |
BRACKET; RAD
BRAZIL EQUIPMENT(TKK)
EXC. ELECTRONIC GOV RED3(KG5)
(B)
|
1-21464-516-0 |
01 |
1 |
9905-0005 |
● |
|
|
|
| |
242 |
BRACKET; RAD
(B)
|
1-21464-516-0 |
01 |
1 |
9905-0005 |
|
● |
|
|
| |
242 |
BRACKET; RAD
CAB UP +110MM<TGG>
BRAZIL EQUIPMENT(TKK)
(B)
|
1-21464-516-0 |
01 |
1 |
0006- |
● |
|
|
|
| |
242 |
BRACKET; RAD
(B)
|
1-21464-516-0 |
01 |
1 |
0006- |
|
● |
|
|
| |
242 |
BRACKET; RAD
ELECTRONIC GOV RED3(KG5)
INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR<Q3T>
(A)
|
1-21464-461-1 |
02 |
1 |
9902-9904 |
● |
|
|
|
| |
242 |
BRACKET; RAD
ELECTRONIC GOV RED3(KG5)
INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR<Q3T>
(A)
|
1-21464-461-1 |
02 |
1 |
9905-0005 |
● |
|
|
|
| |
242 |
BRACKET; RAD
RADIATOR HEAVY DUTY<V05>
EXC. ELECTRONIC GOV RED3(KG5)
(A)
|
1-21464-461-1 |
02 |
1 |
9905-0005 |
● |
|
|
|
| |
242 |
BRACKET; RAD
CAB UP +110MM<TGG>
EXC. BRAZIL EQUIPMENT(TKK),RADIATOR HEAVY
DUTY<V05>
(A)
|
1-21464-461-1 |
02 |
1 |
0006- |
● |
|
|
|
| |
242 |
BRACKET; RAD
CAB UP +110MM<TGG>
RADIATOR HEAVY DUTY<V05>
(A)
|
1-21464-461-1 |
02 |
1 |
0006- |
● |
|
|
|
| |
242 |
BRACKET; RAD
(B)
|
1-21464-661-0 |
01 |
1 |
9910-0003 |
|
|
● |
|
| |
242 |
BRACKET; RAD
(B)
|
1-21464-661-0 |
01 |
1 |
0004- |
|
|
● |
● |
| |
242 |
BRACKET; RAD
(A)
|
1-21464-662-0 |
01 |
1 |
9910-0003 |
|
|
● |
|
| |
242 |
BRACKET; RAD
(A)
|
1-21464-662-0 |
01 |
1 |
0004- |
|
|
● |
● |
| |
249 |
BOLT; STAY,RAD MBR
M8X30
|
1-09009-020-1 |
04 |
1 |
9902-0003 |
● |
● |
● |
|
| |
249 |
BOLT; STAY,RAD MBR
M8X30
|
1-09009-020-1 |
04 |
1 |
0004- |
● |
● |
● |
● |
| |
483 |
BRACKET; SEAL
ELECTRONIC GOV RED3(KG5)
INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR<Q3T>
|
1-21460-092-1 |
01 |
1 |
9902-0005 |
● |
|
|
|
| |
483 |
BRACKET; SEAL
CAB UP +110MM<TGG>
EXC. BRAZIL EQUIPMENT(TKK),RADIATOR HEAVY
DUTY<V05>
|
1-21460-092-1 |
01 |
1 |
0006- |
● |
|
|
|
| |
483 |
BRACKET; SEAL
|
1-21460-091-1 |
01 |
1 |
0004- |
|
|
|
● |
