Sayfa 6-75 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51240 - NNR/NPR EU-RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶

6-75 — MAT AND CARPET (#76355) — 54 parça

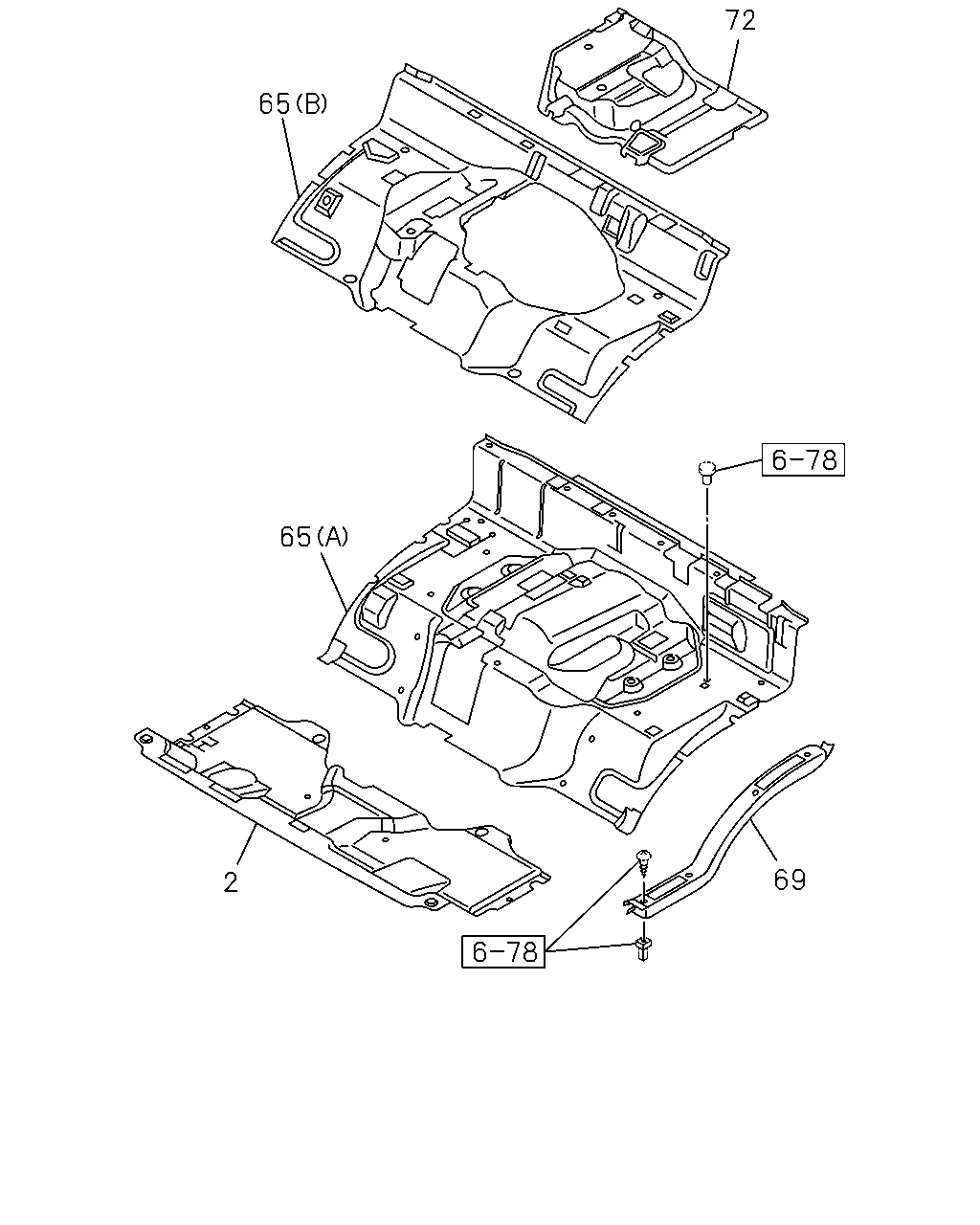

72 65 65 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY	8-97405-148-6	01	1	0905-0906	●	●
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY	8-97405-148-6	01	1	0907-	●	●	●
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY	8-97405-147-6	01	1	0905-0906	●	●
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY	8-97405-147-6	01	1	0907-	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97415-681-1	01	1	0905-0906	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97415-681-1	01	1	0907-1303	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-122-1	01	1	1304-	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97405-200-6	01	1	0905-0906	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97405-200-6	01	1	0907-1303	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97425-110-1	01	1	1304-	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-6	01	1	0905-0906	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-6	01	1	0907-1303	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-119-1	01	1	1304-	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-97405-201-5	01	1	0905-1303		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-97425-111-1	01	1	1304-		●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0905-0906	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0907-	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0905-0906	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0907-	●	●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	0905-0906	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97406-252-3	01	1	0905-0906		●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	0907-	●		●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97406-252-3	01	1	0907-		●

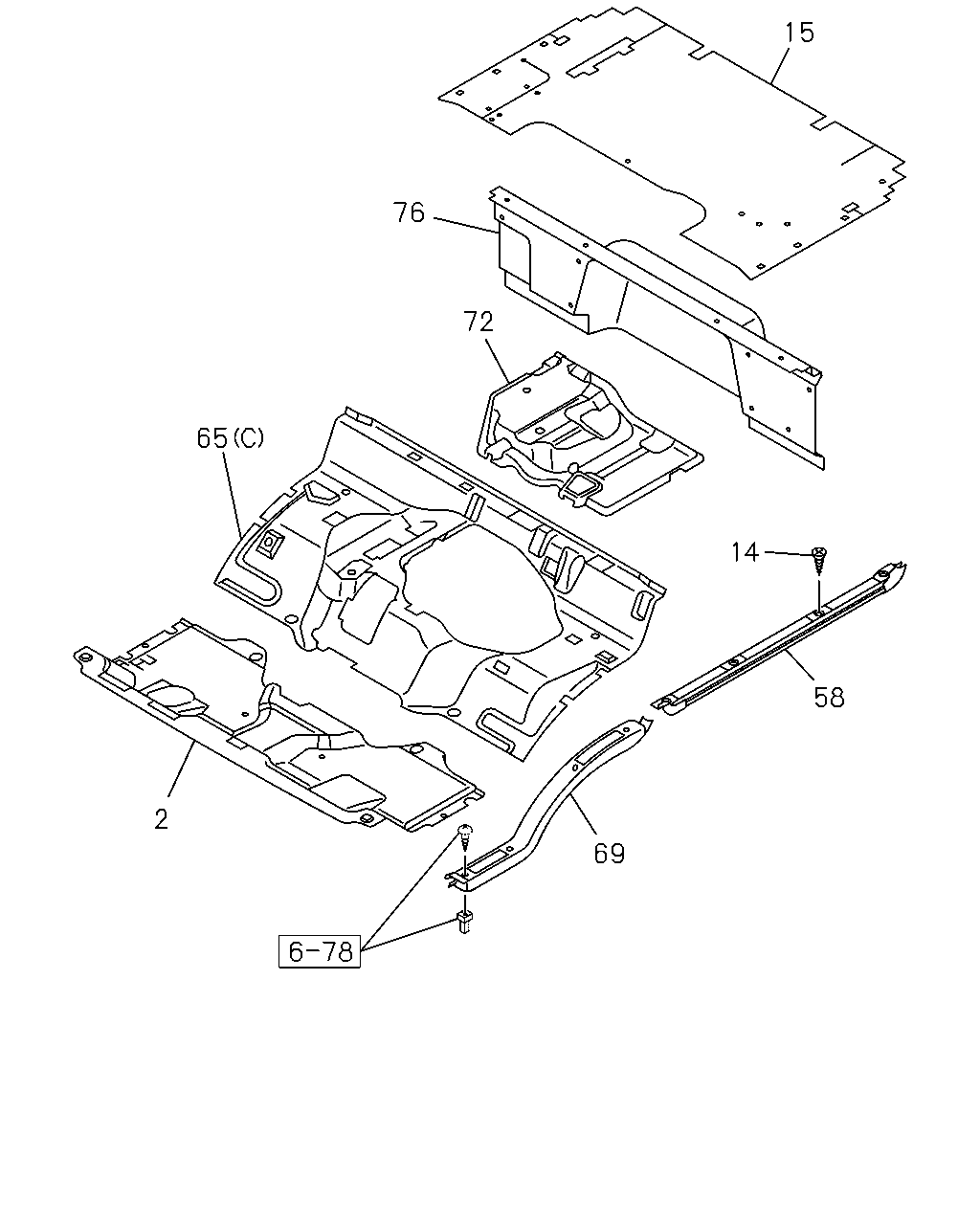

15 76 72 65 14 58 2 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY	8-97405-148-6	01	1	0905-0906	●	●
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY	8-97405-148-6	01	1	0907-	●	●	●
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY	8-97405-147-6	01	1	0905-0906	●	●
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY	8-97405-147-6	01	1	0907-	●	●	●
14	16.870 SCREW; PLATE 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	1004-		●
14	16.870 SCREW; PLATE 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	0905-0910		●
15	16.800 MAT; FLOOR REAR 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY	8-97412-603-2	01	1	0907-		●
15	16.800 MAT; FLOOR REAR 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY	8-97412-601-2	01	1	0907-		●
15	16.800 MAT; FLOOR REAR 4HK1-TCS ENG(RJS) GRAY	8-97412-602-1	01	1	0905-		●
58	08.153 PLATE; GUARD,RR FLOOR MAT GRAY	8-97405-981-1	02	1	0905-		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97415-681-1	01	1	0905-0906	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97415-681-1	01	1	0907-1303	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-122-1	01	1	1304-	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97405-200-6	01	1	0905-0906	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97405-200-6	01	1	0907-1303	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97425-110-1	01	1	1304-	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-6	01	1	0905-0906	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-6	01	1	0907-1303	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-119-1	01	1	1304-	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-97405-201-5	01	1	0905-1303		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-97425-111-1	01	1	1304-		●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0905-0906	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0907-	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0905-0906	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0907-	●	●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	0905-0906	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97406-252-3	01	1	0905-0906		●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	0907-	●		●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97406-252-3	01	1	0907-		●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG 4JJ1-TCS ENG(LFB) GRAY	8-97405-204-4	01	1	0907-		●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG 4HK1-TCS ENG(RJS) GRAY	8-97412-600-1	01	1	0905-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
