Sayfa 6-70 - Isuzu EPC

6-70 — FLOOR PANEL (#76354) — 352 parça

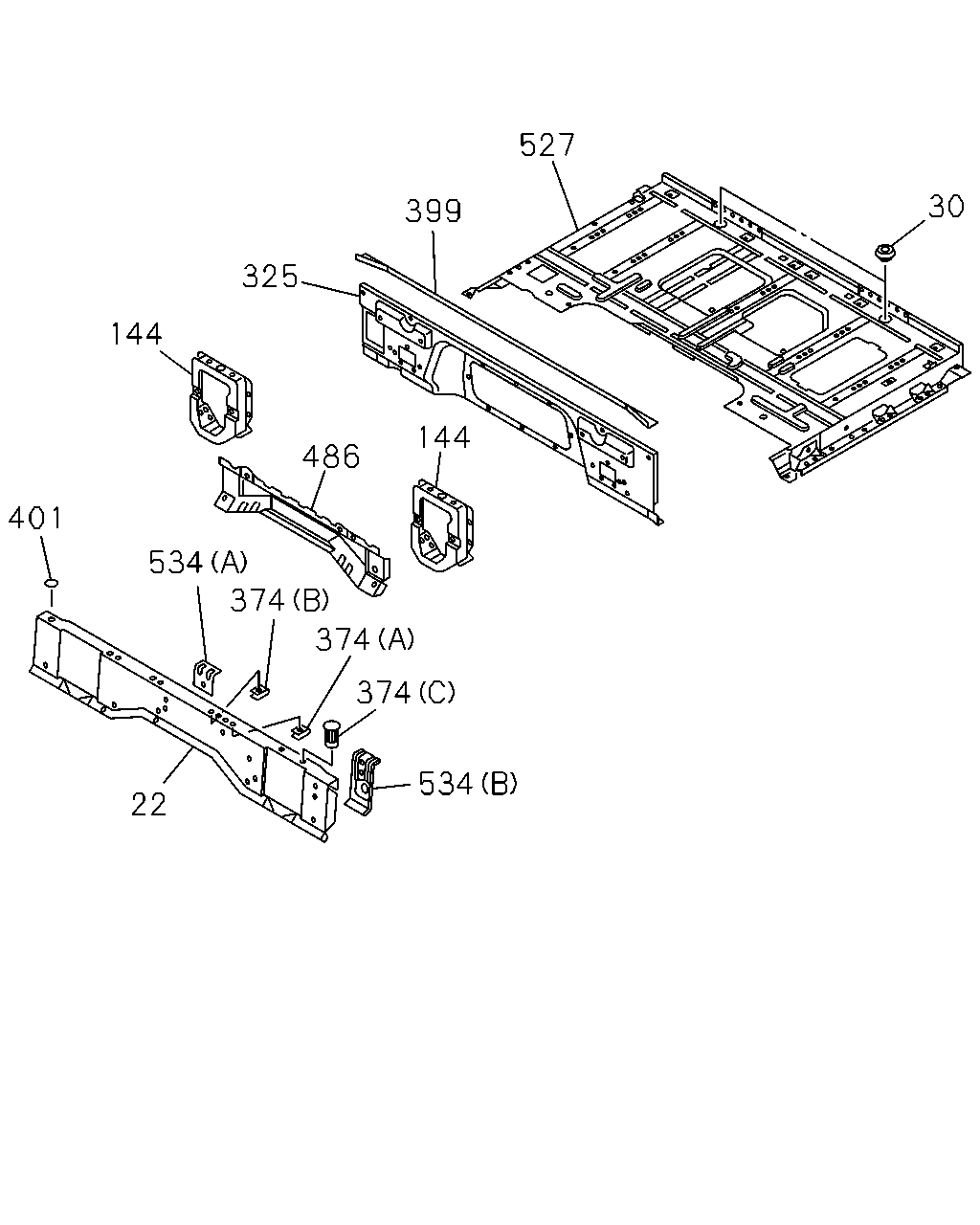

527 30 399 325 144 144 486 401 534 374 374 374 534 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	16.545 FRAME; FLOOR REAR INSPECTION ENGINE COVER<8GA>	8-97587-394-3	01	1	0905-0906	●
22	16.545 FRAME; FLOOR REAR 4HK1-TCS ENG(RJS)	8-97587-394-3	01	1	0905-0906		●
22	16.545 FRAME; FLOOR REAR INSPECTION ENGINE COVER<8GA>	8-97587-394-4	01	1	0907-	●		●
22	16.545 FRAME; FLOOR REAR	8-97587-394-4	01	1	0907-		●
22	16.545 FRAME; FLOOR REAR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-848-4	01	1	0905-0906	●
22	16.545 FRAME; FLOOR REAR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-848-4	01	1	0907-1008	●		●
22	16.545 FRAME; FLOOR REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-848-4	01	1	1009-	●		●
30	16.547 GROMMET; CAB MTG RAIL OD=74	8-94279-731-0	02	1	0905-		●
144	16.545 BRACKET; MTG,RR EXC. INSPECTION ENGINE COVER<8GA>	8-97589-544-1	02	1	0905-0906	●
144	16.545 BRACKET; MTG,RR MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA>	8-97589-544-1	02	1	0905-0906	●
144	16.545 BRACKET; MTG,RR EXC. INSPECTION ENGINE COVER<8GA>	8-97589-544-1	02	1	0907-1008	●		●
144	16.545 BRACKET; MTG,RR MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA>	8-97589-544-1	02	1	0907-1008	●		●
144	16.545 BRACKET; MTG,RR MANUAL TILT CAB<RWZ>	8-97589-544-3	02	1	1009-	●		●
144	16.545 BRACKET; MTG,RR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98112-244-0	02	1	0905-0906	●
144	16.545 BRACKET; MTG,RR 4HK1-TCS ENG(RJS)	8-98112-244-0	02	1	0905-0906		●
144	16.545 BRACKET; MTG,RR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98112-244-2	02	1	0907-	●		●
144	16.545 BRACKET; MTG,RR	8-98112-244-2	02	1	0907-		●
325	16.545 REINFORCEMENT ASM; RR MTG 4JJ1-TCS ENG(LFB)	8-98014-024-2	01	1	0907-		●
325	16.545 REINFORCEMENT ASM; RR MTG 4HK1-TCS ENG(RJS)	8-98006-699-3	01	1	0905-		●
374	16.545 NUT; FLOOR INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	04	1	0905-0906	●
374	16.545 NUT; FLOOR 4HK1-TCS ENG(RJS) (A) M8	1-09984-111-0	04	1	0905-0906		●
374	16.545 NUT; FLOOR INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	04	1	0907-	●		●
374	16.545 NUT; FLOOR (A) M8	1-09984-111-0	04	1	0907-		●
374	16.545 NUT; FLOOR (B) M6	1-09984-110-0	02	1	0905-0906	●
374	16.545 NUT; FLOOR 4HK1-TCS ENG(RJS) (B) M6	1-09984-110-0	02	1	0905-0906		●
374	16.545 NUT; FLOOR (B) M6	1-09984-110-0	02	1	0907-1008	●	●	●
374	16.545 NUT; FLOOR (B) M6	1-09984-110-0	02	1	1009-	●	●	●
374	16.545 NUT; FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	0905-0906	●
374	16.545 NUT; FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	0907-1008	●		●
374	16.545 NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	1009-	●		●
374	16.545 NUT; FLOOR 4HK1-TCS ENG(RJS) 09.786 (C) M6 POP NUT	8-98013-752-0	01	1	0905-0906		●
374	16.545 NUT; FLOOR 09.786 (C) M6 POP NUT	8-98013-752-0	01	1	0907-		●
374	16.545 NUT; FLOOR (D) M8	9-09114-068-0	04	1	0902-	●	●
399	16.545 PANEL; EXTENSION,RR MTG RAIL 4HK1-TCS ENG(RJS)	8-97587-702-1	01	1	0905-0906		●
399	16.545 PANEL; EXTENSION,RR MTG RAIL	8-97587-702-1	01	1	0907-		●
401	16.545 GROMMET; HOLE OD=24.5 T=7.5	8-97224-683-0	01	1	0905-0906	●	●
401	16.545 GROMMET; HOLE OD=24.5 T=7.5	8-97224-683-0	01	1	0907-	●	●	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR INSPECTION ENGINE COVER<8GA>	8-98030-614-2	01	1	0905-0906	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR 4HK1-TCS ENG(RJS)	8-98030-614-2	01	1	0905-0906		●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR INSPECTION ENGINE COVER<8GA>	8-98030-614-2	01	1	0907-	●		●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR	8-98030-614-2	01	1	0907-		●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR EXC. INSPECTION ENGINE COVER<8GA>	8-98030-613-2	01	1	0905-0906	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR EXC. INSPECTION ENGINE COVER<8GA>	8-98030-613-2	01	1	0907-1008	●		●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98030-613-2	01	1	1009-	●		●
527	16.545 FLOOR; RR 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98030-050-4	01	1	0907-		●
527	16.545 FLOOR; RR 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98030-049-4	01	1	0907-		●
527	16.545 FLOOR; RR 4HK1-TCS ENG(RJS)	8-98081-184-3	01	1	0905-		●
534	16.545 REINFORCEMENT; SEAT BACK (B)	8-97583-851-2	01	1	0905-0906	●
534	16.545 REINFORCEMENT; SEAT BACK 4HK1-TCS ENG(RJS) (B)	8-97583-851-2	01	1	0905-0906		●
534	16.545 REINFORCEMENT; SEAT BACK (B)	8-97583-851-2	01	1	0907-1008	●	●	●
534	16.545 REINFORCEMENT; SEAT BACK (B)	8-97583-851-3	01	1	1009-	●	●	●
534	16.545 REINFORCEMENT; SEAT BACK (A)	8-98019-181-2	01	1	0905-0906	●
534	16.545 REINFORCEMENT; SEAT BACK 4HK1-TCS ENG(RJS) (A)	8-98019-181-2	01	1	0905-0906		●
534	16.545 REINFORCEMENT; SEAT BACK (A)	8-98019-181-2	01	1	0907-1008	●	●	●
534	16.545 REINFORCEMENT; SEAT BACK (A)	8-98019-181-2	01	1	1009-	●	●	●

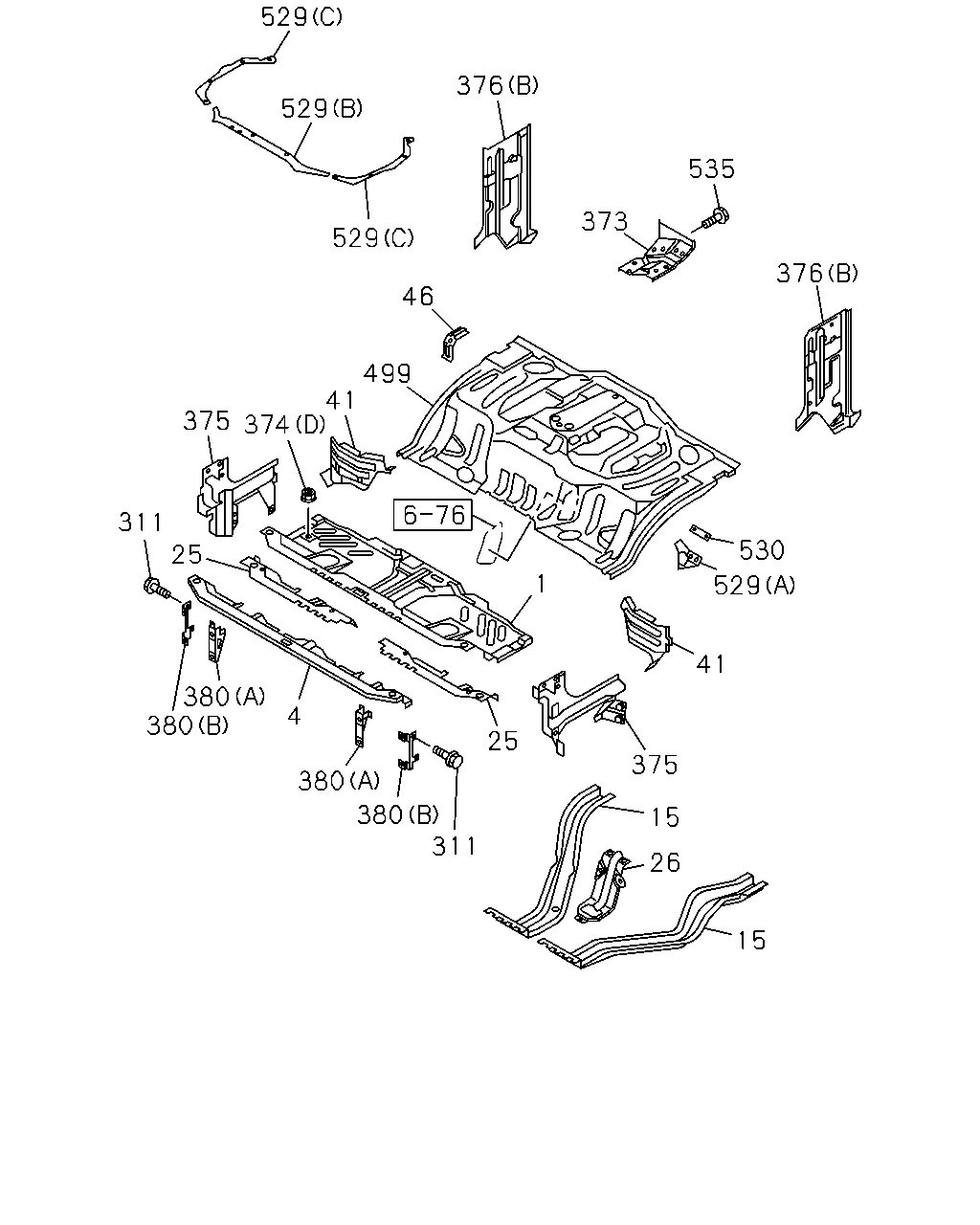

529 376 529 535 373 529 376 46 499 41 374 375 311 530 25 1 529 41 380 380 4 25 375 380 380 311 15 26 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.545 PANEL; FLOOR	8-98112-870-0	01	1	0905-0906	●
1	16.545 PANEL; FLOOR 4HK1-TCS ENG(RJS)	8-98112-870-0	01	1	0905-0906		●
1	16.545 PANEL; FLOOR	8-98112-870-0	01	1	0907-1008	●	●	●
1	16.545 PANEL; FLOOR	8-98112-870-0	01	1	1009-	●	●	●
4	16.545 FRAME; FLOOR,FRT	8-98107-595-0	01	1	0905-0906	●
4	16.545 FRAME; FLOOR,FRT 4HK1-TCS ENG(RJS)	8-98107-595-0	01	1	0905-0906		●
4	16.545 FRAME; FLOOR,FRT	8-98107-595-0	01	1	0907-1008	●	●	●
4	16.545 FRAME; FLOOR,FRT	8-98107-595-0	01	1	1009-	●	●	●
15	16.545 FRAME; UNDER	8-98059-497-1	01	1	0905-0906	●
15	16.545 FRAME; UNDER 4HK1-TCS ENG(RJS)	8-98059-497-1	01	1	0905-0906		●
15	16.545 FRAME; UNDER	8-98059-497-1	01	1	0907-1008	●	●	●
15	16.545 FRAME; UNDER	8-98059-497-1	01	1	1009-	●	●	●
15	16.545 FRAME; UNDER	8-98059-498-1	01	1	0905-0906	●
15	16.545 FRAME; UNDER 4HK1-TCS ENG(RJS)	8-98059-498-1	01	1	0905-0906		●
15	16.545 FRAME; UNDER	8-98059-498-1	01	1	0907-1008	●	●	●
15	16.545 FRAME; UNDER	8-98059-498-1	01	1	1009-	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97583-823-0	01	1	0905-0906	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT 4HK1-TCS ENG(RJS)	8-97583-823-0	01	1	0905-0906		●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97583-823-0	01	1	0907-1008	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97583-823-0	01	1	1009-	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-98107-587-0	01	1	0905-0906	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT 4HK1-TCS ENG(RJS)	8-98107-587-0	01	1	0905-0906		●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-98107-587-0	01	1	0907-1008	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-98107-587-0	01	1	1009-	●	●	●
26	16.545 PANEL; GEAR CONT REINF	8-97589-382-1	01	1	0905-0906	●
26	16.545 PANEL; GEAR CONT REINF 4HK1-TCS ENG(RJS)	8-97589-382-1	01	1	0905-0906		●
26	16.545 PANEL; GEAR CONT REINF	8-97589-382-1	01	1	0907-1008	●	●	●
26	16.545 PANEL; GEAR CONT REINF	8-97589-382-1	01	1	1009-	●	●	●
41	16.545 SUPPORT; STEP,RR	8-97583-880-1	01	1	0905-0906	●
41	16.545 SUPPORT; STEP,RR 4HK1-TCS ENG(RJS)	8-97583-880-1	01	1	0905-0906		●
41	16.545 SUPPORT; STEP,RR	8-97583-880-1	01	1	0907-1008	●	●	●
41	16.545 SUPPORT; STEP,RR	8-97583-880-1	01	1	1009-	●	●	●
41	16.545 SUPPORT; STEP,RR	8-97583-881-1	01	1	0905-0906	●
41	16.545 SUPPORT; STEP,RR 4HK1-TCS ENG(RJS)	8-97583-881-1	01	1	0905-0906		●
41	16.545 SUPPORT; STEP,RR	8-97583-881-1	01	1	0907-1008	●	●	●
41	16.545 SUPPORT; STEP,RR	8-97583-881-1	01	1	1009-	●	●	●
46	16.545 BRACKET; FRT SEAT,RR OUTER	8-97583-834-0	01	1	0905-0906	●
46	16.545 BRACKET; FRT SEAT,RR OUTER 4HK1-TCS ENG(RJS)	8-97583-834-0	01	1	0905-0906		●
46	16.545 BRACKET; FRT SEAT,RR OUTER	8-97583-834-0	01	1	0907-1008	●	●	●
46	16.545 BRACKET; FRT SEAT,RR OUTER	8-97583-834-0	01	1	1009-	●	●	●
311	16.545 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0905-0906	●	●
311	16.545 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0907-	●	●	●
373	16.545 REINFORCEMENT; SEAT BELT EXC. INSPECTION ENGINE COVER<8GA>	8-98014-523-2	01	1	0905-0906	●
373	16.545 REINFORCEMENT; SEAT BELT EXC. INSPECTION ENGINE COVER<8GA>	8-98014-523-2	01	1	0907-1008	●		●
373	16.545 REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-523-2	01	1	1009-	●		●
373	16.545 REINFORCEMENT; SEAT BELT EXC. INSPECTION ENGINE COVER<8GA>	8-98014-524-2	01	1	0905-0906	●
373	16.545 REINFORCEMENT; SEAT BELT EXC. INSPECTION ENGINE COVER<8GA>	8-98014-524-2	01	1	0907-1008	●		●
373	16.545 REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-524-2	01	1	1009-	●		●
373	16.545 REINFORCEMENT; SEAT BELT 4HK1-TCS ENG(RJS)	8-98015-216-2	01	1	0905-0906		●
373	16.545 REINFORCEMENT; SEAT BELT	8-98015-216-2	01	1	0907-		●
374	16.545 NUT; FLOOR INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	04	1	0905-0906	●
374	16.545 NUT; FLOOR 4HK1-TCS ENG(RJS) (A) M8	1-09984-111-0	04	1	0905-0906		●
374	16.545 NUT; FLOOR INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	04	1	0907-	●		●
374	16.545 NUT; FLOOR (A) M8	1-09984-111-0	04	1	0907-		●
374	16.545 NUT; FLOOR (B) M6	1-09984-110-0	02	1	0905-0906	●
374	16.545 NUT; FLOOR 4HK1-TCS ENG(RJS) (B) M6	1-09984-110-0	02	1	0905-0906		●
374	16.545 NUT; FLOOR (B) M6	1-09984-110-0	02	1	0907-1008	●	●	●
374	16.545 NUT; FLOOR (B) M6	1-09984-110-0	02	1	1009-	●	●	●
374	16.545 NUT; FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	0905-0906	●
374	16.545 NUT; FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	0907-1008	●		●
374	16.545 NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	1009-	●		●
374	16.545 NUT; FLOOR 4HK1-TCS ENG(RJS) 09.786 (C) M6 POP NUT	8-98013-752-0	01	1	0905-0906		●
374	16.545 NUT; FLOOR 09.786 (C) M6 POP NUT	8-98013-752-0	01	1	0907-		●
374	16.545 NUT; FLOOR (D) M8	9-09114-068-0	04	1	0902-	●	●
375	16.545 CLOSING; PILLAR	8-97583-882-2	01	1	0905-0906	●
375	16.545 CLOSING; PILLAR 4HK1-TCS ENG(RJS)	8-97583-882-2	01	1	0905-0906		●
375	16.545 CLOSING; PILLAR	8-97583-882-3	01	1	0907-1008	●	●	●
375	16.545 CLOSING; PILLAR	8-97583-882-3	01	1	1009-	●	●	●
375	16.545 CLOSING; PILLAR	8-97583-883-1	01	1	0905-0906	●
375	16.545 CLOSING; PILLAR 4HK1-TCS ENG(RJS)	8-97583-883-1	01	1	0905-0906		●
375	16.545 CLOSING; PILLAR	8-97583-883-2	01	1	0907-1008	●	●	●
375	16.545 CLOSING; PILLAR	8-97583-883-2	01	1	1009-	●	●	●
376	16.545 CLOSING; PILLAR,LWR (A)	8-97583-888-2	01	1	0905-0906	●
376	16.545 CLOSING; PILLAR,LWR (A)	8-97583-888-2	01	1	0907-1008	●		●
376	16.545 CLOSING; PILLAR,LWR (A)	8-97583-888-2	01	1	1009-	●		●
376	16.545 CLOSING; PILLAR,LWR (A)	8-97584-618-2	01	1	0905-0906	●
376	16.545 CLOSING; PILLAR,LWR (A)	8-97584-618-2	01	1	0907-1008	●		●
376	16.545 CLOSING; PILLAR,LWR (A)	8-97584-618-2	01	1	1009-	●		●
376	16.545 CLOSING; PILLAR,LWR 4HK1-TCS ENG(RJS) (B)	8-98024-544-7	01	1	0905-0906		●
376	16.545 CLOSING; PILLAR,LWR (B)	8-98024-544-7	01	1	0907-		●
376	16.545 CLOSING; PILLAR,LWR 4HK1-TCS ENG(RJS) (B)	8-98024-545-6	01	1	0905-0906		●
376	16.545 CLOSING; PILLAR,LWR (B)	8-98024-545-6	01	1	0907-		●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-384-4	01	1	0905-0906	●
380	16.545 BRACKET; HEAD LAMP 4HK1-TCS ENG(RJS) (A)	8-97589-384-4	01	1	0905-0906		●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-384-4	01	1	0907-1008	●	●	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-384-4	01	1	1009-	●	●	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-385-3	01	1	0905-0906	●
380	16.545 BRACKET; HEAD LAMP 4HK1-TCS ENG(RJS) (A)	8-97589-385-3	01	1	0905-0906		●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-385-3	01	1	0907-1008	●	●	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-385-3	01	1	1009-	●	●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	0905-0906	●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	0907-	●	●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	0905-0906	●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	0907-	●	●	●
499	16.545 PANEL; FLOOR,RR INSPECTION ENGINE COVER<8GA>	8-97587-390-4	01	1	0905-0906	●
499	16.545 PANEL; FLOOR,RR 4HK1-TCS ENG(RJS)	8-97587-390-4	01	1	0905-0906		●
499	16.545 PANEL; FLOOR,RR INSPECTION ENGINE COVER<8GA>	8-97587-390-4	01	1	0907-1207	●		●
499	16.545 PANEL; FLOOR,RR	8-97587-390-4	01	1	0907-1207		●
499	16.545 PANEL; FLOOR,RR INSPECTION ENGINE COVER<8GA>	8-98205-116-0	01	1	1208-	●		●
499	16.545 PANEL; FLOOR,RR	8-98205-116-0	01	1	1208-		●
499	16.545 PANEL; FLOOR,RR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-828-5	01	1	0905-0906	●
499	16.545 PANEL; FLOOR,RR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-828-5	01	1	0907-1008	●		●
499	16.545 PANEL; FLOOR,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-828-6	01	1	1009-1207	●		●
499	16.545 PANEL; FLOOR,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98206-873-0	01	1	1208-	●		●
529	16.545 RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (B)	8-97589-249-0	01	1	0905-0906	●
529	16.545 RETAINER; FLOOR PANEL 4HK1-TCS ENG(RJS) (B)	8-97589-249-0	01	1	0905-0906		●
529	16.545 RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (B)	8-97589-249-0	01	1	0907-	●		●
529	16.545 RETAINER; FLOOR PANEL (B)	8-97589-249-0	01	1	0907-		●
529	16.545 RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (C)	8-97589-467-1	01	1	0905-0906	●
529	16.545 RETAINER; FLOOR PANEL 4HK1-TCS ENG(RJS) (C)	8-97589-467-1	01	1	0905-0906		●
529	16.545 RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (C)	8-97589-467-1	01	1	0907-	●		●
529	16.545 RETAINER; FLOOR PANEL (C)	8-97589-467-1	01	1	0907-		●
529	16.545 RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (C)	8-97589-468-1	01	1	0905-0906	●
529	16.545 RETAINER; FLOOR PANEL 4HK1-TCS ENG(RJS) (C)	8-97589-468-1	01	1	0905-0906		●
529	16.545 RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (C)	8-97589-468-1	01	1	0907-	●		●
529	16.545 RETAINER; FLOOR PANEL (C)	8-97589-468-1	01	1	0907-		●
529	16.545 RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A)	8-98030-358-0	01	1	0905-0906	●
529	16.545 RETAINER; FLOOR PANEL 4HK1-TCS ENG(RJS) (A)	8-98030-358-0	01	1	0905-0906		●
529	16.545 RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A)	8-98030-358-0	01	1	0907-	●		●
529	16.545 RETAINER; FLOOR PANEL (A)	8-98030-358-0	01	1	0907-		●
530	16.565 BRACKET; COVER INSPECTION ENGINE COVER<8GA>	8-97589-255-0	01	1	0905-0906	●
530	16.565 BRACKET; COVER 4HK1-TCS ENG(RJS)	8-97589-255-0	01	1	0905-0906		●
530	16.565 BRACKET; COVER INSPECTION ENGINE COVER<8GA>	8-97589-255-0	01	1	0907-	●		●
530	16.565 BRACKET; COVER	8-97589-255-0	01	1	0907-		●
535	16.549 BOLT; REINFORCEMENT 4HK1-TCS ENG(RJS) 01.531 M8X20 FLANGE	0-28650-820-0	05	1	0905-0906		●
535	16.549 BOLT; REINFORCEMENT 01.531 M8X20 FLANGE	0-28650-820-0	05	1	0907-		●

144 144 486 401 534 374 22 374 534 373 376 529 46 373 529 376 499 41 374 375 529 311 528 530 25 1 529 41 380 380 4 25 375 380 380 311 15 26 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.545 PANEL; FLOOR	8-98112-870-0	01	1	0905-0906	●
1	16.545 PANEL; FLOOR 4HK1-TCS ENG(RJS)	8-98112-870-0	01	1	0905-0906		●
1	16.545 PANEL; FLOOR	8-98112-870-0	01	1	0907-1008	●	●	●
1	16.545 PANEL; FLOOR	8-98112-870-0	01	1	1009-	●	●	●
4	16.545 FRAME; FLOOR,FRT	8-98107-595-0	01	1	0905-0906	●
4	16.545 FRAME; FLOOR,FRT 4HK1-TCS ENG(RJS)	8-98107-595-0	01	1	0905-0906		●
4	16.545 FRAME; FLOOR,FRT	8-98107-595-0	01	1	0907-1008	●	●	●
4	16.545 FRAME; FLOOR,FRT	8-98107-595-0	01	1	1009-	●	●	●
15	16.545 FRAME; UNDER	8-98059-497-1	01	1	0905-0906	●
15	16.545 FRAME; UNDER 4HK1-TCS ENG(RJS)	8-98059-497-1	01	1	0905-0906		●
15	16.545 FRAME; UNDER	8-98059-497-1	01	1	0907-1008	●	●	●
15	16.545 FRAME; UNDER	8-98059-497-1	01	1	1009-	●	●	●
15	16.545 FRAME; UNDER	8-98059-498-1	01	1	0905-0906	●
15	16.545 FRAME; UNDER 4HK1-TCS ENG(RJS)	8-98059-498-1	01	1	0905-0906		●
15	16.545 FRAME; UNDER	8-98059-498-1	01	1	0907-1008	●	●	●
15	16.545 FRAME; UNDER	8-98059-498-1	01	1	1009-	●	●	●
22	16.545 FRAME; FLOOR REAR INSPECTION ENGINE COVER<8GA>	8-97587-394-3	01	1	0905-0906	●
22	16.545 FRAME; FLOOR REAR 4HK1-TCS ENG(RJS)	8-97587-394-3	01	1	0905-0906		●
22	16.545 FRAME; FLOOR REAR INSPECTION ENGINE COVER<8GA>	8-97587-394-4	01	1	0907-	●		●
22	16.545 FRAME; FLOOR REAR	8-97587-394-4	01	1	0907-		●
22	16.545 FRAME; FLOOR REAR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-848-4	01	1	0905-0906	●
22	16.545 FRAME; FLOOR REAR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-848-4	01	1	0907-1008	●		●
22	16.545 FRAME; FLOOR REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-848-4	01	1	1009-	●		●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97583-823-0	01	1	0905-0906	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT 4HK1-TCS ENG(RJS)	8-97583-823-0	01	1	0905-0906		●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97583-823-0	01	1	0907-1008	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97583-823-0	01	1	1009-	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-98107-587-0	01	1	0905-0906	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT 4HK1-TCS ENG(RJS)	8-98107-587-0	01	1	0905-0906		●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-98107-587-0	01	1	0907-1008	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-98107-587-0	01	1	1009-	●	●	●
26	16.545 PANEL; GEAR CONT REINF	8-97589-382-1	01	1	0905-0906	●
26	16.545 PANEL; GEAR CONT REINF 4HK1-TCS ENG(RJS)	8-97589-382-1	01	1	0905-0906		●
26	16.545 PANEL; GEAR CONT REINF	8-97589-382-1	01	1	0907-1008	●	●	●
26	16.545 PANEL; GEAR CONT REINF	8-97589-382-1	01	1	1009-	●	●	●
41	16.545 SUPPORT; STEP,RR	8-97583-880-1	01	1	0905-0906	●
41	16.545 SUPPORT; STEP,RR 4HK1-TCS ENG(RJS)	8-97583-880-1	01	1	0905-0906		●
41	16.545 SUPPORT; STEP,RR	8-97583-880-1	01	1	0907-1008	●	●	●
41	16.545 SUPPORT; STEP,RR	8-97583-880-1	01	1	1009-	●	●	●
41	16.545 SUPPORT; STEP,RR	8-97583-881-1	01	1	0905-0906	●
41	16.545 SUPPORT; STEP,RR 4HK1-TCS ENG(RJS)	8-97583-881-1	01	1	0905-0906		●
41	16.545 SUPPORT; STEP,RR	8-97583-881-1	01	1	0907-1008	●	●	●
41	16.545 SUPPORT; STEP,RR	8-97583-881-1	01	1	1009-	●	●	●
46	16.545 BRACKET; FRT SEAT,RR OUTER	8-97583-834-0	01	1	0905-0906	●
46	16.545 BRACKET; FRT SEAT,RR OUTER 4HK1-TCS ENG(RJS)	8-97583-834-0	01	1	0905-0906		●
46	16.545 BRACKET; FRT SEAT,RR OUTER	8-97583-834-0	01	1	0907-1008	●	●	●
46	16.545 BRACKET; FRT SEAT,RR OUTER	8-97583-834-0	01	1	1009-	●	●	●
144	16.545 BRACKET; MTG,RR EXC. INSPECTION ENGINE COVER<8GA>	8-97589-544-1	02	1	0905-0906	●
144	16.545 BRACKET; MTG,RR MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA>	8-97589-544-1	02	1	0905-0906	●
144	16.545 BRACKET; MTG,RR EXC. INSPECTION ENGINE COVER<8GA>	8-97589-544-1	02	1	0907-1008	●		●
144	16.545 BRACKET; MTG,RR MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA>	8-97589-544-1	02	1	0907-1008	●		●
144	16.545 BRACKET; MTG,RR MANUAL TILT CAB<RWZ>	8-97589-544-3	02	1	1009-	●		●
144	16.545 BRACKET; MTG,RR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98112-244-0	02	1	0905-0906	●
144	16.545 BRACKET; MTG,RR 4HK1-TCS ENG(RJS)	8-98112-244-0	02	1	0905-0906		●
144	16.545 BRACKET; MTG,RR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98112-244-2	02	1	0907-	●		●
144	16.545 BRACKET; MTG,RR	8-98112-244-2	02	1	0907-		●
311	16.545 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0905-0906	●	●
311	16.545 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0907-	●	●	●
373	16.545 REINFORCEMENT; SEAT BELT EXC. INSPECTION ENGINE COVER<8GA>	8-98014-523-2	01	1	0905-0906	●
373	16.545 REINFORCEMENT; SEAT BELT EXC. INSPECTION ENGINE COVER<8GA>	8-98014-523-2	01	1	0907-1008	●		●
373	16.545 REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-523-2	01	1	1009-	●		●
373	16.545 REINFORCEMENT; SEAT BELT EXC. INSPECTION ENGINE COVER<8GA>	8-98014-524-2	01	1	0905-0906	●
373	16.545 REINFORCEMENT; SEAT BELT EXC. INSPECTION ENGINE COVER<8GA>	8-98014-524-2	01	1	0907-1008	●		●
373	16.545 REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-524-2	01	1	1009-	●		●
373	16.545 REINFORCEMENT; SEAT BELT 4HK1-TCS ENG(RJS)	8-98015-216-2	01	1	0905-0906		●
373	16.545 REINFORCEMENT; SEAT BELT	8-98015-216-2	01	1	0907-		●
374	16.545 NUT; FLOOR INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	04	1	0905-0906	●
374	16.545 NUT; FLOOR 4HK1-TCS ENG(RJS) (A) M8	1-09984-111-0	04	1	0905-0906		●
374	16.545 NUT; FLOOR INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	04	1	0907-	●		●
374	16.545 NUT; FLOOR (A) M8	1-09984-111-0	04	1	0907-		●
374	16.545 NUT; FLOOR (B) M6	1-09984-110-0	02	1	0905-0906	●
374	16.545 NUT; FLOOR 4HK1-TCS ENG(RJS) (B) M6	1-09984-110-0	02	1	0905-0906		●
374	16.545 NUT; FLOOR (B) M6	1-09984-110-0	02	1	0907-1008	●	●	●
374	16.545 NUT; FLOOR (B) M6	1-09984-110-0	02	1	1009-	●	●	●
374	16.545 NUT; FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	0905-0906	●
374	16.545 NUT; FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	0907-1008	●		●
374	16.545 NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	1009-	●		●
374	16.545 NUT; FLOOR 4HK1-TCS ENG(RJS) 09.786 (C) M6 POP NUT	8-98013-752-0	01	1	0905-0906		●
374	16.545 NUT; FLOOR 09.786 (C) M6 POP NUT	8-98013-752-0	01	1	0907-		●
374	16.545 NUT; FLOOR (D) M8	9-09114-068-0	04	1	0902-	●	●
375	16.545 CLOSING; PILLAR	8-97583-882-2	01	1	0905-0906	●
375	16.545 CLOSING; PILLAR 4HK1-TCS ENG(RJS)	8-97583-882-2	01	1	0905-0906		●
375	16.545 CLOSING; PILLAR	8-97583-882-3	01	1	0907-1008	●	●	●
375	16.545 CLOSING; PILLAR	8-97583-882-3	01	1	1009-	●	●	●
375	16.545 CLOSING; PILLAR	8-97583-883-1	01	1	0905-0906	●
375	16.545 CLOSING; PILLAR 4HK1-TCS ENG(RJS)	8-97583-883-1	01	1	0905-0906		●
375	16.545 CLOSING; PILLAR	8-97583-883-2	01	1	0907-1008	●	●	●
375	16.545 CLOSING; PILLAR	8-97583-883-2	01	1	1009-	●	●	●
376	16.545 CLOSING; PILLAR,LWR (A)	8-97583-888-2	01	1	0905-0906	●
376	16.545 CLOSING; PILLAR,LWR (A)	8-97583-888-2	01	1	0907-1008	●		●
376	16.545 CLOSING; PILLAR,LWR (A)	8-97583-888-2	01	1	1009-	●		●
376	16.545 CLOSING; PILLAR,LWR (A)	8-97584-618-2	01	1	0905-0906	●
376	16.545 CLOSING; PILLAR,LWR (A)	8-97584-618-2	01	1	0907-1008	●		●
376	16.545 CLOSING; PILLAR,LWR (A)	8-97584-618-2	01	1	1009-	●		●
376	16.545 CLOSING; PILLAR,LWR 4HK1-TCS ENG(RJS) (B)	8-98024-544-7	01	1	0905-0906		●
376	16.545 CLOSING; PILLAR,LWR (B)	8-98024-544-7	01	1	0907-		●
376	16.545 CLOSING; PILLAR,LWR 4HK1-TCS ENG(RJS) (B)	8-98024-545-6	01	1	0905-0906		●
376	16.545 CLOSING; PILLAR,LWR (B)	8-98024-545-6	01	1	0907-		●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-384-4	01	1	0905-0906	●
380	16.545 BRACKET; HEAD LAMP 4HK1-TCS ENG(RJS) (A)	8-97589-384-4	01	1	0905-0906		●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-384-4	01	1	0907-1008	●	●	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-384-4	01	1	1009-	●	●	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-385-3	01	1	0905-0906	●
380	16.545 BRACKET; HEAD LAMP 4HK1-TCS ENG(RJS) (A)	8-97589-385-3	01	1	0905-0906		●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-385-3	01	1	0907-1008	●	●	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-385-3	01	1	1009-	●	●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	0905-0906	●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	0907-	●	●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	0905-0906	●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	0907-	●	●	●
401	16.545 GROMMET; HOLE OD=24.5 T=7.5	8-97224-683-0	01	1	0905-0906	●	●
401	16.545 GROMMET; HOLE OD=24.5 T=7.5	8-97224-683-0	01	1	0907-	●	●	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR INSPECTION ENGINE COVER<8GA>	8-98030-614-2	01	1	0905-0906	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR 4HK1-TCS ENG(RJS)	8-98030-614-2	01	1	0905-0906		●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR INSPECTION ENGINE COVER<8GA>	8-98030-614-2	01	1	0907-	●		●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR	8-98030-614-2	01	1	0907-		●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR EXC. INSPECTION ENGINE COVER<8GA>	8-98030-613-2	01	1	0905-0906	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR EXC. INSPECTION ENGINE COVER<8GA>	8-98030-613-2	01	1	0907-1008	●		●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98030-613-2	01	1	1009-	●		●
499	16.545 PANEL; FLOOR,RR INSPECTION ENGINE COVER<8GA>	8-97587-390-4	01	1	0905-0906	●
499	16.545 PANEL; FLOOR,RR 4HK1-TCS ENG(RJS)	8-97587-390-4	01	1	0905-0906		●
499	16.545 PANEL; FLOOR,RR INSPECTION ENGINE COVER<8GA>	8-97587-390-4	01	1	0907-1207	●		●
499	16.545 PANEL; FLOOR,RR	8-97587-390-4	01	1	0907-1207		●
499	16.545 PANEL; FLOOR,RR INSPECTION ENGINE COVER<8GA>	8-98205-116-0	01	1	1208-	●		●
499	16.545 PANEL; FLOOR,RR	8-98205-116-0	01	1	1208-		●
499	16.545 PANEL; FLOOR,RR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-828-5	01	1	0905-0906	●
499	16.545 PANEL; FLOOR,RR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-828-5	01	1	0907-1008	●		●
499	16.545 PANEL; FLOOR,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-828-6	01	1	1009-1207	●		●
499	16.545 PANEL; FLOOR,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98206-873-0	01	1	1208-	●		●
528	16.545 REINFORCEMENT; PARKING BRAKE EXC. INSPECTION ENGINE COVER<8GA>	8-97584-619-4	01	1	0905-0906	●
528	16.545 REINFORCEMENT; PARKING BRAKE EXC. INSPECTION ENGINE COVER<8GA>	8-97584-619-4	01	1	0907-1008	●		●
528	16.545 REINFORCEMENT; PARKING BRAKE MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97584-619-4	01	1	1009-	●		●
529	16.545 RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (B)	8-97589-249-0	01	1	0905-0906	●
529	16.545 RETAINER; FLOOR PANEL 4HK1-TCS ENG(RJS) (B)	8-97589-249-0	01	1	0905-0906		●
529	16.545 RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (B)	8-97589-249-0	01	1	0907-	●		●
529	16.545 RETAINER; FLOOR PANEL (B)	8-97589-249-0	01	1	0907-		●
529	16.545 RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (C)	8-97589-467-1	01	1	0905-0906	●
529	16.545 RETAINER; FLOOR PANEL 4HK1-TCS ENG(RJS) (C)	8-97589-467-1	01	1	0905-0906		●
529	16.545 RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (C)	8-97589-467-1	01	1	0907-	●		●
529	16.545 RETAINER; FLOOR PANEL (C)	8-97589-467-1	01	1	0907-		●
529	16.545 RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (C)	8-97589-468-1	01	1	0905-0906	●
529	16.545 RETAINER; FLOOR PANEL 4HK1-TCS ENG(RJS) (C)	8-97589-468-1	01	1	0905-0906		●
529	16.545 RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (C)	8-97589-468-1	01	1	0907-	●		●
529	16.545 RETAINER; FLOOR PANEL (C)	8-97589-468-1	01	1	0907-		●
529	16.545 RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A)	8-98030-358-0	01	1	0905-0906	●
529	16.545 RETAINER; FLOOR PANEL 4HK1-TCS ENG(RJS) (A)	8-98030-358-0	01	1	0905-0906		●
529	16.545 RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A)	8-98030-358-0	01	1	0907-	●		●
529	16.545 RETAINER; FLOOR PANEL (A)	8-98030-358-0	01	1	0907-		●
530	16.565 BRACKET; COVER INSPECTION ENGINE COVER<8GA>	8-97589-255-0	01	1	0905-0906	●
530	16.565 BRACKET; COVER 4HK1-TCS ENG(RJS)	8-97589-255-0	01	1	0905-0906		●
530	16.565 BRACKET; COVER INSPECTION ENGINE COVER<8GA>	8-97589-255-0	01	1	0907-	●		●
530	16.565 BRACKET; COVER	8-97589-255-0	01	1	0907-		●
534	16.545 REINFORCEMENT; SEAT BACK (B)	8-97583-851-2	01	1	0905-0906	●
534	16.545 REINFORCEMENT; SEAT BACK 4HK1-TCS ENG(RJS) (B)	8-97583-851-2	01	1	0905-0906		●
534	16.545 REINFORCEMENT; SEAT BACK (B)	8-97583-851-2	01	1	0907-1008	●	●	●
534	16.545 REINFORCEMENT; SEAT BACK (B)	8-97583-851-3	01	1	1009-	●	●	●
534	16.545 REINFORCEMENT; SEAT BACK (A)	8-98019-181-2	01	1	0905-0906	●
534	16.545 REINFORCEMENT; SEAT BACK 4HK1-TCS ENG(RJS) (A)	8-98019-181-2	01	1	0905-0906		●
534	16.545 REINFORCEMENT; SEAT BACK (A)	8-98019-181-2	01	1	0907-1008	●	●	●
534	16.545 REINFORCEMENT; SEAT BACK (A)	8-98019-181-2	01	1	1009-	●	●	●

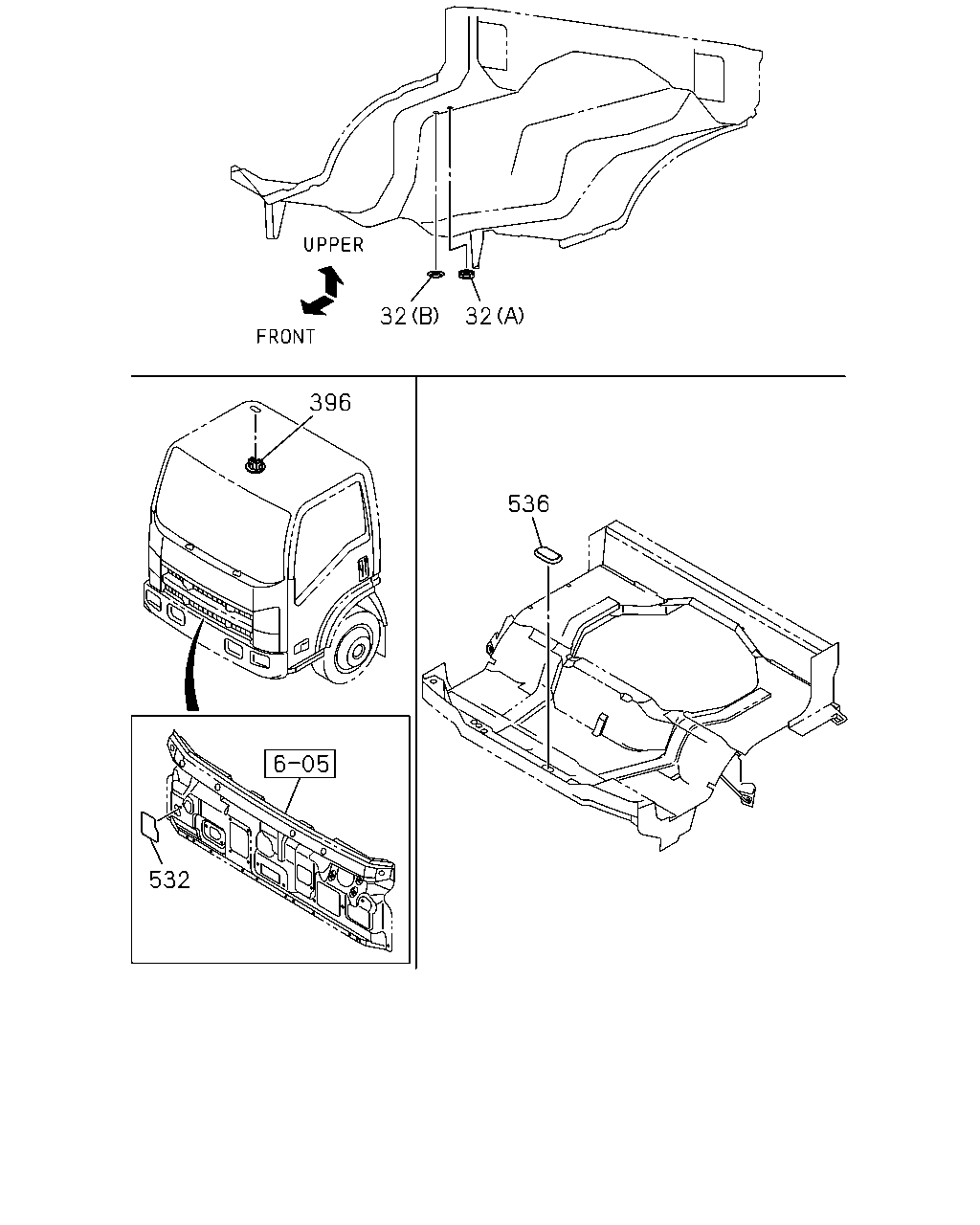

32 32 396 536 532

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	16.547 GROMMET; FLOOR PANEL,LOCATION HO 00.785 (A) OD=16.2	8-94492-493-0	02	1	0905-0906	●	●
32	16.547 GROMMET; FLOOR PANEL,LOCATION HO 00.785 (A) OD=16.2	8-94492-493-0	02	1	0907-0908	●	●	●
32	16.547 GROMMET; FLOOR PANEL,LOCATION HO (A) OD=15.0	8-94279-040-0	02	1	0909-	●	●	●
32	16.547 GROMMET; FLOOR PANEL,LOCATION HO (B) OD=12.1	8-97898-423-0	02	1	0905-0906	●	●
32	16.547 GROMMET; FLOOR PANEL,LOCATION HO (B) OD=12.1	8-97898-423-0	02	1	0907-	●	●	●
396	16.547 GROMMET; LOCATION HOLE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>	8-98054-990-0	02	1	0905-0906	●
396	16.547 GROMMET; LOCATION HOLE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>	8-98054-990-0	02	1	0907-	●		●
532	16.520 SEAL; CABLE EXC. PTO MANUAL CONTROL(6WC)	8-98042-432-1	01	1	0905-0906	●	●
532	16.520 SEAL; CABLE EXC. PTO MANUAL CONTROL(6WC)	8-98042-432-1	01	1	0907-	●	●	●
536	16.549 PLUG; CABLE,PTO 04.008	8-98029-219-1	01	1	0905-0906	●	●
536	16.549 PLUG; CABLE,PTO 04.008	8-98029-219-1	01	1	0907-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
