1-01 — ACCELERATOR PEDAL AND CONTROL (#7635) — 463 parça

42 446 446 42 447

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28680-820-0	01	1	9902-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	04	1	9902-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE M8X20 FLANGE	0-28080-820-0	02	1	0004-				●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	9-09525-035-0	01	1	9902-0003	●	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	9-09525-035-0	01	1	0004-	●	●	●
446	CLIP; ENG CONT (A) ID=11 L=20	9-09525-035-0	01	1	0004-				●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7 L=28	9-09524-655-0	04	1	9902-	●	●	●
446	CLIP; ENG CONT (B) ID=11 H=20 L=20	9-09527-010-0	01	1	0004-0007				●
446	CLIP; ENG CONT (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0008-				●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9902-0003	●	●	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0004-	●	●	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	01	1	0004-				●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	04	1	9902-	●	●	●

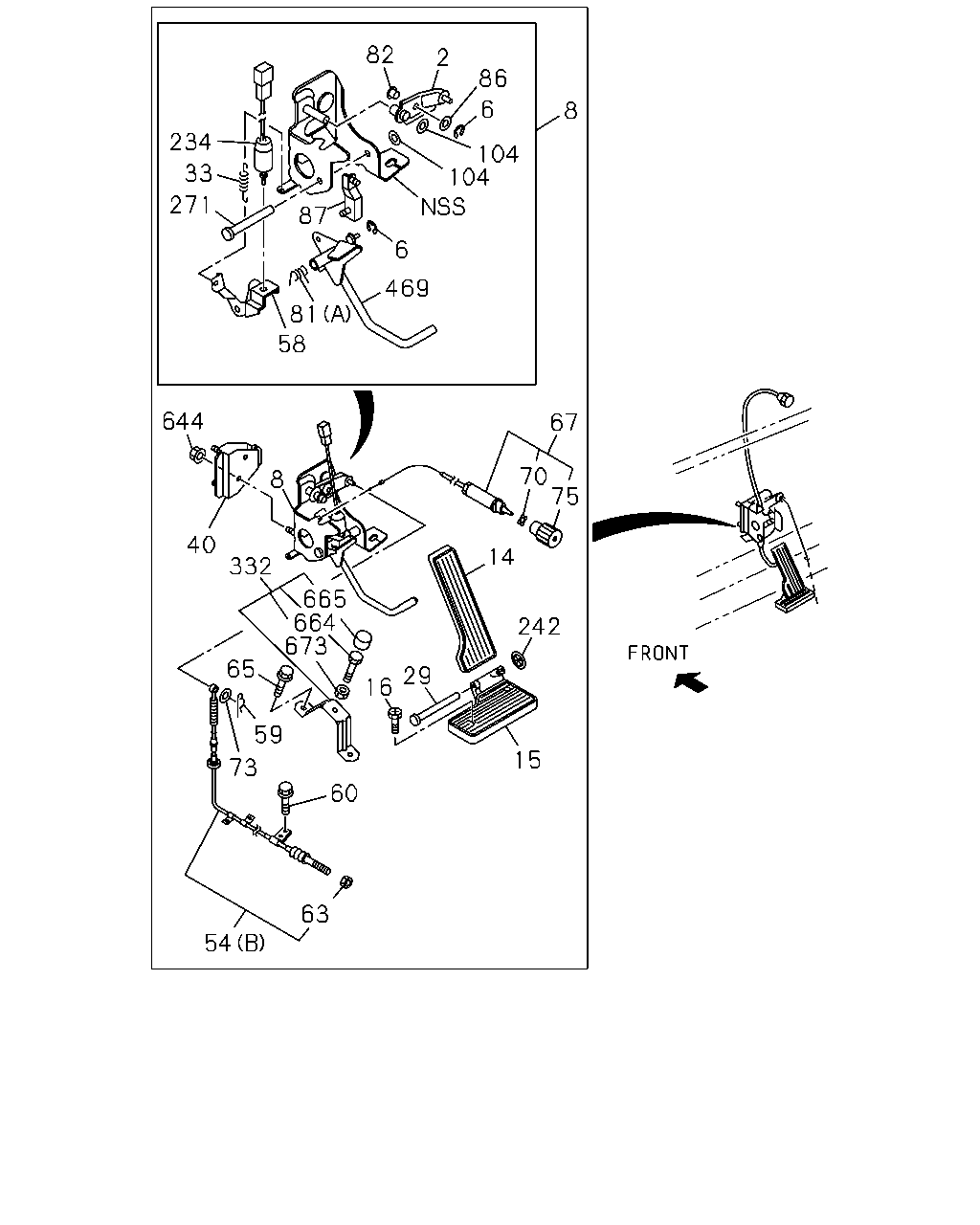

82 2 86 6 8 234 104 104 33 87 271 6 469 81 58 644 67 70 75 8 40 14 332 665 664 673 242 65 29 16 59 15 73 60 63 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-550-1	01	1	9902-0003	●	●	●
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-550-1	01	1	0004-	●	●	●
2	LEVER; ENG CONT	1-71907-550-1	01	1	0004-				●
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-210-2	01	1	9902-	●	●	●
6	RING; SNAP,LINK TO LINK EXC. ELECTRONIC GOV RED3(KG5) ID=4	9-09185-404-0	02	1	9902-	●	●	●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-551-1	01	1	9902-0003	●	●	●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-551-3	01	1	0004-	●	●	●
8	LINK ASM; ENG CONT	1-71907-551-3	01	1	0004-				●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73996-206-6	01	1	9902-	●	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9902-0003	●	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0004-	●	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9902-0003	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	0004-	●	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X20 W/LK&PL WASHER	8-94279-202-0	02	1	9902-9902	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9903-0003	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0004-	●	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9902-0003	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0004-	●	●	●	●
33	SPRING; IDLING CONT LEVER EXC. ELECTRONIC GOV RED3(KG5)	8-94414-815-0	01	1	9902-	●	●	●
40	BRACKET; ENG CONT CABLE	1-71907-269-0	01	1	9902-	●	●	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=1300	1-23230-132-0	01	1	9902-9909	●
54	CABLE; ENG CONT EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=1300	1-23230-132-0	01	1	9910-	●
54	CABLE; ENG CONT CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) (B) L=2160	1-73907-559-0	01	1	9902-9909	●		●
54	CABLE; ENG CONT CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) (B) L=2160	1-73907-559-1	01	1	9910-	●	●	●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	9902-0003	●	●	●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	0004-	●	●	●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	0004-				●
58	LEVER; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-242-1	01	1	9902-	●	●	●
59	PIN; SNAP,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) L=27.7	1-09747-005-0	01	1	9902-	●	●	●
60	BOLT; CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9902-	●	●	●
63	NUT; LOCK,BRKT EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M8	9-09111-408-0	02	1	9902-	●
63	NUT; LOCK,BRKT CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) M8	9-09111-408-0	01	1	9902-9909	●		●
63	NUT; LOCK,BRKT CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) M8	9-09111-408-0	01	1	9910-	●	●	●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9902-0003	●	●	●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0004-	●	●	●	●
67	CABLE ASM; IDLE CONT EXC. ELECTRONIC GOV RED3(KG5) L=399	1-73998-912-3	01	1	9902-	●	●	●
70	NUT; CONT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-73908-045-1	01	1	9902-	●	●	●
73	WASHER; PL,ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=8.4	9-09160-508-0	01	1	9902-	●	●	●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	8-97066-797-1	01	1	9902-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	9902-0003	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0004-	●	●	●	●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	9902-0003	●	●	●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	0004-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (B)	1-71907-268-0	01	1	0004-				●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	9902-0003	●	●	●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	0004-	●	●	●
82	BUSHING; ENG CONT LVR L=31.5	1-53459-627-0	01	1	0004-				●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5)	1-71907-244-1	02	1	9902-	●	●	●
86	WASHER; PL,ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) ID=6.4	9-09160-506-0	02	1	9902-	●	●	●
87	LINK; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-211-1	01	1	9902-	●	●	●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	01	1	9902-0003	●	●	●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	01	1	0004-	●	●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	01	1	0004-				●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	02	1	9902-	●	●	●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-1	01	1	9902-0003	●	●	●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-1	01	1	0004-	●	●	●
234	SWITCH; ACCEL	1-82380-131-1	01	1	0004-				●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5)	1-82380-114-3	01	1	9902-	●	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9902-0003	●	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0004-	●	●	●	●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	9902-0003	●	●	●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	0004-	●	●	●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	0004-				●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) OD=8.0 L=74	1-71907-212-1	01	1	9902-	●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9902-0003	●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0004-	●	●	●	●
469	LEVER ASM EXC. ELECTRONIC GOV RED3(KG5)	1-71907-209-5	01	1	9902-	●	●	●
644	NUT; LINK,ENG CONT M8 FLANGE	0-91150-108-0	02	1	9902-	●	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	9902-0003	●	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0004-	●	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9902-0003	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0004-	●	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9902-0003	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0004-	●	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9902-0003	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0004-	●	●	●	●

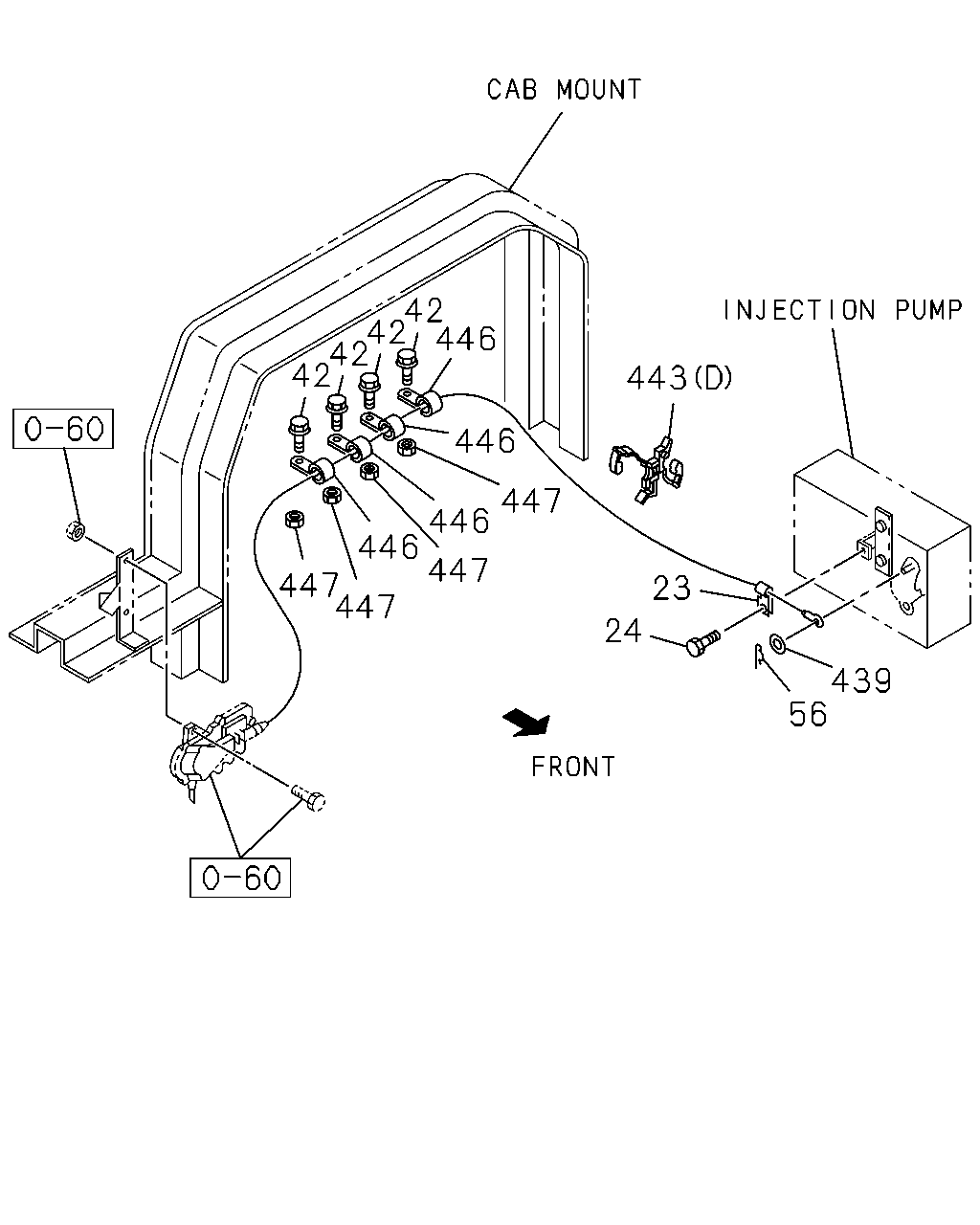

42 42 446 42 42 443 446 447 446 446 447 447 447 23 24 439 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	9902-0003	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	0004-	●	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	0004-				●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-14319-138-0	01	1	9902-	●	●	●
24	BOLT; BRKT EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	01	1	9902-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28680-820-0	01	1	9902-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	04	1	9902-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE M8X20 FLANGE	0-28080-820-0	02	1	0004-				●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9902-0003	●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0004-	●	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9902-0003	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0004-	●	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=11 H=20 L=20	9-09527-010-0	02	1	9902-0007	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (B) ID=9 H=20 L=50	1-09700-084-0	01	1	0008-	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	0008-	●	●	●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (D) ID=6-10 & 6-10	1-09709-192-1	01	1	9902-	●	●	●
443	CLIP; CABLE (E) ID=6 H=20 L=20	1-09700-603-0	01	1	0004-				●
443	CLIP; CABLE (F) ID=7 L=20	9-09524-635-0	02	1	0004-				●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	9-09525-035-0	01	1	9902-0003	●	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	9-09525-035-0	01	1	0004-	●	●	●
446	CLIP; ENG CONT (A) ID=11 L=20	9-09525-035-0	01	1	0004-				●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7 L=28	9-09524-655-0	04	1	9902-	●	●	●
446	CLIP; ENG CONT (B) ID=11 H=20 L=20	9-09527-010-0	01	1	0004-0007				●
446	CLIP; ENG CONT (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0008-				●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9902-0003	●	●	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0004-	●	●	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	01	1	0004-				●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	04	1	9902-	●	●	●

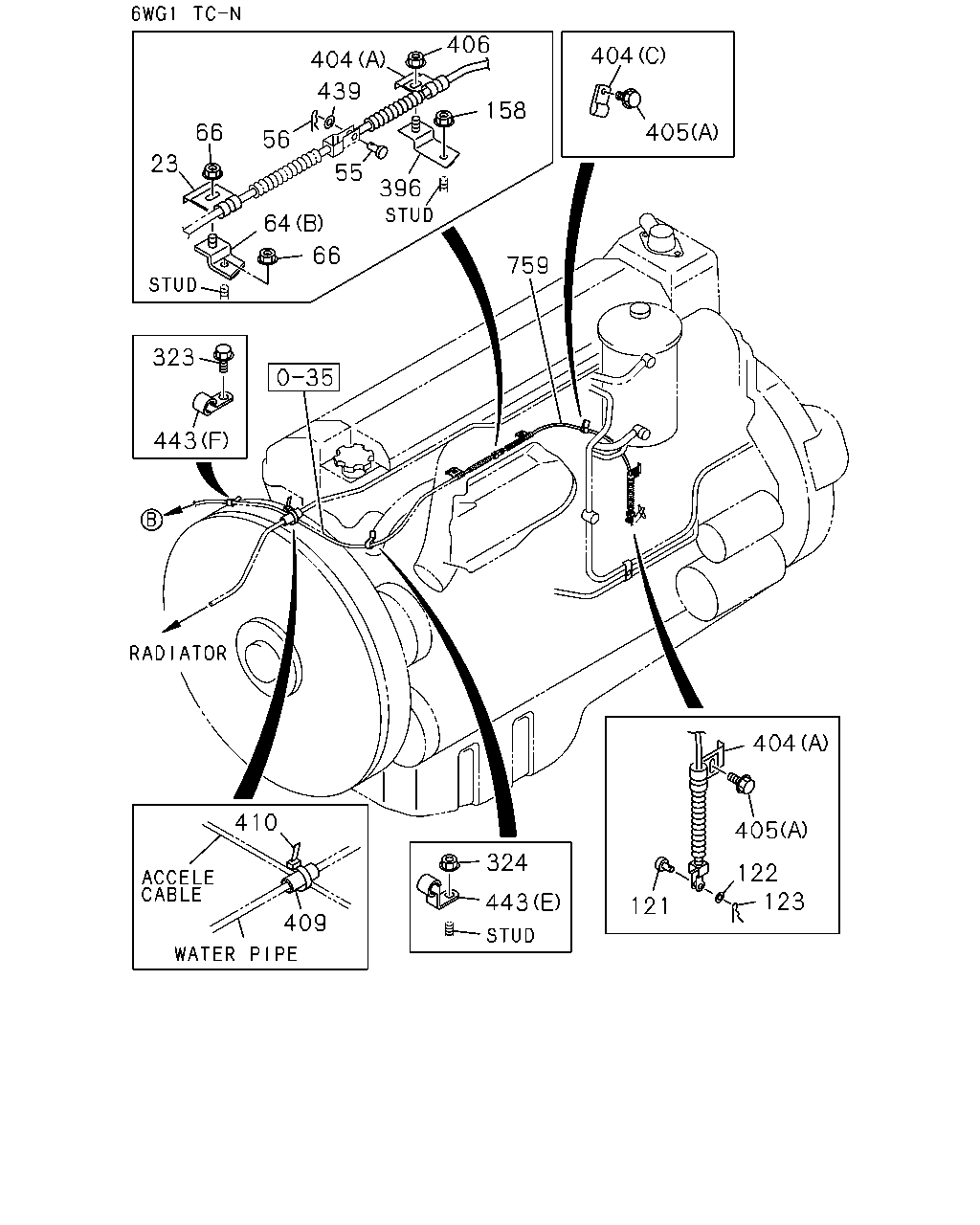

406 405 759 404 56 439 66 23 404 759 396 55 158 66 64 759 324 404 405 443 443 122 123 121 409 410 443 323 42 447 443 446

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	9902-0003	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	0004-	●	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	0004-				●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-14319-138-0	01	1	9902-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28680-820-0	01	1	9902-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	04	1	9902-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE M8X20 FLANGE	0-28080-820-0	02	1	0004-				●
55	PIN; JAW JOINT ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	9902-0003	●	●	●
55	PIN; JAW JOINT ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	0004-	●	●	●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	0004-				●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9902-0003	●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0004-	●	●	●	●
64	BRACKET; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A)	1-23219-105-1	01	1	9902-9909	●
64	BRACKET; ENG CONT CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A)	1-23219-105-1	01	1	9910-	●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	9902-0003	●	●	●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	0004-	●	●	●
64	BRACKET; ENG CONT CABLE (B)	1-47477-804-3	01	1	0004-				●
66	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9902-0003	●	●	●
66	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	0004-	●	●	●
66	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0004-				●
121	PIN; JOINT,CABLE ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	9902-9904	●
121	PIN; JOINT,CABLE ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	9905-9909	●
121	PIN; JOINT,CABLE L=11	1-09744-102-0	01	1	9905-9909			●
121	PIN; JOINT,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=11	1-09744-102-0	01	1	9910-0003	●
121	PIN; JOINT,CABLE L=11	1-09744-102-0	01	1	9910-0003		●	●
121	PIN; JOINT,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=11	1-09744-102-0	01	1	0004-	●
121	PIN; JOINT,CABLE L=11	1-09744-102-0	01	1	0004-		●	●	●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	9902-9904	●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	9905-9909	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	9905-9909			●
122	WASHER; PL,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=5.3	9-09160-505-0	01	1	9910-0003	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	9910-0003		●	●
122	WASHER; PL,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=5.3	9-09160-505-0	01	1	0004-	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0004-		●	●	●
122	WASHER; PL,CABLE EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=8.4	9-09160-508-0	01	1	9902-9909	●
122	WASHER; PL,CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=8.4	9-09160-508-0	01	1	9910-	●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	9902-9904	●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	9905-9909	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	9905-9909			●
123	PIN; SNAP,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=17.9	1-09747-002-0	01	1	9910-0003	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	9910-0003		●	●
123	PIN; SNAP,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=17.9	1-09747-002-0	01	1	0004-	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0004-		●	●	●
123	PIN; SNAP,CABLE EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=27.7	1-09747-005-0	01	1	9902-9909	●
123	PIN; SNAP,CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=27.7	1-09747-005-0	01	1	9910-	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9902-9909	●		●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9910-0003	●	●	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0004-	●	●	●	●
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5) M8X12 FLANGE	0-28080-812-0	01	1	9902-	●	●	●
323	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0004-				●
324	NUT; CLIP FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9902-0003	●	●	●
324	NUT; CLIP FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0004-	●	●	●
324	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0004-				●
396	BRACKET; CLIP	1-47478-055-0	01	1	9902-9904	●
396	BRACKET; CLIP	1-47478-055-0	01	1	9905-9909	●		●
396	BRACKET; CLIP	1-47478-055-0	01	1	9910-0003	●	●	●
396	BRACKET; CLIP	1-47478-055-0	01	1	0004-	●	●	●	●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	9902-	●
404	CLIP; CABLE (C) ID=9 L=40	9-09524-875-0	01	1	9902-9904	●
404	CLIP; CABLE (C) ID=9 L=40	9-09524-875-0	01	1	9905-9909	●		●
404	CLIP; CABLE (C) ID=9 L=40	9-09524-875-0	01	1	9910-0003	●	●	●
404	CLIP; CABLE RLD GOVERNOR(SD7) (C) ID=9 L=40	9-09524-875-0	01	1	0004-	●
404	CLIP; CABLE (C) ID=9 L=40	9-09524-875-0	01	1	0004-		●	●	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=11 L=20	9-09525-035-0	01	1	9902-	●	●	●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	9905-9909			●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	9910-0003		●	●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	0004-		●	●	●
405	BOLT; CABLE CLIP (A) M8X16 FLANGE	0-28080-816-0	02	1	9902-9904	●
405	BOLT; CABLE CLIP (A) M8X16 FLANGE	0-28080-816-0	02	1	9905-9909	●		●
405	BOLT; CABLE CLIP (A) M8X16 FLANGE	0-28080-816-0	02	1	9910-0003	●	●	●
405	BOLT; CABLE CLIP (A) M8X16 FLANGE	0-28080-816-0	02	1	0004-	●	●	●	●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) M6X16 FLANGE	0-28080-616-0	02	1	9902-9909	●
405	BOLT; CABLE CLIP EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) M6X16 FLANGE	0-28080-616-0	02	1	9910-	●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) (B) M8X20 FLANGE	0-28680-820-0	01	1	9902-	●	●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9902-9904	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-9909	●		●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9910-0003	●	●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	0004-	●	●	●	●
409	SLEEVE ELECTRONIC GOV RED3(KG5) ID=6 L=30	5-09360-352-0	01	1	9902-9910	●	●	●
409	SLEEVE ELECTRONIC GOV RED3(KG5) ID=6 OD=10 L=70	1-09376-512-0	01	1	9911-0003	●	●	●
409	SLEEVE ELECTRONIC GOV RED3(KG5) ID=6 OD=10 L=70	1-09376-512-0	01	1	0004-	●	●	●
409	SLEEVE ID=6 OD=10 L=70	1-09376-512-0	01	1	0004-				●
410	CLIP; BAND ELECTRONIC GOV RED3(KG5) L=300	1-09707-001-1	01	1	9902-	●	●	●
410	CLIP; BAND L=140	5-09707-031-1	01	1	0004-				●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9902-0003	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0004-	●	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=11 H=20 L=20	9-09527-010-0	02	1	9902-0007	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (B) ID=9 H=20 L=50	1-09700-084-0	01	1	0008-	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	0008-	●	●	●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (D) ID=6-10 & 6-10	1-09709-192-1	01	1	9902-	●	●	●
443	CLIP; CABLE (E) ID=6 H=20 L=20	1-09700-603-0	01	1	0004-				●
443	CLIP; CABLE (F) ID=7 L=20	9-09524-635-0	02	1	0004-				●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	9-09525-035-0	01	1	9902-0003	●	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	9-09525-035-0	01	1	0004-	●	●	●
446	CLIP; ENG CONT (A) ID=11 L=20	9-09525-035-0	01	1	0004-				●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7 L=28	9-09524-655-0	04	1	9902-	●	●	●
446	CLIP; ENG CONT (B) ID=11 H=20 L=20	9-09527-010-0	01	1	0004-0007				●
446	CLIP; ENG CONT (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0008-				●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9902-0003	●	●	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0004-	●	●	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	01	1	0004-				●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	04	1	9902-	●	●	●
759	WIRE; CONT,FUEL CUT ELECTRONIC GOV RED3(KG5) L=752	1-23230-026-1	01	1	9902-9904	●
759	WIRE; CONT,FUEL CUT ELECTRONIC GOV RED3(KG5) L=752	1-23230-026-1	01	1	9905-9909	●
759	WIRE; CONT,FUEL CUT L=752	1-23230-026-1	01	1	9905-9909			●
759	WIRE; CONT,FUEL CUT GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=752	1-23230-026-1	01	1	9910-0003	●
759	WIRE; CONT,FUEL CUT L=752	1-23230-026-1	01	1	9910-0003		●	●
759	WIRE; CONT,FUEL CUT GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=752	1-23230-026-1	01	1	0004-	●
759	WIRE; CONT,FUEL CUT L=752	1-23230-026-1	01	1	0004-		●	●	●

8 644 14 332 665 664 673 242 16 29 65 8 15 526 527 234 54 843 271 104 81 2 82 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-550-1	01	1	9902-0003	●	●	●
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-550-1	01	1	0004-	●	●	●
2	LEVER; ENG CONT	1-71907-550-1	01	1	0004-				●
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-210-2	01	1	9902-	●	●	●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-551-1	01	1	9902-0003	●	●	●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-551-3	01	1	0004-	●	●	●
8	LINK ASM; ENG CONT	1-71907-551-3	01	1	0004-				●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73996-206-6	01	1	9902-	●	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9902-0003	●	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0004-	●	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9902-0003	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	0004-	●	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X20 W/LK&PL WASHER	8-94279-202-0	02	1	9902-9902	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9903-0003	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0004-	●	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9902-0003	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0004-	●	●	●	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=1300	1-23230-132-0	01	1	9902-9909	●
54	CABLE; ENG CONT EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=1300	1-23230-132-0	01	1	9910-	●
54	CABLE; ENG CONT CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) (B) L=2160	1-73907-559-0	01	1	9902-9909	●		●
54	CABLE; ENG CONT CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) (B) L=2160	1-73907-559-1	01	1	9910-	●	●	●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	9902-0003	●	●	●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	0004-	●	●	●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	0004-				●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9902-0003	●	●	●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0004-	●	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	9902-0003	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0004-	●	●	●	●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	9902-0003	●	●	●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	0004-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (B)	1-71907-268-0	01	1	0004-				●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	9902-0003	●	●	●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	0004-	●	●	●
82	BUSHING; ENG CONT LVR L=31.5	1-53459-627-0	01	1	0004-				●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5)	1-71907-244-1	02	1	9902-	●	●	●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	01	1	9902-0003	●	●	●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	01	1	0004-	●	●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	01	1	0004-				●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	02	1	9902-	●	●	●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-1	01	1	9902-0003	●	●	●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-1	01	1	0004-	●	●	●
234	SWITCH; ACCEL	1-82380-131-1	01	1	0004-				●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5)	1-82380-114-3	01	1	9902-	●	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9902-0003	●	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0004-	●	●	●	●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	9902-0003	●	●	●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	0004-	●	●	●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	0004-				●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) OD=8.0 L=74	1-71907-212-1	01	1	9902-	●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9902-0003	●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0004-	●	●	●	●
526	SENSOR; ACCEL ELECTRONIC GOV RED3(KG5)	1-81534-003-2	01	1	9902-0003	●	●	●
526	SENSOR; ACCEL ELECTRONIC GOV RED3(KG5)	1-81534-003-2	01	1	0004-	●	●	●
526	SENSOR; ACCEL	1-81534-003-2	01	1	0004-				●
527	BOLT; ACCEL SENSOR ELECTRONIC GOV RED3(KG5) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9902-0003	●	●	●
527	BOLT; ACCEL SENSOR ELECTRONIC GOV RED3(KG5) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0004-	●	●	●
527	BOLT; ACCEL SENSOR M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0004-				●
644	NUT; LINK,ENG CONT M8 FLANGE	0-91150-108-0	02	1	9902-	●	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	9902-0003	●	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0004-	●	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9902-0003	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0004-	●	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9902-0003	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0004-	●	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9902-0003	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0004-	●	●	●	●
843	NUT ELECTRONIC GOV RED3(KG5) M12	9-99111-412-0	01	1	9902-0003	●	●	●
843	NUT ELECTRONIC GOV RED3(KG5) M12	9-99111-412-0	01	1	0004-	●	●	●
843	NUT M12	9-99111-412-0	01	1	0004-				●

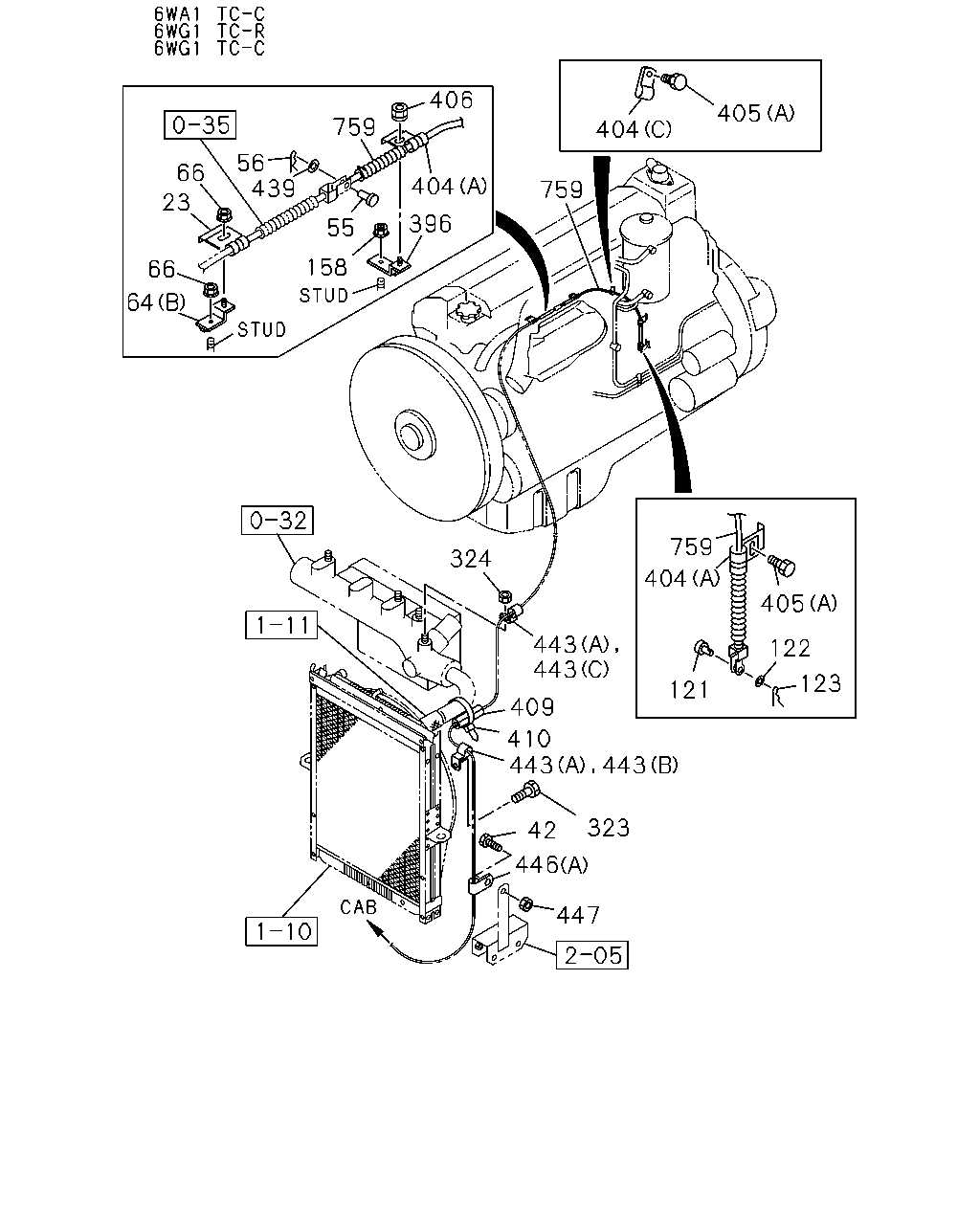

406 404 404 439 158 405 66 56 23 55 396 64 66 759 323 443 404 410 405 324 122 123 409 443 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	9902-0003	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	0004-	●	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	0004-				●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-14319-138-0	01	1	9902-	●	●	●
55	PIN; JAW JOINT ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	9902-0003	●	●	●
55	PIN; JAW JOINT ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	0004-	●	●	●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	0004-				●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9902-0003	●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0004-	●	●	●	●
64	BRACKET; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A)	1-23219-105-1	01	1	9902-9909	●
64	BRACKET; ENG CONT CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A)	1-23219-105-1	01	1	9910-	●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	9902-0003	●	●	●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	0004-	●	●	●
64	BRACKET; ENG CONT CABLE (B)	1-47477-804-3	01	1	0004-				●
66	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9902-0003	●	●	●
66	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	0004-	●	●	●
66	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0004-				●
121	PIN; JOINT,CABLE ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	9902-9904	●
121	PIN; JOINT,CABLE ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	9905-9909	●
121	PIN; JOINT,CABLE L=11	1-09744-102-0	01	1	9905-9909			●
121	PIN; JOINT,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=11	1-09744-102-0	01	1	9910-0003	●
121	PIN; JOINT,CABLE L=11	1-09744-102-0	01	1	9910-0003		●	●
121	PIN; JOINT,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=11	1-09744-102-0	01	1	0004-	●
121	PIN; JOINT,CABLE L=11	1-09744-102-0	01	1	0004-		●	●	●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	9902-9904	●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	9905-9909	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	9905-9909			●
122	WASHER; PL,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=5.3	9-09160-505-0	01	1	9910-0003	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	9910-0003		●	●
122	WASHER; PL,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=5.3	9-09160-505-0	01	1	0004-	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0004-		●	●	●
122	WASHER; PL,CABLE EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=8.4	9-09160-508-0	01	1	9902-9909	●
122	WASHER; PL,CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=8.4	9-09160-508-0	01	1	9910-	●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	9902-9904	●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	9905-9909	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	9905-9909			●
123	PIN; SNAP,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=17.9	1-09747-002-0	01	1	9910-0003	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	9910-0003		●	●
123	PIN; SNAP,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=17.9	1-09747-002-0	01	1	0004-	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0004-		●	●	●
123	PIN; SNAP,CABLE EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=27.7	1-09747-005-0	01	1	9902-9909	●
123	PIN; SNAP,CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=27.7	1-09747-005-0	01	1	9910-	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9902-9909	●		●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9910-0003	●	●	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0004-	●	●	●	●
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5) M8X12 FLANGE	0-28080-812-0	01	1	9902-	●	●	●
323	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0004-				●
324	NUT; CLIP FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9902-0003	●	●	●
324	NUT; CLIP FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0004-	●	●	●
324	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0004-				●
396	BRACKET; CLIP	1-47478-055-0	01	1	9902-9904	●
396	BRACKET; CLIP	1-47478-055-0	01	1	9905-9909	●		●
396	BRACKET; CLIP	1-47478-055-0	01	1	9910-0003	●	●	●
396	BRACKET; CLIP	1-47478-055-0	01	1	0004-	●	●	●	●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	9902-	●
404	CLIP; CABLE (C) ID=9 L=40	9-09524-875-0	01	1	9902-9904	●
404	CLIP; CABLE (C) ID=9 L=40	9-09524-875-0	01	1	9905-9909	●		●
404	CLIP; CABLE (C) ID=9 L=40	9-09524-875-0	01	1	9910-0003	●	●	●
404	CLIP; CABLE RLD GOVERNOR(SD7) (C) ID=9 L=40	9-09524-875-0	01	1	0004-	●
404	CLIP; CABLE (C) ID=9 L=40	9-09524-875-0	01	1	0004-		●	●	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=11 L=20	9-09525-035-0	01	1	9902-	●	●	●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	9905-9909			●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	9910-0003		●	●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	0004-		●	●	●
405	BOLT; CABLE CLIP (A) M8X16 FLANGE	0-28080-816-0	02	1	9902-9904	●
405	BOLT; CABLE CLIP (A) M8X16 FLANGE	0-28080-816-0	02	1	9905-9909	●		●
405	BOLT; CABLE CLIP (A) M8X16 FLANGE	0-28080-816-0	02	1	9910-0003	●	●	●
405	BOLT; CABLE CLIP (A) M8X16 FLANGE	0-28080-816-0	02	1	0004-	●	●	●	●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) M6X16 FLANGE	0-28080-616-0	02	1	9902-9909	●
405	BOLT; CABLE CLIP EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) M6X16 FLANGE	0-28080-616-0	02	1	9910-	●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) (B) M8X20 FLANGE	0-28680-820-0	01	1	9902-	●	●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9902-9904	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-9909	●		●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9910-0003	●	●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	0004-	●	●	●	●
409	SLEEVE ELECTRONIC GOV RED3(KG5) ID=6 L=30	5-09360-352-0	01	1	9902-9910	●	●	●
409	SLEEVE ELECTRONIC GOV RED3(KG5) ID=6 OD=10 L=70	1-09376-512-0	01	1	9911-0003	●	●	●
409	SLEEVE ELECTRONIC GOV RED3(KG5) ID=6 OD=10 L=70	1-09376-512-0	01	1	0004-	●	●	●
409	SLEEVE ID=6 OD=10 L=70	1-09376-512-0	01	1	0004-				●
410	CLIP; BAND ELECTRONIC GOV RED3(KG5) L=300	1-09707-001-1	01	1	9902-	●	●	●
410	CLIP; BAND L=140	5-09707-031-1	01	1	0004-				●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9902-0003	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0004-	●	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=11 H=20 L=20	9-09527-010-0	02	1	9902-0007	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (B) ID=9 H=20 L=50	1-09700-084-0	01	1	0008-	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	0008-	●	●	●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (D) ID=6-10 & 6-10	1-09709-192-1	01	1	9902-	●	●	●
443	CLIP; CABLE (E) ID=6 H=20 L=20	1-09700-603-0	01	1	0004-				●
443	CLIP; CABLE (F) ID=7 L=20	9-09524-635-0	02	1	0004-				●
759	WIRE; CONT,FUEL CUT ELECTRONIC GOV RED3(KG5) L=752	1-23230-026-1	01	1	9902-9904	●
759	WIRE; CONT,FUEL CUT ELECTRONIC GOV RED3(KG5) L=752	1-23230-026-1	01	1	9905-9909	●
759	WIRE; CONT,FUEL CUT L=752	1-23230-026-1	01	1	9905-9909			●
759	WIRE; CONT,FUEL CUT GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=752	1-23230-026-1	01	1	9910-0003	●
759	WIRE; CONT,FUEL CUT L=752	1-23230-026-1	01	1	9910-0003		●	●
759	WIRE; CONT,FUEL CUT GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=752	1-23230-026-1	01	1	0004-	●
759	WIRE; CONT,FUEL CUT L=752	1-23230-026-1	01	1	0004-		●	●	●

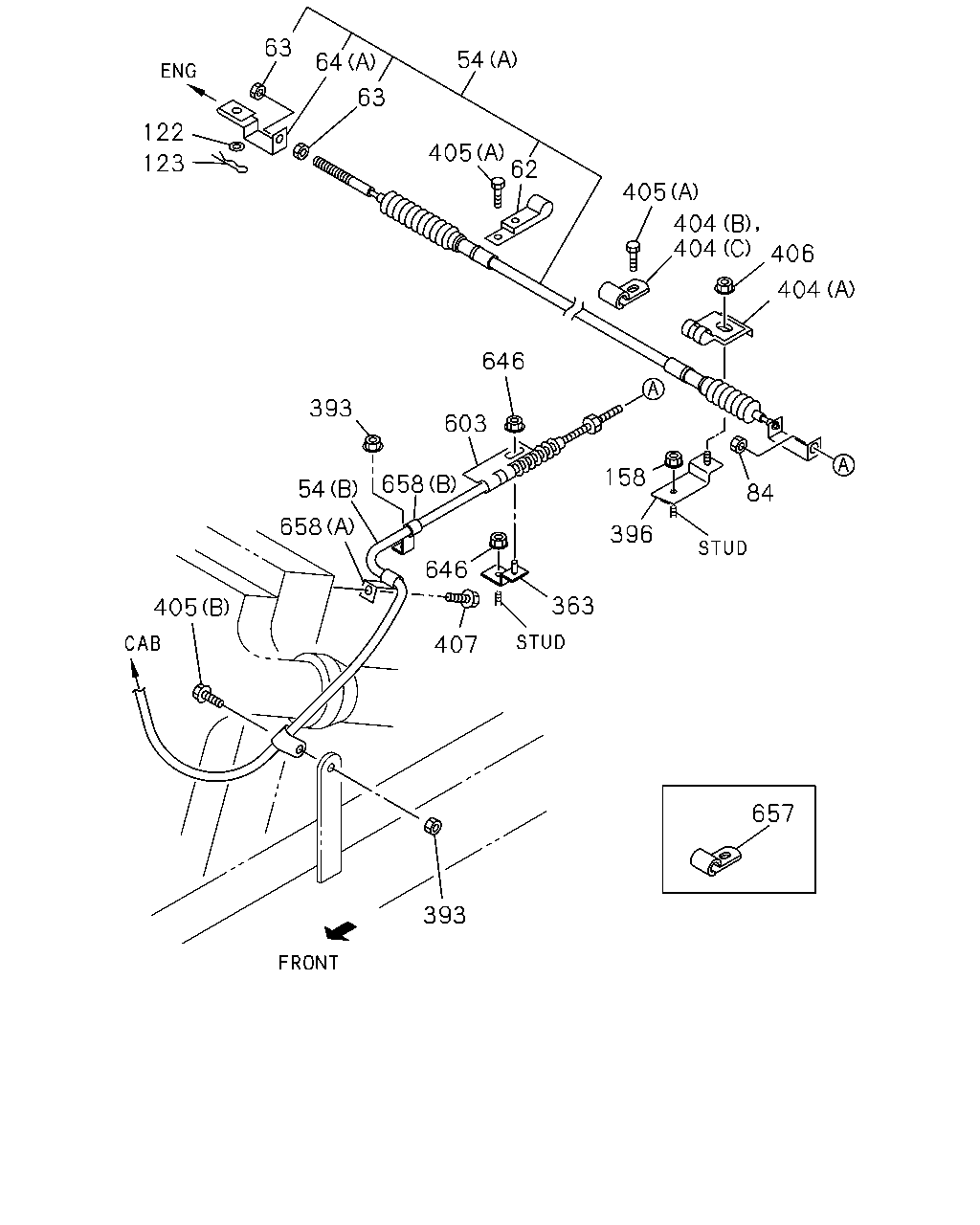

63 54 64 63 122 405 62 123 405 404 404 406 404 646 393 603 158 658 54 84 658 396 646 363 405 407 657 393

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=1300	1-23230-132-0	01	1	9902-9909	●
54	CABLE; ENG CONT EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=1300	1-23230-132-0	01	1	9910-	●
54	CABLE; ENG CONT CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) (B) L=2160	1-73907-559-0	01	1	9902-9909	●		●
54	CABLE; ENG CONT CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) (B) L=2160	1-73907-559-1	01	1	9910-	●	●	●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	9902-0003	●	●	●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	0004-	●	●	●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	0004-				●
62	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=30	1-09700-326-0	01	1	9902-9909	●
62	CLIP; ENG CONT CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=30	1-09700-326-0	01	1	9910-	●
63	NUT; LOCK,BRKT EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M8	9-09111-408-0	02	1	9902-	●
63	NUT; LOCK,BRKT CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) M8	9-09111-408-0	01	1	9902-9909	●		●
63	NUT; LOCK,BRKT CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) M8	9-09111-408-0	01	1	9910-	●	●	●
64	BRACKET; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A)	1-23219-105-1	01	1	9902-9909	●
64	BRACKET; ENG CONT CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A)	1-23219-105-1	01	1	9910-	●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	9902-0003	●	●	●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	0004-	●	●	●
64	BRACKET; ENG CONT CABLE (B)	1-47477-804-3	01	1	0004-				●
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9902-	●	●	●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	9902-9904	●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	9905-9909	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	9905-9909			●
122	WASHER; PL,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=5.3	9-09160-505-0	01	1	9910-0003	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	9910-0003		●	●
122	WASHER; PL,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=5.3	9-09160-505-0	01	1	0004-	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0004-		●	●	●
122	WASHER; PL,CABLE EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=8.4	9-09160-508-0	01	1	9902-9909	●
122	WASHER; PL,CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=8.4	9-09160-508-0	01	1	9910-	●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	9902-9904	●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	9905-9909	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	9905-9909			●
123	PIN; SNAP,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=17.9	1-09747-002-0	01	1	9910-0003	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	9910-0003		●	●
123	PIN; SNAP,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=17.9	1-09747-002-0	01	1	0004-	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0004-		●	●	●
123	PIN; SNAP,CABLE EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=27.7	1-09747-005-0	01	1	9902-9909	●
123	PIN; SNAP,CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=27.7	1-09747-005-0	01	1	9910-	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9902-9909	●		●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9910-0003	●	●	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0004-	●	●	●	●
363	SPACER; BRKT,ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5)	1-47477-804-3	01	1	9902-	●	●	●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9902-	●	●	●
396	BRACKET; CLIP	1-47478-055-0	01	1	9902-9904	●
396	BRACKET; CLIP	1-47478-055-0	01	1	9905-9909	●		●
396	BRACKET; CLIP	1-47478-055-0	01	1	9910-0003	●	●	●
396	BRACKET; CLIP	1-47478-055-0	01	1	0004-	●	●	●	●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	9902-	●
404	CLIP; CABLE (C) ID=9 L=40	9-09524-875-0	01	1	9902-9904	●
404	CLIP; CABLE (C) ID=9 L=40	9-09524-875-0	01	1	9905-9909	●		●
404	CLIP; CABLE (C) ID=9 L=40	9-09524-875-0	01	1	9910-0003	●	●	●
404	CLIP; CABLE RLD GOVERNOR(SD7) (C) ID=9 L=40	9-09524-875-0	01	1	0004-	●
404	CLIP; CABLE (C) ID=9 L=40	9-09524-875-0	01	1	0004-		●	●	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=11 L=20	9-09525-035-0	01	1	9902-	●	●	●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	9905-9909			●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	9910-0003		●	●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	0004-		●	●	●
405	BOLT; CABLE CLIP (A) M8X16 FLANGE	0-28080-816-0	02	1	9902-9904	●
405	BOLT; CABLE CLIP (A) M8X16 FLANGE	0-28080-816-0	02	1	9905-9909	●		●
405	BOLT; CABLE CLIP (A) M8X16 FLANGE	0-28080-816-0	02	1	9910-0003	●	●	●
405	BOLT; CABLE CLIP (A) M8X16 FLANGE	0-28080-816-0	02	1	0004-	●	●	●	●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) M6X16 FLANGE	0-28080-616-0	02	1	9902-9909	●
405	BOLT; CABLE CLIP EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) M6X16 FLANGE	0-28080-616-0	02	1	9910-	●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) (B) M8X20 FLANGE	0-28680-820-0	01	1	9902-	●	●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9902-9904	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-9909	●		●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9910-0003	●	●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	0004-	●	●	●	●
407	BOLT; CLIP TO ENG EXC. ELECTRONIC GOV RED3(KG5) M8X12 FLANGE	0-28080-812-0	01	1	9902-	●	●	●
603	BRACKET; ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5)	1-14319-140-0	01	1	9902-	●	●	●
646	NUT; BRKT,LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9902-	●	●	●
657	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=11 L=20	9-09525-035-0	01	1	9902-	●	●	●
658	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (A) ID=9 H=20 L=50	1-09700-084-0	01	1	9902-	●	●	●
658	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9902-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
